Hubbell GAI-Tronics Clean Phone 1193 User manual

Pub. 502-20-0160-002 iss1
GAI-Tronics, a division of Hubbell Ltd, Brunel Drive Burton upon Trent DE13 0BZ, UK
[phone] ◼Fax: [phone]
VISIT WWW.HUBBELL.COM/GAI-TRONICS/EN FOR PRODUCT LITERATURE AND MANUALS
G A I - T R O N I C S ®
A D I V I S I O N O F H U B B E L L L T D
VoIP Clean Phone® Telephones
(1193 Version)
TA B L E O F CO N T E N T S
Confidentiality Notice...............................................................................................................3
Safety and Care Information....................................................................................................3
Product Overview......................................................................................................................4
Models................................................................................................................................................5
System Requirements and Limitations...........................................................................................5
Features and Functions ....................................................................................................................6
Operation...................................................................................................................................6
Placing an Autodial Call from a VoIP Clean Phone®....................................................................6
Placing a General Telephone Call ...................................................................................................6
Receiving a Call.................................................................................................................................6
Monitoring and Reporting...............................................................................................................6
Installation ................................................................................................................................8
General Information.........................................................................................................................8
Station Placement..............................................................................................................................8
Model 116-02-0418-00W (Flush mounting)....................................................................................9
Model 116-02-0418-01W (Surface mounting)...............................................................................13
Setup........................................................................................................................................15
Field Wire Installation....................................................................................................................15
Power........................................................................................................................................................... 15
Network ....................................................................................................................................................... 16
I/O................................................................................................................................................................ 17
Recommended Cabling................................................................................................................................ 18
VoIP Telephone Input Contacts ....................................................................................................18
VoIP Telephone Output Contacts .................................................................................................18
Status Indication .............................................................................................................................18
ON................................................................................................................................................................ 18
Heartbeat......................................................................................................................................................18
LINK............................................................................................................................................................ 18
Programming ..........................................................................................................................19
Maintenance............................................................................................................................20
General Information.......................................................................................................................20
Service..............................................................................................................................................20
Troubleshooting..............................................................................................................................21

PUB.502-20-0160-002 iss 1
VOIP CLEAN PHONE®TELEPHONES PAGE ii of 24
GAI-Tronics, a division of Hubbell Ltd, Brunel Drive Burton upon Trent DE13 0BZ, UK
[phone] ◼Fax: [phone]
VISIT WWW.HUBBELL.COM/GAI-TRONICS/EN FOR PRODUCT LITERATURE AND MANUALS
Specifications ..........................................................................................................................22

Pub. 502-20-0160-002 iss 1
G A I - T R O N I C S ® C O R P O R A T I O N
A H U B B E L L C O M P A N Y
VoIP Clean Phone® Telephones
Confidentiality Notice
This manual is provided solely as an installation, operation, and maintenance guide and contains
sensitive business and technical information that is confidential and proprietary to GAI-Tronics. GAI-
Tronics retains all intellectual property and other rights in or to the information contained herein, and
such information may only be used in connection with the operation of your GAI-Tronics product or
system. This manual may not be disclosed in any form, in whole or in part, directly or indirectly, to
any third party.
Safety and Care Information
The safety instructions for these products are contained in a separate document, no 502-20-0171-001,
which is included as a paper copy with every individual telephone and is available online from:
https://www.hubbell.com/gai-tronics/en/iom-user-guides

PUB.502-20-0160-002 iss 1
VOIP CLEAN PHONE®TELEPHONES PAGE 4 of 24
Product Overview
The GAI-Tronics Model 116-02-0418-00W Flush-Mount and Model 116-02-0418-01W Wall-Mount
VoIP Clean Phone®Telephones are designed for the exacting requirements of clean rooms. They are
constructed of stainless steel and have a completely smooth polyester front panel that will not trap
particulate matter. Calls are made by pressing one of the three auto-dial buttons or by using the fully
functional keypad. The oversized, clearly labeled buttons allow for easy operation with gloved hands.
The VoIP Clean Phone® Telephones are designed for connection to a 10/100 BaseT Ethernet network.
These telephones will operate from Power-over-Ethernet or an external power source. The VoIP
telephones provide direct point-to-point communications between personnel throughout the facility
over the existing LAN.

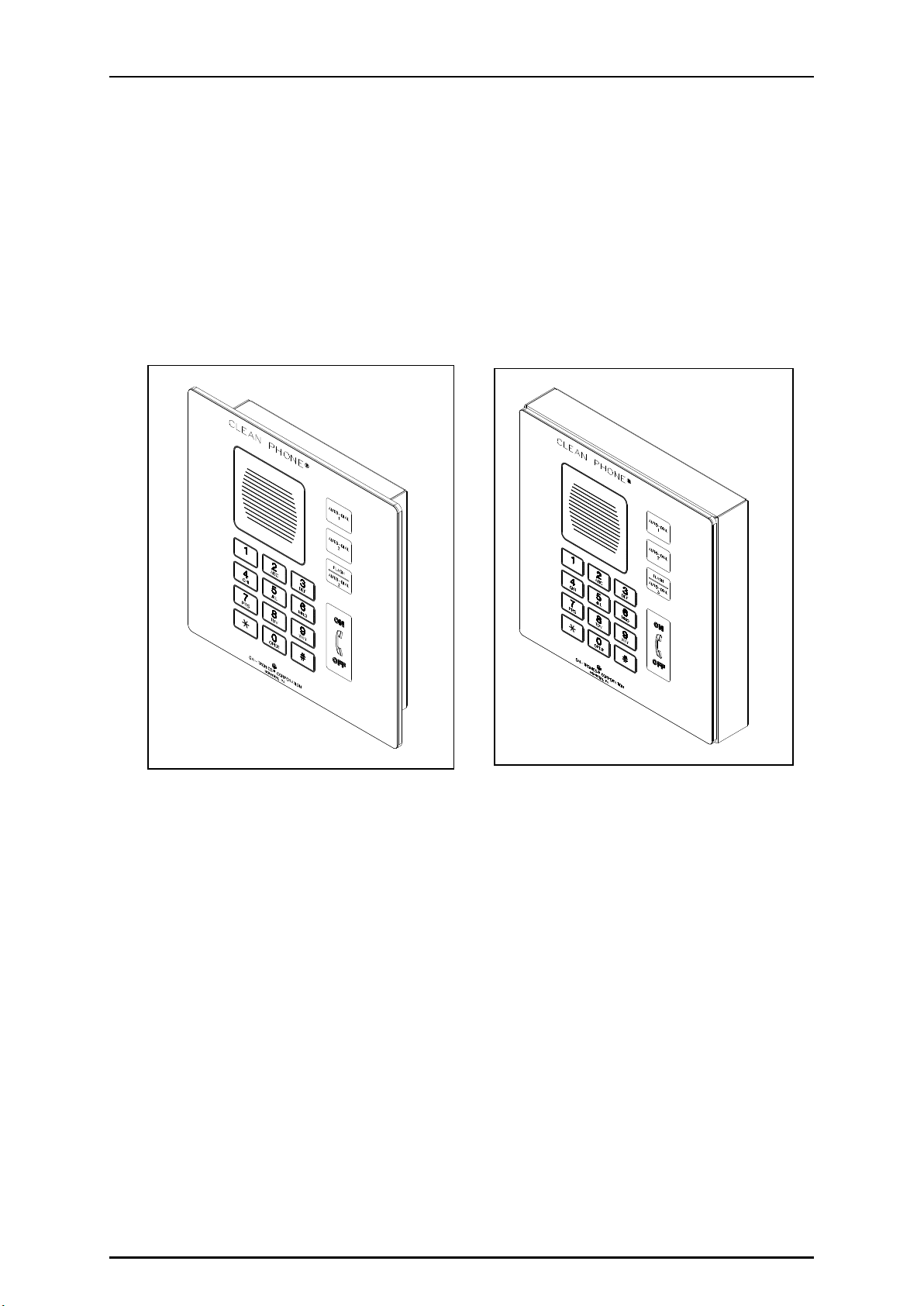

Figure 1. Model 116-02-0418-00W
Figure 2. Model 116-02-0418-01W

PUB.502-20-0160-002 iss 1
VOIP CLEAN PHONE®TELEPHONES PAGE 5 of 24
Models
The following VoIP Clean Phone®Telephones are detailed in this manual:
Table 1. Model Chart
Model
Description
116-02-0418-01W
Surface-Mount VoIP Telephone including a stainless steel front panel with
polyester overlay, three autodial buttons, hookswitch push button, off-hook
indicator, keypad, and stainless steel surface-mount enclosure.
116-02-0418-00W
Flush-Mount VoIP Telephone including stainless steel front panel with polyester
overlay; three autodial buttons, hookswitch push button, off-hook indicator,
keypad, and stainless steel mounting bracket.
These product ranges incorporate a main VoIP PCB part numbered 999-02-1193-xxx. The products
are often referred to as “1193” versions to distinguish them from the previous ranges of VoIP
telephones, which were based on a 1075 PCB.
System Requirements and Limitations
The VoIP Telephones require Power-over-Ethernet or a local 24–48 V dc power source for operation.
Two VoIP telephones can be connected in a peer-to-peer configuration without the need for a LAN.
However, a 10/100 BaseT Ethernet with SIP Server is required for systems containing three or more
VoIP Telephones. Conferences are limited by the customer’s LAN media capabilities and the
services available at each end point.

PUB.502-20-0160-002 iss 1
VOIP CLEAN PHONE®TELEPHONES PAGE 6 of 24
Features and Functions
The Clean Phone®Telephone’s voice-over-internet protocol (VoIP) include the following features:
•SIP compatible (RFC3261)
•Automatic call divert (memory list)
•Real-time alarm reporting via SNMP or TMA software
•Configurable via web page or download
•Four auxiliary inputs; two volt-free contact outputs
Operation
Placing an Autodial Call from a VoIP Clean Phone®
To place an autodial call:
1. Press the desired autodial push button to place an immediate call to a preprogrammed number.
2. When the call is connected, the hookswitch indicator will light.
3. The call is terminated by the following: pressing the ON/OFF push button, or the receiving caller
hanging up, or the defined timeout of the call duration, or via the SIP Server.
Placing a General Telephone Call
To place a general telephone call:
1. Press the ON/OFF push button.
2. Wait for the dial tone.
3. Use the keypad to dial the desired number.
4. When the call is connected, the “off-hook” indicator will light.
5. The call is terminated by one of the following methods: pressing the ON/OFF push button, the
receiving caller hanging up, call duration timeout, or via the SIP Server.
Receiving a Call
When a VoIP Clean Phone® rings, press the ON/OFF push button to answer the call. The unit can be
configured to autoanswer if required (see configuration guide).
Monitoring and Reporting
Each telephone can recognize and generate several hardware and configuration fault condition alarms.
These alarms can be signaled to a remote site using three methods:
•SNMP (v2)
•Telephone Management Application (TMA) software (purchased separately)
Available alarms are:
•Configuration error
•Cold reset (power cycle)
•Warm reset (internal command)

PUB.502-20-0160-002 iss 1
VOIP CLEAN PHONE®TELEPHONES PAGE 7 of 24
•Keypad error (if applicable)
•Key hook (off hook status, if applicable)
•Register fail
•Audio Path Test (speaker/microphone test)

PUB.502-20-0160-002 iss 1
VOIP CLEAN PHONE®TELEPHONES PAGE 8 of 24
Installation
General Information
CAUTION
Do not install this equipment in areas other than those indicated on the
approval standards listing in the “Specifications” section of this manual. Such installation may
cause a safety hazard and consequent injury or property damage.
In particular this equipment should not be installed outdoors.
Note that these instructions cover 2 models with differing mounting arrangements–please select the
appropriate model from the sections which follow.
Station Placement
To prevent feedback problems in the system, volume settings and station placement must be taken
into consideration. Unpleasant feedback problems can be reduced by:
•Pointing the telephone away from other telephones located nearby
•Reducing volume levels
Feedback problems can be avoided by installing each VoIP Clean Phone®in a separate room and
wall.

PUB.502-20-0160-002 iss 1
VOIP CLEAN PHONE®TELEPHONES PAGE 9 of 24
Model 116-02-0418-00W (Flush mounting)
The mounting and wiring instructions are as follows:
1. Remove the front panel from the back bracket.

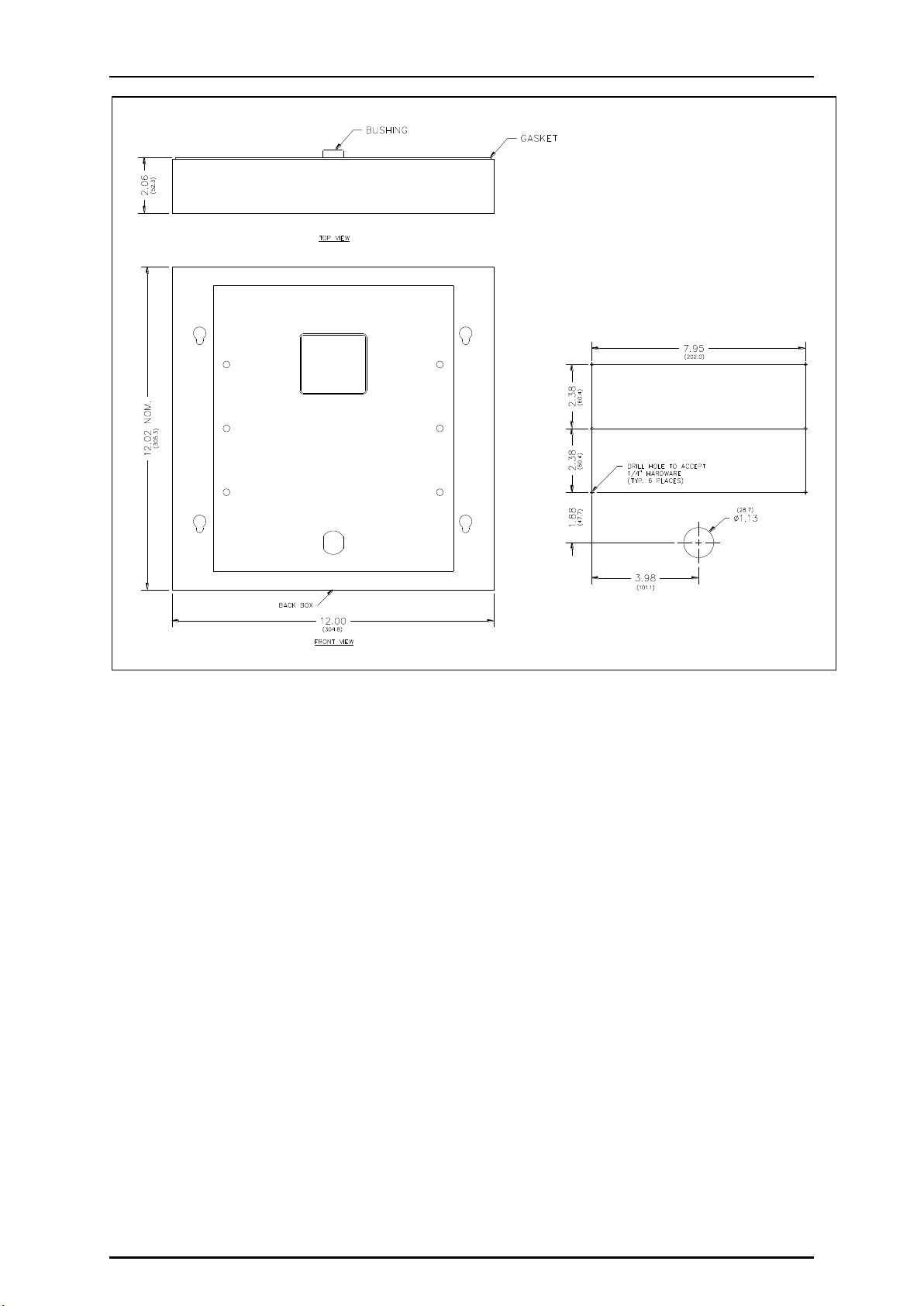

2. Refer to Figure 5 on page 11 for cut-out details. Use the cut-out dimensions as a guide to mark
the wall, and make the required cuts.
3. If using Power-over-Ethernet, without any optional inputs or
outputs, place the bushing around the Ethernet cable so that it
is located approximately 120mm from the end of the cable.
Snap the bushing closed and insert into the double “D” hole in
the bottom of the back bracket. See Figure 3 and Figure 6.
4. If using local power or optional inputs or outputs, route the
cables through the “D” hole in the bottom of the back bracket.
See Figure 6.
5. Place the back bracket in the wall. Locate the mounting holes
you intend to use and mark them for drilling. Refer to Figure
6. Do not use the bracket as a template for drilling.
6. Drill mounting holes and secure the bracket with screws.
7. Plug in the Ethernet cable and connect other optional cables as shown in the “Field Wire
Installation” section on page 15.
8. Perform the initial programming of the telephone. Refer to the “Programming” section beginning
on page 19.
9. Take the front panel of the VoIP Clean Phone® and align it with four slots in the back bracket.
10. Press the panel in firmly and then push downward to seat the panel in the slots.
NOTE:The Model 116-02-0418-00W is designed for general wipe down cleaning and to prevent
collection (internally and externally) of particulate matter. Additional protection against moisture can
be attained by sealing between the outer edge of the telephone panel and the mounting surface with
silicone or RTV. Any sealing substance used must be verified to be compatible with cleaning
solutions used.
Figure 3. Bushing

PUB.502-20-0160-002 iss 1
VOIP CLEAN PHONE®TELEPHONES PAGE 10 of 24

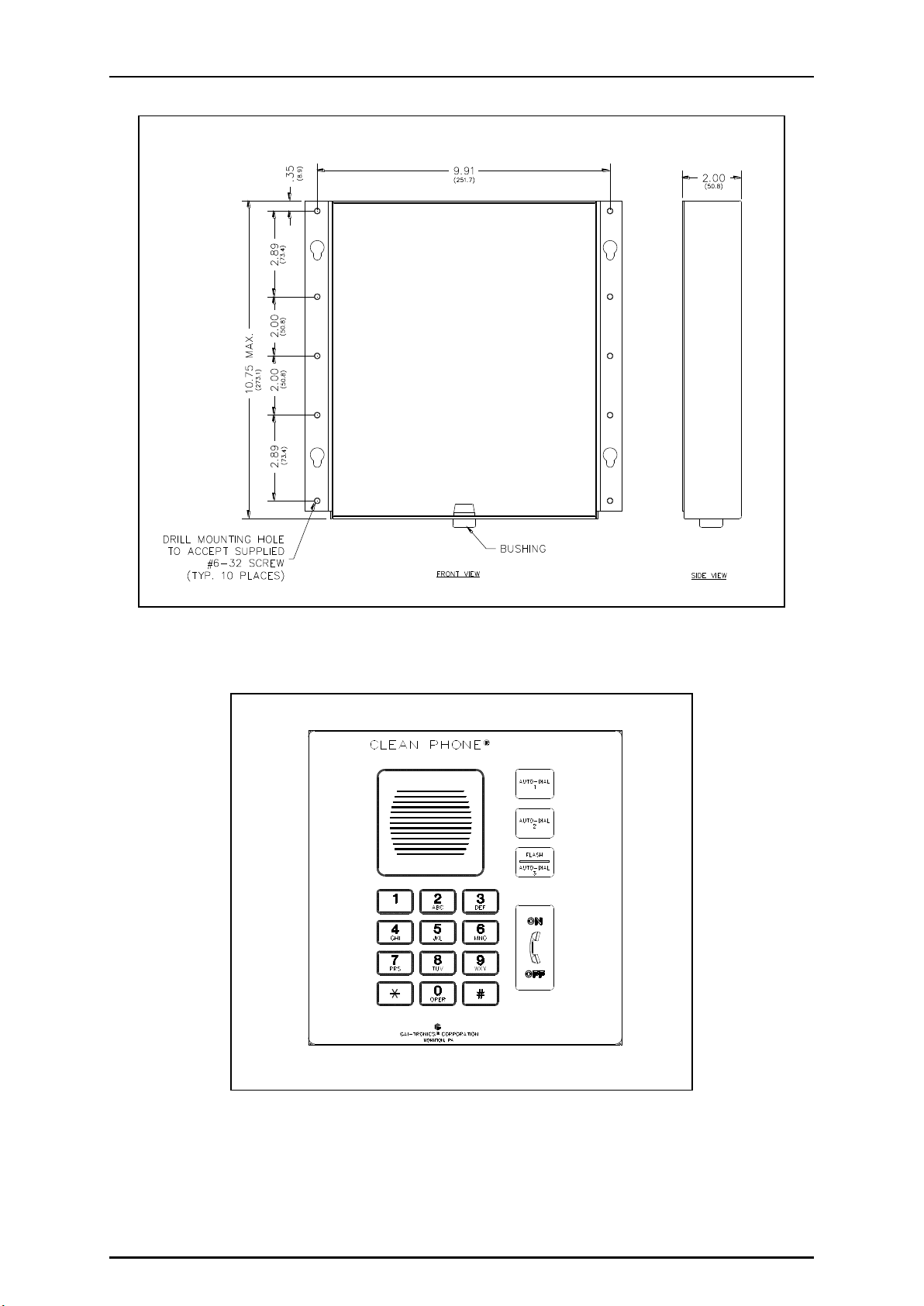

Figure 4. Inside Front Panel
