Hubbell Dual-Lite UFO-LP1 User manual

INSTALLATION INSTRUCTIONS
! IMPORTANT SAFEGUARDS !
WHEN USING ELECTRICAL EQUIPMENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE
FOLLOWED, INCLUDING THE FOLLOWING:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1. To prevent high voltage from being present on red & yellow output leads prior to installation, inverter
connector must be open. Do not join inverter connector until installation is complete and AC power is
supplied to the emergency ballast.
2. This product is for use with most 14W through 54W (2'- 4')T5 bipin, 22WT5 circular, 36W through 55W
(4-pin) long compact, or 32W (4-pin) compact, 32 W (4'), 40 W (5') and 44 W HO (4') T8 bipin
fluorescent lamps.
3. Make sure all connections are in accordance with the National Electrical Code and any local
regulations.
4. To reduce the risk of electric shock, disconnect both normal and emergency power supplies and
inverter connector of the emergency ballast before servicing.
5. This emergency ballast is for factory or field installation in the ballast channel or on top of fixture.
6. This product is for use in indoor fixtures except air handling heated air outlets, and wet, damp, or
hazardous locations.
7. An unswitched AC power source is required (120 or 277 VAC, 60 Hz).
8. Do not install near gas or electric heaters.
9. Do not attempt to service the battery. A sealed, no-maintenance battery is used that is not field
replaceable. Contact the manufacturer for information on service.
10. The use of accessory equipment not recommended by the manufacturer may cause an unsafe
condition.
11. Do not use this product for other than intended use.
12. Servicing should be performed by qualified service personnel.
SAVE THESE INSTRUCTIONS
10/23/09
WARNING – This product contains chemicals known to the State of California to cause cancer, birth defects and/or other
reproductive harm. Thoroughly wash hands after installing, handling, cleaning, or otherwise touching this product.
©
Hubbell Lighting, Inc. • 701 Millennium Blvd • Greenville, SC 29607 • [phone] • FAX [phone] • www.dual-lite.com
70100524
UFO-LP1
Ni - Cd
CONTAINS NICKEL-CADMIUM
RECHARGEABLE BATTERY.
MUST BE RECYCLED OR
DISPOSED OF PROPERLY.

2
INSTALLATION
NOTE: Make sure that the necessary branch circuit wiring is available. An unswitched source of power is required. The emergency ballast
must be fed from the same branch circuit as the AC ballast.
1. Disconnect AC power from the fixture. Remove the
ballast channel cover and install the emergency ballast
in the ballast channel (see Illustration 1).
2. Select the appropriate wiring diagram to connect
the emergency ballast to the AC ballast and lamp.
Make sure all connections are in accordance with the
National Electrical Code and any local regulations.
3. Refer to Illustration 2 and install the test switch through
the ballast channel cover of a troffer or through the side
of a strip fixture. Drill a 1/2" hole and install the switch
as shown. Wire the test switch so that it removes AC
power from both the emergency ballast and the AC
ballast at the same time (see wiring diagrams section of
these instructions).
4. Refer to Illustration 3A or 3B and install the charging
indicator light so that it will be visible after the fixture is
installed.
5. In a readily visible location, attach the label
“CAUTION– This Unit Has More Than One Power
Connection Point. To Reduce The Risk Of Electric
Shock, Disconnect Both The Branch Circuit-Breakers
Or Fuses And Emergency Power Supplies Before
Servicing.”
6. After installation is complete, supply AC power to the
emergency ballast and join the inverter connector.
7. A short-term discharge test may be conducted after
the emergency ballast has been charging for one hour.
Charge for 24 hours before conducting a long-term
discharge test. Refer to OPERATION.
NOTE: After installing the charging indicator light and test switch, mark each with the appropriate label. If a
detached charging indicator light is used, connect by matching wire colors and install as shown on the
installation insert page.
WARNING: TO PREVENT HIGH VOLTAGE FROM BEING PRESENT ON RED & YELLOW OUTPUT
LEADS PRIOR TO INSTALLATION, INVERTER CONNECTOR MUST BE OPEN. DO NOT jOIN
INVERTER CONNECTOR UNTIL INSTALLATION IS COMPLETE AND AC POWER IS SUPPLIED
TO THE EMERGENCY BALLAST.

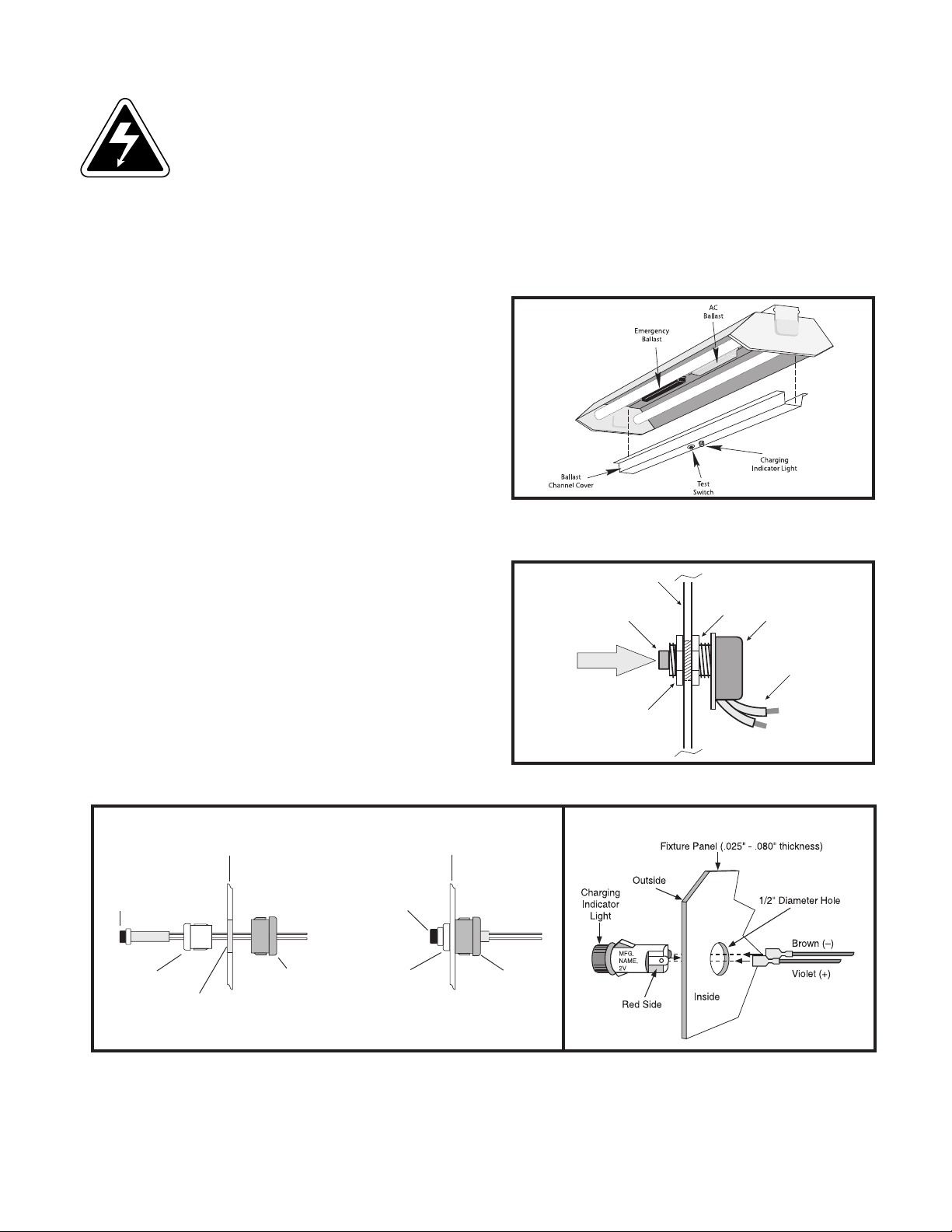

ILLUSTRATION 3B
STEP 2
ILLUSTRATION 3A
ILLUSTRATION 1
ILLUSTRATION 2
STEP 1
Fixture
Test Button
Hex Nut
Hex Nut
Test Switch
Leads
Push to Test
Charging
Indicator
Light
1/2" White
Bushing
Violet (+)
Brown (–)
Violet (+)
Brown (–)
1/2" White
Bushing
5/8" Black
Bushing
5/8" Black
Bushing
1/2" Punch
Fixture Fixture
Charging
Indicator
Light

OPERATION
With AC power applied, the charging indicator light is illuminated, indicating that the battery is being charged.
When power fails, the emergency ballast automatically switches to emergency power, operating one lamp at
reduced illumination. When AC power is restored, the emergency ballast returns to the charging mode and delays
AC ballast operation for five seconds to prevent false-tripping of AC ballast (end-of-lamp-life) shutdown circuits.This
emergency ballast will operate 14 W through 55 W lamps for a minimum of 90 minutes.
MAINTENANCE
Although no routine maintenance is required to keep the emergency ballast functional, it should be checked
periodically to ensure that it is working. The following schedule is recommended:
1. Visually inspect the charging indicator light monthly. It should be illuminated.
2. Test the emergency operation of the fixture at 30-day intervals for a minimum of 30 seconds. One lamp
should operate at reduced illumination.
3. Conduct a 90-minute discharge test once a year. One lamp should operate at reduced illumination for at
least 90 minutes.
REFER ANY SERVICING INDICATED BY THESE CHECkS TO QUALIFIED PERSONNEL.
3
LAMP
RED
YEL/BLK
YELLOW
BLU/WHT
BLUE
1 LAMP
RAPID
START
BALLAST
RED
BLUE
BLUE RED
WHT
BLK
WHITE
B
A
L
L
A
S
T
VIOLET
BROWN
WHT/BLK
BLK
E
M
E
R
G
E
N
C
Y
RED
WHITE
TEST
SWITCH
HOT WHT/RED
CHARGING
INDICATOR
LIGHT
INVERTER
CONNECTOR
BLACK 120V
OR
ORANGE 277V
(CAP UNUSED LEAD)
COM BLK
WALL SWITCH
LAMP
RED
YEL/BLK
YELLOW
BLUE
1 LAMP
INSTANT
START
BALLAST
WHT
BLK
BLUE RED
BLU/WHT
WHITE
B
A
L
L
A
S
T
VIOLET
BROWN
WHT/BLK
BLK
E
M
E
R
G
E
N
C
Y
RED
WHITE
TEST
SWITCH
HOT WHT/RED
CHARGING
INDICATOR
LIGHT
INVERTER
CONNECTOR
BLACK 120V
OR
ORANGE 277V
(CAP UNUSED LEAD)
COM BLK
WALL SWITCH
)
(EMERGENCY
LAMP 1
LAMP 2
RED
YEL/BLK
YELLOW
BLU/WHT
BLUE
2 LAMP
RAPID
START
BALLAST
RED
BLUE
WHT
BLK
RED
BLUE
YELLOW
YELLOW
WHITE
B
A
L
L
A
S
T
VIOLET
BROWN
WHT/BLK
BLK
E
M
E
R
G
E
N
C
Y
RED
WHITE
TEST
SWITCH
HOT WHT/RED
CHARGING
INDICATOR
LIGHT
INVERTER
CONNECTOR
BLACK 120V
OR
ORANGE 277V
(CAP UNUSED LEAD)
COM BLK
WALL SWITCH
)
(EMERGENCY
LAMP 1
RED
YEL/BLK
YELLOW
BLUE
2 LAMP
INSTANT
START
BALLAST
WHT
BLK
BLUE
RED
BLU/WHT
LAMP 2
BLUE
WHITE
B
A
L
L
A
S
T
VIOLET
BROWN
WHT/BLK
BLK
E
M
E
R
G
E
N
C
Y
RED
WHITE
TEST
SWITCH
HOT WHT/RED
CHARGING
INDICATOR
LIGHT
INVERTER
CONNECTOR
BLACK 120V
OR
ORANGE 277V
(CAP UNUSED LEAD)
COM BLK
WALL SWITCH
FIG 119 ONE (1) LAMP INSTANT START BALLAST
FIG 99 ONE (1) LAMP RAPID START BALLAST
FIG 100 TWO (2) LAMP RAPID START BALLAST FIG 104 TWO (2) LAMP INSTANT START BALLAST
EMERGENCY BALLAST AND AC BALLAST MUST BE FED FROM THE SAME BRANCH CIRCUIT
TYPICAL SCHEMATICS ONLY. MAY BE USED WITH OTHER BALLASTS. CONSULT THE FACTORY FOR OTHER WIRING DIAGRAMS.
WIRING DIAGRAMS FOR 1-LAMP EMERGENCY OPERATION
