Installation •Operation •Care
Alustra®Woven Textures®
Roman Shades
EasyRise™,UltraGlide®,and LiteRise®Lifting Systems

CONTENTS
Questions?
Call the Hunter Douglas Customer Information Center at
1-888-501-8364.
© 2015 Hunter Douglas. All rights reserved. All trademarks used herein are the property of Hunter Douglas.
Getting Started:
Product View ................................................................................................ 1
Tools and Fasteners Needed ......................................................................... 2
Installation:
Installation Overview .................................................................................... 3
Mount the Installation Brackets — Inside Mount............................................. 4
Mount the Installation Brackets — Outside Mount .......................................... 5
Install the Shade ........................................................................................... 6
Attach the Optional Components.................................................................... 6
Attach the Universal Cord Tensioner — EasyRise™ Only................................... 8
Alustra® Independently Operated Liner with PowerView™ Motorization .............. 8
Operation:
Operate the Shade........................................................................................ 9
Alustra®Independently Operated Liner with PowerView™Motorization ........... 11
Troubleshooting .......................................................................................... 12
Care:
Removing the Shade (If Necessary) .............................................................. 13
Cleaning Procedures ................................................................................... 13
Child Safety:
Warning ..................................................................................................... 14
Cord Loop Shades....................................................................................... 14

GETTING STARTED
1

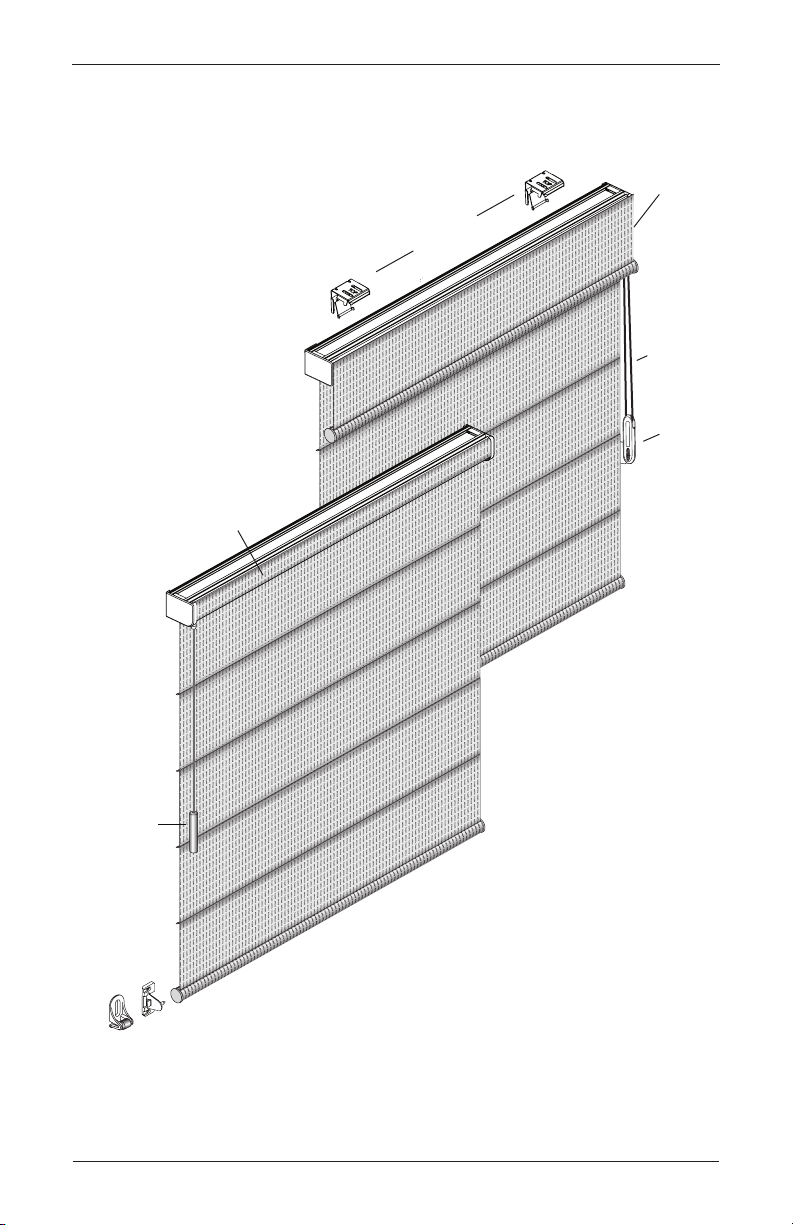

Product View
EasyRise
™
Shade
UltraGlide
®
Shade
Cord
T
ensioner
and
Bracket
Cord Loop
Installation
Brackets
Tassel
Fabric Wrapped
Headrail
Fabric
Valance
Magnetic
Hold-Down
Bracket
(Optional)
Standard
Hold-Down
Bracket
(Optional)
Not Shown: Top-Down/Bottom-Up and LiteRise
®
Shades

2
GETTING STARTED
Thank you for purchasing Hunter Douglas Alustra®Woven Textures®Roman Shades. With proper
installation, operation, and care, your new shades will provide years of beauty and performance.
Please thoroughly review this instruction booklet and the enclosed packing list before beginning
the installation.

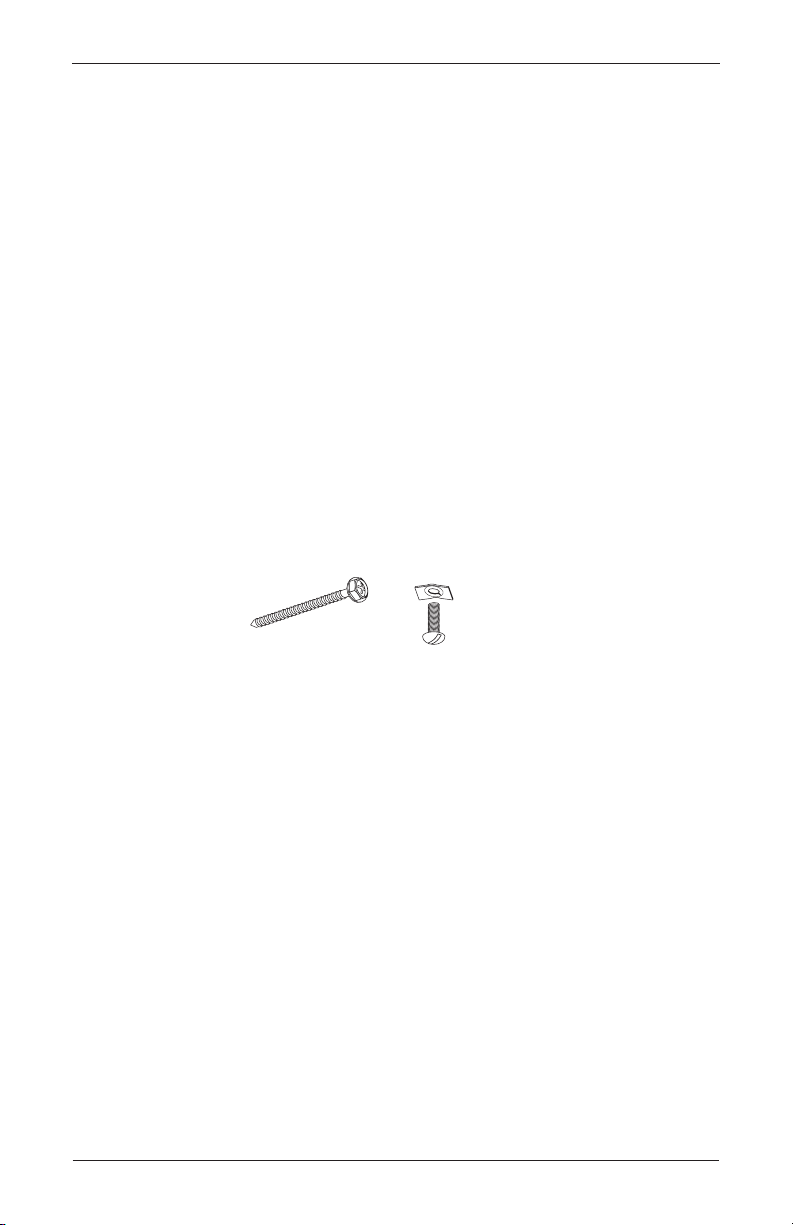

Tools and Fasteners Needed
■Flat blade and Phillips screwdrivers
■Level (laser level is recommended)
■Measuring tape and pencil
■Power drill, 3∕32" drill bit, and 1∕4" hex driver
In addition, you will need fasteners designed to work with your specific mounting surface(s).
■#6 Hex Head Screws (Provided). Two 1¼" screws are provided per installation bracket.
■Speed Nuts and Screws (Provided). Extension brackets come with speed nuts
and screws.
■Drywall Anchor (Not Provided). Use drywall anchors when mounting into drywall.
Speed Nuts
and Screws
(Provided with Each
Extension Bracket)
#6 x 1
1
/ 2 "
Hex Head Screws
(Provided)

INSTALLATION
3

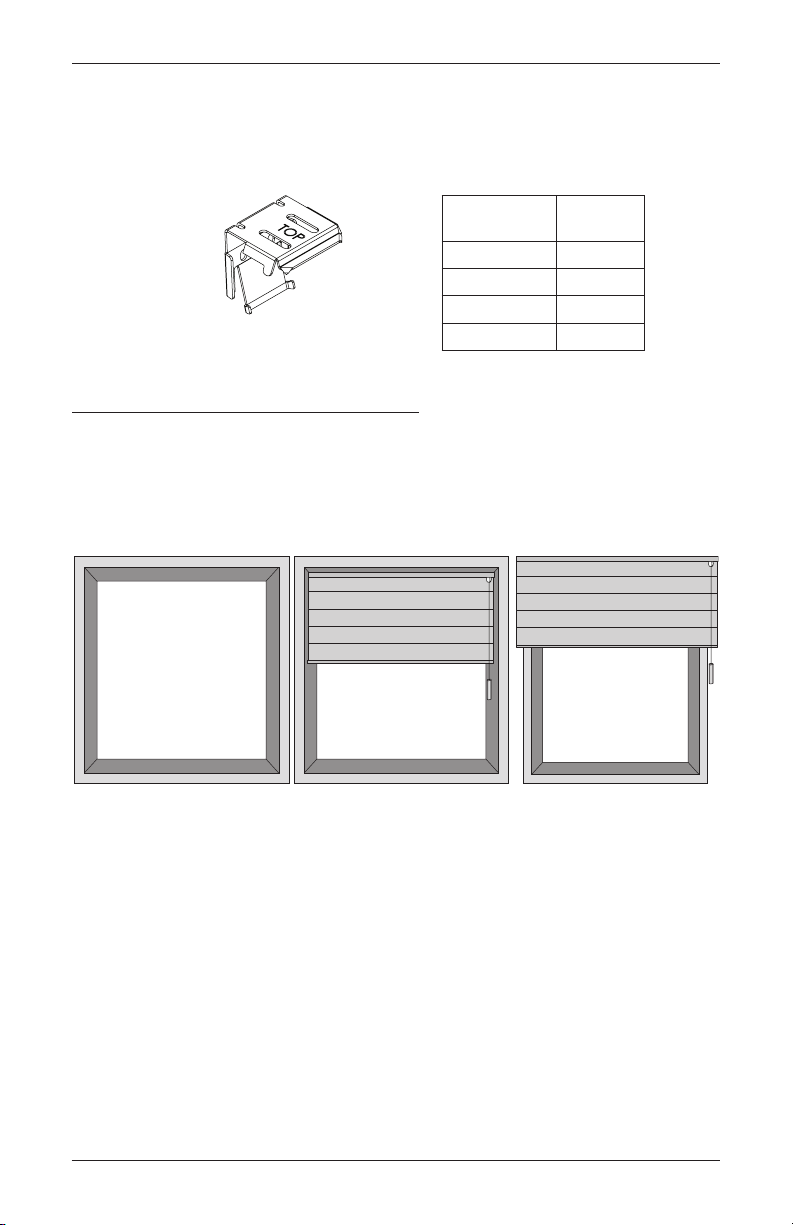

Installation Overview
■Your order will include the correct number of installation brackets for your shade width, as
shown in the table below.
Mounting Types and Window Terminology
If the installation brackets are mounted correctly, the rest of the installation process follows
easily. To prepare for this important first step, review the mounting types and basic window
terminology illustrated below.
■Refer to the appropriate page below based on your order:
➤Inside Mount — Page 4
➤Outside Mount — Page 5
Installation
Bracket
Shade
Width Brackets Required
15" – 36" 2
361/8" – 72" 3
721/8" – 108" 4
1081/8" – 120" 5
Outside Mount
Shade mounts outside
window opening.
Inside Mount
Shade fits within
window opening.
Collectively, the sill and
jambs are called the
“window casement.”
Molding
Head Jamb
Sill
Jamb Jamb

INSTALLATION
4

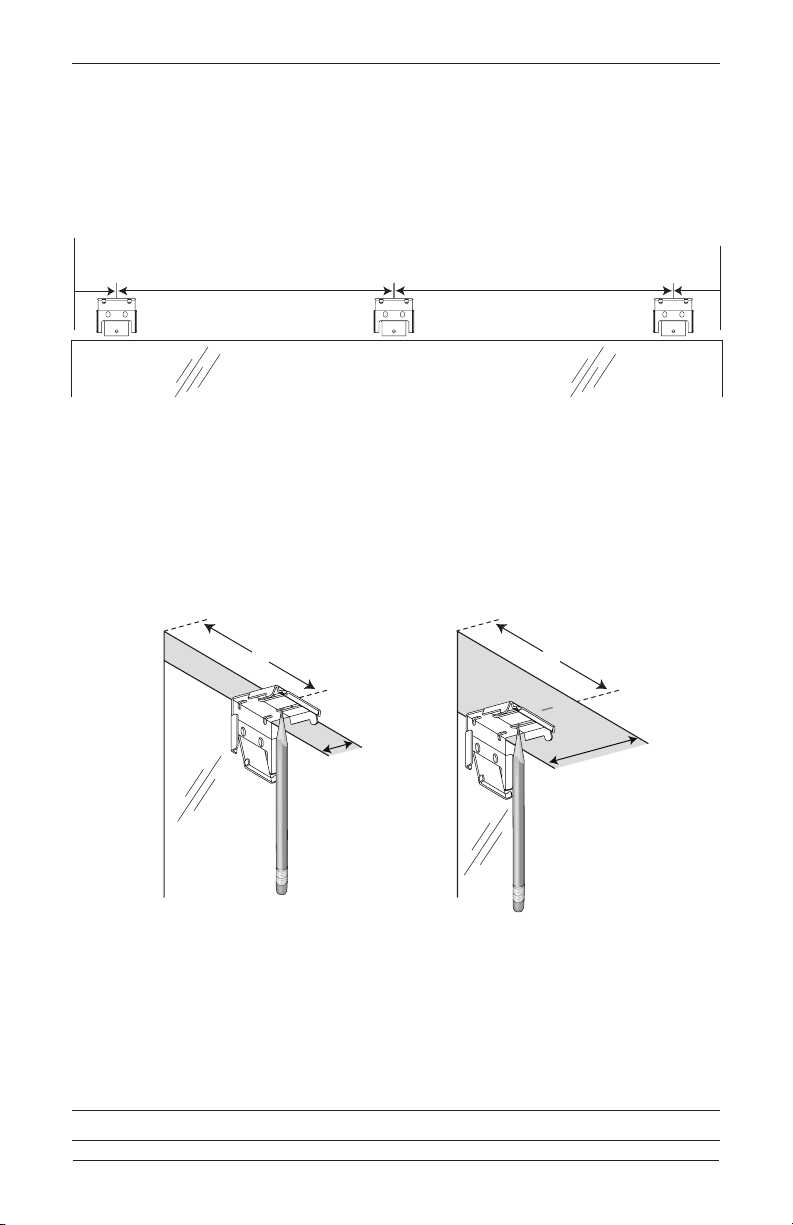

Mount the Installation Brackets — Inside Mount
■Mark 3" in from each jamb.
➤If more than two installation brackets came with your order, space additional bracket(s)
evenly between the two end brackets and mark their location. Mount into wood
whenever possible.
■Center the brackets on your marks, then mark each of the screw holes.
➤For fully recessed mounting, the fabric will be flush with the front of the window
casement, when raised. A minimum depth of 2½" is needed to fully recess your shade.
➤Minimum mounting depth for bracket attachment is 7
/8".
IMPORTANT: The front edges of the installation brackets must be level and aligned.
■Drill the screw holes using a 3/32" drill bit.
■Attach the installation brackets using the screws provided.
➤Check that the mounting surface is level and the brackets are aligned. If mounting to a
heavily textured surface, shim the brackets, if needed.
IMPORTANT: Use drywall anchors when mounting into drywall.
Proceed to “Install the Shade” on page 6.
3" 3"Space EvenlySpace Evenly
Jamb Jamb
Window Opening
Minimum
7/8"
3" 3"
Fully
Recessed
Minimum
2½"

INSTALLATION
5

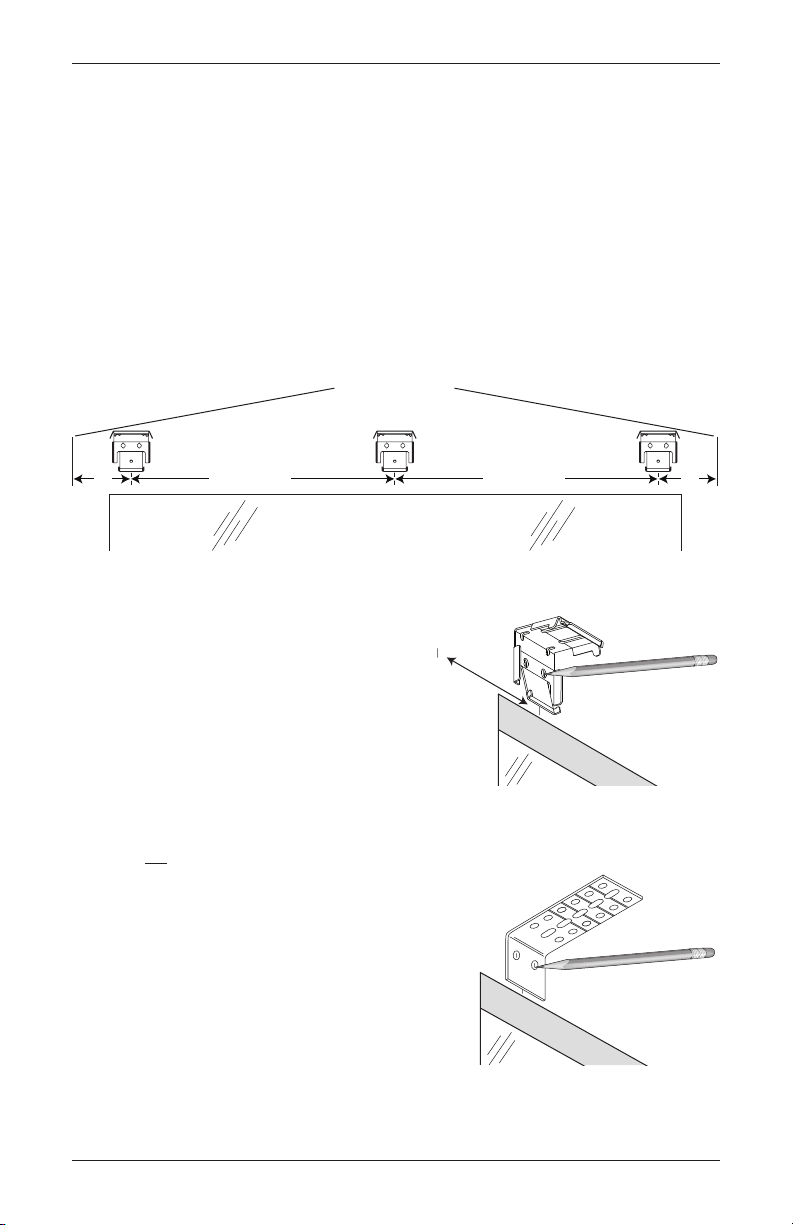

Mount the Installation Brackets — Outside Mount
■Center the headrail over the window opening at the desired height. Use a pencil to lightly
mark each end of the headrail.
➤Alternatively, measure the width of the headrail and use that width to mark the headrail
end points over the window opening.
■Mark 3" in from each end of the headrail.
➤If more than two installation brackets came with your order, space additional bracket(s)
evenly between the two end brackets and mark their location. Mount into wood
whenever possible.
■Center the brackets on your marks and mark the screw holes.
➤A minimum of 13/4" flat vertical surface
is required to mount the brackets.
➤The top of the installation brackets
should be at the desired shade height.
IMPORTANT: The brackets should be
level and aligned.
CAUTION: The rear of the brackets
must be flush against a flat mounting surface.
Do not mount brackets oncurved molding.
■Extension brackets provide up to 1½" of clearance.
If used, mark the center and mark the screw holes.
■Drill the screw holes using a 3∕32" drill bit.
IMPORTANT: Use drywall anchors when mounting
into drywall.
Headrail End Marks
Window Opening
3" 3"
Space EvenlySpace Evenly
3"
Installation
Bracket
Headrail
End Mark
Extension
Bracket

INSTALLATION
6

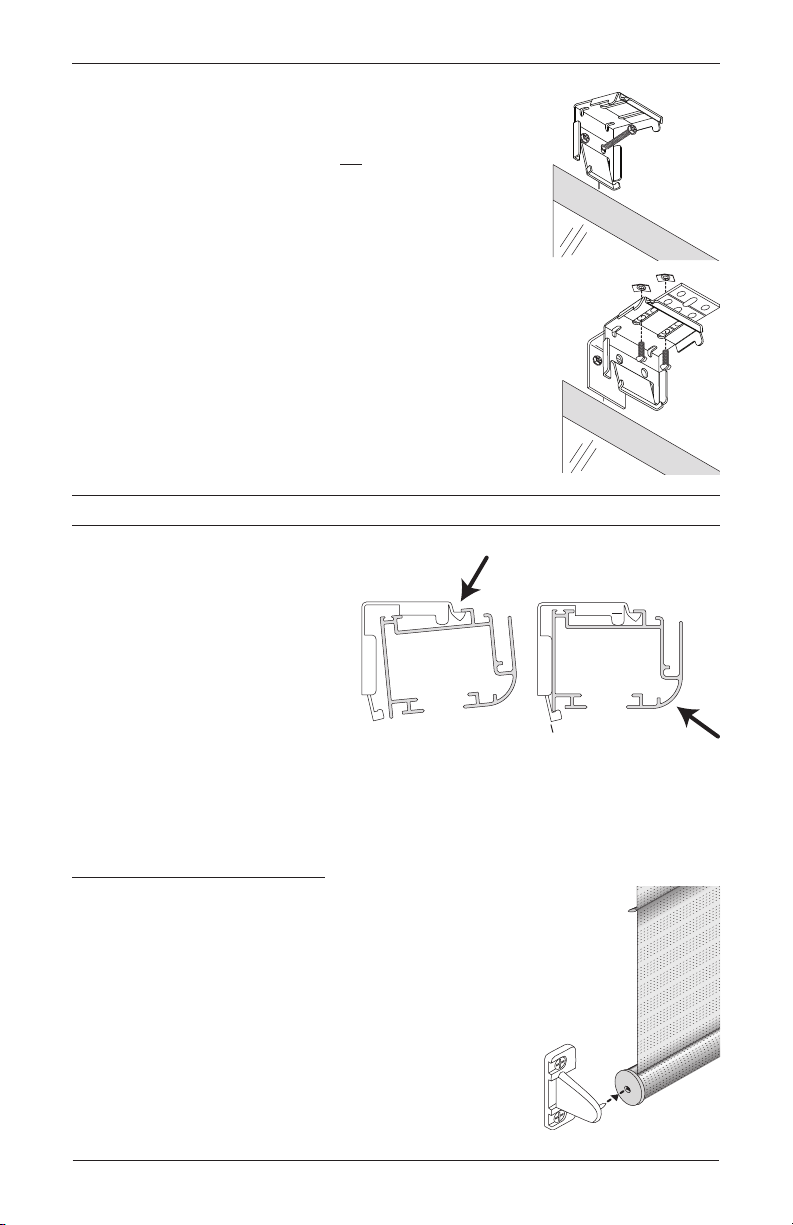

■Attach the installation/extension brackets using the screws provided.
CAUTION: The rear of the installation brackets must be flush
against a flat mounting surface. Do not mount installation
brackets oncurved molding.
■When using extension brackets, attach the installation brackets
using the screws andspeed nuts provided.
Proceed to “Install the Shade” below.

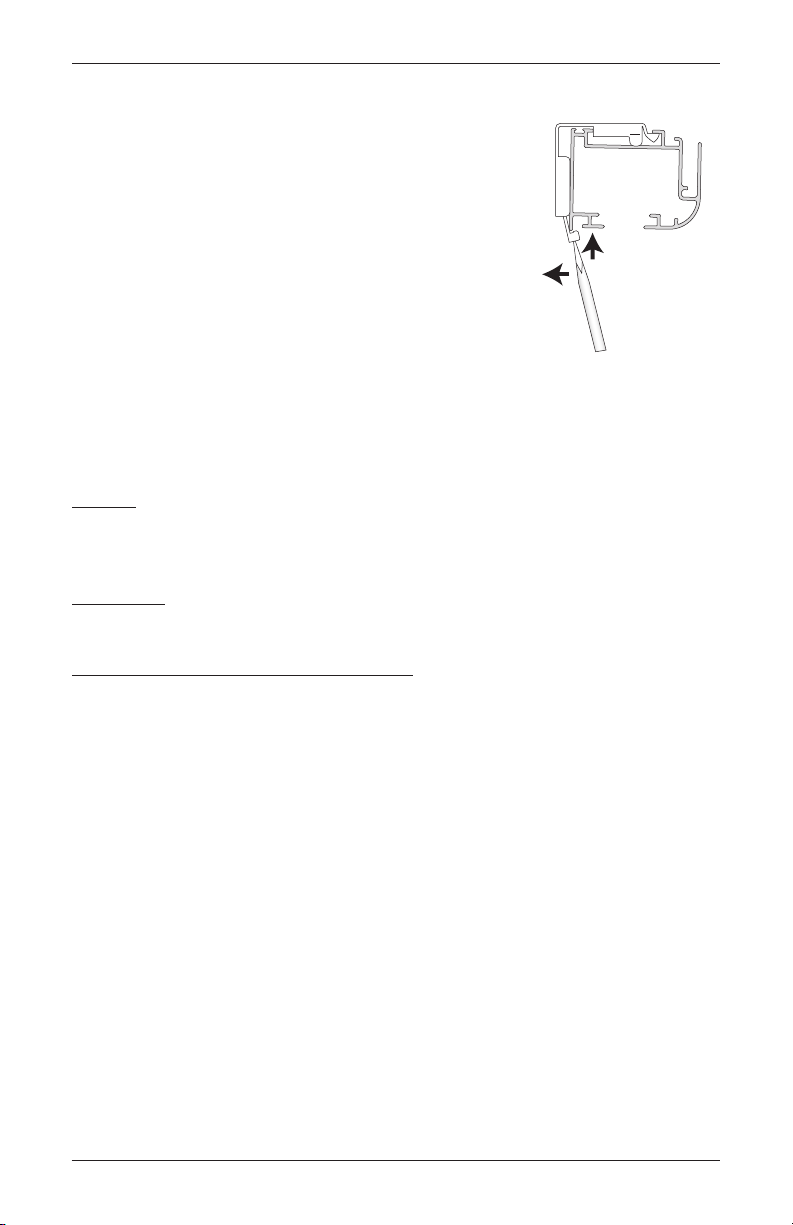

Install the Shade
■With the headrail slightly tilted,
insert the front lip of the headrail
onto the front lip of the installation
bracket.
■Push the headrail back and
up until its bottom lip snaps
into bottom tab on the
installation bracket.
Attach the Optional Components
Standard Hold-Down Brackets
Standard hold-down brackets may be used with outside mount
shades only.
■With the shade fully lowered, insert the pin on the hold-down
bracket into the hole on the bottom rail endcap.
■Mark the hole locations on the mounting surface.
■Position the hold-down brackets over the mounting hole
locations and check their alignment. Attach using twoscrews.
IMPORTANT: Disconnect the bottom rail from the hold-down
brackets to raise the shade.
Insert Front
Lip of Headrail
onto Bracket
Bottom
Tab
Push Up
and Back

INSTALLATION
7

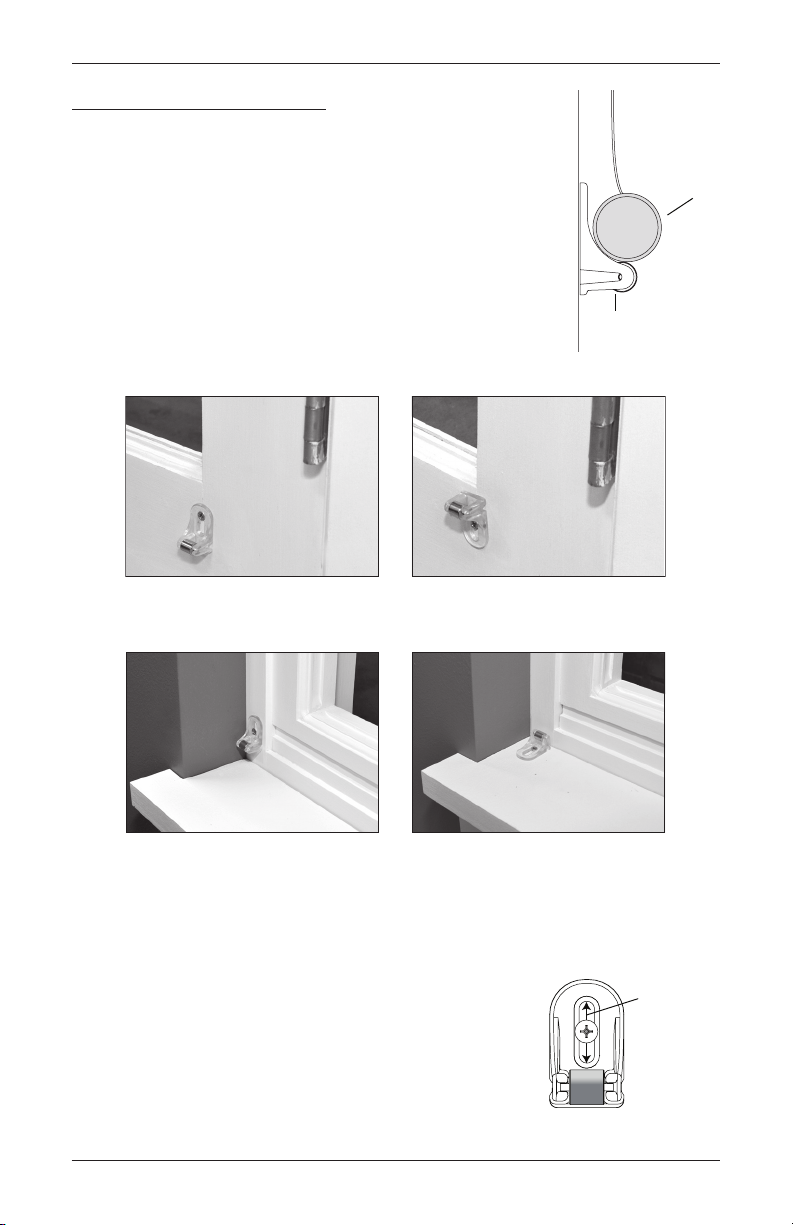

Magnetic Hold-Down Brackets
■Lower the shade.
■Place the magnetic hold-down bracket onto the bottom rail just
inside the end cap, oriented as shown.
■Hold the bracket while opening and closing the shade slightly
(it may be necessary to have someone assist you). Adjust the
bracket to the best overall position using the mounting options
shown below.
■Mark the screw location.
➤The screw should be placed in the middle of the channel. This will allow for adjustment.
■Drill the screw holes using a 3/32" drill bit.
IMPORTANT: Use drywall anchors when mounting into drywall.
■Attach the hold-down brackets to the mounting surface using
the screws provided.
■If necessary, adjust bracket height by loosening the screw and
sliding the bracket up or down.
Hold-Down
Bracket
Bottom
Rail
Outside Mount
Preferred Alternate
Inside Mount
Preferred Alternate
Adjust bracket
using the
channel.

INSTALLATION
8

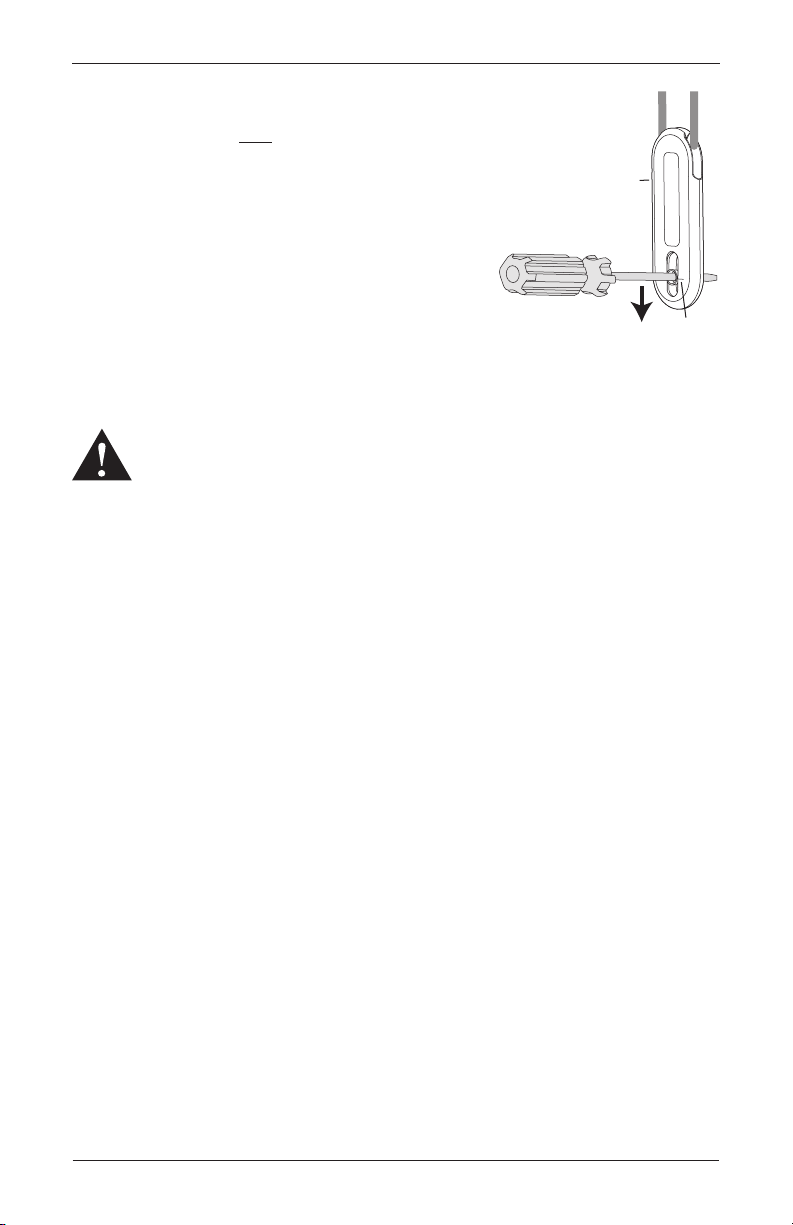

Attach the Universal Cord Tensioner —EasyRise™ Only
Before you proceed, you must first slide the cord tensioner
to the bottom of the cordloop.
■Insert a small screwdriver, punch, or awl through the
screw hole at the bottom of the cord tensioner.
■Move the screw hole down to the indicator line to
release the safety mechanism.
■Slide the cord tensioner down to the bottom of the
cordloop.
■Attach the cord tensioner according to the instructions provided with the
Universal Cord Tensioner Installation Kit.

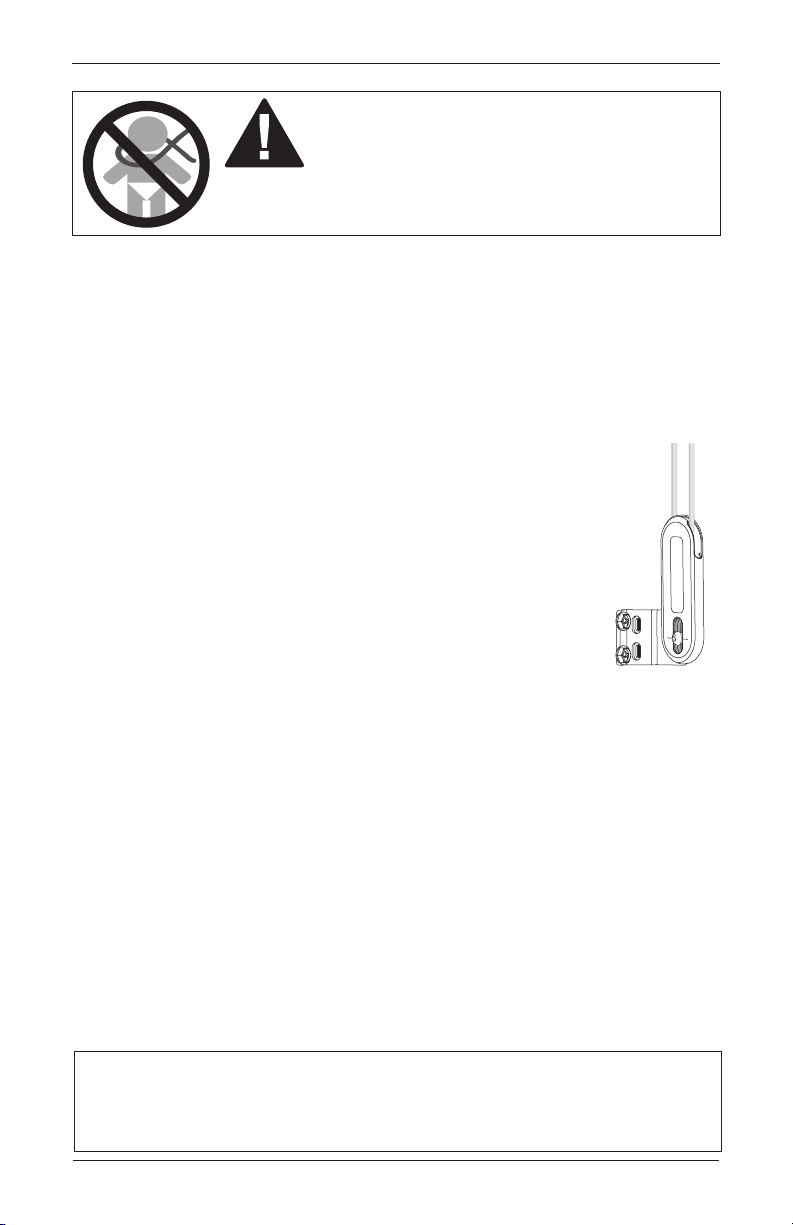

WARNING: It is imperative that the cord tensioner be properly secured
to the wall or window frame to reduce children’s access to the cord loop.
Young children can strangle in cord loops. They can also wrap cords
around their necks and strangle.
CAUTION: EasyRise™shades will not operate properly unless the cord tensioner
is secured. A Universal Cord Tensioner Installation Kit has been included with
your shade. Follow the instructions in the kit to correctly secure the cord
tensioner.
Alustra® Independently Operated Liner with PowerView™ Motorization
To install an Alustra® Woven Textures® Roman Shades with PowerView™independently operated
liner and battery wand, please refer to the Alustra Roman PowerView Shade Installation,
Operation, and Care Instructions.
Indicator
Line
Universal
Cord
Tensioner

OPERATION
9
Operate the Shade
IMPORTANT: Top-Down/Bottom-Up and Independent Operable Liner shades have two lift
cords. To operate Top-Down/Bottom-Up shades, the right cord operates the middle rail and
the left cord operates the bottom rail. You must first lower the bottom rail before lowering the
middle rail. Likewise, you must first raise the middle rail before raising the bottom rail. Top-
down/bottom-up not available on LiteRise®shades.

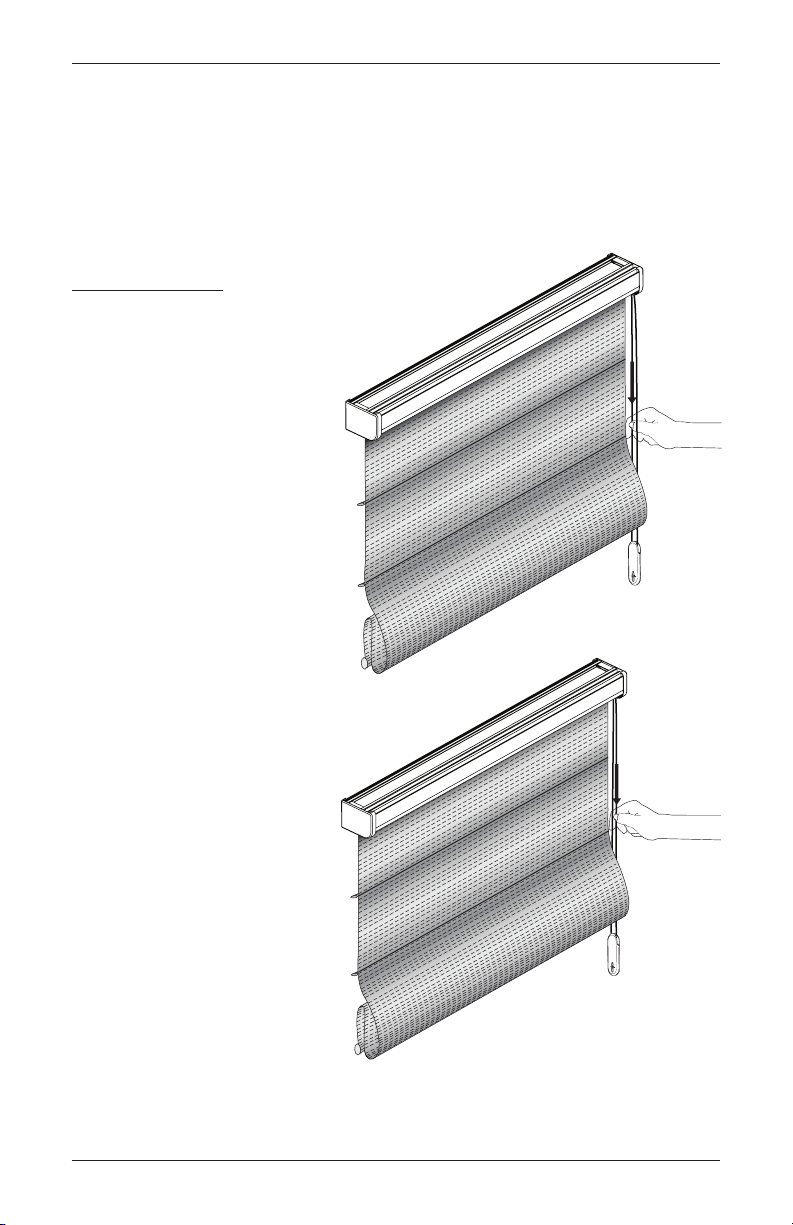

EasyRise™ Shades
To Lower the Shade
■Pull down on the back of the
continuous cord loop.
To Raise the Shade
■Pull down on the front of the
continuous
cord loop.
IMPORTANT: If the cord
tensioner moves up the cord,
you have not secured it to
the wall or window frame.
You must do so for the
shade to operate properly.
See the instructions included
with your Universal Cord
Tensioner Installation Kit.
To
Lower Pull the
Back Cord
Pull the
Front Cord
To
Raise

OPERATION
10

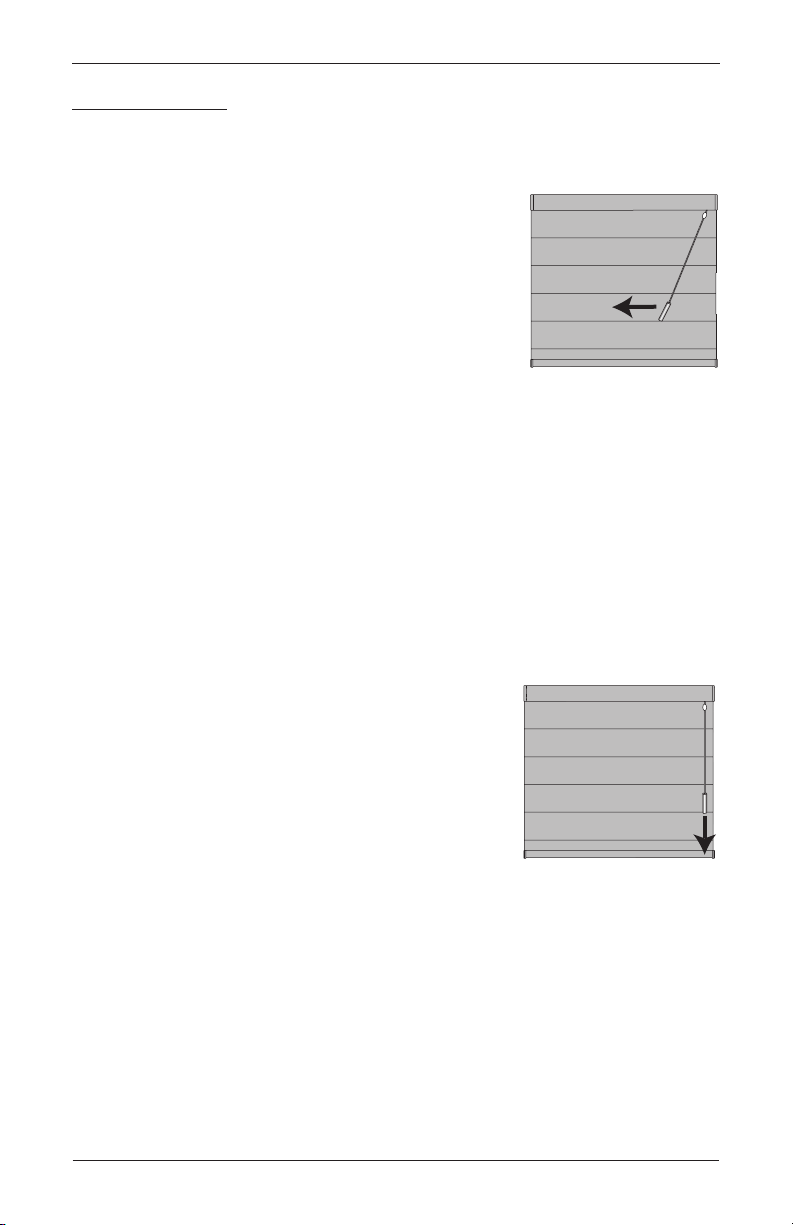

UltraGlide® Shades
For smooth operation, keep the cord close to the fabric when lowering and raising the shade.
To Lower the Shade
■Pull the cord toward the center of the shade at about a 45°
angle. A locking mechanism at the top of the cord releases
with a “click.” The shade lowers as you allow the cord to
return to the vertical position.
■To stop the shade while lowering, move the cord back
toward the vertical position and give a slight downward pull,
until the locking mechanism engages.
■If the shade hits an obstruction as it is lowered, it will stop,
but the cords in each cord rout may become misaligned.
This may cause the shade to be angled or tilted when fully
raised. If this occurs, do the following:
➤Raise the shade slightly.
➤Lower the shade completely to the sill. In some cases, pull gently on the bottom rail to
get it to drop completely.
IMPORTANT: If the bottom of the shade is tilted when fully raised, do not pull harder
on the cord. It does not correct the tilt and may make it worse.
To Raise the Shade
■Pull the cord straight down.
■With each stroke the shade partially raises.
■Allow the cord to retract after each downward stroke.
■Use multiple strokes until the shade reaches the desired
position.
To Lower: Pull the cord
toward the center of
the shade and release.
To Raise: Pull the
cord straight down
with short strokes.
To Lower: Pull the cord
toward the center of
the shade and release.
To Raise: Pull the
cord straight down
with short strokes.

OPERATION
11

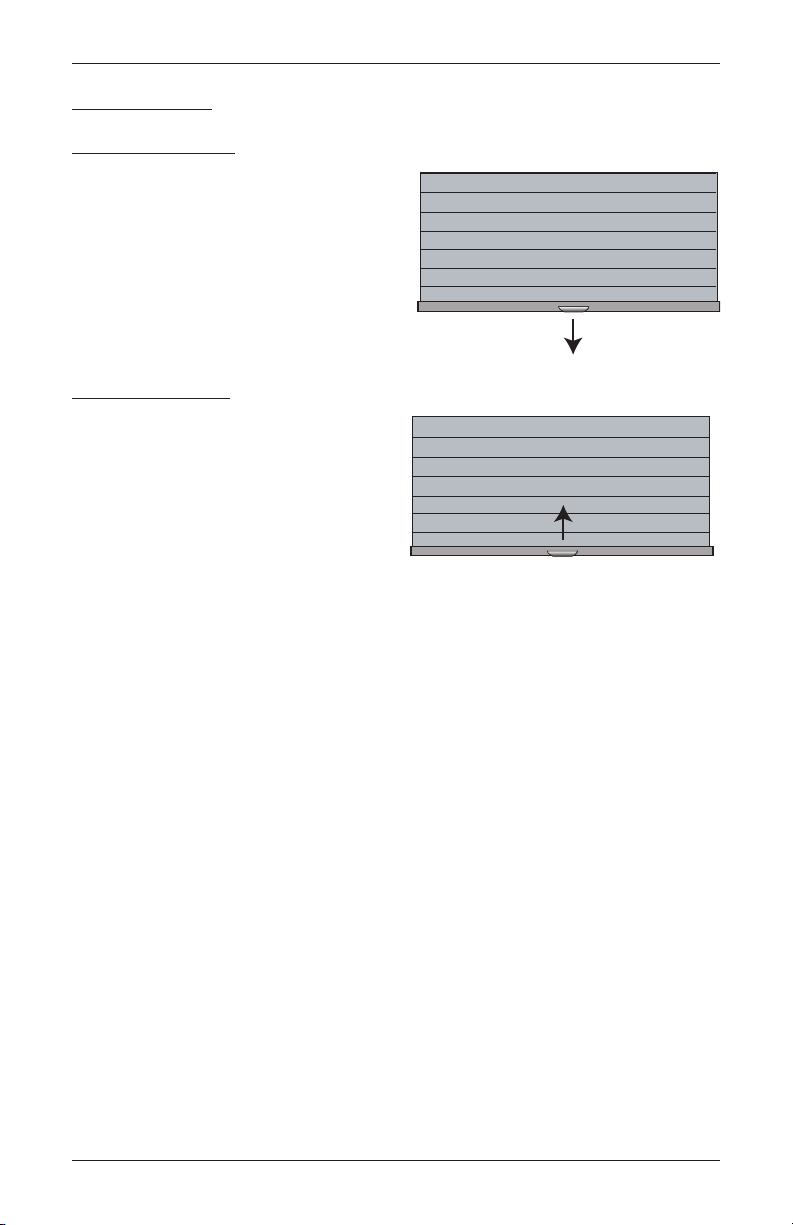

LiteRise® Shades
To Lower the Shade
■Slowly and steadily pull down on the
bottom rail handle.
To Raise the Shade
■Slowly and steadily push up on the bottom
rail handle.
IMPORTANT: When raising the shade,
be sure to raise it straight up. Pushing it
up to the left or right may make the fabric
rub against the wall or valance, it can
possibly fray the fabric edges.
Alustra®Independently Operated Liner with PowerView™Motorization
For operation instructions for an Alustra®Woven Textures®Roman Shades with PowerView™
Motorization independently operated liner and battery wand, please refer to one of the following:
■Alustra Roman PowerView Shade Installation, Operation, and Care Instructions
■PowerView Remote Control Guide
■PowerView Scene Controller Guide

OPERATION
12
Troubleshooting
Problem The shade will not fit into theinstallation brackets.
Check that the installation brackets are level and aligned. Shim the installation
brackets to level the headrail, if necessary. Shims are notprovided.
Be sure the heads of the screws are flush against the installation bracket.
Check that the headrail is completely inserted into the installation brackets. See
“Install the Shade” on page 6.
Problem The shade is hard to raise or lower, or will not raise or lower.
Solution Make sure that the shade fabric is not caught between the installation bracket
and the headrail.
Check that the headrail and installation brackets are level and aligned. Shim the
installation brackets to level the headrail, if necessary. Shims are not provided.
If hold-down brackets are used, make sure they have been released before
operating the shade.
Problem The shade raises or lowers unevenly or the bottom rail is uneven when
fullyraised.
Solution Check that the headrail and installation brackets are level and aligned. Shim the
installation brackets to level the headrail, if necessary. Shims are not provided.
Check to see if there is an obstruction in the shade’s path. If a shade hits an
obstruction as it is lowered, it may become misaligned. This may cause the
shade to be angled or tilted when fully raised. Try lowering the shade completely,
then raising it to allow it to self-correct.
Problem The universal cord tensioner has climbed to the headrail.
Solution Pull down on the spring to relieve tension and pull the universal cord tensioner
to the bottom of the cord loop. Properly mount the cord tensioner. See Page
8 and/or the instructions included with your Universal Cord Tensioner
Installation Kit.
Problem The universal cord tensioner grabs onto the cord upon operation.
Solution Check that the universal cord tensioner is mounted properly. Reinstall, if
necessary. See “Attach the Universal Cord Tensioner — EasyRise™Only” on
Page 8 and/or the instructions included with your Universal Cord Tensioner
Installation Kit.

CARE
13
Removing the Shade (If Necessary)
■Raise the shade completely.
■Support the headrail so that it does not fall. Push up
on the headrail and use your finger or a flat blade
screwdriver to release the bottom tab on the
installation brackets.
■Pull the headrail straight out from the installation
brackets.
Cleaning Procedures
Hunter Douglas Alustra®Woven Textures®Roman Shades are made of anti-static, dust-resistant
fabric which repels dirt and dust. For most fabrics, the following cleaning options are available.
Dusting
■Regular light dusting with a feather duster is all the cleaning that is needed in most
circumstances.
Vacuuming
■For deeper cleaning, vacuum gently with a brush attachment.
Compressed Air/Hair Dryer (Cool Setting)
■Use compressed air or a hair-dryer on a cool setting to blow dust and dirt off shades.
Release Using
Finger or
Flat Blade
Screwdriver
Push up on
the Headrail



CHILD SAFETY
14
Warning
■Young children can STRANGLE in cord loops. They can also wrap cords around
their necks and STRANGLE.
■Always keep cords out of the reach of children.
■Move cribs, playpens and other furniture away from cords. Children can climb
furniture to get to cords.
Cord Loop Shades
■Attach the cord tensioner on the cord loop to the wall or window
casement. See “Attach The Universal Cord Tensioner (UCT)” on
Page 8. This can prevent children from pulling cord loops
around their necks.
■Hunter Douglas provides a cord tensioner installation kit with
instructions for attaching the cord tensioner. For the shade to
operate properly, the cord tensioner must be correctly mounted
andsecured.
■Fasteners provided in this kit may not be appropriate for all
mounting surfaces. Use appropriate anchors for mounting
surface conditions.
■Only Hunter Douglas supplied cord tensioners and hardware should be used.
Replacement parts may be obtained by contacting the Hunter Douglas Customer
Information Center at 1-888-501-8364.
For more safety information call 1-888-501-8364
in the U.S. or 1-866-662-0666 in Canada.
WARNING
NOTE: The warning labels on the bottom rails of corded window coverings contain
important safety information. These warning labels are designed to be permanent, in
accordance with the industry’s safety standards, and must not be removed.

Notes

Notes

The Hunter Douglas®Lifetime Guarantee is an expression of our desire to provide a thoroughly satisfying
experience when selecting, purchasing and living with your window fashion products. If you are not thoroughly
satisfied, simply contact Hunter Douglas at [phone] or visit hunterdouglas.com. In support of this policy
of consumer satisfaction, we offer our Lifetime Limited Warranty as described below.
NOTE:In no event shall Hunter Douglas or its licensed fabricators/distributors be liable or responsible for incidental
or consequential damages or for any other indirect damage, loss, cost or expense. Some states do not allow the exclusion or
limitation of incidental or consequential damages, so the above exclusion or limitation may not apply to you. This warranty
gives you specific legal rights, and you may also have other rights which vary from state to state.
Different warranty periods and terms apply for commercial products and applications.
Hunter Douglas (or its licensed fabricator/distributor) will repair or replace the
window fashion product or components found to be defective.
COVERED
BY ALIFETIME LIMITEDWA RRANTY
• Hunter Douglas window fashion products are
covered for defects in materials, workmanship
or failure to operate for as long as the original
retail purchaser owns the product (unless shorter
periods are provided below).
• All internal mechanisms.
• Components and brackets.
• Fabric delamination.
• Operational cords for a full 7 years from the
date of purchase.
• Repairs and/or replacements will be made with
like or similar parts or products.
• Hunter Douglas motorization components are
covered for 5 years from the date of purchase.
NOT COVERED
BY ALIFETIME LIMITEDWA RRANTY
• Any conditions caused by normal wear and tear.
• Abuse, accidents, misuse or alterations to the
product.
• Exposure to the elements (sun damage, wind,
water/moisture) and discoloration or fading
over time.
• Failure to follow our instructions with respect
to measurement, proper installation, cleaning
or maintenance.
• Shipping charges, cost of removal and reinstallation.
TO OBTAIN WARRANTY SERVICE
1. Contact your original dealer (place of purchase) for warranty assistance.
2. Visit hunterdouglas.com for additional warranty information, frequently asked questions and access to service locations.
3. Contact Hunter Douglas at [phone] for technical support, certain parts free of charge, for assistance in obtaining
warranty service or for further explanation of our warranty.
LIT11888407C 5/15
