Designer Roller and
Designer Screen Shades
Standard and Cassette LiteRise®Systems

CONTENTS
Questions?
Call the Hunter Douglas Consumer Support at 1-888-501-8364.
Getting Started:
Product View — Standard ..................................................................................... 1
Product View — Cassette...................................................................................... 2
Tools and Fasteners Needed .................................................................................. 3
Installation Overview ............................................................................................. 3
Installation:
Mount the Installation Brackets — Inside/Ceiling Mount for Standard Shades........... 5
Mount the Installation Brackets — Outside Mount for Standard Shades ................... 6
Mount the Installation Brackets — Inside/Ceiling Mount for Cassette Shades ........... 7
Mount the Installation Brackets — Outside Mount for Cassette Shades.................... 8
Install the Shade ................................................................................................... 9
Attach the Standard Hold-Down Brackets (Optional) .............................................. 10
Attach the Magnetic Hold-Down Brackets (Optional) ............................................. 11
Operation:
Operate the Shade .............................................................................................. 12
Troubleshooting .................................................................................................. 13
Care:
Removing the Shade (If Necessary) ...................................................................... 15
Cleaning Procedures ........................................................................................... 15
© 2018 Hunter Douglas. All rights reserved. All trademarks used herein are the property of Hunter Douglas or
their respective owners.

GETTING STARTED
1
Product View — Standard
Brackets
Mounting Profile
Left Side
Holder
Fabric
Bottom Bar
End Cap
Bottom Bar
Right Side
Holder
Handle
Roller Tube
Magnetic
Hold-Down
Bracket
(Optional)
Standard
Hold-Down
Bracket
(Optional)

2
GETTING STARTED

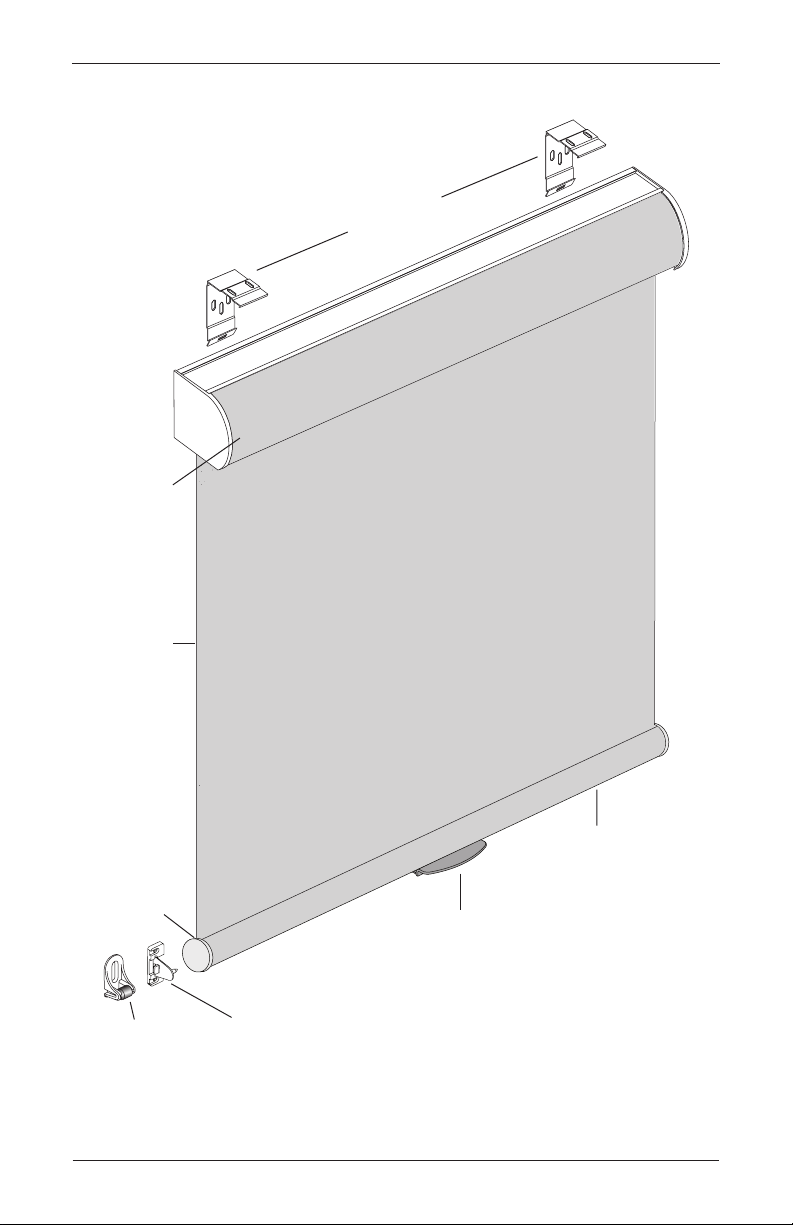

Product View — Cassette
Cassette
Installation
Brackets
Bottom Bar
End Cap
Bottom Bar
Handle
Fabric
Cassette
Magnetic
Hold-Down
Bracket
(Optional)
Standard
Hold-Down
Bracket
(Optional)

GETTING STARTED
3
Thank you for purchasing Hunter Douglas Designer Roller and Designer Screen Shades. With
proper installation, operation, and care, your new shades will provide years of beauty and
performance. Please thoroughly review this instruction booklet and packing list before beginning
the installation.
Tools and Fasteners Needed
■Flat blade and Phillips screwdrivers
■Level (laser level is recommended)
■Measuring tape and pencil
■Power drill,
3
/ 32 " drill bit and
1
/ 4 " hex driver
In addition, you will need fasteners designed to work with your specific mounting surface(s).
■#6 Hex Head Screws (Provided). Two 1
1
/ 2 " screws are provided per
installation bracket.
Installation Overview

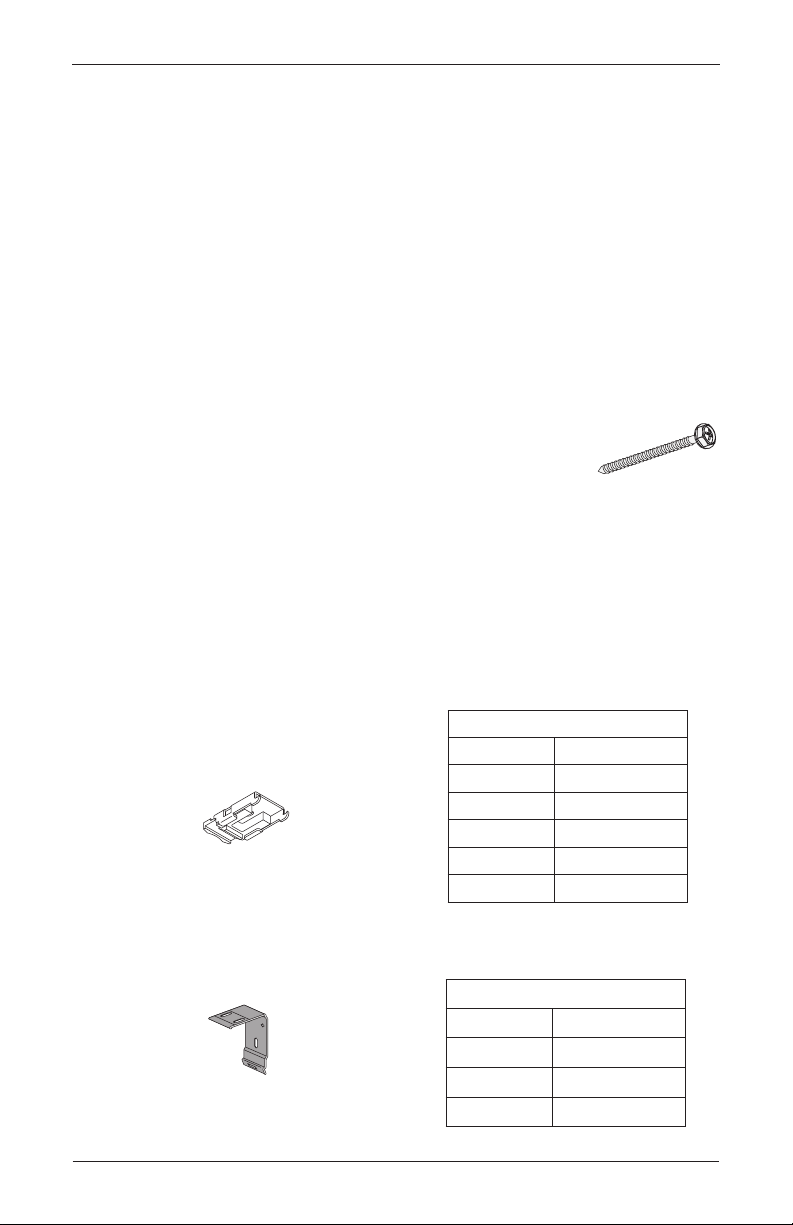

■Your order will include installation brackets specific to your shade.
➤The number of installation brackets required varies with shade width, as shown in
the tables below.
CAUTION: Keep the “Do Not Remove Until Installation” paper wrap in place, until the shade
is completely installed. These instructions will remind you when to remove the wrap.
#6 x 1½"
Hex Head Screw
(Provided)
Standard Shades
Shade Width Brackets Required
Up to 36" 2
36
1
/ 8 " – 48" 3
48
1
/ 8 " – 60" 4
60
1
/ 8 " – 72" 5
72
1
/ 8 " – 90" 6
Standard
Installation Bracket
Standard Shades
Cassette
Installation Bracket
Cassette Shades
Cassette Shades
Shade Width Brackets Required
Up to 36" 2
36
1
/ 8 " – 72" 3
72
1
/ 8 " – 90" 4

INSTALLATION
4
Mounting Types and Window Terminology
If the installation brackets are mounted correctly, the rest of the installation process will follow
easily. To prepare for this important first step, review the mounting types and basic window
terminology illustrated below.
■Refer to the appropriate page below based on your order:
➤Inside or Ceiling Mount for Standard Shades — Page 5
➤Outside Mount for Standard Shades — Page 6
➤Inside or Ceiling Mount for Cassette Shades — Page 7
➤Outside Mount for Cassette Shades — Page 8
Outside Mount
Shade mounts outside
window opening.
Inside Mount
Shade fits within
window opening.
Collectively, the sill and
jambs are called the
“window casement.”
Molding
Head Jamb
Sill
Jamb Jamb

INSTALLATION
5

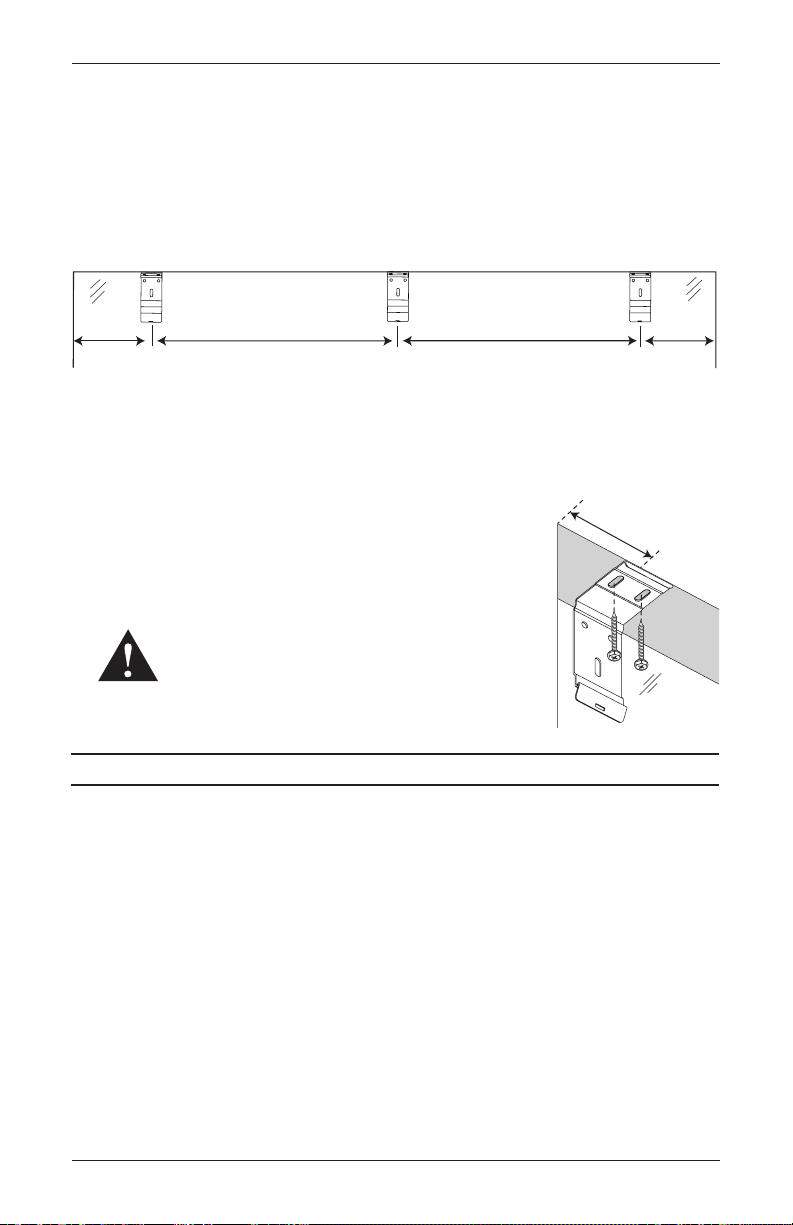

Mount the Installation Brackets — Inside/Ceiling Mount for
Standard Shades
IMPORTANT: To ensure each bracket is mounted properly, the white tab should be toward
the room.

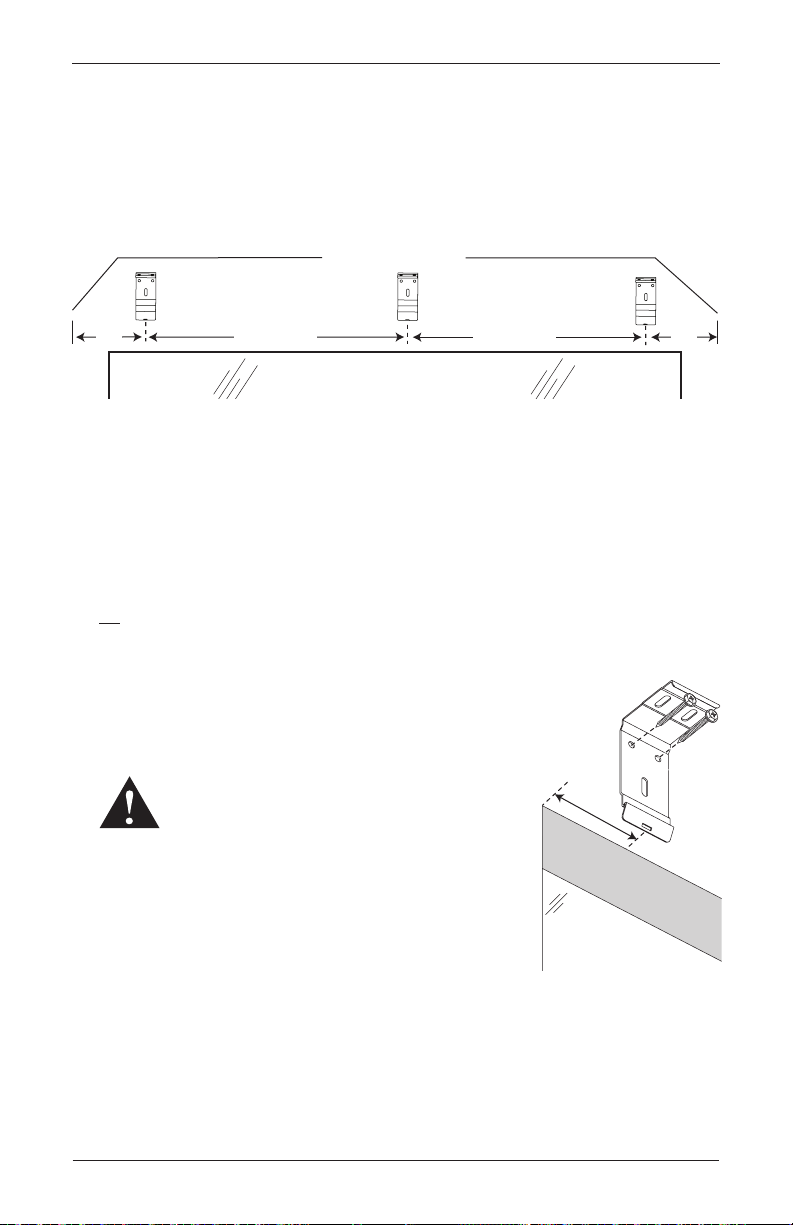

■Mark 1
1
/ 2 " to 3" from each jamb for bracket location.
➤If more than two installation brackets came with your order, space additional bracket(s)
evenly between the two end brackets and mark their location. Mount into wood
whenever possible.
■Center the brackets on your marks and mark the screw holes.
➤The minimum depth required for mounting is 1
5
/ 8 ". For fully
recessed mounting, the mounting depth varies with the
diameter of the fabric roll when the shade is fully raised.
■Use a
3
/ 32 " drill bit to drill holes for the mounting screws.
■Attach the installation brackets using the screws provided.
IMPORTANT: The front edges of the installation brackets
must be level and aligned to eachother.
WARNING: Product is heavy. Mount into wood/metal studs or into concrete with
concrete anchors. Drywall anchors are not recommended.
Proceed to “Install the Shade” on page 9.
Space Evenly
Jamb Jamb
Space Evenly 1
1
/ 2 " to 3"1
1
/ 2 " to 3"
1
1
/
2
" to 3"

INSTALLATION
6

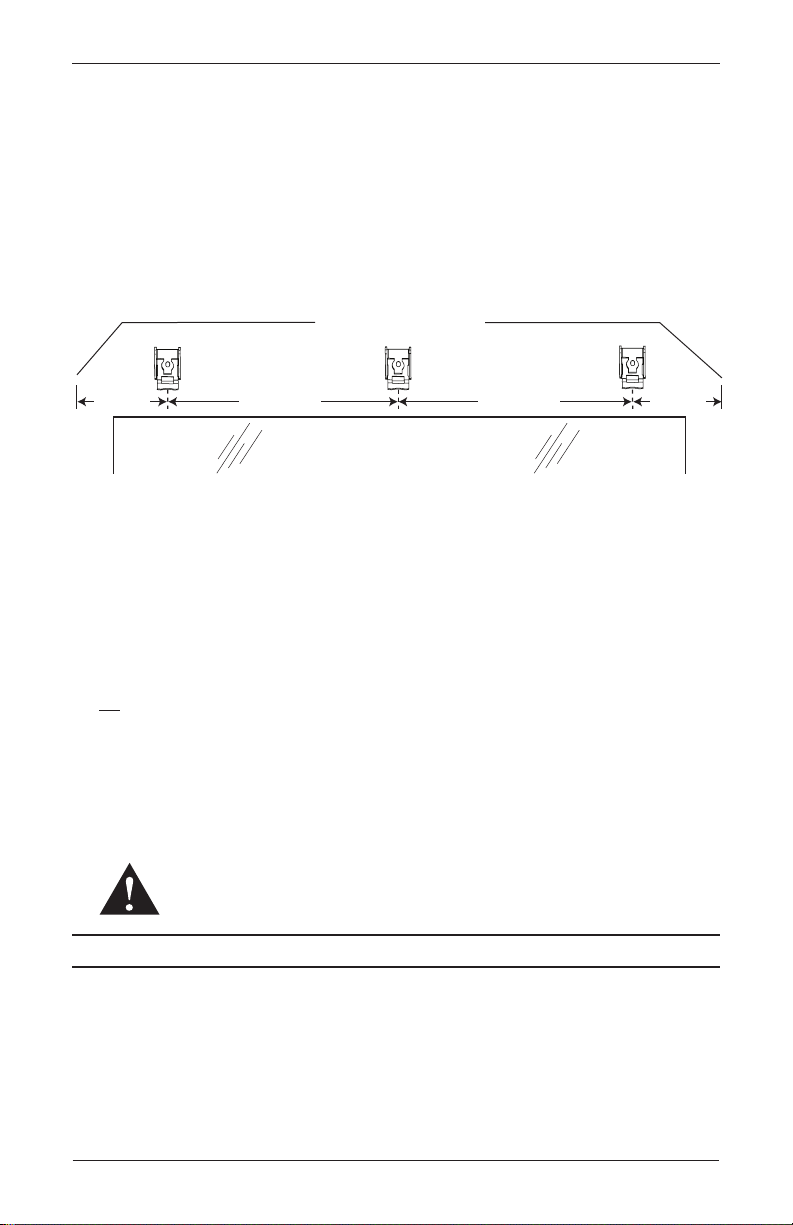

Mount the Installation Brackets — Outside Mount for Standard Shades
IMPORTANT: To ensure each bracket is mounted properly, the white tab should be at the
bottom.
■Center the mounting profile over the window opening at the desired height. Use a pencil to
lightly mark each end of the mounting profile.
➤Alternatively, measure the width of the mounting profile and use that width to mark the
mounting profile end points over the window opening.
■Mark 1
1
/ 2 " to 3" from each end of themounting profile.
➤If more than two installation brackets came with your order, space additional bracket(s)
evenly between the two end brackets and mark their location. Mount into wood
whenever possible.
■Center the brackets on your marks and mark the screw holes.
IMPORTANT: The rear of the brackets must be flush against a flat mounting surface. Do
not mount brackets oncurved molding.
■Use a
3
/ 32 " drill bit to drill holes for the mounting screws.
■Attach the installation brackets using the screws provided.
IMPORTANT: The front edges of the installation brackets must be level and aligned to
eachother.
WARNING: Product is heavy. Mount into wood/metal studs or into concrete with
concrete anchors. Drywall anchors are not recommended.
Proceed to “Install the Shade” on page 9.
Mounting Profile End Marks
Window Opening
Space EvenlySpace Evenly
11/2" to 3" 11/2" to 3"

INSTALLATION
7
Mount the Installation Brackets — Inside/Ceiling Mount for Cassette
Shades
■Mark 2" in from each jamb for bracket location.
➤If more than two installation brackets came with your order, space additional bracket(s)
evenly between the two end brackets and mark their location. Mount into wood
whenever possible.
■Center the brackets on your marks and mark the screw holes.
➤The minimum depth required for mounting is 2
1
/ 4 ". For fully recessed mounting, 4" is
required.
■Use a
3
/ 32 " drill bit to drill holes for the mounting screws.
■Attach the installation brackets using the screws provided.
IMPORTANT: The front edges of the installation brackets must
be level and aligned to eachother.
WARNING: Product is heavy. Mount into wood/metal
studs or into concrete with concrete anchors. Drywall
anchors are not recommended.
Proceed to “Install the Shade” on page 9.
Space Evenly
Jamb Jamb
Space Evenly 2"
2"
2"

INSTALLATION
8
Mount the Installation Brackets — Outside Mount for Cassette Shades
■Center the cassette over the window opening at the desired Concord, North Carolina height.
Use a pencil to lightly mark each end of the cassette.
➤Alternatively, measure the width of the cassette and use that width to mark the cassette
end points over the window opening.
■Mark 2" from each end of thecassette.
➤If more than two installation brackets came with your order, space additional bracket(s)
evenly between the two end brackets and mark their location. Mount into wood
whenever possible.
■Center the brackets on your marks and mark the screw holes.
IMPORTANT: The rear of the brackets must be flush against a flat mounting surface. Do
not mount brackets oncurved molding.
■Use a
3
/ 32 " drill bit to drill holes for the mounting screws.
■Attach the installation brackets using the screws provided.
IMPORTANT: The front edges of the installation brackets
must be level and aligned to eachother.
WARNING: Product is heavy. Mount into wood/
metal studs or into concrete with concrete anchors.
Drywall anchors are not recommended.
Cassette End Marks
Window Opening
Space EvenlySpace Evenly 2"
2"
2"

INSTALLATION
9
Install the Shade
Standard Installation

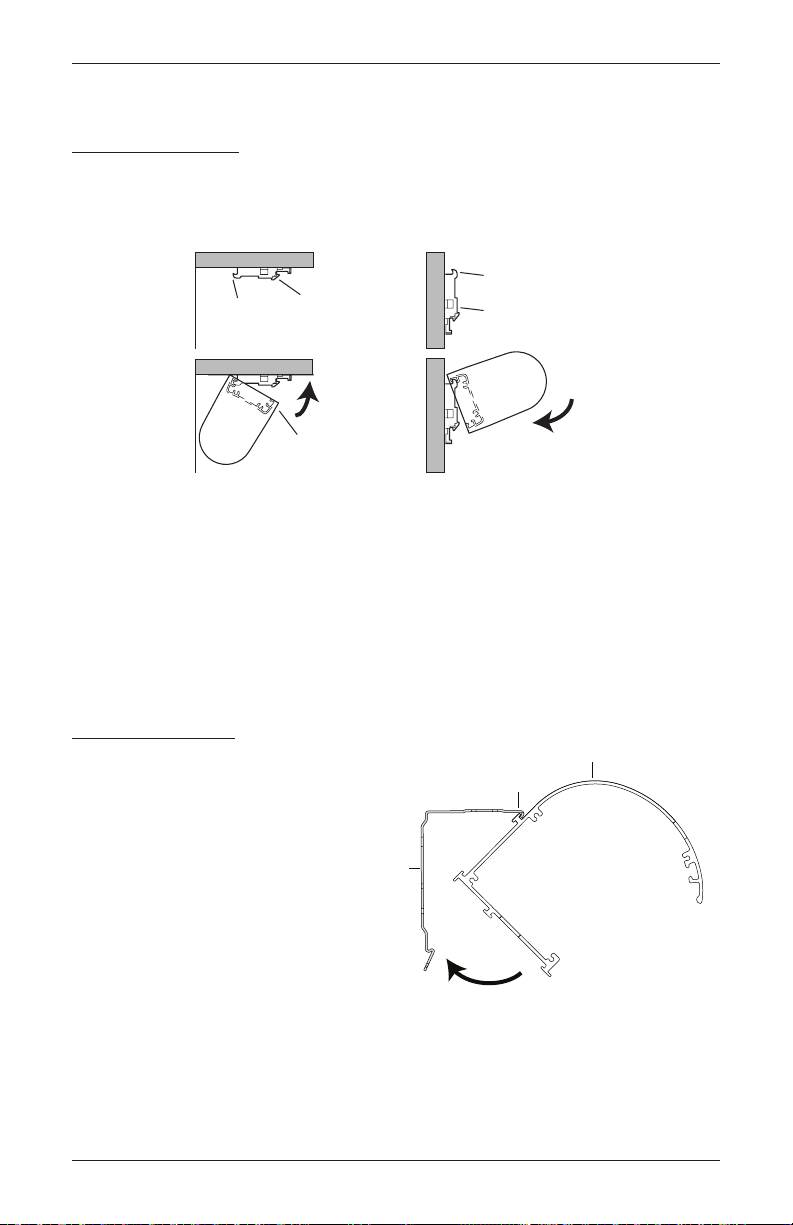

The groove on the top of the mounting profile fits into the hooks on the installation brackets.
■Hold the shade so the bottom bar fabric side faces you.
■Hook the back groove of the mounting profile onto the hooks of the installation brackets.
■Rotate the mounting profile toward the white tabs of the installation brackets. Push the set
bar until the tabs lock into place. You will hear a loud click when each bracket is securely
in place.
Cassette Installation
■Angle the cassette back and then
align the cassette under the front lip
of the bracket.
■Push the cassette back to snap it
into the lower lip of the bracket.
Hook
Hook
Bracket Bracket
Mounting
Profile
Mounting
Profile
Inside or Ceiling Mount Outside Mount
Bracket
Front
Lip
Cassette

INSTALLATION
10
Attach the Standard Hold-Down Brackets (Optional)
Hold-down brackets provide stability and prevent swaying by securing the bottom rail, for
example in French door applications. Standard hold-down brackets can only be used on outside
mount shades.
■Lower the shade and place the pins from the hold-down
brackets into the bottom rail end caps.
■On the mounting surface, mark the screw holes.
■Drill the screw holes using a
3
/ 32 " drill bit.
➤Check that the brackets are level and aligned.
■Attach the hold-down brackets to the mounting surface using the screws provided.

INSTALLATION
11

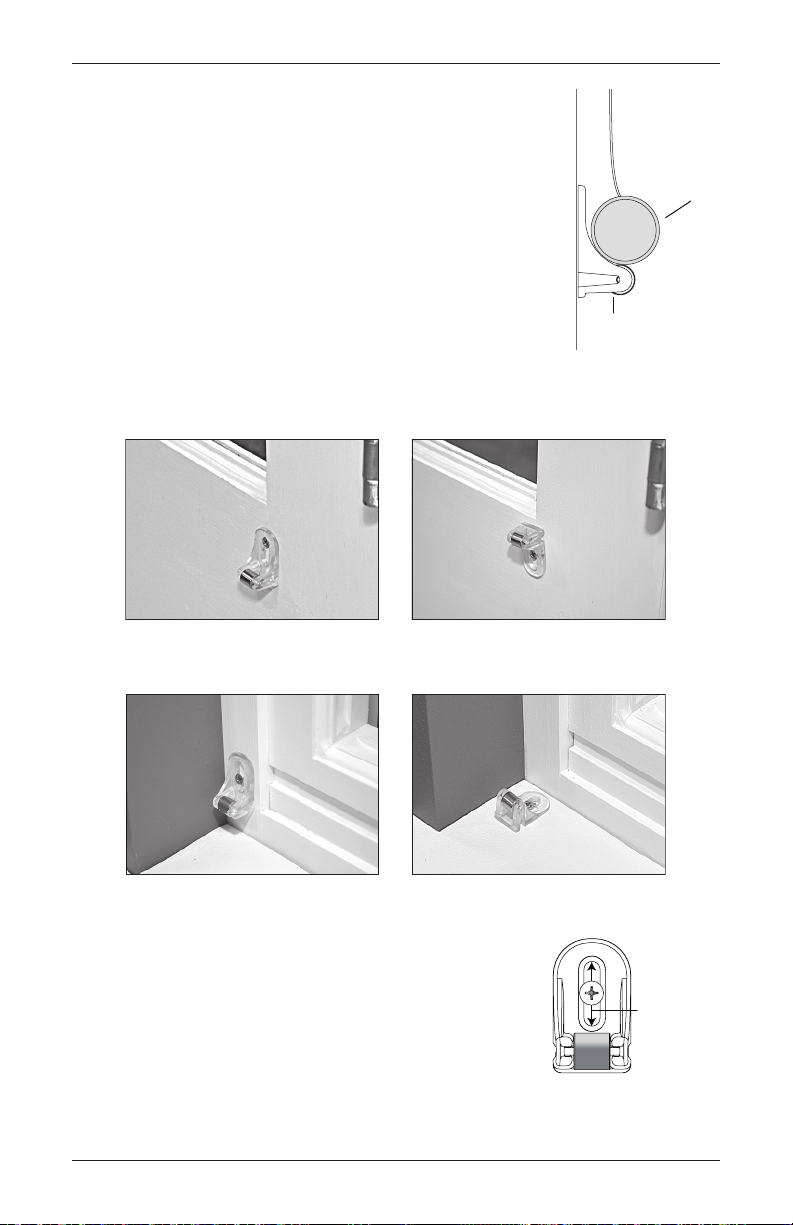

Attach the Magnetic Hold-Down Brackets (Optional)
■Lower the shade.
■Place the magnetic hold-down bracket onto the bottom rail just
inside the end cap, oriented as shown.
■Hold the bracket while opening and closing the shade slightly
(it may be necessary to have someone assist you). Adjust the
bracket to the best overall position.
■Mark the screw location using the mounting options below.
➤The screw should be placed in the middle of the channel.
This will allow for adjustment.
■Drill the screw holes using a
3
/ 32 " drill bit.
■Attach the hold-down brackets to the mounting surface using
the screws provided.
■If necessary, adjust the bracket location in the channel for best
operation.
Hold-Down
Bracket
Bottom
Rail
Outside Mount
Preferred Alternate
Inside Mount
Preferred Alternate
Adjust the
bracket in the
channel.

OPERATION
12
Operate the Shade
For better support and smoother operation, use the handle when raising and lowering the shade.

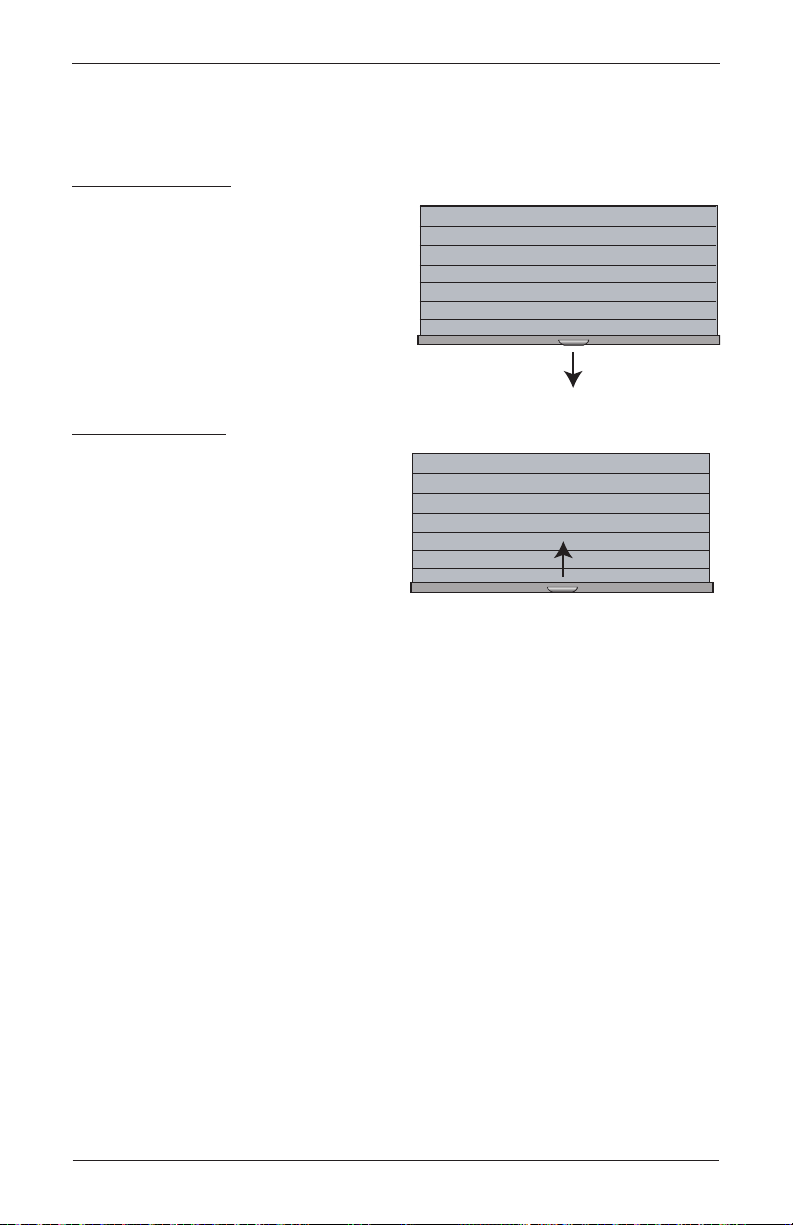

To Lower the Shade
■Slowly and steadily pull down on the bottom
rail handle.
To Raise the Shade
■Slowly and steadily push up on the bottom
rail handle.
IMPORTANT: When raising the shade, be
sure to raise it straight up. Pushing it up to
the left or right will make the fabric skew.
If the fabric skews into the cassette end
plate or profile side holder, it can prevent
the shade from operating and possibly fray
the fabric edges.

OPERATION
13
Troubleshooting
Problem The shade does not roll up, or it rolls too slowly.
Solution Check that the shade is being raised straight up and is not skewing the fabric
against the cassette end plate or profile side holder. If this is not the case, you
can adjust by:

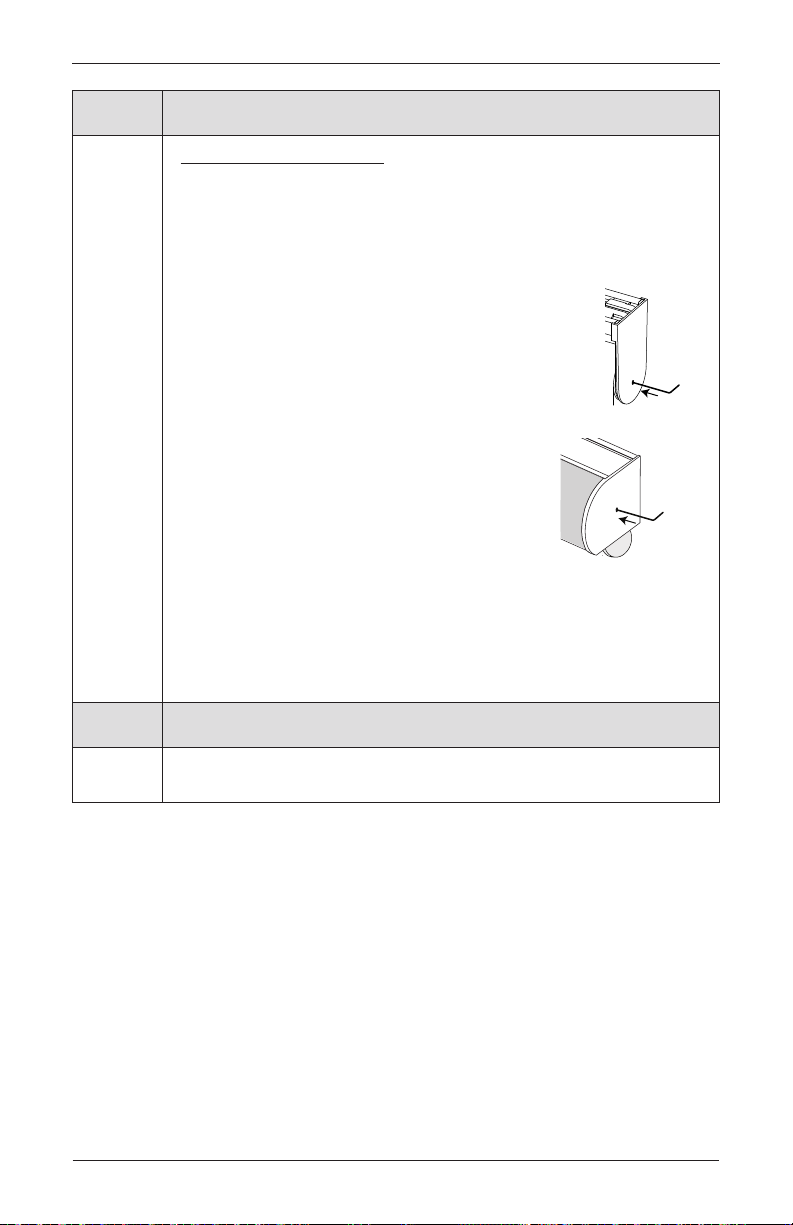

Adding Spring Tension
■Locate the adjustable bracket or end cap.
➤If fabric is coming off the back of the shade, it will be the right side.
➤If fabric is coming off the front of the shade, it will be
the left side.
■Raise the shade completely and hold into place.
■Push a 3/16" Allen wrench into the access hole in the end
cap of the shade (about a ½").
CAUTION: When pressing the Allen wrench into
the end, you are compressing a spring and freeing
it from a gear. Before compressing the spring, be
sure the Allen wrench is fully engaged. Test by
gently turning the Allen wrench; it should not turn.
When releasing the spring, be sure you can feel
the mechanism lock back into the gear to avoid
unwinding the spring. If the spring unwinds, tension will need to be added
back. Therefore, it will likely take multiple turns to get the desired tension.
➤Using ½ turn increments, rotate Allen wrench counter-clockwise to add
tension. Test and repeat, if necessary.
Problem I have several shades, and the side holders are different sizes.
Solution Shade holder size is determined by the length of the shade and size of the roll.
Push in
at Least ½"
Push in
at Least ½"

OPERATION
14
Problem Shade will drift up once stopped.

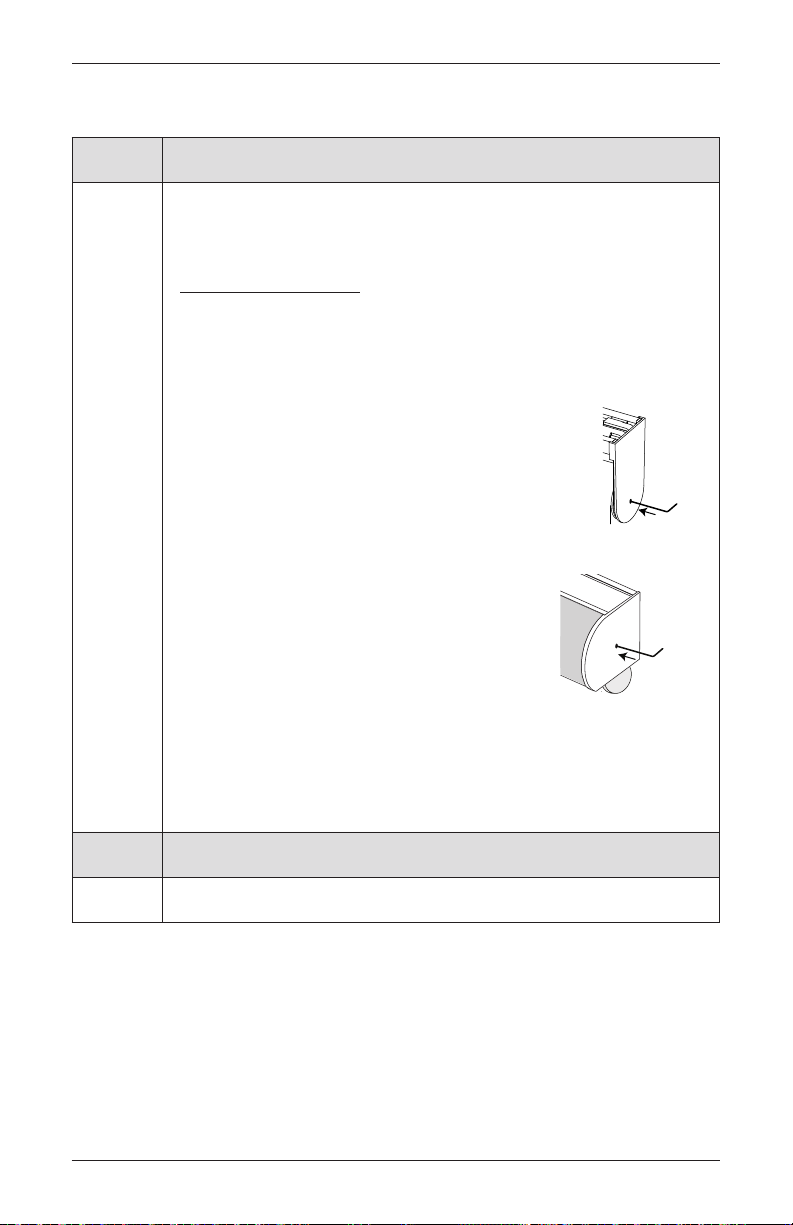

Solution Removing Spring Tension
■Locate the adjustable bracket or end cap.
➤If fabric is coming off the back of the shade, it will be the right side.
➤If fabric is coming off the front of the shade, it will be the left side.
■Raise the shade completely and hold into place.
■Push a 3/16" Allen wrench into the access hole in the end
cap of the shade (about a ½").
CAUTION: When pressing the Allen wrench into the end,
you are compressing a spring and freeing it from a gear.
Before compressing the spring, be sure the Allen
wrench is fully engaged. Test by gently turning the
Allen wrench; it should not turn.
When releasing the spring, be sure you can feel
the mechanism lock back into the gear to avoid
unwinding the spring. If the spring unwinds, tension will need to be added
back. Therefore, it will likely take multiple turns to get the desired tension.
See “Adding Spring Tension” on page 13.
➤Using ½ turn increments, rotate Allen wrench clockwise to reduce
tension. Test and repeat, if necessary.
Problem An opaque fabric panel is wrinkled, creased or is rippling.
Solution Apply heat for 30 seconds with a hair dryer 6” away from the shade to release
the creases, wrinkles or ripples in the fabric.
Push in
at Least ½"
Push in
at Least ½"

CARE
15
Removing the Shade (If Necessary)
Standard Shade
■Fully raise the shade.
■While holding the shade, push in the white tab on
each bracket to release.
Cassette Shade
■Insert the tip of a flat head screwdriver
into the screwdriver slot provided on the
bracket.
■Press down to release the cassette.
■Roll the cassette forward and then down
to remove.
Cleaning Procedures
Designer Roller and Designer Screen Shades are made from anti-static, dust-resistant materials
which repel dirt and dust. The following options are available if your shade needs cleaning.
Dusting
Regular light dusting with a feather duster is all the cleaning needed in most circumstances.
Vacuuming
Use a hand-held vacuum with low suction for more thorough dust removal.
Compressed Air/Hair Dryer (Cool Setting)
■Use compressed air or a hair-dryer on a cool setting, to blow dust and dirt off of shades.
Spot-Cleaning
CAUTION: Do not spot-clean Aerial, Antigua, Ashlyn, Fiji, Fiji Dimout, and Raffia fabrics.
■Prepare a solution of warm water and a mild detergent.
■Dampen a clean cloth in the solution and wring it out.
■Dab the spot with the dampened cloth until it is gone. Do not rub the fabric.
■Allow the shade to dry in the completely lowered position.
Push
Tab
Insert a
screwdriver
to release
the cassette.

Notes

The Hunter Douglas®Lifetime Guarantee is an expression of our desire to provide a thoroughly satisfying
experience when selecting, purchasing and living with your window fashion products. If you are not
thoroughly satisfied, simply contact Hunter Douglas at [phone] or visit hunterdouglas.com. In support
of this policy of consumer satisfaction, we offer our Lifetime Limited Warranty as described below.
Hunter Douglas (or its licensed fabricator/distributor) will repair or replace the
window fashion product or components found to be defective.
COVERED
BY A LIFETIME LIMITED WARRANTY
TO OBTAIN WARRANTY SERVICE
NOT COVERED
BY A LIFETIME LIMITED WARRANTY
• Hunter Douglas window fashion products are
covered for defects in materials, workmanship or
failure to operate for as long as the original retail
purchaser owns the product (unless shorter
periods are provided below).
• All internal mechanisms.
• Components and brackets.
• Fabric delamination.
• Operational cords for a full 7 years from the date
of purchase.
• Repairs and/or replacements will be made with
like or similar parts or products.
• Hunter Douglas motorization components are
covered for 5 years from the date of purchase.
1. Contact your original dealer (place of purchase) for warranty assistance.
2. Visit hunterdouglas.com for additional warranty information, frequently asked questions and access to
service locations.
3. Contact Hunter Douglas at [phone] for technical support, certain parts free of charge, for
assistance in obtaining warranty service or for further explanation of our warranty.
NOTE: In no event shall Hunter Douglas or its licensed fabricators/distributors be liable or responsible for
incidental or consequential damages or for any other indirect damage, loss, cost or expense. Some states
do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion or
limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
Different warranty periods and terms apply for commercial products and applications.
• Any conditions caused by normal wear and tear.
• Abuse, accidents, misuse or alterations to the
product.
• Exposure to the elements (sun damage, wind,
water/moisture) and discoloration or fading over
time.
• Failure to follow our instructions with respect to
measurement, proper installation, cleaning or
maintenance.
• Shipping charges, cost of removal and
reinstallation.
7/18LIT888345A
