HunterDouglas Skyline PowerView Parts list manual

Installation •Operation •Care
Skyline®Gliding Window Panels
PowerView™Motorization

CONTENTS
Questions?
Call the Hunter Douglas Customer Information Center at
1-888-501-8364.
© 2015 Hunter Douglas. All rights reserved. All trademarks used herein are the
property of Hunter Douglas.
Getting Started:
Mounting Types and Window Terminology.............................................................1
Unpack the Box...................................................................................................1
Installation Components Required ......................................................................2
Optional Components..........................................................................................4
Tools and Fasteners Needed ................................................................................5
Product View — Skyline® Gliding Window Panels ................................................6
Product View — Top Treatment Options ...............................................................7
Installation:
Inside and Ceiling Mount Applications...................................................................8
Outside Mount Applications ...............................................................................16
Box Valances and Fabric-Wrapped Cassette Installation.......................................17
Fabric-Wrapped Large Cassette Installation
(Inside and Outside Mounts) ..............................................................................21
Mount the Headrail............................................................................................23
Outside Mount Valance Installation (Optional)......................................................26
Connect the Receiver (If Not Already Connected) .................................................29
Mount the Receiver ...........................................................................................29
Install the DC Power Supply...............................................................................29
Operation:
Test Headrail Operation (Prior to Panel Installation)..............................................30
Using the PowerView™Remote..........................................................................31
Connect the Bottom Weights..............................................................................40
Install the Room Divider Kit (Optional) .................................................................41
Operate the Shade ............................................................................................44
Resetting the Shade (If Necessary) .....................................................................45
Adjustments .....................................................................................................45
Troubleshooting ................................................................................................49
Care:
Removal Procedures .........................................................................................51
Cleaning Procedures .........................................................................................54
Declarations ....................................................................................................58
Lifetime Guarantee ...........................................................................Back Cover

GETTING STARTED
1
Thank you for purchasing Hunter Douglas Skyline®Gliding Window Panels with PowerView™
Motorization. With proper installation, operation, and care, your new unit will provide years of
beauty and performance. Please thoroughly review this instruction booklet before beginning the
installation.
Mounting Types and Window Terminology
If the installation brackets are mounted correctly, the rest of the installation process follows very
easily. To prepare for this important first step, review the mounting types and basic window
terminology illustrated below.
Unpack the Box
■Carefully remove the rolled up fabric panels and set aside. Locate the panels marked
“FRONT — INSTALL LAST” and “REAR — INSTALL FIRST.” Do not unroll the panels until
installation. Carefully remove the headrail and optional valance from the packaging. Keep
all packaging until the unit operates to your satisfaction.
■Save these instructions for care and cleaning, unit removal, panel removal, and
reinstallationprocedures.
■Check the Product Views on pages 6 and 7 to make sure you have all of the necessary
parts. Contents of the hardware package may vary depending upon how the unit was
ordered and how it will be mounted.
Outside Mount
Panels mounted outside
window opening.
Inside Mount
Panels fit within
window opening.
Collectively, the sill and
jambs are called the
“window casement.”
Molding
Head Jamb
Sill
Jamb Jamb

2
GETTING STARTED
Installation Components Required
■Installation Brackets. This style of mounting bracket
is used for outside mounts. The number of installation
brackets required varies based on headrail width, as
shown in the table above.
■Mounting Clips. This style of mounting clip is used for inside
mounts. The number of mounting clips required varies based
on headrail width, as shown in the tableabove.
■Splice Clip. A splice clip allows a long headrail to be split
in half during shipping, and reconnected during installation.
Once installed, a spliced headrail functions seamlessly as if it
were onepiece.
■Valance Splice Clip. A valance splice clip allows a long valance
to be split in half during shipping, and reconnected during installation.
Once installed, a spliced valance functions seamlessly as if it were
onepiece.

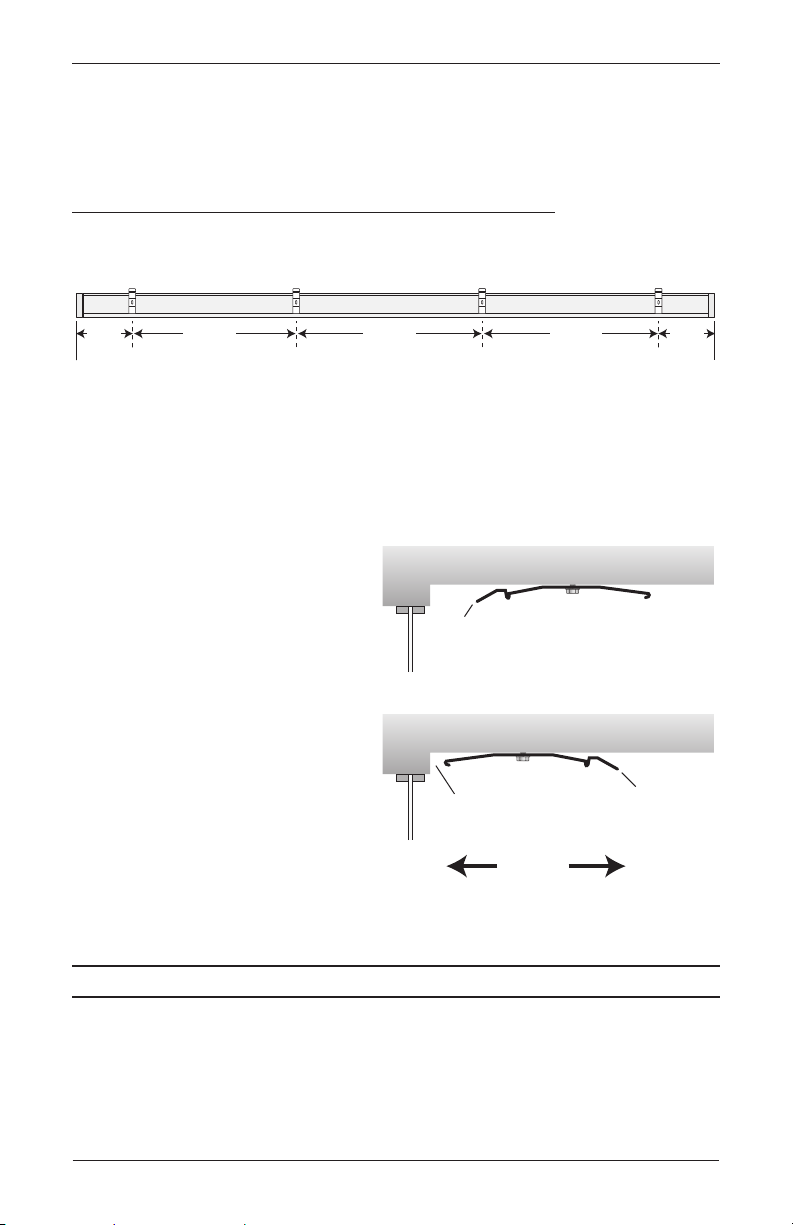

Valance and Headrail Mounting Brackets
Width Brackets/Clips Required
up to – 32" 2
32 1/8" – 56" 3
56 1/8" – 80" 4
80 1/8" – 104" 5
104 1/8" – 128" 6
128 1/8" – 152" 7
152 1/8" – 176" 8
176 1/8" – 200" 9
Installation Bracket
Mounting
Clip
Splice
Clip
Valance Splice Clip

GETTING STARTED
3
■Fabric-Wrapped Large Cassette Installation Bracket.
This style of installation bracket is used for Skyline®units ordered
with the fabric-wrapped large cassette. The brackets are used in
both inside and outside mount applications. The number of
installation brackets required varies based on headrail width, as
shown in the tablebelow.
■Fabric-Wrapped Cassette Splice Clip. This component is only
provided with Skyline units ordered specifically with a spliced headrail.
This clip joins two pieces of the cassette together. Once installed, a
spliced cassette functions seamlessly as if it were onepiece. If you have
not ordered the Skyline unit with a spliced fabric-wrapped large cassette,
you will not receive this component.
■Fabric-Wrapped Large Cassette Splice Cover. This is the decorative
trim cover over the fabric seam in a spliced fabric-wrapped large
cassette. It will also be used when the fabric is seamed. The fabric
seaming is sometimes necessary to obtain the full width of the
cassette. In this case, the splice cover will be installed by the
fabricator. If you have not ordered the Skyline unit with a fabric-
wrapped large cassette, you will not receive this component.
■PowerView™ Receiver. This device is used to receive radio
frequency signals from PowerView™control components and
provides a manual control button.
Fabric-Wrapped
Large Cassette
Installation Bracket
Cassette Installation Brackets Required
Shade Width Brackets Required
Up to 36" 2
361
/8" – 72" 3
721
/8" – 90" 4
901
/8" – 120" 5
1201
/8" – 156" 6
1561
/8" – 192" 8
Fabric-Wrapped
Large Cassette
Splice Clip
Fabric-Wrapped
Large Cassette
Splice Cover

4
GETTING STARTED
■DC Power Supply. The power supply provides DC power to the unit
motor assembly and the receiver. The power supply operates on
power from 100-240 VAC and 47-63 Hz. Each unit needs enough
wire length to allow the DC power supply to reach the wall outlet
nearest the unit or in the least obtrusive location.
■PowerView™Pebble™ Remote. Remote controls are used
to control the unit. Replacements may be ordered should the
remote control be lost or if an additional remote control is
desired. Unless otherwise ordered, each unit ships with one
remote control and batteries. You may have ordered a Surface
Remote instead of the Pebble Remote.
■Wire Retainers. These are used to secure the power cord to
the wall. In some cases, they may also be used to secure the
wire from the receiver to the wall. Both the nail-in and self-
adhesive wire retainers are included.
Optional Components
■Valance Brackets Inside Mount. The number of valance
brackets will be the same as the number of installationbrackets
shown in the table on page 2.
■Valance Brackets Outside Mount. The number of valance
brackets will be the same as the number of installation brackets
shown in the table on page 2.
DC Powe
r
Supply
Wire Retainers
Metal
Valance Brackets
Inside Mount
Metal
Valance Bracket
Outside Mount

GETTING STARTED
5
■Box Valance Brackets. A box valance wraps around the
entire headrail. The number of valance brackets will be the same
as the number of installationbrackets shown in the table on
page2.
■Fabric Valance Mounting Brackets. The number of fabric
mounting brackets will be the same as the number of
installationbrackets shown in the table on page 2. These
brackets are only used for outside mounts.
■Room Divider Kit. This set of parts holds the
panels in place at each end of a Skyline®unit used
as a room divider.
Tools and Fasteners Needed
■Flat blade and Phillips screwdriver ■Level (laser level is recommended)
■Measuring tape and pencil ■Needle nose pliers
■Power drill and drill bits (1∕4" hex
driver also recommended)
In addition, you will need fasteners designed to work with your specific mounting surface(s).
■#6 Hex Head Screws (Provided). Two 11∕2" screws are provided per installation bracket.
■Longer #6 Hex Head Screws (Not Provided). If using spacer blocks, use #6 screws
long enough for a secure attachment.
■Wall Anchors (Not Provided). Use wall anchors when mounting into drywall.
Box Valance
Bracket
Fabric Valance
Mounting Bracket
Room Divider Kit
#6 x 1½"
Hex Head Screw
(Provided)
Longer #6 Hex Head Screw
For Use With Spacer Blocks
(Not Provided)

6
GETTING STARTED
Product View —Skyline® Gliding Window Panels
Fabric
Panels
Bottom
Weights
Installation
Bracket
Mounting Clip
Headrail
Headrail Splice Clip
PowerView
™
Receiver

GETTING STARTED
7
Product View —Top Treatment Options
Valance
Return
Valance Bracket
Outside Mount
Valance Corner
End Cap
Valance
Corner
End Cap
Box
Valance
Bracket
Box Valance
Rear
Valance Bracket
Inside Mount
Skyline Box Metal Valance
(Optional)
Skyline Fabric-Wrapped
Large Cassette
(Optional)
Skyline®Metals Valance
(Optional)
Skyline Fabric Valance
(Optional)
Skyline Fabric Box Valance
(Optional)
Valance Splice Clip
Fabric Valance
Mounting Bracket
Dust Cover
Valance
Valance
Return
Dust Covers
Right Corner
Left Corner
Left Corner
Right Corner
Large Cassette
End Cap
Cassette
End Plate
Fabric-Wrapped Large Cassette
Installation Bracket
Fabric Wrapped
Large Cassette
Cassette
Splice
Clip
Splice
Cover
Valance
Valance
Return
Left Corner
Right Corner

INSTALLATION
8
Inside and Ceiling Mount Applications
For panel order without a valance continue below. If you ordered a valance, see “Inside and
Ceiling Mount Applications WITH A Valance” on page 9.
Inside and Ceiling Mount Applications WITHOUT a Valance

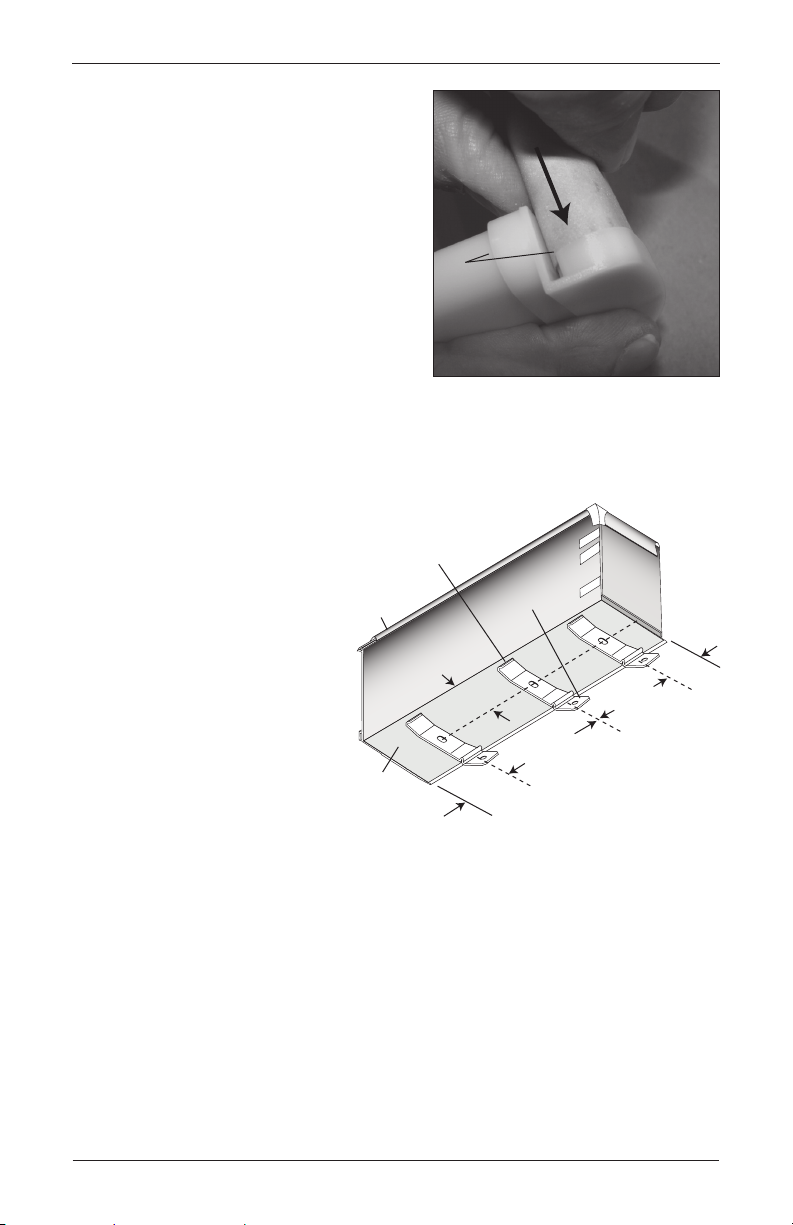

■Mark the mounting clip locations on the ceiling or inside the window casement. Use the
figure below as a guide for locating the mounting clips.
■Use a 3∕32" drill bit to drill holes for the screws.
CAUTION: Do not mount into drywall, only mount into wood.
■Use a level to check that the mounting surface is level. Shim the brackets if necessary.
Shims are not provided.
■Ensure the mounting clips are all facing
the same direction.
➤Standard Mount — The release
tabs are toward to the window.
➤Flush Mount — The release tabs
are toward the room to allow for a
flush mounting.
IMPORTANT: The mounting tabs
will be visible on a flush mount unless
concealed by a valance.
■Use the hex head screws provided
to fasten the mounting clips to the
mounting surface.
■Verify that the mounting clips are
mounted level and are aligned to
eachother.
Proceed to “Mount the Headrail” on page 23.
2"-4"
18"-24"
2"-4"
18"-24" 18"-24"
Jamb Jamb
Flush Mount Option
Inside Mount (Standard)
Release Tab
Toward Wall
Release Tab
Toward Room
For Closest
Wall Clearance
Ceiling/Top Sill
Room
Wall

INSTALLATION
9
Inside and Ceiling Mount Applications WITH A Valance
■Refer to the appropriate section below for your valance type:
➤Metal Valance with Returns — below
➤Metal Valance without Returns — page 10
➤Fabric Valance with Returns — page 11
➤Fabric Valance without Returns — page 14
➤Fabric-Wrapped Large Cassette — page 21
➤To mount your valance outside the window casement or to the wall — page 26
IMPORTANT: The assembled valance serves as a drilling template when marking the screw
holes on the sill or ceiling.
Metal Valance with Returns
■Assemble the valance corners and returns.
➤Fit the tabs on the corner end caps into
the notches on the end of the valance
piece.
➤Fit the tabs on the corner end cap into
the notches on the end of the valance
returnpieces.
■Snap the valance brackets onto the valance, spacing them 2" to 4" from each end with 18"
to 24" between intermediate valancebrackets.
■Center the valance inside the window opening (inside mount) or over the window opening
(ceiling mount).
■Mark the drilling locations, using the valance clip holes as guides.
■Set the valance aside.
■Drill the holes at the mounting clip locations previouslymarked.
CAUTION: Do not mount into drywall, only mount into wood.
■Holding the valance in place over the
drilled holes, insert a screw through each
mounting clip and valance bracket. Ensure
that the RELEASE TAB FACES THEWALL.
Proceed to “Mount the Headrail” on page 23.
Valance
(Front of
the Unit)
Tabs
Valance
Return Corner
End Cap
Notches
12
Intermediate
Valance Brackets Valance Clip Hole
2"-4"
18"-24"
2"-4"
18"-24" 18"-24"
Valance Return
Jamb
Jamb
RoomWall
Valance Mounting
Bracket
Mounting Clip Mounting
Screw
Release Tab

INSTALLATION
10
Metal Valance without Returns
■Snap the valance brackets onto the valance, spacing them 2" to 4" from each end with 18"
to 24" between intermediate valancebrackets.
■Center the valance inside the window opening (inside mount) or over the window opening
(ceiling mount).
■Mark the drilling locations, using the valance clip holes as guides.
■Set the valance aside.
■Drill the holes at the mounting clip locations previouslymarked.
CAUTION: Do not mount into drywall, only mount into wood.
■Holding the valance in place over the drilled holes, insert a screw through each mounting
clip and valance bracket.
Proceed to “Mount the Headrail” on page 23.
Intermediate
Valance Brackets Valance Clip Hole
2"-4"
18"-24"
2"-4"
18"-24" 18"-24"
Jamb Jamb
RoomWall
Valance Mounting
Bracket
Mounting Clip Mounting
Screw
Release Tab

INSTALLATION
11
Fabric Valance with Returns
■Slide the corners onto the valance dust cover. These are marked on the inside corners for
the left and right sides. Do not fully seat the corners.
■If the fabric cover is not already installed:
➤Clip the narrow edge of the fabric over
the top of the dust cover and into the
slot as shown.
➤Pull the wide edge of the fabric over
the bottom of the dust cover and clip
it into the ridge on the bottom edge of
the dust cover.
Rear View Back of
Valance Dust Cover
Corner
Front View
Valance Dust Cover
Corner
Slot
Dust Cover
Ridge

INSTALLATION
12
■Carefully push the corners fully into place
making sure that the fabric goes under the lip
of the corners.
■Put the return fabric covers on the same
way as the main part of the fabric valance,
only slide them into place under the lip of the
corner.
■Lay the dust cover upside down on a clean
working surface.
■Place the mounting clips on the dust cover:
➤The release tabs must be
facing away from the valance.
➤The end mounting clips must
be 2" to 4" from the end of the
dust cover.
➤Intermediate mounting
clips must be 18" to 24"
from each other or the end
mountingclips.
➤The center line of the holes
in the mounting clips must be
1½" from the valance.
Lip
18"-24"
18"-24"
2"-4"
2"-4"
Intermediate
Mounting Clip
Release
Tab
1
1
/
2
"
Valance
Dust
Cover
Note: Left Return
Removed for Clarity.

INSTALLATION
13
■With the mounting clips in place, mark
the dust cover through the center holes
of the mounting clips.
■Remove the mounting clips and drill the
holes in the dust cover.
■Hold the dust cover in place on the
mounting surface and mark through
theholes.
■Set the valance aside.
■Use a 3∕32" drill bit to drill the screw holes.
CAUTION: Do not mount into drywall,
only mount into wood.
■Hold the valance in place against the
mounting surface.
■Insert a screw through a mounting clip
and the dust cover at each hole location.
Proceed to “Mount the Headrail” on page 23.
Release
Tab Toward
Window
Return

INSTALLATION
14
Fabric Valance without Returns
■If the fabric cover is not already installed:
➤Clip the narrow edge of the fabric over
the top of the dust cover and into the
slot as shown.
➤Pull the wide edge of the fabric over
the bottom of the dust cover and clip
it into the ridge on the bottom edge of
the dust cover.
■Lay the dust cover upside down on a clean working surface.
■Place the mounting clips on the dust cover:
➤The release tabs must be facing away from the valance. (They face toward the wall.)
➤The end mounting clips must be 2" to 4" from the end of the dust cover.
➤Intermediate mounting clips must be 18" to 24" from each other or the end
mountingclips.
➤The center line of the holes in the mounting clips must be 1½" from the valance.
Dust Cover
Slot
Ridge
Release Tab
1
1
/
2
"
Dust Cover Intermediate
Valance Clips
V
alance
2"-4"
18"-24"
2"-4"
18"-24" 18"-24"
Jamb
Jamb

INSTALLATION
15
■With the mounting clips in place, mark
the dust cover through the center holes
of the mounting clips.
■Remove the mounting clips and drill the
holes in the dust cover.
■Hold the dust cover in place on the
mounting surface and mark through
theholes.
■Set the valance aside.
■Use a 3∕32" drill bit to drill the screw holes.
CAUTION: Do not mount into drywall,
only mount into wood.
■Insert a screw through a mounting clip
and the dust cover at each hole location.
Remember, the release tab must be
toward the wall.
Proceed to “Mount the Headrail” on page 23.
Release
Tab Toward
Wall
Mounting
Clip

INSTALLATION
16
Outside Mount Applications
Installation Bracket Placement
■Measure and mark the wall 2" to 4" in from each end of the headrail.
■Evenly space and mark the intermediate installation brackets at 18" to 24" intervals along
the headrail. DO NOT exceed 24" between installation brackets.
CAUTION: The installation brackets must be mounted level to a flat, vertical surface for
the unit to operatecorrectly. Do not mount installation brackets on curvedmolding.
IMPORTANT: If your unit came with a spliced headrail, see “Spliced Headrails without
Fabric-Wrapped Large Cassette” on page 24.
IMPORTANT: The top of the installation brackets need to be mounted at the outside
mount ordered height plus an additional ½", for the desired floor clearance.
■Use a 3∕32" drill bit to drill the screw holes.
CAUTION: Do not mount into drywall, only
mount into wood.
■Attach each installation bracket to the
mounting surface using two screws.
■Verify that the installation brackets are
mounted level andaligned with each other.
Attach the Installation Bracket Covers
IMPORTANT: Bracket covers are optional and do not have to be installed.
■Position the cover centered beneath the installation bracket.
■Slide the cover up as far as possible.
■Push against the cover to clip it onto the base of the installation bracket.
The cover will snap over the installation bracket base in two locations
(against the back and at the top).
Proceed to “Mount the Headrail” on page 23.
2"-4"
18"-24"
2"-4"
18"-24" 18"-24"
Wall
End of Headrail Mark
Mounting Clip
A 2" minimum flat
vertical surface
is required to
mount the brackets.
2" – 4"
End of
Headrail
Mark

INSTALLATION
17
Box Valances and Fabric-Wrapped Cassette Installation
■Refer to the appropriate section below for your valance type:
➤Metal Box Valance — below
➤Fabric Box Valance — page 18
➤Fabric-Wrapped Large Cassette — page 21
Metal Box Valance
■Assemble the valance using two corners, one return piece, and the front and rear pieces.
See “Product View — Top Treatment Options” on page 7. Do not put the other return
and corner pieces in place at this time.
IMPORTANT: The assembled valance serves as a drilling template when mounting the unit
to the ceiling.
■Install valance hanger clips inside
box valance as shown.
■Evenly space the intermediate
valance box brackets at 18"to
24"intervals along the headrail.
DO NOT exceed 24"between
valance brackets.
■Slide the box valance brackets
into the box valance as shown.
Make sure all of the release tabs
on the installation brackets are
positioned away from the valance.
■Assemble the remaining return and two corner pieces and install them onto the valance.
■Position the valance assembly where it will be mounted against theceiling.
■Use a 3∕32" drill bit, drill the center hole (or near the center) first and install a screw.
CAUTION: Do not mount into drywall, only mount into wood.
■Install the rest of the box valance brackets and screws.
Proceed to “Mount the Headrail” on page 23.
18"-24" 2"-4"
18-24"
18"-24"
2"-4"
Release tab
positioned
away from
the valance.

INSTALLATION
18
Fabric Box Valance
■Slide one corner onto the valance dust cover. The corners are marked on the inside
corners for the left and right sides. Do not fully seat the corner in this step.
■Hook the top edge of the fabric valance
over the top of the plastic dust cover and
then gently pull the bottom cover over the
bottom of the plastic dust cover.
Rear View Back of
Valance Dust Cover
Corner
Front View
Valance Dust Cover
Corner
Dust Cover
Slot
Ridge
