Installation •Operation •Care
Applause®
Honeycomb Shades
SimpleLift™Lifting System

CONTENTS
Questions?
Call the Hunter Douglas Customer Information Center at
1-888-501-8364.
Getting Started:
Product View ................................................................ 1
Tools and Fasteners Needed .......................................... 2
Installation:
Installation Overview ..................................................... 3
Mount the Installation Brackets — Inside Mount............. 4
Mount the Installation Brackets — Outside Mount .......... 5
Mount the Installation Brackets — EndMount ................ 7
Install the Shade ........................................................... 8
Operation:
Operate the Shade ........................................................ 9
Troubleshooting .......................................................... 10
Care:

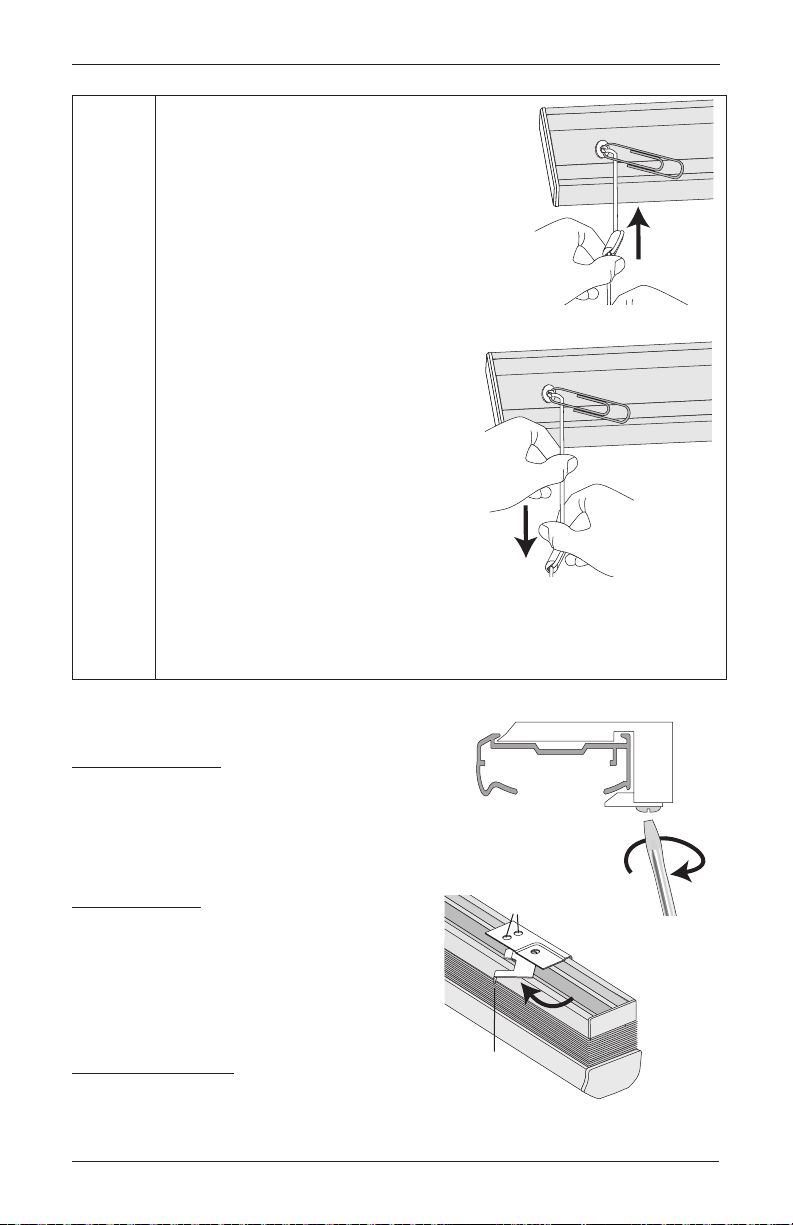

Removing the Shade (If Necessary) .............................. 12
Cleaning Procedures ................................................... 13
© 2016 Hunter Douglas. All rights reserved. All trademarks used herein are the property of Hunter Douglas
or their respective owners.

GETTING STARTED
1

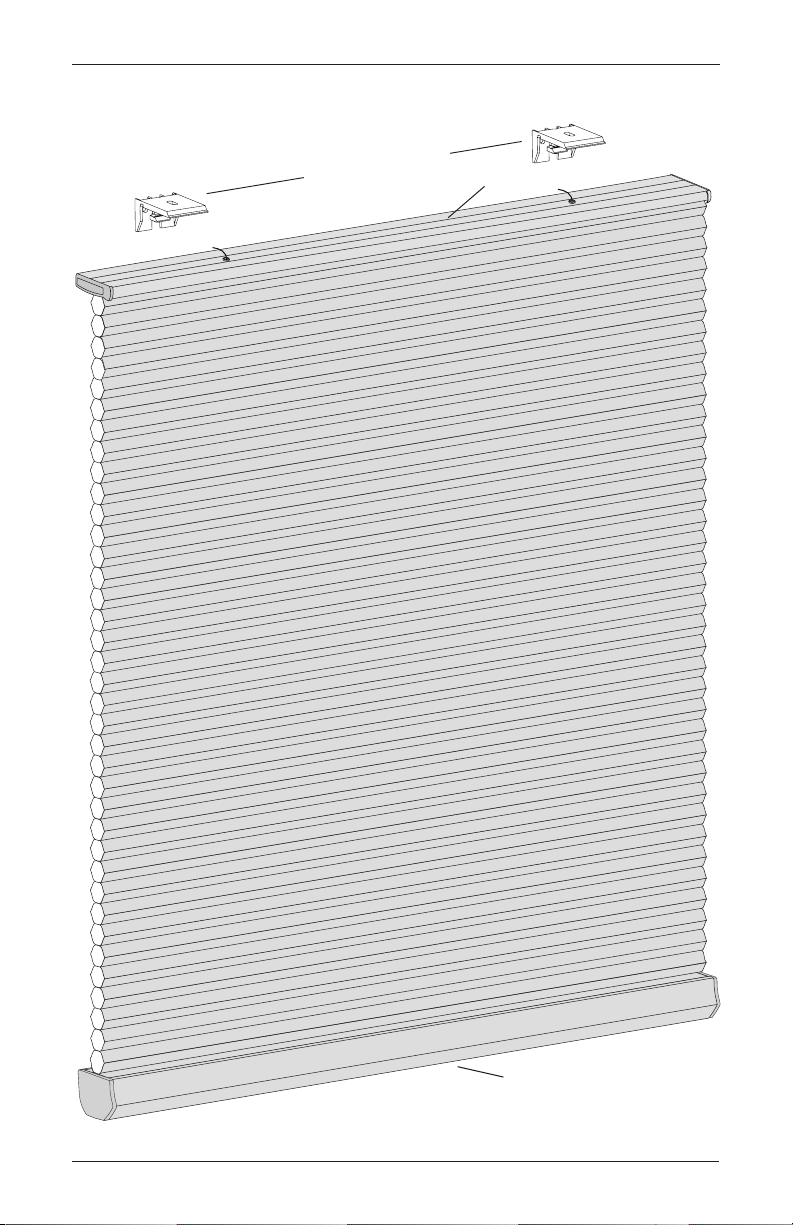

Product View
Installation Brackets
Bottom Rail
Headrail

2
GETTING STARTED
Thank you for purchasing Hunter Douglas Applause®honeycomb shades. With proper
installation, operation, and care, your new shades will provide years of beauty and performance.
Please thoroughly review this instruction booklet and the enclosed packing list before beginning
the installation.
Tools and Fasteners Needed
■Flat blade and Phillips screwdrivers
■Level (laser level is recommended)
■Measuring tape and pencil
■Power drill,
3
/ 32 " drill bit, and
1
/ 4 " driver

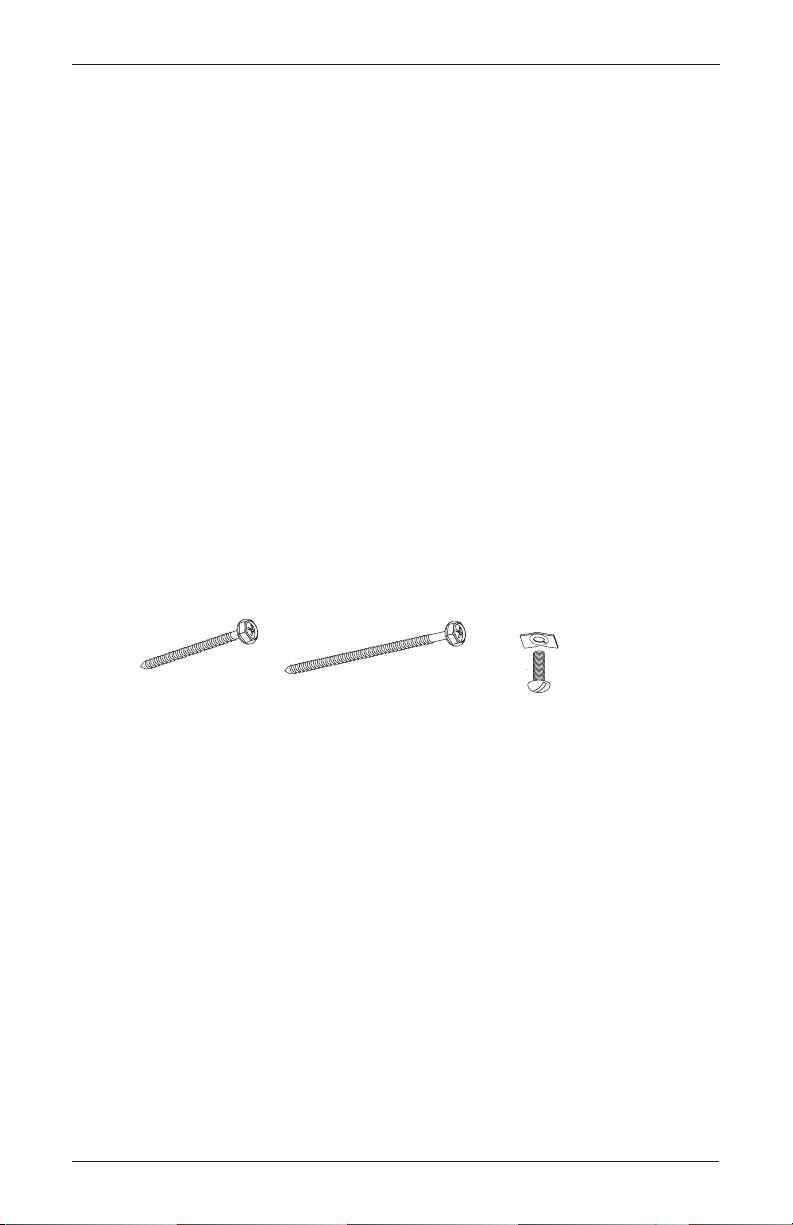

In addition, you will need fasteners designed to work with your specific mounting surface(s).
■#6 Hex Head Screws (Provided). Two 1
1
/ 2 " screws are provided per installation bracket.
■Longer #6 Hex Head Screws (Not Provided). If using spacer blocks, use #6 screws long
enough for a secure attachment.
■Speed Nuts and Screws (Provided). Extension brackets come with speed nuts and screws.
■Drywall Anchors (Not Provided). Use drywall anchors when mounting into drywall.
Speed Nut
and Screw
(Provided with Each
Extension Bracket)
#6 x 1
1
/ 2 "
Hex Head Screw
(Provided)
Longer #6 Hex Head Screw
for Use with Spacer Blocks
(Not Provided)
■Flat blade and Phillips screwdriver ■Level
■Measuring tape and pencil ■Power drill,
3
/ 32 " drill bit,
and a
1
/ 4 " hex driver

INSTALLATION
3
Installation Overview

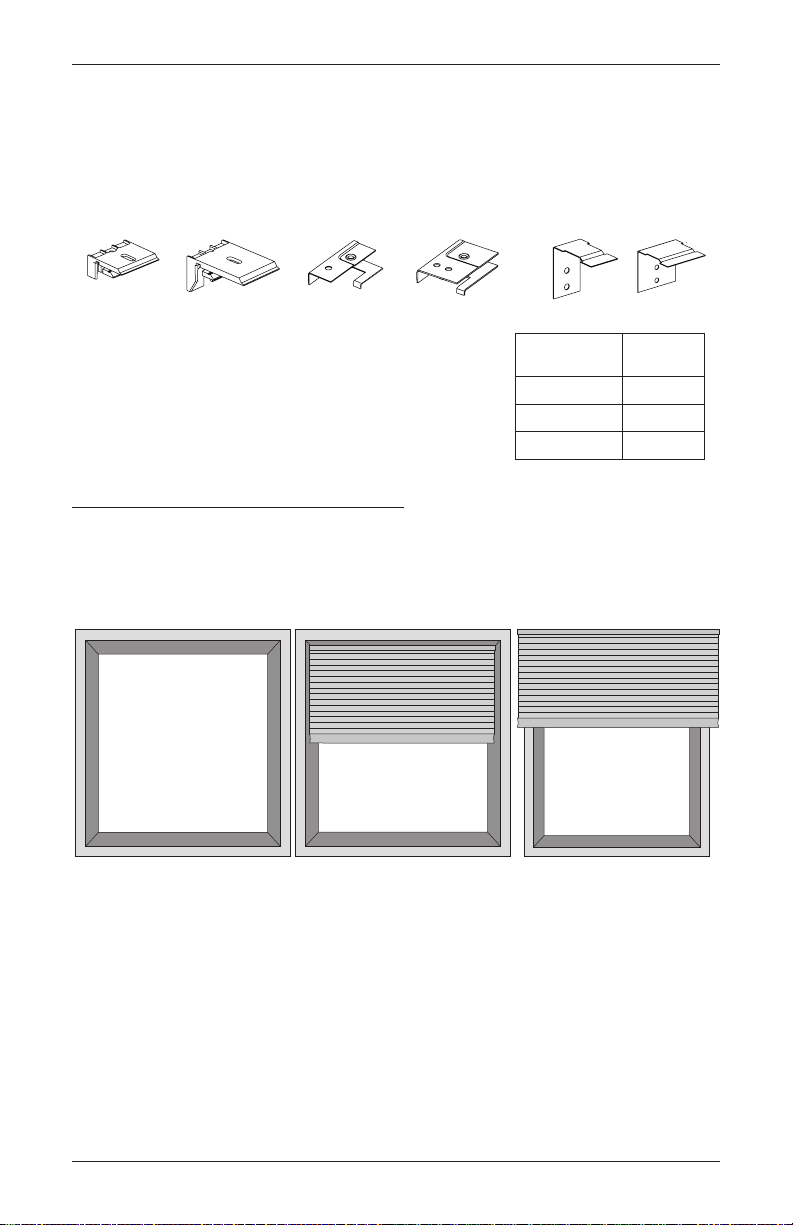

■Your order will include installation brackets specific to your pleat size.
➤The number of installation brackets required varies
with headrail width, as shown in the table.
Mounting Types and Window Terminology
If the installation brackets are mounted correctly, the rest of the installation process follows very
easily. To prepare for this important first step, review the mounting types and basic window
terminology illustrated below.
■Refer to the appropriate page below based on your order:
➤Inside Mount —Page 4
➤Outside Mount — Page 5
➤End Mount — Page 7
3
/ 4 "
Standard
Installation
Bracket
3
/ 8 "
Standard
Installation
Bracket
3
/ 4 "
Swivel
Bracket
(Optional)
3
/ 8 "
Swivel
Bracket
(Optional)
3
/ 8 "
End Mount
Bracket
3
/ 4 "
End Mount
Bracket
Shade
Width
Brackets
Required
12" –30" 2
30
1
/ 8 "– 60" 3
60
1
/ 8 " – 84"4
Outside Mount
Shade mounts outside
window opening.
Inside Mount
Shade fits within
window opening.
Collectively, the sill and
jambs are called the
“window casement.”
Molding
Head Jamb
Sill
Jamb Jamb

INSTALLATION
4
Mount the Installation Brackets — Inside Mount

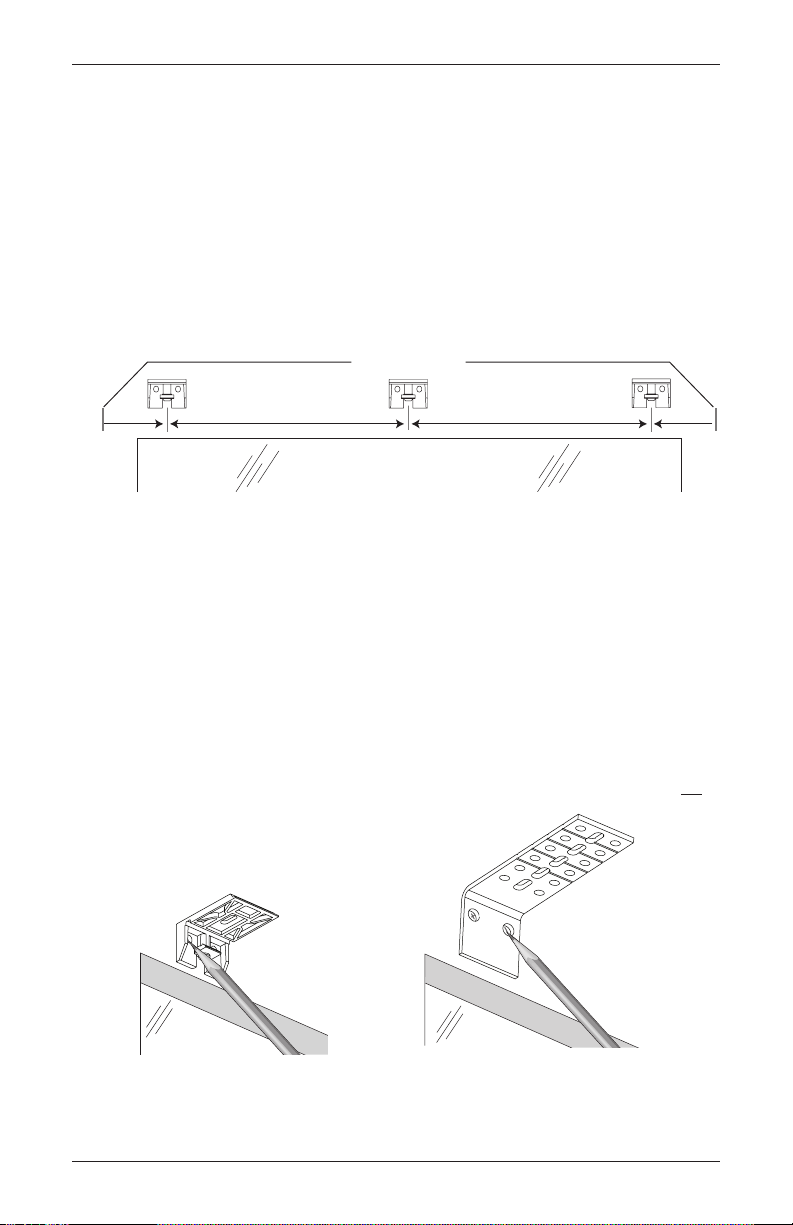

■Mark 3" from each jamb.
➤If more than two installation brackets came with your order, space additional bracket(s)
evenly between the two end brackets and mark their location. Mount into wood
whenever possible.
■Center the brackets on your marks, then mark the location of the screw holes.
➤Mounting depth will vary depending on the
fabric pleat size. Refer to the chart for depth
requirements.
➤Fully recessed mounting indicates the entire
shade is inside the window casement.
NOTE: Minimum depths for
3
/ 8 " pleat size include
1
/ 4 " clearance behind the bracket to allow for rear
clearance.
IMPORTANT: The front edges of the installation brackets must be level andaligned.

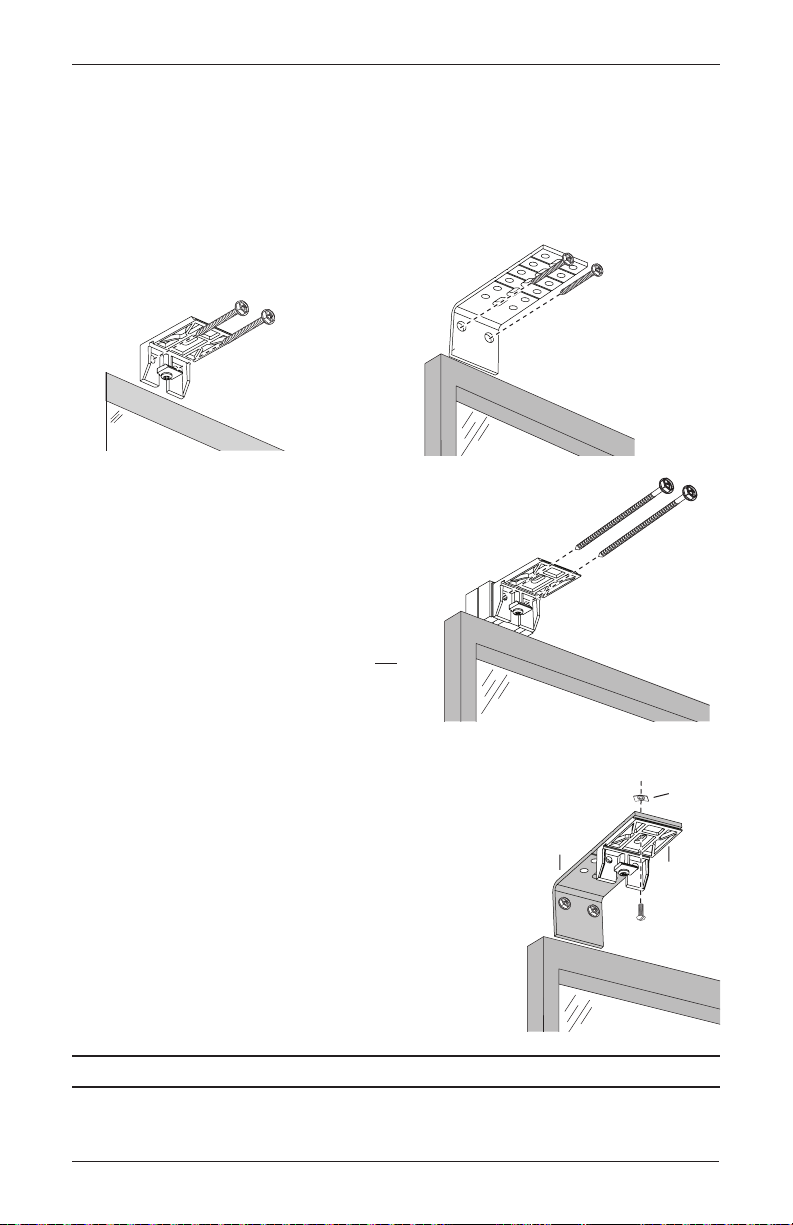

■Drill the screw holes using a
3
/ 32 " drill bit.
IMPORTANT: Use drywall anchors when mounting into drywall.
■Attach the installation brackets using the screws provided.
➤Check that the mounting surface is level and the brackets are aligned. If mounting to a
heavily textured surface, shim the brackets, if needed.
Proceed to “Install the Shade” on page 8.
3" Space Evenly
Jamb Jamb
Space Evenly 3"
Standard Bracket Swivel Bracket
See Chart
for Depth See Chart
for Depth
3" 3"
Depth Chart For BracketPlacement
Bracket
Type Minimum
Fully
Recessed
3
/ 8 " Standard 1
1
/ 4 " 1
3
/ 4 "
3
/ 4 " Standard* 1
1
/ 4 " 2
1
/ 4 "
3
/ 8 " Swivel
3
/ 4 " 1
3
/ 4 "
3
/ 4 " Swivel*
1
/ 2 " 2"
*Double honeycomb fabrics use
3
/ 4 " brackets.

INSTALLATION
5
Mount the Installation Brackets — Outside Mount
■Center the headrail over the window opening at the desired height. Use a pencil to lightly
mark each end of the headrail.
➤Alternatively, measure the width of the headrail and use that width to mark the headrail
end points over the window opening.
■Mark 3" from each end of the headrail.
➤If more than two installation brackets came with your order, space them evenly between
the two end brackets and mark their location. Mount into wood whenever possible.
■Center the brackets on your marks, then mark each of the screwholes.
➤A minimum flat vertical surface of
5
/ 8 " for a
3
/ 8 "bracket or 1" for a
3
/ 4 " bracket is
required to mount the brackets.
➤The top of the installation brackets or extension brackets should be at the desired shade
height.
NOTE: Use a spacer block with each installation bracket to allow rear clearance for the
3
/ 8 "
pleat size bottom rail.
IMPORTANT: The brackets must be level andaligned to each other.
CAUTION: The rear of the brackets must be flush against a flat mounting surface. Do not
mount brackets oncurved molding.
3" 3"
Space Evenly
Space Evenly
Headrail End Marks
Window Opening
Installation
Bracket
Extension
Bracket

INSTALLATION
6
■Drill the screw holes using a
3
/ 32 " drill bit.
IMPORTANT: Use drywall anchors when mounting into drywall.
■Attach the installation brackets using the screws provided.
IMPORTANT: The front edges of the installation brackets must be level and aligned to
eachother.
■If using spacer blocks with installation brackets,
attach the spacer block(s) and installation
bracket to a flat vertical mounting surface with
#6mounting screws long enough for asecure
installation.
CAUTION: The rear spacer block must be
flush against a flat mounting surface. Do not
mount spacer blocks and installation brackets
on curvedmolding.
➤Each spacer block projects the installation bracket
1
/ 2 " from the mounting surface. A
maximum of 1
1
/ 2 " of spacer blocks per installation bracket is recommended.
➤The solid side of the spacer blocks faces the mounting surface.
■If using extension brackets, attach an installation bracket to
the underside of each extension bracket using the provided
screws and speed nuts.
Proceed to “Install the Shade” on page 8.
Spacer Blocks
Extension
Bracket
Installation
Bracket
Speed
Nut

INSTALLATION
7
Mount the Installation Brackets — EndMount
End mount the headrail when conventional mounting techniques will not work — for example, in
an arched window opening.

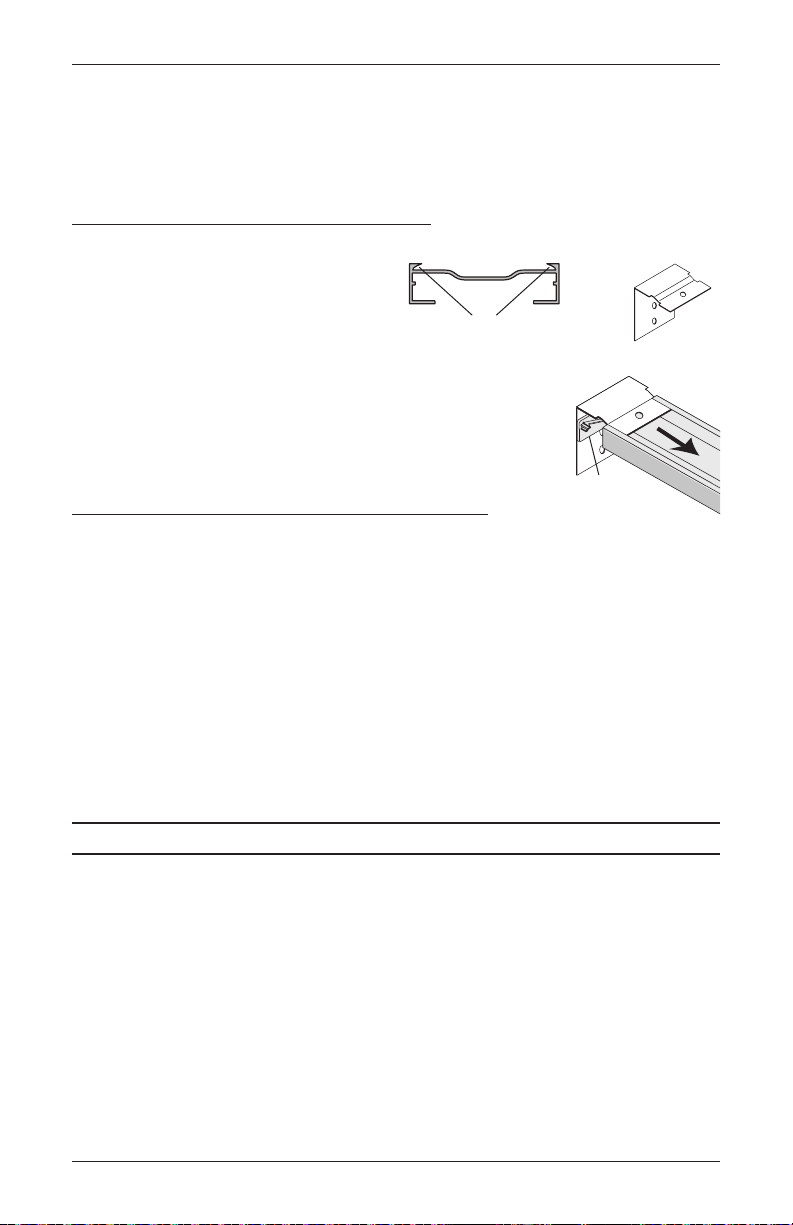

Install End Mount Brackets onto the Headrail
■Slightly remove the end caps from the
headrail. Do not remove them all
the way.
■Insert the short end of the specialty end
mount brackets over each of the end caps
and under the small fabric channels in the
headrail.
■Push the end mount brackets and end caps snugly into the headrail.
Install the End Mount Brackets to the Window Jamb
■Fully lower the shade.
■Position the fully lowered shade in the window.
■Gently push the fabric away from the end mount brackets to allow access to the screw holes.
■Mark the screw hole locations.
IMPORTANT: Check that the front edges of the shade are level and aligned.
■Remove the shade with the attached end mount brackets from the window.
■Drill the screw holes using a
3
/ 32 " drill bit.
■Attach the end mount brackets using the screws provided.
Proceed to “Operate the Shade” on page 9.
Long
End
Short
End
Specialty End
Mount Bracket
Applause®Headrail
Small Fabric Channels
End Cap

INSTALLATION
8
Install the Shade
Standard Brackets
■Position the shade so the front fabric faces you.
■Slip the headrail into the installation brackets so
the front of the bracket slides under the front
groove on the top of the headrail.
■Gently roll the back of the headrail up and push
back to snap into place.
■Tighten the tab screw snugly. Do not overtighten.
Swivel Brackets
■Place the swivel brackets in the open position.
■Place the headrail against the back of the
swivel brackets.
■Rotate the swivel arm to snap the locking tab
under the headrail.
■The shade is locked when the push tab is
against the headrail.
Tab
Screw
Headrail
Bracket
in Locked
Position
Push
Tab
Bracket
in Open
Position
Screw Holes
Locking
Tab

OPERATION
9
Operate the Shade
NOTE: Operate your shade daily to ensure its best performance.

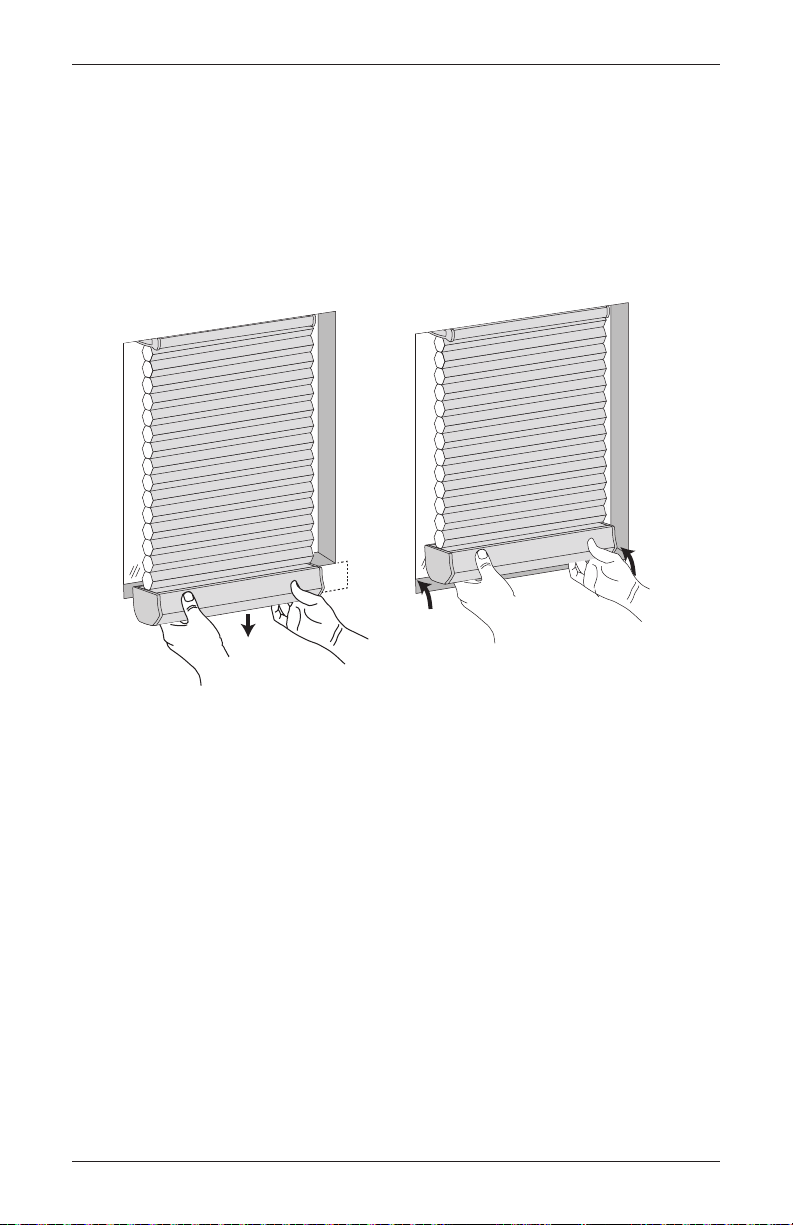

■To raise or lower the shade, move the bottom rail to the desired height.
IMPORTANT: Be careful not to touch the fabric when handling the bottom rail.
■For inside mount applications: When lowering the shade, pull the bottom rail down and
slightly toward you, approximately 1" beyond the sill. Then lift and tuck the bottom rail up
onto the sill.
1"
Lift the rail and
place on the sill.
Pull the rail down
1" beyond the sill.
1"
Lift the rail and
place on the sill.
Pull the rail down
1" beyond the sill.

OPERATION
10
Troubleshooting
Problem The shade will not fit into theinstallation brackets.
Solution Check that the installation brackets are level and aligned. Shim the installation
brackets to level the headrail, if necessary.
Be sure the heads of the screws are flush against the installation bracket. Check
that the headrail is completely inserted into the installation brackets. See “Install
the Shade” on page8.
Problem The shade is hard to raise or lower, or will not raise or lower.
Solution Make sure that the shade fabric is not caught between the installation bracket and
the headrail.
Check that the headrail and installation brackets are level and aligned in the
window. Shim the installation brackets to level the headrail, if necessary.
Problem The shade raises or lowers unevenly, or the bottom rail is uneven when raised.
Solution Check that the headrail and installation brackets are level and aligned. Shim the
installation brackets to level the headrail, if necessary.
Check to see if there is an obstruction in the shade’s path. If a shade hits an
obstruction as it is lowered it may become misaligned. This may cause the shade
to be angled or tilted when fully raised. Try lowering the shade completely, then
raising it to allow it to self-correct.
Problem The shade resists when raising or the fabric billows when raised.
Solution Make sure to slowly raise the shade completely. Operate the shade several times
to allow fabric to go back to its original pleated state.
Problem When lowering the shade, it springs back above the desired length.
Solution Be sure to lower and raise the shade several times to allow the fabric to relax.

OPERATION
11
Problem The ferrule has come off the cord. How do I rethread the ferrule?
Solution Thread the end of the cord into the tapered end of the
ferrule. Loop the cord around the ferrule and back
through the tapered end. Make sure the loop fits into
the groove on the side of the ferrule.
Problem The bottom rail is not level, or the shade height is incorrect.
Solution Shade Height Adjustment
Shade height and adjustments to level the bottom
rail can be made by adjusting the cords on the
topside of the top rail.
■Measure the amount of adjustment needed.
■Remove the shade from the mounting brackets.
■Place the shade on a flat surface. On the side
where you are making the adjustments, locate
the ferrule seated in a pocket in the toprail.
NOTE: Typically only one side of the shade
needs to be adjusted.
■Remove the ferrule from the pocket by pulling
on the excesscord.
➤If the cord has been trimmed pull with
needlenose pliers.
■To prevent the cord from being pulled through
the shade when you make the adjustment,
temporarily secure it with a paper clip. Refer to
the illustrations.
➤Slide the cord loop through the bottom of the
paper clip.
➤Pull the cord loop over the top of the entire
paper clip
➤Pull the cord tightly to form a slip knot.
(Continued on following page)
Be sure the cord
loop fits into
the ferrule
groove.
Cord Loop
Pull the cord
to remove
the ferrule.
Ferrule
Cord
Pocket
Top Rail
Pull
Tight
Pull the cord
loop up
ad over
paper clip.
ert the cord
loop ito the
paper clip.
Pull the cord
to remove
the ferrule.
Ferrule
Cord
Pocket
Top Rail
Pull
Tight
Pull the cord
loop up
ad over
paper clip.
ert the cord
loop ito the
paper clip.
Pull the cord
to remove
the ferrule.
Ferrule
Cord
Pocket
Top Rail
Pull
Tight
Pull the cord
loop up
ad over
paper clip.
ert the cord
loop ito the
paper clip.
Pull the cord
to remove
the ferrule.
Ferrule
Cord
Pocket
Top Rail
Pull
Tight
Slip Knot

OPERATION/ CARE
12
Solution ■To shorten the cord, hold the cord tight under
the ferrule and slide the ferrule up toward
the pocket the amount you measured.
■To lengthen the cord, hold the cord tight
between the pocket and the ferrule and
slide the ferrule away from the pocket the
amount you measured.
■After making the adjustment, undo the
knot and remove the paperclip. Slowly
let the cord retract up into the shade and
press the ferrule in place.
■To view the “Shade Height Adjustment” video, go to:
http://www.youtube.com/user/Hunterdouglas
Removing the Shade (If Necessary)
Standard Brackets
■Fully raise the shade.
■While holding the headrail, loosen the tab screw on
each bracket to release the headrail.
Swivel Brackets
■Fully raise the shade.
■While holding the headrail, pull the push tab
to rotate the swivel arm to the open position to
release the headrail.
End Mount Brackets
■Reverse the installation procedures. See “Mount
the Installation Brackets — EndMount” on page7.
Slide the
ferrule up
to shorten
the cord.
To Shorten
To Lengthen
Slide the
ferrule down
to lengthen
the cord.
Slide the
ferrule up
to shorten
the cord.
To Shorten
To Lengthen
Slide the
ferrule down
to lengthen
the cord.
Screw Holes
Tab

CARE
13
Cleaning Procedures
Hunter Douglas Applause®honeycomb shades are made of anti-static, dust-resistant fabric
which repels dirt and dust. For most honeycomb fabrics, the following cleaning options are
available.
Dusting
■Regular light dusting with a feather duster is all the cleaning that is needed in most
circumstances.
Vacuuming
■For deeper cleaning, vacuum gently with a brush attachment.
Compressed Air/Hair Dryer (Cool Setting)
■Use compressed air or a hair-dryer on a cool setting to blow dust and dirt off shades.
Spot-Cleaning
■Prepare a solution of warm water and a mild detergent.
■Dampen a clean cloth in the solution and wring it out.
■Dab the spot with the dampened cloth until it is gone. Do not rub the fabric.
■Allow the shade to dry in the completely lowered position.
Bathtub Cleaning/Water Immersion
CAUTION: Do not immerse Venue™and opaque fabrics.
■Immerse the shade in a basin or bathtub filled with warm water and a mild detergent.
IMPORTANT: Never immerse the bottom rail into the solution.
■Rinse with clean water.
■Before removing from the rinse water, fully raise the shade and tilt it to allow excess water
to drain off.
■Dry the shade completely in the lowered position.
Ultrasonic Cleaning
CAUTION: Do not ultrasonically clean opaque fabrics.
■Some honeycomb fabrics can be ultrasonically cleaned by a professional.
■Specify that a mild detergent solution be used.
IMPORTANT: Never immerse the bottom rail into the solution.
■Dry the shade completely in the lowered position.
Injection/Extraction Cleaning
This type of professional cleaning injects a cleaning solution into the fabric and extracts the dirty
solution in the same motion.

5109604161 4/16
The Hunter Douglas®Lifetime Guarantee is an expression of our desire to provide a thoroughly satisfying
experience when selecting, purchasing and living with your window fashion products. If you are not thoroughly
satisfied, simply contact Hunter Douglas at [phone] or visit hunterdouglas.com. In support of this policy
of consumer satisfaction, we offer our Lifetime Limited Warranty as described below.
NOTE:In no event shall Hunter Douglas or its licensed fabricators/distributors be liable or responsible for incidental
or consequential damages or for any other indirect damage, loss, cost or expense. Some states do not allow the exclusion or
limitation of incidental or consequential damages, so the above exclusion or limitation may not apply to you. This warranty
gives you specific legal rights, and you may also have other rights which vary from state to state.
Different warranty periods and terms apply for commercial products and applications.
Hunter Douglas (or its licensed fabricator/distributor) will repair or replace the
window fashion product or components found to be defective.
COVERED
BY ALIFETIME LIMITEDWA RRANTY
• Hunter Douglas window fashion products are
covered for defects in materials, workmanship
or failure to operate for as long as the original
retail purchaser owns the product (unless shorter
periods are provided below).
• All internal mechanisms.
• Components and brackets.
• Fabric delamination.
• Operational cords for a full 7 years from the
date of purchase.
• Repairs and/or replacements will be made with
like or similar parts or products.
• Hunter Douglas motorization components are
covered for 5 years from the date of purchase.
NOT COVERED
BY ALIFETIME LIMITEDWA RRANTY
• Any conditions caused by normal wear and tear.
• Abuse, accidents, misuse or alterations to the
product.
• Exposure to the elements (sun damage, wind,
water/moisture) and discoloration or fading
over time.
• Failure to follow our instructions with respect
to measurement, proper installation, cleaning
or maintenance.
• Shipping charges, cost of removal and reinstallation.
TO OBTAIN WARRANTY SERVICE
1. Contact your original dealer (place of purchase) for warranty assistance.
2. Visit hunterdouglas.com for additional warranty information, frequently asked questions and access to service locations.
3. Contact Hunter Douglas at [phone] for technical support, certain parts free of charge, for assistance in obtaining
warranty service or for further explanation of our warranty.
