HunterDouglas Vignette Traversed User manual

Installation •Operation •Care
Vignette® Traversed™
with Vertiglide™
Modern Roman Shades

CONTENTS
Questions?
Call the Hunter Douglas Customer Information Center at
1-888-501-8364.
© 2011 Hunter Douglas.
® Registered trademark of Hunter Douglas. ™ Trademark of Hunter Douglas.
Getting Started:
Product View — Side Stack........................................... 1
Product View — Split Stack........................................... 2
Tools and Fasteners Needed.......................................... 3
Installation:
Installation Overview ..................................................... 4
Unpack the Shade......................................................... 4
Mount the Installation Brackets ...................................... 5
Install the Headrail ........................................................ 8
Install the Fabric Into the Headrail .................................. 9
Secure the Stationary Rail Hanger ................................ 10
Install the Stationary Rail Stabilizer ............................. 11
Secure the Cords — Side Stack .................................. 12
Secure the Cords — Split Stack .................................. 12
Operation:
Operate the Shade ...................................................... 14
Secure the Cords ........................................................ 14
Troubleshooting .......................................................... 15
Care:
Removing the Shade ................................................... 17
Cleaning Procedures ................................................... 17

GETTING STARTED
1
Product View — Side Stack
Handle
Moving
Rail
Rail
Stabilizer
Kit
Stationary
Rail
Stationary
Rail
Hanger
Headrail
Installation
Brackets
End
Cap
End
Cap
Roller
Moving Side Close-Up
Stationary Side Close-Up
Trike
Vertical Rail
End Cap and
Cords
Return
(Optional)

2
GETTING STARTED

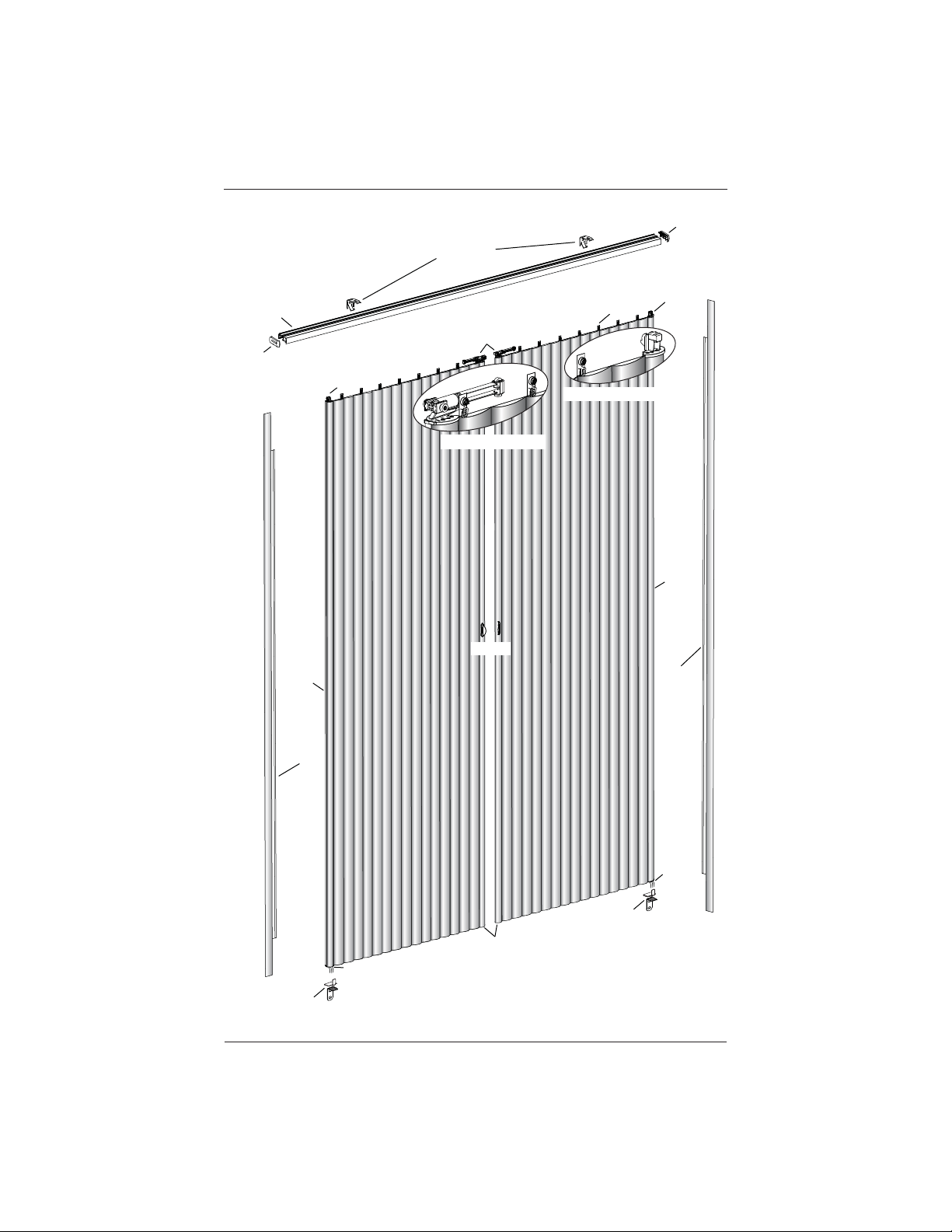

Product View — Split Stack
Handles
Stationary
Rail
Stationary
Rail
Moving
Rails
Trikes
Stationary
Rail Hanger
Roller
Stationary
Rail Hanger
Moving Side Close-Up
Stationary Side Close-Up
Installation
Brackets
End
Cap
End
Cap
Headrail
Trike
Rail
Stabilizer
Kit
Rail
Stabilizer
Kit
Vertical Rail
End Cap
and Cords
Vertical
Rail
End Cap
and
Cords
Return
(Optional)
Return
(Optional)

GETTING STARTED
3
Thank you for purchasing Hunter Douglas Vignette®Traversed™with Vertglide™Modern Roman
Shades. With proper installation, operation, and care, your new shades will provide years of
beauty and performance.
Please thoroughly review this instruction booklet and the enclosed packing list before beginning
the installation. If your shade has a protective plastic cover on the fabric covered headrail, keep
the plastic in place until the shade is installed.

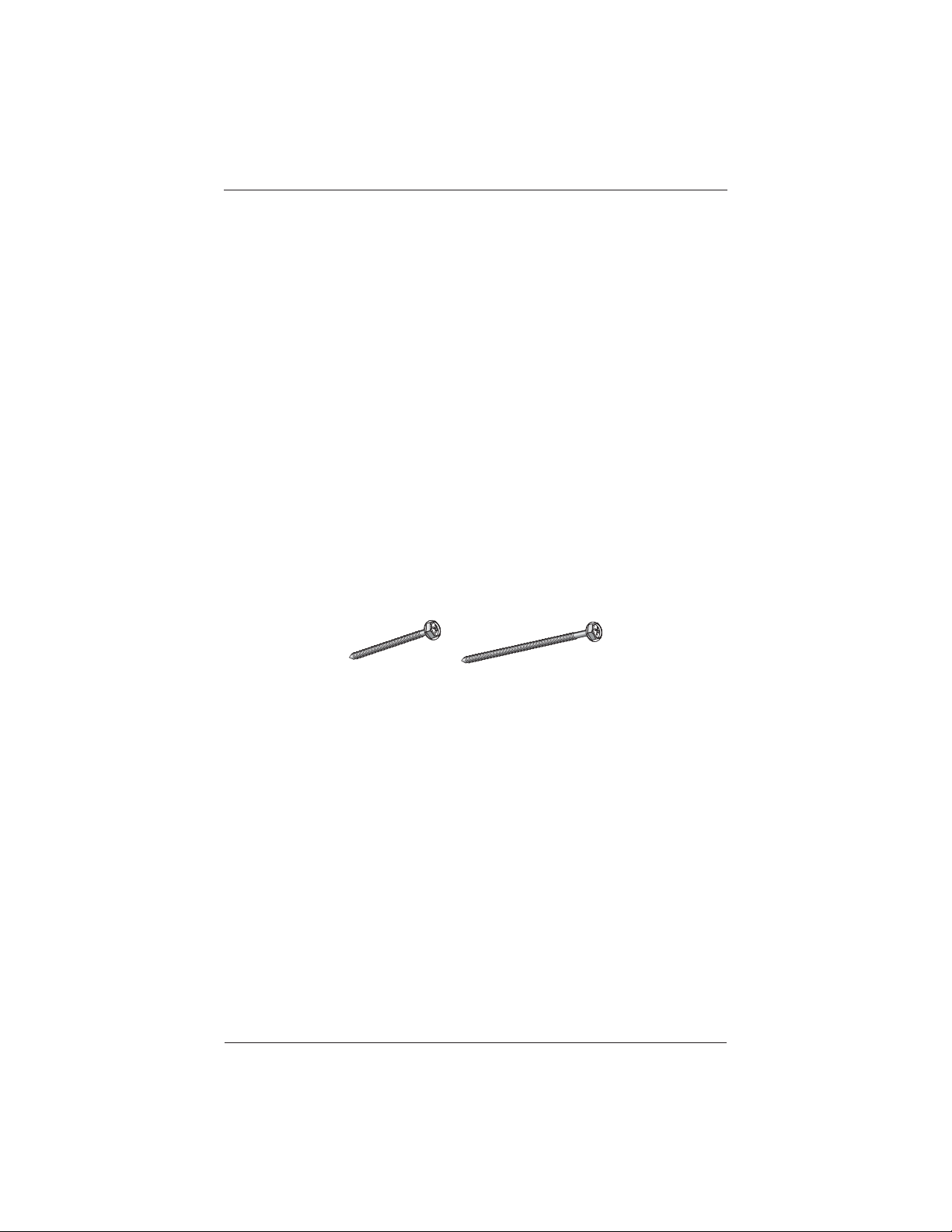

Tools and Fasteners Needed
■Allen Wrench (Provided) ■Hex Driver ¼"
■Flat blade and Phillips screwdriver ■Level (laser level is recommended)
■Measuring tape and pencil ■Needlenose pliers
■Power drill, 3∕32" drill bit
In addition, you will need fasteners designed to work with your specific mounting surface(s).
■#6 Hex Head Screws (Provided). One 11∕2" screw is provided per installation bracket.
■Longer #6 Hex Head Screws (Not Provided). If using spacer blocks, use a #6 screw
long enough for a secure attachment.
■Drywall Anchors (Not Provided). Use drywall anchors when mounting into drywall.
#6 x 1½"
Hex Head Screw
(Provided)
Longer #6 Hex Head Screw
for Use with Spacer Blocks
(Not Provided)

INSTALLATION
4

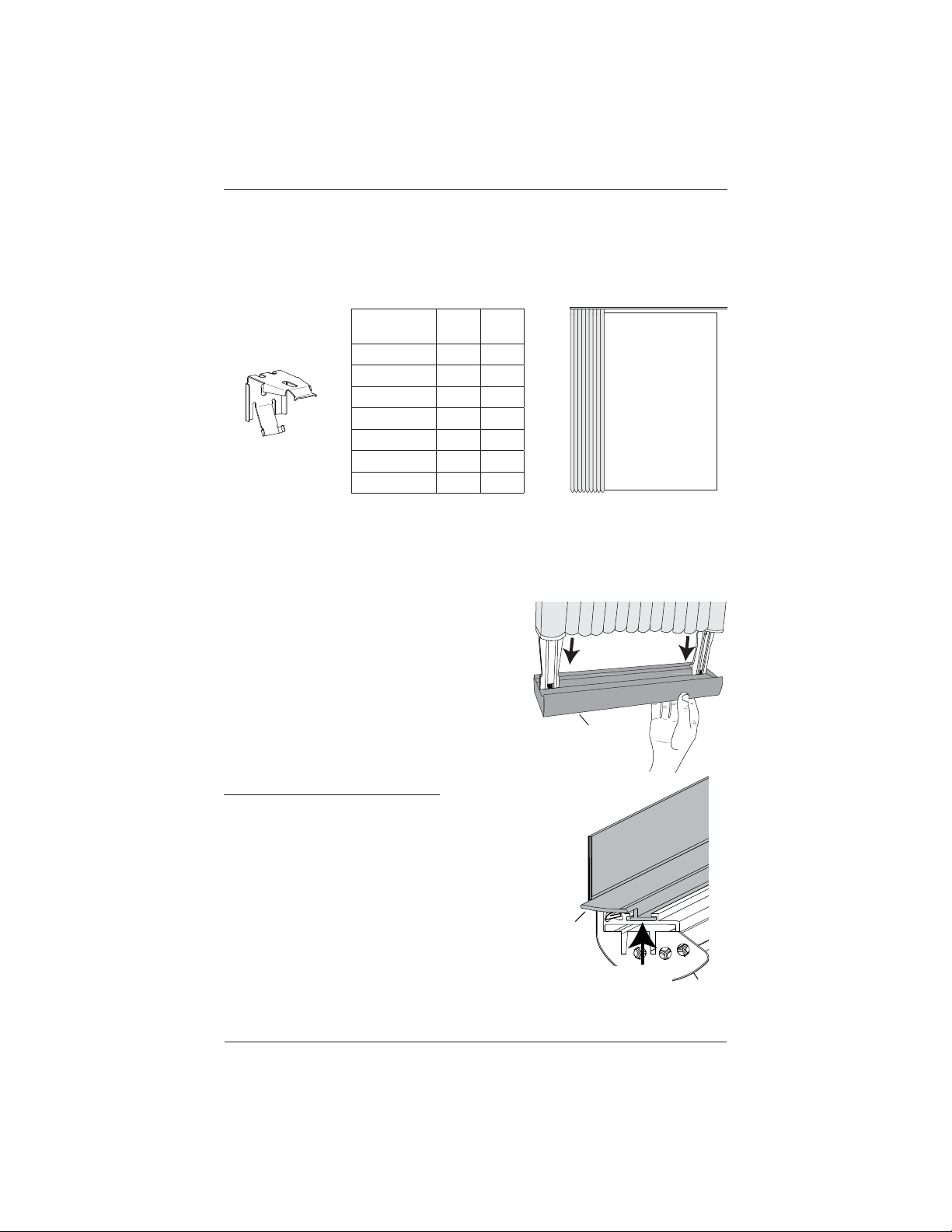

Installation Overview
■The number of installation brackets required varies with headrail width, as shown below.
IMPORTANT: All Vignette®Traversed™with Vertiglide™Modern Roman Shades must be
mounted outside the window casement.
Unpack the Shade
The headrail and shade fabric panel(s) will arrive in separate boxes. To unpack the headrail,
simply remove the packaging. Follow the instructions below to unpack the fabric panel(s).
■Carefully remove the shade from the plastic.
■Unpack the bottom of the shade.
➤Remove the packing rail and hangers from the
bottom of the shade and discard. The bottom is
the side without cords or colored tape.
If You Ordered Returns (Optional)...
Follow these two steps if you ordered returns for your shade.
Otherwise, continue to the next section.
■Lay the shade face down on a clean flat surface.
■Slide the return into the channel above the end cap. The
entire return is illustrated in the “Product Views” on page
1 and 2, if needed for reference.
Outside Mount
Shade mounts outside
window opening.
Shade
Width
Side
Stack
Split
Stack
36" – 60" 2 3
601/8" – 84" 3 4
841/8" – 120" 4 6
1201/8" – 192" 6 6
1921/8" – 240" 8 8
2401/8" – 312" —10
3121/8" – 384" —12
Installation
Bracket
Packing Rail
(discard after removing)
Return
End
Cap
Slide Return
into Channel

INSTALLATION
5
■Unpack the top of the shade.
➤Peel back the plastic tape from the packing rail at the top of the shade.
➤Peel away the colored tape securing the cords
to the packing rail.
➤Leave the remaining colored tape which secures the
cords in place. The tape will be removed later.
➤Rotate the stationary rail hanger out of the top packing
rail. Slide the rail from the shade. Discard rail.
Mount the Installation Brackets
■Measure and mark the ordered
height (found on the label inside
the headrail) plus ½" from the
floor surface. Install the brackets
at this height for the minimum
recommended ½" floor clearance.
➤Add more to the ordered
height if more floor clearance
is desired.
■Center the headrail over the
window opening at the marked
height. Use a pencil to lightly mark
each end of the headrail.
➤Alternatively, measure the width of the headrail. Use this width to mark the headrail end
points over the window opening.
Remove
Stationary
Rail Hanger
Packing
Rail
Floor Surface
Ordered
Height
+ ½"
Installation
Bracket
Height

INSTALLATION
6

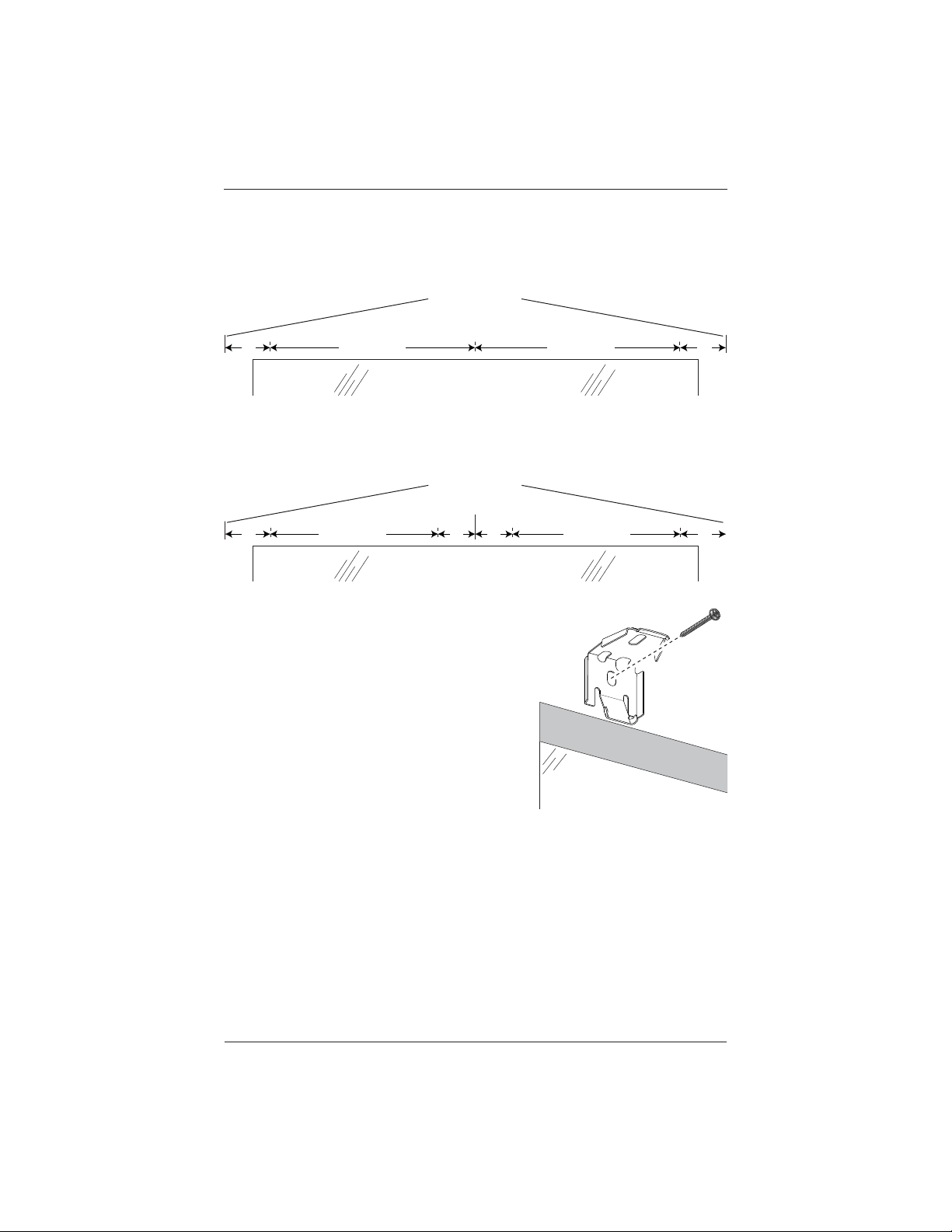

■Mark 2" in from each end of the headrail.
➤If more than two installation brackets came with your order — space additional
bracket(s) evenly (or at least every 36") and mark their location.
➤Split stack shades: Place a bracket four inches from the center on both sides. Space
additional bracket(s) evenly (or at least every 36") and mark their location.
■Center the brackets on your marks and mark the
screw holes.
➤A minimum of 11/4" flat vertical surface is
required to mount the brackets.
IMPORTANT: The brackets should be level
and aligned.
CAUTION: The rear of the brackets must be
flush against a flat mounting surface. Do not
mount brackets oncurved molding.
■Drill the screw holes using a 3∕32" drill bit.
IMPORTANT: Use drywall anchors when mounting into drywall. Drywall anchors
are not provided.
Headrail End Marks
Side Stack
Window Opening
2" 2"
Space Evenly Space Evenly
Headrail End Marks
Window Opening
Split
2" 2"
Space Evenly Space Evenly
4" 4"
Split Stack

INSTALLATION
7

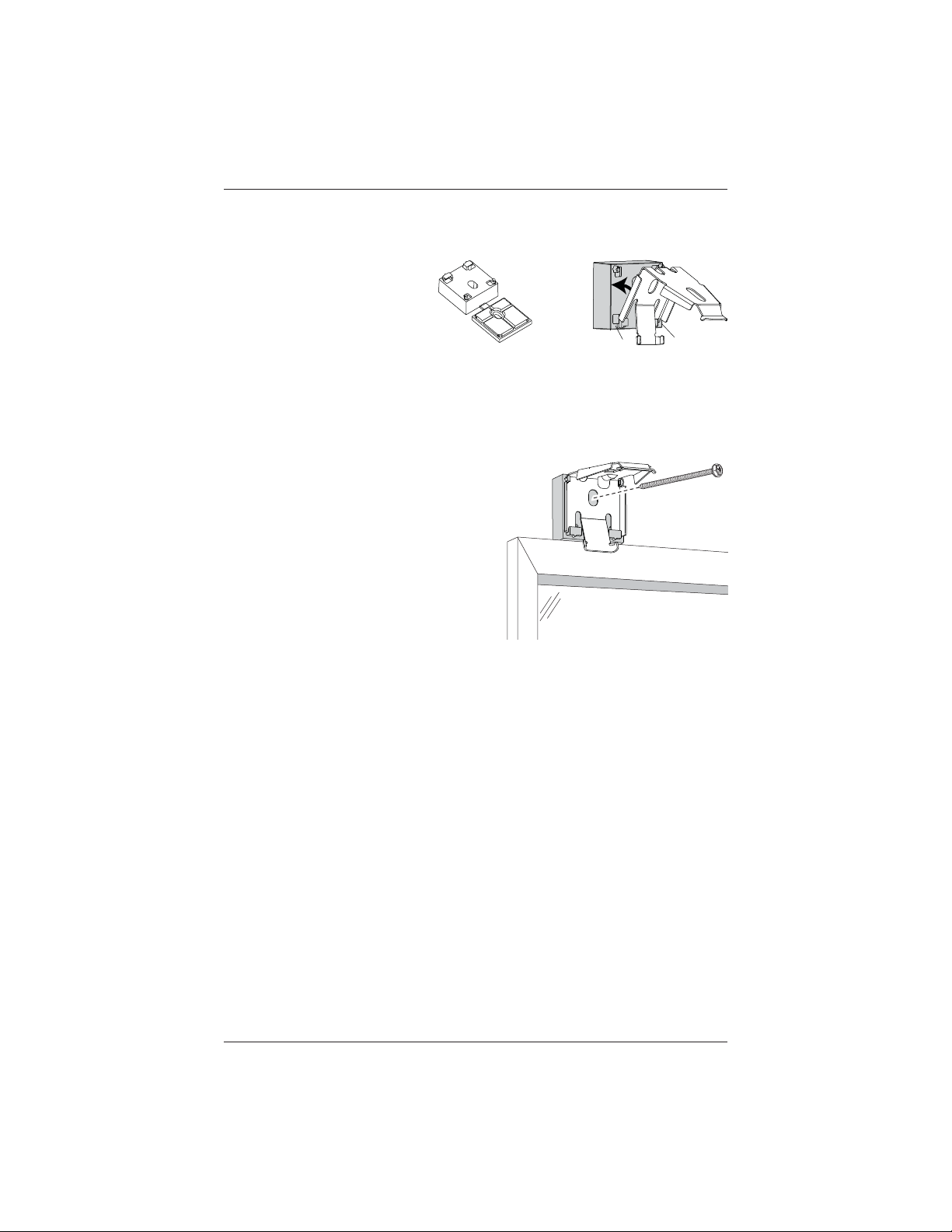

■Fasten the installation brackets to the mounting surface using the screws provided.
➤If using spacer blocks, insert
the legs of the installation
bracket into the tabs on the
spacer block.
➤Then rotate the installation
bracket back to snap it
in place.
IMPORTANT: A maximum of one 1/2" spacer block can be used per installation bracket.
Break off and discard the 1/8" shim.
➤Fasten the installation bracket using
a #6 mounting screw long enough for
asecure installation. Longer screws not
provided.
1/2"
Spacer Block
(Optional)
1/8"
Shim
(Discard)
Tab Tab
Spacer
Block
Installation
Bracket

INSTALLATION
8

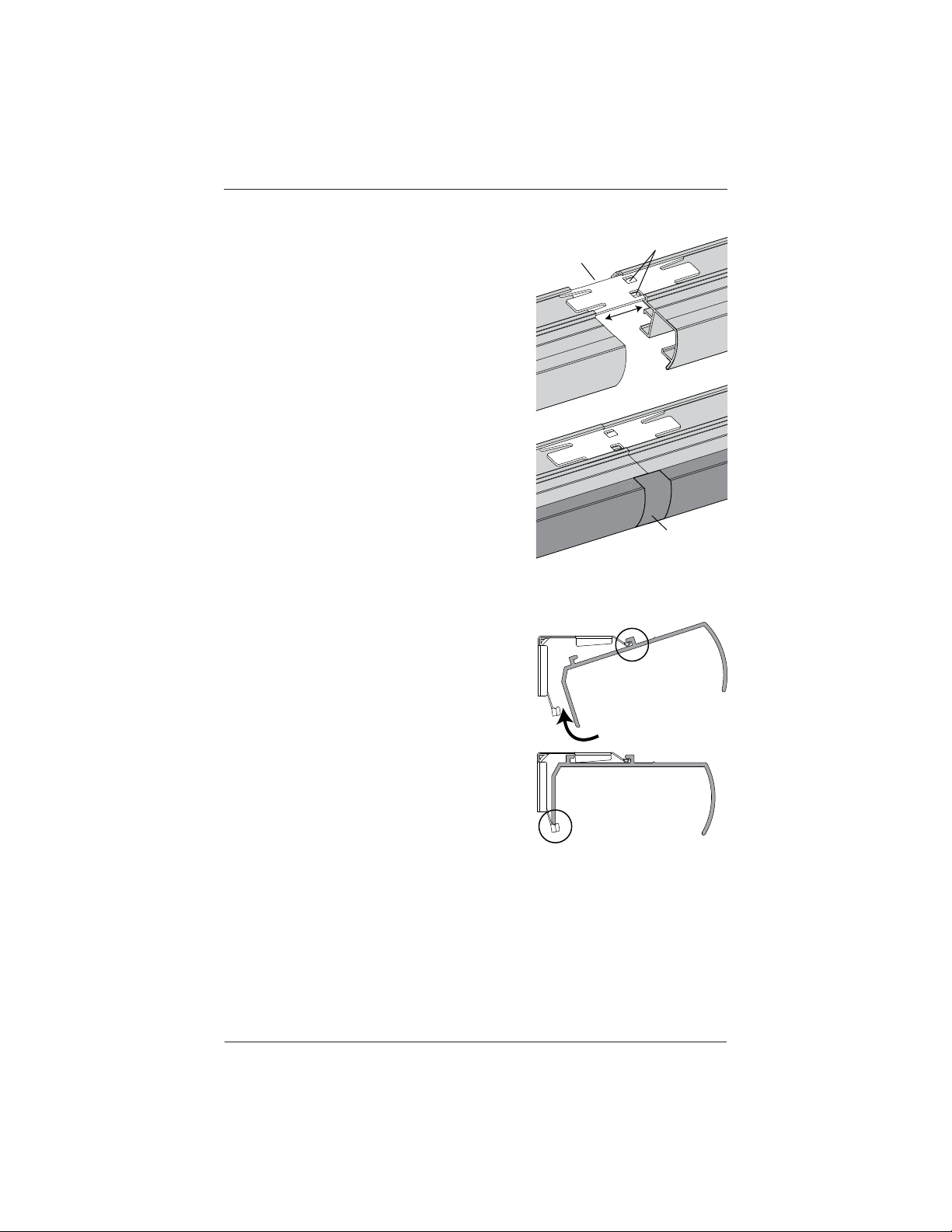

Install the Headrail
■Wide headrails may arrive in two separate pieces.
Connect the two pieces with a joining plate.
➤Insert the joining plate into the top back channel
of one of the headrail pieces. The tabs on the
joining plate are slightly angled. Place the joining
plate so that the tabs angle down toward the
headrail in order to secure each rail piece.
➤Slide the second rail piece onto the joining plate.
➤Remove the adhesive from the fabric tab. Press
the tab into place over the split on the front of the
headrail.
■Slip the headrail onto the installation brackets, until
the front of the brackets fits under the groove of the
headrail.
■Rotate the back of the headrail up and push back to
snap it into the bracket.
Headrail
Bracket
The front of the bracket
fits under the groove.
The back of the headrail
snaps into the bracket.
Joining Plate
Tabs Angled
Down Toward
Headrail
Fabric Tab

INSTALLATION
9
Install the Fabric Into the Headrail
Side Stack
■With the fabric colored side facing you,
align the trike with the middle channel in
the headrail on the moving rail side.
IMPORTANT: Be sure the cords are
routed to the outside of the trike before
sliding the trike into the channel.
➤Slide the trike into the headrail.
Split Stack
■Split stack shades have two trikes. Slide each trike
into the channel from each end of the headrail and
abut them to one another. The stationary rails will be
on the outside ends of the shade. See “Product View
— Split Stack” on page 2.
Trike
Cords in the
correct position.
Headrail
Channel
Trike
Headrail

INSTALLATION
10

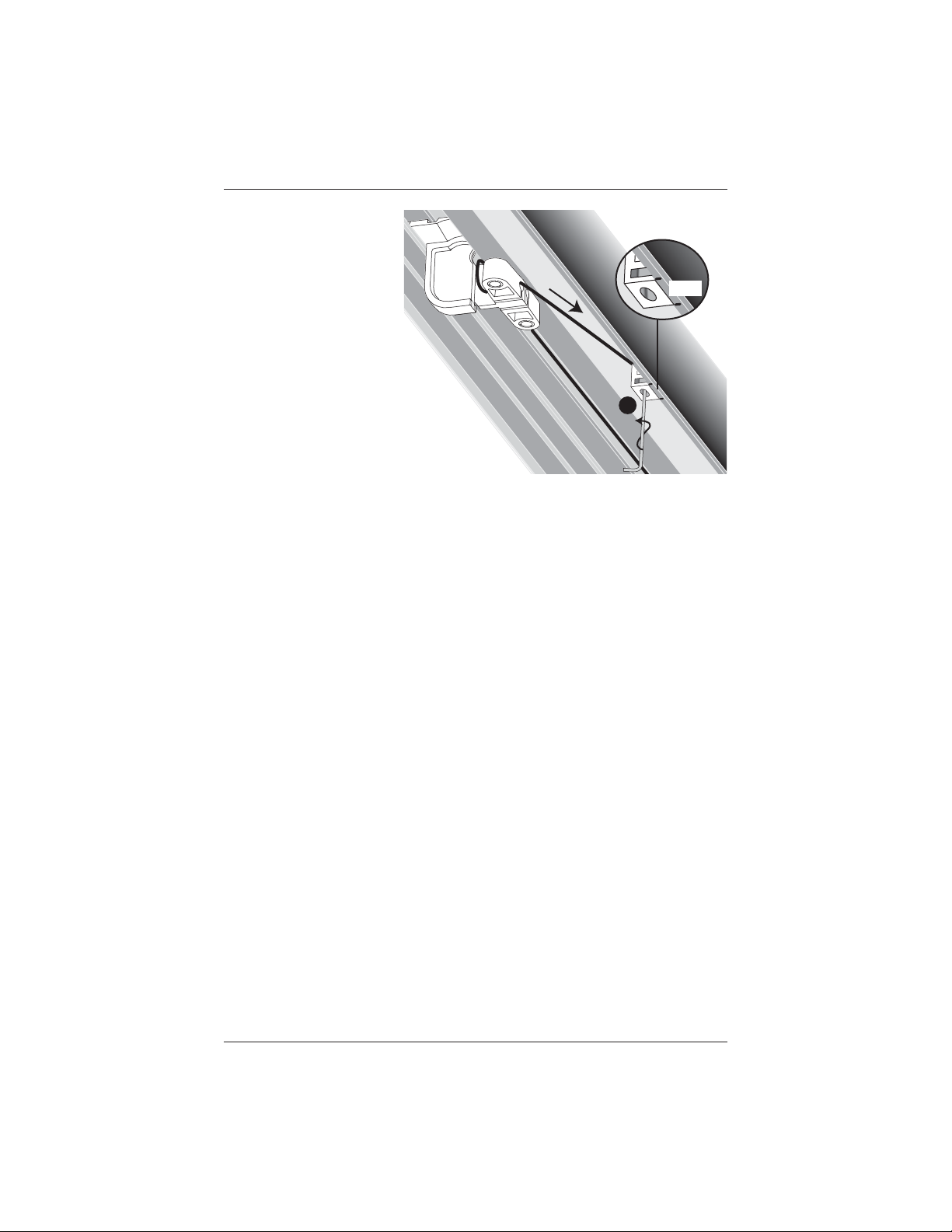

Secure the Stationary Rail Hanger
■Angle the stationary rail toward you
and then into the back channel on the
headrail. This will enable you to place the
lip of the hanger onto the middle lip of
the headrail. Gently pull down to secure
the lip into the channel.
■Push the stationary rail back to hang
straight. This will rotate the hanger up
and snap it into place.
■Push the stationary rail hanger so it is
just touching the inside of the end cap.
■Hook each of the rollers into the middle
channel of the headrail.
➤Carefully push back the fabric in order to see
each roller.
➤Hook the bottom of the roller into the middle channel
and rock the top of the roller into the channel.
■Unwind the cords secured with the colored tape.
➤Remove the colored tape.
➤Unwind the cords, being careful not to tangle them.
This flat surface
of the stationary
rail hanger needs to
be flush with the
end of the headrail.
Side Draw: End Cap
Removed for Clarity
Roller in Middle
Channel
Headrail
Cutaway

INSTALLATION
11
Install the Stationary Rail Stabilizer
A side stack shade has only one stationary rail. A split stack shade has two stationary rails.
Follow the instructions below to install the stabilizer for each stationary rail.
■Use a level to ensure the stationary rail is vertical.
Then mark the edge of the stationary rail near the
bracket.

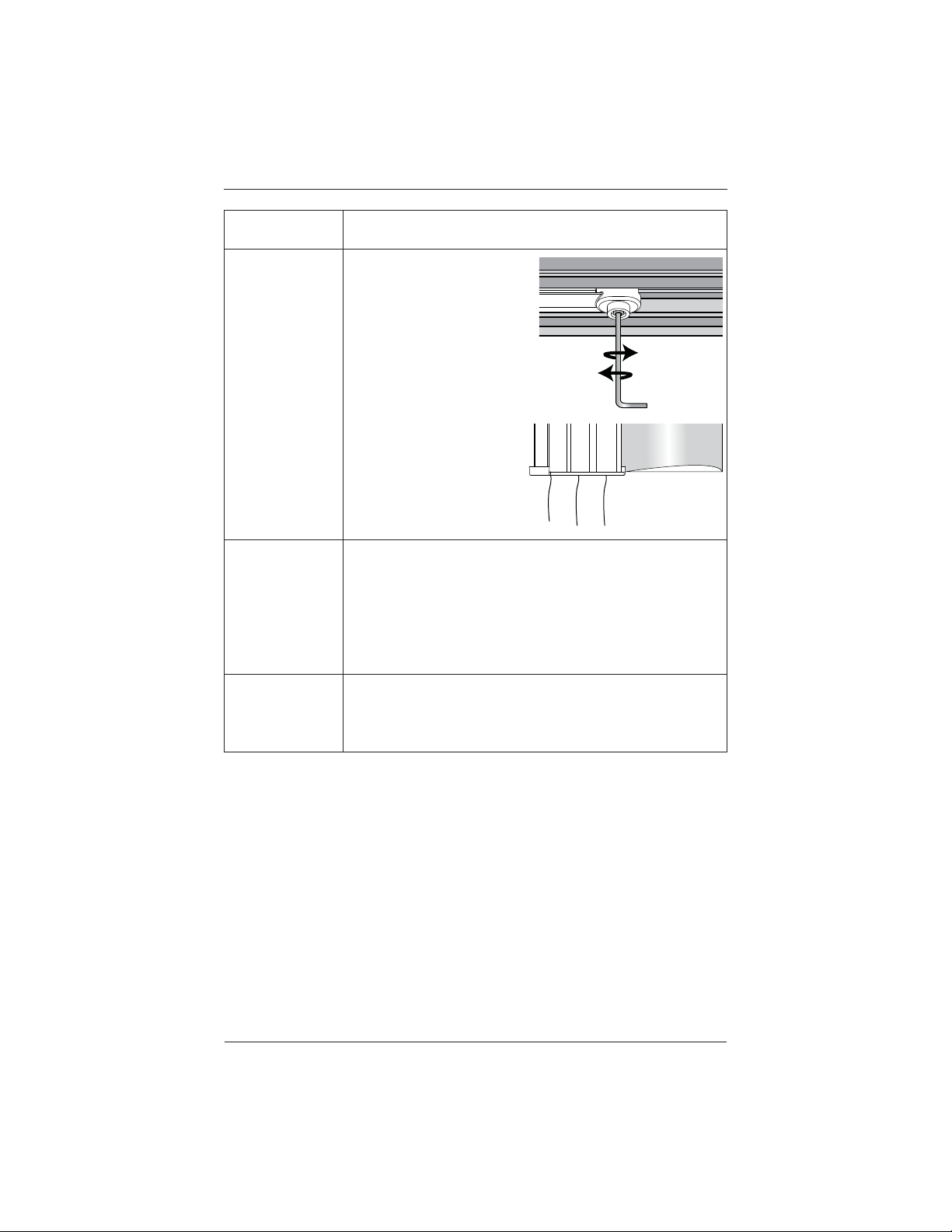

IMPORTANT: See “Troubleshooting” on page 15
to adjust the vertical alignment of the stationary rail,
if necessary.
■Slide the stationary rail hanger temporarily 3-4 inches away from the end of the headrail.
This will allow you access to mount the stationary rail bracket.
■Mark ¾" (or 1" if your shade has a return) from your rail
mark toward the shade.
■Center the holes of the mounting bracket on the mark and
mark the location for the screw holes.
■Drill the screw holes using a 3∕32" drill bit.
IMPORTANT: Use drywall anchors when mounting into
drywall. Drywall are anchors not provided.
■Fasten the mounting bracket to the surface using the screws provided.
IMPORTANT: If you used a spacer block on the installation
brackets, then the mounting bracket for the rail stabilizer will also
need a ½" spacer block.
■Slide the stationary rail stabilizer into the groove on the back of the
stationary rail. It may be necessary to tilt the bottom of the rail out
to in order to insert the stabilizer.
■Slide the stationary rail hanger back to the end cap or end of the
headrail.
■Press the stationary rail stabilizer onto the
mounting bracket.
■See either “Secure the Cords — Side Stack” or
“Secure the Cords — Split Stack” on page 12
based on your type of shade.
Mark the edge
of the rail on
the mounting
surface.
¾" or 1"
for Shades
with a
Return
First
Mark
Center the
holes on the
mark
Back of
Stationary Rail
Cords from
Vertical Rail
End Cap
Press
Down

INSTALLATION
12
Secure the Cords — Side Stack
■Close the shade completely.
■Attach the end cap.
➤Loosen the screw on the end cap until it is flush with the top of the end cap.
➤Holding the cords below the end cap, push the end cap into place on the end
of the headrail.
➤The end cap may need to be tapped in place with
a rubber hammer.
■Locate the two marks on the front channel of the
headrail. Hook the cord anchor in between the two marks.
■Use the provided Allen wrench to tighten the cord anchor
to secure it to the channel.
IMPORTANT: The three cords attached to the cord anchor will still have some slack. Final
cord adjustment to remove slack will be done later in these instructions.
■Tighten the screw on the end cap into the headrail.
■Proceed to “Operate the Shade” on page 14.
Secure the Cords — Split Stack
A single cord is shown in the illustrations for
clarity. Your shade will have three cords.
■First, slide the cords up the back channel of
the split stack stop plate, placing them into
the circular holder.
■Second, feed the cords into the front
channel.
Cord Anchor
in the Front
Channel Tighten with
Allen Wrench
Headrail
Cut Away
Cord
Anchor
12
Stop
Plate
Cords from
Trike

INSTALLATION
13
■Third, find the two marks
on the front channel of the
headrail. Hook the cord
anchor in between the two
marks.
IMPORTANT: The three
cords attached to the cord
anchor may have slack.
The slack in the cords will
be addressed later in these
instructions.
■Use the provided Allen
wrench to tighten the cord
anchor into the channel.
■Repeat for the cords on the other side of the shade.
■Loosen the screws on the end caps until flush with the top.
■Push each end cap onto the ends of the headrail and tighten the screw.
3
Marks

OPERATION
14

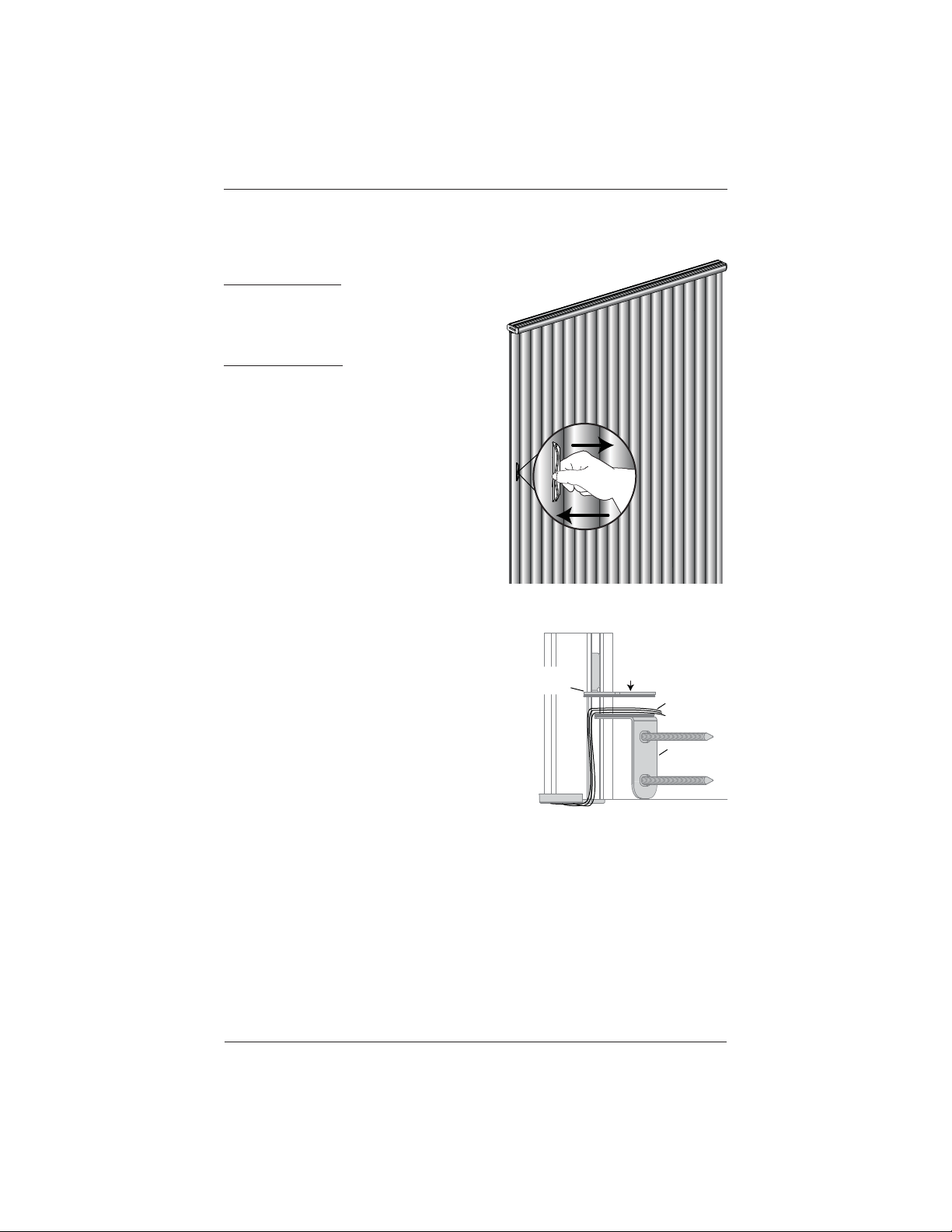

Operate the Shade
For better support and smoother operation, use the handle when opening and closing the shade.
To Open the Shade
■Slide the handle toward the stationary rail to open
the shade. Allow the shade to stack evenly.
To Close the Shade
■Slide the handle away from the stationary rail to
close the shade.
■Open and close the shade several times. If it
operates smoothly and there isn't any slack in the
cords in headrail proceed to “Secure the Cords”
on page 14.
Secure the Cords
■Separate the stationary rail stabilizer from the
mounting bracket.
■Lay the cords on top of the mounting bracket and
press the stabilizer onto to the bracket to secure
the cords and the stationary rail.
Open
Close
Cords from
the Bottom
of Stationary
Rail
Press
Down
Rail
Stabilizer
Mounting
Bracket

OPERATION
15

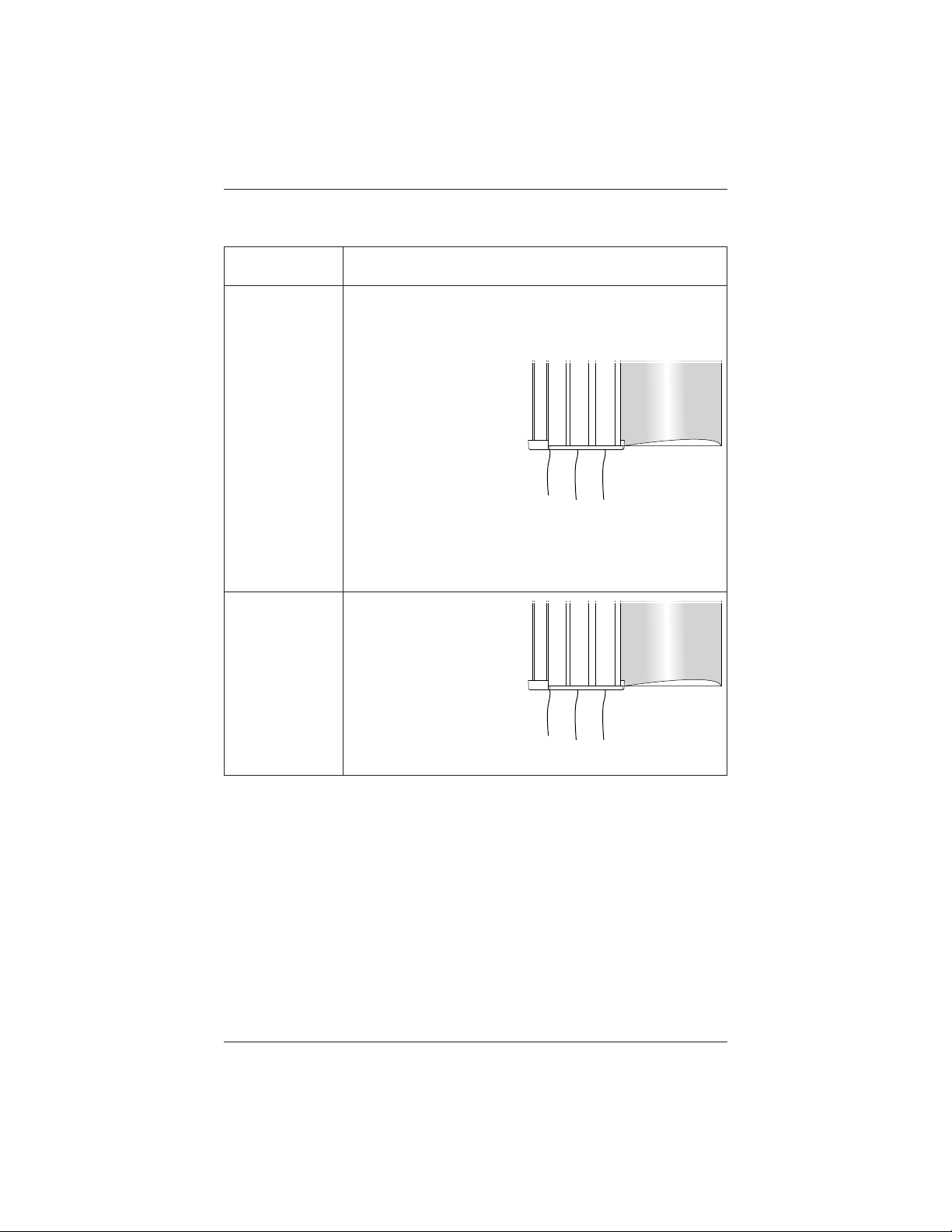

Troubleshooting
Problem Solution
The shade
binds or moves
with difficulty.
OR
The shade does not
stay in position.
■If the shade does not slide easily, you may need to adjust the cord
anchor. Close the shade, then slide the cord anchor toward the
moving rail in ¼" increments to decrease the tension.
■Close the shade completely
then gently pull the cords
on the bottom of the
stationary rail until you feel
a slight resistance.
➤Check that the three
cords in the headrail
have no slack.
■Check that the cord is not pinched.
■Check to ensure all rollers are positioned in the headrail channel.
Cords are loose or
sagging from the
headrail.
■Close the shade completely
then gently pull the cords
on the bottom of the
stationary rail until you feel
a slight resistance.
➤Check that the three
cords in the headrail
have no slack.
Pull Cords Until
Slight Resistance
Pull Cords Until
Slight Resistance

OPERATION
16
Problem Solution
The moving rail
is not vertically
aligned.
■To adjust the vertical
alignment of the moving rail,
turn the set screw on the trike
located in the headrail. Use
the Allen wrench provided.
■Close the shade
completely then gently
pull the knotted cord on the
bottom of the vertical rail
end cap until you feel a
slight resistance.
The shade
will not fit into
theinstallation
brackets.
■Check that the installation brackets are level and aligned.
■Be sure the heads of the screws are flush against the installation
bracket.
■Check that the headrail is completely inserted into the installation
brackets. See “Install the Headrail” on page 8.
Adjustment cords
hang from the
stationary rail.
■“Secure the Cords” on page 14.
Turn to adjust
moving rail
Pull Cords Until
Slight Resistance

CARE
17
Removing the Shade
Remove the Fabric Panel(s) (If Neccessary)
■Unscrew the end cap and slide the panel and rollers out of the headrail.
Remove the Headrail
■Open the shade if the fabric is still installed.
■While holding the headrail, push back
on the bottom tab of each installation
bracket using a small flat blade
screwdriver to release the bottom edge
of the headrail.
■After releasing the bottom edge, rotate
the back of the headrail down and out
from the brackets.
Cleaning Procedures
Hunter Douglas Vignette®Modern Roman Shades are made of an anti-static, dust-resistant
fabric that repels dirt and dust. For most fabrics, the options below are available if your shade
needs cleaning.
Dusting
■Regular light dusting with a feather duster is all the cleaning needed in most circumstances.
Vacuuming
■Use a hand-held vacuum with low suction for more thorough dust removal.
Compressed Air / Hair Dryer (Cool Setting)
■Blow dirt and debris from within the fabric folds using clean, compressed air or a hair dryer
set on a cool setting.
Spot-Cleaning
■Prepare a solution of warm water and mild detergent.
■Dampen a clean cloth in the solution and wring it out.
■Place a dry, clean cloth behind the spot between the face fabric and the back fabric.
■Dab the spot with the dampened cloth until it is gone. Do not rub the fabric.
■Rubbing alcohol or non-oil-based baby wipes may be used on more stubborn stains.
■Allow the shade to dry in the completely closed position.
Bottom
Tab
Back of
Shade Headrail
Bracket

The Hunter Douglas®Lifetime Guarantee is an expression of our desire to provide a thoroughly satisfying
experience when selecting, purchasing and living with your window fashion products. If you are not thoroughly
satisfied, simply contact Hunter Douglas at [phone] or visit hunterdouglas.com. In support of this policy
of consumer satisfaction, we offer our Lifetime Limited Warranty as described below.
NOTE :In no event shall Hunter Douglas or its licensed fabricators/distributors be liable or responsible for incidental
or consequential damages or for any other indirect damage, loss, cost or expense. Some states do not allow the exclusion or
limitation of incidental or consequential damages, so the above exclusion or limitation may not apply to you. This warranty
gives you specific legal rights, and you may also have other rights which vary from state to state.
Different warranty periods and terms apply for commercial products and applications.
Hunter Douglas (or its licensed fabricator/distributor) will repair or replace the
window fashion product or components found to be defective.
COVERED
BY ALIFETIME LIMITED WA R R A N T Y
• Hunter Douglas window fashion products are
covered for defects in materials, workmanship
or failure to operate for as long as the original
retail purchaser owns the product (unless shorter
periods are provided below).
• All internal mechanisms.
• Components and brackets.
• Fabric delamination.
• Operational cords for a full 7 years from the
date of purchase.
• Repairs and/or replacements will be made with
like or similar parts or products.
• Hunter Douglas motorization components are
covered for 5 years from the date of purchase.
NOT COVERED
BY ALIFETIME LIMITED WA R R A N T Y
• Any conditions caused by normal wear and tear.
• Abuse, accidents, misuse or alterations to the
product.
• Exposure to the elements (sun damage, wind,
water/moisture) and discoloration or fading
over time.
• Failure to follow our instructions with respect
to measurement, proper installation, cleaning
or maintenance.
• Shipping charges, cost of removal and reinstallation.
TO OBTAIN WARRANTY SERVICE
1. Contact your original dealer (place of purchase) for warranty assistance.
2. Visit hunterdouglas.com for additional warranty information, frequently asked questions and access to service locations.
3. Contact Hunter Douglas at [phone] for technical support, certain parts free of charge, for assistance in obtaining
warranty service or for further explanation of our warranty.
5/115105366000
