UltraGlide®
EasyRise
™
Pirouette
®
Window Shadings
EasyRise and UltraGlide Operating Systems
and Two-On-One Headrail Shadings
Installation • Operation • Care

CONTENTS
GETTING STARTED
Product View...........................................................................................1
Tools and Fasteners Needed ..................................................................2
INSTALLATION
Installation Overview..............................................................................3
Mount the Installation Brackets — Inside Mount.................................4
Mount the Installation Brackets — Outside Mount ..............................6
Mount the Installation Brackets — End Mount.....................................8
Install the Shading..................................................................................9
Attach the Dust Cover (Optional for Outside Mount).............................9
Attach the Universal Cord Tensioner (UCT) — EasyRise™Only........... 10
Attach the Wand — UltraGlide®Only..................................................10
OPERATION
Operate the Shading ............................................................................12
Attach Magnetic Hold-Down Brackets (Optional) ............................... 14
Troubleshooting ....................................................................................15
CARE
Removing the Shading..........................................................................18
Cleaning Procedures.............................................................................18
CHILD SAFETY
Warning ................................................................................................20
WARRANTY............................................................................Back Cover
Questions?
Call Hunter Douglas Consumer Support at 1-888-501-8364.
© 2019 Hunter Douglas. All rights reserved. All trademarks used herein are the property of Hunter Douglas
or their respective owners.

GETTING STARTED
1
Product View
Installation
Brackets
Fabric-Covered
Headrail
Cord Tensioner
and Bracket
Magnetic
Hold-Down
Brackets
(Optional)
Optional Dust Cover
(For Outside Mount)
Wand
Bottom Rail
Not Shown: Two-On-One Headrail Shadings
EasyRise™
UltraGlide®
Optional Back Cover
(For Inside and End Mount)

2
GETTING STARTED
Thank you for purchasing Hunter Douglas Pirouette®Window Shadings. With proper
installation, operation, and care, your new shadings will provide years of beauty
andperformance.
Please thoroughly review this instruction booklet and the enclosed packing list before
beginning the installation. Leave the protective cover on the fabric-covered headrail until you
are satisfied with the installation and operation of your shading.
IMPORTANT: An orange shipping clip is installed in the
headrail for the UltraGlide®shading. Please do not remove
the clip until instructed to do so.
Tools and Fasteners Needed
 Flat blade and Phillips screwdrivers
 Level (laser level is recommended)
 Measuring tape and pencil
 Pliers
 Power drill,
3
⁄ 32 " drill bit, and
1
⁄ 4 " hex driver
 Open end wrench,
5
⁄ 16 " (8 mm)
 Scissors (heavy-duty)
In addition, you will need fasteners designed to work with your specific mounting surface(s).
 #6 Hex Head Screws (Provided). Two 1
1
⁄ 2 " screws are provided per installation bracket.
 Longer #6 Hex Head Screws (Not Provided). If using spacer blocks, use #6 screws
long enough for a secure attachment.
 Speed Nuts and Screws (Provided). Extension brackets come with screws and
speed nuts.
 Drywall Anchors (Not Provided). Use drywall anchors when mounting into drywall.
Speed Nut
and Screw
(Two Provided with
Each Extension Bracket)
#6 x 1
1
∕ 2 "
Hex Head Screw
(Provided)
Longer #6 Hex Head Screw
for Use with Spacer Blocks
(Not Provided)
Shipping Clip

INSTALLATION
3
Installation Overview
 Your order will include the correct number of installation brackets for your shading width,
as shown in the table below.
 Shading orders may also include spacer blocks or extension brackets, if they were
specified for added clearance.
 Extension brackets are used for end mount shadings, as well.
Mounting Types and Window Terminology
If the installation brackets are mounted correctly, the rest of the installation process follows
easily. To prepare for this important first step, review the mounting types and basic window
terminology illustrated below.
 Refer to the appropriate page below based on your order:
 Inside Mount — Page 4
 Outside Mount — Page 6
 End Mount — Page 8
Installation Bracket For Added Clearance
Shading Width Brackets
2
3
4
5Extension
Bracket
1
∕ 2 " Spacer
Block
12" – 30"
30
1
∕ 8 " – 60"
60
1
∕ 8 " – 90"
90
1
∕ 8 " – 120"
Inside Mount
Shading fits within
window opening.
Head Jamb
Sill
Jamb Jamb
Outside Mount
Shading mounts outside
window opening.
Collectively, the sill and
jambs are called the
“window casement.”

INSTALLATION
4
Mount the Installation Brackets — Inside Mount
If Using the Optional Back Cover ...
 Remove the top tab on the back cover brackets.
 Snap each back cover bracket into a metal
installation bracket.
Mount the Installation Brackets
 Mark 2" from each jamb for bracket location.
 If more than two installation brackets came with your order, space additional bracket(s)
evenly between the two end brackets and mark their location. Mount into wood
whenever possible.
 Two-On-One Headrail shadings: Place installation brackets 3" on each side of the
panel split, as shown below.
Jamb
Jamb
Space Evenly Space Evenly2" 2"
Panel Split
3" 3"
Jamb
Jamb
Space Evenly Space Evenly 2" 2"
Back Cover Bracket
Top Tab
Bottom
Tab
Back Cover
Slots

INSTALLATION
5
 Mark the location of the screw holes.
 The minimum depth required for mounting is 1".
 The fully recessed mounting depth is 3
3
⁄ 4
".
 If using the optional back cover, an additional
1
⁄ 4 "
mounting depth is required.
IMPORTANT: The front edges of the installation
brackets must be level and aligned to each other.
WARNING: Failure to properly align the
brackets could result in the headrail releasing
from the brackets.
 Use a level to check that the mounting surface is level.
Shim the brackets, if necessary.
 Drill the screw holes using a
3
⁄ 32 " drill bit.
CAUTION: Use drywall anchors when mounting into
drywall.
 Attach the installation brackets using the screws provided.
IMPORTANT: Do not overtighten the screws. Check to
ensure the lever can be moved easily side to side. If not,
loosen the screws
in one-eighth turn increments until the
lever can be moved easily.
Install the Optional Back Cover
 Install the cover into the back cover brackets.
 If necessary, trim the back cover to the desired width.
Proceed to “Install the Shading” on page 9.
2"
Casement
Depth
Back
Cover

INSTALLATION
6
Mount the Installation Brackets — Outside Mount
 Center the headrail over the window opening at the desired height. Use a pencil to lightly
mark each end of the headrail.
 Alternatively, measure the width of the headrail and use that width to mark the
headrail end points over the window opening.
 Mark 2" from each end of theheadrail.
 If more than two installation brackets came with your order, space additional bracket(s)
evenly between the two end brackets and mark their location. Mount into wood
whenever possible.
 Two-On-One Headrail shadings: Place installation brackets 3" on each side of the
panel split, as shown below.
Window Opening
Space Evenly Space Evenly
2" 2"
Headrail End Mark Headrail End Mark
Window Opening
Space Evenly
Panel Split
Space Evenly
2" 3" 3" 2"
Headrail End Mark Headrail End Mark

INSTALLATION
7
 Center the installation brackets or extension brackets on your marks and mark the location
of the screw holes.
 A minimum 1" flat vertical surface is required for the installation brackets. Extension
brackets require 1
1
⁄ 4 ".
 The tops of the installation brackets or extension brackets should be at the desired
height. The brackets should be level and aligned.
CAUTION: The rear of the brackets must be flush against a flat mounting surface. Do not
mount brackets on curved molding.
 Drill the screw holes using a
3
⁄ 32 " drill bit.
CAUTION: Use drywall anchors
when mounting into drywall.
 Attach the installation or extension
brackets using the screws provided.
IMPORTANT: The tops of the
installation brackets or extension
brackets must be level with their
front edges aligned.
 If using spacer blocks, attach the spacer block(s)
and installation bracket to a flat vertical mounting
surface with #6 screws long enough for a secure
installation.
IMPORTANT: Do not add more than 1
1
⁄ 2 " of
clearance using spacer blocks.
IMPORTANT: The tops of the installation brackets
must be level with the front edges aligned.
1
1
∕
2
"
Maximum
Spacer
Blocks
Longer
Screw
1"
Extension
Bracket
1
1
∕ 4 "

INSTALLATION
8
 If using extension brackets, attach an installation bracket
to the underside of each extension bracket using the
speed nuts and screws provided.
Proceed to “Install the Shading” on page 9.
Mount the Installation Brackets — End Mount
End mount the headrail when conventional mounting techniques will not work — for example,
in an arched window opening.
Mount the Extension and Installation Brackets
 Mount the extension brackets on a flat vertical
surface at least 1
1
⁄ 2 " wide.
 Attach the installation brackets to the extension
brackets using the provided screws and speed nuts.
WARNING: To end mount shadings into a
surface other than a secure wall stud, use
medium to heavy-duty wall anchors (not
provided) matched to the wall thickness.
Failure to mount the brackets securely may
result in injury or property damage.
Install the Optional Back Cover
 Remove the top tab on the back cover brackets. See “If
Using the Optional Back Cover ...” on page 4.
 Install the cover into the back cover brackets.
 If necessary, trim the back cover to the desired width.
Proceed to “Install the Shading” on page 9.
Speed Nuts
Screws
Extension
Bracket
1
1
∕ 2 "
Minimum
Depth
Back
Cover

INSTALLATION
9
Install the Shading
IMPORTANT: Leave the protective film on the fabric-covered headrail until you are satisfied
with the installation of your shading.
 Position the shading so
that the front faces you.
 Slide the headrail into the
installation brackets so the
edge of the headrail is between
the lever and the bracket, as shown.
 Firmly push the headrail into each bracket until it clicks
and the lever snaps to the right side of the bracket.
IMPORTANT: Carefully pull on the headrail at each bracket
to ensure it is installed securely.
 Remove the protective film from the fabric-covered headrail.
Attach the Dust Cover (Optional for Outside Mount)
The dust cover is used to protect the top of the headrail from exposure on outside mounted
shadings.
 Cut the dust cover to desired width.
 Remove the paper backing on one side of the hook and
loop fastener dots.
 Apply the dots to the installation brackets on each end of
the shading.
 Remove the remaining paper backing from the dots.
 Center the dust cover over the top of the shading, above the previously placed dots.
 Press the dust cover down onto the dots.
Headrail
Installation
Bracket
Lever
Slide the Headrail
Between the Lever
and the Bracket
Remove
Paper
Backing
Overhead View — No Dust Cover
Dots
Dust Cover Installed

INSTALLATION
10
Attach the Universal Cord Tensioner (UCT) — EasyRise™Only
IMPORTANT: Before you proceed, you must first slide
the cord tensioner to the bottom of the cordloop.
 Insert a small screwdriver, punch, or awl through the
screw hole at the bottom of the cord tensioner.
 Move the screw hole down to the indicator line to
release the safety mechanism.
 Slide the cord tensioner down to the bottom of the
cordloop.
 Attach the cord tensioner according to the
instructions provided with the Universal Cord
Tensioner Installation Kit.
WARNING: It is imperative that the cord tensioner be properly secured to
the wall or window frame to reduce children’s access to the cord loop. Young
children can strangle in cord loops. They can also wrap cords around their necks
and strangle.
CAUTION: The shading will not operate properly unless the cord tensioner is
secured. A Universal Cord Tensioner Installation Kit has been included with your
shading. Follow the instructions in the kit to correctly secure the cord tensioner.
Attach the Wand — UltraGlide®Only
The wand must be securely attached to the shading for proper operation.
 Remove the orange shipping clip.
 Grab the edge of the shipping clip and pull straight down.
 Remove the wand from its packaging.
Screw
Hole
Indicator
Line

INSTALLATION
11
 Gently pull out the bumper and threaded connector until
it is visible.
 Slide the bumper away from the threaded connector.
CAUTION: Do not grip the bumper on top of the
connector and attempt to screw on the wand at this
point. Secure attachment of the wand cannot be
guaranteed if tightened by hand.
 Hold the threaded connector with a
5
⁄ 16 " (8 mm) open end
wrench, and screw the hollow end of the wand onto the
threaded connector, as shown. If necessary, pliers can be
used instead of a wrench.
 Continue to firmly rotate the wand until you feel it
click two times and the wand stops moving. This
ensures the wand is securely attached.
CAUTION: If the wand is not properly secured, it will
come loose after repeated use.
 Slide the bumper back onto the threaded connector.
 Make sure the bumper is properly aligned and
seated tightly on top of the threaded connector.
NOTE: The underside of the bumper matches the
shape on the top of the threaded connector.
 Gently release the wand.
Bumper
Connector
Aligned

OPERATION
12

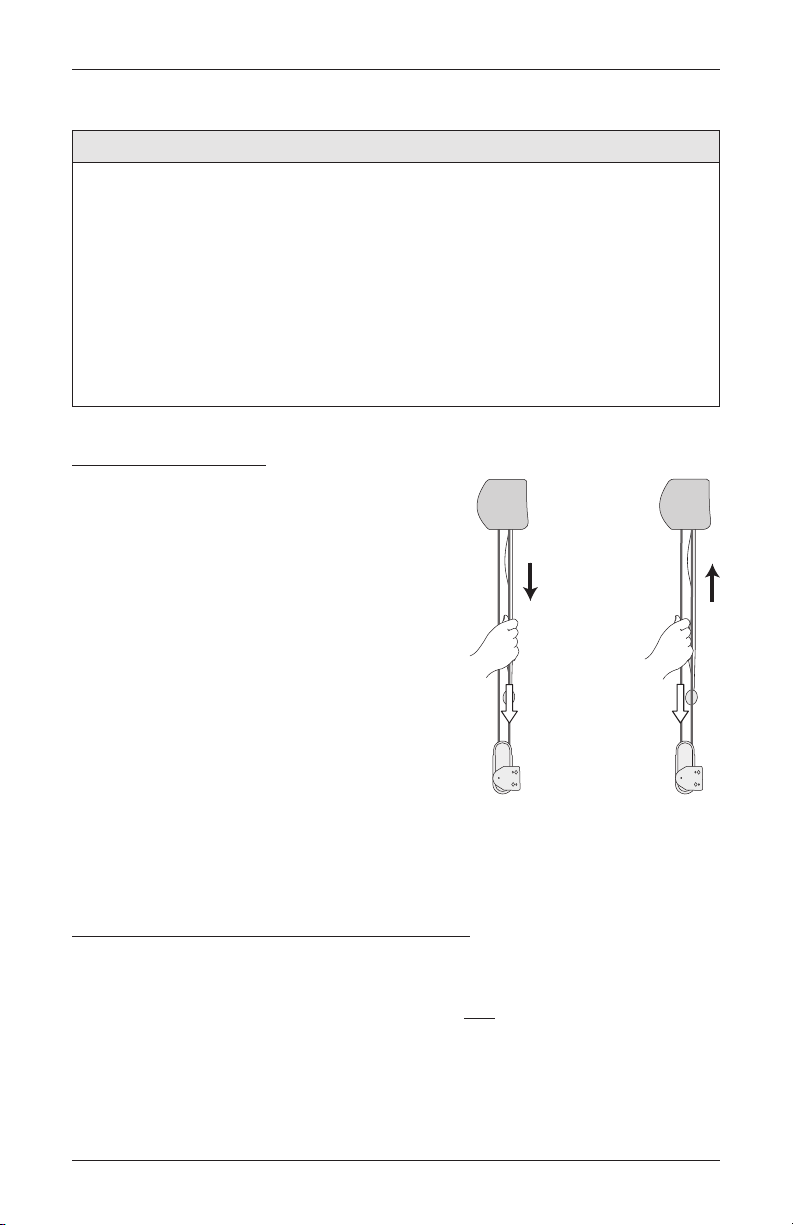

Operate the Shading
EasyRise™Shadings
 Pull the front or rear cord to raise or lower
the shading. The shading will hold its
position when you release thecord.
 To lower the shading: Pull down
on the rear cord of the cord loop
(indicated by the white arrow).
 With the shading fully lowered,
continue to pull the rear cord to open
the vanes.
 To raise the shading: With the
shading fully lowered, pull down
on the front cord of the cord loop
(indicated by the white arrow).
IMPORTANT: If the cord tensioner moves up the cord, you have not secured it to the wall
or window casement. You must do so for the shading to operate properly. See “Attach the
Universal Cord Tensioner (UCT) — EasyRise™Only” on page 10.
Two-On-One Headrail EasyRise Shadings
 Two-On-One Headrail shadings have two cord loops. The right cord loop operates the right
shading and the left cord loop operates the left shading.
IMPORTANT: With Two-On-One Headrail shadings, both cord tensioners must be
properly secured to the wall or window casement for the shading to operate correctly.
To Lower:
Pull Down
Rear Cor
d
To Raise:
Pull Down
Front Cord
If a shading has been fully lowered with the vanes open for a long period of time,
the vanes may become “set” — they may not easily close or flatten. This is a normal
characteristic of fabric products.
If this happens, move the shading up and down to coax the vanes as closed as possible.
If necessary, gently pull down on the lowest operable vane. You may also dress the
vanes gently with your hands to help them close. Then roll up the shading slowly to
flatten the vanes. Allow the fabric to remain in the headrail for up to 24 hours.
To prevent vane set, regularly “exercise” the shading by raising and lowering it and
opening and closing the vanes.
Important Operating Note

OPERATION
13
UltraGlide®Shadings
To Lower the Shading
 Pull the wand straight out from the fabric at an angle greater than 25 degrees. The clutch
will click and the fabric will proceed with a controlled descent.
 To stop the shading in any position, simply pull the wand straight down.
IMPORTANT: Avoid pulling the wand in the non-operable zone. This is the area between
the angle for lowering the shading and the straight down position for raising the shading.
Refer to the illustration below.
To Open the Vanes
 After lowering the shading completely, continue to pull on the wand at an angle greater
than 25 degrees, until the vanes are fully open.
To Close the Vanes and Raise the Shading
 Hold the wand close to the fabric and pull straight down.
 Pump the wand down using short strokes to gradually raise the shading.
CAUTION: To avoid damage to the shading or personal injury, do not release the wand
until it is fully retracted. To avoid breaking the wand, do not use long strokes (over 42") or
apply excessive force on the wand while pulling it.
Two-On-One Headrail UltraGlide Shadings
 Two-On-One Headrail shadings have two wands. The right wand operates the right
shading and the left wand operates the left shading.
Non-
Operable
Zone
To Lower Shading To Open Vanes
To Close Vanes
and Raise Shading

OPERATION
14
Attach Magnetic Hold-Down Brackets (Optional)
 Lower the shading, keeping the vanes closed.
 Place the magnetic hold-down brackets onto the bottom
rail just inside the end caps, oriented as shown.
 Hold the brackets while opening and closing the vanes.
(It may be necessary to have someone assist you.)
Adjust the brackets to the best overall position.
 Mark the screw locations using one of the mounting
options shown below.
 The screw should be placed in the middle of the
channel to allow for adjustment.
 Drill the screw holes using a
3
⁄ 32 " drill bit.
 Attach the hold-down brackets to the mounting surface
using the screws provided.
 If necessary, adjust the bracket height by loosening the
screw and sliding the bracket up or down.
Outside Mount
Preferred Alternate
Inside Mount
Preferred Alternate
Hold-Down
Bracket
Bottom
Rail
Adjust the
bracket
using the
channel.

OPERATION
15
Troubleshooting
Problem
The shading will not snap into the installation brackets.
Solution Check that the installation brackets are level. Shim to level, if necessary.
Check that the headrail is completely inserted into the installation brackets.
See “Install the Shading” on page 9.
Problem
The EasyRise
™
cord tensioner has climbed to the headrail.
Solution Pull down on the spring to relieve tension and
pull the cord tensioner to the bottom of the
cord loop. Then properly mount the cord
tensioner. See “Attach the Universal Cord
Tensioner (UCT) — EasyRise™Only” on page 10
and/or the instructions included with your
Universal Cord Tensioner Installation Kit.
Problem
The EasyRise cord tensioner grabs onto the cord when the cord is pulled.
Solution Check that the universal cord tensioner is mounted properly. Reinstall, if
necessary.
Problem
The shading is hard to raise or lower, or will not raise or lower.
Solution Check that there is clearance between the ends of the shading and the
window casement on inside mounts.
Check that the universal cord tensioner is mounted properly. Reinstall, if
necessary.
Check that the installation brackets are level. Shim to level, if necessary.
Check if the fabric rolls up evenly into the headrail. If not, see “Adjusting the
Bottom Rail Weight” on page 16.
If hold-down brackets are used, make sure they have been released.
Screw
Hole
Indicator
Line

OPERATION
16
Move Weight
Lift Lock to
Release Weight
WeightWeight Lock
Lock Released
Push Down to
Lock Weight 1"
Move Weight
Gathered
Fabric Fabric Roll in Headrail
Bottom Rail
Problem
The shading raises or lowers unevenly, the bottom rail is not level when
fully raised, or the fabric winds unevenly or starts to rub against one end of
the headrail.
Solution Check that the installation brackets are level. Shim to level, if necessary.
Check if the window is out-of-square by measuring the diagonals. Shim the
installation brackets to level, if necessary.
If the headrail is level and the window is square, adjust the bottom rail
weight.
Adjusting the Bottom Rail Weight
IMPORTANT: Only adjust the bottom rail weight if the fabric does not roll up
straight into theheadrail.
First, release both weight locks. On the back of the bottom rail, insert a flat
blade screwdriver into the slot in each weight lock and
rotate the lock up, toward the center of the rail.
Slide the weight, in 1" increments, in the direction the fabric is gathering.
Test and, if necessary, adjust again.
After final adjustment, rotate each
lock down toward the outside of the
rail to secure the weight. At least 1"
should overhang each lock.

OPERATION
17
Problem
The vanes will not open when the shading is firstoperated.
Solution Open and close the shading quickly to help open the vanes. If necessary,
gently pull down on the bottom rail.
Problem
The vanes do not close completely.They stay contoured and do not flatten.
Solution Use the cord or wand to open and close the vanes quickly. Coax the vanes
as closed as possible. If necessary, gently pull down on the bottom rail. You
may also gently dress the vanes with your hands to help them close. Then roll
up the shading slowly to flatten the vanes. Allow the fabric to remain in the
headrail for up to 24 hours.
To avoid this in the future, regularly “exercise” the shading by raising and
lowering it and opening and closing the vanes.

CARE
18
Removing the Shading
 Fully raise the shading.
 Move each lever of the installation brackets to the
left to release the shading.
 A flat blade screwdriver can be used to move
the lever.
CAUTION: Be very careful not to tear or
damage any of thefabric.
 If the lever is inaccessible or
inoperable, lower the shading
until you can see the underside
of the bracket. Carefully reach
a small flat blade screwdriver
behind the shading to the tab on
bottom of the bracket between
the screw holes.
 Push the tab away from the
shading and pull the headrail to
release it from the bracket.
 Carefully pull the shading to remove
it from the brackets.
Cleaning Procedures
Pirouette®Window Shadings are made of 100% polyester, which means they are inherently
durable and resilient. However, care must be taken to avoid wrinkling the fabric, particularly
where the vanes meet the sheer backing fabric.
CAUTION: Do not steam Pirouette fabrics.
Fabric-Covered Headrail
 Lightly dust with a clean, dry cloth, vacuum using low suction, or spot clean with a damp
cloth and mild detergent.
Dusting
 Regular light dusting with a feather duster is all the cleaning needed in most
circumstances.
Vacuuming
 Use a hand-held vacuum with low suction for more thorough dust removal.
Top View
Move Lever to Left
Tab
Installation Bracket
Underside of
Bracket
End Cap
