HUROM H-AF User manual
Important safeguards
Precauons
Parts and Accessories
Disassembling the chamber
Preparing ingredients / Use by strainer type
Assembling the chamber for juicing
Assembling the chamber for making ice cream
Assembling the chamber set and body
Cauons during operaon
Using the product : For juicing / For ice cream
Using the control lever by mode
Using the control lever by ingredient (Juicing)
If the squeezing screw stops during operaon
Assembling and cleaning the squeezer accessory
Using the squeezer
Cleaning : Silicone parts
Troubleshoong
Product specicaons / Warranty
02
03
04
06
07
08
10
12
13
14
15
16
17
18
19
20
22
24
01. Read the instrucons carefully before using.
02. Keep these instrucons somewhere easily accessible.
03. Use only with 120V AC power supply.
04. Design and product development may be upgraded without noce.
05. Any quality improvements are subject to change without noce.
CONTENTS
H-AF Series (Household use only / Warranty included)
TM
02
1.
2.
3.
4.
5.
6.
7.
8.
9.
10
11.
12.
13.
14.
When using electrical appliances, basic safety precautions should
alWays be folloWed. read all instructions.
to protect against risk of electrical shock, do not put the main
body (motor) in Water or any other liquid.
close supervision is necessary When any appliance is used near
children.
unplug from outlet When not in use, before assembling or taking
off parts and before cleaning.
avoid contact With moving parts.
do not operate any appliance With a damaged cord or plug, after the
appliance malfunctions, or is dropped or damaged in any manner.
return appliance to the nearest authorized service facility for
examination, repair or electrical or mechanical adjustment.
the use of attachments not sold or recommended by the
manufacturer may cause fire, electric shock or injury.
do not let cord hang over edge of table or counter.
alWays make sure hopper is securely fastened in place before motor
is turned on. do not unfasten hopper While juicer is in operation.
turn sWitch to off position after each use of your juicer. make sure
the motor stops completely before disassembling.
do not put your fingers or other objects into the juicer While it is
in operation. if food becomes lodged in opening, use food pusher or
another piece of fruit or vegetable to help it doWn. if this method is
not possible, turn the motor off and disassemble juicer to remove
the remaining food.
do not use outdoors.
do not place on or near a hot gas or electric burner or in a heated
oven.
do not use appliance for other than intended use.
03
Precautions for safe use
DO NOT PLUG OR UNPLUG WITH WET HANDS. It may cause electric shock or injury.
DO NOT USE OTHER THAN 120 V AC.
It may cause electric shock, fire or product failure. If the voltage is different, it may shorten the life of the motor or cause a failure.
PLUG THE POWER CORD CORRECTLY AND PUSH IT TIGHT IN A WALL SOCKET. It may cause an electric shock or a fire.
IF THE POWER CORD, WIRE IS BROKEN OR DAMAGED, OR THE PLUG-IN PART BECOMES LOOSE, DO NOT OPERATE IT.
It may cause electric shock, fire or injury.
NEVER ALTER THE APPLIANCE. ALSO, DO NOT DISASSEMBLE OR REPAIR THE PRODUCT BY YOURSELF. DO NOT INSERT
FINGERS, FOREIGN SUBSTANCES OR OBJECTS SUCH AS PINS INTO GAPS OR HOLES IN THE BODY.
It may cause a fire, electric shock or product failure. For any technical support, contact the authorized local Customer Service Center.
WHEN THE POWER CORD, WIRE IS BROKEN OR DAMAGED, OR THE PLUG-IN PART BECOME LOOSE, DO NOT OPERATE IT.
It may cause electric shock, fire or injury.
DO NOT MOISTEN BODY OR SPLASH WATER ON THE BODY.
Be careful to not let any liquids or other substances get into the switch of the appliance.
DO NOT OPERATE THE SWITCH WITH WET HANDS. It may cause an electric shock or fire.
FOR SAFETY, MUST DO GROUNDING CONNECTION. ALSO, DO NOT DO THE GROUNDING ON GAS PIPE, PLASTIC WATER
PIPE, TELEPHONE WIRE, ETC.
It could cause electric shock, fire, malfunction or explosion. Be sure to use the electrical outlet with ground connection.
NEVER DISASSEMBLE THE CHAMBER SET DURING OPERATION OR INSERT FINGERS, FOREIGN OBJECTS SUCH AS FORKS,
SPOONS, ETC. INTO HOPPER CHUTE OR JUICE OUTLET. It may cause injury, accident or product failure.
APPLIANCES CAN BE USED BY PERSONS WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES OR LACK OF
EXPERIENCE AND KNOWLEDGE IF THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE
APPLIANCE IN A SAFE WAY AND IF THEY UNDERSTAND THE HAZARDS INVOLVED. CHILDREN SHALL NOT PLAY WITH THE
APPLIANCE. CLEANING AND USER MAINTENANCE SHALL NOT BE MADE BY CHILDREN. THIS APPLIANCE SHALL NOT BE
USED BY CHILDREN. KEEP THE APPLIANCE AND ITS CORD AWAY FROM CHILDREN.
DO NOT OPERATE WITHOUT LOCKING THE HOPPER PROPERLY. It may cause an injury or a failure.
WHEN A GAS LEAK IS DETECTED, DO NOT INSERT THE POWER CORD INTO ITS SLOT.
OPEN THE WINDOW IMMEDIATELY FOR AIR VENTILATION. It may cause injury or failure.
NEVER PUT A FINGER, FORK OR SPOON, ETC. INTO JUICE OUTLET. It may cause injury or failure.
IF ROTATION OF SQUEEZING SCREW IS STOPPED DURING NORMAL OPERATION, PRESS [REVERSE] BUTTON AND
HOLD FOR 2~3 SECONDS AND AFTER REVERSE OPERATION IS COMPLETELY STOPPED, PRESS [EXTRACT] BUTTON
AGAIN. If such stop continues during the operation, the parts may be damaged and performance may be deteriorated due to overheating in a
motor. When the problem continues, stop the appliance immediately and contact your local Customer Service Center.
DURING THE OPERATION, DO NOT ATTEMPT TO MOVE THE BODY, DISASSEMBLE THE CHAMBER SET OR PARTS AND TRY
TO LOCK THEM. It may cause an injury or a failure. If needed, switch off first and unplug the power cord.
WHEN USING THE APPLIANCE, BE CAREFUL WITH CLOTHING AND ACCESSORIES (SUCH AS A NECKTIE, LONG NECKLACE,
SCARF, ETC.) SO THEY ARE NOT ENTANGLED INTO THE HOPPER CHUTE. It may cause injury, failure or breakage.
PLACE THE APPLIANCE ON A FLAT AND STABLE SURFACE. It may cause injury or failure.
WHEN PLACING INGREDIENTS INTO THE HOPPER CHUTE, USE ONLY THE PUSHER PROVIDED. It may cause injury or failure.
DO NOT ALLOW THE APPLIANCE TO EXPERIENCE A SEVERE SHOCK, OR DROP IT. It may cause electric shock, fire or damage.
IF THE APPLIANCE GIVES OFF AN UNPLEASANT SMELL, EXCESSIVE HEAT, OR SMOKE, STOP USING IMMEDIATELY
AND CONTACT YOUR LOCAL CUSTOMER SERVICE CENTER.
When using a new appliance, there may be a smell that disappears gradually over time.
ALWAYS UNPLUG THE APPLIANCE AFTER USE. ALWAYS DISCONNECT THE APPLIANCE FROM THE SUPPLY IF IT IS LEFT
UNATTENDED AND BEFORE ASSEMBLING, DISASSEMBLING OR CLEANING. WHEN UNPLUGGING THE POWER CORD, MAKE
SURE TO HOLD THE POWER CORD. Pulling the wire to unplug may cause electric shock or fire.
DO NOT WASH AT HIGH TEMPERATURES OF 800C(1760F) OR HIGHER. DO NOT PUT THE APPLIANCE IN A DISHWASHER,
DRYER OR A MICROWAVE, ETC. It may cause a failure or parts deformation.
THE APPLIANCE WEIGHS ABOUT 6.5 kg (14.3 lb). WHEN MOVING THE APPLIANCE, MAKE SURE TO MOVE IT HOLDING GRIPS
TIGHTLY AT THE BOTTOM OF BODY WITH BOTH HANDS.
By attempting to hold chamber or the edge of the body, the body may fall causing an injury or failure.
04
Screw Axis
Silicone Brush
Brush Holder
Mid Gear Packing
Mid Gear
Pulp
Outlet
Control
Lever
Juice Cap
Juice Cap
Packing
Hopper Chute
Safety Sensor
Side
Hopper
Chute
Ice Cream
Outlet
06 Fine Strainer 07 Coarse Strainer 08 Ice Cream Strainer
Strainer
Bump
* Components may vary depending on the model.
05
Cone
Tilt Handle
Safety Sensor
Serving Spout
Tofu Press
Tofu Mold
Shaft
Body Bump
*Chamber Rack can't be separated after
assembling.
Operating Switch
Handle
Safety Sensor
06
Please clean all the parts before first use.
Turn the hopper counterclockwise and pull upwards.
Remove the strainer and spinning brush from the
chamber.
Remove the strainer from the spinning brush.
Hold both sides of the wing and pull out the squeezing
screw.
07
Do not extract large chunks or large amounts of ingredients at once.
As the fruit defrosts inside the chamber, juice may form inside or even come out of the pulp
outlet. This is completely natural, not a product failure. Do not use water-frozen ice cubes.
Keep peel and seeds intact when juicing fruits such as pear, kiwi, Korean melon, etc.. Apple
seeds contain toxins, so it is better to remove them before juicing.
Separate each grape from the cluster. Peel the pomegranate and use seeds only.
Peel outer rind of watermelon and citrus fruits. Cut them into appropriate sizes.
Mango, cherry, peach, plum, etc., have hard seeds that cannot be chewed. Do not put
these seeds in the juicer, as they may cause stoppage or damage to parts. Use only the
fruits’ flesh.
Insert a neat handful at a time, making sure that they do not get scattered.
Dice frozen fruits into 1 inch pieces when making ice cream. Melons should be
peeled then frozen before use. Fruits with seeds that are too hard to chew, such as
persimmon, apricot, lemon, plum, peach etc., should have the seeds removed before
freezing. Choose seedless grapes for freezing.
Cut fibrous ingredients into sizes 2 inches or smaller.
►
►
08
Assemble the strainer and spinning
brush as shown.
Place the assembled parts from [STEP1]
into the chamber. Twist the strainer from
side to side so that the bottom bump of the
strainer fits the groove of the chamber.
21
STEP
STEP
bottom
bump of the
strainer
groove of
the chamber
09
Assemble the hopper as shown. Aer
ng the hopper on the chamber, turn
clockwise unl it locks completely.
Press the squeezing screw into the
assembled parts from [STEP 2] unl the
screw ts perfectly.
3 4
STEP STEP
The appliance works even if
the hopper is assembled in
the opposite direcon.
10
The spinning brush
is not needed for
ice cream making.
Place ice cream strainer in the chamber.
Align the ice cream outlet of the strainer
with the juice outlet of the chamber.
Press the squeezing screw into the
assembled parts from [STEP 1] until the
screw fits perfectly.
21
STEP
STEP
Juice outlet
Ice cream
outlet
11
The appliance works even if
the hopper is assembled in
the opposite direcon.
Assemble the hopper as shown. Place the
hopper on the chamber and turn clock-
wise unl it is completely locked.
3
STEP
12

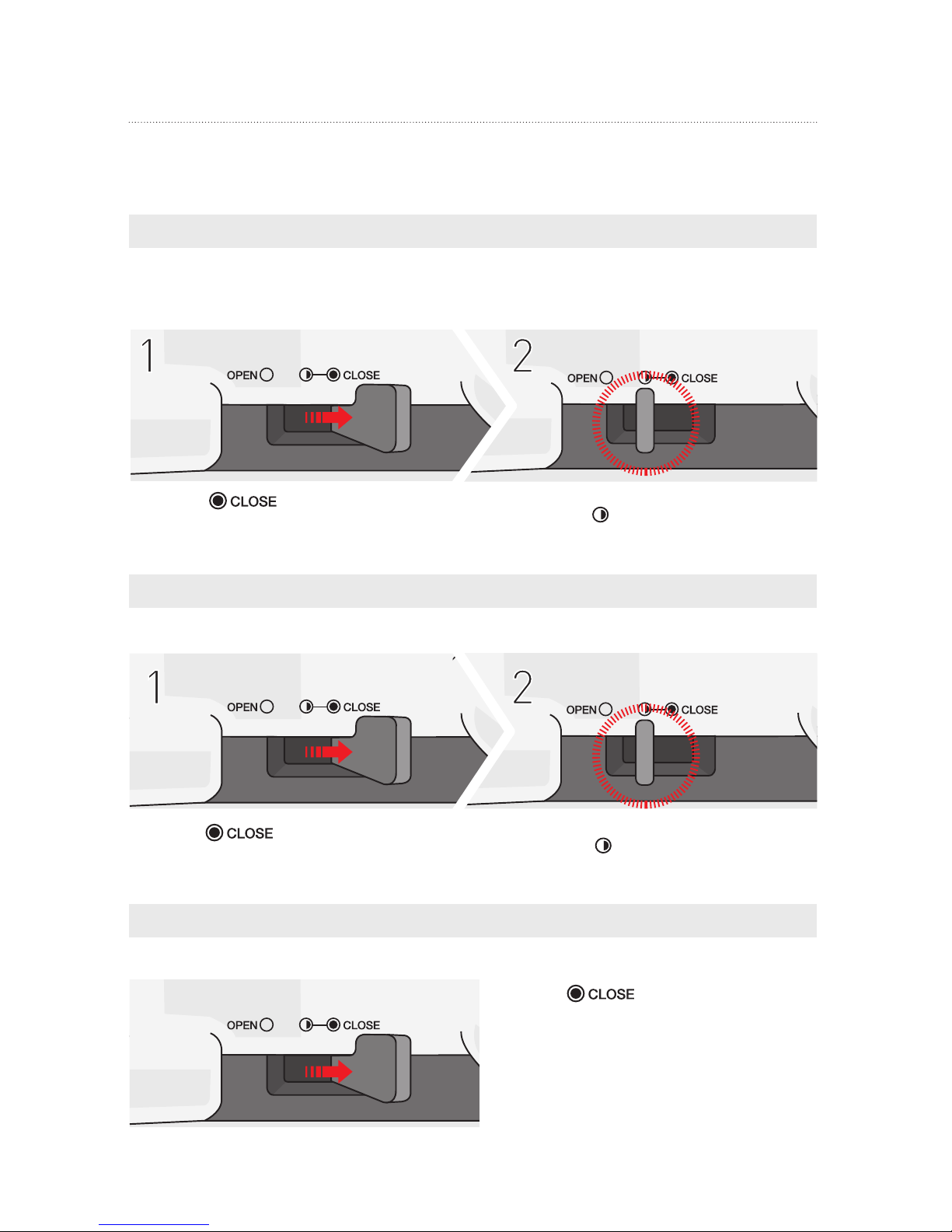

If the control lever is not placed on the chamber set
and body will not fit completely.
*The assembly method is the same regardless of strainer type.
1.The body on its own (without the chamber) will not work.
2. If the chamber is not properly assembled, the appliance will not
work.
13
Ingredients kept in the refrigerator long-term may become withered, which in turn may make small amounts
of juice or even no juice at all.
If the unit is not cleaned immediately after use, residue may dry and stick to the unit. This will make assembling
and cleaning difficult as well as lead to performance degradation.
- Fruits with hard seeds that are hard to chew, such as persimmon, Japanese apricot, lemon, plum, peach
etc. should have the seeds removed and not extracted.
- Stalk vegetables with tough ber, such as water parsley, celery, etc., should be cut into small sizes of
about 1-2 inches before inseron.
- Do not insert sesame seeds, coee beans, tree bark, etc. These cannot be extracted.
- Do not insert fruits preserved in alcohol, sugar, honey, etc. (grapes, apricot, berries, etc.) and/or succu-
lents (glasswort, leek, etc.).
- It may cause product damage or failure.
- May cause a failure due to the motor overheang.
- When using connuously, stop the appliance aer 30 minutes and allow at least 5 minutes of rest before
using it again.
- Inserng extraneous items into the juice outlet (such as ngers or spoons) during operaon may cause
them to get stuck into the spinning brush and cause damage.
- May cause damage, injury, and failure.
- May cause electric shock or re. Do not get liquids on or near the switch.
- Keeping on CLOSE increases pressure inside the chamber, prevenng the hopper from opening, and/or
may cause damage.
- May cause damage or failure.
14
정회전
역회전
정지상태
작동스위치 정회전
역회전
off(정지) 정지
누름
정회전
역회전
작동스위치 정회전
역회전

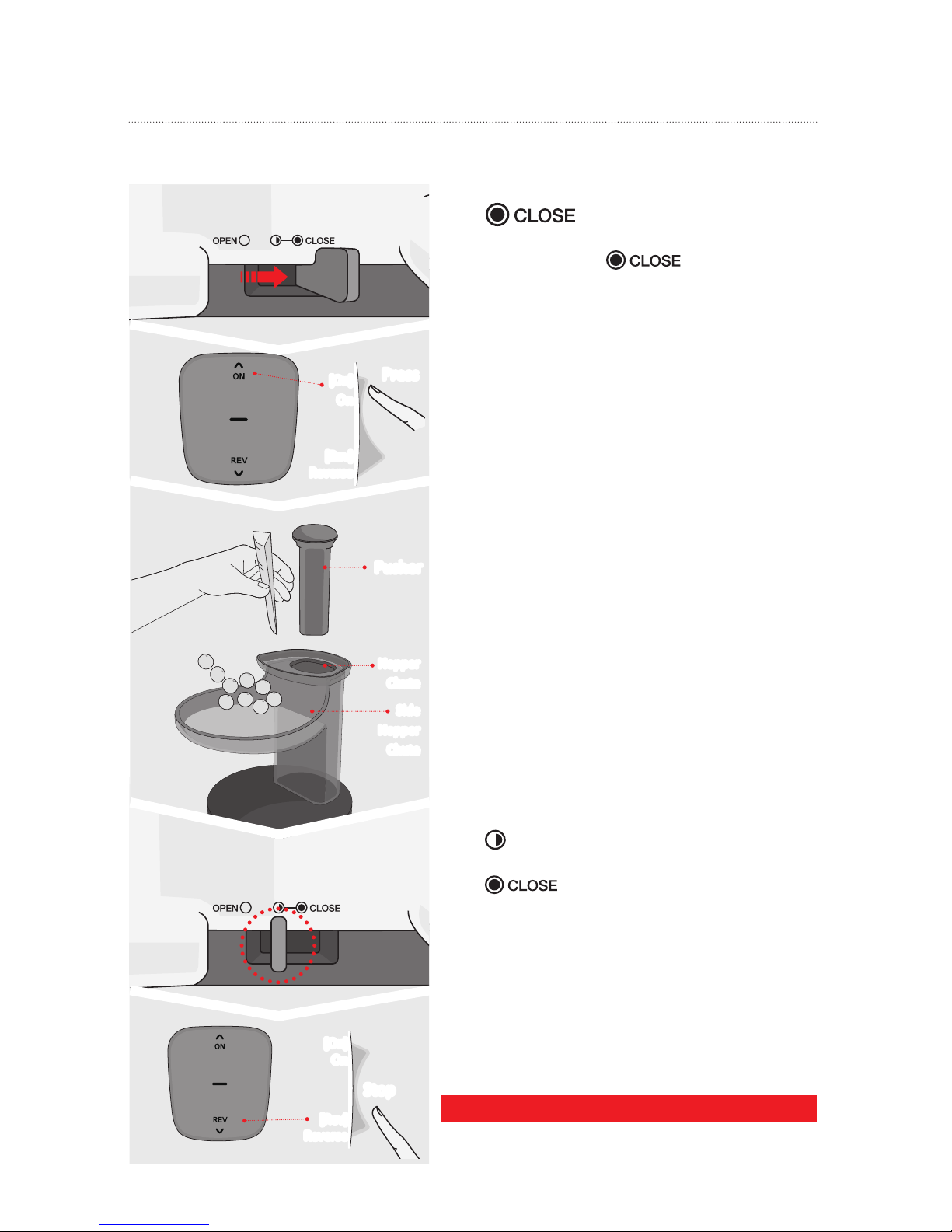

Pusher
Hopper
Chute
Side
Hopper
Chute
1
3
5
2
4
As long as the pulp in the strainer is properly released,
the hopper will open easily.
The appliance will slowly come to a stop.
Do not press the ingredients with anything other than the
pusher provided.
Please prepare the ingredients into 1 to 2 inch sizes.
When using thawed ingredients with the ice cream strainer,
some juice may come out through the outlet. This is normal.
When extracting over 400ml at once, please open the
control lever (switch to “half-closed”) every 400ml to emit
the pulp.
If the appliance does not start, please check that the
chamber set is correctly assembled.
The chamber cannot be assembled correctly if the control
lever is not on CLOSE ( ) position.
Stop
[On]
On
[Rev]
Reverse
[On]
On
[Rev]
Reverse
Press
15
The control lever is between the juice outlet and pulp outlet.
The control lever can help extract the most out of various ingredients.
Place the control lever to half-closed ( ) and press the
Reverse button for about 3 seconds. Repeat this for 2 to 3 times and the hopper should open easily.
For most ingredients, the extraction rate is good when you
close ( ) the control lever during operation. When
extracting over 400ml at once, please open the control lever
every 400ml to emit the pulp.
For juicing fruits with small, firm seeds, such as grapes and
pomegranates, place the control lever on close (
) and switch to half-closed ( ) position once the juice begins
to fill the chamber.
Since there is no pulp to be released separately, keep the
control lever on close ( ).
Place the control lever on the half-closed ( ) position
when putting in the last of the ingredients and release
the remaining pulp. The hopper will open easily when
the pulp in the strainer is released.
For Simple Cleaning Mode, place the control lever on
the half- closed ( ) position and release the pulp.
When detaching and cleaning the chamber, place the control
lever completely on the ( ) position.
You can easily and conveniently clean the chamber.
16
Apple, pear, melon, watermelon, strawberry, blueberry, orange, grapefruit, lemon, mango, plum, peach,
cherry, persimmon, pineapple, wheatgrass, parsley, celery, dandelion, carrot, ginger, potato, beet, tomato,
bell pepper, broccoli, cauliflower, cabbage, kale, spinach, cooked sweet potato and pumpkin, corn
Grapes, pomegranate, blackberry, kiwi
Banana, strawberry and blueberry, etc.
1. Start on position. 2. When extraction is almost finished, place the
control lever on, Half-Opened position
1. Start on position. 2. When juice begins to fill chamber, place the
control lever on the Half-Opened position.
1. Start on position.
17
[ON]
[REV]
[STOP]
[ON]
[REV]
1
2
Press on the [REV] buon to push the ingredients
back upward.
The [REV] buon only works while pressing down on
it, the squeezing screw stops rotang if you release
the buon.
When switching between the [ON] and [REV] but-
tons, make sure the squeezing screw stops com-
pletely.
If the above direcons do not work, please unplug the
power cord, disassemble and clean the chamber set,
and try the above again.
From the feature of the product, even though you stop the operaon, it doesn’t stop right
away. It rotates slowly then stops. If the rotaon stops completely, you may press the buon
to any direcon you want.
18
1. Turn completely off and the remove the plug from the power outlet before cleaning.
2. Remove the cone and serving spout from the body and clean the parts under running water.
3. Rinse or wash all squeezer parts immediately after use. Dried pulp is difficult to clean.
℃
It may cause a failure or parts deformation.

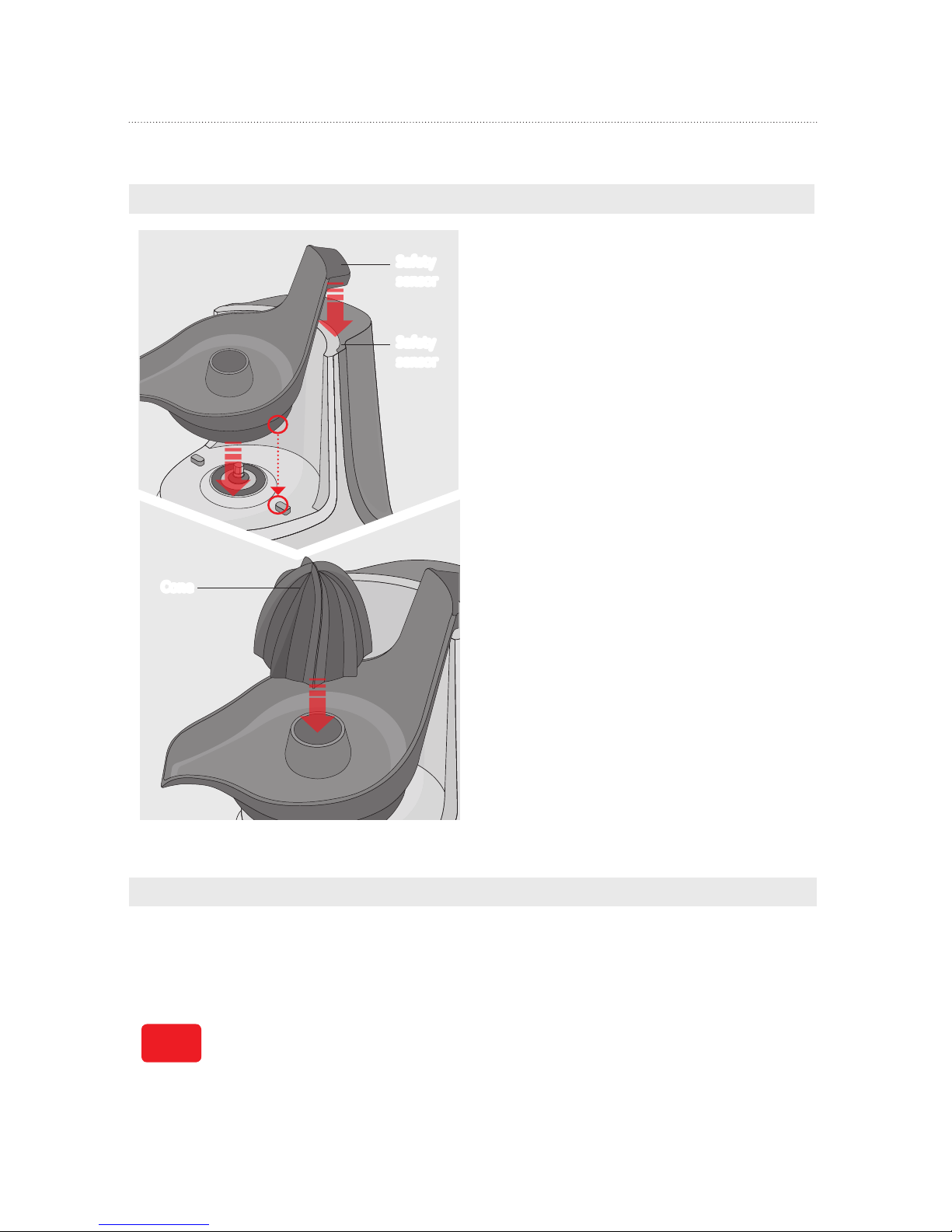

1
Align the grooves on the bottom of the
serving spout with the body bumps.
2
Safety
sensor
Cone
Safety
sensor
19
Prepare the juice cup under the serving spout.
If you extract an excessive amount of
ingredients, it may overow.
Remove seeds before extracon, or your juice may contain seeds.
If you want clear juice, use the Hurom chamber for juicing.
Please wash all fruit thoroughly before extracon.
Please use fruit at room temperature, rather than frozen fruit, for greater yield.
We recommend you drink your juice immediately aer extracon rather than keeping it for a
long me.
누름
정회전
역회전
작동스위치 정회전
역회전
ON Press
1
2
20
01
02
03
04
05
06
07
Unplug the power cord of the fully stopped unit
using dry hands.
Remove the chamber set from the main body. Twist
the hopper to open and lift out the parts in order to
disassemble the unit.
Using a cleaning brush, wash the chamber set
under running water.
Open the control lever ( ) and juice cap to
wash out the chamber.
Wipe the main body with a damp towel or a soft
cloth.
The silicone packing can be disassembled and
washed. (Including juice cap packing, chamber
packing, silicone brush)
Soak in water diluted with one or two drops of
baking soda or natural bleach for dishes for about
30 minutes to sterilize and clean.
1.
2.
If the chamber is not cleaned immediately aer use, residue may dry and sck to the unit. This
will make disassembling and cleaning dicult as well as lead to performance degradaon.
Please wash the chamber set immediately aer use.
Do not wash with hot or boiling water, an iron scrubber, abrasive material, sink solvents, or
sharp cleaning tools. Do not put it in a dishwasher or dish dryer. Aer washing, thoroughly and
naturally dry, and store in a clean area.
When you clean the chamber set, wash the
residue inside and bottom of the chamber under
running water.
The chamber packing can't be disassembled. Do
not disassemble the chamber packing.
If you try to disassemble the chamber packing,
it might be damaged.
Chamber
packing
Table of contents
Other HUROM Juicer manuals
HUROM
HUROM HW Series User manual
HUROM
HUROM HG Elite User manual
HUROM
HUROM H-300E Series User manual
HUROM
HUROM HH Elite User manual
HUROM
HUROM HP Series User manual
HUROM
HUROM HH-SBB11 User manual
HUROM
HUROM HU-100SB User manual
HUROM
HUROM HG Elite User manual
HUROM
HUROM HQ Series User manual
HUROM
HUROM HN Series User manual
HUROM
HUROM HW Series User manual
HUROM
HUROM wilfa ANDANTE User manual
HUROM
HUROM HU-100W User manual
HUROM
HUROM HU-100 Ultem User manual
HUROM
HUROM H-200 Series User manual
HUROM
HUROM HP Series User manual
HUROM
HUROM HV Series User manual
HUROM
HUROM HJ SERIES User manual
HUROM
HUROM H-310A User manual
HUROM
HUROM HU-100 Ultem User manual
