Hytronik HIM35 Quick guide

1. Technical Specifications
Product type High bay independent DALI sensor (tri-level control)
Operating voltage 220-240VAC 50/60Hz
Switched power Maximum 20pcs DALI devices, Maximum 40mA
Power consumption < 1W
Detection angle 360o
Detection area (DxH) 18 x 15m (Maximum)
Detection range 10% / 50% / 75% / 100%
Hold time 2s / 30s / 1min / 5min / 10min / 15min / 20min / 30min
Stand-by time 0s / 10s / 1min / 5min / 10min / 30min / 1h / + ∞
Stand-by dimming level 10% / 20% / 30% / 50%
Daylight threshold 2 ~ 500Lux, Disable
Warming up time 30s
Operating temperature -35oC ~ +50oC
IP rating IP65
Sensor mode HF, PIR, HF+PIR, HF / PIR
3. Rotary Switch Settings
A rotary switch is built inside the sensor for
scene selection / fast programming. Total
16 channels available:
Note: settings can also be changed by remote control HRC-11. The last action controls.
HIGH BAY DUAL SENSE INDEPENDENT DALI SENSOR HIM35
Installation and Instruction Manual
Rotary switch preset (Please
see the location in 2. Installation)
Detection
range
Channel
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
100%
100%
100%
100%
100%
100%
100%
100%
100%
100%
100%
75%
50%
100%
100%
100%
5s
1min
5min
5min
5min
5min
5min
10min
10min
10min
10min
10min
10min
30min
30min
5s
10s
5min
10min
30min
0s
+∞
+∞
10min
30min
+∞
+∞
+∞
+∞
+∞
+∞
10s
10%
10%
10%
10%
Disable
10%
30%
10%
10%
10%
30%
10%
10%
10%
30%
10%
Disable
2Lux
10Lux
30Lux
10Lux
30Lux
Disable
2Lux
10Lux
30Lux
Disable
30Lux
10Lux
50Lux
Disable
2Lux
Hold
time
Stand-by
time
Stand-by
dimming level
Daylight
threshold
4. Functions
Hytronik builds this function inside the motion sensor to achieve tri-level control, for some areas it requires
a light change notice before switch-off.
It offers 3 levels of light: 100%-->dimmed light-->off; and 2 periods of selectable waiting time: motion
hold-time and stand-by period; Selectable daylight threshold and freedom of detection area.
4.1 Tri-level Control (Corridor Function)
The built-in daylight sensor can read ambient natural light and switch off the fixture automatically
whenever artificial light is not required (natural light lux level exceeds daylight threshold).
Note: if the stand-by time is preset at "+∞", the fixture never switches off even when natural light
is sufficient.
4.2 Lux Off Function
HIM35-20190104-A1
2. Installation
Warnings:
1. Installation of the sensor involves connecting it to the mains supply. This work must be
carried out by a specialist in accordance with electrotechnical regulations.
2. Disconnect power supply before installing.
The light will flash ONCE rapidly after receiving the command from the remote controller.
Note: There is no load indication (the light will not flash) when button ON/OFF, POWER 100%
or POWER 80% is pressed.
4.3 Load Indication
5. Wiring Diagram
L
N
DALI
+
DALI -
L
N
Brown
LED
Driver
Blue
Red
Black
HIM35
A. Ceiling mount
B. Screw to the Luminaire by conduit
C. Attach to the shade by clamp
Sensor module
PIR
Daylight sensor
LED indicator Infrared receiver
Rotary switch for programing
Cable entry
Installation rack
81.5
4.1
66.6
91.5
80.7
75
4.1
59.3
73.5
57.3
47.5
24.5
Cable entry
Sensor module
PIR
Daylight sensor
LED indicator Infrared receiver
Rotary switch for programing
59.6
66.6
89.9
0.825”
75
64
43.8
43
59.3
73.5
35.2
57.3
47.5
163.2
33.7
28.5
4.5
15
96.8
66.6
ぶ
4.5
93.8
84.5
59.3
ぶ
29
Sensor module
PIR
Daylight sensor
LED indicator Infrared receiver
Rotary switch for programing
Angle adjustment
Luminaire clamp

7. Descriptions of the
Button Functions
(remote control HRC-11)
8. Troubleshooting
MALFUNCTION CAUSE REMEDY CAUSE REMEDY
The fixture does not light up
The fixture is always on
Check detection area setting
The fixture is on when it should not
Incorrect daylight threshold setting
Continous movement in the detection zone
Sudden change in temperature due to weather (wind, rain, snow) or air
expelled from fans, open windows
Detection zone not targeted
Faulty fixture
No power supply
Adjust daylight threshold setting
Replace fixture
Check power to sensor
Check detection area setting
Adjust zone, change installation site
Detection range [ zone ]
Press buttons in zone to set detection range at 100% / 75% /
50% / 10%.
8
8
RESET[ button ]
Press button , all settings go back to the rotary switch settings.
2
2
Shift [ button ]
Press button , the LED on the top left corner is on for indication.
All values / settings in RED are valid for 20 seconds.
3
3
Auto Mode [ button ]
Press button to initiate automatic mode. The sensor starts working
and all settings remain as before the light was switched ON/OFF.
Note: the function of Semi-auto is disabled.
4
4
Scene prog. [ zone ] (One-key-commissioning)
1. Press button “start” to program.
2. Select the buttons in “Detection range”, / “Daylight threshold”,
“Hold time”, “Stand-by time”, “Stand-by dimming level” to
set all parameters.
3. Press button “Memory” to save all the settings programmed in the
remote control.
4. Press button “Apply” to set the settings to each sensor unit(s).
For example, to pre-set detection range 100%, daylight threshold
Disable, hold time 5min, stand-by time +∞, stand-by dimming level
30%, the steps should be as follows:
Press button Start, button 100%, Disable, Shift, 5min,
Shift, +∞, 30%, Memory. By pointing to the sensor unit(s)
and pressing Apply, all settings are passed on the sensor(s).
7
7
7
7
3
3
8
8 9
10
10 11
1312
11 12 13
Brightness +/- [ button ]
Press button to adjust the light brightness between 10%~100% .
6
6
Power output [ button ]
Press button , the light output shifts between 80% and 100%.
Note: the function of “Sensor off” and “Twilight” are disabled.
5
5
Permanent ON/OFF [ ]
Press button ,to select permanent ON or permanent OFF mode.
* Press button / to resume automatic operation.
The mode will change to AUTO Mode after power failure.
button
1
1
24
Hytronik Industrial Ltd. | www.hytronik.com
3rd Floor, block C, complex building, 155#, Bai'gang road south,
Bai'gang village, Xiao Jin Kou town, Huicheng district, Huizhou 516023
Tel: [phone] Fax: [phone]
HIM35-20190104-A1

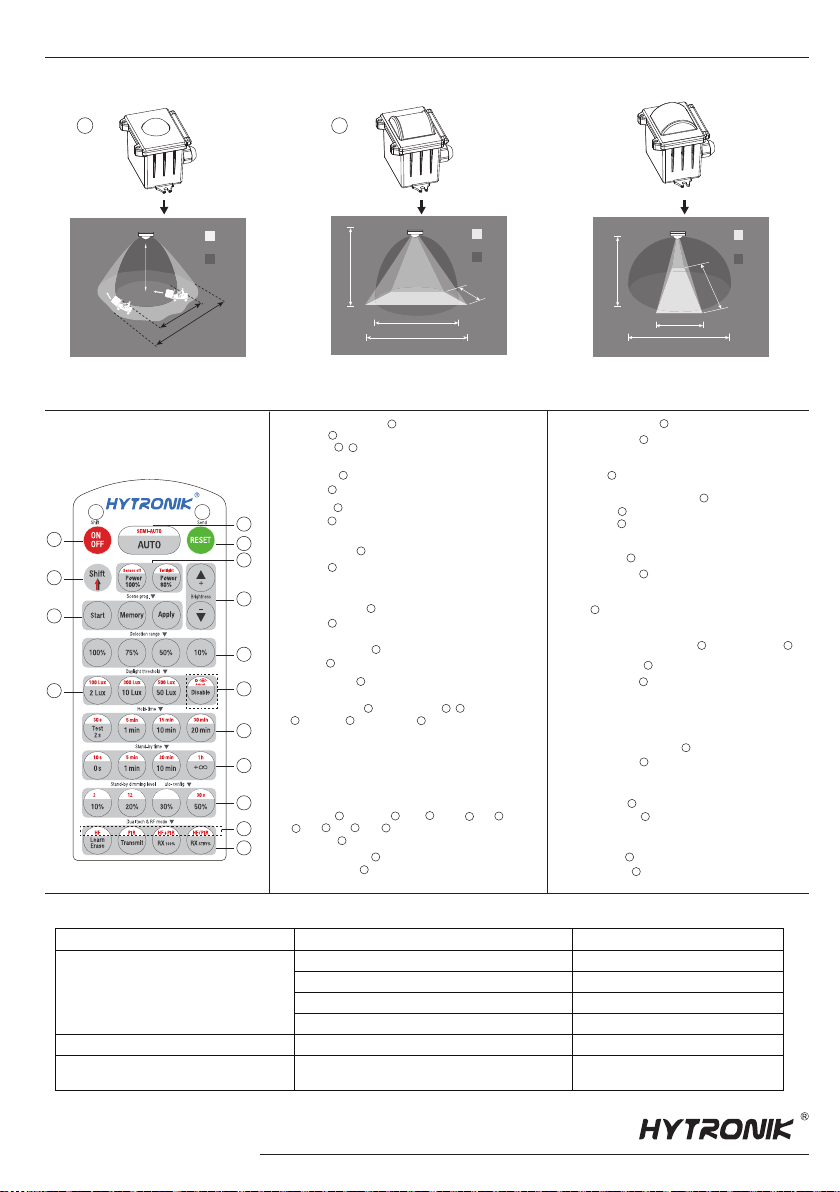

6. Three Options for PIR Lens and Detection Patterns
12
Stand-by dimming level [ zone ]
Press buttons in zone to set the stand-by dimming level at 10% /
20% / 30% / 50%.
Note.the function of 24h / 12h / 4h / 30s are disabled.
13
13
Stand-by time [ zone ]
Press buttons in zone to set the stand-by period at 0s / 10s /
1min / 5min / 10min / 30min / 1h / +∞.
Note: “0s” means on/off control; “+∞” means bi-level control, 100%
on when motion detected, and remains at the stand-by dimming
level when no presence is detected after hold-time.
12
12
Ambient daylight threshold [ button ]
1. Press button Shift, the red LED is on for indication.
2. Press button , the ambient lux level is sampled and set as
the new daylight threshold.
3
10
10
Daylight threshold [ zone ]
Press buttons in zone to set the daylight sensor at 2Lux / 10Lux /
50Lux / 100Lux / 300Lux / 500Lux or Disable.
Note: To set daylight sensor at 100Lux / 300 Lux / 500Lux, press
button Shift at first.
9
9
3
Hold time [ zone ]
Press buttons in zone to set the hold time at 2s / 30s / 1min /
5min / 10min / 15min / 20min / 30min.
Note: 1.To set hold-time at 30s / 5min / 15min / 30min, press button
Shift at first.
2. 2s is for testing purpose only, stand-by period and daylight
sensor settings are disabled in this mode.
*To exit from Test mode, press button or any button in zone .
3
11
11
11
2
All buttons in zone are disabled.
15
RF mode [ zone ]
15
Dual tech [ zone ]
14
Press buttons in zone to select sensor technology.
HF+PIR: Light is on when both HF and PIR sensors are activated.
HF/PIR: Light is on when HF or PIR sensors are activated.
14
6
8
11
12
13
2
4
1
3
7
9
5
HRC-11
&
A
II
I
10
15
14
(End user can choose the suitable lens in real application for various requirements)
* For single person walking across, the detection range is reduced by 1/3.
PIR
HF
PIR detection: L x W x H:5 x 18 x 15m (max.)
HF detection: H x D:15 x 14m (max. )
15m
5m
14m
18m
PIR detection: H x D:15 x 18m (max.)
HF detection: H x D:15 x 14m (max.)
PIR
HF
PIR tangential movement 18m
HF walking across 14m
15m
PIR detection: L x W x H:18 x 5 x 15m (max.)
HF detection: H x D:15 x 14m (max. )
PIR
HF
15m
18m
14m
5m
