iDataLink ADS-AL-CH4 User manual

NOTICE: The manufacturer will accept no responsibility for any electrical damage resulting from
improper installation of this product, be that either damage to the vehicle itself or to the installed
device. This device must be installed by a certified technician. This guide has been written for
properly trained technicians; a certain level of skill & knowledge is therefore assumed. Please
reviewtheInstallation Guide carefullybefore beginning any work.
!
VERSION FRANÇAISE DISPONIBLE EN LIGNE AU www.idatalink.com
PLEASE VISIT www.idatalink.com/support FOR COMPLETE PRODUCT DETAILS
Automotive Data Solutions Inc.
INSTALL GUIDE
ads-al(dl)-cH4
available for: ads-al ca
CH4
The brand names and logos found in this guide are property of their respective owners. Automotive Data Solutions Inc. © 2011
Rev. Date: May 20, 2011
Doc. No.: ##5401##
20110519

XX-XX PAGE X-X
INSTALL TYPE SELECTION
ADS-AL(DL)-CH4 PAGE 2-4
MAKE MODEL YEAR INSTALL TYPE
FEATURES
DATA IMMOBILIZER BYPASS DOWNLOADABLE SOFTWARE RS232 COMMUNICATION 2-WAY COMPATIBILITY PRIORITY UNLOCK DOOR LOCK DOOR UNLOCK ARM OEM ALARM DISARM OEM ALARM TRUNK/HATCH RELEASE POWER LIFTGATE POWER SLIDING DOOR (L) POWER SLIDING DOOR (R) DOOR STAT OUTPUT TRUNK STAT OUTPUT RAP SHUTDOWN CTRL BRAKE PEDAL STAT OUTPUT E-BRAKE OUTPUT TACHOMETER OUTPUT DATA/MUX IGNITION CTRL SECURE TAKEOVER PARKING LIGHT CTRL
CHRYSLER
300 08-11 1 or 2 • • • • • • • • • • • • • • • •
300 Limited 08-11 1 or 2 • • • • • • • • • • • • • • • •
300c 08-11 1 or 2 • • • • • • • • • • • • • • • •
300c SRT8 08-11 1 or 2 • • • • • • • • • • • • • • • •
Town & Country 08-11 1 or 2 • • • • • • • • • • • • • • • • • • • • •
DODGE
Caravan 08-10 1 or 2 • • • • • • • • • • • • • • • • • • • • •
Challenger SXT 08-11 1 or 2 • • • • • • • • • • • • • • • • • •
Challenger R/T 08-11 1 or 2 • • • • • • • • • • • • • • • • • •
Challenger SRT8 08-11 1 or 2 • • • • • • • • • • • • • • • • • •
Charger SE 08-11 1 or 2 • • • • • • • • • • • • • • • •
Charger R/T 08-11 1 or 2 • • • • • • • • • • • • • • • •
Charger SRT8 08-11 1 or 2 • • • • • • • • • • • • • • • •
Durango 11 1 or 2 • • • • • • • • • • • • • • • •
Grand Caravan 08-11 1 or 2 • • • • • • • • • • • • • • • • • • • • •
Journey 09-11 1 or 2 • • • • • • • • • • • • • • • • •
Magnum 08 1 or 2 • • • • • • • • • • • • • • • •
RAM 1500 09-11 1 or 2 • • • • • • • • • • • • • • •
RAM 2500 11 1 or 2 • • • • • • • • • • • • • • •
RAM 3500 11 1 or 2 • • • • • • ••• • •••••
JEEP
Commander 08-10 1 or 2 • • • • • • • • • • • • • • •
Grand Cherokee 08-11 1 or 2 • • • • • • • • • • • • • • •
VOLKSWAGEN
Routan 09-11 1 or 2 • • • • • • • • • • • • • • • • • • • • •
Visit our website for advanced features.
Page 2 of 9 ADS-AL(DL)-CH4 20110519
INSTALL GUIDE
Guides Français disponibles au www.idatalink.com
WWW.IDATALINK.COM/SUPPORT Automotive Data Solutions Inc. © 2011
ALL IN ONE
Chrysler/DoDge/Jeep
Doc. No.: ##5401##

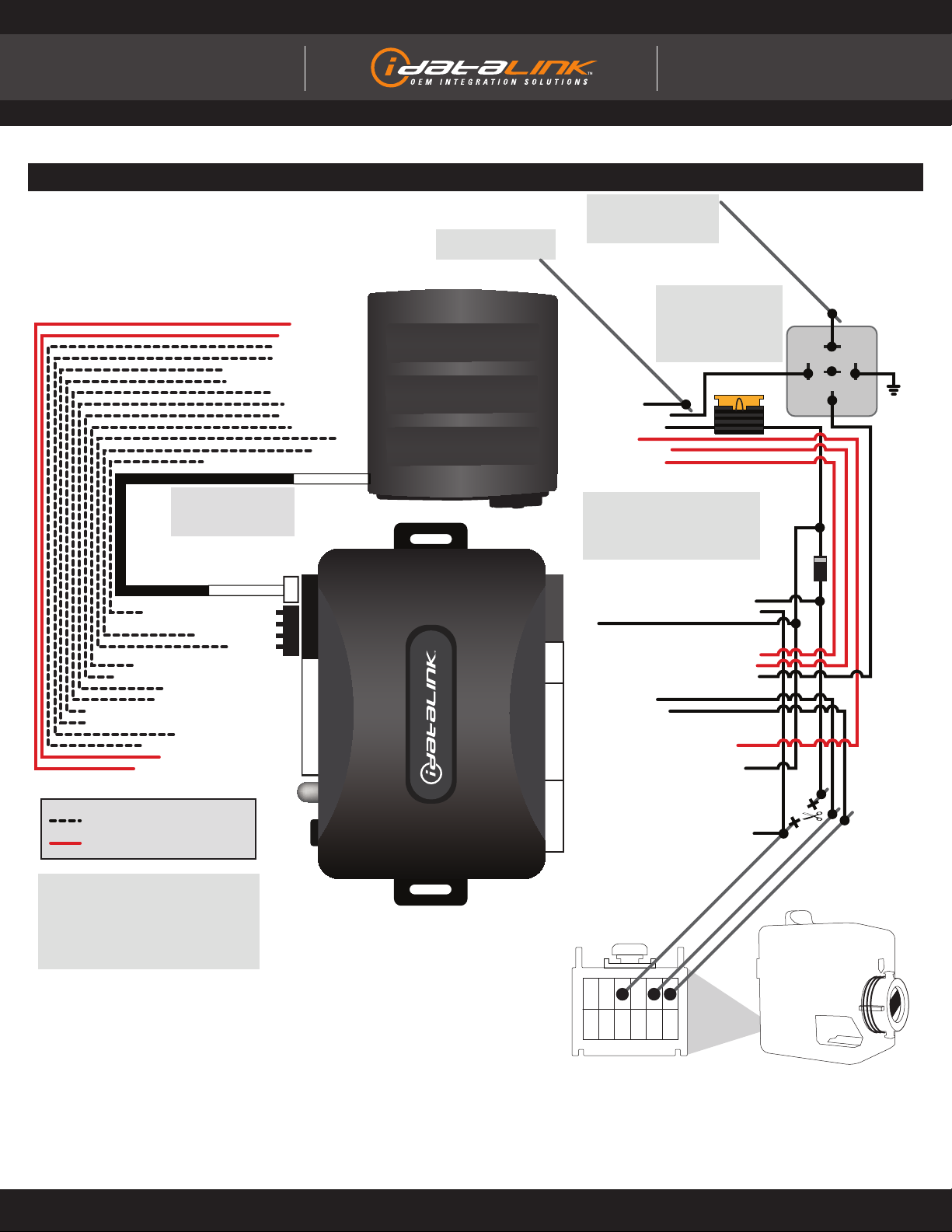

TYPE 1 - WIRING DIAGRAM
Page 3 of 9 ADS-AL(DL)-CH4 20110519
INSTALL GUIDE
Guides Français disponibles au www.idatalink.com
WWW.IDATALINK.COM/SUPPORT Automotive Data Solutions Inc. © 2011
ALL IN ONE
Chrysler/DoDge/Jeep
REMOTE STARTER
OPTIONAL ->
OPTIONAL ->
OPTIONAL ->
YELLOW/BLACK - DOOR STATUS (-) OUTPUT*
GWR (-) INPUT - BLUE/WHITE
LOCK/ARM (-) INPUT - GREEN/BLACK
TRUNK STATUS (-) INPUT
DOOR STATUS (-) INPUT
YELLOW/RED - TRUNK STATUS (-) OUTPUT*
YELLOW - MULTIPLEX PARKLIGHTS OUTPUT
(NC) WHITE
(NC) BLACK
(NC) RED
UNLOCK/DISARM (-) INPUT - BLUE/BLACK
TRUNK (-) INPUT - RED/WHITE
DISARM ONLY (-) INPUT - BROWN
LEFT SLIDING DOOR (-) INPUT - PURPLE/YELLOW
RIGHT SLIDING DOOR (-) INPUT - PURPLE/BLACK
PARKING (+) INPUT - WHITE
STARTER (+) INPUT - BLACK/WHITE
*E-BRAKE (-) OUTPUT - GREEN
*TACH (AC) OUTPUT - PURPLE/WHITE
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
TRUNK (-) OUTPUT
DISARM ONLY (-) OUTPUT
RIGHT SLIDING DOOR (-) OUTPUT
LEFT SLIDING DOOR (-) OUTPUT
PARKING (+) OUTPUT
STARTER (+) OUTPUT
E-BRAKE (-) INPUT
TACH (AC) INPUT BRAKE INPUT - ORANGE
12V INPUT - RED/WHITE
PARKLIGHTS (+) OUTPUT
IGNITION OUTPUT - PINK
GROUND INPUT - BLACK
UNLOCK (-) OUTPUT
LOCK (-) OUTPUT
GROUND WHEN RUNNING (-) OUTPUT
IF YOUR MODULE HARDWARE
IS VERSION 1.23 OR NEWER YOU
CAN ELIMINATE THE RELAY
AND CONNECT THE YELLOW WIRE
DIRECTLY TO THE VEHICLE.
IF YOUR MODULE HARDWARE
IS VERSION 1.23 OR NEWER YOU
CAN ELIMINATE THE RELAY
AND CONNECT THE YELLOW WIRE
DIRECTLY TO THE VEHICLE.
WARNING
USE THIS OUTPUT ONLY ON
VEHICLES EQUIPPED WITH
MUX PARKING LIGHTS CONTROL
WARNING
USE THIS OUTPUT ONLY ON
VEHICLES EQUIPPED WITH
MUX PARKING LIGHTS CONTROL
DO NOT USE THE RED/WHITE
WIRE IF YOU ARE PLANNING
TO POWER THE VEHICLE
POSITIVE PARKLIGHTS WIRE.
DO NOT USE THE RED/WHITE
WIRE IF YOU ARE PLANNING
TO POWER THE VEHICLE
POSITIVE PARKLIGHTS WIRE.
ONLY WHEN RAP
SHUTDOWN IS REQUIRED
ONLY WHEN RAP
SHUTDOWN IS REQUIRED
86
30
87
87A
85
THE BRAKE STATUS WIRE IS FUNCTIONAL
ONLY WHEN THE IGNITION IS POWERED
THE BRAKE STATUS WIRE IS FUNCTIONAL
ONLY WHEN THE IGNITION IS POWERED
F
E D A
B
C
G
OR
G
VEHICLE HARNESS
A
B
C
F
D
E
G
VEHICLE HARNESS
A
B
C
D
E
F
VEHICULE PARKLIGHTS MUX WIRE
VEHICLE (-)
DRIVER DOOR PIN
REARM (-) OUTPUT
IDATALINK (RS232) PORT REQUIRED
ON REMOTE STARTER. IF UNAVAILABLE
USE STANDARD WIRING METHOD
LEGEND
Wiring connections not required
when installed in iDatalink mode
* Wiring connection not required in
2-way iDatalink
IDATALINK
CONNECT EITHER
IDATALINK OR
STANDARD WIRING
IDATALINK
IDATALINK
IDATALINK
ADS-HRN CH4 ASSEMBLY - SOLD SEPARATELYADS-HRN CHTIP ASSEMBLY - SOLD SEPARATELY
1N4001
DIODE
!REFER TO ADS-HRN CHTIP*
ASSEMBLY FOR PROPER
CONNECTIONS AND MATCH
EACH LETTER ACCORDINGLY
REFER TO ADS-HRN CHTIP*
ASSEMBLY FOR PROPER
CONNECTIONS AND MATCH
EACH LETTER ACCORDINGLY
WARNING
THE DIODE IS ONLY REQUIRED FOR THE ADS-HRN CH4 ASSEMBLY
THE DIODE IS NOT REQUIRED FOR THE ADS-HRN CHTIP ASSEMBLY
WARNING
THE DIODE IS ONLY REQUIRED FOR THE ADS-HRN CH4 ASSEMBLY
THE DIODE IS NOT REQUIRED FOR THE ADS-HRN CHTIP ASSEMBLY
Doc. No.: ##5401##

XX-XX PAGE X-X
TYPE 2 - WIRE CROSS REFERENCE CHART
ADS-AL(DL)-CH4 T2 PAGE X-X
MAKE MODEL YEAR
CAN HIGH CAN LOW LEFT FRONT DOOR PARKING LIGHT IGNITION
POSITION WIRE COLOR LOCATION POSITION WIRE COLOR LOCATION WIRE COLOR LOCATION WIRE COLOR POLARITY LOCATION POSITION WIRE COLOR
CHRYSLER
300 08-11 5 White/Black A 6 White/LtBlue A Violet B White/Brown MUX E 3 Pink/White
300 Limited 08-11 5 White/Black A 6 White/LtBlue A Violet B White/Brown MUX E 3 Pink/White
300c 08-11 5 White/Black A 6 White/LtBlue A Violet B White/Brown MUX E 3 Pink/White
300c SRT8 08-11 5 White/Black A 6 White/LtBlue A Violet B White/Brown MUX E 3 Pink/White
Town & Country 08-11 5 White/LtBlue A 6 White/Brown A Violet C White/Brown MUX F 3 Pink/White
DODGE
Caravan 08-10 5 White/LtBlue A 6 White/Brown A Violet C White/Brown MUX F 3 Pink/White
Challenger SXT 08-11 5 White/Black A 6 White/LtBlue A Violet C White/Brown MUX F 3 Pink/White
Challenger R/T 08-11 5 White/Black A 6 White/LtBlue A Violet C White/Brown MUX F 3 Pink/White
Challenger SRT8 08-11 5 White/Black A 6 White/LtBlue A Violet C White/Brown MUX F 3 Pink/White
Charger SE 08-11 5 White/Black A 6 White/LtBlue A Violet B White/Brown MUX E 3 Pink/White
Charger R/T 08-11 5 White/Black A 6 White/LtBlue A Violet B White/Brown MUX E 3 Pink/White
Charger SRT8 08-11 5 White/Black A 6 White/LtBlue A Violet B White/Brown MUX E 3 Pink/White
Durango 11 5 White/LtGreen A 6 White/LtBlue A Violet/Gray C White MUX F 3 Pink/White
Grand Caravan 08-10 5 White/LtBlue A 6 White/Brown A Violet C White/Brown MUX F 3 Pink/White
Grand Caravan 11 5 White/LtBlue A 6 White/Brown A Violet C White/Green MUX F 3 Pink/White
Journey 09-11 5 White/LtBlue A 6 White/Brown A Violet C White/Violet (+) H 3 Pink/White
Magnum 08 5 White/Black A 6 White/LtBlue A Violet B White/Brown MUX F 3 Pink/White
RAM 1500 09-11 5 White/LtGreen A 6 White/LtBlue A Violet/Gray C White MUX F 3 Pink/White
RAM 2500 11 5 White/LtGreen A 6 White/LtBlue A Violet/Gray C White MUX F 3 Pink/White
RAM 3500 11 5 White/LtGreen A 6 White/LtBlue A Violet/Gray C White MUX F 3 Pink/White
JEEP
Commander 08-10 5 White/LtGreen A 6 White/LtBlue A Violet D N/A (-) G 3 Pink/White
Grand Cherokee 08-11 5 White/LtGreen A 6 White/LtBlue A Violet D N/A (-) G 3 Pink/White
VOLKSWAGEN
Routan 09-11 5 White/LtBlue A 6 White/Brown A Violet C White/Brown MUX F 3 Pink/White
*LEGEND - COMPONENT LOCATOR
A At 12-pin node
B Black connector at drivers kick panel
C At drivers kick panel
D Left door
E At switch or drivers kick panel
F At switch
G At pin 1 of relay 7 in IPM
H At passengers kick panel
Page 4 of 9 ADS-AL(DL)-CH4 20110519
INSTALL GUIDE
Guides Français disponibles au www.idatalink.com
WWW.IDATALINK.COM/SUPPORT Automotive Data Solutions Inc. © 2011
ALL IN ONE
Chrysler/DoDge/Jeep
Doc. No.: ##5401##

TYPE 2 - WIRING DIAGRAM
Page 5 of 9 ADS-AL(DL)-CH4 20110519
INSTALL GUIDE
Guides Français disponibles au www.idatalink.com
WWW.IDATALINK.COM/SUPPORT Automotive Data Solutions Inc. © 2011
ALL IN ONE
Chrysler/DoDge/Jeep
123456
7 8 9 10 11 12
REMOTE STARTER
REQUIRED ->
REQUIRED ->
REQUIRED ->
REQUIRED ->
OPTIONAL ->
OPTIONAL ->
YELLOW/BLACK - DOOR STATUS (-) OUTPUT*
GWR (-) INPUT - BLUE/WHITE
BROWN/RED - CANH
BLUE/RED (NC)
LOCK/ARM (-) INPUT - GREEN/BLACK
1ST IGNITION (+) INPUT
BRAKE (+) INPUT
TRUNK STATUS (-) INPUT
DOOR STATUS (-) INPUT
YELLOW/RED - TRUNK STATUS (-) OUTPUT*
YELLOW - MULTIPLEX PARKLIGHTS OUTPUT
WHITE/BLACK - IGNITION (+) VEHICLE SIDE
WHITE/RED - IGNITION (+) CONNECTOR SIDE
WHITE
BROWN/YELLOW-CANL
ORANGE/BLACK (NC)
ORANGE/WHITE (NC)
ORANGE - BRAKE STATUS (+) OUTPUT*
PINK/BLACK (NC)
BLUE/YELLOW (NC)
GREEN/RED (NC)
GREEN/YELLOW (NC)
GRAY/RED - IGNITION (+) INPUT FROM KEY
GRAY/YELLOW (NC)
(NC) WHITE
GROUND - BLACK
12V - RED
UNLOCK/DISARM (-) INPUT - BLUE/BLACK
TRUNK (-) INPUT - RED/WHITE
DISARM ONLY (-) INPUT - BROWN
LEFT SLIDING DOOR (-) INPUT - PURPLE/YELLOW
RIGHT SLIDING DOOR (-) INPUT - PURPLE/BLACK
PARKING (+) INPUT - WHITE
PARKING (+) OUTPUT
RIGHT SLIDING DOOR (-) OUTPUT
LEFT SLIDING DOOR (-) OUTPUT
DISARM (+) OUTPUT
STARTER (+) INPUT - BLACK/WHITE
*E-BRAKE (-) OUTPUT - GREEN
*TACH (AC) OUTPUT - PURPLE/WHITE
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
LOCK (-) OUTPUT
UNLOCK (-) OUTPUT
STARTER (+) OUTPUT
TACH (AC) INPUT
PARKLIGHTS (+) OUTPUT
TRUNK (-) OUTPUT
E-BRAKE (-) INPUT
12V(+)
GROUND (-)
GROUND WHEN RUNNING (-) OUTPUT
VEHICULE PARKLIGHTS MUX WIRE
IGNITION PINK/WHITE
CAN HIGH
CAN LOW
PINK - IGNITION (+) INPUT VEHICLE SIDE
86
30
87
87A
85
WARNING
FOR SECURE TAKE OVER, CONNECT THE
BRAKE STATUS WIRE TO THE REMOTE STARTER.
DO NOT CONNECT TO THE VEHICLE BRAKE WIRE,
IT VOIDS THE SECURE TAKE OVER FEATURE.
THE BRAKE STATUS WIRE IS FUNCTIONAL
ONLY WHEN THE IGNITION IS POWERED.
WARNING
FOR SECURE TAKE OVER, CONNECT THE
BRAKE STATUS WIRE TO THE REMOTE STARTER.
DO NOT CONNECT TO THE VEHICLE BRAKE WIRE,
IT VOIDS THE SECURE TAKE OVER FEATURE.
THE BRAKE STATUS WIRE IS FUNCTIONAL
ONLY WHEN THE IGNITION IS POWERED.
35 6
IF YOUR MODULE
HARDWARE IS VERSION
1.23 OR NEWER YOU
CAN ELIMINATE THE
RELAY AND CONNECT
THE YELLOW WIRE
DIRECTLY TO THE VEHICLE
IF YOUR MODULE
HARDWARE IS VERSION
1.23 OR NEWER YOU
CAN ELIMINATE THE
RELAY AND CONNECT
THE YELLOW WIRE
DIRECTLY TO THE VEHICLE
WARNING
REMOTE STARTER START OUTPUT
MUST BE EXTENDED TO ITS MAXIMUM
WHEN USING TACHLESS MODE
(CRANK TIME: AT LEAST 2.5 SECONDS)
OR USE TACH CONNECTION INSTEAD
WARNING
REMOTE STARTER START OUTPUT
MUST BE EXTENDED TO ITS MAXIMUM
WHEN USING TACHLESS MODE
(CRANK TIME: AT LEAST 2.5 SECONDS)
OR USE TACH CONNECTION INSTEAD
WARNING
USE THIS OUTPUT ONLY ON
VEHICLES EQUIPPED WITH
MUX PARKLIGHTS CONTROL
WARNING
USE THIS OUTPUT ONLY ON
VEHICLES EQUIPPED WITH
MUX PARKLIGHTS CONTROL
ONLY WHEN RAP
SHUTDOWN IS REQUIRED
ONLY WHEN RAP
SHUTDOWN IS REQUIRED
VEHICLE (-) DRIVER DOOR PIN
REARM (-) OUTPUT
IDATALINK (RS232) PORT REQUIRED
ON REMOTE STARTER. IF UNAVAILABLE
USE STANDARD WIRING METHOD
LEGEND
Wiring connections not required
when installed in iDatalink mode
* Wiring connection not required in
2-way iDatalink
IDATALINK
CONNECT EITHER
IDATALINK OR
STANDARD WIRING
IDATALINK
IDATALINK
IDATALINK
1N4001
DIODE
5 AMPS
Doc. No.: ##5401##

XX-XX PAGE X-XADS-AL(DL)-CH4 1-2 PAGE X-X
ADS-AL(DL)-CH4 90
INSTALLATION MODE SELECTION
1Press and release
programming button
to select installation mode.
2Press and hold
programming button
until LED turns solid GREEN
to register selection.
!After registration, follow Factory Reset Procedure to
change installation mode and restart this procedure.
LED fl ashes (1X) once = DATA MODE
LED fl ashes (2X) twice = STANDARD HARDWIRE MODE
MODULE PROGRAMMING PROCEDURE
1Close driver door.
Re-open driver door to wake up
data bus.
6Turn key to OFF position.
OFF
2Insert key into ignition.
3Turn key to ON position.
ON
5Within 5 seconds, LED will fl ash
GREEN rapidly.
4LED will turn solid RED.
10 Module Programming
Procedure completed.
8Press UNLOCK on the OEM
remote.
If vehicle is not equipped with
OEM remote, press module
programming button.
UNLOCK
9Wait, LED will turn solid GREEN
for 2 seconds.
7Remove key.
Page 6 of 9 ADS-AL(DL)-CH4 20110519
INSTALL GUIDE
Guides Français disponibles au www.idatalink.com
WWW.IDATALINK.COM/SUPPORT Automotive Data Solutions Inc. © 2011
ALL IN ONE
Chrysler/DoDge/Jeep
Doc. No.: ##5401##

XX-XX PAGE X-XADS-AL(DL)-CH4 2-2 PAGE X-X
INSTALLATION MODE SELECTION
1Press and release
programming button
to select installation mode.
2Press and hold
programming button
until LED turns solid GREEN
to register selection.
!After registration, follow Factory Reset Procedure to
change installation mode and restart this procedure.
LED fl ashes (1X) once = DATA MODE
LED fl ashes (2X) twice = STANDARD HARDWIRE MODE
MODULE PROGRAMMING PROCEDURE - PUSH TO START
1Close driver door.
Re-open driver door to wake up
data bus.
4Within 5 seconds, LED will fl ash
GREEN rapidly.
3LED will turn solid RED.
8Module Programming
Procedure completed.
6Press UNLOCK on the OEM
remote.
If vehicle is not equipped with
OEM remote, press module
programming button.
UNLOCK
7Wait, LED will turn solid GREEN
for 2 seconds.
2DO NOT PRESS BRAKE PEDAL
Push start button twice [2x] to
ON position.
x2

5DO NOT PRESS BRAKE PEDAL
Push start button once [1x] to
OFF position.
x1

Page 7 of 9 ADS-AL(DL)-CH4 20110519
INSTALL GUIDE
Guides Français disponibles au www.idatalink.com
WWW.IDATALINK.COM/SUPPORT Automotive Data Solutions Inc. © 2011
ALL IN ONE
Chrysler/DoDge/Jeep
Doc. No.: ##5401##

XX-XX PAGE X-XCLASSIC PAGE 1-1
LED STATUS
DIAGNOSTICS
DURING PROGRAMMING DURING REMOTE START WITH IGNITION OFF
Flashing RED Missing/wrong information from
fi rmware or vehicle Incorrectly programmed Incorrectly programmed or connected
Solid RED Waiting for more vehicle information Incorrectly programmed Not programmed waiting for more
vehicle information
Flashing GREEN Additional steps required to complete
programming
Correctly programmed and
operational
False ground when running status
from remote starter
Solid GREEN then OFF Correctly programmed Reset in progress Reset in progress
OFF No activity or already programmed Invalid ground when running status
from remote starter
At rest and ready for a remote start
sequence
MODULE DIAGNOSTICS
FACTORY RESET PROCEDURE
7Repeat programming procedure.
!Failure to follow procedure may result with a DTC or a
CHECK ENGINE error message.
1DISCONNECT all connectors
from module EXCEPT the black
4-PIN standard or optional data
connector.





6RECONNECT all connectors.


 
2DISCONNECT black 4-PIN
standard or optional data
connector.

4When LED fl ashes red,
RELEASE programming button.
5LED will turn solid red for 2
seconds.
RESET COMPLETED.
3PRESS AND HOLD programming
button while connecting either
4-PIN standard or optional data
connector.
IDENTIFY VEHICLE YEAR
1Locate the Vehicle Identifi cation
Number (VIN) and identify the
10th character.
2Match the VIN’s 10th character
to its corresponding year.
L > 1990 S > 1995 Y > 2000 5 > 2005 A > 2010
M > 1991 T > 1996 1 > 2001 6 > 2006 B > 2011
N > 1992 V > 1997 2 > 2002 7 > 2007 C > 2012
P > 1993 W > 1998 3 > 2003 8 > 2008 D > 2013
R > 1994 X > 1999 4 > 2004 9 > 2009 E > 2014
4 Y 1 N53 A 5 T A L 8 D 5 R 0 X

Page 8 of 9 ADS-AL(DL)-CH4 20110519
INSTALL GUIDE
Guides Français disponibles au www.idatalink.com
WWW.IDATALINK.COM/SUPPORT Automotive Data Solutions Inc. © 2011
ALL IN ONE
Chrysler/DoDge/Jeep
Doc. No.: ##5401##

ADS-AL(DL)-CH4 1-2 PAGE X-X
WARNING: READ BEFORE REMOTE STARTING THE VEHICLE
IMPORTANT
I All vehicle doors must be closed and locked prior to remote start sequence. Failure to comply will result in remote starter malfunction.
TAKE OVER PROCEDURE - TO THE VEHICLE OWNER
3Insert key into ignition.
4Turn key to ON position.
Wait 2 seconds for key
validation.
ON
6Take over procedure completed.
5Press and release BRAKE pedal.
!Failure to follow procedure within time restriction will
result in vehicle engine shutdown.
2TIME RESTRICTI
 N
Within 45 SECONDS from
previous step:
Open vehicle door.
Enter vehicle.
NOTE
I All vehicle doors must be closed and locked prior to remote
start sequence.
1Press UNLOCK on after-market
remote.
TIME RESTRICTI
 N COMING UP !
TAKE OVER PROCEDURE - PUSH TO START - TO THE VEHICLE OWNER
5Take over procedure completed.
4Press and release BRAKE pedal.
!Failure to follow procedure within time restriction will
result in vehicle engine shutdown.
2TIME RESTRICTI
 N
Within 45 SECONDS from
previous step:
Open vehicle door.
Enter vehicle.
NOTE
I All vehicle doors must be closed and locked prior to remote
start sequence.
1Press UNLOCK on after-market
remote.
TIME RESTRICTI
 N COMING UP !
3DO NOT PRESS BRAKE PEDAL
Push start button twice [2x] to
ON position.
Wait 2 seconds for key
validation.
x2

Page 9 of 9 ADS-AL(DL)-CH4 20110519
INSTALL GUIDE
Guides Français disponibles au www.idatalink.com
WWW.IDATALINK.COM/SUPPORT Automotive Data Solutions Inc. © 2011
ALL IN ONE
Chrysler/DoDge/Jeep
Doc. No.: ##5401##
