iDataLink SUB9 User manual

NOTICE: The manufacturer will accept no responsibility for any electrical damage resulting from
improper installation of this product, be that either damage to the vehicle itself or to the installed
device. This device must be installed by a certified technician. This guide has been written for
properly trained technicians; a certain level of skill & knowledge is therefore assumed. Please
reviewtheInstallation Guide carefullybefore beginning any work.
!
The brand names and logos found in this guide are property of their respective owners. Automotive Data Solutions Inc. © 2022
PATENT NO. US 8,856,780 CA 2759622
TERMS OF USE: Automotive Data Solutions Inc. (“ADS”) products are strictly intended for installation by Certified Technicians who are
employed by a registered business specialized in the installation of automotive aftermarket electronics products. Prior to beginning
installation of an ADS product in a vehicle, it is the Certified Technician’s responsibility to review the most current Product Guide, Install
Guide and vehicle-specific notes available in Weblink®. ADS is not responsible for any damages whatsoever, including but not limited
to any consequential damages, incidental damages, damages for loss of time, loss of earnings, loss of profit, commercial loss, loss of
economic opportunity and the like that may or may not have resulted from the use, misuse, improper installation or operation of its
products. Purchasers sole contractual remedy is refund of the purchase price of the ADS product(s). ADS reserves itself the right to
suspend any Weblink® account without notice and decline to offer technical support to non-Certified Technicians, non-compliant Certified
Technicians or end users.
PLEASE VISIT WWW.IDATALINK.COM FOR COMPLETE PRODUCT DETAILS
Automotive Data Solutions Inc.
INSTALL GUIDE
ADS-AL(AL)-SUB9-EN
AVAILABLE FOR: ADS-AL CA
SUB9
Rev. Date: December 6, 2022
Doc. No.: ##80972##

Patent No. US 8,856,780 CA 2759622
INSTALL TYPE SELECTION
MAKE MODEL YEAR INSTALL TYPE
FEATURES
DATA IMMOBILIZER BYPASS* ARM OEM ALARM DISARM OEM ALARM DOOR LOCK DOOR UNLOCK PRIORITY UNLOCK TRUNK/HATCH RELEASE TACHOMETER OUTPUT DOOR STATUS OUTPUT TRUNK STATUS OUTPUT BRAKE PEDAL STATUS OUTPUT E-BRAKE OUTPUT A/M ALARM CTRL FROM OEM REMOTES A/M RS CTRL FROM OEM REMOTES AUTOLIGHT CTRL
SUBARU
Ascent STD key (Canada) 19-22 2 • • • • • • • • • • • • • • •
Ascent STD key (USA) 19-22 4 • • • • • • • • • • • • • • •
Crosstrek STD key (Canada) 18-23 2 • • • • • • • • • • • • • • •
Crosstrek STD key (USA) 18-23 4 • • • • • • • • • • • • • • •
Forester STD key (Canada) 19-22 2 • • • • • • • • • • • • • • •
Forester STD key (USA) 19-22 4 • • • • • • • • • • • • • • •
Impreza STD key (Canada) 17-23 2 • • • • • • • • • • • • • • •
Impreza STD key (USA) 17-23 4 • • • • • • • • • • • • • • •
Legacy STD key (Canada) 20-22 1 • • • • • • • • • • • • • • •
Legacy STD key (USA) 20-22 3 • • • • • • • • • • • • • • •
Outback STD key (Canada) 20-23 1 • • • • • • • • • • • • • • •
Outback STD key (USA) 20-23 3 • • • • • • • • • • • • • • •
*ACC-RFID1 is required (sold separately).
Page 2 of 12 ADS-AL(AL)-SUB9-EN 20221206
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2022
ALL IN ONE
SUBARU
Doc. No.: ##80972##

Patent No. US 8,856,780 CA 2759622
TYPE 1 - WIRE CROSS REFERENCE CHART - 1 OF 1
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
SUBARU
Legacy
STD key
(Canada) 20-22
Ignition ~ White 08 pin 01 Green (+) Ignition switch ~
Accessory ~ White 08 pin 02 Brown (+) Ignition switch ~
12V ~ White 08 pin 04 Black (+) Ignition switch ~
Starter ~ White 08 pin 07 White (+) Ignition switch ~
CanH ~ Gray 20 pin 17 Red (DATA) Back of BCM/dash fusebox, driver side dash ~
CanL ~ Gray 20 pin 19 Blue (DATA) Back of BCM/dash fusebox, driver side dash ~
Parking Light ~ White 40 pin 35 Green (-) Back of BCM/dash fusebox, driver side dash ~
Driver Door Pin ~ White 40 pin 39 Brown (-) Back of BCM/dash fusebox, driver side dash ~
Immobilizer ~ Blue 05 pin 05 Red (DATA) Immobilizer ring ~
Outback
STD key
(Canada) 20-23
Ignition ~ White 08 pin 01 Green (+) Ignition switch ~
Accessory ~ White 08 pin 02 Brown (+) Ignition switch ~
12V ~ White 08 pin 04 Black (+) Ignition switch ~
Starter ~ White 08 pin 07 White (+) Ignition switch ~
CanH ~ Gray 20 pin 17 Red (DATA) Back of BCM/dash fusebox, driver side dash ~
CanL ~ Gray 20 pin 19 Blue (DATA) Back of BCM/dash fusebox, driver side dash ~
Parking Light ~ White 40 pin 35 Green (-) Back of BCM/dash fusebox, driver side dash ~
Driver Door Pin ~ White 40 pin 39 Brown (-) Back of BCM/dash fusebox, driver side dash ~
Immobilizer ~ Blue 05 pin 05 Red (DATA) Immobilizer ring ~
Page 3 of 12 ADS-AL(AL)-SUB9-EN 20221206
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2022
ALL IN ONE
SUBARU
Doc. No.: ##80972##

Patent No. US 8,856,780 CA 2759622

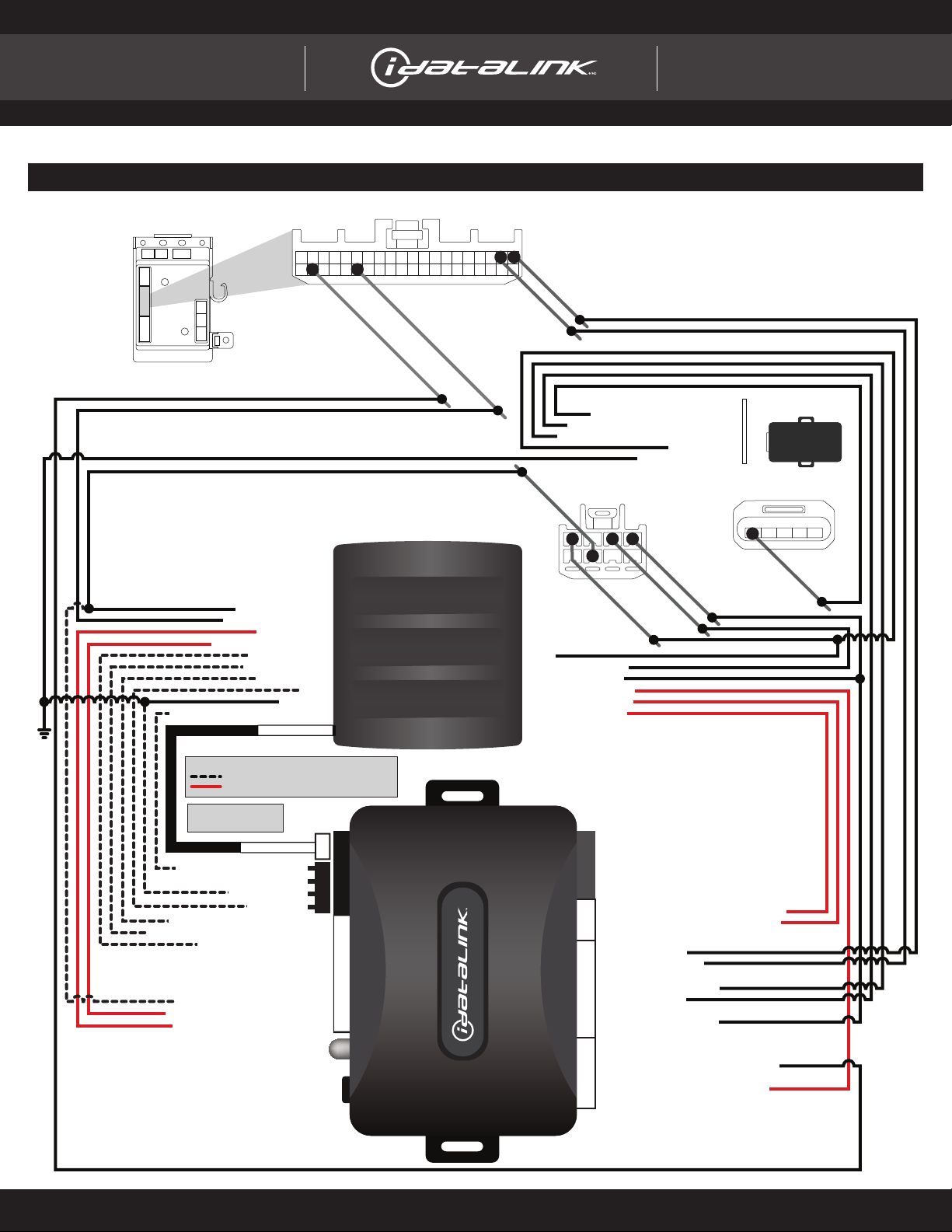

TYPE 1 - WIRING DIAGRAM
Page 4 of 12 ADS-AL(AL)-SUB9-EN 20221206
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2022
ALL IN ONE
SUBARU
1234
5678 7
124
10
111213151617181920
1234
14
56789
20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21
20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21
39 35 1719
12345
5
REQUIRED ->
REQUIRED ->
REQUIRED ->
REQUIRED ->
OPTIONAL ->
OPTIONAL ->
YELLOW/BLACK - DOOR STATUS (-) OUTPUTYELLOW/BLACK - DOOR STATUS (-) OUTPUT
GWR (-) INPUT - BLUE/WHITEGWR (-) INPUT - BLUE/WHITE
BROWN/RED - CANHBROWN/RED - CANH
(NC)
BLUE/RED (NC)
LOCK/ARM (-) INPUT - GREEN/BLACKLOCK/ARM (-) INPUT - GREEN/BLACK
IGNITION 1 (+) OUTPUT
IGNITION 1 (+) OUTPUT
TRUNK STATUS (-) INPUT
TRUNK STATUS (-) INPUT
DOOR STATUS (-) INPUT
DOOR STATUS (-) INPUT
YELLOW/RED - TRUNK STATUS (-) OUTPUTYELLOW/RED - TRUNK STATUS (-) OUTPUT
YELLOW (NC)YELLOW (NC)
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
(NC)
ORANGE/BLACK (NC)
PINK/BLACK (NC)
PINK/BLACK (NC)
(NC)
BLUE/YELLOW (NC)
GREEN/RED - RAP SHUTDOWN (-) OUTPUT
GREEN/YELLOW (NC)
GREEN/YELLOW (NC)
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
(NC) WHITE(NC) WHITE
GROUND - BLACK
GROUND - BLACK
12V (+) - RED
12V (+) - RED
UNLOCK/DISARM (-) INPUT - BLUE/BLACK
UNLOCK/DISARM (-) INPUT - BLUE/BLACK
TRUNK (-) INPUT - RED/WHITE
TRUNK (-) INPUT - RED/WHITE
(NC) BROWN
(NC) BROWN
(NC) PURPLE/YELLOW
(NC) PURPLE/BLACK
(NC) PURPLE/BLACK
STARTER (+) INPUT - BLACK/WHITE
TACH (AC) OUTPUT - PURPLE/WHITE
TACH (AC) OUTPUT - PURPLE/WHITE
<- REQUIRED
<- OPTIONAL
<- REQUIRED
<- OPTIONAL
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
LOCK (-) OUTPUT
LOCK (-) OUTPUT
UNLOCK (-) OUTPUT
UNLOCK (-) OUTPUT
TACH (AC) INPUT
TACH (AC) INPUT
TRUNK (-) OUTPUT
TRUNK (-) OUTPUT
12V (+)
12V (+)
GROUND (-)
GROUND (-)
GROUND WHEN RUNNING (-) OUTPUT
GROUND WHEN RUNNING (-) OUTPUT
PINK - IGNITION 1 (+) INPUTPINK - IGNITION 1 (+) INPUT
WHITE/BLACK (NC)
WHITE/RED (NC)
WHITE (NC)
NOT REQUIRED IN DATA MODE (1-WAY)
NOT REQUIRED IN DATA MODE (2-WAY)
LEGEND
USE DATA MODE
OR HARDWIRE MODE
DATA MODE
E-BRAKE STATUS (-) OUTPUT - GREENE-BRAKE STATUS (-) OUTPUT - GREEN
E-BRAKE STATUS (-) INPUT
E-BRAKE STATUS (-) INPUT
REMOTE STARTER
IGNITION SWITCH
ACCESSORY (+) OUTPUTACCESSORY (+) OUTPUT
STARTER (+) OUTPUT
STARTER (+) OUTPUT
12V (+)
12V (+)
STARTER (+)
ACCESSORY (+)
IGNITION 1 (+)
IMMO. (DATA)
12V (+)
BRAKE STATUS (+) INPUT
(NC) WHITE
PARKING LIGHT (-) OUTPUT
PARKING LIGHT (-) OUTPUT
GRAY/RED - BRAKE STATUS (+) OUTPUT
DATA MODE
CANH
CANL
BCM/FUSEBOX
DRIVER SIDE DASH
DRIVER DOOR PIN (-)
PARKING LIGHT (-)
REAR VIEW
WHITE GRAY
ACC-RFID1
(SOLD SEPARATELY)
ORANGE - TX (DATA)
ORANGE - TX (DATA)
ORANGE/WHITE - RX (DATA)
EMPTY 01
IMMO (DATA) - YELLOW/GREEN 02
TX (DATA) - TAN/RED OR TAN/WHITE 03
RX (DATA) - TAN/BROWN OR TAN/BLUE 04
12V (+) - RED 05
GROUND (-) - BLACK 06
IMMO. RING - BLUE
Doc. No.: ##80972##

Patent No. US 8,856,780 CA 2759622
TYPE 2 - WIRE CROSS REFERENCE CHART - 1 OF 1
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
SUBARU
Ascent
STD key
(Canada) 19-22
Ignition ~ White 08 pin 01 Blue (+) Ignition switch ~
Accessory ~ White 08 pin 02 Green (+) Ignition switch ~
12V ~ White 08 pin 04 White (+) Ignition switch ~
Starter ~ White 08 pin 07 LtGreen (+) Ignition switch ~
CanH i171 White 40 pin 01 Red (DATA) Back of BCM/dash fusebox, driver side dash ~
CanL i171 White 40 pin 02 Blue (DATA) Back of BCM/dash fusebox, driver side dash ~
Parking Light i171 White 40 pin 35 Purple (-) Back of BCM/dash fusebox, driver side dash ~
Driver Door Pin i171 White 40 pin 39 Brown (-) Back of BCM/dash fusebox, driver side dash ~
Immobilizer ~ White 05 pin 05 Black (DATA) Immobilizer ring ~
Crosstrek
STD key
(Canada) 18-23
Ignition ~ White 08 pin 01 Green (+) Ignition switch ~
Accessory ~ White 08 pin 02 Yellow (+) Ignition switch ~
12V ~ White 08 pin 04 LtGreen (+) Ignition switch ~
Starter ~ White 08 pin 07 Gray (+) Ignition switch ~
CanH i171 White 40 pin 01 Red (DATA) Back of BCM/dash fusebox, driver side dash ~
CanL i171 White 40 pin 02 Blue (DATA) Back of BCM/dash fusebox, driver side dash ~
Parking Light i171 White 40 pin 35 Black (-) Back of BCM/dash fusebox, driver side dash ~
Driver Door Pin i171 White 40 pin 39 Pink (-) Back of BCM/dash fusebox, driver side dash ~
Immobilizer ~ White 05 pin 05 Red (DATA) Immobilizer ring ~
Forester
STD key
(Canada) 19-22
Ignition ~ White 08 pin 01 Brown (+) Ignition switch ~
Accessory ~ White 08 pin 02 Yellow (+) Ignition switch ~
12V ~ White 08 pin 04 White (+) Ignition switch ~
Starter ~ White 08 pin 07 LtGreen (+) Ignition switch ~
CanH i171 White 40 pin 01 Red (DATA) Back of BCM/dash fusebox, driver side dash ~
CanL i171 White 40 pin 02 Blue (DATA) Back of BCM/dash fusebox, driver side dash ~
Parking Light i171 White 40 pin 35 Black (-) Back of BCM/dash fusebox, driver side dash ~
Driver Door Pin i171 White 40 pin 39 LtBrown (-) Back of BCM/dash fusebox, driver side dash ~
Immobilizer ~ White 05 pin 05 Black (DATA) Immobilizer ring ~
Impreza
STD key
(Canada) 17-23
Ignition ~ White 08 pin 01 Green (+) Ignition switch ~
Accessory ~ White 08 pin 02 Yellow (+) Ignition switch ~
12V ~ White 08 pin 04 LtGreen (+) Ignition switch ~
Starter ~ White 08 pin 07 Gray (+) Ignition switch ~
CanH i171 White 40 pin 01 Red (DATA) Back of BCM/dash fusebox, driver side dash ~
CanL i171 White 40 pin 02 Blue (DATA) Back of BCM/dash fusebox, driver side dash ~
Parking Light i171 White 40 pin 35 Black (-) Back of BCM/dash fusebox, driver side dash ~
Driver Door Pin i171 White 40 pin 39 Pink (-) Back of BCM/dash fusebox, driver side dash ~
Immobilizer ~ White 05 pin 05 Red (DATA) Immobilizer ring ~
Page 5 of 12 ADS-AL(AL)-SUB9-EN 20221206
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2022
ALL IN ONE
SUBARU
Doc. No.: ##80972##

Patent No. US 8,856,780 CA 2759622
TYPE 2 - WIRING DIAGRAM
Page 6 of 12 ADS-AL(AL)-SUB9-EN 20221206
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2022
ALL IN ONE
SUBARU
1234
5678 7
124
20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21
20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21
39 35
12
12345
5
REQUIRED ->
REQUIRED ->
REQUIRED ->
REQUIRED ->
OPTIONAL ->
OPTIONAL ->
YELLOW/BLACK - DOOR STATUS (-) OUTPUTYELLOW/BLACK - DOOR STATUS (-) OUTPUT
GWR (-) INPUT - BLUE/WHITEGWR (-) INPUT - BLUE/WHITE
BROWN/RED - CANHBROWN/RED - CANH
(NC)
BLUE/RED (NC)
LOCK/ARM (-) INPUT - GREEN/BLACKLOCK/ARM (-) INPUT - GREEN/BLACK
IGNITION 1 (+) OUTPUT
IGNITION 1 (+) OUTPUT
TRUNK STATUS (-) INPUT
TRUNK STATUS (-) INPUT
DOOR STATUS (-) INPUT
DOOR STATUS (-) INPUT
YELLOW/RED - TRUNK STATUS (-) OUTPUTYELLOW/RED - TRUNK STATUS (-) OUTPUT
YELLOW (NC)YELLOW (NC)
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
(NC)
ORANGE/BLACK (NC)
PINK/BLACK (NC)
PINK/BLACK (NC)
(NC)
BLUE/YELLOW (NC)
GREEN/RED - RAP SHUTDOWN (-) OUTPUT
GREEN/YELLOW (NC)
GREEN/YELLOW (NC)
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
(NC) WHITE(NC) WHITE
GROUND - BLACK
GROUND - BLACK
12V (+) - RED
12V (+) - RED
UNLOCK/DISARM (-) INPUT - BLUE/BLACK
UNLOCK/DISARM (-) INPUT - BLUE/BLACK
TRUNK (-) INPUT - RED/WHITE
TRUNK (-) INPUT - RED/WHITE
(NC) BROWN
(NC) BROWN
(NC) PURPLE/YELLOW
(NC) PURPLE/BLACK
(NC) PURPLE/BLACK
STARTER (+) INPUT - BLACK/WHITE
TACH (AC) OUTPUT - PURPLE/WHITE
TACH (AC) OUTPUT - PURPLE/WHITE
<- REQUIRED
<- OPTIONAL
<- REQUIRED
<- OPTIONAL
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
LOCK (-) OUTPUT
LOCK (-) OUTPUT
UNLOCK (-) OUTPUT
UNLOCK (-) OUTPUT
TACH (AC) INPUT
TACH (AC) INPUT
TRUNK (-) OUTPUT
TRUNK (-) OUTPUT
12V (+)
12V (+)
GROUND (-)
GROUND (-)
GROUND WHEN RUNNING (-) OUTPUT
GROUND WHEN RUNNING (-) OUTPUT
PINK - IGNITION 1 (+) INPUTPINK - IGNITION 1 (+) INPUT
WHITE/BLACK (NC)
WHITE/RED (NC)
WHITE (NC)
NOT REQUIRED IN DATA MODE (1-WAY)
NOT REQUIRED IN DATA MODE (2-WAY)
LEGEND
USE DATA MODE
OR HARDWIRE MODE
DATA MODE
E-BRAKE STATUS (-) OUTPUT - GREENE-BRAKE STATUS (-) OUTPUT - GREEN
E-BRAKE STATUS (-) INPUT
E-BRAKE STATUS (-) INPUT
REMOTE STARTER
IGNITION SWITCH
ACCESSORY (+) OUTPUTACCESSORY (+) OUTPUT
STARTER (+) OUTPUT
STARTER (+) OUTPUT
12V (+)
12V (+)
STARTER (+)
ACCESSORY (+)
IGNITION 1 (+)
IMMO. (DATA)
12V (+)
BRAKE STATUS (+) INPUT
(NC) WHITE
PARKING LIGHT (-) OUTPUT
PARKING LIGHT (-) OUTPUT
GRAY/RED - BRAKE STATUS (+) OUTPUT
DATA MODE
CANH
CANL
BCM/FUSEBOX
DRIVER SIDE DASH
DRIVER DOOR PIN (-)
PARKING LIGHT (-)
REAR VIEW
WHITE
ACC-RFID1
(SOLD SEPARATELY)
ORANGE - TX (DATA)
ORANGE - TX (DATA)
ORANGE/WHITE - RX (DATA)
EMPTY 01
IMMO (DATA) - YELLOW/GREEN 02
TX (DATA) - TAN/RED OR TAN/WHITE 03
RX (DATA) - TAN/BROWN OR TAN/BLUE 04
12V (+) - RED 05
GROUND (-) - BLACK 06
IMMO. RING - WHITE
Doc. No.: ##80972##

Patent No. US 8,856,780 CA 2759622
TYPE 3 - WIRE CROSS REFERENCE CHART - 1 OF 1
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
SUBARU
Legacy
STD key
(USA) 20-22
Ignition ~ White 08 pin 01 Green (+) Ignition switch ~
Accessory ~ White 08 pin 02 Brown (+) Ignition switch ~
12V ~ White 08 pin 04 Black (+) Ignition switch ~
Starter ~ White 08 pin 07 White (+) Ignition switch ~
CanH ~ Gray 20 pin 17 Red (DATA) Back of BCM/dash fusebox, driver side dash ~
CanL ~ Gray 20 pin 19 Blue (DATA) Back of BCM/dash fusebox, driver side dash ~
Parking Light ~ White 40 pin 35 Green (-) Back of BCM/dash fusebox, driver side dash ~
Driver Door Pin ~ White 40 pin 39 Brown (-) Back of BCM/dash fusebox, driver side dash ~
Immobilizer ~ Blue 05 pin 01 Black (DATA) Immobilizer ring ~
Outback
STD key
(USA) 20-23
Ignition ~ White 08 pin 01 Green (+) Ignition switch ~
Accessory ~ White 08 pin 02 Brown (+) Ignition switch ~
12V ~ White 08 pin 04 Black (+) Ignition switch ~
Starter ~ White 08 pin 07 White (+) Ignition switch ~
CanH ~ Gray 20 pin 17 Red (DATA) Back of BCM/dash fusebox, driver side dash ~
CanL ~ Gray 20 pin 19 Blue (DATA) Back of BCM/dash fusebox, driver side dash ~
Parking Light ~ White 40 pin 35 Green (-) Back of BCM/dash fusebox, driver side dash ~
Driver Door Pin ~ White 40 pin 39 Brown (-) Back of BCM/dash fusebox, driver side dash ~
Immobilizer ~ Blue 05 pin 01 Black (DATA) Immobilizer ring ~
Page 7 of 12 ADS-AL(AL)-SUB9-EN 20221206
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2022
ALL IN ONE
SUBARU
Doc. No.: ##80972##

Patent No. US 8,856,780 CA 2759622
TYPE 3 - WIRING DIAGRAM
Page 8 of 12 ADS-AL(AL)-SUB9-EN 20221206
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2022
ALL IN ONE
SUBARU
12345
1234
5678 7
124
10
111213151617181920
1234
14
56789
20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21
20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21
39 35 1719
1
REQUIRED ->
REQUIRED ->
REQUIRED ->
REQUIRED ->
OPTIONAL ->
OPTIONAL ->
YELLOW/BLACK - DOOR STATUS (-) OUTPUTYELLOW/BLACK - DOOR STATUS (-) OUTPUT
GWR (-) INPUT - BLUE/WHITEGWR (-) INPUT - BLUE/WHITE
BROWN/RED - CANHBROWN/RED - CANH
(NC)
BLUE/RED (NC)
LOCK/ARM (-) INPUT - GREEN/BLACKLOCK/ARM (-) INPUT - GREEN/BLACK
IGNITION 1 (+) OUTPUT
IGNITION 1 (+) OUTPUT
TRUNK STATUS (-) INPUT
TRUNK STATUS (-) INPUT
DOOR STATUS (-) INPUT
DOOR STATUS (-) INPUT
YELLOW/RED - TRUNK STATUS (-) OUTPUTYELLOW/RED - TRUNK STATUS (-) OUTPUT
YELLOW (NC)YELLOW (NC)
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
(NC)
ORANGE/BLACK (NC)
PINK/BLACK (NC)
PINK/BLACK (NC)
(NC)
BLUE/YELLOW (NC)
GREEN/RED - RAP SHUTDOWN (-) OUTPUT
GREEN/YELLOW (NC)
GREEN/YELLOW (NC)
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
(NC) WHITE(NC) WHITE
GROUND - BLACK
GROUND - BLACK
12V (+) - RED
12V (+) - RED
UNLOCK/DISARM (-) INPUT - BLUE/BLACK
UNLOCK/DISARM (-) INPUT - BLUE/BLACK
TRUNK (-) INPUT - RED/WHITE
TRUNK (-) INPUT - RED/WHITE
(NC) BROWN
(NC) BROWN
(NC) PURPLE/YELLOW
(NC) PURPLE/BLACK
(NC) PURPLE/BLACK
STARTER (+) INPUT - BLACK/WHITE
TACH (AC) OUTPUT - PURPLE/WHITE
TACH (AC) OUTPUT - PURPLE/WHITE
<- REQUIRED
<- OPTIONAL
<- REQUIRED
<- OPTIONAL
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
LOCK (-) OUTPUT
LOCK (-) OUTPUT
UNLOCK (-) OUTPUT
UNLOCK (-) OUTPUT
TACH (AC) INPUT
TACH (AC) INPUT
TRUNK (-) OUTPUT
TRUNK (-) OUTPUT
12V (+)
12V (+)
GROUND (-)
GROUND (-)
GROUND WHEN RUNNING (-) OUTPUT
GROUND WHEN RUNNING (-) OUTPUT
PINK - IGNITION 1 (+) INPUTPINK - IGNITION 1 (+) INPUT
WHITE/BLACK (NC)
WHITE/RED (NC)
WHITE (NC)
NOT REQUIRED IN DATA MODE (1-WAY)
NOT REQUIRED IN DATA MODE (2-WAY)
LEGEND
USE DATA MODE
OR HARDWIRE MODE
DATA MODE
E-BRAKE STATUS (-) OUTPUT - GREENE-BRAKE STATUS (-) OUTPUT - GREEN
E-BRAKE STATUS (-) INPUT
E-BRAKE STATUS (-) INPUT
REMOTE STARTER
IGNITION SWITCH
ACCESSORY (+) OUTPUTACCESSORY (+) OUTPUT
STARTER (+) OUTPUT
STARTER (+) OUTPUT
12V (+)
12V (+)
STARTER (+)
ACCESSORY (+)
IGNITION 1 (+)
IMMO. (DATA)
12V (+)
BRAKE STATUS (+) INPUT
(NC) WHITE
PARKING LIGHT (-) OUTPUT
PARKING LIGHT (-) OUTPUT
GRAY/RED - BRAKE STATUS (+) OUTPUT
DATA MODE
CANH
CANL
BCM/FUSEBOX
DRIVER SIDE DASH
DRIVER DOOR PIN (-)
PARKING LIGHT (-)
REAR VIEW
WHITE GRAY
ACC-RFID1
(SOLD SEPARATELY)
ORANGE - TX (DATA)
ORANGE - TX (DATA)
ORANGE/WHITE - RX (DATA)
EMPTY 01
IMMO (DATA) - YELLOW/GREEN 02
TX (DATA) - TAN/RED OR TAN/WHITE 03
RX (DATA) - TAN/BROWN OR TAN/BLUE 04
12V (+) - RED 05
GROUND (-) - BLACK 06
IMMO. RING - BLUE
Doc. No.: ##80972##

Patent No. US 8,856,780 CA 2759622
TYPE 4 - WIRE CROSS REFERENCE CHART - 1 OF 1
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
SUBARU
Ascent
STD key
(USA) 19-22
Ignition ~ White 08 pin 01 Blue (+) Ignition switch ~
Accessory ~ White 08 pin 02 Green (+) Ignition switch ~
12V ~ White 08 pin 04 White (+) Ignition switch ~
Starter ~ White 08 pin 07 LtGreen (+) Ignition switch ~
CanH i171 White 40 pin 01 Red (DATA) Back of BCM/dash fusebox, driver side dash ~
CanL i171 White 40 pin 02 Blue (DATA) Back of BCM/dash fusebox, driver side dash ~
Parking Light i171 White 40 pin 35 Purple (-) Back of BCM/dash fusebox, driver side dash ~
Driver Door Pin i171 White 40 pin 39 Brown (-) Back of BCM/dash fusebox, driver side dash ~
Immobilizer ~ White 05 pin 01 White (DATA) Immobilizer ring ~
Crosstrek
STD key
(USA) 18-23
Ignition ~ White 08 pin 01 Green (+) Ignition switch ~
Accessory ~ White 08 pin 02 Yellow (+) Ignition switch ~
12V ~ White 08 pin 04 LtGreen (+) Ignition switch ~
Starter ~ White 08 pin 07 Gray (+) Ignition switch ~
CanH i171 White 40 pin 01 Red (DATA) Back of BCM/dash fusebox, driver side dash ~
CanL i171 White 40 pin 02 Blue (DATA) Back of BCM/dash fusebox, driver side dash ~
Parking Light i171 White 40 pin 35 Black (-) Back of BCM/dash fusebox, driver side dash ~
Driver Door Pin i171 White 40 pin 39 Pink (-) Back of BCM/dash fusebox, driver side dash ~
Immobilizer ~ White 05 pin 01 Black (DATA) Immobilizer ring ~
Forester
STD key
(USA) 19-22
Ignition ~ White 08 pin 01 Brown (+) Ignition switch ~
Accessory ~ White 08 pin 02 Yellow (+) Ignition switch ~
12V ~ White 08 pin 04 White (+) Ignition switch ~
Starter ~ White 08 pin 07 LtGreen (+) Ignition switch ~
CanH i171 White 40 pin 01 Red (DATA) Back of BCM/dash fusebox, driver side dash ~
CanL i171 White 40 pin 02 Blue (DATA) Back of BCM/dash fusebox, driver side dash ~
Parking Light i171 White 40 pin 35 Black (-) Back of BCM/dash fusebox, driver side dash ~
Driver Door Pin i171 White 40 pin 39 LtBrown (-) Back of BCM/dash fusebox, driver side dash ~
Immobilizer ~ White 05 pin 01 White (DATA) Immobilizer ring ~
Impreza
STD key
(USA) 17-23
Ignition ~ White 08 pin 01 Green (+) Ignition switch ~
Accessory ~ White 08 pin 02 Yellow (+) Ignition switch ~
12V ~ White 08 pin 04 LtGreen (+) Ignition switch ~
Starter ~ White 08 pin 07 Gray (+) Ignition switch ~
CanH i171 White 40 pin 01 Red (DATA) Back of BCM/dash fusebox, driver side dash ~
CanL i171 White 40 pin 02 Blue (DATA) Back of BCM/dash fusebox, driver side dash ~
Parking Light i171 White 40 pin 35 Black (-) Back of BCM/dash fusebox, driver side dash ~
Driver Door Pin i171 White 40 pin 39 Pink (-) Back of BCM/dash fusebox, driver side dash ~
Immobilizer ~ White 05 pin 01 Black (DATA) Immobilizer ring ~
Page 9 of 12 ADS-AL(AL)-SUB9-EN 20221206
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2022
ALL IN ONE
SUBARU
Doc. No.: ##80972##

Patent No. US 8,856,780 CA 2759622
TYPE 4 - WIRING DIAGRAM
Page 10 of 12 ADS-AL(AL)-SUB9-EN 20221206
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2022
ALL IN ONE
SUBARU
12345
1234
5678 7
124
20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21
20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21
39 35
12
1
REQUIRED ->
REQUIRED ->
REQUIRED ->
REQUIRED ->
OPTIONAL ->
OPTIONAL ->
YELLOW/BLACK - DOOR STATUS (-) OUTPUTYELLOW/BLACK - DOOR STATUS (-) OUTPUT
GWR (-) INPUT - BLUE/WHITEGWR (-) INPUT - BLUE/WHITE
BROWN/RED - CANHBROWN/RED - CANH
(NC)
BLUE/RED (NC)
LOCK/ARM (-) INPUT - GREEN/BLACKLOCK/ARM (-) INPUT - GREEN/BLACK
IGNITION 1 (+) OUTPUT
IGNITION 1 (+) OUTPUT
TRUNK STATUS (-) INPUT
TRUNK STATUS (-) INPUT
DOOR STATUS (-) INPUT
DOOR STATUS (-) INPUT
YELLOW/RED - TRUNK STATUS (-) OUTPUTYELLOW/RED - TRUNK STATUS (-) OUTPUT
YELLOW (NC)YELLOW (NC)
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
(NC)
ORANGE/BLACK (NC)
PINK/BLACK (NC)
PINK/BLACK (NC)
(NC)
BLUE/YELLOW (NC)
GREEN/RED - RAP SHUTDOWN (-) OUTPUT
GREEN/YELLOW (NC)
GREEN/YELLOW (NC)
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
(NC) WHITE(NC) WHITE
GROUND - BLACK
GROUND - BLACK
12V (+) - RED
12V (+) - RED
UNLOCK/DISARM (-) INPUT - BLUE/BLACK
UNLOCK/DISARM (-) INPUT - BLUE/BLACK
TRUNK (-) INPUT - RED/WHITE
TRUNK (-) INPUT - RED/WHITE
(NC) BROWN
(NC) BROWN
(NC) PURPLE/YELLOW
(NC) PURPLE/BLACK
(NC) PURPLE/BLACK
STARTER (+) INPUT - BLACK/WHITE
TACH (AC) OUTPUT - PURPLE/WHITE
TACH (AC) OUTPUT - PURPLE/WHITE
<- REQUIRED
<- OPTIONAL
<- REQUIRED
<- OPTIONAL
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
LOCK (-) OUTPUT
LOCK (-) OUTPUT
UNLOCK (-) OUTPUT
UNLOCK (-) OUTPUT
TACH (AC) INPUT
TACH (AC) INPUT
TRUNK (-) OUTPUT
TRUNK (-) OUTPUT
12V (+)
12V (+)
GROUND (-)
GROUND (-)
GROUND WHEN RUNNING (-) OUTPUT
GROUND WHEN RUNNING (-) OUTPUT
PINK - IGNITION 1 (+) INPUTPINK - IGNITION 1 (+) INPUT
WHITE/BLACK (NC)
WHITE/RED (NC)
WHITE (NC)
NOT REQUIRED IN DATA MODE (1-WAY)
NOT REQUIRED IN DATA MODE (2-WAY)
LEGEND
USE DATA MODE
OR HARDWIRE MODE
DATA MODE
E-BRAKE STATUS (-) OUTPUT - GREENE-BRAKE STATUS (-) OUTPUT - GREEN
E-BRAKE STATUS (-) INPUT
E-BRAKE STATUS (-) INPUT
REMOTE STARTER
IGNITION SWITCH
ACCESSORY (+) OUTPUTACCESSORY (+) OUTPUT
STARTER (+) OUTPUT
STARTER (+) OUTPUT
12V (+)
12V (+)
STARTER (+)
ACCESSORY (+)
IGNITION 1 (+)
IMMO. (DATA)
12V (+)
BRAKE STATUS (+) INPUT
(NC) WHITE
PARKING LIGHT (-) OUTPUT
PARKING LIGHT (-) OUTPUT
GRAY/RED - BRAKE STATUS (+) OUTPUT
DATA MODE
CANH
CANL
BCM/FUSEBOX
DRIVER SIDE DASH
DRIVER DOOR PIN (-)
PARKING LIGHT (-)
REAR VIEW
WHITE
ACC-RFID1
(SOLD SEPARATELY)
ORANGE - TX (DATA)
ORANGE - TX (DATA)
ORANGE/WHITE - RX (DATA)
EMPTY 01
IMMO (DATA) - YELLOW/GREEN 02
TX (DATA) - TAN/RED OR TAN/WHITE 03
RX (DATA) - TAN/BROWN OR TAN/BLUE 04
12V (+) - RED 05
GROUND (-) - BLACK 06
IMMO. RING - WHITE
Doc. No.: ##80972##

Patent No. US 8,856,780 CA 2759622

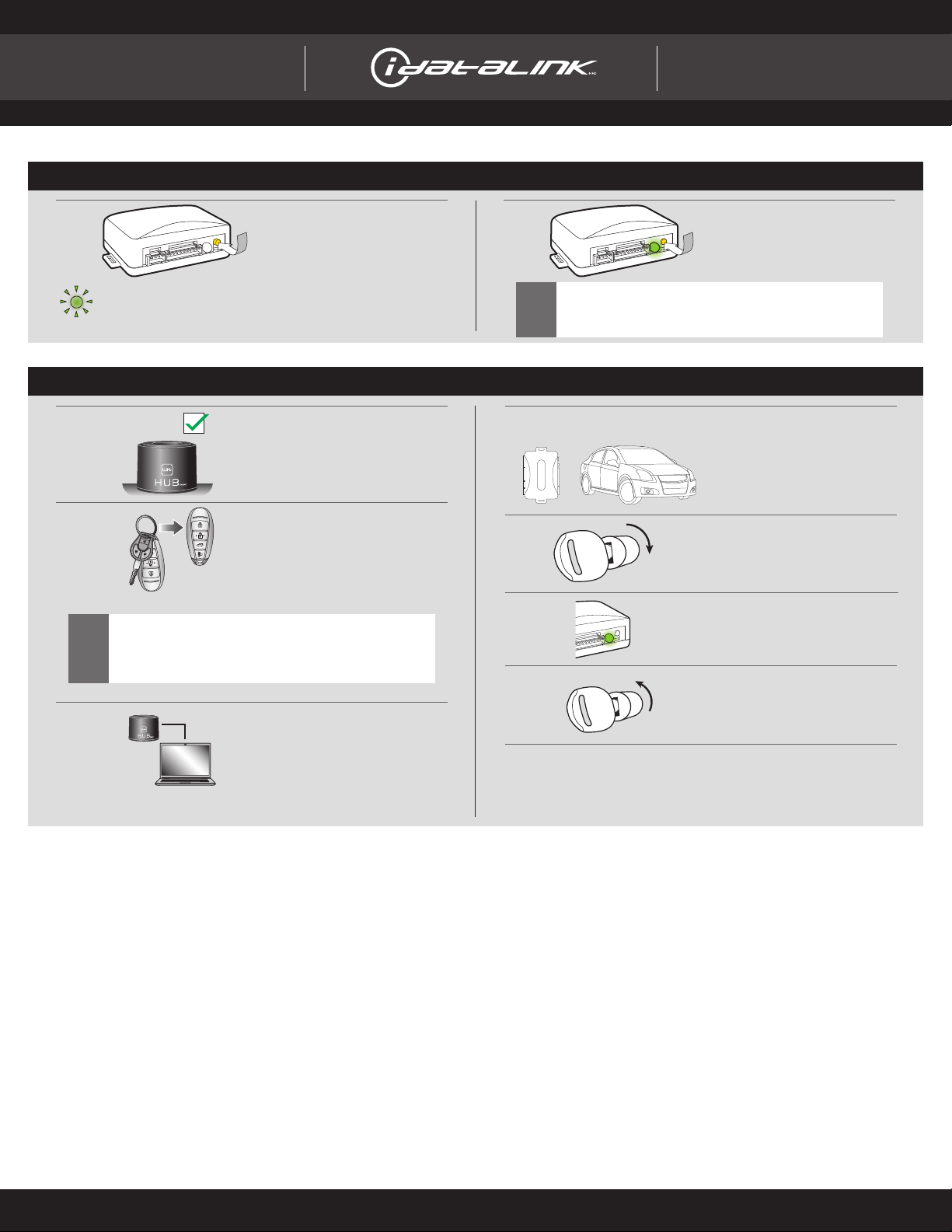

INSTALLATION MODE SELECTION
1Press and release
programming button
to select installation mode.
2Press and hold
programming button
until LED turns solid GREEN
to register selection.
!After registration, follow Factory Reset Procedure to
change installation mode and restart this procedure.
LED fl ashes (1X) once = DATA MODE
LED fl ashes (2X) twice = STANDARD HARDWIRE MODE
MODULE PROGRAMMING PROCEDURE - PUSH TO START
8Module Programming
Procedure completed.
6Wait, LED will turn solid GREEN
for 2 seconds.
!Place all other keyfobs at least 1 foot away from the
Weblink HUB. Failure to comply may result in damage
to other keyfobs or interfere with the keyfob reading
process.
3Flash the module using the
Weblink HUB. Follow the on
screen instructions to complete
the keyfob reading process.
2Remove OEM key 1 from
keychain.
1For this installation, the Weblink
HUB is required. 4WARNING: Do not press the module
programming button.
Connect power fi rst.
Connect module to vehicle.
Æ
5Using OEM key 1, turn key to ON
position.
ON
7Turn key to OFF position.
OFF
Page 11 of 12 ADS-AL(AL)-SUB9-EN 20221206
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2022
ALL IN ONE
SUBARU
Doc. No.: ##80972##

Patent No. US 8,856,780 CA 2759622
LED STATUS
DIAGNOSTICS
DURING PROGRAMMING DURING REMOTE START WITH IGNITION OFF
Flashing RED Missing/wrong information from
fi rmware or vehicle Incorrectly programmed Incorrectly programmed or connected
Solid RED Waiting for more vehicle information Incorrectly programmed Not programmed waiting for more
vehicle information
Flashing GREEN Additional steps required to complete
programming
Correctly programmed and
operational
False ground when running status
from remote starter
Solid GREEN then OFF Correctly programmed Reset in progress Reset in progress
OFF No activity or already programmed Invalid ground when running status
from remote starter
At rest and ready for a remote start
sequence
MODULE DIAGNOSTICS
FACTORY RESET PROCEDURE
7Repeat programming procedure.
!Failure to follow procedure may result with a DTC or a
CHECK ENGINE error message.
1DISCONNECT all connectors
from module EXCEPT the black
4-PIN standard or optional data
connector.






6RECONNECT all connectors.





2DISCONNECT black 4-PIN
standard or optional data
connector.

4When LED fl ashes red,
RELEASE programming button.
5LED will turn solid red for 2
seconds.
RESET COMPLETED.
3PRESS AND HOLD programming
button while connecting either
4-PIN standard or optional data
connector.
IDENTIFY VEHICLE YEAR
1 Locate the Vehicle Identifi cation Number (VIN), identify the 10th
character then match it to its corresponding year.
4 Y 1 N53 A 5 T A L 8 D 5 R 0 X
Æ
A1980 L1990 Y2000 A2010
B1981 M1991 12001 B2011
C1982 N1992 22002 C2012
D1983 P1993 32003 D2013
E1984 R1994 42004 E2014
F1985 S1995 52005 F2015
G1986 T1996 62006 G2016
H1987 V1997 72007 H2017
J1988 W1998 82008 J2018
K1989 X1999 92009 K2019
Æ
A1980 L1990 Y2000 A2010 L2020
B1981 M1991 12001 B2011 M2021
C1982 N1992 22002 C2012 N2022
D1983 P1993 32003 D2013 P2023
E1984 R1994 42004 E2014 R2024
F1985 S1995 52005 F2015 S2025
G1986 T1996 62006 G2016 T2026
H1987 V1997 72007 H2017 V2027
J1988 W1998 82008 J2018 W2028
K1989 X1999 92009 K2019 X2029
Page 12 of 12 ADS-AL(AL)-SUB9-EN 20221206
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2022
ALL IN ONE
SUBARU
Doc. No.: ##80972##
