iDataLink BLADE Series User manual

The brand names and logos found in this guide are property of their respective owners. Automotive Data Solutions Inc. © 2018
PATENT NO. US 8,856,780 CA 2759622
TERMS OF USE: Automotive Data Solutions Inc. (“ADS”) products are strictly intended for installation by Certified Technicians who are
employed by a registered business specialized in the installation of automotive aftermarket electronics products. Prior to beginning
installation of an ADS product in a vehicle, it is the Certified Technician’s responsibility to review the most current Product Guide, Install
Guide and vehicle-specific notes available in Weblink®. ADS is not responsible for any damages whatsoever, including but not limited
to any consequential damages, incidental damages, damages for loss of time, loss of earnings, loss of profit, commercial loss, loss of
economic opportunity and the like that may or may not have resulted from the use, misuse, improper installation or operation of its
products. Purchasers sole contractual remedy is refund of the purchase price of the ADS product(s). ADS reserves itself the right to
suspend any Weblink® account without notice and decline to offer technical support to non-Certified Technicians, non-compliant Certified
Technicians or end users.
Automotive Data Solutions Inc.
INSTALL GUIDE
BLADE-AL(DL)-TL6-EN
AVAILABLE FOR: ADS-BLADE AL
TL6
PLEASE VISIT WWW.IDATALINK.COM FOR COMPLETE PRODUCT DETAILS
Rev. Date: December 21, 2018
Doc. No.: ##57050##

Patent No. US 8,856,780 CA 2759622
INSTALL TYPE SELECTION
*Available only if vehicle is equipped with factory hood switch.
**Read "WARNING: Door Lock Synchronization"
NOTE
I Keyless and smartkey systems
will remain functional during
remote start.
MAKE MODEL YEAR INSTALL TYPE
FEATURES
DATA IMMOBILIZER BYPASS PUSH TO START CTRL ARM OEM ALARM DISARM OEM ALARM A/M ALARM CTRL FROM OEM REMOTES A/M RS CTRL FROM OEM REMOTES PRIORITY UNLOCK DOOR LOCK DOOR UNLOCK TRUNK/HATCH RELEASE TACHOMETER OUTPUT BRAKE PEDAL STATUS OUTPUT E-BRAKE OUTPUT DOOR STATUS OUTPUT TRUNK STATUS OUTPUT HOOD STATUS OUTPUT*
LEXUS
ES300h PTS** 13-15 3 • • • • • • • • • • • • • • • •
ES350 PTS** 13-15 1 • • • • • • • • • • • • • • • •
ES350 PTS** 16-18 11 • • • • • • • • • • • • • • • •
GS200t PTS** 16-17 12 • • • • • • • • • • • • • • • •
GS350 PTS** 13-15 2 • • • • • • • • • • • • • • • •
GS350 PTS** 16-19 12 • • • • • • • • • • • • • • • •
GS450h PTS** 13-15 2 • • • • • • • • • • • • • • • •
GS450h PTS** 16-18 12 • • • • • • • • • • • • • • • •
TOYOTA
Avalon PTS 13-15 4 • • • • • • • • • • • • • • • •
Avalon PTS 16-18 9 • • • • • • • • • • • • • • • •
Camry PTS 12-17 5 • • • • • • • • • • • • • • • •
Camry Hybrid PTS 12-17 5 • • • • • • • • • • • • • • • •
Corolla PTS AT 14-16 7 • • • • • • • • • • • • • • • •
Corolla PTS AT 17-19 15 • • • • • • • • • • • • • • • •
Corolla PTS MT 17-19 16 • • • • • • • • • • • • • • • •
Corolla PTS MT 14-16 8 • • • • • • • • • • • • • • • •
Prius C PTS 12-15 4 • • • • • • • • • • • • • • •
Prius C PTS 16-18 14 • • • • • • • • • • • • • • •
Prius V PTS 17-18 13 • • • • • • • • • • • • • • • •
Rav4 Hybrid PTS 16-18 10 • • • • • • • • • • • • • • • •
Rav4 PTS 13-15 6 • • • • • • • • • • • • • • • •
Rav4 PTS 16-18 9 • • • • • • • • • • • • • • • •
Page 2 of 44 BLADE-AL(DL)-TL6-EN 20181221
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2018
ALL IN ONE
LEXUS/TOYOTA
Doc. No.: ##57050##

Patent No. US 8,856,780 CA 2759622
WARNING: DOOR LOCK SYNCHRONIZATION
IMPORTANT
I The door lock signal is encrypted on select models. In order for the bypass to operate properly, it must be synchronized with that encrypted
signal. However, when the vehicle is driven, data is sent along the bus that desynchronizes the bypass with the encryption.
To regain synchronization once the engine is shut off, the bypass must see the factory keyless codes (OEM remote or proximity lock/unlock
codes). This solution will resynchronize automatically upon seeing the fi rst factory keyless code and will operate normally (both convenience and
immobilizer bypass/remote starter functionality).
Conversely, if the vehicle is driven and the factory keyless system is not used to lock or unlock, the aftermarket remote will not be able to lock or
unlock until the bypass receives factory keyless code at least once as described above.
If one does not intend to use factory keyless after driving the vehicle, additional wiring is required to ensure the bypass remains synchronized
with the encryption. Remote starter door locks must be hardwired (see wiring diagram). This will permit lock/unlock with the aftermarket re-
mote at all times without necessitating the use of the factory keyless system.
Please note that this fi rmware also supports “External Remote Control Arm and Disarm” which means that the bypass can arm and disarm the
aftermarket alarm using OEM Keyless when paired with most popular remote starter brands. When used exclusively in this manner (i.e. without
aftermarket remote controls), hardwired remote starter door locks (as described above) become unnecessary.
Finally, as factory keyless operates normally during remote start with this solution and take-over is not supported, a one-button remote control
is a very good choice for these vehicles in order to prevent any possible user issues.
Page 3 of 44 BLADE-AL(DL)-TL6-EN 20181221
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2018
ALL IN ONE
LEXUS/TOYOTA
Doc. No.: ##57050##

Patent No. US 8,856,780 CA 2759622
COMPONENT LOCATORCOMPONENT LOCATOR
A
F
B
D
E
C
Page 4 of 44 BLADE-AL(DL)-TL6-EN 20181221
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2018
ALL IN ONE
LEXUS/TOYOTA
Doc. No.: ##57050##

Patent No. US 8,856,780 CA 2759622
TYPE 1 - WIRE CROSS REFERENCE CHART
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
LEXUS
ES350
PTS 13-15
CanH H29 Black 16 pin 06 Blue (DATA) OBDII D
CanL H29 Black 16 pin 14 White (DATA) OBDII D
12V H18 Black 07 pin 07 Black (+) Steering lock B
Ignition H18 Black 07 pin 06 LtGreen (+) Steering lock B
SLP H18 Black 07 pin 04 Pink (-) Steering lock B
TX H10 White 30 pin 26 Red (DATA) Main body ECU A
RX H10 White 30 pin 25 Blue (DATA) Main body ECU A
Parking Light H10 White 30 pin 30 White (-) Main body ECU A
PTS H56 White 30 pin 30 Purple (-) Certifi cation ECU, behind glove box E
Lock H10 White 30 pin 11 Red (-) Main body ECU A
Unlock H10 White 30 pin 24 Gray (-) Main body ECU A
Trunk Release H9 White 28 pin 05 Red (-) Main body ECU A
Page 5 of 44 BLADE-AL(DL)-TL6-EN 20181221
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2018
ALL IN ONE
LEXUS/TOYOTA
Doc. No.: ##57050##

Patent No. US 8,856,780 CA 2759622

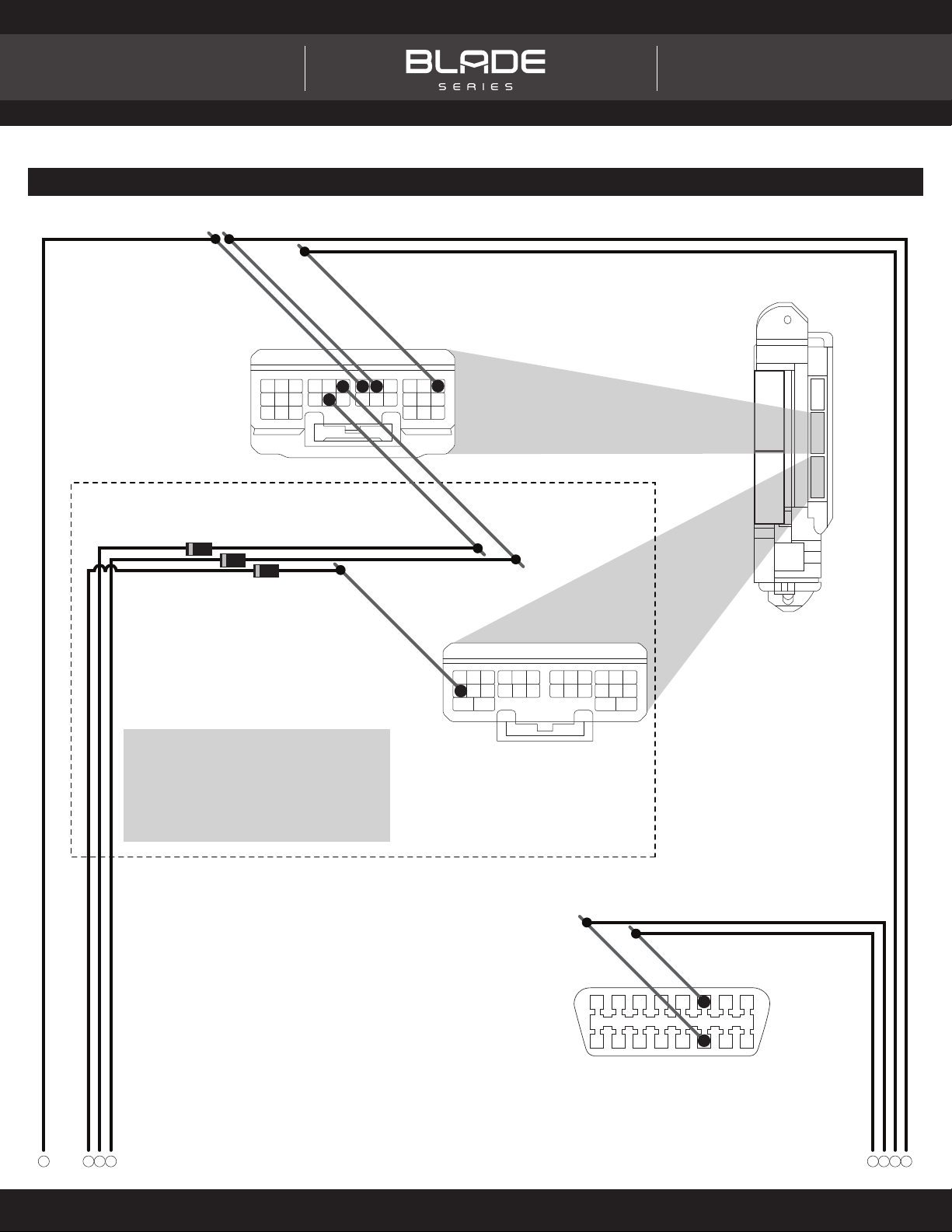

TYPE 1 - WIRING DIAGRAM - 1 OF 2
16
4
789
19
123
20 21
10 11 12
22 23 24
13 14 15
25 26 27
17 18
28
5 6
29 30
30
25 26
10 11 12 13 14 15 16
12345678
9
6
14
16
4
7 8 9
19
1 2 3
20 21
10 11 12
22 23 24
13 14 15
25 26 27
17 18 28
5 6
5
11
24
01 03 04 05 06 07 0802
1N4001
DIODE
1N4001
DIODE
1N4001
DIODE
UNLOCK (-)
LOCK (-)
MAIN BODY ECU
TX
PARKING LIGHT (-)
RX
CANH
CANL
H9 - WHITE
H10 - WHITE
TRUNK (-)
OPTIONAL CONNECTIONS:
IF CONNECTED, OEM AND AFTERMARKET REMOTES
WILL ALWAYS BE SYNCHRONIZED.
IF NOT CONNECTED, USER MUST LOCK VEHICLE DOORS USING
OEM REMOTE OR DOOR REQUEST SWITCH AFTER OPERATING
VEHICLE, EVERY TIME.
FOR MORE INFORMATION, READ "WARNING: DOOR LOCK
SYNCHRONIZATION".
BLACKH29 - BLACK
OBDII CONNECTOR
Page 6 of 44 BLADE-AL(DL)-TL6-EN 20181221
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2018
ALL IN ONE
LEXUS/TOYOTA
Doc. No.: ##57050##

Patent No. US 8,856,780 CA 2759622

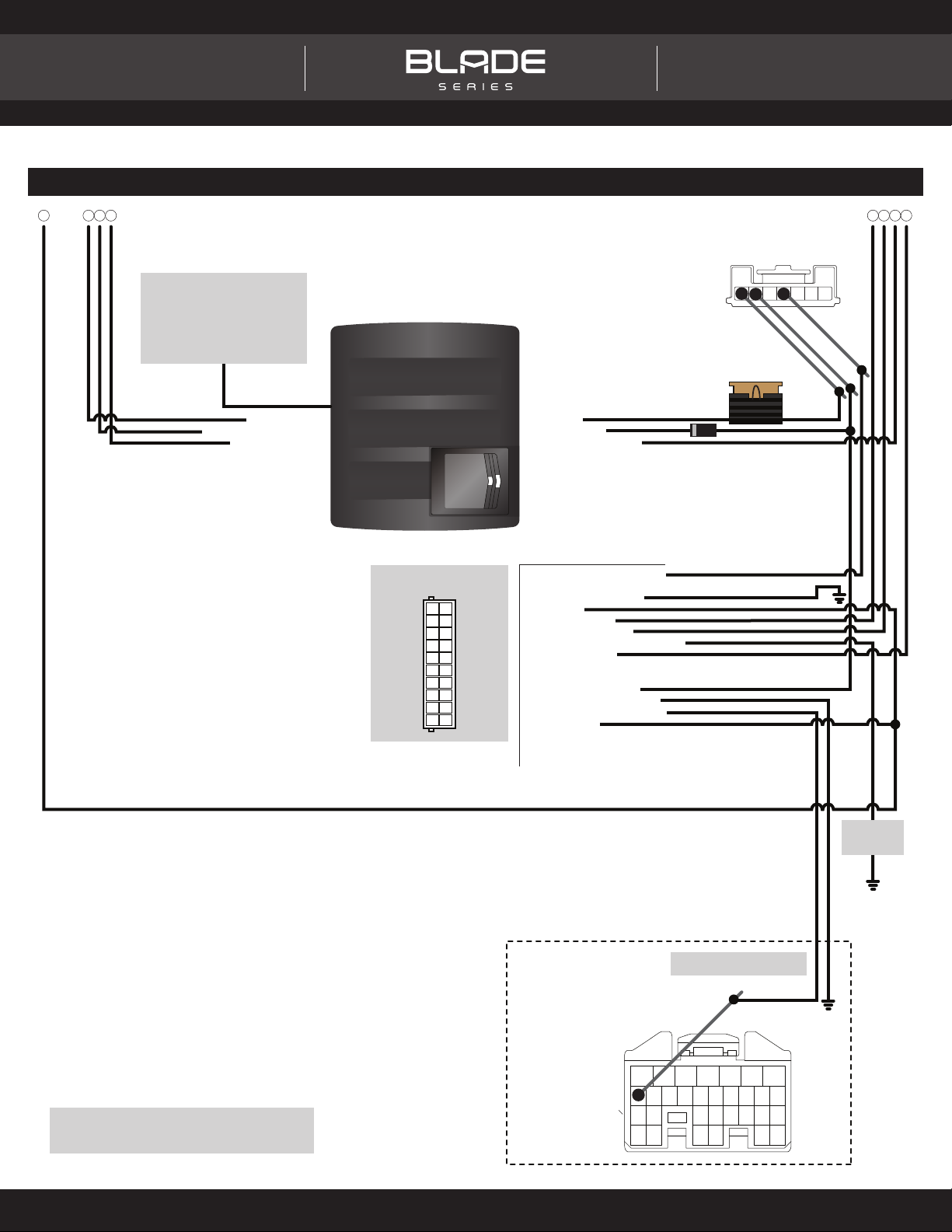

TYPE 1 - WIRING DIAGRAM - 2 OF 2
16
4
789
19
123
20 21
10 11 12
22 23 24
13 14 15
25 26 27
17 18
28
5 6
29 30
30
7654321
6
74
01 03 04 05 06 07 0802
7.5 AMPS
1N4001
DIODE
REMOTE STARTER
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
YELLOWGREEN/RED
BLUE/RED
NO WIREORANGE
ORANGE/WHITEORANGE/BLACK
BROWN/YELLOWBROWN/RED
BLACKNO WIRE
PINKPINK/BLACK
NO WIREWHITE
WHITE/BLACKWHITE/RED
*BLADE CONNECTOR
EXACT PIN-OUT
H56 - WHITE
AT SMARTKEY ECU
BEHIND GLOVE BOX
PTS (-)
BROWN/RED - CANHBROWN/RED - CANH
IGNITION (+) INPUT
IGNITION (+) INPUT
12V (+) INPUT
12V (+) INPUT
PARKING LIGHT (-) OUTPUT
PARKING LIGHT (-) OUTPUT
YELLOW
YELLOW - RX
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK - GROUND (-) INPUT
ORANGE/BLACK - GROUND (-) INPUT
ORANGE/WHITE - TX
ORANGE/WHITE - TX
ORANGE (NC)
PINK/BLACK (NC)
PINK/BLACK (NC)
LOCK/ARM (-) OUTPUT
LOCK/ARM (-) OUTPUT
UNLOCK/DISARM (-) OUTPUT
UNLOCK/DISARM (-) OUTPUT
TRUNK (-) OUTPUT
TRUNK (-) OUTPUT
PINK - IGNITION (+) INPUT
PINK - IGNITION (+) INPUT
WHITE/BLACK - SLP (-) OUTPUT
WHITE/BLACK - SLP (-) OUTPUT
WHITE/RED (NC)
WHITE/RED (NC)
WHITE - GROUND (-) INPUT
WHITE - GROUND (-) INPUT
BLUE/RED - GROUND (-) INPUT
BLUE/RED - GROUND (-) INPUT
BLUE/YELLOW - PTS (-) OUTPUT
BLUE/YELLOW - PTS (-) OUTPUT
GREEN/RED - RX
BLACK (NC)
BLACK (NC)
GRAY/RED (NC)
GRAY/RED (NC)
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
H18 - BLACK
AT STEERING LOCK
IMPORTANT:
1- NO TAKEOVER AVAILABLE.
UPON OPENING VEHICLE DOOR ENGINE WILL SHUTDOWN.
2- ALL DOORS MUST BE CLOSED TO REMOTE START VEHICLE.
WITHOUT
OEM HOOD
SWITCH ONLY
12V (+)
SLP (-)
IGNITION (+)
WARNING:
DO NOT CONNECT ANY OTHER
ACCESSORY,IGNITION OR START WIRE
FROM THE REMOTE STARTER TO THE
VEHICLE. THE INTERFACE MODULE
IS HANDLING THE REQUIRED VEHICLE
POWER AND START SEQUENCE FROM
THE PUSH TO START BUTTON CIRCUIT.
CONNECTIONS ARE REQUIRED
ONLY IF IDLE MODE IS DESIRED
Page 7 of 44 BLADE-AL(DL)-TL6-EN 20181221
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2018
ALL IN ONE
LEXUS/TOYOTA
Doc. No.: ##57050##

Patent No. US 8,856,780 CA 2759622
TYPE 2 - WIRE CROSS REFERENCE CHART
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
LEXUS
GS350 /
GS450h
PTS
13-15
CanH N20 Black 16 pin 06 Green (DATA) OBDII D
CanL N20 Black 16 pin 14 White (DATA) OBDII D
12V N24 Black 07 pin 07 Blue (+) Steering lock B
Ignition N24 Black 07 pin 06 Black (+) Steering lock B
SLP N24 Black 07 pin 04 Blue (-) Steering lock B
TX N12 White 30 pin 26 White (DATA) Main body ECU A
RX N12 White 30 pin 25 Black (DATA) Main body ECU A
Parking Light N12 White 30 pin 30 Black (-) Main body ECU A
PTS N43 Black 10 pin 01 Green (-) PTS button C
Lock Q18 White 24 pin 16 Gray (-) Driver door module ~
Unlock Q18 White 24 pin 24 Purple (-) Driver door module ~
Trunk Release N13 White 28 pin 08 Yellow (-) Main body ECU A
Page 8 of 44 BLADE-AL(DL)-TL6-EN 20181221
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2018
ALL IN ONE
LEXUS/TOYOTA
Doc. No.: ##57050##

Patent No. US 8,856,780 CA 2759622
TYPE 2 - WIRING DIAGRAM - 1 OF 2
10111213141516
1718192021222324
12
34
56
789
16
4
789
19
123
20 21
10 11 12
22 23 24
13 14 15
25 26 27
17 18
28
5 6
29 30
30
25 26
10 11 12 13 14 15 16
12345678
9
6
14
16
4
7 8 9
19
1 2 3
20 21
10 11 12
22 23 24
13 14 15
25 26 27
17 18 28
5 6 8
16
24
01 03 04 05 06 07 0802
1N4001
DIODE
1N4001
DIODE
1N4001
DIODE
MAIN BODY ECU
TX
PARKING LIGHT (-)
RX
CANH
CANL
N13 - WHITE
Q18 - WHITE
DRIVER DOOR MODULE
UNLOCK (-)
LOCK (-)
TRUNK (-)
OPTIONAL CONNECTIONS:
IF CONNECTED, OEM AND AFTERMARKET REMOTES
WILL ALWAYS BE SYNCHRONIZED.
IF NOT CONNECTED, USER MUST LOCK VEHICLE DOORS USING
OEM REMOTE OR DOOR REQUEST SWITCH AFTER OPERATING
VEHICLE, EVERY TIME.
FOR MORE INFORMATION, READ "WARNING: DOOR LOCK
SYNCHRONIZATION".
N12 - WHITE
BLACKN20 - BLACK
OBDII CONNECTOR
Page 9 of 44 BLADE-AL(DL)-TL6-EN 20181221
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2018
ALL IN ONE
LEXUS/TOYOTA
Doc. No.: ##57050##

Patent No. US 8,856,780 CA 2759622

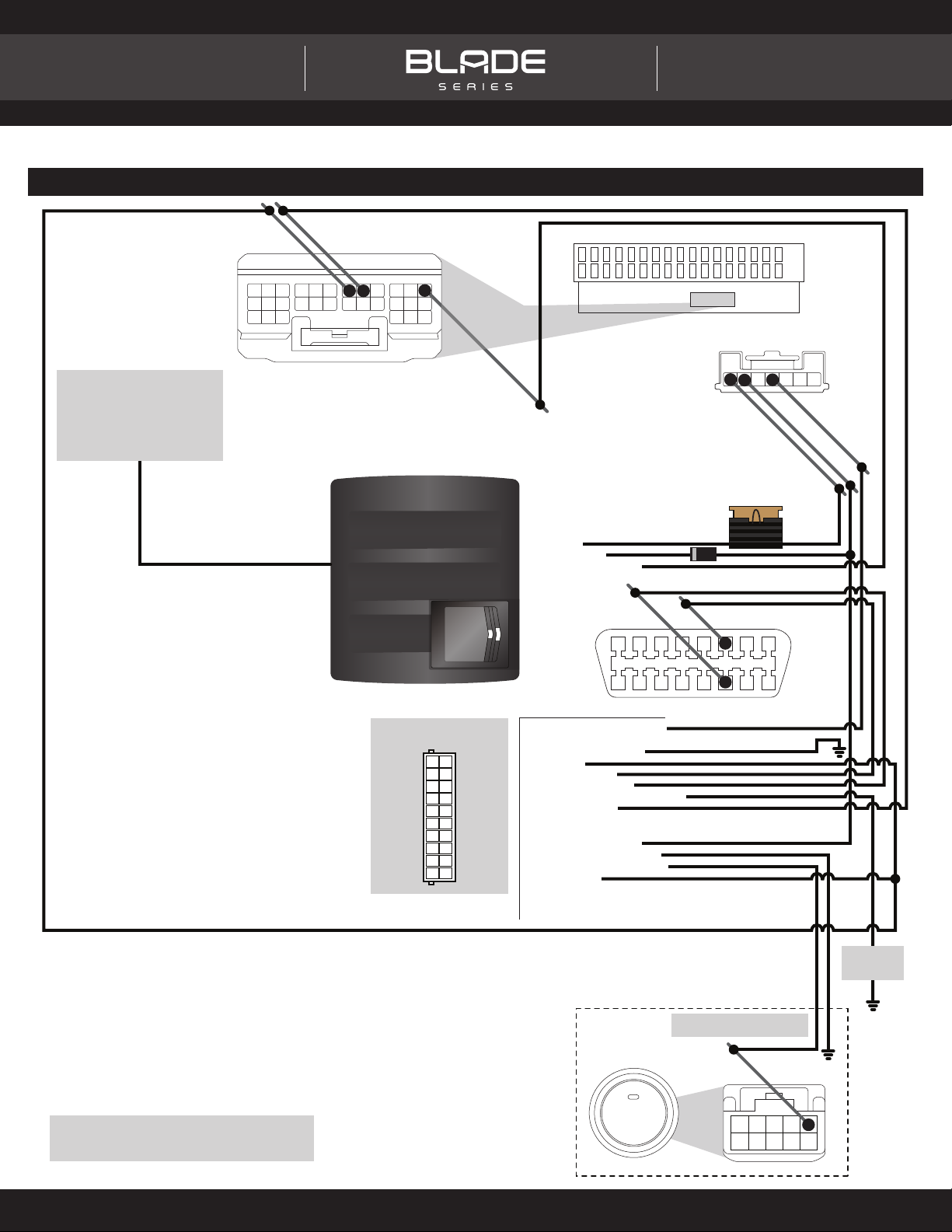

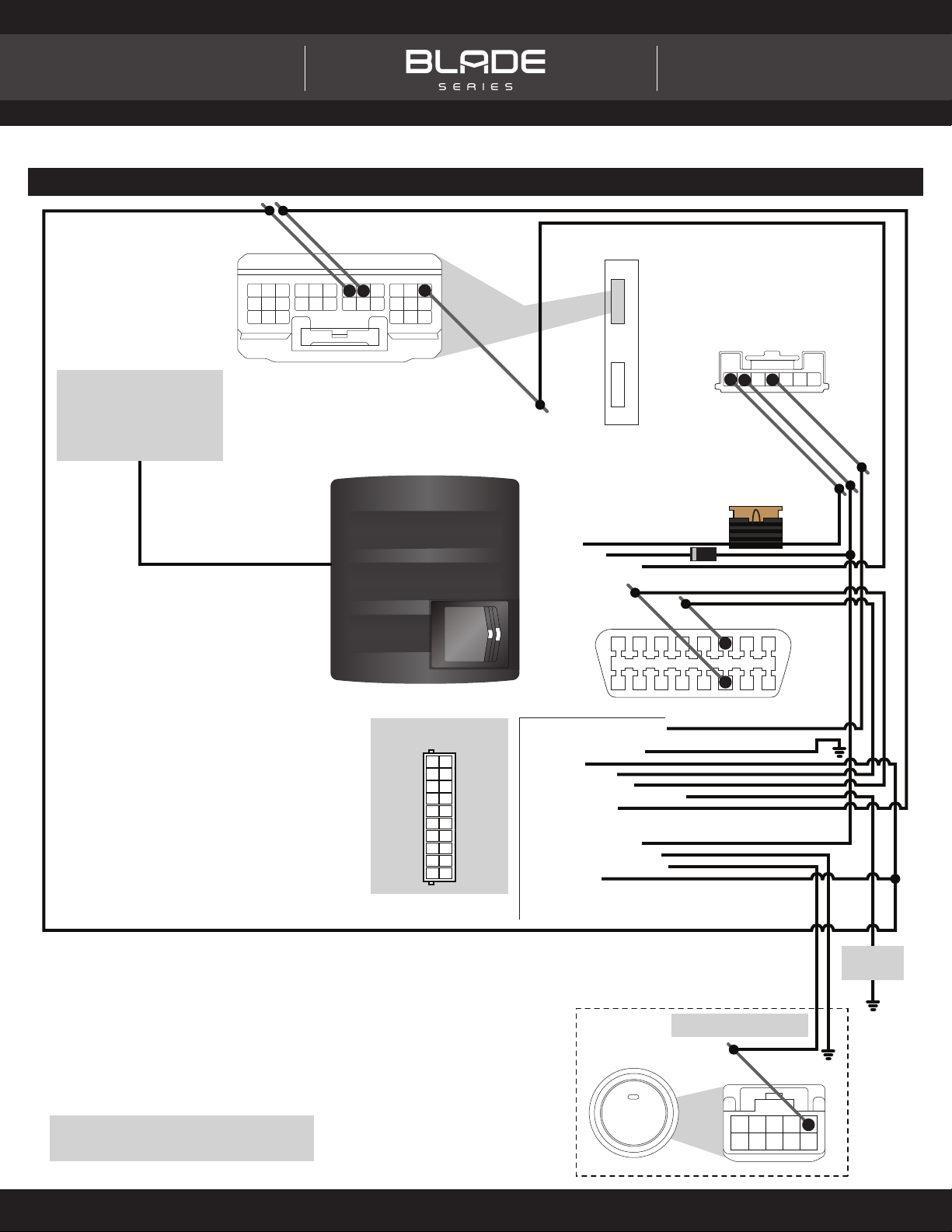

TYPE 2 - WIRING DIAGRAM - 2 OF 2
6
54321
10 9 8 7
7654321
6
74
1
ENGINE
START
STOP
01 03 04 05 06 07 0802
7.5 AMPS
1N4001
DIODE
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
YELLOWGREEN/RED
BLUE/RED
NO WIREORANGE
ORANGE/WHITEORANGE/BLACK
BROWN/YELLOWBROWN/RED
BLACKNO WIRE
PINKPINK/BLACK
NO WIREWHITE
WHITE/BLACKWHITE/RED
*BLADE CONNECTOR
EXACT PIN-OUT
IGNITION (+) INPUTIGNITION (+) INPUT
12V (+) INPUT
12V (+) INPUT
PARKING LIGHT (-) OUTPUT
PARKING LIGHT (-) OUTPUT
LOCK/ARM (-) OUTPUT
LOCK/ARM (-) OUTPUT
UNLOCK/DISARM (-) OUTPUT
UNLOCK/DISARM (-) OUTPUT
TRUNK (-) OUTPUT
TRUNK (-) OUTPUT
BROWN/RED - CANH
BROWN/RED - CANH
YELLOW
YELLOW - RX
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK - GROUND (-) INPUT
ORANGE/BLACK - GROUND (-) INPUT
ORANGE/WHITE - TX
ORANGE/WHITE - TX
ORANGE (NC)
PINK/BLACK (NC)
PINK/BLACK (NC)
PINK - IGNITION (+) INPUT
PINK - IGNITION (+) INPUT
WHITE/BLACK - SLP (-) OUTPUT
WHITE/BLACK - SLP (-) OUTPUT
WHITE/RED (NC)
WHITE/RED (NC)
WHITE - GROUND (-) INPUT
WHITE - GROUND (-) INPUT
BLUE/RED - GROUND (-) INPUT
BLUE/RED - GROUND (-) INPUT
BLUE/YELLOW - PTS (-) OUTPUT
BLUE/YELLOW - PTS (-) OUTPUT
GREEN/RED - RX
BLACK (NC)
BLACK (NC)
GRAY/RED (NC)
GRAY/RED (NC)
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
REMOTE STARTER
N24 - BLACK
AT STEERING LOCK
IMPORTANT:
1- NO TAKEOVER AVAILABLE.
UPON OPENING VEHICLE DOOR ENGINE WILL SHUTDOWN.
2- ALL DOORS MUST BE CLOSED TO REMOTE START VEHICLE.
12V (+)
SLP (-)
IGNITION (+)
PTS (-)
WARNING:
DO NOT CONNECT ANY OTHER
ACCESSORY,IGNITION OR START WIRE
FROM THE REMOTE STARTER TO THE
VEHICLE. THE INTERFACE MODULE
IS HANDLING THE REQUIRED VEHICLE
POWER AND START SEQUENCE FROM
THE PUSH TO START BUTTON CIRCUIT.
N43 - BLACK
WITHOUT
OEM HOOD
SWITCH ONLY
CONNECTIONS ARE REQUIRED
ONLY IF IDLE MODE IS DESIRED
Page 10 of 44 BLADE-AL(DL)-TL6-EN 20181221
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2018
ALL IN ONE
LEXUS/TOYOTA
Doc. No.: ##57050##

Patent No. US 8,856,780 CA 2759622
TYPE 3 - WIRE CROSS REFERENCE CHART
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
LEXUS
ES300h
PTS 13-15
CanH H29 Black 16 pin 06 Blue (DATA) OBDII D
CanL H29 Black 16 pin 14 White (DATA) OBDII D
12V H18 Black 07 pin 07 Black (+) Steering lock B
Ignition H18 Black 07 pin 06 LtGreen (+) Steering lock B
SLP H18 Black 07 pin 04 Pink (-) Steering lock B
TX H10 White 30 pin 26 Red (DATA) Main body ECU A
RX H10 White 30 pin 25 Blue (DATA) Main body ECU A
Parking Light H10 White 30 pin 30 White (-) Main body ECU A
PTS H2 Gray 31 pin 17 Purple (-) Power management module A
Lock H10 White 30 pin 11 Red (-) Main body ECU A
Unlock H10 White 30 pin 24 Gray (-) Main body ECU A
Trunk Release H9 White 28 pin 05 Red (-) Main body ECU A
Page 11 of 44 BLADE-AL(DL)-TL6-EN 20181221
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2018
ALL IN ONE
LEXUS/TOYOTA
Doc. No.: ##57050##

Patent No. US 8,856,780 CA 2759622
TYPE 3 - WIRING DIAGRAM - 1 OF 2
10 11 12 13 14 15 16
12345678
9
6
14
16
4
7 8 9
19
1 2 3
20 21
10 11 12
22 23 24
13 14 15
25 26 27
17 18 28
5 6
5
01 03 04 05 06 07 0802
16
4
789
19
123
20 21
10 11 12
22 23 24
13 14 15
25 26 27
17 18
28
5 6
29 30
30
25 26
11
24
1N4001
DIODE
1N4001
DIODE
1N4001
DIODE
MAIN BODY ECU
CANH
CANL
H9 - WHITE
TRUNK (-)
OPTIONAL CONNECTIONS:
IF CONNECTED, OEM AND AFTERMARKET REMOTES
WILL ALWAYS BE SYNCHRONIZED.
IF NOT CONNECTED, USER MUST LOCK VEHICLE DOORS USING
OEM REMOTE OR DOOR REQUEST SWITCH AFTER OPERATING
VEHICLE, EVERY TIME.
FOR MORE INFORMATION, READ "WARNING: DOOR LOCK
SYNCHRONIZATION".
BLACKH29 - BLACK
OBDII CONNECTOR
TX
PARKING LIGHT (-)
RX
H10 - WHITE
UNLOCK (-)
LOCK (-)
Page 12 of 44 BLADE-AL(DL)-TL6-EN 20181221
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2018
ALL IN ONE
LEXUS/TOYOTA
Doc. No.: ##57050##

Patent No. US 8,856,780 CA 2759622
TYPE 3 - WIRING DIAGRAM - 2 OF 2
67
8914151617
123
45
13
181921222324 2025
26
101112
2728293031
17
7654321
6
74
01 03 04 05 06 07 0802
7.5 AMPS
1N4001
DIODE
H2 - GRAY
AT POWER
MANAGEMENT MODULE
BESIDE BODY ECU
IGNITION (+) INPUTIGNITION (+) INPUT
12V (+) INPUT
12V (+) INPUT
PARKING LIGHT (-) OUTPUT
PARKING LIGHT (-) OUTPUT
LOCK/ARM (-) OUTPUT
LOCK/ARM (-) OUTPUT
UNLOCK/DISARM (-) OUTPUT
UNLOCK/DISARM (-) OUTPUT
TRUNK (-) OUTPUT
TRUNK (-) OUTPUT
REMOTE STARTER
H18 - BLACK
AT STEERING LOCK
IMPORTANT:
1- NO TAKEOVER AVAILABLE.
UPON OPENING VEHICLE DOOR ENGINE WILL SHUTDOWN.
2- ALL DOORS MUST BE CLOSED TO REMOTE START VEHICLE.
12V (+)
SLP (-)
IGNITION (+)
WARNING:
DO NOT CONNECT ANY OTHER
ACCESSORY,IGNITION OR START WIRE
FROM THE REMOTE STARTER TO THE
VEHICLE. THE INTERFACE MODULE
IS HANDLING THE REQUIRED VEHICLE
POWER AND START SEQUENCE FROM
THE PUSH TO START BUTTON CIRCUIT.
PTS (-)
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
YELLOWGREEN/RED
BLUE/RED
NO WIREORANGE
ORANGE/WHITEORANGE/BLACK
BROWN/YELLOWBROWN/RED
BLACKNO WIRE
PINKPINK/BLACK
NO WIREWHITE
WHITE/BLACKWHITE/RED
*BLADE CONNECTOR
EXACT PIN-OUT
BROWN/RED - CANHBROWN/RED - CANH
YELLOW
YELLOW - RX
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK - GROUND (-) INPUT
ORANGE/BLACK - GROUND (-) INPUT
ORANGE/WHITE - TX
ORANGE/WHITE - TX
ORANGE (NC)
PINK/BLACK (NC)
PINK/BLACK (NC)
PINK - IGNITION (+) INPUT
PINK - IGNITION (+) INPUT
WHITE/BLACK - SLP (-) OUTPUT
WHITE/BLACK - SLP (-) OUTPUT
WHITE/RED (NC)
WHITE/RED (NC)
WHITE - GROUND (-) INPUT
WHITE - GROUND (-) INPUT
BLUE/RED - GROUND (-) INPUT
BLUE/RED - GROUND (-) INPUT
BLUE/YELLOW - PTS (-) OUTPUT
BLUE/YELLOW - PTS (-) OUTPUT
GREEN/RED - RX
BLACK (NC)
BLACK (NC)
GRAY/RED (NC)
GRAY/RED (NC)
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
WITHOUT
OEM HOOD
SWITCH ONLY
CONNECTIONS ARE REQUIRED
ONLY IF IDLE MODE IS DESIRED
Page 13 of 44 BLADE-AL(DL)-TL6-EN 20181221
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2018
ALL IN ONE
LEXUS/TOYOTA
Doc. No.: ##57050##

Patent No. US 8,856,780 CA 2759622
TYPE 4 - WIRE CROSS REFERENCE CHART
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
TOYOTA
Avalon
PTS 13-15
CanH N20 Black 16 pin 06 Blue (DATA) OBDII D
CanL N20 Black 16 pin 14 White (DATA) OBDII D
12V N24 Black 07 pin 07 Purple (+) Steering lock B
Ignition N24 Black 07 pin 06 Black (+) Steering lock B
SLP N24 Black 07 pin 04 Green (-) Steering lock B
TX N12 White 30 pin 26 LtGreen (DATA) Main body ECU A
RX N12 White 30 pin 25 Brown (DATA) Main body ECU A
Parking Light N12 White 30 pin 30 Red (-) Main body ECU A
PTS N43 Black 10 pin 01 Purple (-) PTS button C
Prius C
PTS 12-15
CanH G4 Black 16 pin 06 Gray (DATA) OBDII D
CanL G4 Black 16 pin 14 White (DATA) OBDII D
12V G50 Black 07 pin 07 Gray (+) Steering lock B
Ignition G50 Black 07 pin 06 LtBlue (+) Steering lock B
SLP G50 Black 07 pin 04 Pink (-) Steering lock B
TX ~ White 30 pin 26 Red (DATA) Main body ECU A
RX ~ White 30 pin 25 Black (DATA) Main body ECU A
Parking Light G59 White 30 pin 30 LtBlue (-) Main body ECU A
PTS G48 Black 10 pin 01 LtBlue (-) PTS button C
Page 14 of 44 BLADE-AL(DL)-TL6-EN 20181221
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2018
ALL IN ONE
LEXUS/TOYOTA
Doc. No.: ##57050##

Patent No. US 8,856,780 CA 2759622
TYPE 4 - WIRING DIAGRAM - 1 OF 1
6
54321
10 9 8 7
16
4
789
19
123
20 21
10 11 12
22 23 24
13 14 15
25 26 27
17 18
28
5 6
29 30
7654321
30
25 26
6
74
1
ENGINE
START
STOP
10 11 12 13 14 15 16
12345678
9
6
14
7.5 AMPS
1N4001
DIODE
BROWN/RED - CANHBROWN/RED - CANH
YELLOW
YELLOW - RX
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK - GROUND (-) INPUT
ORANGE/BLACK - GROUND (-) INPUT
ORANGE/WHITE - TX
ORANGE/WHITE - TX
ORANGE (NC)
PINK/BLACK (NC)
PINK/BLACK (NC)
PINK - IGNITION (+) INPUT
PINK - IGNITION (+) INPUT
WHITE/BLACK - SLP (-) OUTPUT
WHITE/BLACK - SLP (-) OUTPUT
WHITE/RED (NC)
WHITE/RED (NC)
WHITE - GROUND (-) INPUT
WHITE - GROUND (-) INPUT
BLUE/RED - GROUND (-) INPUT
BLUE/RED - GROUND (-) INPUT
BLUE/YELLOW - PTS (-) OUTPUT
BLUE/YELLOW - PTS (-) OUTPUT
GREEN/RED - RX
BLACK (NC)
BLACK (NC)
GRAY/RED (NC)
GRAY/RED (NC)
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
IGNITION (+) INPUT
IGNITION (+) INPUT
12V (+) INPUT
12V (+) INPUT
PARKING LIGHT (-) OUTPUT
PARKING LIGHT (-) OUTPUT
REMOTE STARTER
CONNECTOR - BLACK
AT STEERING LOCK
CONNECTOR - BLACK
IMPORTANT:
1- NO TAKEOVER AVAILABLE.
UPON OPENING VEHICLE DOOR ENGINE WILL SHUTDOWN.
2- ALL DOORS MUST BE CLOSED TO REMOTE START VEHICLE.
WITHOUT
OEM HOOD
SWITCH ONLY
TX
PARKING LIGHT (-)
12V (+)
SLP (-)
IGNITION (+)
RX
PTS (-)
CANH
CANL
WARNING:
DO NOT CONNECT ANY OTHER
ACCESSORY,IGNITION OR START WIRE
FROM THE REMOTE STARTER TO THE
VEHICLE. THE INTERFACE MODULE
IS HANDLING THE REQUIRED VEHICLE
POWER AND START SEQUENCE FROM
THE PUSH TO START BUTTON CIRCUIT.
CONNECTOR - WHITE
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
YELLOWGREEN/RED
BLUE/RED
NO WIREORANGE
ORANGE/WHITEORANGE/BLACK
BROWN/YELLOWBROWN/RED
BLACKNO WIRE
PINKPINK/BLACK
NO WIREWHITE
WHITE/BLACKWHITE/RED
*BLADE CONNECTOR
EXACT PIN-OUT
MAIN BODY ECU
CONNECTIONS ARE REQUIRED
ONLY IF IDLE MODE IS DESIRED
Page 15 of 44 BLADE-AL(DL)-TL6-EN 20181221
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2018
ALL IN ONE
LEXUS/TOYOTA
Doc. No.: ##57050##

Patent No. US 8,856,780 CA 2759622
TYPE 5 - WIRE CROSS REFERENCE CHART
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
TOYOTA
Camry /
Camry Hybrid
PTS
12-17
CanH I39 White 16 pin 06 Blue (DATA) OBDII D
CanL I39 White 16 pin 14 White (DATA) OBDII D
12V I24 Black 07 pin 07 Black (+) Steering lock B
Ignition I24 Black 07 pin 06 LtGreen (+) Steering lock B
SLP I24 Black 07 pin 04 Pink (-) Steering lock B
TX I13 White 30 pin 26 Red (DATA) Main body ECU A
RX I13 White 30 pin 25 Green (DATA) Main body ECU A
Parking Light I13 White 30 pin 30 Black (-) Main body ECU A
PTS I58 Black 10 pin 01 Purple (-) PTS button C
Page 16 of 44 BLADE-AL(DL)-TL6-EN 20181221
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2018
ALL IN ONE
LEXUS/TOYOTA
Doc. No.: ##57050##

Patent No. US 8,856,780 CA 2759622
TYPE 5 - WIRING DIAGRAM - 1 OF 1
6
54321
10 9 8 7
16
4
789
19
123
20 21
10 11 12
22 23 24
13 14 15
25 26 27
17 18
28
5 6
29 30
7654321
30
25 26
6
74
1
ENGINE
START
STOP
10 11 12 13 14 15 16
12345678
9
6
14
7.5 AMPS
1N4001
DIODE
MAIN BODY ECU
BROWN/RED - CANH
BROWN/RED - CANH
YELLOW
YELLOW - RX
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK - GROUND (-) INPUT
ORANGE/BLACK - GROUND (-) INPUT
ORANGE/WHITE - TX
ORANGE/WHITE - TX
ORANGE (NC)
PINK/BLACK (NC)
PINK/BLACK (NC)
PINK - IGNITION (+) INPUT
PINK - IGNITION (+) INPUT
WHITE/BLACK - SLP (-) OUTPUT
WHITE/BLACK - SLP (-) OUTPUT
WHITE/RED (NC)
WHITE/RED (NC)
WHITE - GROUND (-) INPUT
WHITE - GROUND (-) INPUT
BLUE/RED - GROUND (-) INPUT
BLUE/RED - GROUND (-) INPUT
BLUE/YELLOW - PTS (-) OUTPUT
BLUE/YELLOW - PTS (-) OUTPUT
GREEN/RED - RX
BLACK (NC)
BLACK (NC)
GRAY/RED (NC)
GRAY/RED (NC)
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
IGNITION (+) INPUT
IGNITION (+) INPUT
12V (+) INPUT
12V (+) INPUT
PARKING LIGHT (-) OUTPUT
PARKING LIGHT (-) OUTPUT
REMOTE STARTER
CONNECTOR - BLACK
AT STEERING LOCK
CONNECTOR - BLACK
IMPORTANT:
1- NO TAKEOVER AVAILABLE.
UPON OPENING VEHICLE DOOR ENGINE WILL SHUTDOWN.
2- ALL DOORS MUST BE CLOSED TO REMOTE START VEHICLE.
WITHOUT
OEM HOOD
SWITCH ONLY
TX
PARKING LIGHT (-)
12V (+)
SLP (-)
IGNITION (+)
RX
PTS (-)
CANH
CANL
WARNING:
DO NOT CONNECT ANY OTHER
ACCESSORY,IGNITION OR START WIRE
FROM THE REMOTE STARTER TO THE
VEHICLE. THE INTERFACE MODULE
IS HANDLING THE REQUIRED VEHICLE
POWER AND START SEQUENCE FROM
THE PUSH TO START BUTTON CIRCUIT.
CONNECTOR - WHITE
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
YELLOWGREEN/RED
BLUE/RED
NO WIREORANGE
ORANGE/WHITEORANGE/BLACK
BROWN/YELLOWBROWN/RED
BLACKNO WIRE
PINKPINK/BLACK
NO WIREWHITE
WHITE/BLACKWHITE/RED
*BLADE CONNECTOR
EXACT PIN-OUT
CONNECTIONS ARE REQUIRED
ONLY IF IDLE MODE IS DESIRED
Page 17 of 44 BLADE-AL(DL)-TL6-EN 20181221
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2018
ALL IN ONE
LEXUS/TOYOTA
Doc. No.: ##57050##

Patent No. US 8,856,780 CA 2759622
TYPE 6 - WIRE CROSS REFERENCE CHART
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
TOYOTA
Rav4
PTS 13-15
CanH I39 White 16 pin 06 Black (DATA) OBDII D
CanL I39 White 16 pin 14 White (DATA) OBDII D
12V I24 Black 07 pin 07 Blue (+) Steering lock B
Ignition I24 Black 07 pin 06 Pink (+) Steering lock B
SLP I24 Black 07 pin 04 Green (-) Steering lock B
TX I13 White 30 pin 26 Red (DATA) Main body ECU, bottom of fusebox A
RX I13 White 30 pin 25 Blue (DATA) Main body ECU, bottom of fusebox A
Parking Light I13 White 30 pin 30 White (-) Main body ECU, bottom of fusebox A
PTS I58 Black 10 pin 01 DkGreen (-) PTS button C
Page 18 of 44 BLADE-AL(DL)-TL6-EN 20181221
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2018
ALL IN ONE
LEXUS/TOYOTA
Doc. No.: ##57050##

Patent No. US 8,856,780 CA 2759622
TYPE 6 - WIRING DIAGRAM - 1 OF 1
6
54321
10 9 8 7
16
4
789
19
123
20 21
10 11 12
22 23 24
13 14 15
25 26 27
17 18
28
5 6
29 30
7654321
30
25 26
6
74
1
ENGINE
START
STOP
10 11 12 13 14 15 16
12345678
9
6
14
7.5 AMPS
1N4001
DIODE
BROWN/RED - CANHBROWN/RED - CANH
YELLOW
YELLOW - RX
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK - GROUND (-) INPUT
ORANGE/BLACK - GROUND (-) INPUT
ORANGE/WHITE - TX
ORANGE/WHITE - TX
ORANGE (NC)
PINK/BLACK (NC)
PINK/BLACK (NC)
PINK - IGNITION (+) INPUT
PINK - IGNITION (+) INPUT
WHITE/BLACK - SLP (-) OUTPUT
WHITE/BLACK - SLP (-) OUTPUT
WHITE/RED (NC)
WHITE/RED (NC)
WHITE - GROUND (-) INPUT
WHITE - GROUND (-) INPUT
BLUE/RED - GROUND (-) INPUT
BLUE/RED - GROUND (-) INPUT
BLUE/YELLOW - PTS (-) OUTPUT
BLUE/YELLOW - PTS (-) OUTPUT
GREEN/RED - RX
BLACK (NC)
BLACK (NC)
GRAY/RED (NC)
GRAY/RED (NC)
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
IGNITION (+) INPUT
IGNITION (+) INPUT
12V (+) INPUT
12V (+) INPUT
PARKING LIGHT (-) OUTPUT
PARKING LIGHT (-) OUTPUT
REMOTE STARTER
CONNECTOR - BLACK
AT STEERING LOCK
CONNECTOR - BLACK
IMPORTANT:
1- NO TAKEOVER AVAILABLE.
UPON OPENING VEHICLE DOOR ENGINE WILL SHUTDOWN.
2- ALL DOORS MUST BE CLOSED TO REMOTE START VEHICLE.
WITHOUT
OEM HOOD
SWITCH ONLY
TX
PARKING LIGHT (-)
12V (+)
SLP (-)
IGNITION (+)
RX
PTS (-)
CANH
CANL
WARNING:
DO NOT CONNECT ANY OTHER
ACCESSORY,IGNITION OR START WIRE
FROM THE REMOTE STARTER TO THE
VEHICLE. THE INTERFACE MODULE
IS HANDLING THE REQUIRED VEHICLE
POWER AND START SEQUENCE FROM
THE PUSH TO START BUTTON CIRCUIT.
CONNECTOR - WHITE
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
YELLOWGREEN/RED
BLUE/RED
NO WIREORANGE
ORANGE/WHITEORANGE/BLACK
BROWN/YELLOWBROWN/RED
BLACKNO WIRE
PINKPINK/BLACK
NO WIREWHITE
WHITE/BLACKWHITE/RED
*BLADE CONNECTOR
EXACT PIN-OUT
CONNECTIONS ARE REQUIRED
ONLY IF IDLE MODE IS DESIRED
MAIN BODY ECU
Page 19 of 44 BLADE-AL(DL)-TL6-EN 20181221
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2018
ALL IN ONE
LEXUS/TOYOTA
Doc. No.: ##57050##

Patent No. US 8,856,780 CA 2759622
TYPE 7 - WIRE CROSS REFERENCE CHART
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
TOYOTA
Corolla
PTS
AT
14-16
CanH I39 White 16 pin 06 Red (DATA) OBDII D
CanL I39 White 16 pin 14 White (DATA) OBDII D
12V I24 Black 07 pin 07 Blue (+) Steering lock B
Ignition I24 Black 07 pin 06 Gray (+) Steering lock B
SLP I24 Black 07 pin 04 Green (-) Steering lock B
TX I13 White 30 pin 26 Empty (DATA) Main body ECU, bottom of fusebox A
RX I13 White 30 pin 25 Empty (DATA) Main body ECU, bottom of fusebox A
Parking Light I13 White 30 pin 30 White (-) Main body ECU, bottom of fusebox A
PTS I58 Black 10 pin 01 Black (-) PTS button C
Page 20 of 44 BLADE-AL(DL)-TL6-EN 20181221
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2018
ALL IN ONE
LEXUS/TOYOTA
Doc. No.: ##57050##
