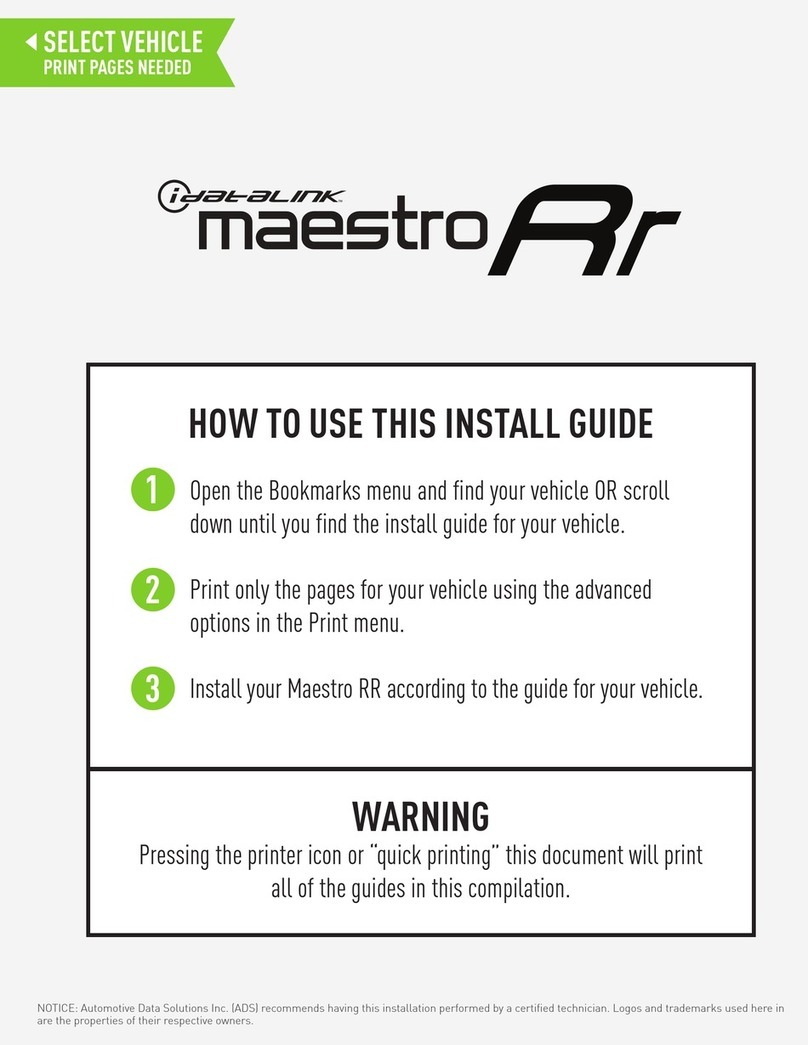

iDataLink maestro Rr User manual

NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in
are the properties of their respective owners.
WARNING
Pressing the printer icon or “quick printing” this document will print
all of the guides in this compilation.
Open the Bookmarks menu and find your vehicle OR scroll
down until you find the install guide for your vehicle.
Print only the pages for your vehicle using the advanced
options in the Print menu.
Install your Maestro RR according to the guide for your vehicle.
HOW TO USE THIS INSTALL GUIDE
1
2
3
SELECT VEHICLE
PRINT PAGES NEEDED

PRODUCTS REQUIRED
iDatalink Maestro RR or RR2 Radio Replacement Interface
iDatalink Maestro HRR-MA1 Installation Harness
PROGRAMMED FIRMWARE
ADS-RR(SR)-MA1-DS
ADDITIONAL RESOURCES
Maestro RR2 Programmable Outputs Guide
ELECTRONICS
Click here for:
Radar Installation Guides
20112014
MAZDA 2
INSTALL GUIDE
RETAINS STEERING WHEEL CONTROLS, VEHICLE SETTINGS, AND MORE!
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here
in are the properties of their respective owners.
OR
ANTENNA ADAPTER (MAY BE REQUIRED)
HEAD UNIT ADAPTER:
ACC-HU-PIO1, SON1, KEN1, KEN2, ALP1
OPTIONAL ACCESSORIES

ADS-HRR(SR)-MA01-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2023 2
MAZDA 2 20112014
WELCOME
Congratulations on the purchase
of your iDatalink Maestro RR Radio
replacement solution. You are
now a few simple steps away from
enjoying your new car radio with
enhanced features.
Before starting your installation,
please ensure that your iDatalink
Maestro module is programmed
with the correct firmware for your
vehicle and that you carefully review
the install guide.
Please note that Maestro RR will
only retain functionalities that
were originally available in the
vehicle.
TABLE OF CONTENTS
Installation Instructions 3
Wiring Diagram 4
Radio Wire Reference Chart 5
Module Diagnostics 6
Troubleshooting Table 7
NEED HELP?
1 866 427-2999
[email protected]

ADS-HRR(SR)-MA01-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2023 3
MAZDA 2 20112014
STEP 1
Remove the factory radio
If using head unit adapter (sold separately), connect HRR-
MA1 harness to adapter and skip to step 2.
• Unbox the aftermarket radio and locate its main harness.
• Cut and remove the black 20 pin connector from the HRR-
MA1 T-harness and connect the wires, shown in the wiring
diagram, from aftermarket radio main harness to the HRR-
MA1 T-harness and match the wire functions.
Note: only connect purple/white wire to radio reverse input
or module damage will occur.
• Connect the blue POWER ANT terminal to amplified
antenna adapter (if required).
STEP 2
• Determine if the vehicle has a factory amplifier. Look for
badges on the radio, door panels and dash that indicate the
presence of an amplifier (ex: BOSE).
If the vehicle DOES NOT have a factory amplifier:
• Leave the HRR-MA1 4-pin white and 4-pin black
connectors together. The included 4-pin white and black
connectors with RCAs are not used .
If the vehicle DOES have a factory amplifier:
• Unlug the HRR-MA1 4-pin white and 4-pin black
connectors.
• Connect the HRR-MA1 4-pin white to 4-pin white connector
with RCAs. Connect the 4-pin black to 4-pin black
connector with RCAs.
• Connect the RCAs to the radio outputs: white/left front,
gray/right front, green/left rear, purple/right rear.
STEP 3
• If equipped with backup camera, plug the white MA1 4-pin
cable to the vehicle backup camera harness. Connect the
2-pin white connector to HRR-MA1 main harness 2-pin
white connector.
• Connect the factory radio harness to the HRR-MA1
T-harness.
• The blue, green and red 2-pin connectors are not used.
STEP 4
• Plug the BLACK 2-pin connector of your HRR-MA1
T-harness into the OBDII MA1 cable.
• Plug the OBDII connector into the OBDII of the vehicle.
STEP 5
• Plug the harnesses into the aftermarket radio.
• Connect the backup cam cable into the aftermarket radio
(if equipped).
• Plug the antenna adapter (if required).
• Plug the Data cable to the data port of the aftermarket
radio.
Note: On Pioneer radio, ensure that there is nothing plugged
into the W/R port.
STEP 6
• Connect all the harnesses to the Maestro RR module then
test your installation.
1
INSTALLATION INSTRUCTIONS P1 /1

ADS-HRR(SR)-MA01-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2023 4
MAZDA 2 20112014
1
BACKUP CAMBACKUP CAM
N.C.
N.C.
N.C. N.C.
AMP TURN ONAMP TURN ON
POWER ANTPOWER ANT
AUDIO
CABLE
*
2
16
3
4
4
3
10
18
18
4
24
20
4
4
4
2
2
2
2
4

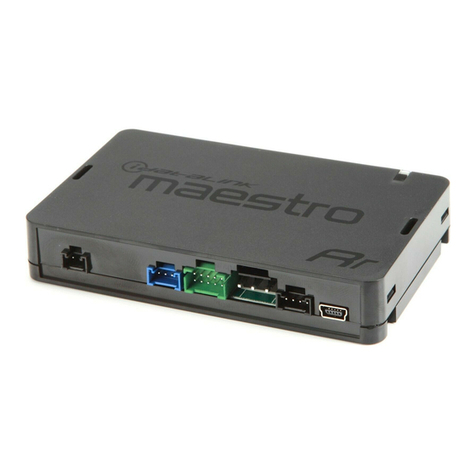

MAESTRO RR MODULE
STEP 1
MAIN
HARNESS
HRR-MA1 T-HARNESS
STEP 5
STEP 6
WHITE - LF SPEAKER (+)
WHITE/BLACK - LF SPEAKER (-)
GRAY - RF SPEAKER (+)
GRAY/BLACK - RF SPEAKER (-)
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
BLUE/WHITE - AMP. TURN ON (+)
BLUE - POWER ANTENNA
PURPLE - RR SPEAKER (+)
ORANGE - ILLUMINATION (+)
PURPLE/WHITE - REVERSE LIGHT (+) *
LTGREEN - E-BRAKE (-)
PINK - VEHICLE SPEED
WIRING DIAGRAM
WIRES FROM
VEHICLE
STEP 2 STEP 2
FACTORY RADIO
HARNESS
BACKUP CAMERA
HARNESS
STEP 3
STEP 4 OBDII CONNECTOR
SEE RADIO WIRE
CHART
FOR RADIO WIRE
COLORS
DATA
CABLE
CONNECT TO
AFTERMARKET RADIO
WHITE
GREENBLUE
NOT REQUIRED
STEERING WHEEL
CONTROL CABLE
PIONEER RADIO: ENSURE
THAT NOTHING IS PLUGGED
IN W/R PORT.
RED
BLACK
* ONLY CONNECT TO RADIO REVERSE INPUT
OR MODULE DAMAGE WILL OCCUR
WITHOUT OEM
AMPLIFIER
TO ANTENNA
ADAPTER IF REQUIRED
WITH OEM AMPLIFIER
UNPLUG
WHITE BLACK
WHITE
BLACK
OR
HEAD UNIT ADAPTER
SOLD SEPARATELY
IF WIRES ARE PRESENT ON
ADAPTER: SEE RADIO
REFERENCE CHART
IF NOT USING A MAESTRO HEAD UNIT ADAPTER:
CUT AND DISCARD CONNECTOR
LF OUT
RF OUT
LR OUT
RR OUT
CONNECT IF EQUIPPED *
CONNECT IF EQUIPPED *

ADS-HRR(SR)-MA01-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2023 5
MAZDA 2 20112014
RADIO WIRE REFERENCE CHART
MA1 T-harness
Wire Description Polarity Wire Color on Maestro
T-Harness
Wire Color on Alpine
cable
Wire Color on Kenwood/
JVC cable
Wire Color on Pioneer
cable
Wire Color on Sony
cable
Illumination (+) Orange N/A Orange/White Orange/White Orange
Reverse Light* (+) Purple/White Orange/White Purple/White Purple/White Purple/White
E-Brake (-) Lt Green Yellow/Blue Lt Green Lt Green Lt Green
VSS (vehicle speed sensor) (DATA) Pink Green/White Pink Pink N/A
Power Antenna (+) Blue Blue Blue Blue/White Blue or Blue/White
ACC-HU-KEN2
Wire Description
Polarity Wire Color on Adapter Kenwood Radio
E-Brake (-) LtGreen LtGreen
Reverse Light* (+) Purple/White Purple/White
Steering Wheel Controls (DATA) Blue/Yellow n/a
ACC-HU-ALP1
Wire Description
Polarity Wire Color on Adapter Alpine Radio
VSS (vehicle speed sensor) (DATA) Green/White Green/White
ACC-HU-KEN1
Wire Description
Polarity Wire Color on Adapter Kenwood Radio
CAM (+) Green/Red Refer to camera/radio
manual
CAM (-) Green/White Refer to camera/radio
manual
Steering Wheel Controls (DATA) Blue/Yellow n/a
Head unit adapter wiring (optional accessory, sold separately)
* Reverse light wire: Only connect to radio or module damage will occur.

ADS-HRR(SR)-MA01-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2023 6
MAZDA 2 20112014
MODULE DIAGNOSTICS
VIDEO HELP Installation, product information, vehicle specific videos.
VERIFY FLASH Last flash information, steering control configuration, vehicle information.
WEBLINK Software to program module.
LED 1 LED 2
LED 1
PROGRAMMING BUTTON
LED 1
Module/Firmware
status
LED 2 (RR2)
Bluetooth activity
LED STATUS DIAGNOSTIC
• or •RED or GREEN
flashing
LED flashes 1 or more times, either red or green, when a steering wheel
button is pressed : normal operation.
•1 RED flash Module has no firmware.
Flash module using Weblink Desktop and log in. Do NOT use DEMO MODE.
•2 RED flashes Problem detected. Consult troubleshooting table.
•1 GREEN flash After radio boots up : Normal operation.
•3 GREEN flashes Bluetooth is activated.
Turns off after one minute: Normal operation.
• • OFF Normal operation (inactive).

ADS-HRR(SR)-MA01-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2023 7
MAZDA 2 20112014
TROUBLESHOOTING TABLE
PROBLEM SOLUTION
Gauges do not work, radio shows OBD2 Error 1 or Error 2. Ensure OBDII connector is securely attached to the OBDII connector of the
vehicle.
If you hardwired connections at the OBDII, check connections at the OBDII
connector. Make sure the RED/BROWN wire is on PIN 6 and the YELLOW/
BROWN wire is connected to PIN 14 of the OBDII connector. Do not use
T-Taps. Soldering or military splicing methods are recommended.
If anything else is connected to the OBD2 or CAN wires of vehicle
(programmer, throttle controller, insurance tracker, etc.) try unplugging it to
see if gauges work. If gauges work without it installed, call tech support for
options.
Reset the RR.
Backup camera is not displayed. If radio doesn’t switch to camera input, ensure purple/white from the MA1
harness is connected to radio reverse input wire.
If radio switches to blank image, verify yellow “BACK UP CAMERA” RCA is
connected to the correct input. Most radios have a yellow “R CAM” or “CAM”
input. Pioneer models may use a brown “BC IN” input. Make sure the 2-pin
white connector is plugged into the MA1 T harness.
Audio is very quiet or very loud. Non-amplified vehicles, ensure the white and black 4-pin connectors remain
plugged in together in the harness. The 4-pin RCA adapters are not used.
Amplified vehicles, ensure the 4-pin RCA connectors are used after
separating the white and black 4-pin connectors on the MA1 harness. Plug
them into the radio’s RCA preouts.
The light on the Maestro is flashing RED ONCE. There is no firmware on the module. Flash the RR module using Weblink
Desktop and log in. Do NOT use DEMO MODE.
The light on the Maestro is blinking RED TWICE and the radio IS turning on. Ensure the 4-pin data cable is connected between the radio and the RR, and
that it is plugged into the black port on the Maestro RR. The red and blue
ports on the RR should be empty.
Make sure the correct radio model and serial number were entered during
the flash. Verify the radio’s serial number entered during the flash matches
what is listed on the radio screen. This can be found in the settings of the
radio, listed as Device Id, Device Number, or Serial Number.
The light on the Maestro is blinking RED TWICE but the radio is NOT turning
on.
If installing a modular radio and it is not turning on, ensure the screen is
secured and any trim pieces on the radio have been installed fully. Not
installing these fully will prevent radio from powering up and show a 2x red
error as well.
Test red and yellow wires for DC voltage at radio using a multimeter. Contact
support if no voltage on red or yellow.
MAESTRO RR RESET PROCEDURE:
Turn the key to the OFF position, then disconnect all connectors from the module.
Press and hold the module’s programming button and connect all the connectors back to the module. Wait, the module’s LED will flash RED rapidly (this may
take up to 10 seconds).
Release the programming button. Wait, the LED will turn solid GREEN for 2 seconds to show the reset was successful.
TECHNICAL ASSISTANCE
Phone: [phone]
Email: maestr[email protected]
IMPORTANT: To ensure proper operation, the aftermarket radio needs to have the latest firmware from the manufacturer. Please visit the radio
manufacturer’s website and look for any updates pertaining to your radio.

PRODUCTS REQUIRED
iDatalink Maestro RR or RR2 Radio Replacement Interface
iDatalink Maestro HRR-MA1 Installation Harness
PROGRAMMED FIRMWARE
ADS-RR(SR)-MA1-DS
ADDITIONAL RESOURCES
Maestro RR2 Programmable Outputs Guide
ELECTRONICS
Click here for:
Radar Installation Guides
20042013
MAZDA 3
INSTALL GUIDE
RETAINS STEERING WHEEL CONTROLS, VEHICLE SETTINGS, AND MORE!
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here
in are the properties of their respective owners.
OR
ANTENNA ADAPTER (MAY BE REQUIRED)
HEAD UNIT ADAPTER:
ACC-HU-PIO1, SON1, KEN1, KEN2, ALP1
OPTIONAL ACCESSORIES

ADS-HRR(SR)-MA01-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2023 2
MAZDA 3 20042013
WELCOME
Congratulations on the purchase
of your iDatalink Maestro RR Radio
replacement solution. You are
now a few simple steps away from
enjoying your new car radio with
enhanced features.
Before starting your installation,
please ensure that your iDatalink
Maestro module is programmed
with the correct firmware for your
vehicle and that you carefully review
the install guide.
Please note that Maestro RR will
only retain functionalities that
were originally available in the
vehicle.
TABLE OF CONTENTS
Installation Instructions 3
Wiring Diagram 4
Radio Wire Reference Chart 5
Module Diagnostics 6
Troubleshooting Table 7
NEED HELP?
1 866 427-2999
[email protected]

ADS-HRR(SR)-MA01-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2023 3
MAZDA 3 20042013
STEP 1
Remove the factory radio
If using head unit adapter (sold separately), connect HRR-
MA1 harness to adapter and skip to step 2.
• Unbox the aftermarket radio and locate its main harness.
• Cut and remove the black 20 pin connector from the HRR-
MA1 T-harness and connect the wires, shown in the wiring
diagram, from aftermarket radio main harness to the HRR-
MA1 T-harness and match the wire functions.
Note: only connect purple/white wire to radio reverse input
or module damage will occur.
• Connect the blue POWER ANT terminal to amplified
antenna adapter (if required).
STEP 2
• Determine if the vehicle has a factory amplifier. Look for
badges on the radio, door panels and dash that indicate the
presence of an amplifier (ex: BOSE).
If the vehicle DOES NOT have a factory amplifier:
• Leave the HRR-MA1 4-pin white and 4-pin black
connectors together. The included 4-pin white and black
connectors with RCAs are not used .
If the vehicle DOES have a factory amplifier:
• Unlug the HRR-MA1 4-pin white and 4-pin black
connectors.
• Connect the HRR-MA1 4-pin white to 4-pin white connector
with RCAs. Connect the 4-pin black to 4-pin black
connector with RCAs.
• Connect the RCAs to the radio outputs: white/left front,
gray/right front, green/left rear, purple/right rear.
STEP 3
• If equipped with backup camera, plug the white MA1 4-pin
cable to the vehicle backup camera harness. Connect the
2-pin white connector to HRR-MA1 main harness 2-pin
white connector.
• Connect the factory radio harness to the HRR-MA1
T-harness.
• The blue, green and red 2-pin connectors are not used.
STEP 4
• Plug the BLACK 2-pin connector of your HRR-MA1
T-harness into the OBDII MA1 cable.
• Plug the OBDII connector into the OBDII of the vehicle.
STEP 5
• Plug the harnesses into the aftermarket radio.
• Connect the backup cam cable into the aftermarket radio
(if equipped).
• Plug the antenna adapter (if required).
• Plug the Data cable to the data port of the aftermarket
radio.
Note: On Pioneer radio, ensure that there is nothing plugged
into the W/R port.
STEP 6
• Connect all the harnesses to the Maestro RR module then
test your installation.
1
INSTALLATION INSTRUCTIONS P1 /1

ADS-HRR(SR)-MA01-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2023 4
MAZDA 3 20042013
1
BACKUP CAMBACKUP CAM
N.C.
N.C.
N.C. N.C.
AMP TURN ONAMP TURN ON
POWER ANTPOWER ANT
AUDIO
CABLE
*
2
16
3
4
4
3
10
18
18
4
24
20
4
4
4
2
2
2
2
4
MAESTRO RR MODULE
STEP 1
MAIN
HARNESS
HRR-MA1 T-HARNESS
STEP 5
STEP 6
WHITE - LF SPEAKER (+)
WHITE/BLACK - LF SPEAKER (-)
GRAY - RF SPEAKER (+)
GRAY/BLACK - RF SPEAKER (-)
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
BLUE/WHITE - AMP. TURN ON (+)
BLUE - POWER ANTENNA
PURPLE - RR SPEAKER (+)
ORANGE - ILLUMINATION (+)
PURPLE/WHITE - REVERSE LIGHT (+) *
LTGREEN - E-BRAKE (-)
PINK - VEHICLE SPEED
WIRING DIAGRAM
WIRES FROM
VEHICLE
STEP 2 STEP 2
FACTORY RADIO
HARNESS
BACKUP CAMERA
HARNESS
STEP 3
STEP 4 OBDII CONNECTOR
SEE RADIO WIRE
CHART
FOR RADIO WIRE
COLORS
DATA
CABLE
CONNECT TO
AFTERMARKET RADIO
WHITE
GREENBLUE
NOT REQUIRED
STEERING WHEEL
CONTROL CABLE
PIONEER RADIO: ENSURE
THAT NOTHING IS PLUGGED
IN W/R PORT.
RED
BLACK
* ONLY CONNECT TO RADIO REVERSE INPUT
OR MODULE DAMAGE WILL OCCUR
WITHOUT OEM
AMPLIFIER
TO ANTENNA
ADAPTER IF REQUIRED
WITH OEM AMPLIFIER
UNPLUG
WHITE BLACK
WHITE
BLACK
OR
HEAD UNIT ADAPTER
SOLD SEPARATELY
IF WIRES ARE PRESENT ON
ADAPTER: SEE RADIO
REFERENCE CHART
IF NOT USING A MAESTRO HEAD UNIT ADAPTER:
CUT AND DISCARD CONNECTOR
LF OUT
RF OUT
LR OUT
RR OUT
CONNECT IF EQUIPPED *
CONNECT IF EQUIPPED *

ADS-HRR(SR)-MA01-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2023 5
MAZDA 3 20042013
RADIO WIRE REFERENCE CHART
MA1 T-harness
Wire Description Polarity Wire Color on Maestro
T-Harness
Wire Color on Alpine
cable
Wire Color on Kenwood/
JVC cable
Wire Color on Pioneer
cable
Wire Color on Sony
cable
Illumination (+) Orange N/A Orange/White Orange/White Orange
Reverse Light* (+) Purple/White Orange/White Purple/White Purple/White Purple/White
E-Brake (-) Lt Green Yellow/Blue Lt Green Lt Green Lt Green
VSS (vehicle speed sensor) (DATA) Pink Green/White Pink Pink N/A
Power Antenna (+) Blue Blue Blue Blue/White Blue or Blue/White
ACC-HU-KEN2
Wire Description
Polarity Wire Color on Adapter Kenwood Radio
E-Brake (-) LtGreen LtGreen
Reverse Light* (+) Purple/White Purple/White
Steering Wheel Controls (DATA) Blue/Yellow n/a
ACC-HU-ALP1
Wire Description
Polarity Wire Color on Adapter Alpine Radio
VSS (vehicle speed sensor) (DATA) Green/White Green/White
ACC-HU-KEN1
Wire Description
Polarity Wire Color on Adapter Kenwood Radio
CAM (+) Green/Red Refer to camera/radio
manual
CAM (-) Green/White Refer to camera/radio
manual
Steering Wheel Controls (DATA) Blue/Yellow n/a
Head unit adapter wiring (optional accessory, sold separately)
* Reverse light wire: Only connect to radio or module damage will occur.

ADS-HRR(SR)-MA01-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2023 6
MAZDA 3 20042013
MODULE DIAGNOSTICS
VIDEO HELP Installation, product information, vehicle specific videos.
VERIFY FLASH Last flash information, steering control configuration, vehicle information.
WEBLINK Software to program module.
LED 1 LED 2
LED 1
PROGRAMMING BUTTON
LED 1
Module/Firmware
status
LED 2 (RR2)
Bluetooth activity
LED STATUS DIAGNOSTIC
• or •RED or GREEN
flashing
LED flashes 1 or more times, either red or green, when a steering wheel
button is pressed : normal operation.
•1 RED flash Module has no firmware.
Flash module using Weblink Desktop and log in. Do NOT use DEMO MODE.
•2 RED flashes Problem detected. Consult troubleshooting table.
•1 GREEN flash After radio boots up : Normal operation.
•3 GREEN flashes Bluetooth is activated.
Turns off after one minute: Normal operation.
• • OFF Normal operation (inactive).

ADS-HRR(SR)-MA01-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2023 7
MAZDA 3 20042013
TROUBLESHOOTING TABLE
PROBLEM SOLUTION
Gauges do not work, radio shows OBD2 Error 1 or Error 2. Ensure OBDII connector is securely attached to the OBDII connector of the
vehicle.
If you hardwired connections at the OBDII, check connections at the OBDII
connector. Make sure the RED/BROWN wire is on PIN 6 and the YELLOW/
BROWN wire is connected to PIN 14 of the OBDII connector. Do not use
T-Taps. Soldering or military splicing methods are recommended.
If anything else is connected to the OBD2 or CAN wires of vehicle
(programmer, throttle controller, insurance tracker, etc.) try unplugging it to
see if gauges work. If gauges work without it installed, call tech support for
options.
Reset the RR.
Backup camera is not displayed. If radio doesn’t switch to camera input, ensure purple/white from the MA1
harness is connected to radio reverse input wire.
If radio switches to blank image, verify yellow “BACK UP CAMERA” RCA is
connected to the correct input. Most radios have a yellow “R CAM” or “CAM”
input. Pioneer models may use a brown “BC IN” input. Make sure the 2-pin
white connector is plugged into the MA1 T harness.
Audio is very quiet or very loud. Non-amplified vehicles, ensure the white and black 4-pin connectors remain
plugged in together in the harness. The 4-pin RCA adapters are not used.
Amplified vehicles, ensure the 4-pin RCA connectors are used after
separating the white and black 4-pin connectors on the MA1 harness. Plug
them into the radio’s RCA preouts.
The light on the Maestro is flashing RED ONCE. There is no firmware on the module. Flash the RR module using Weblink
Desktop and log in. Do NOT use DEMO MODE.
The light on the Maestro is blinking RED TWICE and the radio IS turning on. Ensure the 4-pin data cable is connected between the radio and the RR, and
that it is plugged into the black port on the Maestro RR. The red and blue
ports on the RR should be empty.
Make sure the correct radio model and serial number were entered during
the flash. Verify the radio’s serial number entered during the flash matches
what is listed on the radio screen. This can be found in the settings of the
radio, listed as Device Id, Device Number, or Serial Number.
The light on the Maestro is blinking RED TWICE but the radio is NOT turning
on.
If installing a modular radio and it is not turning on, ensure the screen is
secured and any trim pieces on the radio have been installed fully. Not
installing these fully will prevent radio from powering up and show a 2x red
error as well.
Test red and yellow wires for DC voltage at radio using a multimeter. Contact
support if no voltage on red or yellow.
MAESTRO RR RESET PROCEDURE:
Turn the key to the OFF position, then disconnect all connectors from the module.
Press and hold the module’s programming button and connect all the connectors back to the module. Wait, the module’s LED will flash RED rapidly (this may
take up to 10 seconds).
Release the programming button. Wait, the LED will turn solid GREEN for 2 seconds to show the reset was successful.
TECHNICAL ASSISTANCE
Phone: [phone]
Email: maestr[email protected]
IMPORTANT: To ensure proper operation, the aftermarket radio needs to have the latest firmware from the manufacturer. Please visit the radio
manufacturer’s website and look for any updates pertaining to your radio.

PRODUCTS REQUIRED
iDatalink Maestro RR or RR2 Radio Replacement Interface
iDatalink Maestro HRR-MA1 Installation Harness
PROGRAMMED FIRMWARE
ADS-RR(SR)-MA1-DS
ADDITIONAL RESOURCES
Maestro RR2 Programmable Outputs Guide
ELECTRONICS
Click here for:
Radar Installation Guides
20142018
MAZDA 3
WITHOUT TOUCHSCREEN
INSTALL GUIDE
RETAINS STEERING WHEEL CONTROLS, VEHICLE SETTINGS, AND MORE!
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here
in are the properties of their respective owners.
OR
ANTENNA ADAPTER (MAY BE REQUIRED)
HEAD UNIT ADAPTER:
ACC-HU-PIO1, SON1, KEN1, KEN2, ALP1
OPTIONAL ACCESSORIES

ADS-HRR(SR)-MA01-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2023 2
MAZDA 3 WITHOUT TOUCHSCREEN 20142018
WELCOME
Congratulations on the purchase
of your iDatalink Maestro RR Radio
replacement solution. You are
now a few simple steps away from
enjoying your new car radio with
enhanced features.
Before starting your installation,
please ensure that your iDatalink
Maestro module is programmed
with the correct firmware for your
vehicle and that you carefully review
the install guide.
Please note that Maestro RR will
only retain functionalities that
were originally available in the
vehicle.
TABLE OF CONTENTS
Installation Instructions 3
Wiring Diagram 4
Radio Wire Reference Chart 5
Module Diagnostics 6
Troubleshooting Table 7
NEED HELP?
1 866 427-2999
[email protected]

ADS-HRR(SR)-MA01-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2023 3
MAZDA 3 WITHOUT TOUCHSCREEN 20142018
STEP 1
Remove the factory radio
If using head unit adapter (sold separately), connect HRR-
MA1 harness to adapter and skip to step 2.
• Unbox the aftermarket radio and locate its main harness.
• Cut and remove the black 20 pin connector from the HRR-
MA1 T-harness and connect the wires, shown in the wiring
diagram, from aftermarket radio main harness to the HRR-
MA1 T-harness and match the wire functions.
Note: only connect purple/white wire to radio reverse input
or module damage will occur.
• Connect the blue POWER ANT terminal to amplified
antenna adapter (if required).
STEP 2
• Determine if the vehicle has a factory amplifier. Look for
badges on the radio, door panels and dash that indicate the
presence of an amplifier (ex: BOSE).
If the vehicle DOES NOT have a factory amplifier:
• Leave the HRR-MA1 4-pin white and 4-pin black
connectors together. The included 4-pin white and black
connectors with RCAs are not used .
If the vehicle DOES have a factory amplifier:
• Unlug the HRR-MA1 4-pin white and 4-pin black
connectors.
• Connect the HRR-MA1 4-pin white to 4-pin white connector
with RCAs. Connect the 4-pin black to 4-pin black
connector with RCAs.
• Connect the RCAs to the radio outputs: white/left front,
gray/right front, green/left rear, purple/right rear.
STEP 3
• If equipped with backup camera, plug the white MA1 4-pin
cable to the vehicle backup camera harness. Connect the
2-pin white connector to HRR-MA1 main harness 2-pin
white connector.
• Connect the factory radio harness to the HRR-MA1
T-harness.
• The blue 2-pin connector is not used.
STEP 4
• Plug the HRR-MA1 red connector to the green 2-pin
connector.
• Cut and isolate the blue/red wire near the 24-pin
connector. Connect the other end of the blue/red wire to
PIN-F of the 28-pin Bluetooth module connector (refer to
wiring diagram for details).
STEP 5
• Plug the BLACK 2-pin connector of your HRR-MA1
T-harness into the OBDII MA1 cable.
• Plug the OBDII connector into the OBDII of the vehicle.
STEP 6
• Plug the harnesses into the aftermarket radio.
• Connect the backup cam cable into the aftermarket radio
(if equipped).
• Plug the antenna adapter (if required).
• Plug the Data cable to the data port of the aftermarket
radio.
Note: On Pioneer radio, ensure that there is nothing plugged
into the W/R port.
STEP 7
• Connect all the harnesses to the Maestro RR module then
test your installation.
2
INSTALLATION INSTRUCTIONS P1 /1

ADS-HRR(SR)-MA01-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2023 4
MAZDA 3 WITHOUT TOUCHSCREEN 20142018
2
POWER ANTPOWER ANT
N.C.
BACKUP CAMBACKUP CAM
N.C.
N.C.
AMP TURN ONAMP TURN ON
AUDIO
CABLE
*
W U S QAA Y
XV T R
O M
AB Z
G E C AK I
LJ P N D B HF
2
16
3
4
418
4
24
20
2
2
2
2
4
4
4
4
3
10
18
STEP 1
MAIN
HARNESS
HRR-MA1 T-HARNESS
STEP 6
WHITE - LF SPEAKER (+)
WHITE/BLACK - LF SPEAKER (-)
GRAY - RF SPEAKER (+)
GRAY/BLACK - RF SPEAKER (-)
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
BLUE/WHITE - AMP. TURN ON (+)
BLUE - POWER ANTENNA
PURPLE - RR SPEAKER (+)
ORANGE - ILLUMINATION (+)
PURPLE/WHITE - REVERSE LIGHT (+) *
LTGREEN - E-BRAKE (-)
PINK - VEHICLE SPEED
WIRING DIAGRAM
WIRES FROM
VEHICLE
STEP 3
STEP 5 OBDII CONNECTOR
STEP 4 BLUETOOTH MODULE
SEE RADIO WIRE
CHART
FOR RADIO WIRE
COLORS
DATA
CABLE
CONNECT TO
AFTERMARKET RADIO
WHITE
BLUE
NOT REQUIRED
STEERING WHEEL
CONTROL CABLE
PIONEER RADIO: ENSURE
THAT NOTHING IS PLUGGED
IN W/R PORT.
BLACK
* ONLY CONNECT TO RADIO REVERSE INPUT
OR MODULE DAMAGE WILL OCCUR
OR
HEAD UNIT ADAPTER
SOLD SEPARATELY
IF WIRES ARE PRESENT ON
ADAPTER: SEE RADIO
REFERENCE CHART
IF NOT USING A MAESTRO HEAD UNIT ADAPTER:
CUT AND DISCARD CONNECTOR
LF OUT
RF OUT
LR OUT
RR OUT
CONNECT IF EQUIPPED *
CONNECT IF EQUIPPED *
FACTORY RADIO
HARNESS
BACKUP CAM HARNESS
GREENRED
STEP 2 STEP 2
WITHOUT OEM
AMPLIFIER
TO ANTENNA
ADAPTER IF REQUIRED
WITH OEM AMPLIFIER
UNPLUG
WHITE BLACK
WHITE
BLACK
MAESTRO RR MODULE
STEP 7
BEHIND / RIGHT OF GLOVE BOX
GRAY

ADS-HRR(SR)-MA01-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2023 5
MAZDA 3 WITHOUT TOUCHSCREEN 20142018
RADIO WIRE REFERENCE CHART
MA1 T-harness
Wire Description Polarity Wire Color on Maestro
T-Harness
Wire Color on Alpine
cable
Wire Color on Kenwood/
JVC cable
Wire Color on Pioneer
cable
Wire Color on Sony
cable
Illumination (+) Orange N/A Orange/White Orange/White Orange
Reverse Light* (+) Purple/White Orange/White Purple/White Purple/White Purple/White
E-Brake (-) Lt Green Yellow/Blue Lt Green Lt Green Lt Green
VSS (vehicle speed sensor) (DATA) Pink Green/White Pink Pink N/A
Power Antenna (+) Blue Blue Blue Blue/White Blue or Blue/White
ACC-HU-KEN2
Wire Description
Polarity Wire Color on Adapter Kenwood Radio
E-Brake (-) LtGreen LtGreen
Reverse Light* (+) Purple/White Purple/White
Steering Wheel Controls (DATA) Blue/Yellow n/a
ACC-HU-ALP1
Wire Description
Polarity Wire Color on Adapter Alpine Radio
VSS (vehicle speed sensor) (DATA) Green/White Green/White
ACC-HU-KEN1
Wire Description
Polarity Wire Color on Adapter Kenwood Radio
CAM (+) Green/Red Refer to camera/radio
manual
CAM (-) Green/White Refer to camera/radio
manual
Steering Wheel Controls (DATA) Blue/Yellow n/a
Head unit adapter wiring (optional accessory, sold separately)
* Reverse light wire: Only connect to radio or module damage will occur.
