iDataLink Maestro RR User manual

NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in
are the properties of their respective owners.
WARNING
Pressing the printer icon or “quick printing” this document will print
all of the guides in this compilation.
Open the Bookmarks menu and find your vehicle OR scroll
down until you find the install guide for your vehicle.
Print only the pages for your vehicle using the advanced
options in the Print menu.
Install your Maestro RR according to the guide for your vehicle.
HOW TO USE THIS INSTALL GUIDE
1
2
3
SELECT VEHICLE
PRINT PAGES NEEDED

ELECTRONICS
Click here for:
Radar Installation Guides
2011-2014
Mazda 2
INSTALL GUIDE
RETAINS STEERING WHEEL CONTROLS AND ADDS GAUGES
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here
in are the properties of their respective owners.
PRODUCTS REQUIRED
iDatalink Maestro RR or RR2 Radio Replacement Interface
iDatalink Compatible Radio
PROGRAMMED FIRMWARE
ADS-RR(SI)-MAZ01-DS
ADDITIONAL RESOURCES
Maestro RR2 Programmable Outputs Guide
OR
OPTIONAL ACCESSORIES

ADS-RR(SI)-MAZ01-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2020 2
Mazda 2 2011-2014
WELCOME
NEED HELP?
Congratulations on the purchase
of your iDatalink Maestro RR Radio
replacement solution. You are
now a few simple steps away from
enjoying your new car radio with
enhanced features.
Before starting your installation,
please ensure that your iDatalink
Maestro module is programmed
with the correct firmware for your
vehicle and that you carefully review
the install guide.
Please note that Maestro RR will
only retain functionalities that
were originally available in the
vehicle.
TABLE OF CONTENTS
Wiring Diagram 3
Vehicle Wire Reference Chart 4
Troubleshooting Table 5
1 866 427-2999
maestro.idatalink.com/support
www.12voltdata.com/forum
[email protected]

ADS-RR(SI)-MAZ01-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2020 3
Mazda 2 2011-2014
1
1I 1K1E1B 1G
1H
1Q 1R 1T 1W1M 1O
1N 1P1J 1L
1A 1F1C 1D 1S 1X1U 1V
10 11 12 13 14 15 16
1234567 8
9
OBDII CONNECTOR
LOCATED UNDER DRIVER SIDE DASH
PURPLE/RED -
PURPLE/RED - SWI CIRCUIT 1 INPUT
LOCATED BEHIND RADIO
SWI 1
SWI 1
SWI FEEDSWI FEEDBLACK/WHITE - BLACK/WHITE - SWI GROUND FEED (-) OUTPUT
WIRES FROM
VEHICLE

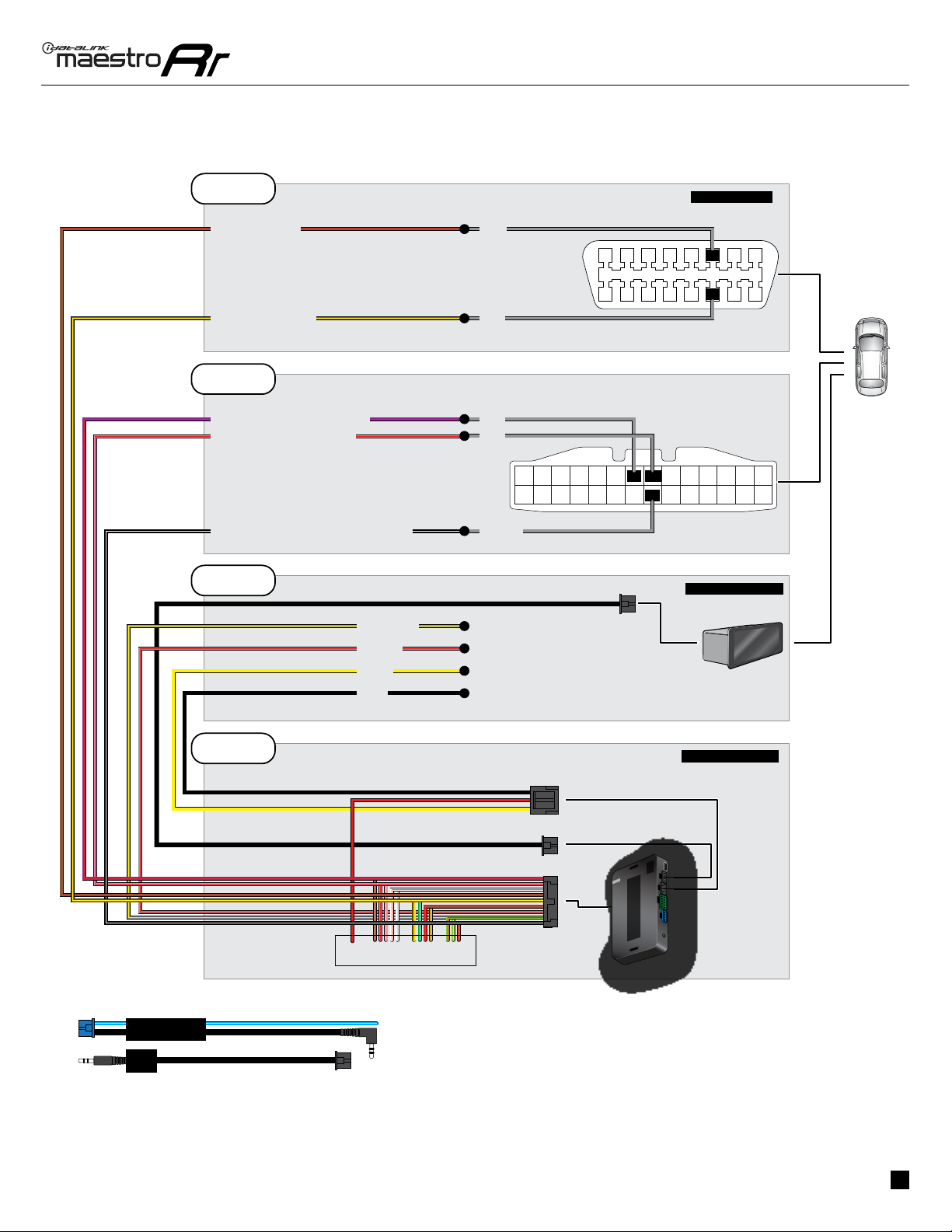

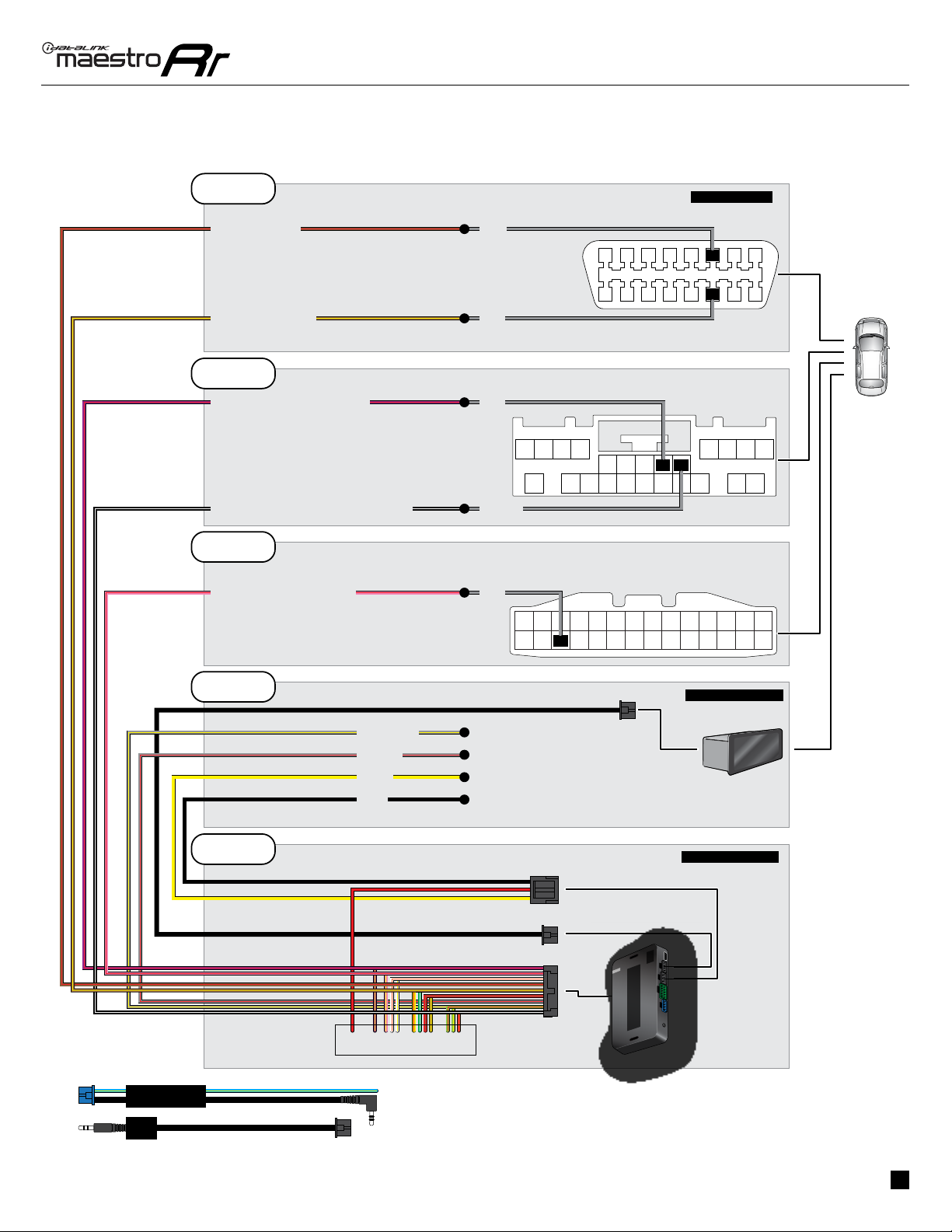

WIRING DIAGRAM
STEP 1
STEP 2
BROWN/YELLOW - CANL
CANH
CANH
CANL
CANL
BROWN/RED - CANH
NOTE: PIN SIDE VIEW. CONNECT TO TWISTED WIRES BEHIND CONNECTOR.
MAESTRO RR MODULE
STEP 4
STEERING WHEEL
CONTROL CABLE
AUDIO
CABLE
NOT REQUIRED
DO NOT CONNECT
STEP 3 AFTERMARKET RADIO
YELLOW
BLACK
GRAY/RED
GRAY/YELLOW
RADIO BATTERY (+) WIRE
RADIO GROUND WIRE
RADIO ACCESSORY WIRE
RADIO VSS (IF EQUIPPED)
PIONEER RADIO: ENSURE THAT NOTHING IS PLUGGED IN W/R PORT.

ADS-RR(SI)-MAZ01-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2020 4
Mazda 2 2011-2014
VEHICLE WIRE REFERENCE CHART
Wire
Description
Connector
Name
Connector
Color
Connector
Type Position Wire Color Polarity Wire
Location
CanH A ~ 16 pin 06 Red (DATA) OBDII connector, under driver side dash
CanL A ~ 16 pin 14 Blue (DATA) OBDII connector, under driver side dash
SWI 1 B ~ 24 pin 1N Red/Black (DATA) Behind radio
SWI Feed B ~ 24 pin 1P Green/White (-) Behind radio

ADS-RR(SI)-MAZ01-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2020 5
Mazda 2 2011-2014
TROUBLESHOOTING TABLE
PROBLEM SOLUTION
Maestro features/steering wheel controls stop working after a few seconds. Ensure the GRAY/RED wire on the 18 pin connector of the RR is connected to
accessory power.
Gauges do not work, radio shows OBD2 Error 1 or Error 2. Ensure the BROWN/RED and BROWN/YELLOW wires are connected to the
OBDII (NOT the red/brown and yellow/brown wires).
Check connections at the OBDII connector. Make sure the BROWN/RED wire
is on PIN 6 and the BROWN/YELLOW wire is connected to PIN 14 of the
OBDII connector. Do not use T-Taps. Soldering or military splicing methods
are recommended.
Reset the RR.
The light on the Maestro is blinking RED TWICE. Ensure the 4-pin data cable is connected between the radio and the RR, and
that it is plugged into the black port on the Maestro RR. The red and blue
ports on the RR should be empty.
Make sure the correct radio model and serial number were entered during
the flash. Verify the radio’s serial number entered during the flash matches
what is listed on the radio screen. This can be found in the settings of the
radio, listed as Device Id, Device Number, or Serial Number.
The light on the Maestro is flashing RED once. There is no firmware on the module; flash the RR module.
MAESTRO RR RESET PROCEDURE:
Turn the key to the OFF position, then disconnect all connectors from the module.
Press and hold the module’s programming button and connect all the connectors back to the module. Wait, the module’s LED will flash RED rapidly (this may
take up to 10 seconds).
Release the programming button. Wait, the LED will turn solid GREEN for 2 seconds to show the reset was successful.
TECHNICAL ASSISTANCE
Phone: [phone]
Email: maestr[email protected]
Web: maestro.idatalink.com/support add www.12voltdata.com/forum/
IMPORTANT: To ensure proper operation, the aftermarket radio needs to have the latest firmware from the manufacturer. Please visit the radio
manufacturer’s website and look for any updates pertaining to your radio.

ELECTRONICS
Click here for:
Radar Installation Guides
2004-2009
Mazda 3
INSTALL GUIDE
RETAINS STEERING WHEEL CONTROLS AND ADDS GAUGES
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here
in are the properties of their respective owners.
PRODUCTS REQUIRED
iDatalink Maestro RR or RR2 Radio Replacement Interface
iDatalink Compatible Radio
PROGRAMMED FIRMWARE
ADS-RR(SI)-MAZ01-DS
ADDITIONAL RESOURCES
Maestro RR2 Programmable Outputs Guide
OR
OPTIONAL ACCESSORIES

ADS-RR(SI)-MAZ01-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2020 2
Mazda 3 2004-2009
WELCOME
NEED HELP?
Congratulations on the purchase
of your iDatalink Maestro RR Radio
replacement solution. You are
now a few simple steps away from
enjoying your new car radio with
enhanced features.
Before starting your installation,
please ensure that your iDatalink
Maestro module is programmed
with the correct firmware for your
vehicle and that you carefully review
the install guide.
Please note that Maestro RR will
only retain functionalities that
were originally available in the
vehicle.
TABLE OF CONTENTS
Wiring Diagram 3
Vehicle Wire Reference Chart 4
Troubleshooting Table 5
1 866 427-2999
maestro.idatalink.com/support
www.12voltdata.com/forum
[email protected]

ADS-RR(SI)-MAZ01-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2020 3
Mazda 3 2004-2009
1
1I 1K1E1B 1G
1H
1Q 1R 1T 1W1M 1O
1N 1P1J 1L
1A 1F1C 1D 1S 1X1U 1V
10 11 12 13 14 15 16
1234567 8
9
OBDII CONNECTOR
LOCATED UNDER DRIVER SIDE DASH
PURPLE/RED -
PURPLE/RED - SWI CIRCUIT 1 INPUT
LOCATED BEHIND RADIO
SWI 1
SWI 1
SWI FEEDSWI FEEDBLACK/WHITE - BLACK/WHITE - SWI GROUND FEED (-) OUTPUT
WIRES FROM
VEHICLE
WIRING DIAGRAM
STEP 1
STEP 2
BROWN/YELLOW - CANL
CANH
CANH
CANL
CANL
BROWN/RED - CANH
NOTE: PIN SIDE VIEW. CONNECT TO TWISTED WIRES BEHIND CONNECTOR.
MAESTRO RR MODULE
STEP 4
STEERING WHEEL
CONTROL CABLE
AUDIO
CABLE
NOT REQUIRED
DO NOT CONNECT
STEP 3 AFTERMARKET RADIO
YELLOW
BLACK
GRAY/RED
GRAY/YELLOW
RADIO BATTERY (+) WIRE
RADIO GROUND WIRE
RADIO ACCESSORY WIRE
RADIO VSS (IF EQUIPPED)
PIONEER RADIO: ENSURE THAT NOTHING IS PLUGGED IN W/R PORT.

ADS-RR(SI)-MAZ01-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2020 4
Mazda 3 2004-2009
VEHICLE WIRE REFERENCE CHART
Wire
Description
Connector
Name
Connector
Color
Connector
Type Position Wire Color Polarity Wire
Location
CanH A ~ 16 pin 06 Gray/Yellow (DATA) OBDII connector, under driver side dash
CanL A ~ 16 pin 14 Blue/White (DATA) OBDII connector, under driver side dash
SWI 1 B ~ 24 pin 1N White/Black (DATA) Behind radio
SWI Feed B ~ 24 pin 1P Brown/Yellow (-) Behind radio

ADS-RR(SI)-MAZ01-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2020 5
Mazda 3 2004-2009
TROUBLESHOOTING TABLE
PROBLEM SOLUTION
Maestro features/steering wheel controls stop working after a few seconds. Ensure the GRAY/RED wire on the 18 pin connector of the RR is connected to
accessory power.
Gauges do not work, radio shows OBD2 Error 1 or Error 2. Ensure the BROWN/RED and BROWN/YELLOW wires are connected to the
OBDII (NOT the red/brown and yellow/brown wires).
Check connections at the OBDII connector. Make sure the BROWN/RED wire
is on PIN 6 and the BROWN/YELLOW wire is connected to PIN 14 of the
OBDII connector. Do not use T-Taps. Soldering or military splicing methods
are recommended.
Reset the RR.
The light on the Maestro is blinking RED TWICE. Ensure the 4-pin data cable is connected between the radio and the RR, and
that it is plugged into the black port on the Maestro RR. The red and blue
ports on the RR should be empty.
Make sure the correct radio model and serial number were entered during
the flash. Verify the radio’s serial number entered during the flash matches
what is listed on the radio screen. This can be found in the settings of the
radio, listed as Device Id, Device Number, or Serial Number.
The light on the Maestro is flashing RED once. There is no firmware on the module; flash the RR module.
MAESTRO RR RESET PROCEDURE:
Turn the key to the OFF position, then disconnect all connectors from the module.
Press and hold the module’s programming button and connect all the connectors back to the module. Wait, the module’s LED will flash RED rapidly (this may
take up to 10 seconds).
Release the programming button. Wait, the LED will turn solid GREEN for 2 seconds to show the reset was successful.
TECHNICAL ASSISTANCE
Phone: [phone]
Email: maestr[email protected]
Web: maestro.idatalink.com/support add www.12voltdata.com/forum/
IMPORTANT: To ensure proper operation, the aftermarket radio needs to have the latest firmware from the manufacturer. Please visit the radio
manufacturer’s website and look for any updates pertaining to your radio.

ELECTRONICS
Click here for:
Radar Installation Guides
2010-2013
Mazda 3
INSTALL GUIDE
RETAINS STEERING WHEEL CONTROLS AND ADDS GAUGES
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here
in are the properties of their respective owners.
PRODUCTS REQUIRED
iDatalink Maestro RR or RR2 Radio Replacement Interface
iDatalink Compatible Radio
PROGRAMMED FIRMWARE
ADS-RR(SI)-MAZ01-DS
ADDITIONAL RESOURCES
Maestro RR2 Programmable Outputs Guide
OR
OPTIONAL ACCESSORIES

ADS-RR(SI)-MAZ01-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2020 2
Mazda 3 2010-2013
WELCOME
NEED HELP?
Congratulations on the purchase
of your iDatalink Maestro RR Radio
replacement solution. You are
now a few simple steps away from
enjoying your new car radio with
enhanced features.
Before starting your installation,
please ensure that your iDatalink
Maestro module is programmed
with the correct firmware for your
vehicle and that you carefully review
the install guide.
Please note that Maestro RR will
only retain functionalities that
were originally available in the
vehicle.
TABLE OF CONTENTS
Wiring Diagram 3
Vehicle Wire Reference Chart 4
Troubleshooting Table 5
1 866 427-2999
maestro.idatalink.com/support
www.12voltdata.com/forum
[email protected]

ADS-RR(SI)-MAZ01-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2020 3
Mazda 3 2010-2013
1I 1K1E1B 1G
1H
1Q 1R 1T 1W1M 1O
1N 1P1J 1L
1A 1F1C 1D 1S 1X1U 1V
34561 2
17 18 19 20
7 8
21 22 15 16
11 12 13 149 10
23 24 25 26 27 28
2
10 11 12 13 14 15 16
1234567 8
9
OBDII CONNECTOR
LOCATED UNDER DRIVER SIDE DASH
MAESTRO RR MODULE
LOCATED BEHIND RADIO
SWI 1
SWI 1
SWI FEED
SWI FEED
PURPLE/RED -
PURPLE/RED - SWI CIRCUIT 1 INPUT
BLACK/WHITE -
BLACK/WHITE - SWI GROUND FEED (-) OUTPUT
WIRES FROM
VEHICLE
LOCATED AT BLUETOOTH MODULE, ABOVE PASSENGER KICK PANEL
SWI 2
SWI 2
PINK/RED -
PINK/RED - SWI CIRCUIT 2 INPUT
WIRING DIAGRAM
STEP 1
STEP 2
STEP 3
STEP 5
CONNECT IF THE VEHICLE IS
EQUIPPED WITH BLUETOOTH.
BROWN/YELLOW - CANL
CANH
CANH
CANL
CANL
BROWN/RED - CANH
NOTE: PIN SIDE VIEW. CONNECT TO TWISTED WIRES BEHIND CONNECTOR.
STEERING WHEEL
CONTROL CABLE
AUDIO
CABLE
NOT REQUIRED
DO NOT CONNECT
STEP 4 AFTERMARKET RADIO
YELLOW
BLACK
GRAY/RED
GRAY/YELLOW
RADIO BATTERY (+) WIRE
RADIO GROUND WIRE
RADIO ACCESSORY WIRE
RADIO VSS (IF EQUIPPED)
PIONEER RADIO: ENSURE THAT NOTHING IS PLUGGED IN W/R PORT.

ADS-RR(SI)-MAZ01-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2020 4
Mazda 3 2010-2013
VEHICLE WIRE REFERENCE CHART
Wire
Description
Connector
Name
Connector
Color
Connector
Type Position Wire Color Polarity Wire
Location
CanH A ~ 16 pin 06 White (DATA) OBDII connector, under driver side dash
CanL A ~ 16 pin 14 Red (DATA) OBDII connector, under driver side dash
SWI 1 B ~ 24 pin 1N Red (DATA) Behind radio
SWI 2 C ~ 28 pin 06 Pink (DATA) Bluetooth module, above passenger kick panel
SWI Feed B ~ 24 pin 1P Violet (-) Behind radio

ADS-RR(SI)-MAZ01-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2020 5
Mazda 3 2010-2013
TROUBLESHOOTING TABLE
PROBLEM SOLUTION
Maestro features/steering wheel controls stop working after a few seconds. Ensure the GRAY/RED wire on the 18 pin connector of the RR is connected to
accessory power.
Gauges do not work, radio shows OBD2 Error 1 or Error 2. Ensure the BROWN/RED and BROWN/YELLOW wires are connected to the
OBDII (NOT the red/brown and yellow/brown wires).
Check connections at the OBDII connector. Make sure the BROWN/RED wire
is on PIN 6 and the BROWN/YELLOW wire is connected to PIN 14 of the
OBDII connector. Do not use T-Taps. Soldering or military splicing methods
are recommended.
Reset the RR.
The light on the Maestro is blinking RED TWICE. Ensure the 4-pin data cable is connected between the radio and the RR, and
that it is plugged into the black port on the Maestro RR. The red and blue
ports on the RR should be empty.
Make sure the correct radio model and serial number were entered during
the flash. Verify the radio’s serial number entered during the flash matches
what is listed on the radio screen. This can be found in the settings of the
radio, listed as Device Id, Device Number, or Serial Number.
The light on the Maestro is flashing RED once. There is no firmware on the module; flash the RR module.
MAESTRO RR RESET PROCEDURE:
Turn the key to the OFF position, then disconnect all connectors from the module.
Press and hold the module’s programming button and connect all the connectors back to the module. Wait, the module’s LED will flash RED rapidly (this may
take up to 10 seconds).
Release the programming button. Wait, the LED will turn solid GREEN for 2 seconds to show the reset was successful.
TECHNICAL ASSISTANCE
Phone: [phone]
Email: maestr[email protected]
Web: maestro.idatalink.com/support add www.12voltdata.com/forum/
IMPORTANT: To ensure proper operation, the aftermarket radio needs to have the latest firmware from the manufacturer. Please visit the radio
manufacturer’s website and look for any updates pertaining to your radio.

ELECTRONICS
Click here for:
Radar Installation Guides
2014-2016
Mazda 3
INSTALL GUIDE
RETAINS STEERING WHEEL CONTROLS AND ADDS GAUGES
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here
in are the properties of their respective owners.
PRODUCTS REQUIRED
iDatalink Maestro RR or RR2 Radio Replacement Interface
iDatalink Compatible Radio
PROGRAMMED FIRMWARE
ADS-RR(SI)-MAZ01-DS
ADDITIONAL RESOURCES
Maestro RR2 Programmable Outputs Guide
OR
OPTIONAL ACCESSORIES

ADS-RR(SI)-MAZ01-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2020 2
Mazda 3 2014-2016
WELCOME
NEED HELP?
Congratulations on the purchase
of your iDatalink Maestro RR Radio
replacement solution. You are
now a few simple steps away from
enjoying your new car radio with
enhanced features.
Before starting your installation,
please ensure that your iDatalink
Maestro module is programmed
with the correct firmware for your
vehicle and that you carefully review
the install guide.
Please note that Maestro RR will
only retain functionalities that
were originally available in the
vehicle.
TABLE OF CONTENTS
Wiring Diagram 3
Vehicle Wire Reference Chart 4
Troubleshooting Table 5
1 866 427-2999
maestro.idatalink.com/support
www.12voltdata.com/forum
[email protected]

ADS-RR(SI)-MAZ01-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2020 3
Mazda 3 2014-2016
334561 2
17 18 19 20
78
21 22 15 16
11 12 13 149 10
23 24 25 26 27 28
4
10 11 12 13 14 15 16
1234567 8
9
OBDII CONNECTOR
LOCATED UNDER DRIVER SIDE DASH
MAESTRO RR MODULE
PURPLE/RED -
PURPLE/RED - SWI CIRCUIT 1 INPUT
LOCATED BEHIND RADIO
SWI 1
SWI 1
SWI FEEDSWI FEEDBLACK/WHITE - BLACK/WHITE - SWI GROUND FEED (-) OUTPUT
WIRES FROM
VEHICLE
WIRING DIAGRAM
STEP 1
STEP 2
STEP 4
BROWN/YELLOW - CANL
CANH
CANH
CANL
CANL
BROWN/RED - CANH
NOTE: PIN SIDE VIEW. CONNECT TO TWISTED WIRES BEHIND CONNECTOR.
SWI 2
SWI 2
PINK/RED -
PINK/RED - SWI CIRCUIT 2 INPUT
STEERING WHEEL
CONTROL CABLE
AUDIO
CABLE
NOT REQUIRED
DO NOT CONNECT
STEP 3 AFTERMARKET RADIO
YELLOW
BLACK
GRAY/RED
GRAY/YELLOW
RADIO BATTERY (+) WIRE
RADIO GROUND WIRE
RADIO ACCESSORY WIRE
RADIO VSS (IF EQUIPPED)
PIONEER RADIO: ENSURE THAT NOTHING IS PLUGGED IN W/R PORT.

ADS-RR(SI)-MAZ01-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2020 4
Mazda 3 2014-2016
VEHICLE WIRE REFERENCE CHART
Wire
Description
Connector
Name
Connector
Color
Connector
Type Position Wire Color Polarity Wire
Location
CanH A ~ 16 pin 06 Brown (DATA) OBDII connector, under driver side dash
CanL A ~ 16 pin 14 Yellow (DATA) OBDII connector, under driver side dash
SWI 1 B ~ 28 pin 21 Gray (DATA) Behind radio
SWI 2 B ~ 28 pin 22 Pink (DATA) Behind radio
SWI Feed B ~ 28 pin 08 Blue (-) Behind radio
