iDataLink maestro mus1 User manual

QSG201309
QUICK START GUIDE
THIS INSTALLATION REQUIRES AN IDATALINK
MAESTRO RR MODULE SOLD SEPARATELY.

1
2
3
877.212.6169
6 STEPS TO GET STARTED
INSTALL THE WEBLINK
PLUG-IN
Go to:
idatalinkmaestro.com/plugin and
follow the installation steps.
Review the System Requirements
before installing.
REGISTER A WEBLINK
ACCOUNT
Go to:
idatalinkmaestro.com/register and
complete the registration process.
A confirmation email will be sent to you
requiring validation.
CONNECT YOUR MAESTRO RR
Use the included USB cable to connect
your Maestro RR module to your PC.
Maestro RR module required and sold separately.
NEED HELP?

4
5
6
LOG INTO WEBLINK
Go to:
idatalinkmaestro.com/login.
Enter your username and
password, then click OK.
PROGRAM YOUR MODULE
Follow the installation steps
until your module is flashed and
download your install guide from
the Web.
Be sure to choose the MUS1 dash kit
accessory in STEP 4.
COMPLETE INSTALLATION
Follow the steps of the install
guide for Maestro RR with MUS1
Dash Kit and complete the
installation.
ADS recommends having this product
installed by a certified technician.

© Automotive Data Solutions Inc.
Automotive Data Solutions Inc. (“ADS”) warrants to the original purchaser that this product shall be free of
defects in material and workmanship under normal use and circumstances, for the period of one (1) year
as of the original date of purchase.
In the event of any product malfunction during the Warranty period, the original purchaser must return
to the Authorized Dealer where it was originally purchased with the original proof of purchase. If a
malfunction is detected, the Authorized Dealer will elect to repair or replace the product at its discretion.
Labor costs may be applicable and are at the discretion of the Authorized Dealer.
ADS is not responsible for any damages whatsoever, including but not limited to any consequential
damages, incidental damages for loss of time, loss of earnings, commercial loss of economic opportunity
and the like that may or may not have resulted from the installation or operation of an iDatalink Maestro
product.
USER-CONFIGURABLE BUTTON BAR
HEATED SEATS INCREASE FAN SPEED
REAR
DEFROST
CLIMATE
CONTROL SCREEN
COOLED SEATS DECREASE FAN SPEED
AIR CONDITIONING VEHICLE INFORMATION
SCREEN
FRONT DEFROST GENERIC 1
MAX. AIR CONDITIONING GENERIC 2
PERFORMANCE GAUGES
SCREEN
DECREASE TEMPERATURE
GENERIC 3
BLANK
INCREASE TEMPERATURE
15 BUTTONS TO CHOOSE FROM
1 YEAR LIMITED WARRANTY

NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in
are the properties of their respective owners.

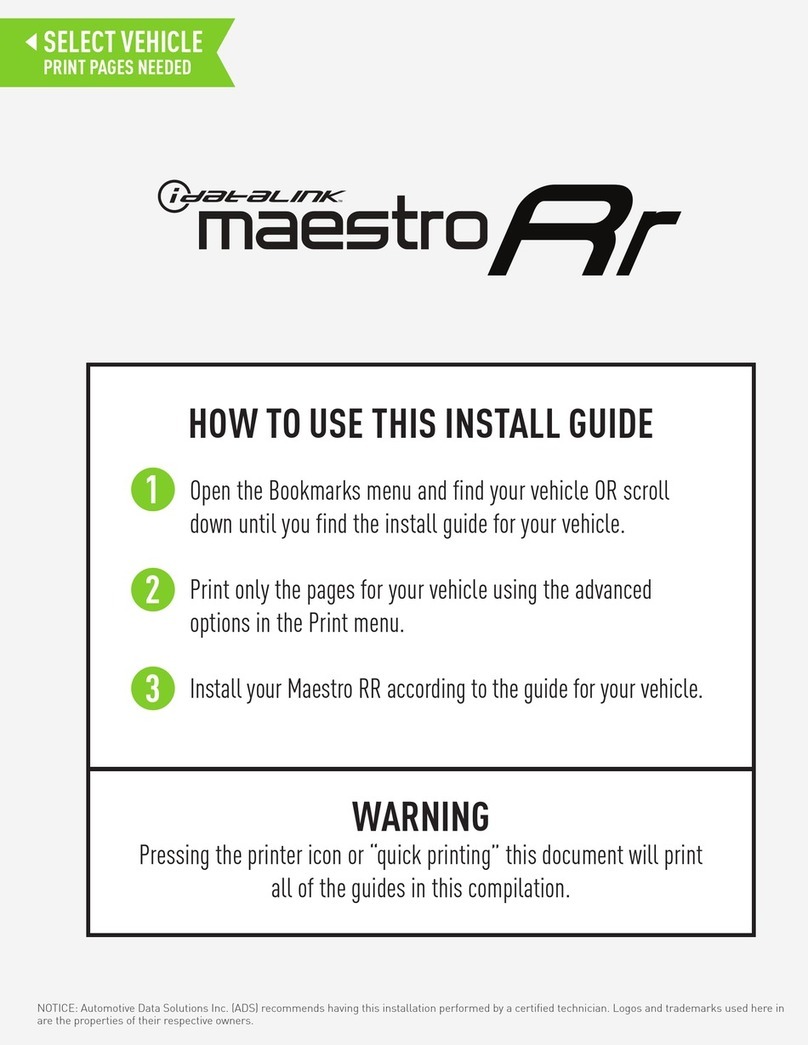

WARNING
Pressing the printer icon or “quick printing” this document will print
all of the guides in this compilation.
Open the Bookmarks menu and find your vehicle OR scroll
down until you find the install guide for your vehicle.
Print only the pages for your vehicle using the advanced
options in the Print menu.
Install your Maestro RR according to the guide for your vehicle.
HOW TO USE THIS INSTALL GUIDE
1
2
3
SELECT VEHICLE
PRINT PAGES NEEDED

OPTIONAL ACCESSORIES
None
PROGRAMMED FIRMWARE
ADS-RR(SR)-FOR01-DS2
PRODUCTS REQUIRED

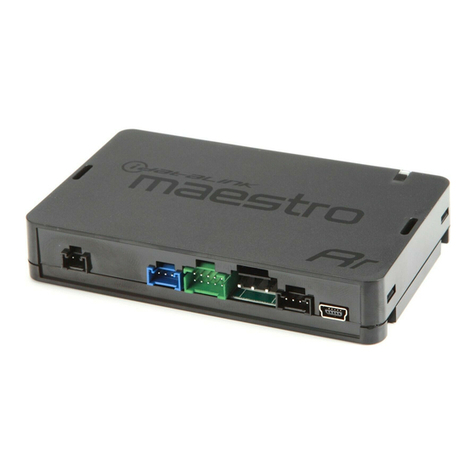

iDatalink Maestro RR Radio Replacement Interface
iDatalink Maestro MUS1 Dash Kit
INSTALL GUIDE
FORD MUSTANG
BASE 20102012
retains steering wheel controls sync commands, sync Bt and more!
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here
in are the properties of their respective owners.

ADS-RR(SR)-FOR01-DS2 maestro.idatalink.com
Ford mustang Base 2010-2012
Automotive Data Solutions Inc. © 2014 2
WELCOME
NEED HELP?
Congratulations on the purchase
of your iDatalink Maestro RR Radio
replacement solution. You are
now a few simple steps away from
enjoying your new car radio with
enhanced features.
Before starting your installation,
please ensure that your iDatalink
Maestro module is programmed
with the correct firmware for your
vehicle and that you carefully review
the install guide.
Please note that Maestro RR will
only retain functionalities that
were originally available in the
vehicle.
1 866 427-2999
[email protected]
maestro.idatalink.com/support
www.12voltdata.com/forum
TABLE OF CONTENTS
Installation Instructions 3
Wiring Diagram 6
Vehicle Wire Reference Chart 7
Radio Wire Reference Chart 8

ADS-RR(SR)-FOR01-DS2 maestro.idatalink.com
Ford mustang Base 2010-2012
Automotive Data Solutions Inc. © 2014 3
INSTALLATION INSTRUCTIONS
STEP 1
• Unbox the MUS1 dash kit and the aftermarket radio.
• Insert the storage pocket into the backside of the MUS1
radio panel and secure it with the screws included in the
dash kit. (1.1)
• Choose 3 button covers and secure them onto the button
bar (1.2 & 1.3)
• Secure the MUS1 steel radio brackets to the aftermarket
radio using the screws included with the aftermarket radio.
(1.4)
NOTE: To replace a button cover, unscrew the button bar
from the backside of the dash kit and remove the button
cover carefully.
STEP 2
(with SYNC only)
• Unscrew and remove the 4 screws located underthe glove
box then open and remove the glove box carefully. (2.1 &
2.2)
• Locate the SWI 2 wire in the vehicle SYNC harness: small
gauge BLUE/ORANGE wire. Warning: a bigger gauge blue/
red wire is located in the harness.) (2.3-2.5)
• Use a multimeter to test the SWI 2 wire.
• Connect the BLACK test probe to ground (-) and connect
the RED test probe to the wire SWI 2 wire. Have the
ignition and the radio ON. If the SWI 2 wire is connected,
the multimeter will display approximately 5 volts. This
value will drop upon pressing the steering wheel voice,
phone or OK button. Once the SWI 2 wire is located and
tested, go to the next step.
A/C
Fig. 1.1 Fig. 1.2
Fig. 1.3 Fig. 1.4
Fig. 2.1
Fig. 2.3
Fig. 2.2
Fig. 2.4
Fig. 2.5
4

ADS-RR(SR)-FOR01-DS2 maestro.idatalink.com
Ford mustang Base 2010-2012
Automotive Data Solutions Inc. © 2014 4
INSTALLATION INSTRUCTIONS
STEP 3
• Remove the shifter cover then remove the central console
cover carefully. (3.1, 3.2)
• Unscrew and remove the original radio panel. The plug
from this panel will not be reused. (3.3)
• Disconnect the factory radio and keep its factory harness
accessible for later use. (3.4)
STEP 4
• Cut the WHITE, GRAY, GREEN and PURPLE RCA tips.
Connect every wire to the aftermarket radio main harness
and match the wire colors.
• Connect every wire from the aftermarket radio main
harness to the MUS1 T-harness and match the wire colors.
(Refer to Diagram)
STEP 5
(with SYNC only)
• Cut the SWI 2 INPUT wire.
• Connect the PINK/RED wire of MUS1 T-harness to the SWI
2 INPUT wire going to the steering wheel. Insulate the wire
side going to the SYNC module and plug the SYNC harness
into the SYNC module.
STEP 6
• Connect the factory harness to the MUS1 T-harness.
Connect only the available connectors. For example, if the
factory harness has two connectors, connect only these
two connectors.
STEP 7
• Access the OBDII connector located under the driver side
dashboard.
• Connect the RED/BROWN wire of MUS1 T-harness to
WHITE/BLUE wire of the OBDII connector located at pin 6.
• Connect the YELLOW/BROWN wire of MUS1 T-harness to
the WHITE wire of the OBDII connector located at pin 14.
STEP 8
• Plug the aftermarket radio harnesses into the aftermarket
radio.
• Plug the Data cable to the data port of the aftermarket
radio.
• Insert the Audio cable into the iDatalink 3.5 mm audio jack
of the aftermarket radio.
• Insert the RCA connectors into the aftermarket radio.
NOTES:
The RCA connectors labeled SUB IN are not used.
The RCA connectors labeled AUX IN can be used to
connect the factory 3.5 mm audio jack, in vehicles that
are NOT equipped with SYNC, to the auxiliary input of the
aftermarket radio.
STEP 9
• Secure the aftermarket radio in the dashboardhousing.
• Connect all the harnesses to the Maestro RR module.
STEP 10
• Connect all the harnesses to the MUS1 radio panel then
program the module.
Fig. 3.1 Fig. 3.2
Fig. 3.3 Fig. 3.4
4

ADS-RR(SR)-FOR01-DS2 maestro.idatalink.com
Ford mustang Base 2010-2012
Automotive Data Solutions Inc. © 2014 5
INSTALLATION INSTRUCTIONS
MODULE PROGRAMMING
• Open the vehicle driver door, insert the key into the ignition
and turn it to the ACC position.
• The OEM Bluetooth is OFF by default. To activate it, go to
the radio screen, scroll down to FORD SETUP, press SET,
go to the OEM Bluetooth and press ON, then Press the
BACK button (circular shaped arrow).
• Scroll down, press FINISH and wait. Press START, then
press NEXT.
• Now follow the radio screen instructions while performing
the following steps: Turn the key to the OFF position, then
to the ACC position, turn it back to the OFF position, then to
the ACC position.
The module is now programmed and ready to be used. To
access the new menus, press on FORD FEATURES.
• Test all the functionalities then reassemble the dashboard
carefully.
TROUBLESHOOTING TIPS
• To reset the module back its factory settings, turn the key
to the OFF position then disconnect all connectors from the
module. Press and hold the module’s programming button
and connect all the connectors back to the module. Wait,
the module’s LED will fl ash RED rapidly (this may take up
to 10 seconds). Release the programming button. Wait, the
LED will turn solid GREEN for 2 seconds.
• For technical assistance call 1-866-427-2999 or e-mail
“[email protected]”. Visit us at “maestro.idatalink.
com/support” and “www.12voltdata.com/forum/”
1

ADS-RR(SR)-FOR01-DS2 maestro.idatalink.com
Ford mustang Base 2010-2012
Automotive Data Solutions Inc. © 2014 6
C
A
H
F
G
D
E
C
A
G
F
E
H
D
AUX INAUX IN
X
Y
Z
X
Y Z
4
10 11 12 13 14 15 16
1234567 8
9
SUB INSUB IN
WIRES FROM
VEHICLE
CONNECT AUX IN
ONLY IF YOU DON’T HAVE SYNC
MAESTRO RR MODULE
WHITE - LF SPEAKER (+)
WHITE/BLACK - LF SPEAKER (-)
GRAY - RF SPEAKER (+)
GRAY/BLACK - RF SPEAKER (-)
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
BROWN (NOT CONNECTED)
ORANGE - PARKING LIGHT (+)
PURPLE/WHITE - REVERSE LIGHT (+)
PINK - VEHICLE SPEED
LTGREEN - E-BRAKE (-)
BLUE/WHITE - AMP. TURN ON (+)
MAIN
HARNESS
DATA
CABLE
AUDIO
CABLE
PURPLE - RR SPEAKER (+)
CONNECT TO
AFTERMARKET RADIO
RCA CABLES
FACTORY RADIO HARNESS
SYNC HARNESS
PINK/RED - SWI 2 (-) INPUT INSULATE
WIRE
SYNC
MODULE SIDE
STEERING
WHEEL SIDE
RED/BROWN - CAN2H
YELLOW/BROWN - CAN2L
OBDII CONNECTOR
MUS1 T-HARNESS
USB CABLES

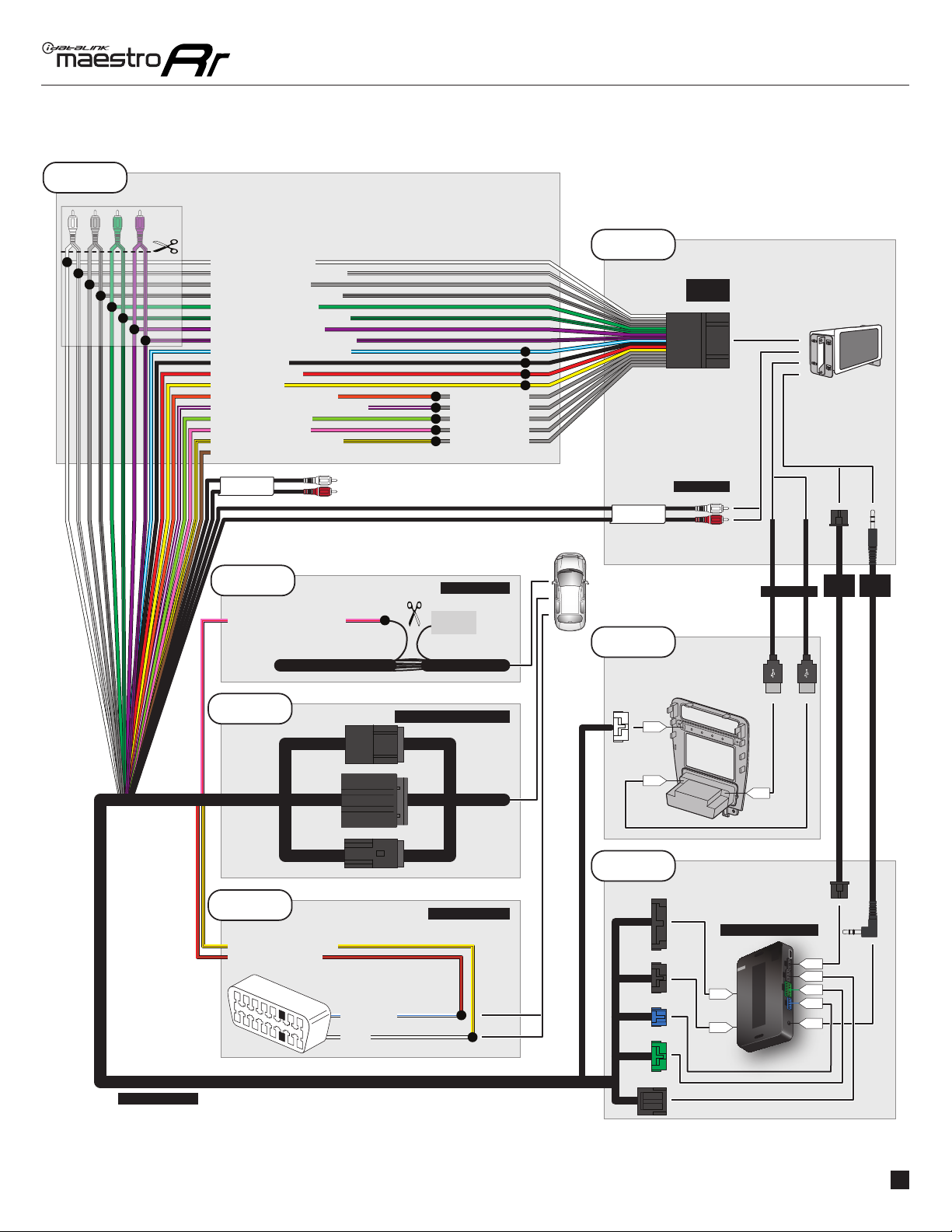

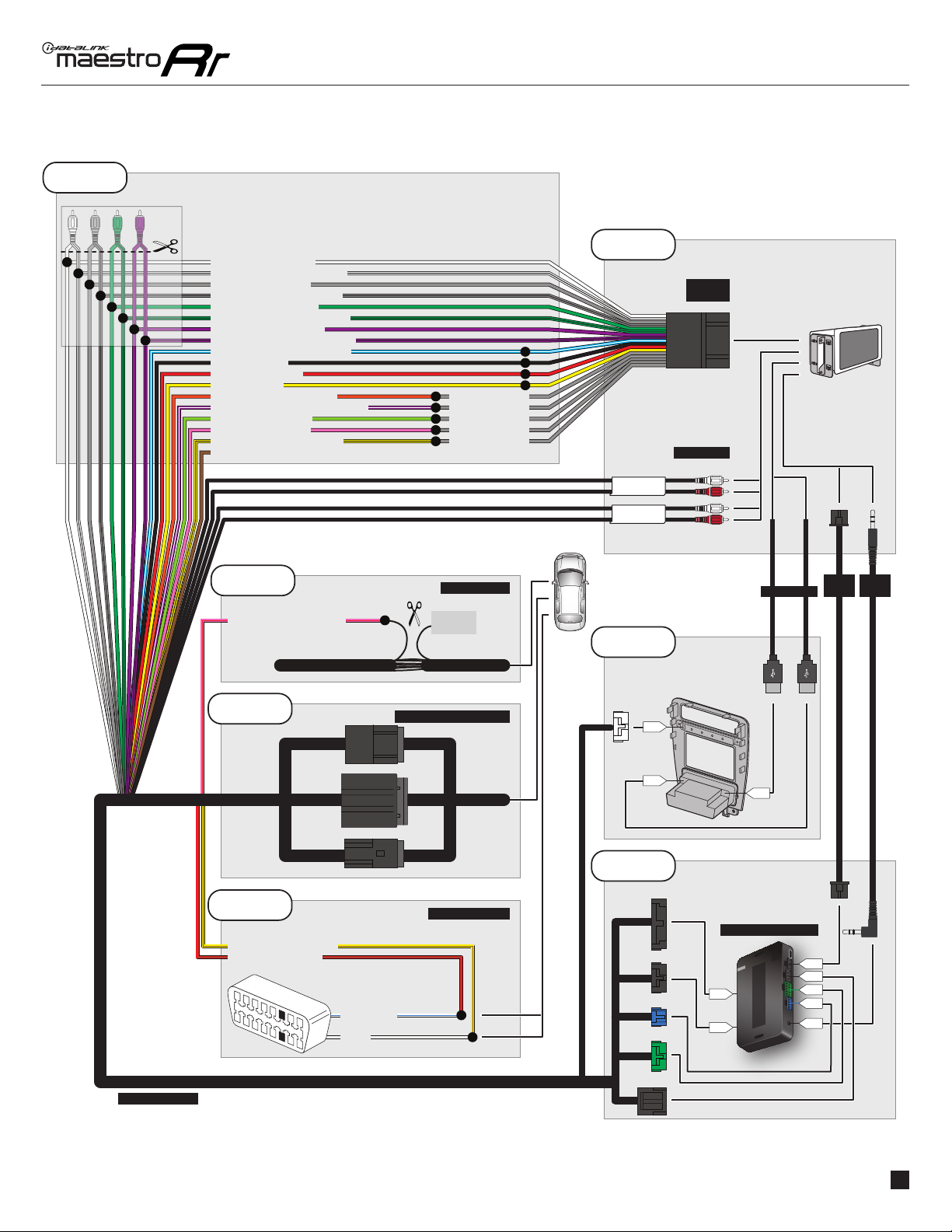

WIRING DIAGRAM
STEP 4
STEP 5
STEP 6
STEP 7
STEP 8
STEP 9
STEP 10
CUT AND REMOVE
THE RCA JACKS
LOOK FOR THE TWISTED WIRES
SEE RADIO
WIRE REFERENCE
CHART FOR
RADIO WIRE
COLORS
WHITE/BLUE
WHITE
NOT CONNECTED
YELLOW/BLACK - FOOT BRAKE

ADS-RR(SR)-FOR01-DS2 maestro.idatalink.com
Ford mustang Base 2010-2012
Automotive Data Solutions Inc. © 2014 7
VEHICLE WIRE REFERENCE CHART
Wire
Description
Connector
Name
Connector
Color
Connector
Type Position Wire Color Polarity Module
Location
Component
Locator
Can2H OBDII ~ 16 pin 06 White/Blue (DATA) OBDII connector, under driver side dash ~
Can2L OBDII ~ 16 pin 14 White (DATA) OBDII connector, under driver side dash ~
SWI 2 ~ ~ ~ ~ Blue/Orange (MUX) Sync unit, behind glove box ~

ADS-RR(SR)-FOR01-DS2 maestro.idatalink.com
Ford mustang Base 2010-2012
Automotive Data Solutions Inc. © 2014 8
RADIO WIRE REFERENCE CHART
Wire
Description Polarity Wire Color on Maestro
T-Harness Wire Color on Alpine cable Wire Color on Kenwood cable Wire Color on Pioneer cable
Parking Light (+) Orange N/A Orange/White Orange/White
Reverse Light (+) Purple/White Orange/White Purple/White Purple/White
E-Brake (-) Lt Green Yellow/Blue Lt Green Lt Green
Foot Brake (+) Yellow/Black Yellow/Black N/A N/A
VSS (vehicle speed sensor) (DATA) Pink Green/White N/A Pink

OPTIONAL ACCESSORIES
None
PROGRAMMED FIRMWARE
ADS-RR(SR)-FOR01-DS2
PRODUCTS REQUIRED
iDatalink Maestro RR Radio Replacement Interface
iDatalink Maestro MUS1 Dash Kit
INSTALL GUIDE
FORD MUSTANG
SHAKER 500 & 1000 20102012
retains steering wheel controls sync commands, sync Bt and more!
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here
in are the properties of their respective owners.

ADS-RR(SR)-FOR01-DS2 maestro.idatalink.com
Ford mustang shaker 500 & 1000 2010-2012
Automotive Data Solutions Inc. © 2014 2
WELCOME
NEED HELP?
Congratulations on the purchase
of your iDatalink Maestro RR Radio
replacement solution. You are
now a few simple steps away from
enjoying your new car radio with
enhanced features.
Before starting your installation,
please ensure that your iDatalink
Maestro module is programmed
with the correct firmware for your
vehicle and that you carefully review
the install guide.
Please note that Maestro RR will
only retain functionalities that
were originally available in the
vehicle.
1 866 427-2999
[email protected]
maestro.idatalink.com/support
www.12voltdata.com/forum
TABLE OF CONTENTS
Installation Instructions 3
Wiring Diagram 6
Vehicle Wire Reference Chart 7
Radio Wire Reference Chart 8

ADS-RR(SR)-FOR01-DS2 maestro.idatalink.com
Ford mustang shaker 500 & 1000 2010-2012
Automotive Data Solutions Inc. © 2014 3
INSTALLATION INSTRUCTIONS
STEP 1
• Unbox the MUS1 dash kit and the aftermarket radio.
• Insert the storage pocket into the backside of the MUS1
radio panel and secure it with the screws included in the
dash kit. (1.1)
• Choose 3 button covers and secure them onto the button
bar (1.2 & 1.3)
• Secure the MUS1 steel radio brackets to the aftermarket
radio using the screws included with the aftermarket radio.
(1.4)
NOTE: To replace a button cover, unscrew the button bar
from the backside of the dash kit and remove the button
cover carefully.
STEP 2
(with SYNC only)
• Unscrew and remove the 4 screws located underthe glove
box then open and remove the glove box carefully. (2.1 &
2.2)
• Locate the SWI 2 wire in the vehicle SYNC harness: small
gauge BLUE/ORANGE wire. Warning: a bigger gauge blue/
red wire is located in the harness.) (2.3-2.5)
• Use a multimeter to test the SWI 2 wire.
• Connect the BLACK test probe to ground (-) and connect
the RED test probe to the wire SWI 2 wire. Have the
ignition and the radio ON. If the SWI 2 wire is connected,
the multimeter will display approximately 5 volts. This
value will drop upon pressing the steering wheel voice,
phone or OK button. Once the SWI 2 wire is located and
tested, go to the next step.
A/C
Fig. 1.1 Fig. 1.2
Fig. 1.3 Fig. 1.4
Fig. 2.1
Fig. 2.3
Fig. 2.2
Fig. 2.4
Fig. 2.5
1

ADS-RR(SR)-FOR01-DS2 maestro.idatalink.com
Ford mustang shaker 500 & 1000 2010-2012
Automotive Data Solutions Inc. © 2014 4
INSTALLATION INSTRUCTIONS
STEP 3
• Remove the shifter cover then remove the central console
cover carefully. (3.1, 3.2)
• Unscrew and remove the original radio panel. The plug
from this panel will not be reused. (3.3)
• Disconnect the factory radio and keep its factory harness
accessible for later use. (3.4)
STEP 4
• Cut the WHITE, GRAY, GREEN and PURPLE RCA tips.
Connect every wire to the aftermarket radio main harness
and match the wire colors.
• Connect every wire from the aftermarket radio main
harness to the MUS1 T-harness and match the wire colors.
(Refer to Diagram)
STEP 5
(with SYNC only)
• Cut the SWI 2 INPUT wire.
• Connect the PINK/RED wire of MUS1 T-harness to the SWI
2 INPUT wire going to the steering wheel. Insulate the wire
side going to the SYNC module and plug the SYNC harness
into the SYNC module.
STEP 6
• Connect the factory harness to the MUS1 T-harness.
Connect only the available connectors. For example, if the
factory harness has two connectors, connect only these
two connectors.
STEP 7
• Access the OBDII connector located under the driver side
dashboard.
• Connect the RED/BROWN wire of MUS1 T-harness to
WHITE/BLUE wire of the OBDII connector located at pin 6.
• Connect the YELLOW/BROWN wire of MUS1 T-harness to
the WHITE wire of the OBDII connector located at pin 14.
STEP 8
• Plug the aftermarket radio harnesses into the aftermarket
radio.
• Plug the Data cable to the data port of the aftermarket
radio.
• Insert the Audio cable into the iDatalink 3.5 mm audio jack
of the aftermarket radio.
• Insert the RCA connectors into the aftermarket radio.
NOTES:
The RCA connectors labeled SUB IN can be used to
feed the subwoofer channel of the factory amplifier.
The RCA connectors labeled AUX IN can be used to
connect the factory 3.5 mm audio jack, in vehicles that
are NOT equipped with SYNC, to the auxiliary input of the
aftermarket radio.
STEP 9
• Secure the aftermarket radio in the dashboardhousing.
• Connect all the harnesses to the Maestro RR module.
STEP 10
• Connect all the harnesses to the MUS1 radio panel then
program the module.
Fig. 3.1 Fig. 3.2
Fig. 3.3 Fig. 3.4
1

ADS-RR(SR)-FOR01-DS2 maestro.idatalink.com
Ford mustang shaker 500 & 1000 2010-2012
Automotive Data Solutions Inc. © 2014 5
INSTALLATION INSTRUCTIONS
MODULE PROGRAMMING
• Open the vehicle driver door, insert the key into the ignition
and turn it to the ACC position.
• The OEM Bluetooth is OFF by default. To activate it, go to
the radio screen, scroll down to FORD SETUP, press SET,
go to the OEM Bluetooth and press ON, then Press the
BACK button (circular shaped arrow).
• Scroll down, press FINISH and wait. Press START, then
press NEXT.
• Now follow the radio screen instructions while performing
the following steps: Turn the key to the OFF position, then
to the ACC position, turn it back to the OFF position, then to
the ACC position.
The module is now programmed and ready to be used. To
access the new menus, press on FORD FEATURES.
• Test all the functionalities then reassemble the dashboard
carefully.
TROUBLESHOOTING TIPS
• To reset the module back its factory settings, turn the key
to the OFF position then disconnect all connectors from the
module. Press and hold the module’s programming button
and connect all the connectors back to the module. Wait,
the module’s LED will fl ash RED rapidly (this may take up
to 10 seconds). Release the programming button. Wait, the
LED will turn solid GREEN for 2 seconds.
• For technical assistance call 1-866-427-2999 or e-mail
“[email protected]”. Visit us at “maestro.idatalink.
com/support” and “www.12voltdata.com/forum/”
1

ADS-RR(SR)-FOR01-DS2 maestro.idatalink.com
Ford mustang shaker 500 & 1000 2010-2012
Automotive Data Solutions Inc. © 2014 6
C
A
H
F
G
D
E
C
A
G
F
E
H
D
AUX INAUX IN
SUB INSUB IN
X
Y
Z
X
Y Z
1
10 11 12 13 14 15 16
1234567 8
9
WIRES FROM
VEHICLE
CONNECT AUX IN
ONLY IF YOU DON’T HAVE SYNC
MAESTRO RR MODULE
MAIN
HARNESS
DATA
CABLE
AUDIO
CABLE
CONNECT TO
AFTERMARKET RADIO
RCA CABLES
FACTORY RADIO HARNESS
SYNC HARNESS
PINK/RED - SWI 2 (-) INPUT INSULATE
WIRE
SYNC
MODULE SIDE
STEERING
WHEEL SIDE
RED/BROWN - CAN2H
YELLOW/BROWN - CAN2L
OBDII CONNECTOR
MUS1 T-HARNESS
USB CABLES
WIRING DIAGRAM
STEP 5
STEP 6
STEP 7
STEP 8
STEP 9
STEP 10
LOOK FOR THE TWISTED WIRES
WHITE/BLUE
WHITE
WHITE - LF SPEAKER (+)
WHITE/BLACK - LF SPEAKER (-)
GRAY - RF SPEAKER (+)
GRAY/BLACK - RF SPEAKER (-)
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
BROWN (NOT CONNECTED)
ORANGE - PARKING LIGHT (+)
PURPLE/WHITE - REVERSE LIGHT (+)
PINK - VEHICLE SPEED
LTGREEN - E-BRAKE (-)
BLUE/WHITE - AMP. TURN ON (+)
PURPLE - RR SPEAKER (+)
STEP 4
CUT AND REMOVE
THE RCA JACKS
SEE RADIO
WIRE REFERENCE
CHART FOR
RADIO WIRE
COLORS
YELLOW/BLACK - FOOT BRAKE

ADS-RR(SR)-FOR01-DS2 maestro.idatalink.com
Ford mustang shaker 500 & 1000 2010-2012
Automotive Data Solutions Inc. © 2014 7
VEHICLE WIRE REFERENCE CHART
Wire
Description
Connector
Name
Connector
Color
Connector
Type Position Wire Color Polarity Module
Location
Component
Locator
Can2H OBDII ~ 16 pin 06 White/Blue (DATA) OBDII connector, under driver side dash ~
Can2L OBDII ~ 16 pin 14 White (DATA) OBDII connector, under driver side dash ~
SWI 2 ~ ~ ~ ~ Blue/Orange (MUX) Sync unit, behind glove box ~
