iDataLink maestro Rr User manual

NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in
are the properties of their respective owners.
WARNING
Pressing the printer icon or “quick printing” this document will print
all of the guides in this compilation.
Open the Bookmarks menu and find your vehicle OR scroll
down until you find the install guide for your vehicle.
Print only the pages for your vehicle using the advanced
options in the Print menu.
Install your Maestro RR according to the guide for your vehicle.
HOW TO USE THIS INSTALL GUIDE
1
2
3
SELECT VEHICLE
PRINT PAGES NEEDED

20192022
SUBARU ASCENT
WITH AMPLIFIER
INSTALL GUIDE
RETAINS STEERING WHEEL CONTROLS, FACTORY AMPLIFIER, AND MORE!
+
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here
in are the properties of their respective owners.
PRODUCTS REQUIRED
iDatalink Maestro RR2 Radio Replacement Interface
iDatalink Maestro RR-SU3 Installation Harness
Non-iDatalink compatible radio
PROGRAMMED FIRMWARE: SU3-RR2-AS

SU3-RR2-AS-(RR-SU3)-EN maestro.idatalink.com
SUBARU ASCENT WITH AMPLIFIER 20192022
Automotive Data Solutions Inc. © 2023 2
Configuring the RR2’s Programmable
Outputs
Maestro RR2 Programmable
Outputs Guide
Installation, product information, vehicle
specific videos. VIDEO HELP
Last flash information, steering control
configuration, vehicle information. VERIFY FLASH
Software to program module. WEBLINK
WELCOME
Congratulations on the purchase
of your iDatalink Maestro RR Radio
replacement solution. You are
now a few simple steps away from
enjoying your new car radio with
enhanced features.
Before starting your installation,
please ensure that your iDatalink
Maestro module is programmed
with the correct firmware for your
vehicle and that you carefully review
the install guide.
Please note that Maestro RR will
only retain functionalities that
were originally available in the
vehicle.
NEED HELP?
1 866 427-2999
[email protected]
ADDITIONAL INFORMATION AND
ACCESSORIES

SU3-RR2-AS-(RR-SU3)-EN maestro.idatalink.com
SUBARU ASCENT WITH AMPLIFIER 20192022
Automotive Data Solutions Inc. © 2023 3
STEP 1
• Unbox the aftermarket radio and locate its main harness.
• Connect the wires from aftermarket radio main harness to
the SU3 T-harness and match the wire functions.
• Remove the factory radio.
Note: only connect purple/white wire to radio reverse input or
module damage will occur.
STEP 2
• Assemble the SU3 T-harness and connect it to the factory
radio harness.
STEP 3
• Plug the OBDII connector into the OBDII of the vehicle,
under driver dash.
STEP 4
• Plug the aftermarket radio harnesses into the aftermarket
radio.
• Plug the RCA connectors to the aftermarket radio.
• Plug the AUX cable to the aftermarket radio.
• Plug the Backup camera cable to the aftermarket radio.
• Connect either the blue/yellow wire (Kenwood/JVC) or the
3.5mm to the steering control input of the radio.
STEP 5
• Connect all the harnesses to the Maestro RR2 module then
test your installation.
Reverse Automatic Braking (RAB)
When in reverse, RAB and Parking Sensor buttons are
controlled by:
RAB ON/OFF - Tap left side of radio screen or SEEK DOWN
on the steering wheel.
Parking Sensor ON/OFF - Tap right side of radio screen or
SEEK UP on the steering wheel.
Note: On-screen controls require a radio that supports touch
screen control of the camera, but the steering wheel controls
will work regardless of radio.
2
INSTALLATION INSTRUCTIONS P1 /1

SU3-RR2-AS-(RR-SU3)-EN maestro.idatalink.com
SUBARU ASCENT WITH AMPLIFIER 20192022
Automotive Data Solutions Inc. © 2023 4
2
AUXAUX
BACKUP CAMBACKUP CAM
NC
NC
2
3
4
4
4
18
28
6
10
3
10
6
18
5
16
MAESTRO RR2 MODULE
STEP 1
MAIN
HARNESS
SU3 T-HARNESS
GREEN
GREEN/BLACK
PURPLE/BLACK
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
BLUE/WHITE - AMP. TURN ON (+)
PURPLE
STEP 4
STEP 5
ORANGE - ILLUMINATION (+)
PURPLE/WHITE - REVERSE LIGHT (+) *
LTGREEN - E-BRAKE (-)
BLUE - POWER ANTENNA
PINK - VEHICLE SPEED
WIRING DIAGRAM
WIRES FROM
VEHICLE
FACTORY RADIO HARNESS
STEP 2
STEP 3 OBDII CONNECTOR
CONNECT TO
AFTERMARKET RADIO
NOT REQUIRED
WHITE
WHITE/BLACK
GRAY
GRAY/BLACK
LF RCA INPUT
RF RCA INPUT
AUDIO
CABLE
DATA
CABLE
STEERING WHEEL
CONTROL CABLE
-
CONNECT
IF THERE IS
A MATCH
-
* ONLY CONNECT TO RADIO REVERSE INPUT
OR MODULE DAMAGE WILL OCCUR
OR

SU3-RR2-AS-(RR-SU3)-EN maestro.idatalink.com
SUBARU ASCENT WITH AMPLIFIER 20192022
Automotive Data Solutions Inc. © 2023 5
RADIO WIRE REFERENCE CHART
Wire
Description Polarity Wire Color on Maestro
T-Harness Wire Color on Alpine cable Wire Color on Kenwood/JVC
cable Wire Color on Pioneer cable
Illumination (+) Orange N/A Orange/White Orange/White
Reverse Light (+) Purple/White Orange/White Purple/White Purple/White
E-Brake (-) Lt Green Yellow/Blue Lt Green Lt Green
VSS (vehicle speed sensor) (DATA) Pink Green/White Pink Pink
Power Antenna (+) Blue Blue Blue N/A
Other brands, refer to aftermarker radio guide.

SU3-RR2-AS-(RR-SU3)-EN maestro.idatalink.com
SUBARU ASCENT WITH AMPLIFIER 20192022
Automotive Data Solutions Inc. © 2023 6

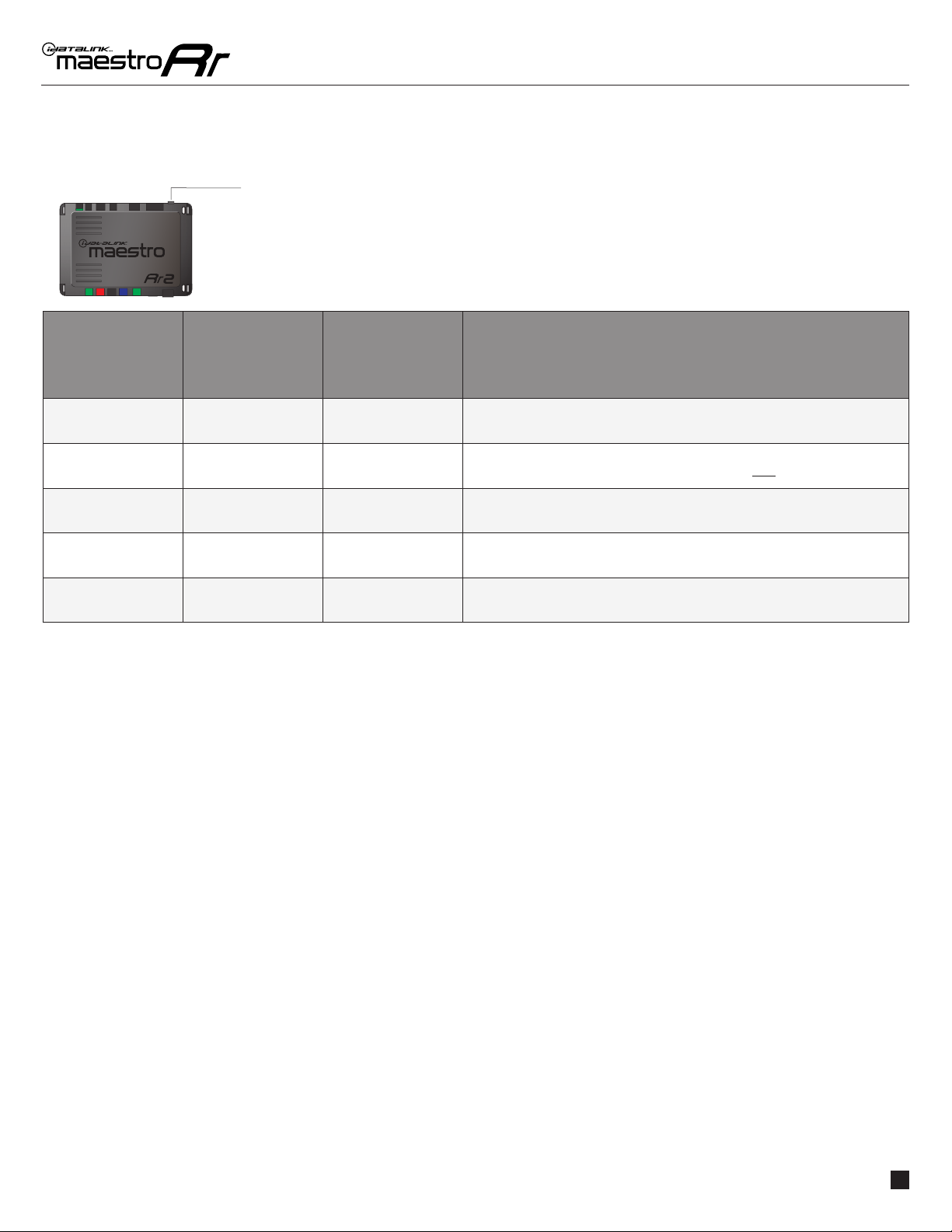

MODULE DIAGNOSTICS
LED 2
LED 1
PROGRAMMING BUTTON
LED 1
Module/Firmware
status
LED 2 (RR2)
Bluetooth activity
LED STATUS DIAGNOSTIC
• or •RED or GREEN
flashing
LED flashes 1 or more times, either red or green, when a steering wheel
button is pressed : normal operation.
•1 RED flash Module has no firmware.
Flash module using Weblink Desktop and log in. Do NOT use DEMO MODE.
•1 GREEN flash After radio boots up : Normal operation.
•3 GREEN flashes Bluetooth is activated.
Turns off after one minute: Normal operation.
• • OFF Normal operation (inactive).

SU3-RR2-AS-(RR-SU3)-EN maestro.idatalink.com
SUBARU ASCENT WITH AMPLIFIER 20192022
Automotive Data Solutions Inc. © 2023 7
TROUBLESHOOTING TABLE
PROBLEM SOLUTION
Steering wheel controls do not work but LED on the Maestro does blink
when steering wheel buttons are pressed.
Ensure the blue 4-pin steering wheel control cable is connected between the
Maestro and the radio. The radio will use either the 3.5mm jack OR the blue/
yellow wire, not both.
Connect the 3.5mm jack from the Maestro blue 4-pin cable to the radio’s
3.5mm port (labeled steering, remote, or wheel). If no such port exists, wire
the blue/yellow to blue/yellow (Kenwood/JVC) or to the radio’s Key 1 wire
(brands not listed/other) and secure the 3.5mm jack. It will not be used.
Verify the buttons are set up in the flash. If any button is set to “none” for
“press once”, it will do nothing. “Hold” column can be left as none and the
“press once” function will operate with one press and when holding the
button.
Refer to radio’s owner’s manual to verify if the radio has this function:
• JVC/Kenwood : Steering Wheel Control (ON/OFF): choose ON
• Nakamichi : if model is listed, ensure PAC mode is on. If “other”, learn the
buttons in the radio steering wheel menu.
• Sony : Steering Wheel Control (Custom/Preset): choose Preset. If phone
buttons do not operate properly, flash the module as Pioneer – 2009 and
newer with BT. Then select “custom” instead of “preset” and learn the
buttons in the radio menu.
• Other brands – radio should have a steering wheel menu to learn the
buttons. You may have to select type A/B/C/1/2/3 and try learning again
if buttons are not saving. Refer to radio manufacturer’s tech support for
further advice if not learning properly.
The radio does not turn ON. If installing a modular radio and it is not turning on, ensure the screen is
secured and any trim pieces on the radio have been installed fully.
Test red and yellow wires for DC voltage at radio using a multimeter. Contact
support if no voltage on red or yellow.
MAESTRO RR2 RESET PROCEDURE:
Turn the key to the OFF position, then disconnect all connectors from the module.
Press and hold the module’s programming button and connect all the connectors back to the module. Wait, the module’s LED will flash RED rapidly (this may
take up to 10 seconds).
Release the programming button. Wait, the LED will turn solid GREEN for 2 seconds to show the reset was successful.
TECHNICAL ASSISTANCE
Phone: [phone]
Email: maestr[email protected]
IMPORTANT: To ensure proper operation, the aftermarket radio needs to have the latest firmware from the manufacturer. Please visit the radio
manufacturer’s website and look for any updates pertaining to your radio.

20192022
SUBARU ASCENT
WITHOUT AMPLIFIER
INSTALL GUIDE
RETAINS STEERING WHEEL CONTROLS, FACTORY AMPLIFIER, AND MORE!
+
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here
in are the properties of their respective owners.
PRODUCTS REQUIRED
iDatalink Maestro RR2 Radio Replacement Interface
iDatalink Maestro RR-SU3 Installation Harness
Non-iDatalink compatible radio
PROGRAMMED FIRMWARE: SU3-RR2-AS

SU3-RR2-AS-(RR-SU3)-EN maestro.idatalink.com
SUBARU ASCENT WITHOUT AMPLIFIER 20192022
Automotive Data Solutions Inc. © 2023 2
Configuring the RR2’s Programmable
Outputs
Maestro RR2 Programmable
Outputs Guide
Installation, product information, vehicle
specific videos. VIDEO HELP
Last flash information, steering control
configuration, vehicle information. VERIFY FLASH
Software to program module. WEBLINK
WELCOME
Congratulations on the purchase
of your iDatalink Maestro RR Radio
replacement solution. You are
now a few simple steps away from
enjoying your new car radio with
enhanced features.
Before starting your installation,
please ensure that your iDatalink
Maestro module is programmed
with the correct firmware for your
vehicle and that you carefully review
the install guide.
Please note that Maestro RR will
only retain functionalities that
were originally available in the
vehicle.
NEED HELP?
1 866 427-2999
[email protected]
ADDITIONAL INFORMATION AND
ACCESSORIES

SU3-RR2-AS-(RR-SU3)-EN maestro.idatalink.com
SUBARU ASCENT WITHOUT AMPLIFIER 20192022
Automotive Data Solutions Inc. © 2023 3
STEP 1
• Unbox the aftermarket radio and locate its main harness.
• Cut the WHITE and GRAY RCA tips.
• Connect the wires from aftermarket radio main harness to
the SU3 T-harness and match the wire functions.
• Remove the factory radio.
Note: only connect purple/white wire to radio reverse input or
module damage will occur.
STEP 2
• Assemble the SU3 T-harness and connect it to the factory
radio harness.
STEP 3
• Plug the OBDII connector into the OBDII of the vehicle,
under driver dash.
STEP 4
• Plug the aftermarket radio harnesses into the aftermarket
radio.
• Plug the AUX cable to the aftermarket radio.
• Plug the Backup camera cable to the aftermarket radio.
• Connect either the blue/yellow wire (Kenwood/JVC) or the
3.5mm to the steering control input of the radio.
STEP 5
• Connect all the harnesses to the Maestro RR2 module then
test your installation.
Reverse Automatic Braking (RAB)
When in reverse, RAB and Parking Sensor buttons are
controlled by:
RAB ON/OFF - Tap left side of radio screen or SEEK DOWN
on the steering wheel.
Parking Sensor ON/OFF - Tap right side of radio screen or
SEEK UP on the steering wheel.
Note: On-screen controls require a radio that supports touch
screen control of the camera, but the steering wheel controls
will work regardless of radio.
1
INSTALLATION INSTRUCTIONS P1 /1

SU3-RR2-AS-(RR-SU3)-EN maestro.idatalink.com
SUBARU ASCENT WITHOUT AMPLIFIER 20192022
Automotive Data Solutions Inc. © 2023 4
1
AUXAUX
BACKUP CAMBACKUP CAM
2
3
4
4
4
18
28
6
10
3
10
6
18
5
16
MAESTRO RR2 MODULE
CUT AND REMOVE THE SPEAKER
WIRE JUNCTION CONNECTORS
STEP 1
SU3 T-HARNESS
WHITE - LF SPEAKER (+)
WHITE/BLACK - LF SPEAKER (-)
GRAY - RF SPEAKER (+)
GRAY/BLACK - RF SPEAKER (-)
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
BLUE/WHITE - AMP. TURN ON (+)
PURPLE - RR SPEAKER (+)
STEP 4
STEP 5
ORANGE - ILLUMINATION (+)
PURPLE/WHITE - REVERSE LIGHT (+) *
LTGREEN - E-BRAKE (-)
BLUE - POWER ANTENNA
PINK - VEHICLE SPEED
WIRING DIAGRAM
WIRES FROM
VEHICLE
FACTORY RADIO HARNESS
STEP 2
STEP 3 OBDII CONNECTOR
-
CONNECT
IF THERE IS
A MATCH
-
CONNECT TO
AFTERMARKET RADIO
NOT REQUIRED
STEERING WHEEL
CONTROL CABLE
AUDIO
CABLE
DATA
CABLE
* ONLY CONNECT TO RADIO REVERSE INPUT
OR MODULE DAMAGE WILL OCCUR
OR
MAIN
HARNESS

SU3-RR2-AS-(RR-SU3)-EN maestro.idatalink.com
SUBARU ASCENT WITHOUT AMPLIFIER 20192022
Automotive Data Solutions Inc. © 2023 5
RADIO WIRE REFERENCE CHART
Wire
Description Polarity Wire Color on Maestro
T-Harness Wire Color on Alpine cable Wire Color on Kenwood/JVC
cable Wire Color on Pioneer cable
Illumination (+) Orange N/A Orange/White Orange/White
Reverse Light (+) Purple/White Orange/White Purple/White Purple/White
E-Brake (-) Lt Green Yellow/Blue Lt Green Lt Green
VSS (vehicle speed sensor) (DATA) Pink Green/White Pink Pink
Power Antenna (+) Blue Blue Blue N/A
Other brands, refer to aftermarker radio guide.

SU3-RR2-AS-(RR-SU3)-EN maestro.idatalink.com
SUBARU ASCENT WITHOUT AMPLIFIER 20192022
Automotive Data Solutions Inc. © 2023 6
MODULE DIAGNOSTICS
LED 2
LED 1
PROGRAMMING BUTTON
LED 1
Module/Firmware
status
LED 2 (RR2)
Bluetooth activity
LED STATUS DIAGNOSTIC
• or •RED or GREEN
flashing
LED flashes 1 or more times, either red or green, when a steering wheel
button is pressed : normal operation.
•1 RED flash Module has no firmware.
Flash module using Weblink Desktop and log in. Do NOT use DEMO MODE.
•1 GREEN flash After radio boots up : Normal operation.
•3 GREEN flashes Bluetooth is activated.
Turns off after one minute: Normal operation.
• • OFF Normal operation (inactive).

SU3-RR2-AS-(RR-SU3)-EN maestro.idatalink.com
SUBARU ASCENT WITHOUT AMPLIFIER 20192022
Automotive Data Solutions Inc. © 2023 7
TROUBLESHOOTING TABLE
PROBLEM SOLUTION
Steering wheel controls do not work but LED on the Maestro does blink
when steering wheel buttons are pressed.
Ensure the blue 4-pin steering wheel control cable is connected between the
Maestro and the radio. The radio will use either the 3.5mm jack OR the blue/
yellow wire, not both.
Connect the 3.5mm jack from the Maestro blue 4-pin cable to the radio’s
3.5mm port (labeled steering, remote, or wheel). If no such port exists, wire
the blue/yellow to blue/yellow (Kenwood/JVC) or to the radio’s Key 1 wire
(brands not listed/other) and secure the 3.5mm jack. It will not be used.
Verify the buttons are set up in the flash. If any button is set to “none” for
“press once”, it will do nothing. “Hold” column can be left as none and the
“press once” function will operate with one press and when holding the
button.
Refer to radio’s owner’s manual to verify if the radio has this function:
• JVC/Kenwood : Steering Wheel Control (ON/OFF): choose ON
• Nakamichi : if model is listed, ensure PAC mode is on. If “other”, learn the
buttons in the radio steering wheel menu.
• Sony : Steering Wheel Control (Custom/Preset): choose Preset. If phone
buttons do not operate properly, flash the module as Pioneer – 2009 and
newer with BT. Then select “custom” instead of “preset” and learn the
buttons in the radio menu.
• Other brands – radio should have a steering wheel menu to learn the
buttons. You may have to select type A/B/C/1/2/3 and try learning again
if buttons are not saving. Refer to radio manufacturer’s tech support for
further advice if not learning properly.
The radio does not turn ON. If installing a modular radio and it is not turning on, ensure the screen is
secured and any trim pieces on the radio have been installed fully.
Test red and yellow wires for DC voltage at radio using a multimeter. Contact
support if no voltage on red or yellow.
MAESTRO RR2 RESET PROCEDURE:
Turn the key to the OFF position, then disconnect all connectors from the module.
Press and hold the module’s programming button and connect all the connectors back to the module. Wait, the module’s LED will flash RED rapidly (this may
take up to 10 seconds).
Release the programming button. Wait, the LED will turn solid GREEN for 2 seconds to show the reset was successful.
TECHNICAL ASSISTANCE
Phone: [phone]
Email: maestr[email protected]
IMPORTANT: To ensure proper operation, the aftermarket radio needs to have the latest firmware from the manufacturer. Please visit the radio
manufacturer’s website and look for any updates pertaining to your radio.

20182022
SUBARU CROSSTREK
WITH AMPLIFIER
INSTALL GUIDE
RETAINS STEERING WHEEL CONTROLS, FACTORY AMPLIFIER, AND MORE!
+
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here
in are the properties of their respective owners.
PRODUCTS REQUIRED
iDatalink Maestro RR2 Radio Replacement Interface
iDatalink Maestro RR-SU3 Installation Harness
Non-iDatalink compatible radio
PROGRAMMED FIRMWARE: SU3-RR2-AS

SU3-RR2-AS-(RR-SU3)-EN maestro.idatalink.com
SUBARU CROSSTREK WITH AMPLIFIER 20182022
Automotive Data Solutions Inc. © 2023 2
Configuring the RR2’s Programmable
Outputs
Maestro RR2 Programmable
Outputs Guide
Installation, product information, vehicle
specific videos. VIDEO HELP
Last flash information, steering control
configuration, vehicle information. VERIFY FLASH
Software to program module. WEBLINK
WELCOME
Congratulations on the purchase
of your iDatalink Maestro RR Radio
replacement solution. You are
now a few simple steps away from
enjoying your new car radio with
enhanced features.
Before starting your installation,
please ensure that your iDatalink
Maestro module is programmed
with the correct firmware for your
vehicle and that you carefully review
the install guide.
Please note that Maestro RR will
only retain functionalities that
were originally available in the
vehicle.
NEED HELP?
1 866 427-2999
[email protected]
ADDITIONAL INFORMATION AND
ACCESSORIES

SU3-RR2-AS-(RR-SU3)-EN maestro.idatalink.com
SUBARU CROSSTREK WITH AMPLIFIER 20182022
Automotive Data Solutions Inc. © 2023 3
STEP 1
• Unbox the aftermarket radio and locate its main harness.
• Connect the wires from aftermarket radio main harness to
the SU3 T-harness and match the wire functions.
• Remove the factory radio.
Note: only connect purple/white wire to radio reverse input or
module damage will occur.
STEP 2
• Assemble the SU3 T-harness and connect it to the factory
radio harness.
STEP 3
• Plug the OBDII connector into the OBDII of the vehicle,
under driver dash.
STEP 4
• Plug the aftermarket radio harnesses into the aftermarket
radio.
• Plug the RCA connectors to the aftermarket radio.
• Plug the AUX cable to the aftermarket radio.
• Plug the Backup camera cable to the aftermarket radio.
• Connect either the blue/yellow wire (Kenwood/JVC) or the
3.5mm to the steering control input of the radio.
STEP 5
• Connect all the harnesses to the Maestro RR2 module then
test your installation.
Reverse Automatic Braking (RAB)
When in reverse, RAB and Parking Sensor buttons are
controlled by:
RAB ON/OFF - Tap left side of radio screen or SEEK DOWN
on the steering wheel.
Parking Sensor ON/OFF - Tap right side of radio screen or
SEEK UP on the steering wheel.
Note: On-screen controls require a radio that supports touch
screen control of the camera, but the steering wheel controls
will work regardless of radio.
2
INSTALLATION INSTRUCTIONS P1 /1

SU3-RR2-AS-(RR-SU3)-EN maestro.idatalink.com
SUBARU CROSSTREK WITH AMPLIFIER 20182022
Automotive Data Solutions Inc. © 2023 4
2
AUXAUX
BACKUP CAMBACKUP CAM
NC
NC
2
3
4
4
4
18
28
6
10
3
10
6
18
5
16
MAESTRO RR2 MODULE
STEP 1
MAIN
HARNESS
SU3 T-HARNESS
GREEN
GREEN/BLACK
PURPLE/BLACK
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
BLUE/WHITE - AMP. TURN ON (+)
PURPLE
STEP 4
STEP 5
ORANGE - ILLUMINATION (+)
PURPLE/WHITE - REVERSE LIGHT (+) *
LTGREEN - E-BRAKE (-)
BLUE - POWER ANTENNA
PINK - VEHICLE SPEED
WIRING DIAGRAM
WIRES FROM
VEHICLE
FACTORY RADIO HARNESS
STEP 2
STEP 3 OBDII CONNECTOR
CONNECT TO
AFTERMARKET RADIO
NOT REQUIRED
WHITE
WHITE/BLACK
GRAY
GRAY/BLACK
LF RCA INPUT
RF RCA INPUT
AUDIO
CABLE
DATA
CABLE
STEERING WHEEL
CONTROL CABLE
-
CONNECT
IF THERE IS
A MATCH
-
* ONLY CONNECT TO RADIO REVERSE INPUT
OR MODULE DAMAGE WILL OCCUR
OR

SU3-RR2-AS-(RR-SU3)-EN maestro.idatalink.com
SUBARU CROSSTREK WITH AMPLIFIER 20182022
Automotive Data Solutions Inc. © 2023 5
RADIO WIRE REFERENCE CHART
Wire
Description Polarity Wire Color on Maestro
T-Harness Wire Color on Alpine cable Wire Color on Kenwood/JVC
cable Wire Color on Pioneer cable
Illumination (+) Orange N/A Orange/White Orange/White
Reverse Light (+) Purple/White Orange/White Purple/White Purple/White
E-Brake (-) Lt Green Yellow/Blue Lt Green Lt Green
VSS (vehicle speed sensor) (DATA) Pink Green/White Pink Pink
Power Antenna (+) Blue Blue Blue N/A
Other brands, refer to aftermarker radio guide.
