IHP VF F3784 User manual

Figure 1 - Brick Retention Kit
Note: Refractory panels
shown are not part of this Kit
Bracket (3 ea.)
Screw
(6 ea.)
VF GEORGIAN BRICK RETENTION KIT F3784
[FOR USE WITH MODELS: VRT4536/42/50 SERIES & VRE6036/42/50 SERIES]
FIREBOX LINER KITS
36/42/50 VF FIREPLACES
P/N 900914-00
Rev. NC, 08/2018
HEARTH PRODUCTS
KITS AND ACCESSORIES
REQUIRED TOOLS
Phillips Screwdriver
5/16'' Hex Socket Wrench or Nut Driver
GENERAL INFORMATION
READ ENTIRE INSTRUCTION SHEET BEFORE STARTING THE
INSTALLATION
THE FIREPLACE MUST BE OFF AND COLD BEFORE BEGINNING.
ALL WARNINGS, PRECAUTIONS AND INSTRUCTIONS IN THE
INSTALLATION AND OPERATION MANUAL PROVIDED WITH THE
APPLIANCE APPLY TO THESE INSTRUCTIONS.
If you encounter any problems, need clarification of these instructions
or are not qualified to properly install this kit, contact you local
distributor or dealer.
If any of these parts are missing or damaged, contact your dealer or
IHP.us.com for referral information.
If you have any questions concerning the installation or applica-
tion of this kit, please contact our customer service department
at IHP.us.com
KIT CONTENTS
Qty. Part No. Description
3 ea. 120520-01 Retainer Brackets
6 ea. 11203 Self tapping Screw
1 ea. 900914-00 Instruction Sheet
WARNING
•Turn off, unplug, and let fireplace cool before install-
ing brick liner. Only a qualified service person should
service and repair fireplace.
•A qualified service person must connect and discon-
nect fireplace to gas supply. Follow all local codes.
NOTICE
If already installed, you must remove log assembly
before installing refractory kit. Refer to log assembly
owner's manual.
1
NOTE: Some installations may require the gas supply line to be
disconnected before removing log assembly. If so, call a qualified
service person to disconnect gas supply from fireplace.
IMPORTANT:Always handle refractory panels with two hands.
IHP.us.com
fire-parts.com

Printed in U.S.A. © 2018 Innovative Hearth Products
P/N 900914-00 Rev. NC 08/2018
WARNING
•Test all gas piping and connections for leaks after
installing or servicing. Correct all leaks at once.
•Never use an open flame to check for a leak. Apply a
noncorrosive leak detectionfluid to alljoints. Bubbles
forming show a leak. Correct all leaks at once.
2
IHP reserves the right to make changes at any time, without notice, in design, materials, specifica-
tions, prices and also to discontinue colors, styles and products. Consult your local distributor
for fireplace code information.
REFRACTORY PANEL INSTALLATION
IMPORTANT: Installation of refractory panels should
be done after the fireplace is placed in a permanent
location.
1. Remove screen assemblies and all hardware components out of
the firebox.
2. Make sure the bottom refractory panels is centered in the firebox
and flush with the front of the fireplace.
3. Match the top and bottom of the refractory panels before install-
ing.
4. Using one (1) of the refractory brackets and two (2) of the self
tapping screws, install rear refractory panel, center bracket and
screw it to the top of firebox, See Figure 2.
5. Install the right and left refractory panels with the gas line knock-
outs orientated down toward the bottom refractory secure them
with the remaining refractory brackets and self tapping screws.
6. Install the items removed in step 1.
WARNING
LIFTING HAZARD
SINGLE -PERSON LIFT COULD
CAUSE INJURY.
USE ASSISTANCE WHEN MOVING
OR LIFTING.
1769 East Lawrence Street • Russellville, AL 35654

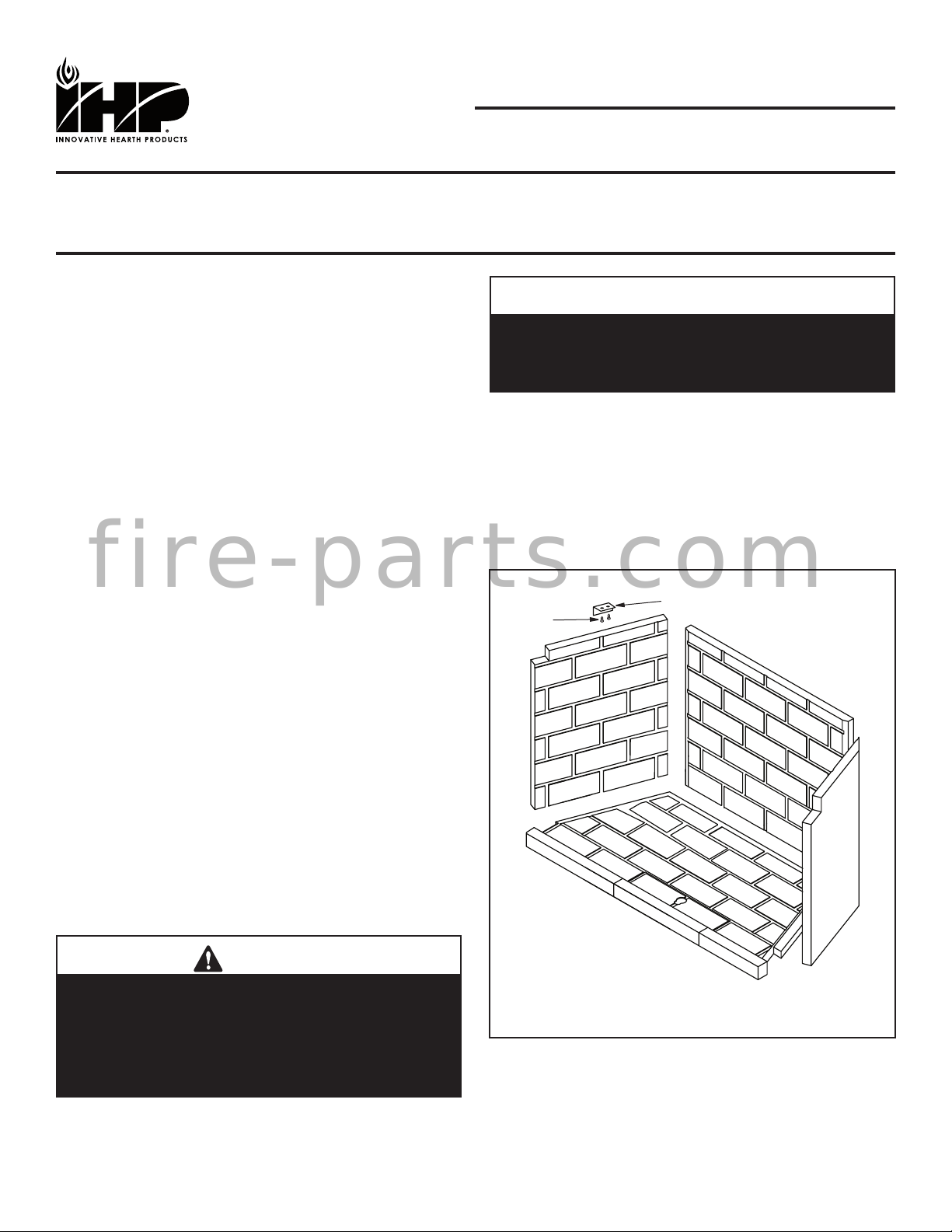

Figure 2 - Refractory Panels Installed
Retaining
Bracket
Rear
Refractory
Left
Refractory
Screw
fire-parts.com
