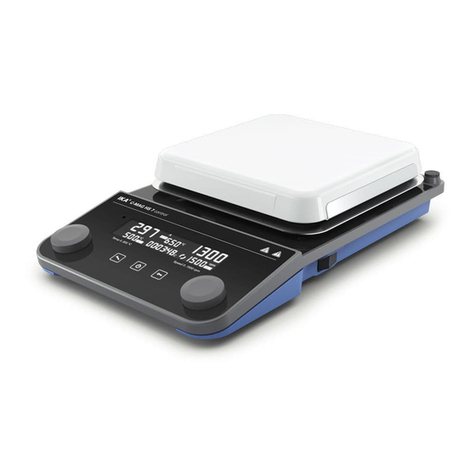

IKA C-MAG HS7 User manual

C-MAG HS 7 control

584
90
122
154
74
106
138
170
66
98
130
162
82
114
146
/// БЪЛГАРСКИ/// ENGLISH
/// EESTI
/// LATVISKI
/// SLOVAK
/// DANSK
/// MAGYAR
/// NORSK
/// SVENSKA
/// ČEŠTINA
/// SUOMI
/// NEDERLANDS
/// SLOVENSKI
/// ΕΛΛΗΝΙΚΆ
/// LIETUVOS
/// ROMÂNĂ

ENGLISH

76
20
19
18
12
10
Declaration of conformity
We declare under our sole responsibility that this product corresponds to the directives
2014/35/EU, 2014/30/EU and 2011/65/EU and conforms with the following standards
or standardized documents: EN 61010-1, EN 61010-2-010, EN 61010-2-051,
EN 61326-1, EN 60529 and EN ISO 12100.
/// DEVICE SETUP
› C-MAG HS 7 control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
› Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
/// SAFETY INSTRUCTIONS
› About our warning symbols. . . . . . . . . . . . . . . . . . . . . . . 12
› General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
› device design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
› Permissible medium / contaminants / side reactions . . . . . 14
› Procedures during sample runs . . . . . . . . . . . . . . . . . . . . 15
› Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
› Power supply / switching off . . . . . . . . . . . . . . . . . . . . . . 16
› About protecting your device. . . . . . . . . . . . . . . . . . . . . . 17
/// PROPER USAGE
› Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
/// UNPACKING
› Scope of delivery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
/// ASSEMBLING THE SUPPORT ROD
› Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

98
28
56
43
48
49
51
55
22
/// START UP
› Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
›Setting the safety temperature limit . . . . . . . . . . . . . . . . 24
›Controlling the medium temperature
limit via contact thermometer . . . . . . . . . . . . . . . . . . . . . 26
/// MAINTENANCE AND CLEARING
›Correct handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
/// ACCESSORIES
›An overwiew. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
/// ERROR CODES
›Troubleshoot correctly. . . . . . . . . . . . . . . . . . . . . . . . . . . 51
/// WARRANTY
› Regulations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
/// TECHNICHAL DATA
›C-MAG HS 7 control in detail. . . . . . . . . . . . . . . . . . . . . . 56
/// INTERFACES AND OUTPUTS
›USB- and RS 232 interfaces . . . . . . . . . . . . . . . . . . . . . . . 43
/// MENU
›Menu structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
›Operating mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
›Temperature control mode. . . . . . . . . . . . . . . . . . . . . . . . 33
›Intermittent mode / rotation direction . . . . . . . . . . . . . . . 34
› Beep. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
›Error 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
›Timer expired . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
›Safe / Visc. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
›Factory reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
›External probe calibration . . . . . . . . . . . . . . . . . . . . . . . . 37
›Software version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
›Timer / Counter (F, 4). . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
›Lock (G, 15) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Device setup 1110 Device setup
APower button (left » on, right » off)
BAdjustable safety circuit
CRotating knob „temperature“
DRotating knob „speed“
E„Menu“ button
F„Timer“ button
G„Lock“ button
HDisplay
Explication of symbols
Device setup
/// C-MAG HS 7 control
IStandby LED
JPower socket
KUSB interface
LRS 232 interface
MConnection for PT 1000 temperature sensor
series, temperature probes or contact plugs
NHeating plate
OThreaded hole for stand
/// Display
07 11 0809 10 15 1713 | 14
06 02 05 04 0112
SET
SET
SAFE
VISC
16
01 Set speed value
02 Set temperature value
03 Motor running / rotation direction
04 Timer / counter
05 Temperature value
06 Heating function activated
07 Actual hotplate temperature
08 Actual speed value
09 Temperature control mode
Display
10 Operating mode
11 Safety circuit temperature
12 Viscosity trend value
13 |
14
PT 1000 temperature sensor connected
ETS-D5 / ETS-D6 connected
15 All parameters locked
16 USB connection with PC
17 Connection with PC etablished
18 Intermittent mode activated
MLKA J
B
A
C
O
H
I
E
F
G
D
N
03 18

Safety instructions 1312 Safety instructions
/// General information
› Read the operating manual in its entirety before using
the IKA Plate (RCT digital) and follow the safety instructions.
› Keep the operating manual in a location that is easily
accessible by everyone in the laboratory.
› Ensure that only trained staff operates the device.
› Follow the safety instructions, (laboratory) guidelines, occupational
health and safety and accident prevention regulations (OSHA).
› Electrical outlet must be grounded (protective ground contact).
Attention – Magnetism! ()
Effects of the magnetic field have to be taken into
account (e.g. data storage media, cardiac pacemakers ...).
Risk of burns! ( )
Exercise caution when touching parts of the housing and the heating plate.
The heating plate can reach dangerous temperatures. Pay attention to the
residual heat on the heating plate after switching off the stirrer.
The device must only be transported when the heating plate
has cooled off and is no longer hot to the touch!
/// Device design
Danger! ( )
Do not operate the device in explosive atmospheres,
with hazardous substances or under water.
› Set up the device in a spacious area on an even,
stable, clean, non-slip, dry and fireproof surface.
› The feet of the device must be clean and undamaged.
› Ensure that the power cord does not touch the heating plate.
› Check the device and accessories for damage before each use.
Do not use damaged components.
Safety instructions
/// About our warning symbols
Indicates an imminently hazardous situation, which,
if not avoided, will result in death, serious injury.
Indicates handling, which, if not avoided,
can result in equipment damage.
!
Indicates a potentially hazardous situation, which,
if not avoided, can result in death, serious injury.
Indicates a potentially hazardous situation, which,
if not avoided, can result in injury.
Attention!
Indicates the risks of magnetism.
Danger!
Indicates the exposure to a hot surface.

Safety instructions 1514 Safety instructions
Caution! ( )
Device surface is partially made of glass!
› Glass surface can be damaged by impact.
› If glass surface is damaged it could cause injury, don‘t use
the device anymore and contact your IKA Service team.
/// Permissible medium /
contaminants / side reactions
Caution! ( )
Only process and heat media that has a flash point higher than the adjusted
safe temperature limit that has been set. The safety temperature limit must
always be set to at least +25 °C lower than the fire point of the media used.
Warning! ( )
Beware of hazards due to:
› flammable materials.
› combustible media with a low boiling temperature.
› glass breakage.
› incorrect container size.
› overfilling of media.
› unsafe condition of container.
› Process pathogenic materials only in closed vessels under
a suitable fume hood.
Please contact IKA if you have any questions.
Danger! ( )
Only process media that will not react dangerously to the extra energy pro-
duced through processing. This also applies to any extra energy produced in
other ways, e.g. through light irradiation.
› The heating plate can heat up due to the action of the magnets
at high motor speeds, even if the heater is switched off.
› Please consider any possible contaminations and unwanted
chemical reactions.
› It may be possible for wear debris from rotating accessory parts
to reach the material being processed.
› When using PTFE-coated magnetic bars, the following has to be noted:
Chemical reactions of PTFE occur in contact with molten or solute alkali metals
and alkaline earth metals, as well as with fine powders of metals in groups
2 and 3 of the periodic system at temperatures above +300 °C to +400 °C.
Only elementary fluorine, chlorotrifluoride and alkali metals attack it;
halogenated hydrocarbons have a reversible swelling effect.
(Source: Römpps Chemie-Lexikon and ”Ulmann”, Volume 19)
/// Procedures during sample runs
Warning! ( )
Wear your personal protective gear in accordance with the hazard
category of the media to be processed. There may be a risk from:
› splashing and evaporation of liquids.
› ejection of parts.
› release of toxic or combustible gases.
Reduce speed if:
› medium splashes out of vessel because the speed is too high.
› device is not running smoothly.
› container moves on the heating plate.
› an error message is displayed.

Safety instructions 1716 Safety instructions
/// Accessories
› Safe operation is only guaranteed with the accessories
described in the ”Accessories” chapter.
› Always disconnect the plug before attaching accessories.
› Observe the operating instructions of the accessories.
› Ensure that the external temperature sensor is inserted into
the medium to a depth of at least 20 mm when connected.
› Accessories must be securely attached to the device and
cannot come off by themselves. The centre of gravity of the
assembly must lie within the surface on which it is set up.
/// Power supply / Switching off
› The voltage stated on the type plate must correspond to
the mains voltage.
› The outlet for the mains plug must be easily accessible.
› The device can only be disconnected from the mains outlet
by pulling out the power cord or the connector plug.
Warning! ( )
› The device will automatically restart in mode B following
any interruption to the power supply.
› After continuously running for 100 hours the device will limit
the maximum heating power by 10% for self-protection.
> 100 mm
> 100 mm
> 100 mm
/// About protecting your device
› The stirrer may only be opened by qualified and IKA approved experts.
› Do not cover the device, even partially e.g. with
metallic plates or film. This may result in overheating.
› Protect the device and accessories from bumps and impacts.
› Keep base plate clean.
› Observe the minimum distances:
between devices min. 100 mm,
between device and wall min. 100 mm,
above the device min. 800 mm.

18 Proper usage Unpacking 19
Proper usage
/// Basics
Usage
› The magnetic stirrer has been designed for mixing
and / or heating liquids.
Area of use (only indoors)
› laboratories
› pharmacies
› universities
› schools
This device is suitable for use in all areas except
› residential areas.
› areas that are connected directly to a low-voltage
supply network that also supplies residential areas.
The safety of the user cannot be guaranteed
› if the device is operated with accessories that are not
supplied or recommended by the manufacturer.
› if the device is operated improperly or contrary to
the manufacturer’s specifications.
› if the device or the printed circuit board are modified
by third parties.
Unpacking
/// Scope of delivery
Unpack the device carefully. Any damage should immediately be
reported to the carrier (mail, rail or freight forwarding company).
Scope of delivery
› C-MAG HS 7 control
› power cord
› USB cord
› operating manual
› warranty card
› screwdriver (safety circuit)
› magnetic stir bar IKAFLON 30 and 40 mm
› temperature sensor PT 1000.60
C-MAG HS 7 control Garranty
+
+ +
+ +

Assembling the support rod 2120 Assembling the support rod
Assembling the support rod
/// Process
Note! ( )
Review the mounting and safety instructions of the IKA boss head clamp
prior to using it. (see “Accessories”)
The device must not be suspended from the support rod!
Procedure
1. Remove the threaded plug in the threaded hole (O).
2. Remove the protective cap from the support rod.
3. Place the washer between the housing and the nut.
4. Screw in the support rod manually until it no longer can be tightened.
5. Tighten the nut using an SW17 open-end spanner.
6. Assemble the accessories using a boss head clamp.
Note! ( )
When using bath attachments with a diameter over 180 mm, use support
rod in conjunction with an extension. (see “Accessories”)
Risk of tipping! ( )
Make sure that the center of mass of the attached device does not protrude
over the safe area indicated below with a dotted rectangle.
safe area

Start-up 2322 Start-up
Start-up
/// Operation
Remove the protective film from the plate before using device!
Power-up
1. Press the power button (A) to the right.
2. Insert the power cord into the power outlet (J).
3. Press the power button (A) to the left.
› Standard mode A is selected.
Heating
1. Set the safety temperature limit (11).
2. Set the target temperature using the rotating knob (C).
› The set temperature value (02) is shown on the display (H).
3. Set the temperature control mode (09).
4. Press the rotating knob (C) to start the heating function.
General heating information
› The target and current temperature (02, 07)
are shown permanently on the display (H).
› When the heating function is switched on,
the heater activated symbol (06) is displayed.
› When the device is switched off while the heating plate temperature
is higher than +50 °C, the display (H) shows HOT!and the current
temperature (07) is shown, even if the device is switched off.
Stirring
1. Set the speed using the rotating knob (D).
› The set speed value (01) is shown on the display (H).
2. Press the rotating knob (D) to start the stirring function.
Connecting an external thermometer
1. Press the power button (A) to the right.
2. Connect the safety contact thermometer compliant with
DIN 12878 Class 2 or temperature sensor PT 1000
(individual sensor) to the connection (M).
3. Press the power button (A) to the left.
Temperature sensor PT 1000
› The actual temperature (07) shown on the display (H)
corresponds to the temperature of the medium.
The symbol (13) is shown on the display.
Contact thermometer ETS-D5 / ETS-D6
› Follow the instructions for the contact thermometer.
The actual temperature (07) is shown on the display (H).
The symbol (14) is shown on the display.
Menu
1. Press the “Menu” key (E) for to enter the menu mode.
2. Set the menu items by turning the rotating knob (D) and
confirm by pushing it.
3. Press the “Menu” key (E) to enter the menu only possible
if stirring and heating is switched off.
4. Press the “Menu” key (E) to exit the menu from each state
of the Settings menu.

Start-up 2524 Start-up
// Setting the safety temperature limit
The maximum achievable heating plate temperature is restricted by an
adjustable safety temperature limit. Once this limit has been reached,
the device stops heating.
Caution! ( )
The denominated temperatures should always refer to
the center of the hotplate.
Warning! ( )
The safe temperature limit must always be set at least +25 °C
lower than the fire point of the media to be processed!
The adjustable maximum heating plate temperature must always
be set at least +15 °C under the set safety temperature limit.
Setting range: [+100 °C] to [max. SET temperature +650 °C]
Factory setting: [max. SET temperature +650 °C]
Setting the safety temperature limit
After switching on the device, the safety temperature limit (11) can be
adjusted using a screwdriver. Do not turn the setting screw beyond the
clockwise or anticlockwise stop. This will cause irreparable damage to the
potentiometer.
1. Press the power button (A) to the left.
2. Using the screwdriver supplied, turn the “Safe Temp” setting
screw (B) to the clockwise stop.
3. Turn the temperature rotary knob (C) to set the target temperature
to the desired “Safe Temperature” and push it to start the heating
function, then wait until the temperature is achieved.
4. Turn the “Safe Temperature” setting screw (B) slowly anticlockwise
until the heating function switches off and the display shows „Err. 25“.
5. The “Safe Temp” value (11) is displayed on the screen.
Warning! ( )
Setting the safety temperature limit has to be done as described. The value
“Safe Temperature” shown on the display only serves for visualization.
Functional test: safety circuit switch-off
› Heat the device to a temperature of over +100 °C.
› Set the safety temperature limit as far to the left as possible.
› The display will show: Err. 25

Start-up 2726 Start-up
/// Controlling the medium temperature limit
using a contact thermometer
The preferable method for controlling the average temperature is with
contact thermometer. After the set point temperature has been adjusted,
this results in a short heating-up time, practically no temperature drift and
only minor fluctuation in temperature.
A 6-pin jack is located on the rear side of the device for connecting the
PT 1000 series, contact thermometer or the contact plug. The electronics of
the devices returns a test current that must flow via connector pins 3 and 5
for the heating plate to heat up.
Safety contact thermometers
Acc. to DIN 12 878 class 2 or acc. Gerstel are connected with a three-wire
cable, the test current flows through the contact thermometer.
Safety function
If the test current is interrupted because of e.g. breakage of contact thermo-
meter or falling out of the cable plug, the heating cuts off.
Contact thermometer without safety circuit
Acc. to DIN 12 878 class 0. The device only heats if the test current circuit is
closed by an electrical connection of the plug pins 3 and 5.
2-wire connecting cables
Connect plug pins 3 and 5 of the device plug.
3-wire connecting cables
Here the test current circuit can also be produced in the terminal
head of the contact thermometer (connect plug pins 2 and 3).
A 3-wire cable with the required bridge is available (accessories).
Settings
For detailed instructions for settings and limit values, please refer to the
operating manual of the instrument you are connecting.
The desired average temperature can be adjusted on the contact
thermometer. The required surface temperature of the heating
plate can be selected with the rotating knob (temperature) or
button.
Adjusting the temperature of device to the maximum adjustable tempera-
ture will result in the fastest possible heating time, but the average tem-
perature may fluctuate to values above the set-point temperature on the
contact thermometer. By adjusting the rotating knob (temperature) or
button to approximately twice the set-point value of contact thermometer
(with a set-point of +60 °C, the temperature of device would be set to
+120 °C), you will reach a good compromise between a fast heating
time and over-shooting the set point. If you adjust the temperature of the
device to exactly the set-point temperature, the medium will not reach
the set-point temperature because some loss of the heat will always
occur between the heating plate and the medium.
If a fault occurs in the control circuit, the maximum heating
plate temperature can be adjusted with the safety temperature
setting screw.

Menu 2928 Menu
Menu
/// Menu structure
A
B
D
On
Off
Err. 5
–
–
–
05:00
–
00:00 [mm:ss]
00:03 [mm:ss]
Clockwise (continuous)
–
Temperature
control mode
Intermittent mode /
Rotation direction
Beep
Operating mode
PID mode
2P mode
Intermittent mode
Rotation direction
Automatic
reverse rotation
On
Off
Run time
Pause time
Factory settings

Menu 3130 Menu
–
–
–
–
–
–
–
–
–
SAFE
Timer expired
Safe / Visc
Factory reset
Software version
Change the menu items by turning the rotating knob (D)
and confirm by pushing it.
Probe calibration
Stop heating
Stop stirring
Safe
Visc
yes
no
(default) – set
(not default) – re-set
no
yes 2 Point
no
yes
yes
no
yes
no
Factory settings

Menu 3332 Menu
/// Operating mode
Operating the device in mode A, B or D.
Mode A
All settings will be stored if the device is switched off or disconnected from
the power supply. The stirring and heating functions will be set to OFF when
the device is powered on. The safety circuit can be set or modified. When
the power supply switch is switched on, A is displayed.
Mode B
All settings will be stored if the device is switched off or disconnected from
the power supply. The stirring and heating functions will be set to ON or
OFF when the device is powered on, depending on the previous status
of the device. The safety circuit can be set or modified. When the power
supply switch is switched on, B is displayed.
Mode D
Switch the device on
The safe temperature has to be confirmed by pushing one of the
rotating knobs (C or D).
During operation
In Mode D the device behaves the same as in Mode A with the
exception that:
› The temperature / speed setting must be confirmed by pressing the
temperature / speed knob. To change the temperature / speed setting,
turn the temperature / speed knob until the desired value appears.
› The new value flashes for 5 seconds on the display. Confirm the new
temperature / speed setting by pressing the temperature / speed knob,
otherwise the temperature / speed setting value will skip back to its
previous value.
/// Temperature control mode
When using an external PT 1000 temperature sensor, you can choose
between two types of control:
PID mode
Good control results, minimized overshooting, slow rise in temperature.
2P-mode (two-point controller)
Maximum heating rate, increased overshooting.
T
Set
t
–
T
Set
t
T
Set
t
–
T
Set
t

Menu 3534 Menu
/// Intermittent mode / rotation direction
Intermittent mode
Intermittent mode consists of regular, cyclical interruption of the stirring
function. The run time (0 / 10 sec – 10 min, 10 sec steps) and pause time
(3 sec – 5 min, 1 sec steps) should both be set. When the intermittent mode is
activated, a decimal point in front of the first letter appears on the display (18).
Rotation direction
You can select the continuous rotation. Therefore the time has to be set to
00:00:00 by pushing the rotating knob. (D). Afterwards the rotation direction
(clockwise or counterclockwise) can be selected by turning the rotating knob
(D). Alternative to the continuous rotation, you can set the automatic reverse
rotation function. Then the rotation direction changes after each pause.
In this way the magnetic rod is captured and any liquid still rotating is gradually
slowed down. Then the drive accelerates to the target speed.
/// Beep
The menu item “Beep“ allows the user to turn on / off the sound that occurs
when the timer reaches 00:00:00 or an error message appears.
/// Error 5
Providing safety protection, Error 5 is taken to recognize that the sensor
has not been placed in the medium when the heating is switched on.
Note! ( )
You can set a value from 1 to 30 min for this time limit depending on the
application. If time limit is set to 0 min, the Error 5 detection is disabled.
Caution! ( )
This function will only be active if:
› sensor temperature is < +50 °C
› difference target temperature / sensor temperature > 5
/// Expiration of timer
You can specify the procedure of heating and stirring function if the timer
achieves 00:00:00. Next to the visually / audible information you can decide
independently if the heating and stirring should be stopped automatically if
the timer is expired or should continue.
Caution! ( )
If heating and stirring function is set to stop after timer is expired,
you have to ensure that there is no heat distortion for this application.
If heat distortion is not desirable, the stirring function should continue.

Menu 3736 Menu
/// Safe / Visc
Once the “VISC / SAFE“ has been set to “VISC“, the viscosity trend value (12)
will be shown on the display. The torque trend measurement is used to
deduce the change in viscosity of the reaction medium. The devices are not
designed to measure absolute viscosity. They only measure and display the
relative change in the viscosity of the medium from a starting point specified
by the user.
Once the speed of the motor and magnetic rod in the medium have sta-
bilized to the target speed, the viscosity measurement is started at 100 %.
Consequently, an increase in the measured torque trend is indicated by a
value > 100 % and a reduction in values < 100%.
The value can always be reset to 100 % by pushing the „Menu“ button (E)
for 2 seconds.
Note! ( )
Torque trend measurement only works for a constant set speed for
the duration of the measurement. As a result, intermittent mode
cannot be used in conjunction with torque trend measurement.
The current control variable is saved as the reference 100 % ΔP and shown on
the digital display. The change in the viscosity is then shown in %.
When on the “VISC“ screen, the screen will switch to “SAFE“ if the adjustment
of the safety temperature is activated, during which you may set the safety
temperature and the screen will switch back to “VISC“ once the setting is done,
otherwise it will switch back to “VISC“ after 2 seconds.
/// Factory reset
The menu item ”Factory reset” allows the user to reset all the system
settings to the original standard values set at dispatch from the factory
(see “Menu structure”).
/// External probe calibration
In order to use tolerances to limit temperature deviations, the user can
calibrate the temperature sensor in conjunction with the device. If the
calibration is not set at default (customer-specific settings), the user can simply
reset the calibration. If the calibration is set at default (factory setting), the
user can use below method to calibrate the temperature sensor.
2-point calibration
Calibration using two temperatures.
Note! ( )
Before starting the calibration process, please select an appropriate speed
value according to the application environment. Compare the actual tempe-
rature with a calibrated reference measuring instrument.

Menu 3938 Menu
SET
SET
SET
SET
SAFE
SET
SET
SET
SET
SET
SET
SAFE
SET
SET
D
D
D
D
D
D
D
C, D
D
C
D
C
D
C
/// Software version
Turn the knob (D) to change the menu item to ”Software version”.
/// Timer / Counter (F, 4)
Press the key (F) for 2 seconds to
activate the timer / counter function.
SET
SET
SAFE
Timer mode (count down)
SET
SET
SAFE
Turn the knob (D) to select “hh“ value. Press the
knob (D) to accept “hh“ value and the segment
jumps automatically to “mm“ value.
SET
SET
SAFE
Turn the knob (D) to select “mm“ value. Press the
knob (D) to accept “mm“ value and the segment
jumps automatically to “ss“ value.
SET
SET
SAFE
Set the 1st temperature and speed.
Set the 2nd temperature.
If the actual temperature value is stable,
the “SAFE“ icon will appear.
If the actual temperature value is stable,
the “SAFE“ icon will appear.
Set the “EXT“ temperature.
Set the “EXT“ temperature.
