IMT 12/89 Use and care manual

12/89: PARTS-1
Repair Parts
Model 12/89 Crane
IOWA MOLD TOOLING CO., INC.
BOX 189, GARNER, IA 50438-0189
641-923-3711
MANUAL PART NUMBER: 99903049
99903049: 20111201
Iowa Mold Tooling Co., Inc. is an Oshkosh Corporation company.

12/89: PARTS-2
In addition to the information presented in this manual,
read and understand the IMT Crane Operator's Safety
Manual before operating or performing any maintenance
on your crane.
99903049: --------
REVISIONS LIST
DATE LOCATION DESCRIPTIONOFCHANGE
20001201 PG 37 REPLACE DECAL KITS W/MTG FTGS ASM
PG 38 REPLACE MTG FTGS W/ DECAL KITS & REMOVE CPS & IDENT DECALS
PG 39 ADD DECAL KIT-12/89 (95716095)
20010807 PG 40-51 ECN #8707 : ADDED NEW DRAWINGS
20011004 PG 52-62 ECN #8744 - TETHERED AND RADIO REMOTE CONTROL KITS
20020311 PG 64-65 EDITED DRAWING ERRORS - OVERLOAD SHUTDOWN
20020513 PG 29 CORRECTED ITEM 3 ON HYD SYSTEM-ROT CYLINDER. WAS 6168164, NOW 6168194.
20020909 Many UPDATED MANY PAGES WITH MODEL CHANGES, REVISIONS. ADDED POWER STABILIZER
INSTALLATION INSTRUCTIONS. NOTE DATE ON EACH PAGE.
20030527 PGS. 68-89 RMV. CONTROL KITS - MOVED TO 99903381 RADIO-TETHERED REMOTE MANUAL
20030605 53 505 05 382 HYDRAULIC SYSTEM, EXT. CYL K4 - ITEM #14 WAS 6247294, NOW 6247644
20030623 81-86 ADDED WINCH KIT DRAWING (99903254)
20030721 47,50,53 UPDATED CURRENT HYD SYS K2, K3, AND K4
20051020 85 ECN 9818 - CHANGE TO 41716422
20061113 81 ECN 10190 - CHANGE TO BRACKET #12 ON 99903254 DRAWING
20070426 67 ECN 10431 - 99903223 - CHANGE TO DECAL DESIGN, PLACEMENT
20080425 46,49,52 6247294 IS OBSOLETE, REPLACED WITH 6247644 PIPE (ALSO 25130, 25243)
20080505 29 STABILIZER CYL DRAWING - STABILIZER CYL ORDER 62 44 590, 62 41 730, 62 44 600
20081119 31-32, 68-69 ADDED BEAM CYLINDERS AND HYD SYSTEMS FOR BEAM CYLINDERS
20110207 89 ECN11383-CABLE &HOOK KIT41716422 HARDWARE CHANGE
20111201 ECN 11682-UPDATESTABILIZERWORDING

12/89: PARTS-3
TABLE OF CONTENTS
99903049: 20011004
REVISIONS LIST .................................................................................................................................................... 2
INTRODUCTION ...................................................................................................................................................... 5
BASE ....................................................................................................................................................................... 6
ROTATION (SLEWING)SYSTEM-410° .................................................................................................................... 7
MAST (COLUMN) W/LINK SYSTEM ....................................................................................................................... 8
INNER(MAIN)BOOM .............................................................................................................................................. 9
OUTER(JIB)BOOM .............................................................................................................................................. 10
EXTENSION-1H ......................................................................................................................................................11
EXTENSION-2H ..................................................................................................................................................... 12
EXTENSION-3H ..................................................................................................................................................... 13
EXTENSION-4H ..................................................................................................................................................... 14
HOOKSUSPENSION ............................................................................................................................................ 15
MANUALEXTENSIONS,K2.................................................................................................................................. 16
MANUALEXTENSIONS,K3.................................................................................................................................. 17
MANUALEXTENSIONS,K4.................................................................................................................................. 18
INNERBOOMCYLINDER-C150-725 ...................................................................................................................... 19
OUTERBOOMCYLINDER-C125-825..................................................................................................................... 20
OUTERBOOMCYLINDER-C150-825 (4H) ............................................................................................................. 21
EXTENSIONCYLINDER-C63-1750(1H) ................................................................................................................. 22
EXTENSIONCYLINDER-C63-1750(1H) ................................................................................................................ 23
EXTENSIONCYLINDER-C63-1750(1H) ................................................................................................................ 24
EXTENSIONCYLINDER-C63-1750(2H) ................................................................................................................. 25
EXTENSIONCYLINDER-C63-1750(2H) ................................................................................................................. 26
EXTENSIONCYLINDER-C63-1850(3H) ................................................................................................................. 27
EXTENSIONCYLINDER-C63-1850(4H) ................................................................................................................. 28
STABILIZER CYLINDER-C80-XXX TYPEV ........................................................................................................... 29
STABILIZER CYLINDER, C80-XXX, TYPE R ......................................................................................................... 30
BEAMCYLINDER-C32-120 .................................................................................................................................... 31
BEAMCYLINDER-C32-170 .................................................................................................................................... 32
STABILIZER BEAM-TYPESV................................................................................................................................33
STABILIZER LOCK-TYPE SV, SR, DR .................................................................................................................. 34
VALVE GROUPRS210 .......................................................................................................................................... 35
VALVE GROUPRS210 .......................................................................................................................................... 36
VALVE GROUP, RS210-CE .................................................................................................................................... 37
VALVE GROUP, RS210-CE .................................................................................................................................... 38
VALVE BRACKET& DUALCONTROL .................................................................................................................. 39
VALVE BRACKET& DUALCONTROL .................................................................................................................. 40
HYDRAULICSYSTEM-PUMP& TANK .................................................................................................................. 41
HYDRAULICSYSTEM-ROTATIONCYLINDER ...................................................................................................... 42
HYDRAULICSYSTEM-INNERBOOM CYLINDER.................................................................................................. 43
HYDRAULICSYSTEM-OUTERBOOM CYLINDER ................................................................................................ 44
HYDRAULICSYSTEM-OUTERCYLINDER (4H) .................................................................................................... 45
HYDRAULICSYSTEM-EXTENSIONCYLINDER (1H) ............................................................................................ 46
HYDRAULICSYSTEM-EXTENSIONCYLINDER (2H) ............................................................................................ 47
HYDRAULICSYSTEM-EXTENSIONCYLINDER (2H) ............................................................................................ 48
HYDRAULICSYSTEM-EXTENSIONCYLINDER (2H) ............................................................................................ 49
HYDRAULICSYSTEM-EXTENSIONCYLINDER (3H) ............................................................................................ 50
HYDRAULICSYSTEM-EXTENSIONCYLINDER (3H) ............................................................................................ 51
HYDRAULICSYSTEM-EXTENSIONCYLINDER (3H) ............................................................................................ 52
HYDRAULICSYSTEM-EXTENSIONCYLINDER (4H) ............................................................................................ 53
HYDRAULICSYSTEM-EXTENSIONCYLINDER (4H) ............................................................................................ 54
HYDRAULICSYSTEM-EXTENSIONCYLINDER (4H) ............................................................................................ 55
HYDRAULICSYSTEM-STABILIZERS-TYPESV .................................................................................................... 56

12/89: PARTS-4
HYDRAULIC SYSTEM, STABILIZERS, TYPE SR .................................................................................................. 57
MOUNTINGFITTINGS .......................................................................................................................................... 58
MOUNTINGFITTINGS .......................................................................................................................................... 59
VALVE BLOCK,STABILIZERS, 2FUNCTION ....................................................................................................... 60
VALVE BLOCK,STABILIZERS, 4FUNCTION ....................................................................................................... 61
PARTS FOR SERIES CONNECTION ..................................................................................................................... 62
PARTS FOR SERIES CONNECTION ..................................................................................................................... 63
1 EXTRAVALVE, K1-K2 ........................................................................................................................................ 64
1 EXTRAVALVE, K3-K4 ........................................................................................................................................ 65
SUPPLEMANTARY KIT FOR 2 EXTRAVALVES, K1-K2 ....................................................................................... 66
SUPPLEMENTARYKIT FOR 2 EXTRAVALVES, K3-K4 ....................................................................................... 67
HYDRAULICSYSTEM,BEAMCYLINDER,TYPESV/SR ...................................................................................... 68
HYDRAULICSYSTEM,BEAMCYLINDER,TYPEDV/DR ...................................................................................... 69
DECALKIT-ENGLISH(95715498).......................................................................................................................... 70
DECALKIT-SPANISH (95715499).......................................................................................................................... 70
DECALKIT-FRENCH(95715500) ........................................................................................................................... 70
DECALKIT-12/89(95716095)(THRU4-07) ............................................................................................................ 71
DECALKIT(KIT95716095/DWG99903223) ......................................................................................................... 71
OVERLOADSHUTDOWN-STANDALONE (99903341-1)..................................................................................... 72
OVERLOADSHUTDOWNW/RADIOREMOTE(99903341-2) ................................................................................ 73
OVERLOADSHUTDOWNW/TETHEREDREMOTE (99903341-3) ......................................................................... 74
OVERLOADSHUTDOWNINSTALLINSTRUCTIONS(99903341-4)...................................................................... 75
12/89CRANESHUTDOWN(99903342-1) .............................................................................................................. 76
12/89CRANESHUTDOWN(99903342-2) .............................................................................................................. 77
POWERSTABILIZER KIT INSTALLATION INSTRUCTIONS ................................................................................ 78
WINCHCONVERSION KIT- PARTS LIST (99903254-1) ........................................................................................ 85
CONVERSIONKIT-WINCH -DRAWING(99903254-1) ........................................................................................... 86
CONVERSIONKIT-WINCH (99903254-2)............................................................................................................... 87
CONVERSIONKIT-WINCH (99903254-3)............................................................................................................... 88
CABLE&HOOKKIT(41716422) ........................................................................................................................... 89
SNATCH BLOCKASM (41716423) ........................................................................................................................ 90
20011004

12/89: PARTS-5
INTRODUCTION
GENERAL
This manual contains the parts drawings with
accompanying parts lists for the assemblies used on
this crane. These drawings are intended to be used in
conjunction with the instructions found in the
Instruction Manual.
WARNING
DO NOT ATTEMPT TO REPAIR ANY
COMPONENT WITHOUT READING THE
INFORMATION CONTAINED IN THE
INSTRUCTION MANUAL. PAY PARTICULAR
ATTENTION TO THE WARNINGS, CAUTIONS
AND NOTES CONTAINED IN THAT MANUAL.
FAILURE TO COMPLY WITH THESE
INSTRUCTIONS MAY RESULT IN DAMAGE TO
THE EQUIPMENT, AN INJURY OR EVEN
DEATH.
CRANEIDENTIFICATION
Every crane has a serial number placard attached to
the mast or base. When ordering parts,
communicating warranty information or referring to the
unit in correspondence, always include the assigned
serial number and model number as shown on the
serial number placard.
ORDERINGREPAIRPARTS
When ordering replacement parts:
1. Give the model number of the unit.
2. Give the serial number of the unit.
3. Specify the complete part number. When ordering
complete cylinders or assemblies, identify the
cylinder or assembly by name.
4. Give a complete description of the part.
5. Specify the quantity required.
All inquiries should be addressed to:
Iowa Mold Tooling Co., Inc.
Box189,Garner,IA50438-0189
Telephone:[phone]
TechnicalSupportFax:641-923-2424

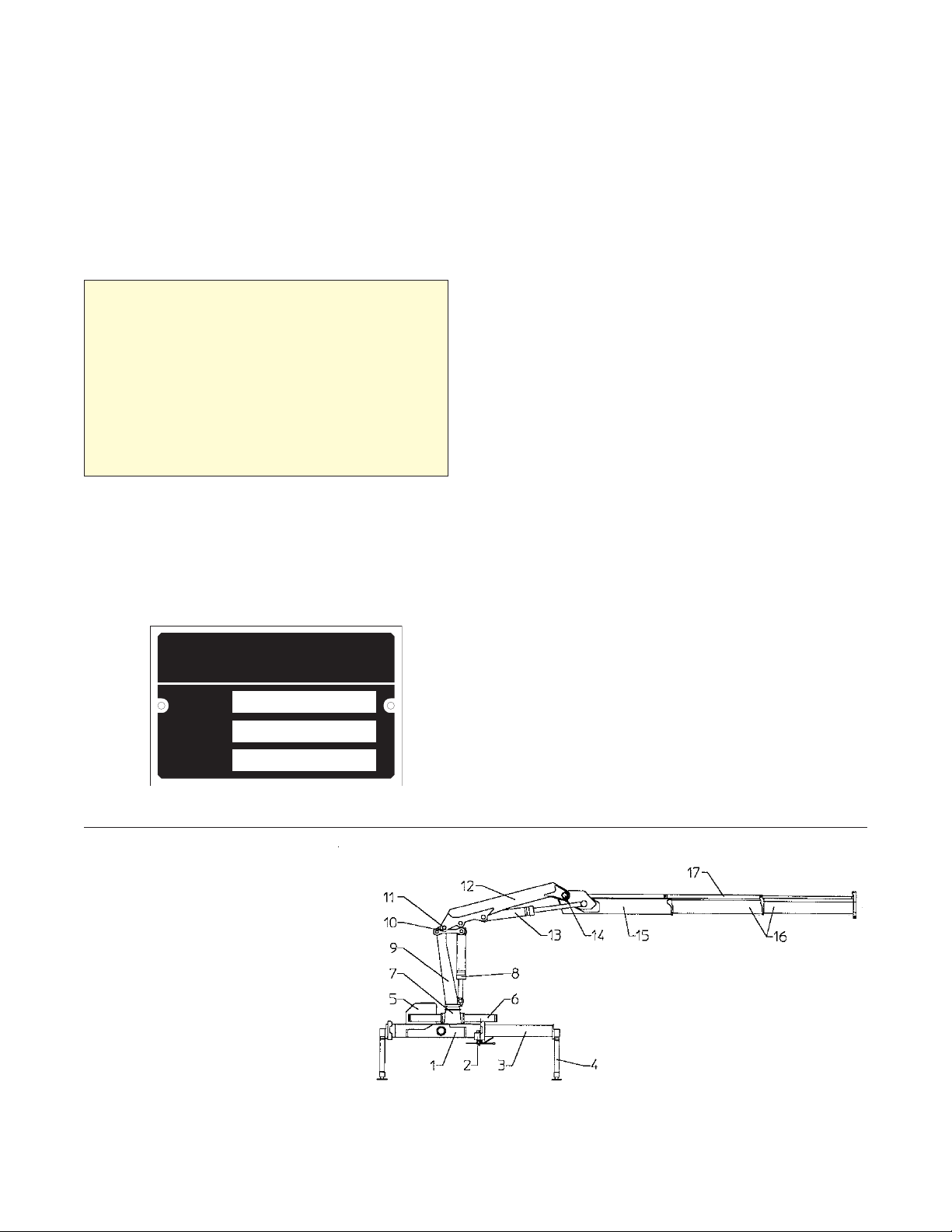

SERIALNUMBERPLACARD
99903049:20111201
1. Suspension traverse
2. Control valve block
3. Stabilizer beam
4. Stabilizer leg
5. Tank
6. Rotation/Slewing cylinder
7. Base
8. Boom cylinder
9. Mast
10. Link arm
11. Hinge pin
12. Main boom
13. Outer/jib cylinder
14. Outer/jib pin
15. Outer boom
16. Extensions
17. Extension cylinder COMPONENTREFERENCE
MODEL
NUMBER
SERIAL
NUMBER
MFG
DATE
IOWA MOLD TOOLING CO., INC.
BOX 189, GARNER, IA 50438-0189
70029119

12/89: PARTS-6
BASE
1. 61 79 060 BASE W/BEARING(INCL:2,3) 1
2. 23 368 BUSHING
3. 63 819 BEARING 1
4. 66 61 634 PLUG M30X1.5 1
5. 21 110 SEAL WASHER
Ø30.8X38.1X2.34 1
6. 31 318 ZERK 1/8"
7. 30 964 SCREW MC10X16 8
8. 31 156 SPRING WASHER 10MM 8
9. 25 103 PLUG 1
10. 60 916 OIL LEVEL GLASS 3/4 1
11. 25 277 PLUG 1
12. 62 33 524 LEVER
505 01 010: 20020909
13. 62 33 504 HOUSING
14. 31 328 ZERK M6X1-0
15. 33 151 SNAP RING 130U 1
16. 61 70 783 SUSPENSION TRAVERSE 1
17. 31 322 ZERK 1/8" 1
18. 62 44 844 LOCK PIN
19. 31 210 RETAINING PIN Ø6X36
20. 33 305 SPRING
21. 61 79 604 HOUSING
22. 30 131 SET SCREW M8X16
23. 31 136 WASHER 8MM
24. 61 79 610 SWIVEL LOCK (COMPLETE) 2

12/89: PARTS-7
ROTATION (SLEWING) SYSTEM-410°
68 93 230 SEAL KIT (INCL:3,6,9,11) 2
1. 61 71 203 ROTATION CYLINDER 2
2. 33 340 LOCK RING 2
3. 20 205 O-RING 134.5X3 2
4. 61 71 974 FLANGE 2
5. 30 507 SCREW MC14X50 16
6. 33 129 CIRCLIP 50U 1
7. 63 718 GUIDE BLOCK 1
8. 61 71 233 RACK 1
9. 20 305 O-RING 37.47X5.33 2
10. 61 77 653 PISTON 2
11. 22 109 SEAL KIT 2
505 01 100: 19990630

12/89: PARTS-8
MAST (COLUMN) W/LINK SYSTEM
1. 61 79 030 MAST-COMPLETE 1
2. 31 318 ZERK 1/8"
3. 23 330 BUSHING PM6060DX
4. 23 337 BUSHING PM7050DX
5. 61 68 043 LINK ARM 2
6. 33 139 CIRCLIP 70U 2
7. 61 68 033 PUSH ROD 1
8. 61 72 364 RING 2
9. 23 336 BUSHING PM7040DX
10. 23 342 BUSHING PM8040DX
11. 61 68 074 PIN 1
505 01 200: 20020909
12. 61 68 064 PIN 1
13. 30 886 LOCK NUT M8 8
14. 61 68 004 LOCK PLATE 4
15. 30 136 STEEL BOLT M8X35 8
16. 61 68 054 PIN 1
17. 61 68 094 PIN 1
18. 61 72 534 PLUG 1
19. 20 174 O-RING 24.2X3 1
20. 61 72 524 LOCK PIN 1
21. 21 931 V-RING 1
22. 63 737 TRAP STRAINER 1

12/89: PARTS-9
INNER (MAIN) BOOM
1. 61 72 201 INNER BOOM 1
2. 33 139 CIRCLIP 70U 1
3. 61 68 074 PIN 1
4. 33 143 CIRCLIP 80U 1
5. 64 054 DISTANCE RING 1
6. 61 68 084 PIN 1
7. 64 329 RUBBER PROTECTOR 1
505 02 010: 19990630

12/89: PARTS-10

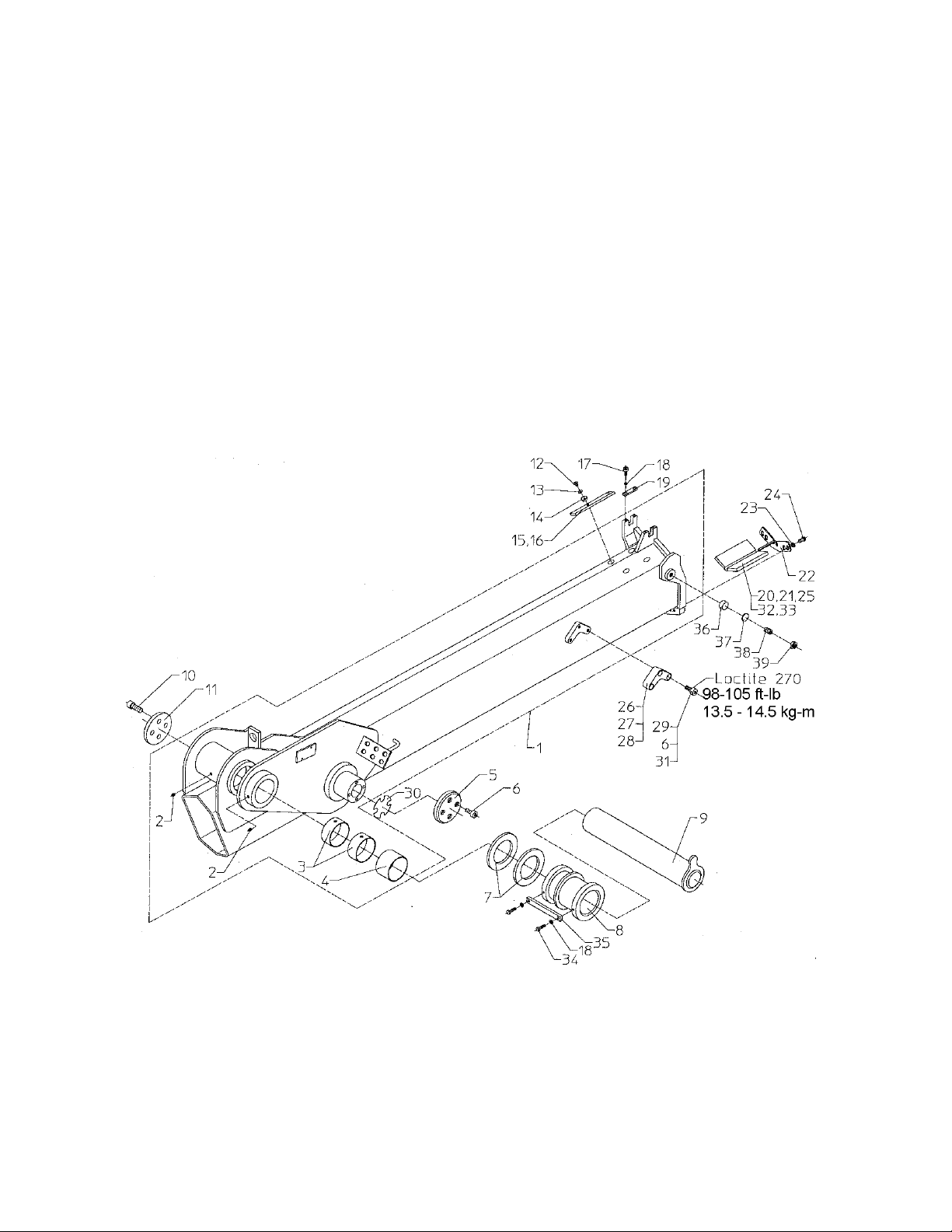

OUTER (JIB) BOOM
1. 61 79 590 OUTER BOOM-COMPLETE 1
2. 31 318 ZERK 1/8"
3. 23 347 BUSHING PM9040DX
4. 23 321 BUSHING PM9060DX
5. 61 68 124 END PLATE 1
6. 30 473 SCREW MC12X35 7
7. 64 055 RING 2
8. 63 961 HOSE REEL 1
9. 61 68 104 PIN 1
10. 30 490 SCREW MC16X40 4
11. 61 68 114 END PLATE 1
12. 30 597 COUNTERSUNK SCR MK8X12 4
13. 31 170 LOCK WASHER 8MM 4
14. 62 42 994 LOCK WASHER 4
15. 62 43 004 WEAR PLATE 6MM
16. 62 43 014 WEAR PLATE 8MM
17. 32 228 SCREW MC8X16 4
18. 31 155 SPRING WASHER 8MM 6
19. 62 43 024 STOWING PIN 2
505 02 050: 20020909
20. 63 837 SLIDE BLOCK 8MM
21. 63 840 SLIDE BLOCK 10MM
22. 62 46 314 BRACKET 1
23. 31 156 SPRING WASHER 10MM 4
24. 30 915 PIPE PLUG M10X25 4
25. 63 717 SLIDE BLOCK
26. 62 17 464 STOWING BRACKET 1
27. 62 17 484 STOWING BRACKET 1
28. 62 17 494 STOWING BRACKET 1
29. 30 471 SCREW MC12X30 3
30. 61 79 974 SPACER 1
31. 30 475 SCREW MC12X40 3
32. 63 797 SLIDE BLOCK 9MM
33. 63 777 SLIDE BLOCK 11MM
34. 30 135 SET SCR M8X30 2
35. 61 73 124 CLAMP 1
36. 64 096 SLIDE BLOCK 2
37. 61 82 334 PLATE 2
38. 30 598 POINTED SCREW MSP16X25 2
39. 30 821 COUNTER NUT M16 2

12/89: PARTS-11
EXTENSION-1H
1. 62 44 432 EXTENSION 266MM 1
2. 63 837 SLIDE BLOCK 8MM
3. 62 46 324 BRACKET 1
4. 31 156 SPRING WASHER 10MM 4
5. 30 915 PIPE PLUG M10X25 4
6. 61 82 444 LOCK PLATE 1
7. 31 155 SPRING WASHER 8MM 2
8. 32 228 SCREW MC8X16 2
9. 63 840 SLIDE BLOCK 10MM
10. 63 717 SLIDE BLOCK
11. 63 797 SLIDE BLOCK 9MM
12. 31 280 COTTER BOLT Ø5X40 1
13. 33 458 LOCK RING-SS 1
14. 61 68 014 PIN 1
15. 30 837 NUT M24 1
16. 61 68 024 SUSPENSION WLDMNT 1
17. 31 318 ZERK 1/8" 1
18. 63 777 SLIDE BLOCK 11MM
505 02 100: 19990630

12/89: PARTS-12
EXTENSION-2H
1. 62 42 322 EXTENSION 266MM 1
2. 63 837 SLIDE BLOCK 8MM
3. 62 46 324 BRACKET 1
4. 31 156 SPRING WASHER 10MM 12
5. 30 915 PIPE PLUG M10X25 12
6. 62 43 004 WEAR PLATE 6MM
7. 62 42 994 LOCK WASHER 4
8. 31 170 LOCK WASHER 8MM 4
9. 30 597 COUNTERSUNK SCR MK8X12 4
10. 61 82 444 LOCK PLATE 2
11. 62 43 024 STOWING PIN 2
12. 31 155 SPRING WASHER 8MM 8
13. 32 228 SCREW MC8X16 8
14. 62 42 402 EXTENSION 232MM 1
15. 63 836 SLIDE BLOCK 8MM
16. 63 839 SLIDE BLOCK 10MM
505 02 110: 19990630
17. 63 840 SLIDE BLOCK 10MM
18. 62 43 014 WEAR PLATE 8MM
19. 63 717 SLIDE BLOCK
20. 63 716 SLIDE BLOCK
21. 63 797 SLIDE BLOCK 9MM
22. 63 798 SLIDE BLOCK 9MM
23. 62 46 334 BRACKET 1
24. 62 46 354 BRACKET 1
25. 31 280 COTTER BOLT Ø5X40 1
26. 33 458 LOCK RING-SS 1
27. 61 68 014 PIN 1
28. 30 837 NUT M24 1
29. 61 68 024 SUSPENSION WLDMNT 1
30. 31 318 ZERK 1/8" 1
31. 63 777 SLIDE BLOCK 11MM
32. 63 779 SLIDE BLOCK 11MM

12/89: PARTS-13

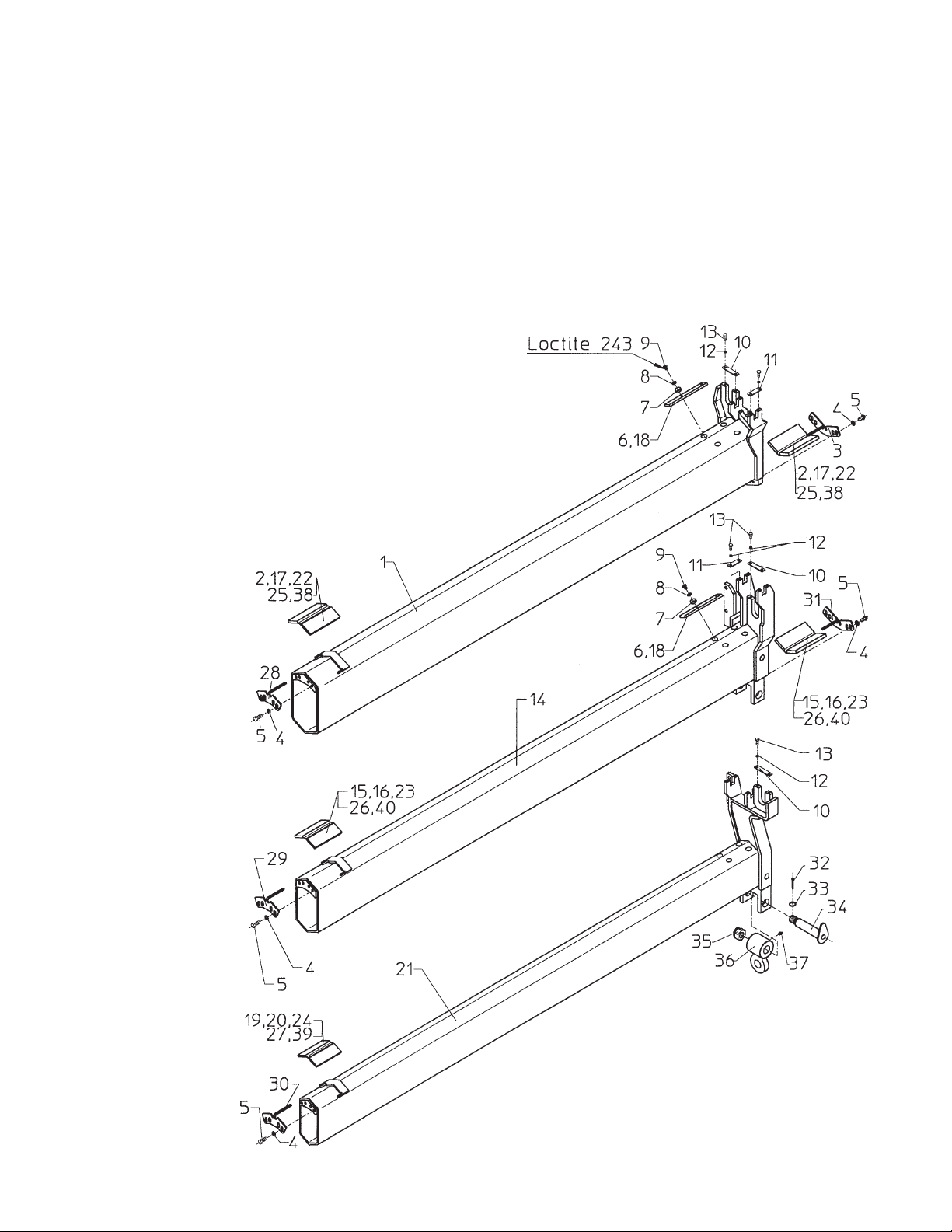

EXTENSION-3H
1. 62 42 322 EXTENSION 266MM 1
2. 63 837 SLIDE BLOCK 8MM
3. 62 46 334 BRACKET 1
4. 31 156 SPRING WASHER 10MM 18
5. 30 915 PIPE PLUG M10X25 18
6. 62 43 004 WEAR PLATE 6MM
7. 62 42 994 LOCK WASHER 8
8. 31 170 LOCK WASHER 8MM 8
9. 30 597 COUNTERSUNK SCR MK8X12 8
10. 61 82 444 LOCK PLATE 3
11. 62 43 024 STOWING PIN 4
12. 31 155 SPRING WASHER 8MM 14
13. 32 228 SCREW MC8X16 14
14. 62 42 402 EXTENSION 232MM 1
15. 63 836 SLIDE BLOCK 8MM
16. 63 839 SLIDE BLOCK 10MM
17. 63 840 SLIDE BLOCK 10MM
18. 62 43 014 WEAR PLATE 8MM
19. 63 835 SLIDE BLOCK 8MM
20. 63 838 SLIDE BLOCK 10MM
21. 62 42 482 EXTENSION 198MM
22. 63 717 SLIDE BLOCK
23. 63 716 SLIDE BLOCK
24. 63 715 SLIDE BLOCK
25. 63 797 SLIDE BLOCK 9MM
26. 63 798 SLIDE BLOCK 9MM
27. 63 799 SLIDE BLOCK 9MM
505 02 120: 19990630
28. 62 46 324 BRACKET 1
29. 62 46 354 BRACKET 1
30. 62 46 374 BRACKET 1
31. 62 46 344 BRACKET 1
32. 31 280 COTTER BOLT Ø5X40 1
33. 33 458 LOCK RING-SS 1
34. 61 68 014 PIN 1
35. 30 837 NUT M24 1
36. 61 68 024 SUSPENSION WLDMNT 1
37. 31 318 ZERK 1/8" 1
38. 63 777 SLIDE BLOCK 11MM
39. 63 778 SLIDE BLOCK 11MM
40. 63 779 SLIDE BLOCK 11MM

12/89: PARTS-14

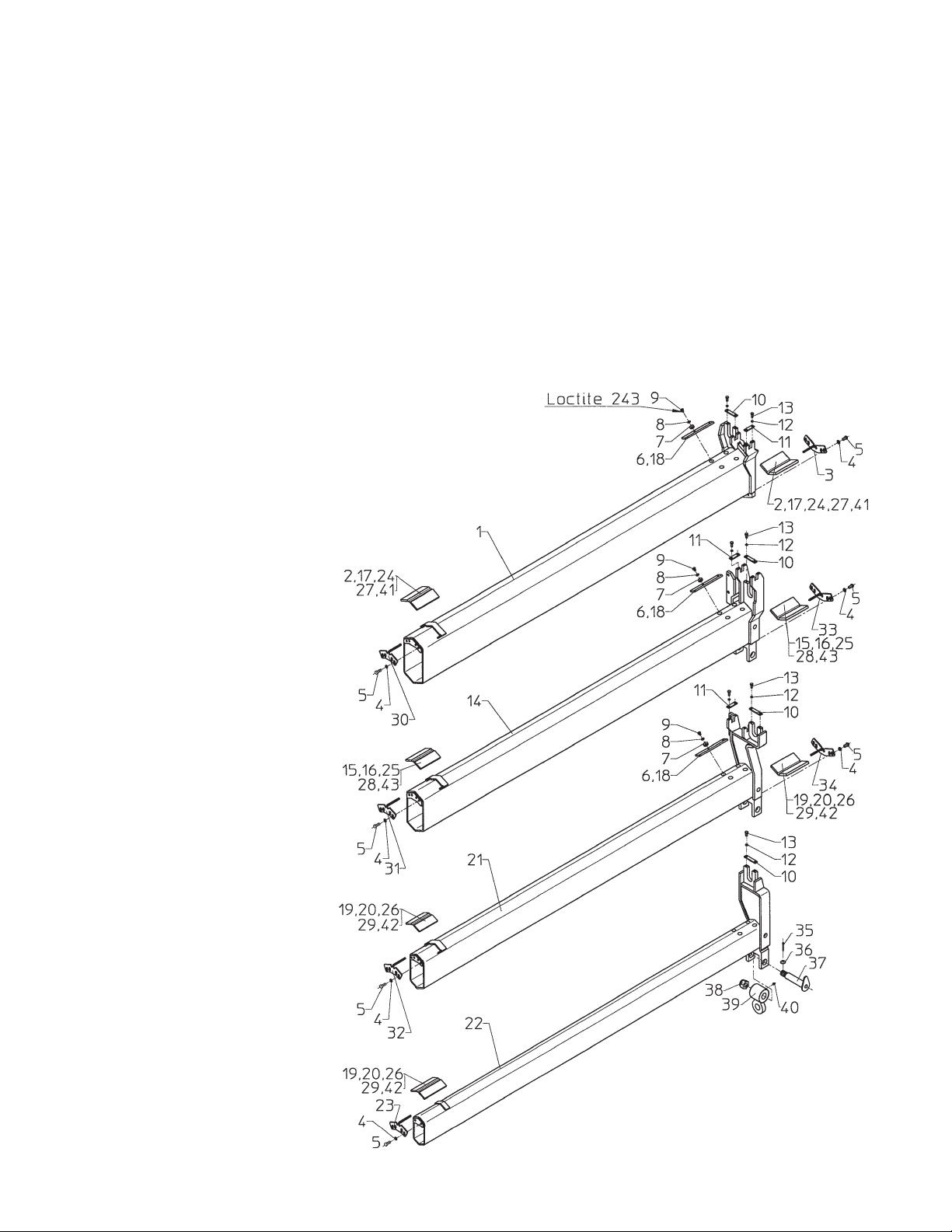

EXTENSION-4H
1. 62 42 322 EXTENSION 266MM 1
2. 63 837 SLIDE BLOCK 8MM
3. 62 46 334 BRACKET 1
4. 31 156 SPRING WASHER 10MM 26
5. 30 915 PIPE PLUG M10X25 26
6. 62 43 004 WEAR PLATE 6MM
7. 62 42 994 LOCK WASHER 12
8. 31 170 LOCK WASHER 8MM 12
9. 30 597 COUNTERSUNK SCR MK8X12 12
10. 61 82 444 LOCK PLATE 4
11. 62 43 024 STOWING PIN 6
12. 31 155 SPRING WASHER 8MM 20
13. 32 228 SCREW MC8X16 20
14. 62 42 402 EXTENSION 232MM 1
15. 63 836 SLIDE BLOCK 8MM
16. 63 839 SLIDE BLOCK 10MM
17. 63 840 SLIDE BLOCK 10MM
18. 62 43 014 WEAR PLATE 8MM
19. 63 835 SLIDE BLOCK 8MM
20. 63 838 SLIDE BLOCK 10MM
21. 62 42 482 EXTENSION 198MM
22. 62 45 952 EXTENSION 164MM 1
23. 62 46 384 BRACKET 1
24. 63 717 SLIDE BLOCK
25. 63 716 SLIDE BLOCK
26. 63 715 SLIDE BLOCK
505 02 130: 19990630
27. 63 797 SLIDE BLOCK 9MM
28. 63 798 SLIDE BLOCK 9MM
29. 63 799 SLIDE BLOCK 9MM
30. 62 46 324 BRACKET 1
31. 62 46 354 BRACKET 1
32. 62 46 374 BRACKET 1
33. 62 46 344 BRACKET 1
34. 62 46 364 BRACKET 1
35. 31 280 COTTER BOLT Ø5X40 1
36. 33 458 LOCK RING-SS 1
37. 61 68 014 PIN 1
38. 30 837 NUT M24 1
39. 61 68 024 SUSPENSION WLDMNT 1
40. 31 318 ZERK 1/8" 1
41. 63 777 SLIDE BLOCK 11MM
42. 63 778 SLIDE BLOCK 11MM
43. 63 779 SLIDE BLOCK 11MM

12/89: PARTS-15
HOOK SUSPENSION
1. 62 143 SAFETY LATCH
2. 62 101 HOOK 40KN 1
3. 62 114 SHACKLE W/NUT 4.75T 1
505 02 500: 19990630

12/89: PARTS-16505 02 610: 20020909

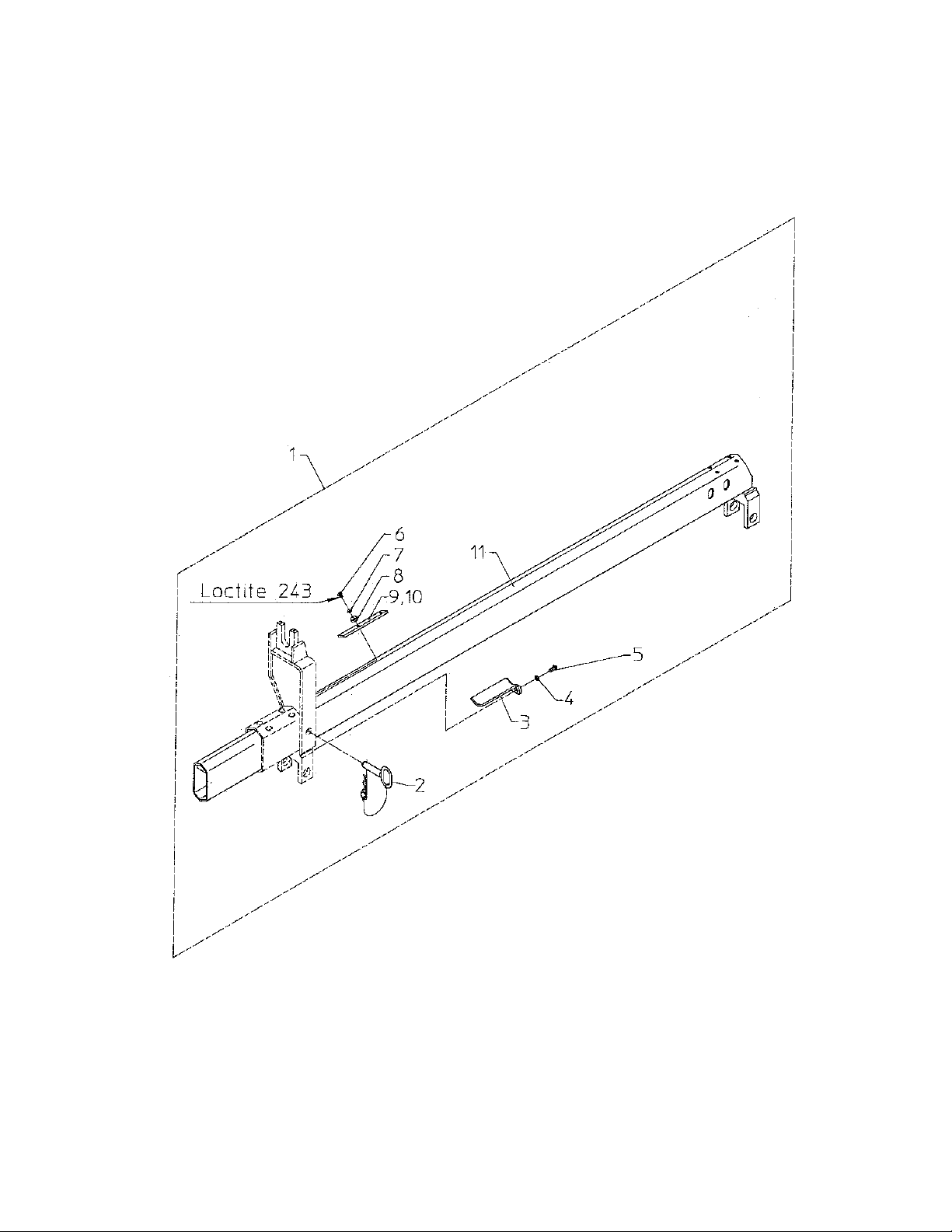

MANUAL EXTENSIONS, K2
1. 62 44 520 MANUAL EXT, 198 MM 1
2. 60 99 964 LOCK PIN, 155 MM
3. 62 44 474 BUSHING 1
4. 31 156 SPRING WASHER, 10 MM
5. 30 915 PIPE PLUG, M10 X 25
6. 30 597 C-SINK SCREW, MK8X12
7. 31 170 LOCK WASHER 8MM
8. 62 42 994 LOCK WASHER
9. 62 43 004 WEAR PLATE, 6 MM
10. 62 43 014 WEAR PLATE, 8 MM
11. 62 44 442 MAN EXT, K2 COMPLETE

12/89: PARTS-17505 02 620: 20020909
MANUAL EXTENSIONS, K3
1. 62 44 500 MAN EXT, COMPLETE 140MM 1
2. 62 65 454 LOCK PINW/CHAIN, 85MM 1
3. 62 43 434 CLAMP
4. 31 156 LOCK WASHER 10 MM
5. 30 915 PIPE PLUG M10X25
6. 62 44 510 MAN. EXT., COMPLETE 164MM 1
7. 60 99 964 LOCK PIN 155 MM 1
8. 62 44 564 BUSHING
9. 30 597 C-SINK SCREW MK8X12
10. 31 170 LOCK WASHER 8MM
11. 62 42 994 LOCK WASHER
12. 62 43 004 WEAR PLATE 6MM
13. 62 43 014 WEAR PLATE 8MM
14. 62 44 532 MAN. EXT, 164 MM
15. 62 43 382 MAN. EXT., 140 MM

12/89: PARTS-18505 02 630: 20020909
MANUAL EXTENSIONS, K4
1. 62 44 500 MANUAL EXT., CPL 140 MM 1
2. 66 56 614 LOCK PIN W/SPLIT PIN 105MM
3. 62 43 434 CLAMP
4. 31 156 SPRING WASHER 10 MM
5. 30 915 PIPE PLUG M10 X 25
6. 30 597 C-SINK SCREW MK8 X 12
7. 31 170 LOCK WASHER 8MM
8. 62 42 994 LOCK WASHER
9. 62 43 004 WEAR PLATE, 6 MM
10. 62 43 014 WEAR PLATE, 8 MM
11. 62 43 382 MAN. EXT., 140 MM

12/89: PARTS-19
INNER BOOM CYLINDER-C150-725
61 71 740 INNER CYLINDER 1
68 92 470 SEAL KIT (INCL:4,5,7,8,12) 1
1. 61 71 802 CYLINDER (INCL:2) 1
2. 23 342 BUSHING PM8040DX
3. 31 322 ZERK 1/8" 90° 2
4. 20 529 SCRAPER 85X95X7/10 1
5. 21 918 BEARING 85/90X25 1
6. 61 71 752 GUIDE 1
7. 20 330 O-RING 149.3X5.7 1
8. 20 619 SEAL 85X100X13 1
9. 23 336 BUSHING PM7040DX 2
10. 61 77 093 PISTON ROD HEAD 1
11. 61 77 103 PISTON ROD 1
12. 20 792 SEAL 150X125X25.4 1
13. 20 721 BACK RING 149.3X5.7 1
505 03 010: 19990630

12/89: PARTS-20
OUTER BOOM CYLINDER-C125-825
61 76 700 OUTER CYLINDER
68 92 940 SEAL KIT (INCL:4,5,7,8,12,14)
1. 61 76 662 CYLINDER (INCL:2) 1
2. 23 342 BUSHING PM8040DX
3. 31 318 ZERK 1/8" 2
4. 20 523 SCRAPER 75X85X7/10 1
5. 22 101 BEARING 75/80X25 1
6. 62 02 973 GUIDE 1
7. 20 327 O-RING 119.3X5.7 1
8. 20 650 SEAL 75X85X13 1
9. 61 77 123 PISTON ROD HEAD 1
10. 23 321 BUSHING PM9060DX 1
11. 61 77 173 PISTON ROD 1
12. 20 188 O-RING 74.5X3 1
13. 62 02 963 PISTON 1
14. 20 791 SEAL 125X108X26.5 1
505 03 050: 20020909
Lock-tite 243
