jbc CP-2E User manual

中文 48
Deutsch 32
Español 16
Compact
Micro Tweezers Station
Ref. CP-E
English 2
Page
www.jbctools.com

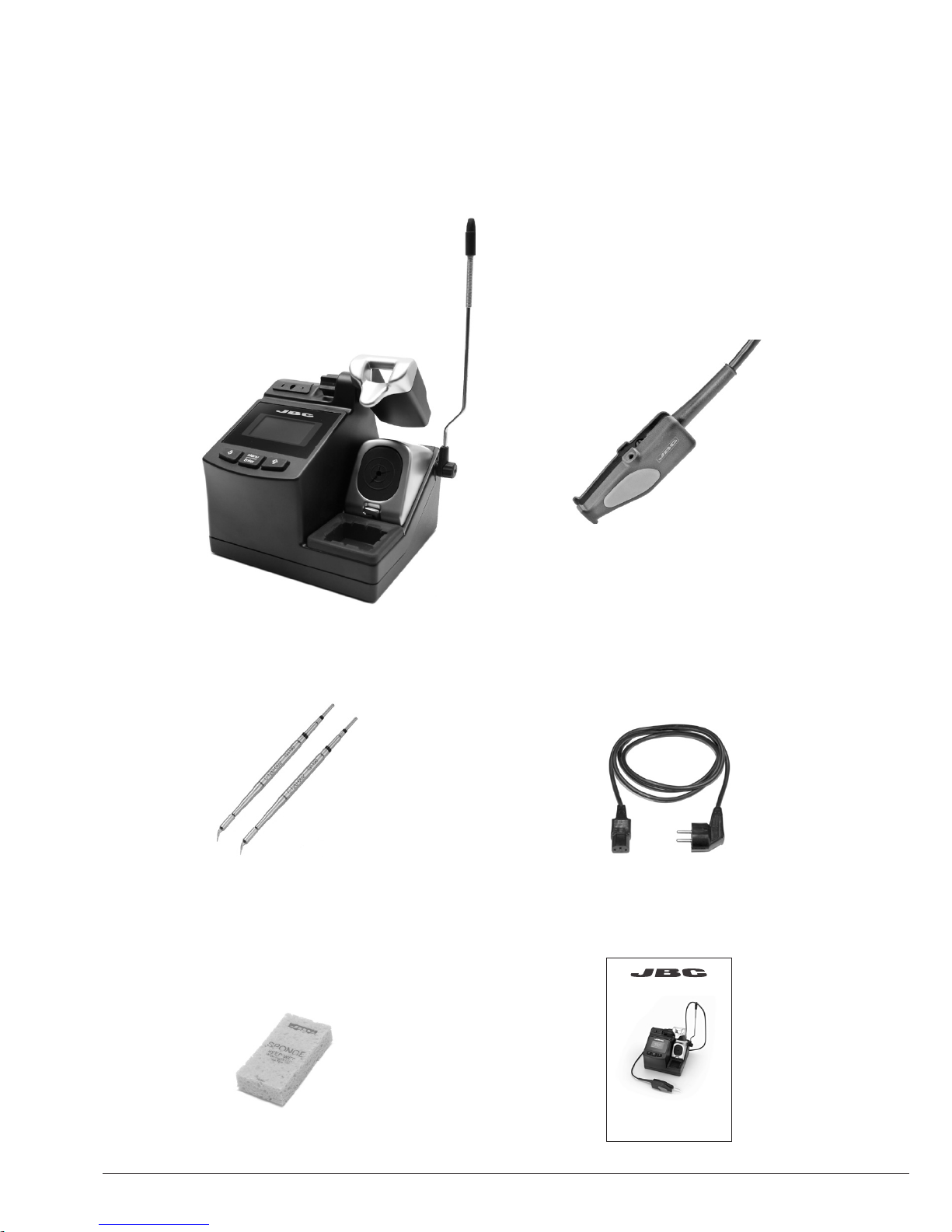

Packing List
The following items should be included:
Power Cord ........................................... 1 unit
Ref. 0009417 (100V/120V)
0009401 (230V)
Manual ................................................... 1 unit
Ref. 0016885
Sponge .................................................. 1 unit
Ref. S0354
Micro Tweezers ......................................... 1 unit
Ref. PA120-A
Compact
Micro Tweezers Station
Ref. CP-E
CP Control Unit ......................................... 1 unit
Ref. CP-1E (120V)
CP-2E (230V)
CP-9E (100V)
Cartridges (x2) ...................................... 1 unit
Ref. C120002
2
www.jbctools.com

Power Socket
Main switch
Fuse
Equipotential connectionUSB-B connector
Features
Micro Tweezers
Ref. PA120-A
Cable collector
Process Screen
Adjustable Stand:
Intelligent Heat Management
Tip Cleaner brass wool
with antisplash membrane
www.jbctools.com
3

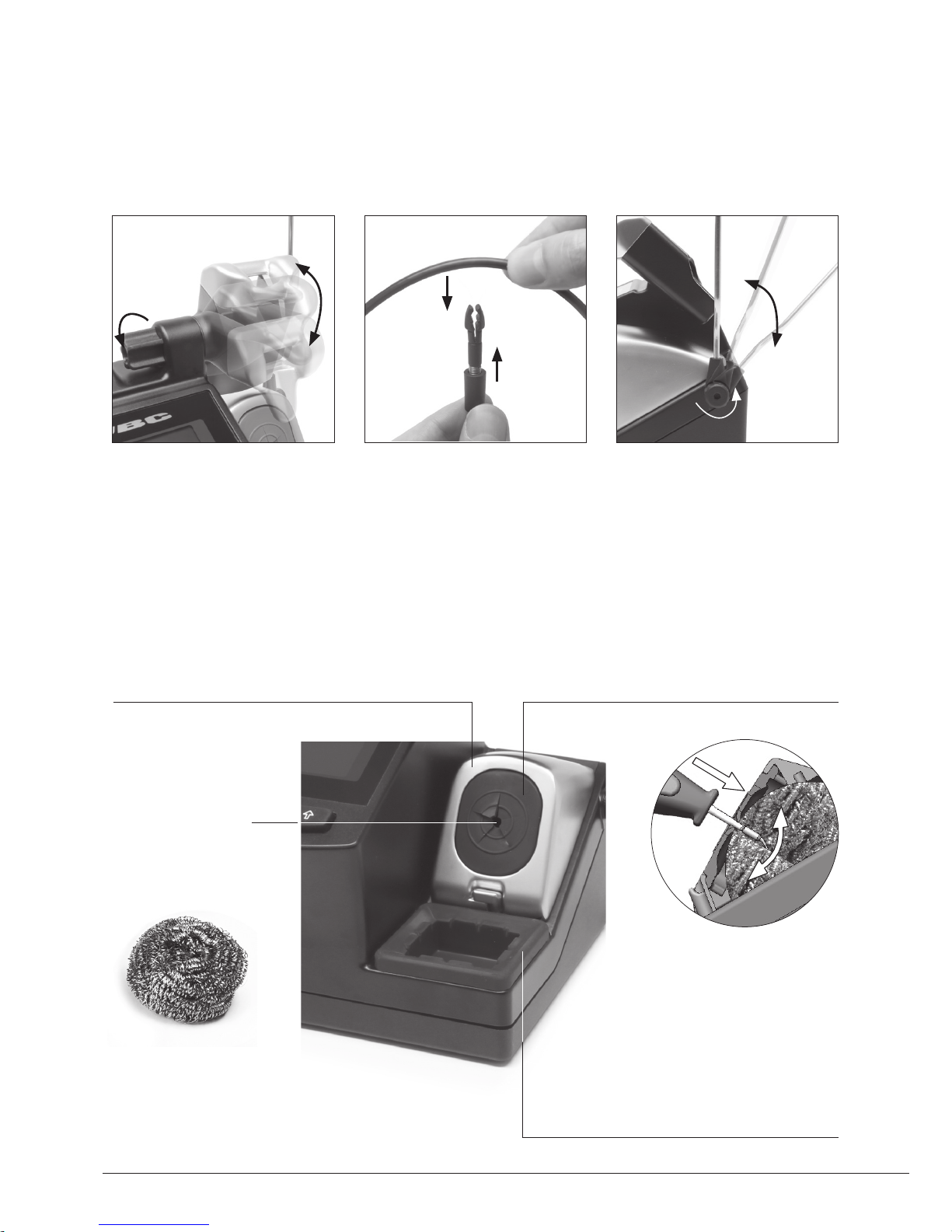

Adjustable stand Cable collector (Ref. CC3702)
Adjust the tool stand to suit
your work position.
Place the cable on the collector so that the working area is free
of cable.
Tip Cleaner
Brass Wool
Ref. CL6210
Very effective cleaning
method. Leaves a
small layer of solder
on the tip preventing
oxidation between
cleaning and rewetting.
Select the option to suit your needs and improve the thermal transfer of the tip.
Splashguard
Ref. 0017576
When using the brass wool. it prevents
splashing of solder particles.
Antisplash Membrane
Ref. 0 017574
Prevents splashing and
keeps the work area clean.
Wiper
Ref. CL0160
A temperature resistant receptacle for removing
excess solder by gently tapping or wiping.
If the tip is very dirty,
JBC recommends first
cleaning it with the wiper
to remove excess solder.
4

Removing the splashguard:
1. Unlock the splashguard. 2. Remove it.
Lock
More cleaning options (not supplied):
Inox Wool
Ref. CL6205
Provides a superior
cleaning of the tip.
Metal Brush
Ref. CL6220
When used carefully,
it provides a more
thorough cleaning.
Sponge
Ref. S0354
The least harmful cleaning
method. Keep the sponge
damp with distilled water to
avoid tip wear.
Tapping:
Tap gently to remove excess
solder.
Wiping:
Use the slots to remove
remaining particles.
Wiper
www.jbctools.com
5

ø0,7 1,5mm
ø 0,2
5mm
6mm
C120-009 C120-010
2. Inserting
3. Aligning 4. Fixing
Align the tip of the cartridge.
Use a flat pliers for a correct tip alignment.
Do not over-tighten the cartridge.

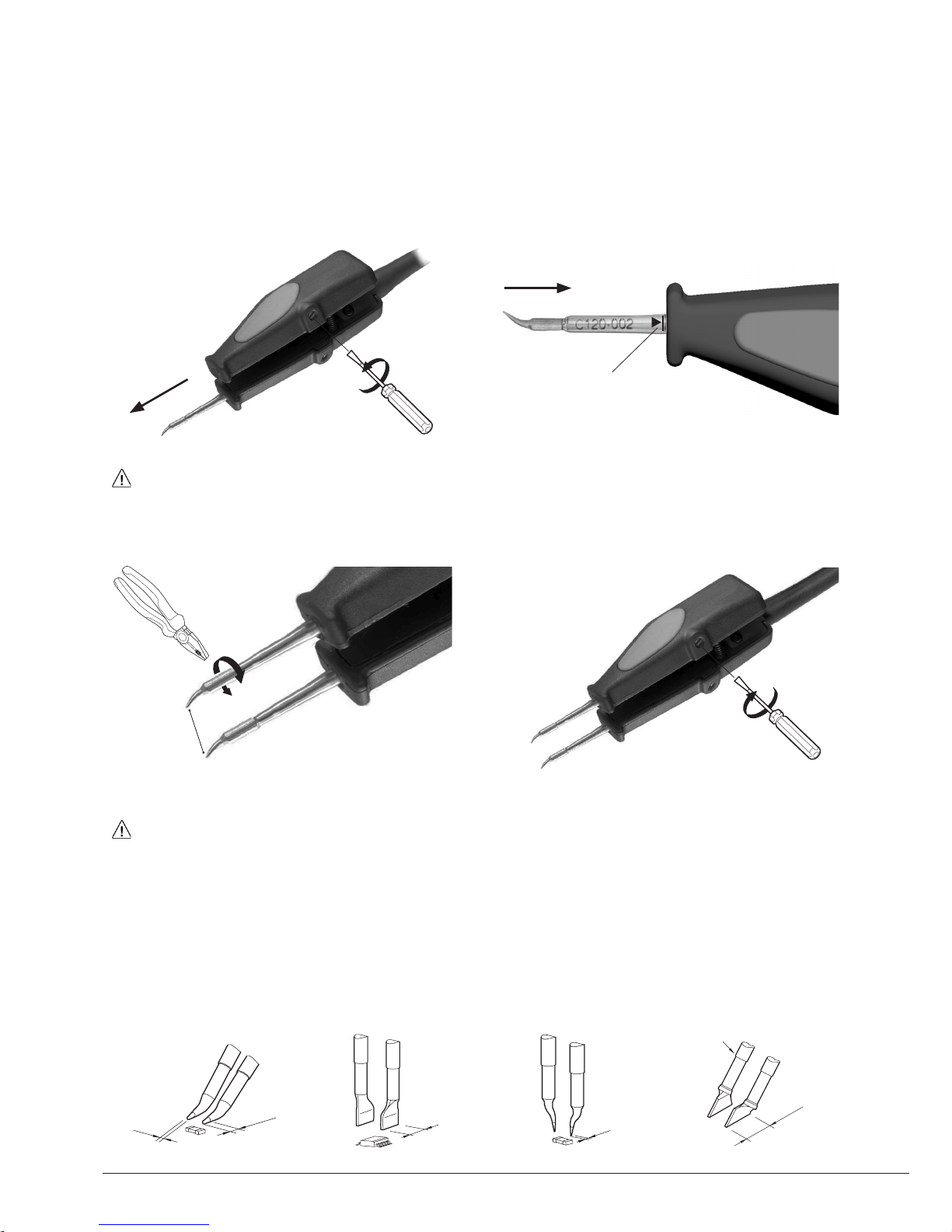

Changing cartridge
To change a cartidge safely, unplug the tool or turn the station off before following these guidelines:
Loosen the screw and remove the cartridge.
Use a flat pliers if still hot.
1. Removing
Important: Tighten the screw again being
careful not to over-tighten. This is necessary
for the tool to function.
Important: Insert the cartridge as far as the
mark for a correct connection.
Mark
Alignment
Compatible cartridges
The CP station works with C120 cartridge range.
Find the model that best suits your soldering needs in www.jbctools.com
C120-004 C120-001C120-005 C120-009 C120-010
6

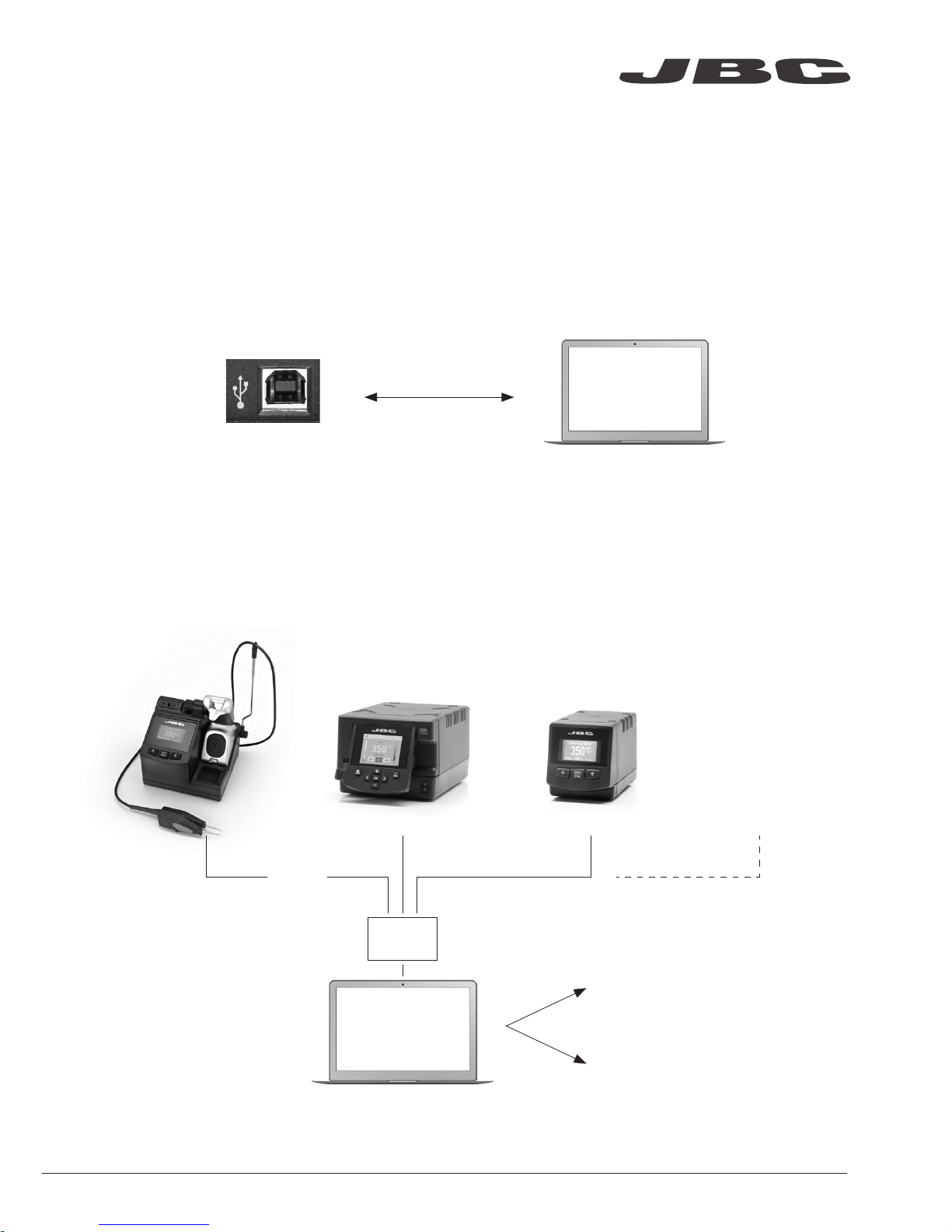

USB Connector
Download the latest software from our website to update your soldering station.
JBC Updater
www.jbctools.com/software.html
Update the station software via USB connection:
Cable USB AB JBC
Updater
JBC
Manager
JBC Manager
www.jbctools.com/manager.html
Manage and monitor as many stations as your PC can handle by using the JBC Manager.
You can export data to another PC.
Register Settings
Create graphs of the
soldering process in
real time showing power
and temperature data.
Manager Settings
Change settings for a
group of JBC stations at
the same time.
any JBC
station
USB
Hub
Cable
USB AB
www.jbctools.com
7

0
c
Power 5%
350
Selected temp 350
o
C
Sleep temp 90
o
C
Sleep
0
c
350
Tool in the stand, no heat
Hibernation
0
c
350
Operation
The JBC Exclusive Heating System
This revolutionary technology is able to recover tip temperature extremely quickly.
This allows the user to work at a lower temperature.
As a result, tip life increases by 5.
· Change temperature
(from 90 to 450ºC)
· Select temperature levels
· Fix one temperature
· Change Sleep temperature
· Set Sleep delay
(from 0 to 9 min or no Sleep)
· Change Hibernation delay
(from 0 to 35 min)
Long time in
the stand
1. Work
When the tool is lifted from the
stand the tip will heat up to the
selected temperature.
2. Sleep
When the tool is in the stand,
the temperature falls to the
preset sleep temperature.
3. Hibernation
After longer periods of
inactivity, the power is cut off
and the tool cools down to
room temperature.
8

4 Counters
5 Program version
Main menu
Exit
1 Reset settings
2 Station settings
3 Tool settings
4 Hibernation hours 0
5 No tool hours 0
6 Sleep cycles 0
Back
Back
5 Help text OFF
6 Beep ON
7 Change PIN
1 Plugged hours 0
2 Working hours 0
3 Sleep hours 0
Counters
Tool PA
1 Fix one temp -----
2 Temp levels set OFF
3 Sleep delay 0 min
Tool settings
1 Temp unit Celsius
2 Maximum temp 400
0
C
3 Minimum temp 200
0
C
4 Metronome ----
Station settings
Fixed temp 350
o
C
Levels ºC 250 350 400
4 Sleep temp 90
0
C
5 Hibernationdelay 0 min
6 Temp adjust + O
O
C
Tool PA
Back
0
Selected temp. 350
o
C
Power 5%
-1
c
350
Menu Screen
The work screen provides
useful information of tool
status in real time.
Work Screen
Original PIN: 0105
Control Process
Displays a specific fixed temp.
Shown when you have
selected temperature levels.
The values must be adjusted
according to the work needs.
“Temperature Adjust” parameter.
It provides a more precise
adjustment between the selected
temp and the actual one.
www.jbctools.com
9

Parameters
Station Settings
Minimum temperature
Set the minimum
temperature to work with.
Min. temp. by default is
200ºC (392ºF). This is consi-
dered to be a proper starting
point for leaded applications.
Maximum temperature
Set the maximum
temperature to work with.
Max. temp by default is 400°C
(750°F). This is considered
high enough to work with
most lead-free applications.
Temperature unit
Celsius (ºC) or Fahrenheit (ºF)
Metronome
This activates a beep sound.
Frequencies vary from 1 to 50
seconds.
Help text
Activate this parameter to
receive info from the system.
Beep
Enable/disable the beep
sound of the keypad.
Change pin
Change the default security
PIN number (0105).
RecommendationsParameter description
The PIN must be entered
every time a parameter is
changed.
Useful for setting a work rate
in repetitive jobs. The beep
lets you know the length of
time the tip must be in contact
with the soldering joint.
N/a
N/a
N/a
Warnings
The station temperature
range is 90-450ºC
(190-840ºF). Change the
temperature limits when
working with less common
applications such as low / high
melting point soldering (HMP)
or plastics (e. g. riveting).
N/a
N/a
N/a
N/a
In most cases,
working with temperatures
over 400°C (750°F) can
damage the PCB and its
components. Even in short
time periods of tip contact
with the soldering joint, the
flux may not work properly
and could seriously reduce
tip life.
If the solder joint
requires more power
(e.g. multilayered or high
dissipation boards), JBC
strongly recommends using
other aids like preheaters.
Be careful when using these parameters as they may reduce the tip life if not used properly. Please
follow the recommended guidelines:
10

Tool Settings
Sleep delay
Set the time that the tool
will remain at the selected
temperature when in the stand
before entering sleep mode.
The tip temperature will then
drop to the Sleep temperature.
Sleep temperature
This is the set temperature the
tip reaches when returned to
the stand.
Fix one temperature
Fix a value within the
temperature range of the
station (90-450ºC/190-840ºF).
Temperature levels set
Similar to “Fix one temp”
parameter. In this case, the
user can set up to 3 values for
different power requirements.
The sleep temperatures are
set to achieve a balance
between preventing oxidation
and reaching the working
temperature in a few seconds.
Ideal for soldering more than
one component at a specific
temperature. The station will
reject any attempt to change
the temperature.
This allows a quick change
between 3 different
temperatures. Set them
according to the allowed
values for your soldering
applications.
Because our tools reach the
working temperature from the
default Sleep mode in only a
few seconds, this parameter is
preset to 0 min. Once the tool
is returned to the stand the
temperature will automatically
drop to the sleep temperature,
extending tip life and avoiding
oxidation. Retinning the tip
before placing the tool in the
stand will protect the tip and
extend its life.
RecommendationsParameter description Warnings
N/a
N/a
Setting these
parameters to higher values
will unnecessarily accelerate
oxidation and shorten tip life
especially when working
with temperatures up to
450°C (840°F).
www.jbctools.com
11

Hibernation Delay
Set the time the tool will re-
main at Sleep temperature be-
fore entering the Hibernation
mode. At this time, the power
supply is cut off and the tip
remains at room temperature.
Temp Adjustment
It provides a more precise
adjustment between the
selected temperature and the
actual one.
This function completely
protects the tip from oxida-
tion during long periods of
inactivity while the tool is in
the stand.
Retinning the tip before pla-
cing the tool in the stand also
helps prevent oxidation and
extends the life of the tip.
Set values within ±50°C
(± 90°F) to achieve zero error.
JBC strongly recommends the
use of TID-A or TIA-A Ther-
mometers to obtain precise
readings.
Tool Settings
Increasing the default
value will accelerate
oxidation and shorten the
tip life.
When the user changes
the cartridge type, the
parameter should be reset
to 0°C/F or to the value
needed for this cartrid-
ge. E.g. If a correction of
+20°C (+36°F) is set for the
C245966 (thick type) and
then the user changes the
cartridge for a C245030
(which is thinner) without
resetting, they would be
working at a temperature
of +20°C (+36°F) lower for
the C245030 which does
not need any temperature
adjustment.
RecommendationsParameter description Warnings
12

Before carrying out maintenance, always allow the equipment to cool.
Clean
periodically
- Clean the station screen with a glass cleaner
or a damp cloth.
- Use a damp cloth to clean the casing and the
tool. Alcohol can only be used when cleaning
the metal parts.
- Periodically check that the metal parts of the
tool and stand are clean so that the station
can detect the tool status.
- Maintain tip surface clean and tinned prior to
storage in order to avoid tip oxidation.
Rusty and dirty surfaces reduce heat transfer
to the solder joint.
- Periodically check all cables and tubes.
- Replace a blown fuse as follows:
Maintenance
1. Pull off the fuse holder and remove the
fuse. If necessary use a tool to lever it off.
2. Insert the new fuse into the holder
and return it to the station.
- Replace any defective or damaged pieces. Use original JBC spare parts only.
- Repairs should only be performed by a JBC authorized technical service.
www.jbctools.com
13

It is imperative to follow safety guidelines to prevent electric
shock, injury, fire or explosion.
- Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire.
- The power cord must be plugged into approved bases. Be sure that it is properly grounded
before use. When unplugging it, hold the plug, not the wire.
- Do not work on electrically live parts.
- The tool should be placed in the stand when not in use in order to activate the sleep mode.
The soldering tip, the metal part of the tool and the stand may still be hot even when the station is
turned off. Handle with care, including when adjusting the stand position.
- Do not leave the appliance unattended when it is on.
- Do not cover the ventilation grills. Heat can cause inflamable products to ignite.
- Avoid flux coming into contact with skin or eyes to prevent irritation.
- Be careful with the fumes produced when soldering.
- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when
working to avoid personal harm.
- Utmost care must be taken with liquid tin waste which can cause burns.
- This appliance can be used by children over the age of eight and also persons with reduced
physical, sensory or mental capabilities or lack of experience provided that they have been given
adequate supervision or instruction concerning use of the appliance and understand the hazards
involved. Children must not play with the appliance.
- Maintenance must not be carried out by children unless supervised.
Safety
14

Specifications
CP-1E 120V 50/60Hz. Input fuse: 2A. Output: 23,5V. Control Unit model: CP-1E
CP-2E 230V 50/60Hz. Input fuse: 1A. Output: 23,5V. Control Unit model: CP-2E
CP-9E 100V 50/60Hz. Input fuse: 2A. Output: 23,5V. Control Unit model: CP-9E
- Weight: 2.7 kg (5.95 lb)
- Dimensions: 150 x 175 x 145 mm (5.91 x 6.89 x 5.71 in)
- Output Peak Power: 80W
- Temperature Range: 90 - 450°C (190° - 840 °F) (±5%)
- Tip to ground resistance: <2 ohms
- Tip to ground voltage: <2mV RMS
- Ambient operating temp: 10 - 40 ºC (50 - 104 ºF)
- USB connector station-PC
Complies with CE standards
ESD protected
www.jbctools.com
15

16

Estación con Micro Pinza
Ref. CP-E
www.jbctools.com
17

Composición
Los siguientes artículos deben estar incluidos:
CF Control Unit
Unidad de Control CP ............................. 1 unidad
Ref. CP-1E (120V)
CP-2E (230V)
CP-9E (100V)
Micro Tweezers
Micro pinza ............................,,,............... 1 unidad
Ref. PA120-A
Power Cord
Cable de Red ........................................... 1 unidad
Ref. 0009417 (100V/120V)
0009401 (230V)
Manual .............................................. 1 unidad
Ref. 0016885
Sponge
Esponja ...................................................... 1 unidad
Ref. S0354
Cartridges (x2)
Cartuchos (x2).................................... 1 unidad
Ref. C120002
Compact
Micro Tweezers Station
Ref. CP-E
18
www.jbctools.com

Entrada de Red
Interruptor de red
Fusible
Conexión EquipotencialConector USB-B
Características
Recogecable
Limpiador de puntas
Pantalla de control
Soporte Ajustable:
Gestión inteligente del calor
Micro Tweezers
Micro pinza
Ref. PA120-A
www.jbctools.com
19

Soporte Ajustable Recogecable (Ref. CC3702)
Coloque el cable en el recogedor para mantener ordenada su
área de trabajo.
Ajuste el soporte de la
herramienta para adaptarlo a
su posici’on de trabajo.
Limpiador de puntas
Brass Wool
Lana de latón
Ref. CL6210
Método muy eficaz.
Deja una pequeña
capa de estaño
en la punta para
prevenir la oxidación
entre la limpieza y la
rehumectación.
Elija la opción que se ajuste mejor a sus necesidades y mejore la transferencia térmica de la punta.
Splashguard Protector anti-salpicaduras
Ref. 0017576
Protege la estación de las salpicaduras
cuando se utiliza la lana de latón.
Antisplash Membrane Membrana protectora
Ref. 0 017574
Protege el área de trabajo de salpicaduras en el
momento de limpiar la punta.
Wiper Limpiador
Ref. CL0160
Receptáculo resistente a la temperatura que
permite que se pueda eliminar el exceso de
soldadura golpeando suavemente o limpiando.
Antes de utilizar la lana
se recomienda eliminar
el exceso de estaño
acumulado en la punta
con el limpiador.
20
