Joie nitro S1036 User manual

birth to 15kg/0-36 months
使用說明書
組裝及使用本產品前
請先閱讀說明書全文
輕便傘車
nitro™

1
謝謝您使用本產品
您剛買了一台高品質和符合台灣安全標準CNS 12940 - 2013 和歐洲
安全標準EN 1888 - 2012 的輕便傘車。這台車適用於重量15公斤
(0-36個月)以下的寶寶。
請仔細研讀並依照本說明書的指示操作，如此才能保障並提供您的
寶寶一個安全又舒適的行車旅程。
本說明書中採用的插圖是為了說明產品的操作方法和產品結構，當
插圖與實物存在差異時，請以實物為準。
功能介紹
背靠可五段角度調節
座椅可坐、可躺
前輪可定向
後輪可剎車可避震
小腿靠可調
織帶超柔軟
五點式安全扣
超大置物籃
! 請保存好說明書，以便日後正確使用本產品。
目錄
參照圖示 1-7
中文
警告 9
緊急情況處理 11
產品資訊 11
產品組件及各部位名稱 12
保養常識 12
產品組裝 13
打開手推車 13
安裝前輪 13
安裝後輪 13
安裝遮陽篷 13
產品操作 13
調整背靠角度 13
使用安全扣 14
使用肩帶和腰帶 14
使用肩帶護片 14
調節小腿靠支撐板 14
前輪定向 15
使用剎車踏板 15
使用遮陽篷 15
收合手推車 15
使用提把 15
使用配件 15
English 18-28

2
1
2
1
1
4
3
3
1
2
4
5
6
9
7
8
13
14
15
11
12
10
2
x2
FIGURE 3 ~ 8
FIGURE 1 ~ 2
3
NOISE
6
4
8
7
2
1
5
2
1

4
3
11 12
10
9
13 14
1
2
18
17
16
15
1 2 3
19
1
3
2
3
1
A
2
B
FIGURE 15 ~19
FIGURE 9 ~ 14

6
5
22
23
1
24
20
1
1
2
21
27
25
26
1
2
FIGURE 25 ~ 27
FIGURE 20 ~ 24

78
29
28 Note
FIGURE 28~ 29

910
警告
!本產品須由成人進行組裝。
!本手推車適合體重15公斤以下的寶寶使用，不符合使用條件的寶寶
會 對 手 推 車 造 成 損 壞。
!寶寶乘坐時應使用腰部及胯部的安全帶，並同時使用肩帶。
!請勿擺放超過4.5公斤的物件於置物籃內，以免導致手推車不穩定而
產 生 危 險。
!不得將寶寶單獨留置於手推車上無人看護。
!不得同時乘坐二位以上寶寶或附載其它的物品、附件於手推車上。
!超載或不正確的折疊及使用非經核准的零附件都可能造成手推車
損 壞、故 障 或 不 安 全，請 務 必 閱 讀 說 明 書。
!使用前請仔細閱讀本說明書並請妥善保存供以後參照。如果不按照本
說明書可能會影響乘坐寶寶的安全。
!寶寶乘坐時，安全帶或束縛系統必須正確的扣合及使用。
!當調整手推車上之任何可活動配件時，必須確定寶寶與手推車保 持
安 全 距 離。
!使用時請扣好安全帶，以免寶寶滑入腿部開口外而造成窒息。
! 禁止在樓梯上使 用 手 推 車。
!使用時請遠離火源、高溫、水池或電源之附近範圍。
!不可讓寶寶站立或倒坐於手推車上。
!不可將手推車放置於馬路、坡道或危險場所。
!使用前，請確保所有鎖定裝置都已處於鎖定狀態。
!請勿將任何繩索或索帶類物件懸掛於寶寶頸部附近，或扣在產品
及玩具上，以免導致意外窒息。
! 請勿放置任何物品在車手、背靠後面或車台側面，以免影響 手推車的
穩 定 性。
!寶寶乘坐於手推車內時，不可將整個手推車往上提。
!請勿將寶寶放到置物籃內。
!請不要讓寶寶攀爬手推車，以免翻覆。
!為避免手指夾傷問題，收合及展開手推車時，請務必小心。
!寶寶接近手推車前，請確認手推車已完全打開或收合。
!使用前請確定各部件安裝牢固以確保安全。
!保持寶寶遠離遮陽篷及雨篷以免造成窒息。
!停泊此手推車時務必確實使用所有之剎車裝置。
!當發現手推車損壞時，應立即停止使用。
! 本產品不適用於跑步和滑冰，只適合以步行速度使用。
! 使用本產品前，請取掉PE袋和包裝材料並銷毀，並放到嬰兒和兒童
觸 摸 不 到 的 地 方。
! 供新生兒使用時，應使用最斜躺位置。
! 請勿允許您的寶寶將本產品當玩具玩耍。
! 當放入和抱出寶寶時，應鎖定剎車裝置。

11 12
緊急情況處理
遇緊急事故時，需將安全帶剪斷，迅速將乘坐的兒童移離現場。
產品資訊
JOIE CHILDREN'S PRODUCTS (UK) LIMITED
16 Old Bailey, London EC4M 7EG, UK
www.joiebaby.com
產品名稱 Nitro 輕便傘車
產品型號 S1036
適用範圍 新生兒-15公斤(0-36個月）的 寶 寶
主要材質 塑 膠、合金、布
淨 重 7.8公斤
產品尺寸 824mmx487mmx1085mm
製造日期 詳見產品上貼紙日期(年/月/日)
專利號碼 專利申請中
產 地 中國
委 製 商 英商巧兒宜實業有限公司台灣分公司
地 址 台北市內湖區瑞光路431號2樓
電 話 02-27973000
進 口 商 奇哥股份有限公司Chickabiddy Co., Ltd
地 址 台北市南京東路四段186號5樓
服務專線 0800-001-256 / 02-25781188
統一編號 04222671
網 址 www.chick.com.tw
使用本產品前請先閱讀說明書全文，如果您對於使用本產品還有
任何疑問，請撥服務專線0800-001-256 / 02-25781188
產品組件
及各部位名稱
組裝前請確認所有部件已經齊全，如有遺漏，請與銷售商聯繫。本產
品 無 需 工 具 進 行 組 裝。
保養常識
1. 清洗座布時，請使用30度以下水溫清洗 ，請勿漂白。
2. 清洗車架︰僅能使用中性清潔劑及溫水洗滌 ，請勿使用漂白劑 。
3. 隨時檢查您的手推車 ，並隨時更換或修理鬆弛磨損的零件 、脫落的材料或
車縫線。
4. 過度曝曬於陽光下，可導致手推車老化或變形。
5. 手推車潮濕時，請打開手推車及遮陽篷，待乾燥後再收合起來。
6. 如果輪子發出“吱吱”聲，可加油(WD-40，防鏽油或縫紉機油)潤滑。請將
潤滑油點入輪軸及軸孔 (圖3)之間，此步驟為重要的保養須知。
7. 在海邊使用手推車時，務必於使用過後清除沙粒，以做好完善的清洗。
圖 2.7 小腿靠
圖 2.8 安全扣
圖 2.9 安全帶
圖 2.10 支撐架
圖 2.11 置物籃
圖 2.12 腳 踏 片
圖 2.13 剎車踏板
圖 2.14 收合踏板
圖 2.15 收合握把
圖 1.1 主體
圖 1.2 前輪(2個)
圖 1.3 後輪組
圖 1.4 遮 陽 篷
圖 2.1 車 手
圖 2.2 收合 鉤
圖 2.3 提 把
圖 2.4 後輪
圖 2.5 前輪
圖 2.6 腳踏板

14
產 品 操 作
13
產 品 組 裝
產品組裝
組裝及使用手推車前，請先閱讀說明書全文 ，並按照說明書指示進行操作 。
打開手推車
拉開收合鉤(圖4)，將車手向後上方向拉起(圖5.1)，然後向下踩腳踏片
(圖5.2)。聽到“咔噠 ”聲表示車架已打開到位 。
! 使用手推車前務必確保車架已打開到位。
安裝前輪
將前輪套入前腳，聽到“咔噠 ”聲表示前輪已安裝到位(圖6)
按壓彈簧片(圖7.1)，同時向下拉前輪(圖7.2)，即可拔出前輪。
安裝後輪
1.先將後輪組套入後腳管(圖8)，聽到“咔噠”聲表示後輪已安裝到位。
2.將剎車線卡入後叉管下方的固定塑膠中，以固定剎車線(圖9)
安裝遮陽篷
1.將遮陽篷底座卡在固定塑膠上(圖10)
2.用黏扣帶和鈕扣固定遮陽篷後擋片在背靠上(圖11)
手推車組裝完成後如(圖12)所示。
產品操作
調整背靠角度
背靠可5段角度調節
1.調低背靠角度
按壓背靠調整按鈕(圖13.1)，同時向下旋轉背靠到合適的角度(圖13.2)
! 如寶寶已坐在座椅內，請用另一隻手輕托背靠，以減少震盪。
! 背靠完全躺平時，遮陽篷後片與背靠必須用鈕扣和黏扣帶扣合(圖11)
2.調高背靠角度時，將背靠向上推即可。
! 確保背靠角度調整到合適角度後，方可使用。
使用安全扣
鬆開安全扣
按下母扣中央的按鈕，鬆開安全扣(圖14)
扣合安全扣
將腰帶扣依次插入肩帶扣(圖15.1) 和母扣內(圖15.2)，聽到“咔噠”聲表示扣
合到位(圖15.3)
! 為防止寶寶摔跤，寶寶乘坐時必須繫上安全帶。
! 請牢牢地繫上安全帶，並注意寶寶與安全帶之間須可以放進一個手掌的
厚度。
! 請勿交叉肩帶 ，以免對寶寶頸部造成壓迫。
使用肩帶和腰帶
!寶寶坐進手推車後，請確認肩帶孔高度和肩帶及腰帶的長度是否合適，以
免寶寶於使用時意外跌出。
圖16.1 肩帶固定栓Ａ 圖16.2 肩帶固定栓Ｂ 圖16.3 調整扣
較大的寶寶使用時，請使用肩帶固定栓A和最上方的肩帶孔；
較小的寶寶使用時，請使用肩帶固定栓B和最下方的肩帶孔。
調整肩帶固定栓位置時，將背靠後方的肩帶固定栓放置水平、短邊朝前，
從肩帶孔穿出(圖17)，再從背靠前方將肩帶固定栓穿過最接近寶寶肩膀的肩
帶孔(圖18)
將調整扣上下滑動，可調節肩帶長度(圖19.1)；按壓按鈕(圖19.2)，同時往外
拉安全扣內側或外側的腰帶，可調節腰帶長度(圖19.3)
使用肩帶護片
肩帶護片可直接從肩帶上取下，反之即可組裝。請將肩帶護片寬面朝向寶
寶，避免影響寶寶的舒適性。
調節小腿靠支撐板
依不同使用需求，小腿靠共有2個段位可供調節。
段位調高時，將小腿靠支撐板由下往上推即可。
段位調低時，按壓小腿靠兩側的調整按鈕(圖20.1)，同時向下調節小腿靠支撐
板(圖20.2)

15 16
產 品 操 作
產 品 操 作
前輪定向
鎖定時，向上提起拉板(圖21)，即可固定車輪前行方向。
釋鎖時，按下拉板，車輪可自由轉向，改變推行方向更容易。
使用小秘訣 當在碎石路面或不平路面推行時，建議鎖定前輪，便能更輕鬆
地操控手推車。
使用剎車踏板
準備剎車時，踩下剎車踏板(圖22)，即可完成剎車動作。
打開剎車時，向上提起剎車踏板(圖22.1)，即可完成釋鎖動作。
使用小秘訣 手推車停止前進時，請鎖定剎車踏板。
使用遮陽篷
打開遮陽篷時，將遮陽篷往前拉，再按下遮陽篷兩側的支撐架(圖23)
收攏遮陽篷時，拉起兩側的支撐架(圖23.1)，再將遮陽篷往後翻。
收合手推車
收合手推車前，請先收攏遮陽篷。
向上提起收合握把(圖24)，踩下收合踏板(圖25.1)，然後向前推車手(圖25.2)
收合鉤自動扣合收合栓，手推車收合完成後如(圖26)所示。
使用提把
使用提把即可輕鬆地攜帶收合好的手推車(圖27)
使用配件
圖28 雨篷
因產品型號的不同，並非所有手推車均附以上配 件。
使用雨篷
將雨篷套到車架上，再扣合雨篷側面的8對黏扣帶。(圖29)
! 使用雨篷時，請隨時注意並確認雨篷內有良好的通風。
! 不使用雨篷時，請先確認雨篷已清潔並乾燥，再收納。
! 請勿收合已罩上雨篷的手推車。
! 天氣炎熱時，請勿將幼童放在裝有雨篷的手推車內。

nitro™
stroller
gemm™
0+ (0–13kg)
birth to 15kg/birth - 36 months
Please read all the instructions
in this manual before installing
and using the product.
Instruction Manual

20
Contents
Reference Figures 1-7
English
WARNINGS 21
Emergency 23
Product Information 23
Parts List 24
Care and Maintenance 24
Stroller Assembly 25
Open Stroller 25
Assemble Front Wheels 25
Assemble Rear Wheels 25
Assemble Hood 25
Stroller Operation 25
Adjust Recline 25
Use Buckle 26
Use Shoulder & Waist Harnesses 26
Use Shoulder Harness Cover 27
Adjust Calf Support 27
Use Front Swivel Lock 27
Use Brake 27
Use Hood 27
Fold Stroller 27
Use Carry Strap 28
Use Accessories 28
Thank you for purchasing
Joie Stroller
This product is a high-quality and fully certified stroller,
approved to Taiwan safety standards CNS 12940-2013 and
European safety standards EN 1888-2012. It is suitable for
a child weighing under 15kg (0-36 months).
Read these instructions carefully before use and keep
them for future reference. Your child’s safety may be
affected if you do not follow these instructions.
The figures in this manual are to illustrate the operating
methods and product main features.
This model may have differences between features shown.
The figures are just for reference.
Stroller Features
Adjustable Calf Support
Fully Reclined Seat
Lockable Front Swivel Wheels
Rear Wheels with Suspension and Brake
Adjustable Calf Support
Extra Soft Harnesses
5-point Safety Buckle
Extra Big Storage Basket
! Keep instruction manual for future reference.

21 22
WARNINGS
!Adult assembly required.
!Use of the stroller with a child weighing less than 15kg. It will cause
damage to the stroller with an unfitted child.
!Always use the crotch combination with the waist belt. It is suggested
that the shoulder harnesses be used as well.
!To prevent a hazardous, unstable condition, do not place more than
4.5 kg in the storage basket.
!Never leave child unattended. Always keep child in view while in
stroller.
!Use the stroller with only one child at a time. Never place purses,
shopping bags, parcels or accessory items on the handle or canopy.
!Overload, fold incorrectly or use it along with component parts from
other manufacturers may cause the stroller to be damaged, broken or
unsafe. Do read the instruction manual carefully.
!Please read all the instructions in this manual before using the prod-
uct. Please save instruction manual for future use. Failure to follow
these warnings and instructions may result in serious injury or death.
!Safety belts and restraint system must be used correctly.
!Make sure your child's body is clear from the moving parts when
adjusting the stroller.
!Child may slip into leg openings and be strangled.
!Never use stroller on stairs or escalators.
!Keep away from fire source, high temperature objects, liquids,
and electronics.
!Never allow your child to stand on the stroller or sit in the stroller with
head toward front of stroller.
!Never place the stroller on roads, slopes or dangerous area.
!Do make sure all mechanisms are fixed before using the stroller.
!Avoid strangulation, do not place items with a string around your
child’s neck, suspend strings from this product, or attach strings to
toys.
!To prevent tipping, do not put anything on the handle, back of the
backrest or side of the stroller.
!Do not lift stroller whilst child is in it.
!Do not use storage basket as a child carrier.
!To prevent tipping, never let child climb the stroller.
!To avoid injury, ensure that your child is kept away when unfolding
and folding this product.
!Be sure the stroller is fully open or folded before allowing child near
the stroller.
!To ensure your child's safety, please make sure all parts are assem-
bled and fastened properly before using the stroller.
!Avoid strangulation, do make sure your child is clear from the canopy
and the rain cover.
!Always engage the brakes when parking the stroller.
!Discontinue using your stroller if it is damaged or broken.
!This product is not suitable for running or skating. It is intended to be
used only at walking speed.
!To avoid suffocation, remove plastic bag and packaging materials
before using this product. The plastic bag and packaging materials
should be destroyed or kept away from babies and children.
!It is recommended to use of the most reclined position for new born
baby.
!Do not let your child play with this product.
!The parking device should be engaged when placing and removing
your child.

23 24
Emergency
In case of emergency or accidents, it is most important to have your child
taken care of with first aids and medical treatment immediately.
Product Information
JOIE CHILDREN'S PRODUCTS (UK) LIMITED
16 Old Bailey, London EC4M 7EG, UK
www.joiebaby.com
Product Nitro Stroller
Model S1036
Suitable for Child weighing under 15kg
(birth - 36 months)
Materials Plastics, metal, fabrics
Net Weight 7.8kg
Product Size 824mmx487mmx1085mm
Date Please see detailed date on label (year / month / day)
Patent No. Patents pending
Made in China
Distributor Chickabiddy Co., Ltd
Address 5th FL, 186, Nanking E. Rd, Sec. 4, Taipei, Taiwan 10595
Tel. [phone]
Website www.chick.com.tw
Read all the instructions in this manual before using this product. If you have
any further questions, please call 0800-001-256 / 02-25781188 directly.
Parts List
Make sure all parts are available before assembly. If any part is missing,
please contact local retailer.No tools are required for assembly.
Care and Maintenance
1. Removable seat pad may be washed in cold water and drip-dried.
No bleach.
2. To clean stroller frame, use only household soap and warm water.
No bleach or detergent.
3. From time to time, check your stroller for loose screws, worn parts, torn
material or stitching. Replace or repair the parts as needed.
4. Excessive exposure to sun or heat could cause fading or warping of parts.
5. If stroller becomes wet, open canopy and allow to dry thoroughly
before storing.
6. If wheels squeak, use a light oil (e.g., WD-40, antirust oil, or sewing
machine oil). It is important to get the oil into the axle and wheel assembly.
(Fig. 3)
7. When using your stroller at the beach, completely clean your stroller
afterward to remove sand and salt from mechanisms and wheel
assemblies.
Fig. 1.1 Stroller Frame
Fig. 1.2 Front Wheel ( X2)
Fig. 1.3 Rear Wheels
Fig. 1.4 Hood
Fig. 2.1 Handle
Fig. 2.2 Storage Latch
Fig. 2.3 Carry Strap
Fig. 2.4 Rear Wheel
Fig. 2.5 Front Wheel
Fig. 2.6 Footrest
Fig. 2.7 Calf Support
Fig. 2.8 Buckle
Fig. 2.9 Safety Harness
Fig. 2.10 Hood Stretcher
Fig. 2.11 Storage Basket
Fig. 2.12 Foot Plate
Fig. 2.13 Brake Lever
Fig. 2.14 Folding Pedal
Fig. 2.15 Folding Plate

26
STROLLER OPERATION
25
STROLLER ASSEMBLY
Stroller Assembly
Please read all the instructions in this manual before assembling and using
this product.
Open Stroller
Separate storage latch from storage mount (Fig. 4), and then lift the handle
upwards (Fig. 5.1), push the foot plate downwards with foot (Fig. 5.2), a click
sound means the stroller is open completely.
!Check that the stroller is completely open before continuing.
Assemble Front Wheels
Assemble front wheels to front legs. Check that wheels are securely attached
by pulling on wheel assemblies. (Fig. 6)
To disassemble front wheel, detach front wheel from front leg (Fig. 7.2) while
pressing the release tabs outwards. (Fig. 7.1)
Assemble Rear Wheels
Assemble rear wheels to rear legs (Fig. 8). Check that wheels are securely
attached by pulling on wheel assemblies.
Snap the brake cable into the fixing tabs under square tubes to fix it. (Fig. 9)
Assemble Hood
Align the holes of the hood mounts with the posts on the tubes, and then insert
to assemble the hood (Fig. 10), stick the hook and loop fasteners, snap the
buttons to attach the rear hood to backrest. (Fig. 11)

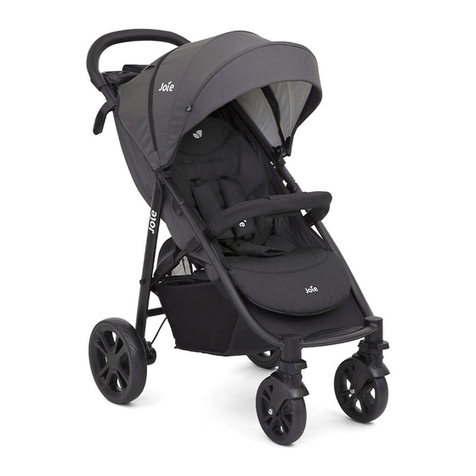

The completely assembled stroller is shown as (Fig. 12)
Stroller Operation
Adjust Recline
There are 5 angles for the backrest.
Squeeze the adjust button (Fig. 13.1) , and then adjust the backrest to a
desired angle. (Fig. 13.2)
!The hood must be fixed by button / hook and loop fastener on the backrest
when the backrest in flat position.
To raise the backrest, push up.
!Make sure the recline is set properly for use.
Use Buckle
Release Buckle
Press the center button to release the buckle. (Fig. 14)
Lock Buckle
Match the waist belt buckle with the shoulder buckle (Fig. 15.1), and click into
the center buckle. (Fig. 15.2) A “click” sound means the buckle is locked
completely. (Fig. 15.3)
!To avoid serious injury from falling or sliding out, always secure your child
with harness.
!Make sure your child is snugly secured. The space between the child and
the shoulder harness is about the thickness of one hand.
!Do not cross the shoulder belts. This will cause pressure on child’s neck.
Use Shoulder & Waist Harnesses
!In order to protect your child from falling out, after your child is placed into
the seat, check whether the shoulder and waist harnesses are at proper
height and length.
Fig. 16.1 Shoulder harness anchor A
Fig. 16.2 Shoulder harness anchor B
Fig. 16.3 Slide adjuster
For larger child, use shoulder harness anchor A and the highest shoulder
slots. For smaller child, use shoulder harness anchor B and the lowest
shoulder slots.
To adjust the position of the shoulder harness anchor, turn the anchor to be
level with the side facing forward. Thread it through the shoulder harness slot
from back to front. (Fig. 17) Rethread it through the slot that is closest to
child's shoulder height. (Fig. 18)
Use slide adjuster to change the harness length. (Fig. 19.1) Press the button
(Fig. 19.2), while pulling the waist harness to proper length. (Fig. 19.3)

27 28
STROLLER OPERATION
STROLLER OPERATION
Use Shoulder Harness Cover
The shoulder harness cover can be removed from the webbing. To assemble
shoulder harness cover in reverse steps.
Adjust Calf Support
The calf support has 2 positions.
Raise Calf Support
To raise the calf support, just push it upwards.
Lower Calf Support
Press the adjustment buttons on both sides of the calf support (Fig. 20.1),
and rotate the calf support downwards. (Fig. 20.2)
Use Front Swivel Lock
Push up the front swivel locks to maintain the moving direction. (Fig. 21)
Tip It is recommended to use swivel locks on uneven surfaces.
Use Brake
To lock wheels, step the brake lever downwards. (Fig. 22)
To release wheels, just lift the brake lever upwards. (Fig. 22.1)
Tip Always apply brake when stroller is in stopped position.
Use Hood
To open the hood, pull hood forwards and press stretchers down on both
sides. (Fig. 23)
To fold the hood, pull up the stretchers on both sides (Fig. 23.1) and pull hood
toward back.
Fold Stroller
!Please fold the hood before folding the stroller.
Lift the folding plate (Fig. 24), step the folding pedal downwards (Fig. 25.1),
push the stroller forward to fold (Fig. 25.2). The storage latch will
automatically hook onto the storage mount, then the stroller is folded and
locked completely.(Fig. 26)
Use Carry Strap
You can carry the stroller with ease by lifting the carry strap.(Fig. 27)
Use Accessories
Fig. 28 Rain Cover
Not all accessories are included on some models.
Use Rain Cover
To assemble the rain cover, place it over the stroller, and then attach the 8
pairs of hook and loop fasteners on the rain cover.(Fig. 29)
!When using the rain cover, please always check its ventilation.
!When not in use, please check that the rain cover has been cleaned and
dried before folding.
!Do not fold the stroller after assembling the rain cover.
!Do not place your child into the stroller assembled with rain cover during
hot weather.

JK013_S1036$A
gemm™
0+ (0–13kg)
Share the joy at joiebaby.com
