JTS CX-500FHW User manual

PROFESSIONAL CO., LTD
No.148, Gongye 9th Rd., Dali Dist.,
Taichung City 41280, Taiwan (R.O.C.)
TEL:[phone] FAX:[phone]
E-mail:[email protected]
www.jts.com.tw
FEATURE
1
59010-606
CX-500FHW MA-500
/
Head worn Flute Microphone / Phantom power Adapter
The CX-500FHW is built with full range omni-directional capsule
with golden plating in and outside. The flat frequency response
reproduces all types of flutes. The dynamic design of the headset
can render a flutter inter change flutes freely. The option of left and
right worn plus adjustable boom can help finding the best miking.
CX-500FHW is bundled MA-500 phantom power adapter for wired
application.
Omni directional pick up pattern
Ultra-light, ergonomic design for convenient and comfortable wearing.
Stainless-steel, and unbreakable material ensure ruggedness and reliability.
Soft and Flexible boom perfectly fit into any performer.
Tiny and skin-tone boom visually disappears against the face.
Replaceable cable for easy installation and service.
Excellent sound quality with smooth frequency response.
Carry Pouch and cable clip are provided.
Terminated with 4 pin mini XLR for easy wireless application
Phantom power adapter with low cut and pad provided for wired application

SPECIFICATION
2
3
4

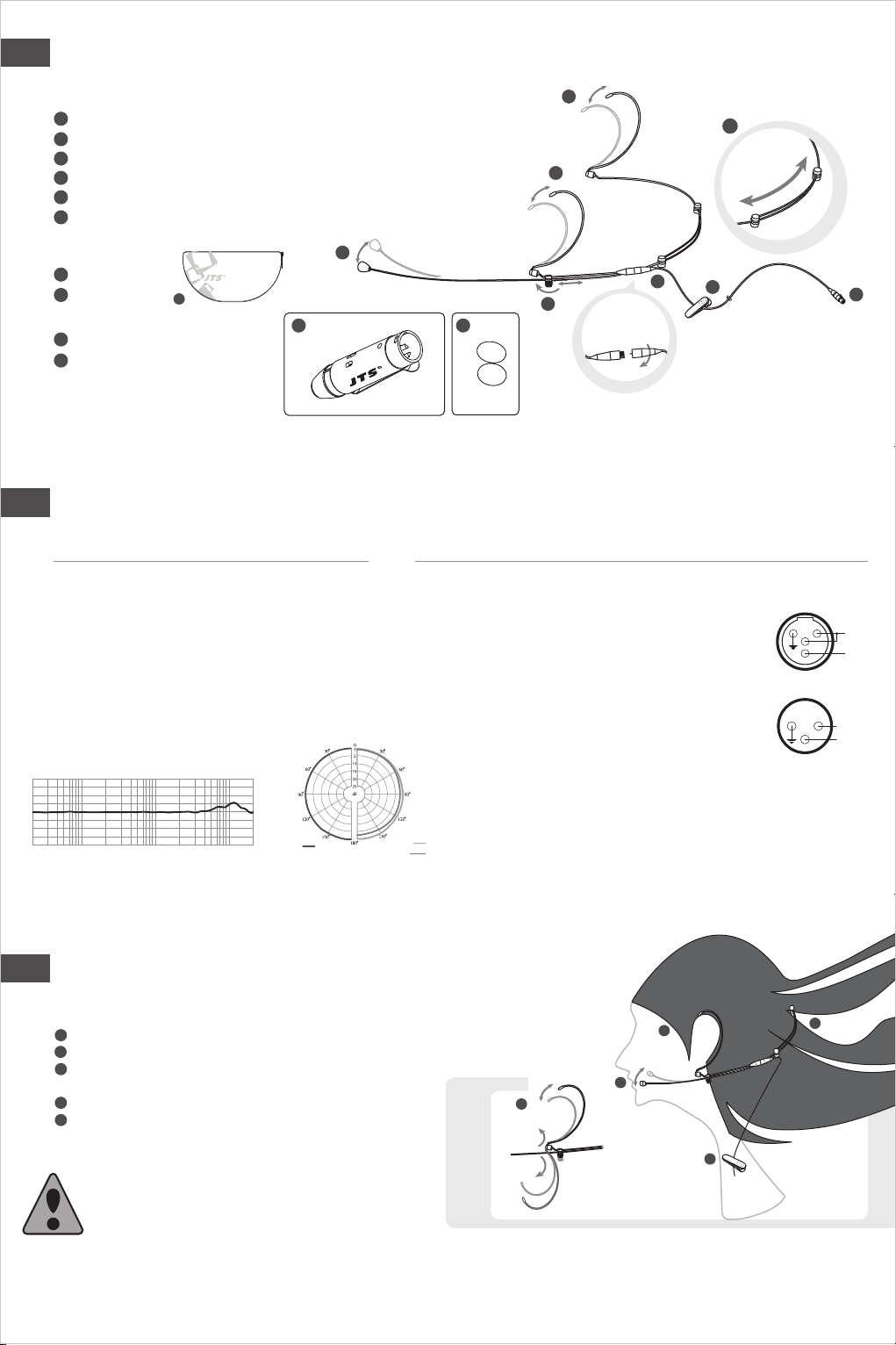

PARTS IDENTIFICATION AND ACCESSORIES
Parts identication
1
2
3
4
5
6
9
9
10
10
Flexible boom
Slide pivot
Adjustable ear hook
Detachable cable
Adjustable headband
4-pin mini XLR female connector
MA-500 Adapter: 1 piece
Windscreen : 2 pieces
1
2
3
5
6
8
3
4
Adjustable
headband
Detachable cable
7
87
Accessories
Carry Pouch
Cable clip
CX-500FHW
Type............................... Omni-directional Condenser
Frequency Response... 20~20,000 Hz
Sensitivity (at 1,000 Hz) -58±3dB*(1.25mV)*0dB=1V/μbar
Impedance..................... 1.5kΩ
Max.SPL for 1% T.H.D. 130 dB
Signal-To-Noise Ratio... 68 dB
Output Connector.......... 4P Mini XLR
Power Supply................. 1-5 VDC
Current Consumption.... ≤0.05mA
Weight............................. 6.5 grams (including cable)
Dimensions (mm)........... Ø6mm(W)*13mm(H)
Standard Accessory....... MA-500
+10
0
-10
20 100 200 500 1k 2k 5k 10k 20kHz
}}
}
125Hz
250Hz
500Hz
1000Hz
2000Hz
4000Hz
8000Hz
16000Hz
MA-500
MIC Input..................
Output......................
Phantom Power........
PAD...........................
Low Cut.....................
4P Mini XLR(Male)
XLR(Male)
12~48V
-10dB
100Hz -6dB
400Hz -4dB
30~20,000Hz
220Ω
<0.045%@1KHz -50dB
>95 dB
40g
Ø20mm*94.5mm(H)
1 2
3PIN2 OUT(+)
PIN3 OUT(−)
TUPTUO
1
2
3
4MIC IN
V+
NICIM
(Phantom Power Supply)
Output: XLR (Male)
Pin 1: GND
Pin 2,3: Audio signal
Input: 4P Mini XLR (Male)
Pin 1: GND
Pin 2: V+
Pin 3,4: Audio signal
User Manual
Please maintain the temperature in proper status it helps the Submin-
iature Condenser Instrument Microphone to lengthen its life.
Using the part and adapter made from JTS to ensure the unit quality
and lifetime. Do not attempt to employ non-standard adapters or
connectors as you might damage the unit
A
B
C
D
E
Try on whether the headset is t
Adjust the headband to a suitable width
Tighten or loosen the curve of the ear-hook by twisting
the loop or expanding it
Curve and bend the boom to t your face
Attach the detachable cable to a suitable place by a cable clip
AB
D
E
C
Frequency Response
Impedance................
T.H.D.........................
S/N............................
Weight......................
Dimensions(mm)......
