Introduction
Thank you for purchasing the K009. Before using your K009, be sure to read the K009 Basic Manual (this PDF manual) to
ensure correct usage. After you have finished reading this manual, store this PDF manual and the printed manuals in safe
places so you can retrieve them whenever you need them.
Manuals for the K009
There are three manuals for the K009: the Basic Manual, printed Instruction Manual (Japanese) and full Instruction Manual
(Japanese).
●For learning the basics:
Read the K009 Basic Manual (this manual) or printed K009 Instruction Manual (Japanese).
●For learning details of each function:
The full Instruction Manual (Japanese) gives detailed instructions on using each function and can be downloaded from
the au homepage: http://www.au.kddi.com/torisetsu/index.html
To ensure proper usage of the K009, be sure to read the Safety Precautions “安全上のご注意” in the Instruction Manual.
The keyword searchable au Online Manual is also available on the au homepage:
http://www.au.kddi.com/manual/index.html
To access from EZweb (free of packet communication charge):
R⇒au Customer Support ⇒
オンラインマニュアル (Online Manual)
Scan this QR code to access the au Online Manual. ▶
•

1
Illustrations and Screenshots in This Manual
Illustrations and Screenshots in This Manual
Note on Illustrations
The illustrations in this manual may look different from the actual cell phone in shape, color and typeface.
The key illustrations are also simplified as shown below.
Key Illustration Key Illustration
①cjs ⑦w
②&⑧%
③L⑨R
④C⑩F
⑤N⑪T
⑥
123
456
789
*0#
⑫+
Note on Screenshots
The screenshots in this manual are simplified and may look different from the actual cell phone screens.
The display design themes of the K009 vary by model color. The operations and the screenshots for the Precious Blue
models are used in this manual.
■
■
•
④
①
⑧⑫
⑨
⑩
⑪
②
③
⑦
⑥
⑤
④
①
⑧⑫
⑨
⑩
⑪
②
③
⑦
⑥
⑤

2
Notes on Cell Phone Use
Notes on Cell Phone Use
Cell Phone Etiquette
The cell phone always emits weak radio waves when power
is on.
Use the cell phone in an enjoyable and safe manner without
forgetting to be considerate of others around you.
Use of cell phones is not allowed in some places.
Do not use the cell phone while you are driving. Doing
so is both dangerous and prohibited by law.
Using a cell phone in an aircraft is prohibited by law.
Set Airplane Mode to ON and turn the cell phone
power off.
Radio waves from cell phones may interfere with
medical electrical equipment.
Some people close to you in crowded places such
as packed trains may be using a cardiac pacemaker.
Turn the cell phone off in such places.
Abide by the rules of hospitals and other medical
institutions where it is forbidden to use or carry cell phones.
Be considerate of where you use the cell phone and
how loudly you talk.
Do not make calls in theaters, museums, libraries, and
other similar places. Turn power off or turn on manner
mode not to disturb others around you by ring tones.
Do not use the cell phone on a street where you might
interrupt the flow of pedestrians.
Move to areas where you will not inconvenience others
on trains or in hotel lobbies.
Refrain from talking in a loud voice.
●
•
•
●
•
•
●
•
•
•
•
Obtain the permission of other people before you take
their photos with the cell phone's camera.
Do not record information with the cell phone's camera
in bookstores and other locations where taking photos
is not permitted.
Do Not Use the Cell Phone While Driving!
Turn off your cell phone or put it in Drive Mode while
driving.
Do not use the cell phone while driving a car/motorcycle
or riding a bicycle. It may result in a traffic accident. Using
a cell phone while driving is prohibited by law. Using a
cell phone while riding a bicycle may also be punishable
by law.
Prohibited!
Looking at a cell phone display
Talking on a cell phone while holding it
Drive Mode
In Drive Mode, a Japanese message meaning "I'm
driving now, so I can't answer your call." is played
when a call is received, and asks the caller to leave a
message on the answer memo.
When the standby screen is displayed, press , use
to select Drive, and then press (Set).
•
•
•
•

3
Notes on Cell Phone Use
Disaster Message Board Service
When a large scale disaster occurs, you can register
your safety information from EZweb. The registered
information can be referred from anywhere in Japan from
EZweb or Internet.
When a large scale disaster occurs,
from an au phone, you can register your
safety information (i.e. your condition
and comments) to the 災害用伝言板
(Disaster Message Board) created on
the EZweb.
After registration of your safety
information, e-mail is sent to your family
or acquaintances you have previously
designated to notify that your safety
information has been uploaded to
the 災害用伝言板 (Disaster Message
Board).
You can inquire for safety information
of a person by entering his/her phone
number from EZweb or Internet.*
* To inquire from other carriers' cell
phone, a PHS or PC, access
"http://dengon.ezweb.ne.jp/".
Access
R⇒au one Top ⇒
災害用伝言板 (Disaster
Message Board)
http://dengon.ezweb.ne.jp/
•
•
•
Registered information is stored until the service set
up for the disaster ends.
The maximum available number of registrations is 10
per phone number. When the number of registrations
exceeds 10, the oldest one is overwritten.
The demonstration of this service can be referred to
anytime by pressing ⇒au Customer Support ⇒
調べる (Search) ⇒ 災害用伝言板（デモ版） (Disaster
Message Board (Demo Version)).
To view the Disaster Message Board in English, select
English from the top menu of the Disaster Message
Board.
•
•
•
•
Registering
safety
information
Registering
safety
information
Inquiring
for safety
information
Inquiring
for safety
information

4
Contents
Contents
Introduction
Illustrations and Screenshots in This Manual 1
Notes on Cell Phone Use 2
Cell Phone Etiquette …………………………………… 2
Do Not Use the Cell Phone While Driving!…………… 2
Disaster Message Board Service …………………… 3
Contents 4
Getting Ready 6
Checking the Contents of the Box …………………… 6
Names of Parts ………………………………………… 7
Charging the Battery Pack …………………………… 8
Learning the Basics …………………………………… 9
Turning On Power ……………………………………… 10
Switching the Display Language to English ………… 10
Initial Setup of E-mail and EZweb …………………… 11
Checking Your Phone Number and E-mail Address …11
Display Indicators ……………………………………… 12
Using Menu ……………………………………………… 14
Changing Your E-mail Address ……………………… 15
Security Code and Passwords………………………… 16
Making and Answering Calls 17
Making a Call …………………………………………… 17
Making an International Call…………………………… 17
Answering a Call ……………………………………… 18
Returning a Call (Outgoing History/Incoming History) …18
One-ring Calls…………………………………………… 18
Adjusting the Earpiece Volume during a Call ……… 19
Turning On Manner Mode……………………………… 19
Changing the Incoming Ring Tone …………………… 19
Adjusting the Incoming Ring Tone Volume ………… 20
Turning On the Answer Memo………………………… 20
Global Function 22
Setting the Area ………………………………………… 22
Obtaining the Latest PRL (Preferred Roaming List)… 22
Calling Japan from Overseas ………………………… 23
Character Input 24
Character Entry Modes ………………………………… 24
Entering Alphanumeric Characters …………………… 24
Entering E-mail Addresses …………………………… 25
Entering Pictograms …………………………………… 26
Phone Book 27
Saving a Phone Book Entry …………………………… 27
Dialing from the Phone Book ………………………… 27
Editing Phone Book Entries …………………………… 27
Saving a Phone Number from the Incoming
or Outgoing History …………………………………… 28

5
Contents
Mail 29
Using E-mail …………………………………………… 29
Creating and Sending E-mail Messages …………… 29
Reading Received E-mail Messages ………………… 30
Reading an E-mail Message
with an Attached Photo or Movie……………………… 30
Replying to Received E-mail Messages……………… 30
Rejecting Spam ………………………………………… 31
Using C-mail …………………………………………… 32
Creating and Sending C-mail Messages …………… 32
Reading Received C-mail Messages ………………… 32
Camera 33
Photo Taking Tips ……………………………………… 33
About Photo Modes …………………………………… 33
Taking a Photo ………………………………………… 34
Viewing Photos ………………………………………… 34
EZweb 35
Accessing Sites ………………………………………… 36
Bookmarking Frequently Accessed Pages ………… 37
Viewing Bookmarked Pages ………………………… 37
Checking Charges ……………………………………… 38
Downloading Chaku-Uta-Full-Plus®/Chaku-Uta-Full®/
Chaku-Uta®……………………………………………… 38
EZ News EX 39
Basic Operations ……………………………………… 39
Setting EZ News EX …………………………………… 39
EZ Navi 41
Passenger Seat Navi for People
in the Passenger Seat to Check the Route ………… 41
Security Navi to Check Where Your Kids Are ……… 41
EZ Navi Walk for When You Go Out ………………… 42
Evacuate Navi to Guide You Home or to Nearby
Evacuation Areas during Disasters…………………… 43
TV (1Seg) 44
Initial Setup of au Media Tuner ……………………… 45
Watching TV (1Seg) …………………………………… 45
Basic Operations ……………………………………… 46
Exiting the au Media Tuner …………………………… 46
In Case of Loss of Your K009 47
Setting Conditions for Activating the Remote Ctrl Lock …47
Remotely Activating the Remote Ctrl Lock
on Your K009 …………………………………………… 47
Activating the Remote Ctrl Lock
by the Security Lock Service ………………………… 48
Troubleshooting 49
Index 51

6
Getting Ready
Getting Ready
Checking the Contents of the Box
The box contains the cell phone and accessories.
Cell phone• Battery pack• Instruction Manual (Japanese)
Warranty (Japanese)
Safety Precautions (Japanese)
Precautions of 2.4GHz equipments (Japanese)
Global Passport Owner’s Guide (Japanese)
JIBUN BANK Launcher Operation Guide (Japanese)
au International Call Guide (Japanese)
•
•
•
•
•
•
•
An AC adapter and microSD memory card are not included. Purchase a specified AC adapter (sold separately) and a
commercially available microSD memory card.
•

7
Getting Ready

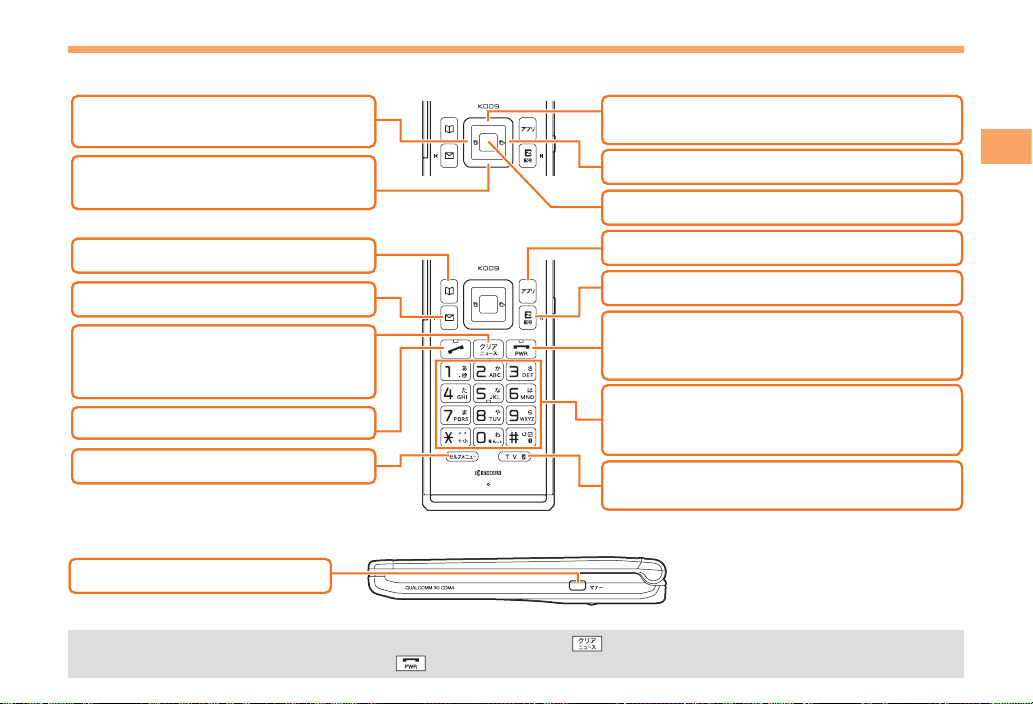

Names of Parts

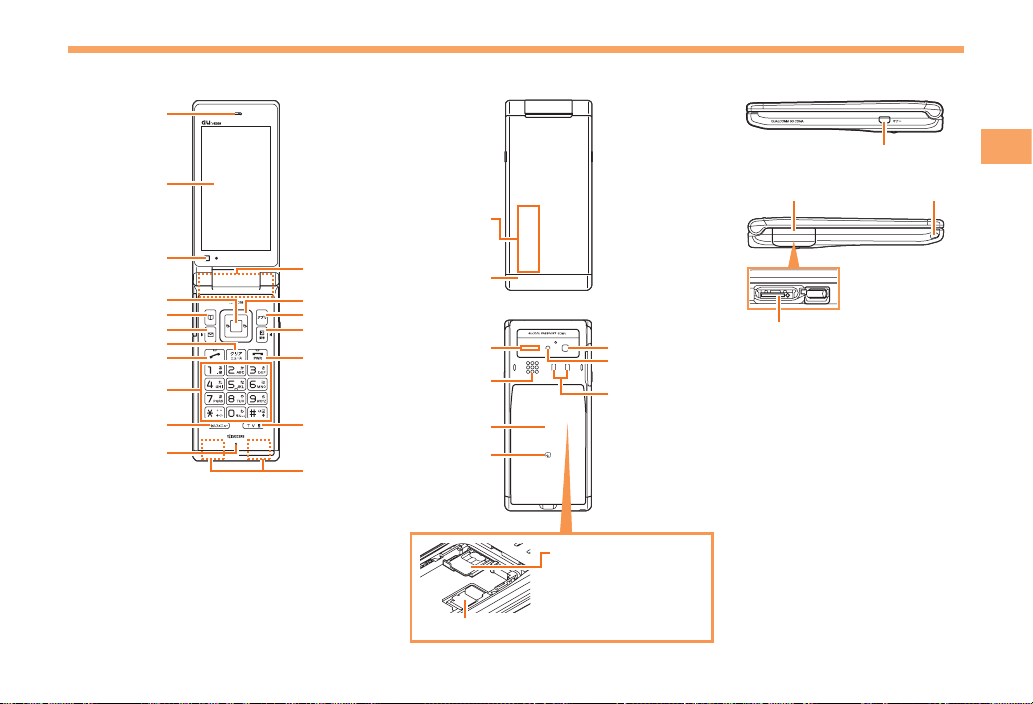

From the Front■
Earpiece
Display
Center key
Microphone
Number keys
Mail key
Answer key
Address book key
Optical sensor
Application key
Cursor key
EZ key
Clear/News key
Built-in antenna
Built-in antenna
Power/End key
TV key
Self menu key
Earpiece
Display
Center key
Microphone
Number keys
Mail key
Answer key
Address book key
Optical sensor
Application key
Cursor key
EZ key
Clear/News key
Built-in antenna
Built-in antenna
Power/End key
TV key
Self menu key
From the Back■
LED display
Camera lens
Photo light/
Simple light
Charging terminals
Infrared port
Speaker
Battery pack/
cover
FeliCa mark
Information/
Charge
indicator
microSD memory card slot
au IC-Card*
*Do not remove this card
unnecessarily as your
phone number is
recorded on it.
LED display
Camera lens
Photo light/
Simple light
Charging terminals
Infrared port
Speaker
Battery pack/
cover
FeliCa mark
Information/
Charge
indicator
microSD memory card slot
au IC-Card*
*Do not remove this card
unnecessarily as your
phone number is
recorded on it.
From the Sides■
External connection jack
Manner key
Strap hole
External connection jack cover
External connection jack
Manner key
Strap hole
External connection jack cover

8
Getting Ready
Be sure to close the cover of the external connection
jack when charging is finished.
Do not pull or twist the cover of the external
connection jack forcibly.
Be sure to use the common AC adapter 02 (sold
separately) when charging overseas.
•
•
•
Charging the Battery Pack
The battery pack is not fully charged at the time of purchase.
Be sure to charge the battery pack before using the cell
phone for the first time.
An AC adapter is not included. Purchase a specified AC
adapter (sold separately).
Connect a specified AC adapter to the cell
phone with the battery pack attached.
Open the cover of the external connection jack. Check
the shape of the connector of the AC adapter, and
plug it straight into the external connection jack.
Unfold the power plug of the AC adapter and
plug it into a 100 V AC power outlet.
Confirm that the charge indicator lights.
Charging: The Information/Charge indicator lights.
Charging finished: The Information/Charge indicator
goes out.
•
➡
•
➡
➡
•
•
Information/
Charge indicator

External
connection jack
Connector

AC adapter
100 V AC
power outlet

Information/
Charge indicator

External
connection jack
Connector

AC adapter
100 V AC
power outlet


9
Getting Ready
Learning the Basics
Key Assignments
Side Key Assignments
If you lose track of where you are or if you make a mistake, press to return to the previous screen. Return to the
standby screen by pressing and holding .
■
■
•
&
Dl
0〜9*#
Au
Ac
J%
Ar
Bd : Display Notification window.
Display Calendar*.
QN: Make/answer calls.
C: Delete characters.
Cancel operation.
Display EZ News EX.
: Display Incoming History.
Activate Simple light*.
: Display the ticker field/info pane.
Activate Camera*.
: Display Menu.
R : Display EZ menu.
SF: Turn power on/off*.
End call/communication.
Cancel operation.
: Input phone numbers
and characters.
#;
: Display Bluetooth Connection menu*.
: Display Outgoing History.
T: Activate TV (1Seg).
Set blind screen*.
: Display Apps menu.
: Use Phone Book.
: Display Self menu.
w
L: Display E-mail/C-mail menu.
&
Dl
0〜9*#
Au
Ac
J%
Ar
Bd : Display Notification window.
Display Calendar*.
QN: Make/answer calls.
C: Delete characters.
Cancel operation.
Display EZ News EX.
: Display Incoming History.
Activate Simple light*.
: Display the ticker field/info pane.
Activate Camera*.
: Display Menu.
R : Display EZ menu.
SF: Turn power on/off*.
End call/communication.
Cancel operation.
: Input phone numbers
and characters.
#;
: Display Bluetooth Connection menu*.
: Display Outgoing History.
T: Activate TV (1Seg).
Set blind screen*.
: Display Apps menu.
: Use Phone Book.
: Display Self menu.
w
L: Display E-mail/C-mail menu.
+: Set/cancel manner mode*.
* Hold down for at least one second.
+: Set/cancel manner mode*.
* Hold down for at least one second.

10
Getting Ready
Hiding/Redisplaying the
Notification Window
When the Notification window is
displayed on the standby screen, you
can temporarily hide it by pressing
C/Fand then display the Menu by
pressing c.
To redisplay the hidden Notification
window, press dwhen the standby
screen is displayed.
■
Notification window
Turning On Power
Press and hold F.
You cannot receive or make calls if (out of range
indicator) is displayed.
Turning Off Power
When the standby screen is displayed, press and hold
F.
Switching the Display Language
to English
You can switch the display language for function names
and other items to English.
When the standby screen is displayed, press c.
Use ato select
機能 (Function) and then
press c(選択 [Select]).
Use jto select
画面表示 (Screen Display) and
then press c(選択 [Select]).
Use jto select Set Language and then press
c(選択 [Select]).
Use jto select English and then press
c(Set).
•
■
➡
➡
➡
➡

11
Getting Ready
Initial Setup of E-mail and EZweb
To use e-mail and EZweb, you need to apply for an EZweb
subscription. If you did not apply for an EZweb subscription
at the time of purchase, contact an au shop or the
Customer Service Center.
Also, before use, you need to configure initial settings. Your
e-mail address is assigned automatically in the initial setup.
When the standby screen is displayed, press L.
Press c(OK).
After a short while, your e-mail address is displayed.
Press c(OK).
The initial settings are complete.
You can also configure initial settings by pressing
or .
➡
➡
•
Checking Your Phone Number
and E-mail Address
When the standby screen is displayed, press c
and then 0.

12
Getting Ready
Display Indicators
Display indicators inform you of mail arrival, current settings, etc.
Display
Indicator Description Indicator Description
①Signal strength ⑨New or unread e-mail/C-mail
②Battery level ⑩Current date and time
③
A microSD memory card
(commercially available)
inserted
⑪Ticker field
④During a call ⑫Info pane
au Media Tuner activated ⑬Notification icon
⑤EZapps activated ⑭Auto Lock activated
⑥Connecting to EZweb ⑮Manner mode set
⑦Receiving EZ News EX
information ⑯Answer memo or manner mode set
⑧Missed calls
The date and time are set automatically.
■
•
⑩
⑪
⑬
⑫
⑯⑭ ⑮
⑨④⑤⑥⑦⑧①②③ ⑩
⑪
⑬
⑫
⑯⑭ ⑮
⑨④⑤⑥⑦⑧①②③

13
Getting Ready
LED display
When K009 is closed, the LED displays the time or an icon
to notify alarm time or the condition such as reception of a
call or mail, etc. Also, some other animation will be shown
on the LED display.
Pressing the side key (+) with the main unit closed
displays the condition of K009. Each time you press the
side key, the display switches in the following order.
Missed calls/
Unread e-mail/
Unread C-mail/
Message receive/
Earthquake Early Warning
Time (24-hour)
+
+
+
Date
*
* Displayed only when receiving a call or mail. If there are
multiple notifications, “INFO” appears on the display.
■

14
Getting Ready
Using Menu
You can access various functions from the Menu. The Menu
patterns vary by model color. The operations and the
screenshots for the Precious Blue models are used in this
manual.
Model Color Menu Pattern
Metal Black Dot Light
Precious Blue Various Sky
Luminous Pink feel pink
Dot Light Various Sky feel pink
Infrared
TV
microSD
Camera
Data Folder
LISMO!
Card reader
Tool
PC Site Viewer
Telephone
Service
Function

15
Getting Ready
Changing Your E-mail Address
You can change the account
name of your e-mail address.
When the standby screen is displayed, press L.
Use jto select E-mail Setup and then press
c(Select).
Use jto select Change adrs/Other and then
press c(Select).
The cell phone connects to the server.
Use jto select Eメールアドレスの変更
(Change E-mail Address) and then press c
(Select).
Use jto select the entry box, press c(Input),
enter your security code, and then press c(OK).
Your security code is the four-digit number you wrote
on your subscription form.
If the security code is incorrectly entered three times
consecutively during a single day, the e-mail address
change operation will be disabled until the next day.
Use jto select 送信 (Send) and then press
c(Select).
➡
➡
➡
➡
•
•
➡
Use jto select 承諾する (Accept) and then
press c(Select).
Use jto select the entry box, press
c(Input), enter an e-mail address using single-
byte alphanumeric characters, and then press
c(OK).
For details on entering e-mail addresses, see page 25.
Use jto select 送信 (Send) and then press
c(Select).
Use jto select OK, press c(Select) and
then c(OK).
Check that the e-mail address has been updated
before pressing c(OK).
Your e-mail address cannot be changed if the new
address you enter in the above procedure is already
being used. In this case, enter a different e-mail
address.
➡
➡
•
➡
➡
•
•
△△△@ezweb.ne.jp
Account name Domain name
E-mail address
△△△@ezweb.ne.jp
Account name Domain name
E-mail address

16
Getting Ready
Security Code and Passwords
You can use a security code and other passwords
described below.
Take care not to forget your security code and passwords,
because they are required for performing various
operations and using subscription services.
Security Code
Usage
Example
①Using the Answering Service (Voice
Mail) and Call Transfer remotely from a
fixed-line phone
②Making inquiries, applications, and
changes while using Customer Service
Center voice guidance, au web pages,
and EZweb
③Changing the settings of Spam Filter or
Change adrs/Other under E-mail Setup
Initial Setting The four-digit number you wrote on your
subscription form
Lock No.
Usage
Example
Changing various settings of the cell
phone
Initial Setting 1234
■
■
EZ Password
Usage
Example
Subscribing or canceling subscriptions to
EZweb fee-based contents
Initial Setting The four-digit number you wrote on your
subscription form
Premium EZ Password
Usage
Example
①Subscribing or canceling subscriptions
to EZweb fee-based contents paid
by
まとめて au 支払い (au Collective
Payment Service)
②Purchasing products from EZweb sites
using
まとめて au 支払い (au Collective
Payment Service)
Initial Setting The four-digit number you wrote on your
subscription form
■
■

17
Making and Answering Calls
Making and Answering Calls
Making a Call
When the standby screen is displayed, use 0
to 9to enter a phone number.
When calling to a fixed-line phone, you also need to enter
the area code.
Press N.
To end the call, press F.
After you enter a phone number, you can add 184 or
186 to the phone number as follows:
Press (Call).
Use to select Add Special No. and then press
(OK).
Use to select 184 or 186 and then press
(Add).
184: When you do not want to inform the other party of
your phone number.
186: When you want to inform the other party of your
phone number.
•
➡
•
•
➡
➡
➡
Making an International Call
001 International Call Service
Available without any additional application
Example: To call 212-123-△△△△ in the USA
Enter the access code, a country code, area code
and phone number, and then press N.
International call charges are billed together with
monthly local call charges.
For more information on 001 International Call Service,
dial either of the following numbers:
From au cell phones (toll-free):
157 (area code not required)
From fixed-line phones (toll-free):
0077-7-111
(Open 9:00 to 20:00 everyday)
■
•
•
↑
Country
code
(USA)
↑
Areacode
↑
Phonenumber
001010
↑
KDDIInternational
accesscode
212 123
-
XXXX1
↑
Country
code
(USA)
↑
Areacode
↑
Phonenumber
001010
↑
KDDIInternational
accesscode
212 123
-
XXXX1

18
Making and Answering Calls
Answering a Call
To answer a call, press N.
To end the call, press F.
Display When a Call is Received
The phone number of the caller appears.
If the caller's phone number and name are in the phone
book, the name is also displayed.
When the phone number of the caller is not displayed, one
of the following indicators may appear.
Indicator Meaning
ID Unsent The caller did not send a Caller ID.
Payphone The call is from a pay phone.
Not Support The call is from a phone that does not
support Caller ID.
Missed Call Notification
If you did not answer a call, and Missed Call are displayed
to let you know that you missed a call.
To check the caller's phone number, use jto select
Missed Call and then press c. You can then return the call
(see the procedure on the right).
•
■
■
Returning a Call (Outgoing History/
Incoming History)
Example: Returning a call to a phone number in the
incoming history
When the standby screen is displayed, press l.
Press rwhile the standby screen is displayed to
display the Outgoing History screen.
Use jto select the phone number you want
to call and then press c(Detail).
Press rto display the Outgoing History screen.
Press N.
The cell phone can store up to 50 phone numbers in
each of the incoming and outgoing history.
One-ring Calls
What is a One-ring Call?
A one-ring call is a call from an unknown caller that only
rings once, causing it to be stored in the incoming history.
One-ring calls are often used to get you to return the call,
which will connect you to a dating service or some other
service that charges you at high rates.
•
➡
•
➡
•
■
