Dear Owner
Power harrows
HRB 122-152-182
1
$Dear Owner
In buying a Kuhn machine you have chosen wisely. Into it have gone years of thought, research and
improvement. You will find, as have thousands of owners all over the world, that you have the best that
engineering skill and actual field testing can produce. You have purchased a dependable machine, but only
through proper care and operation can you expect to receive the performance and long service built into it.
This manual contains all the necessary information for you to receive full efficiency from your machine. The
performance you get from this machine is largely dependent on how well you read and understand this manual
and apply this knowledge. Please DO NOT ASSUME YOU KNOW HOW TO OPERATE AND MAINTAIN YOUR
MACHINE before reading this manual carefully. KEEP THIS MANUAL AVAILABLE FOR REFERENCE. Pass
it on to the next owner if you re-sell the machine.
Your KUHN dealer can offer a complete line of genuine KUHN service parts. These parts are manufactured and
carefully inspected in the same factory that builds the machine to assure high quality and accurate fitting of any
necessary replacements.
About improvements
We are continually striving to improve our products. It therefore reserves the right to make improvements or
changes when it becomes practical to do so, without incurring any obligations to make changes or additions to
the equipment sold previously.
Designated use of the machine
HRB122-152-182 power harrows must only be used for the work for which they have been designed:
- Market gardening.
- Maintenance of green spaces.
- Seedbed preparation on ploughed or unploughed ground.
- Use by nurserymen, landscape gardeners and horticulture.
- Vineyard work.

Power harrows
2
HRB 122-152-182
Contents
$Contents
Dear Owner.....................................................................................................................1
Contents..........................................................................................................................2
Identification of the machine.........................................................................................4
Front view..........................................................................................................................................4
Rear view...........................................................................................................................................4
Model identification plate ................................................................................................................5
Optional equipment..........................................................................................................................5
Safety...............................................................................................................................6
Description of symbols used in this document.............................................................................6
Safety instructions...........................................................................................................................7
Location and description of safety decals on the machine .......................................................14
Road safety equipment and recommendations...........................................................................16
Machine specifications................................................................................................17
Description and glossary...............................................................................................................17
Technical specifications................................................................................................................18
Compulsory equipment .................................................................................................................19
Sound levels ...................................................................................................................................20
Putting into service......................................................................................................21
Coupling and uncoupling..............................................................................................................21
Instructions for transport............................................................................................34
Putting the machine into transport position................................................................................34
Conformity with the road regulations...........................................................................................34

Contents
Power harrows
HRB 122-152-182
3
Instructions for work................................................................................................... 35
Putting the machine into work position.......................................................................................35
Adjustments in working position..................................................................................................36
Machine use....................................................................................................................................38
Optional equipment.....................................................................................................40
Lighting and signalling..................................................................................................................40
Maintenance and storage............................................................................................ 41
Cleaning the machine....................................................................................................................42
Lubrication......................................................................................................................................42
Maintenance....................................................................................................................................45
Storage............................................................................................................................................48
Trouble shooting guide............................................................................................... 49
Limited warranty.......................................................................................................... 50

Power harrows
4
HRB 122-152-182
Identification of the machine
$Identification of the machine
1. Front view
2. Rear view

Identification of the machine
Power harrows
HRB 122-152-182
5
3. Model identification plate

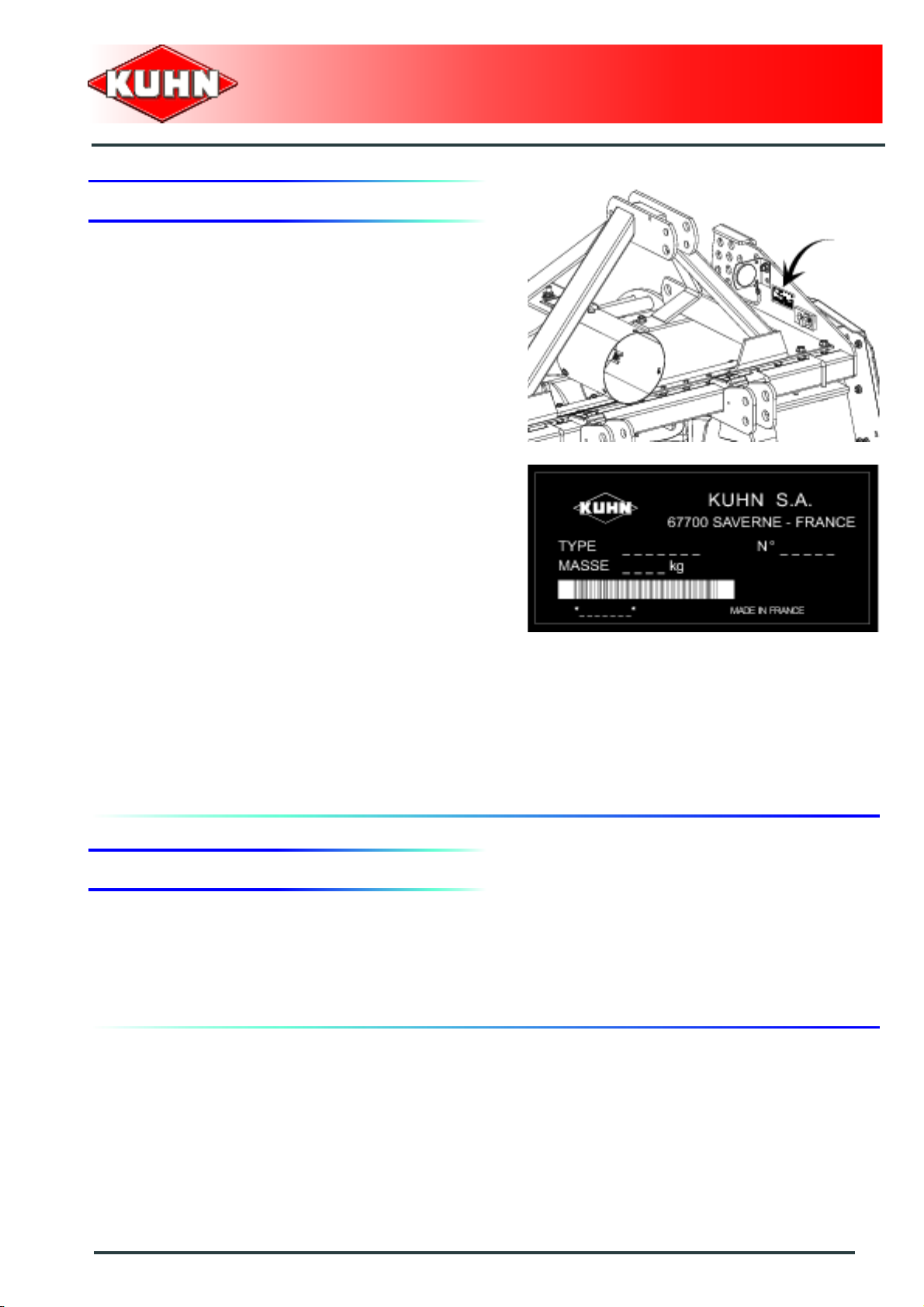

Please write below the type and serial number of the
machine. This information is to be indicated to the dealer
for all spare parts orders.
Type: HRB 122-152-182
Serial no.:
4. Optional equipment
Tick box corresponding to the equipment fitted on your
machine:

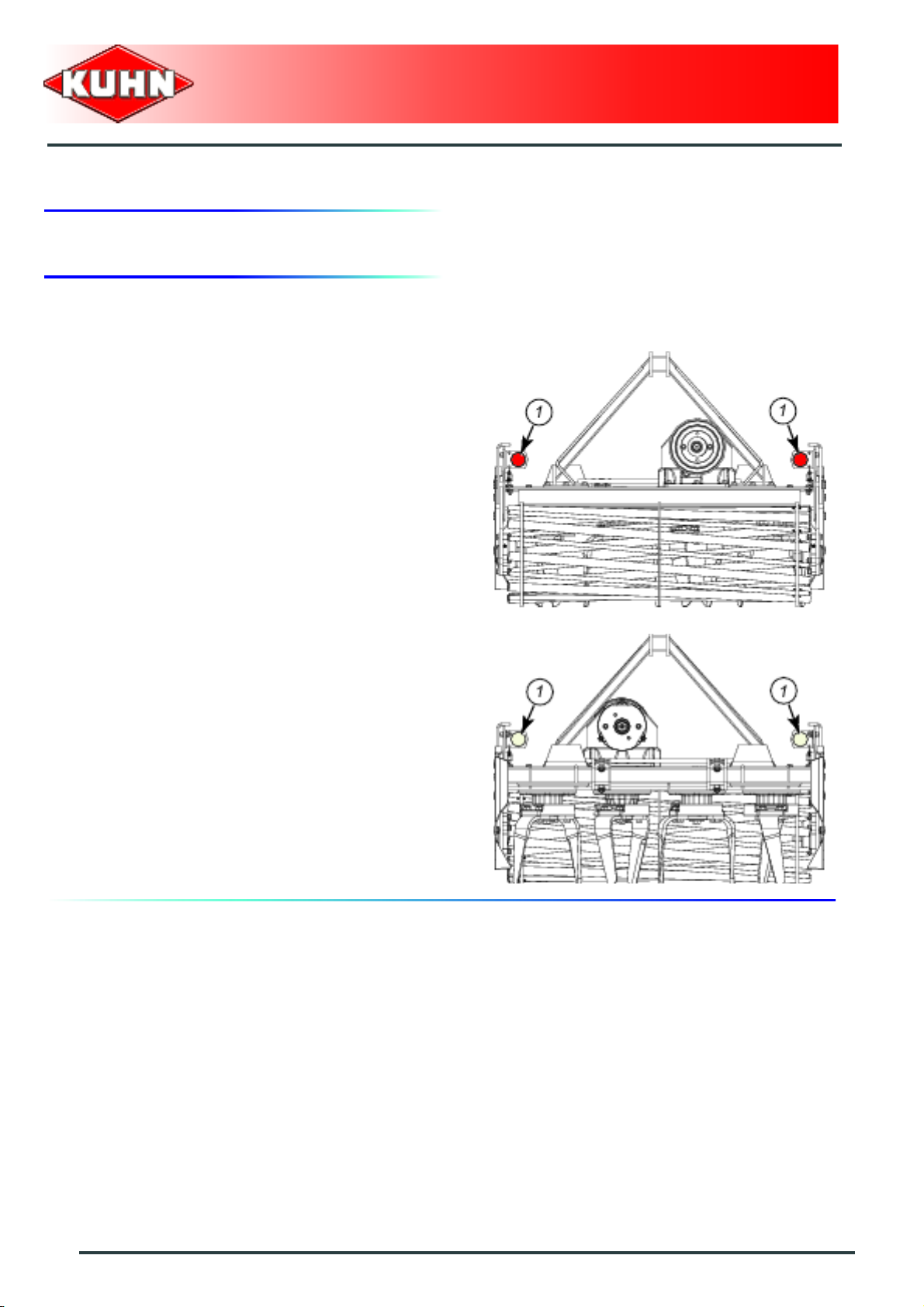

Kit no. 1029000: Lighting and signalling: Device with a single signalling panel.
Kit no. 1238170: Lighting and signalling: Device with 2 signalling panels.

Power harrows
6
HRB 122-152-182
Safety
$Safety
1. Description of symbols used in this
document
This symbol indicates a potentially hazardous situation
that if not avoided, could result in serious bodily injury.
This symbol is used to identify special instructions or
procedures which, if not followed strictly, could result in
machinery damage.
This symbol is used to communicate technical
information of particular interest.

Safety
Power harrows
HRB 122-152-182
7
2. Safety instructions
-
Read and follow the safety instructions
Before using the machine, carefully read all the safety
instructions in this manual and the warnings placed on
the machine.
Before starting work, the operator must be familiar with
all machine controls, handling devices and their
functions. It is too late to learn once work has been
started!
Never let anyone operate the machine who is not trained
to do so.
Should you have any difficulties in understanding certain
parts in this manual, please contact your KUHN dealer.
Precautions to be taken before carrying out
any operations on the machine
Before leaving the tractor or before adjusting,
maintaining or repairing the machine, disengage the
PTO drive, turn off the engine, remove ignition key and
wait until all moving parts have come to a complete stop
and apply park brake.
Introduction
The machine must only be operated, maintained and repaired by competent persons who are familiar with
machines' specifications and operation and aware of safety regulations for preventing accidents.
The operator must imperatively respect safety instructions in this manual and in the warnings posted on the
machine. The operatoris also obliged to respect current legislation concerning accident prevention, work safety
and public traffic circulation.
Designated use of the machine also means following operation, maintenance and repair recommendations
given by the manufacturer, and using only genuine spare parts, equipment and accessories, as recommended
by the manufacturer.
The manufacturer is not held liable for any damage resulting from machine applications other than those
specified by the manufacturer. Any use other than the designated operation is at the risk and responsibility of
the operator.
The manufacturer is not held liable for any damage or accident resulting from machine modifications carried out
by the operator himself or by a third party without previous written agreement from the manufacturer.

Power harrows
8
HRB 122-152-182
Safety
Precautions to take before using the
machine
Do not wear loose clothing which could become caught
up in moving parts.
Wear the appropriate protective clothing for the work in
hand (gloves, shoes, goggles, helmet, ear defenders,
etc.).
Ensure that all operating controls (ropes, cables, rods,
etc) are placed so as they cannot be operated
unintentionally and cause damage or injury.
Before operating the machine, check tightness of nuts
and bolts, particularly on fixing elements (tines, forks,
blades, knives, etc). Retighten if necessary.
Before operating the machine, ensure that all the safety
guards are firmly in place and in good condition.
Immediately replace any worn or damaged guard.
Precautions when driving
Tractor handling, stability, performance and braking
efficiency are all affected by weight distribution, trailedor
mounted implements, additional ballast and driving
conditions. It is therefore of great importance that the
operator exercises caution in every given situation.
Groundspeed must be adapted to ground conditions as
well as to roads and paths. Always avoid abrupt changes
of direction.
Be particularly cautious when turning corners, paying
attention to machine overhang, length, height and
weight.
Never use a narrow track tractor on very uneven or
steeply sloping ground.
Never leave the tractor seat while the machine is
operating.
Carrying people or animals on the machine when
working or in transport is strictly forbidden.

Safety
Power harrows
HRB 122-152-182
9
Precautions when driving on public roads
Dimensions
Depending on the dimensions of the machine, contact
the relevant authorities to ensure that it can be legally
transported on public roads.
If the machine is over the maximum legal size, follow the
local regulations for special transportation of oversize
equipment.
Gross weight and weight per axle
Check that the tractor's authorized gross weight as well
as its lift capacity and maximum weight per axle are not
exceeded.

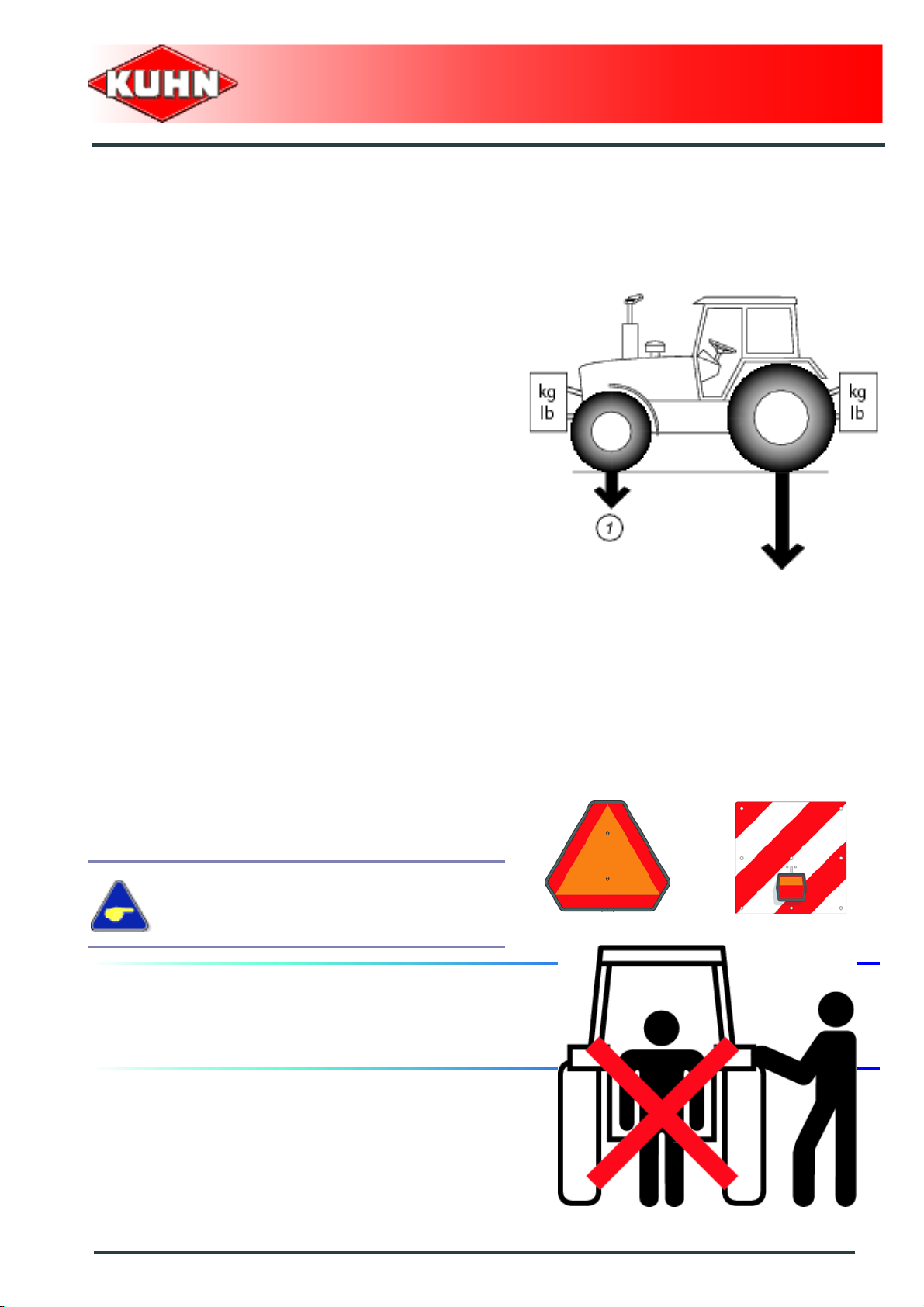

The front axle load (1) must never, under any
circumstances, be less than 20% of the tractor's unladen
weight. If necessary, add ballast weights to the front or
to the rear to preserve the steering and braking
efficiency.
Transport position
Before transporting the machine on public roads, place
the machine into its transport position, according to the
instructions in this manual.
Lights and indicators.
Before transporting the machine on public roads, ensure
that all legally required lightings and signallings are in
place.
Ensure that lightings and signallings are clean and in
good working order. Replace any missing or broken
equipment.
Maximum speed
Always keep to the legal speed limit for driving a tractor-
machine assembly on public roads.
Precautions when coupling
Before attaching the machine, make sure that it cannot
accidentally start moving (chock thewheels) and that the
parking stand is in the right position.
Never stand between the tractor and the machine when
Always obey current regulations for driving
on roads

Power harrows
10
HRB 122-152-182
Safety
operating the three point linkage.
Do not stand between the tractor and the machine
without ensuring that the parking brake is applied.
PTO shaft
Use only PTO shafts supplied with the machine or
recommended by the manufacturer.
The protective shield of the tractor PTO stub, the PTO
shaft guards and the protective covering of the machine
input shaft must always be in place and in good
condition.
Make sure that the PTO shaft guards are secured with
the safety chains provided.
Any worn or damaged guards must be replaced
immediately. A worn guard or an unprotected PTO shaft
can cause a serious or even a lethal accident.
Do not wear loose clothing that could be caught in the
rotating PTO shaft.
Before attaching or removing a PTO shaft, or before
doing any work on the machine, disengage the PTO
drive, turn off the engine, remove ignition key and wait
for all moving parts have come to a complete stop.
If the primary PTO shaft is equipped with a slip clutch or
a free wheel, these must be fitted on the machine side.
Ensure that the PTO shaft is always correctly fitted and
locked into place.
Before connecting the PTO shaft, ensure that the PTO
speed (rotational frequency) and directions of rotation
are in line with manufacturer's recommendations.
Before engaging the PTO drive, make sure all people
and animals are clear from the machine. Never engage
the PTO drive when the tractor engine is stopped.
When uncoupling the machine, rest the PTO shaft on the
support specially provided, and replace protective cover
on the PTO stub of the tractor.
Read and follow the instructions in the operator's manual
provided with the PTO shaft.
Precautions during manoeuvres
When moving the machine from the transport position to
the working position and vice versa, make sure that
nobody is within the machine pivoting area.

Safety
Power harrows
HRB 122-152-182
11
Remote controlled components
Danger of crushing and shearing can exist when
components are operated by hydraulic or pneumatic
controls. Keep away from these danger zones.
Safety decals
Safety warning decals are placed in pictorial form on
various parts of the machine. They are there to warn you
of potential dangers and to tell you how to avoid
accidents.
Always keep the safety decals clean and readable, and
replace them when they are worn, damaged, missing or
illegible.

Power harrows
12
HRB 122-152-182
Safety
Waste disposal
Respect the environment! Never spill pollutants (oil,
grease, filters, etc.) on the ground, never pour them
down the drain and never discard them in any other
place where they could pollute the environment. Never
throw away or burn a tyre. Always take waste to
specialized recycling or waste disposal centers.
Precautions for maintenance and repair
work
Before leaving the tractor or before adjusting,
maintaining or repairing the machine, disengage the
PTO drive, turn off the engine, remove ignition key and
wait until all moving parts have come to a complete stop
and apply park brake.
Make sure that the parts of the machine that need to be
lifted for maintenance or repair work are firmly propped
up.
Before any work is done on the electric circuit or before
any electric welding is carried out on the attached
machine, disconnect the machine from the tractor
electrical circuit. Also disconnect alternator and battery
terminals.
Repairs on elements under pressure or tension (springs,
pressure accumulators, etc.) must only be carried out by
competent persons with regulation equipment.
Wear the appropriate protective clothing for the work in
hand (gloves, shoes, goggles, helmet, ear defenders,
etc.).
Do not solder, weld or use a blow torch near fluids under
pressure or inflammable products.
For your own safety and for correct machine operation,
only use original manufacturer parts.
It is strongly recommended to have your machine
checked by your Kuhn dealer after each season,
especially tools and their attaching hardware.

Safety
Power harrows
HRB 122-152-182
13
Projection of stones and foreign objects
For driver safety, always use a tractor equipped with a
cab. Never start the machine when there are people
nearby. Even when the machine is used in accordance
with its purpose, objects may be projected. Stones and
other foreign objects projected by the moving parts can
travel a considerable distance. Keep all persons and
animals away from the danger zone.
Precautions for machine use
Before each use, check the soil preparation implements
and their attachment hardware in accordance with the
instructions given in this manual. Replace any worn,
damaged or missing soil preparation implement or
fastener immediately. For your safety, only use genuine
parts !
Check the guards regularly. Immediately replace any
damaged or missing elements.
Make sure all the guards are in place. Keep all persons
and animals away from the danger zone.
Stay a safe distance from the machine when the cutting
tools are in movement.
Never work in reverse.
After disengaging the PTO drive, tools can continue
rotating for some time. Stay away from the machine until
all moving parts have come to a complete standstill.
If the machine hits an obstacle, disengage the PTO
drive, stop the tractor engine, remove the ignition key
and wait for all moving parts to come to a complete
standstill. Check the entire machine for any damage
before resuming work.

Power harrows
14
HRB 122-152-182
Safety
3. Location and description of safety
decals on the machine
Location of safety decals

Safety
Power harrows
HRB 122-152-182
15
Description of safety decals
Operating instructions (1)
The operators' manual contains all the information
necessary for using the machine safely. It is imperative
to read and comply with all instructions.
Working on the machine (2)
Before leaving the tractor or before adjusting,
maintaining or repairing the machine, disengage the
PTO drive, turn off the engine, remove ignition key and
wait until all moving parts have come to a complete stop
and apply park brake.
Projections (3)
Stones and other debris projected by the moving parts
cantravela longdistance.Always stayata safedistance
from the machine.
Do not step on the machine (4)
Do not step on the machine : Risk of falling or damaging
the protection device.

Power harrows
16
HRB 122-152-182
Safety
4. Road safety equipment and
recommendations
The road safety equipment is mounted in the factory or
by your authorized Kuhn dealer according to current
safety regulations. Always keep to the legal speed limit
for driving a tractor-machine assembly on public roads.
The rear safety device comprises:
- 2 red reflectors (1).
The front safety device comprises:
- 2 white reflectors (1).

Machine specifications
Power harrows
HRB 122-152-182
17
$Machine specifications
1. Description and glossary
0
1 : Headstock 2 : lower links
3 : Angle gearbox 4 : Side deflector
5 : Roller 6 : Blade
7 : Blade holder 8 : Lights and indicators (Optional equipment)
9 : Trough

Power harrows
18
HRB 122-152-182
Machine specifications
2. Technical specifications
HRB
122 HRB 152 HRB 182
Coupling device 3 point linkage category 1N - 1 and 2
PTO speed 540 min-1
Number of rotors 456
Number of blades right / left 4 / 4 6 / 4 6 / 6
Working width 1.20 m (3’11’’) 1.50 m (4’11’’) 1.80 m (5’10’’)
Overall width 1.30 m (4’3’’) 1.60 m (5’3’’) 1.90 m (6’3’’)
Working depth from 20 to 200 mm (1’’ - 8’’)
Power requirement 18 kW
(25 hp) 22 kW (30 hp) 26 kW (35 hp)
Maximum allowable DIN engine power 59 kW (80 hp)
Weight 440 kg (970 lb) 500 kg (1102 lb) 550 kg (1212 lb)
