Kverneland 2620M User manual

1
Technical Service - Training TS-T
Date 18-11-2014
Subject Kverneland 26xxM
Place Kverneland Group Kerteminde AS
Taarupstrandvej 25
DK-5300 Kerteminde
Denmark
Realized for Who it might concern
Details General and operating information
Additional Information From Ident Number xxxxxxx

2
Table of contents
Machine specifications 4
Machine dimensions 5
Safety labels 6
Crane lifting 12
Preparation 13
Attachment 16
Transport 1
Working in the field 20
Parking - disconnecting 22
Maintenance - basic instructions 24
Lubricants - torques 25
Maintenance intervals 26
Lubrications 27
Lifyting cylinder 28
PTO 2
Gearbox details 30
Repair of gearbox 32
Gearbox - changing oil 37
Cutterbar 38
V-belts 42
Options 43
Trouble shooting 46

3
General information
Model

4
General information

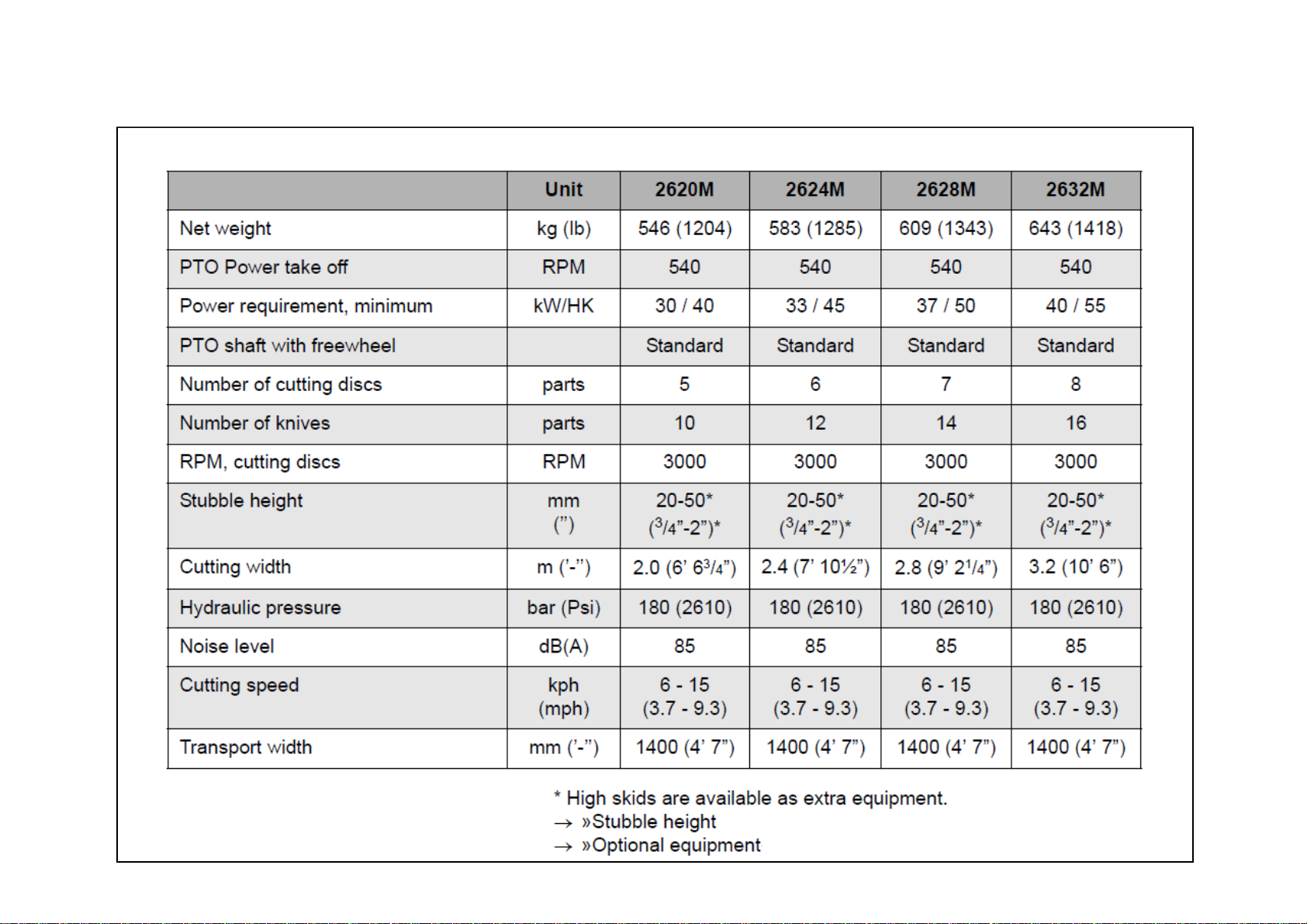

Machine specifications

5

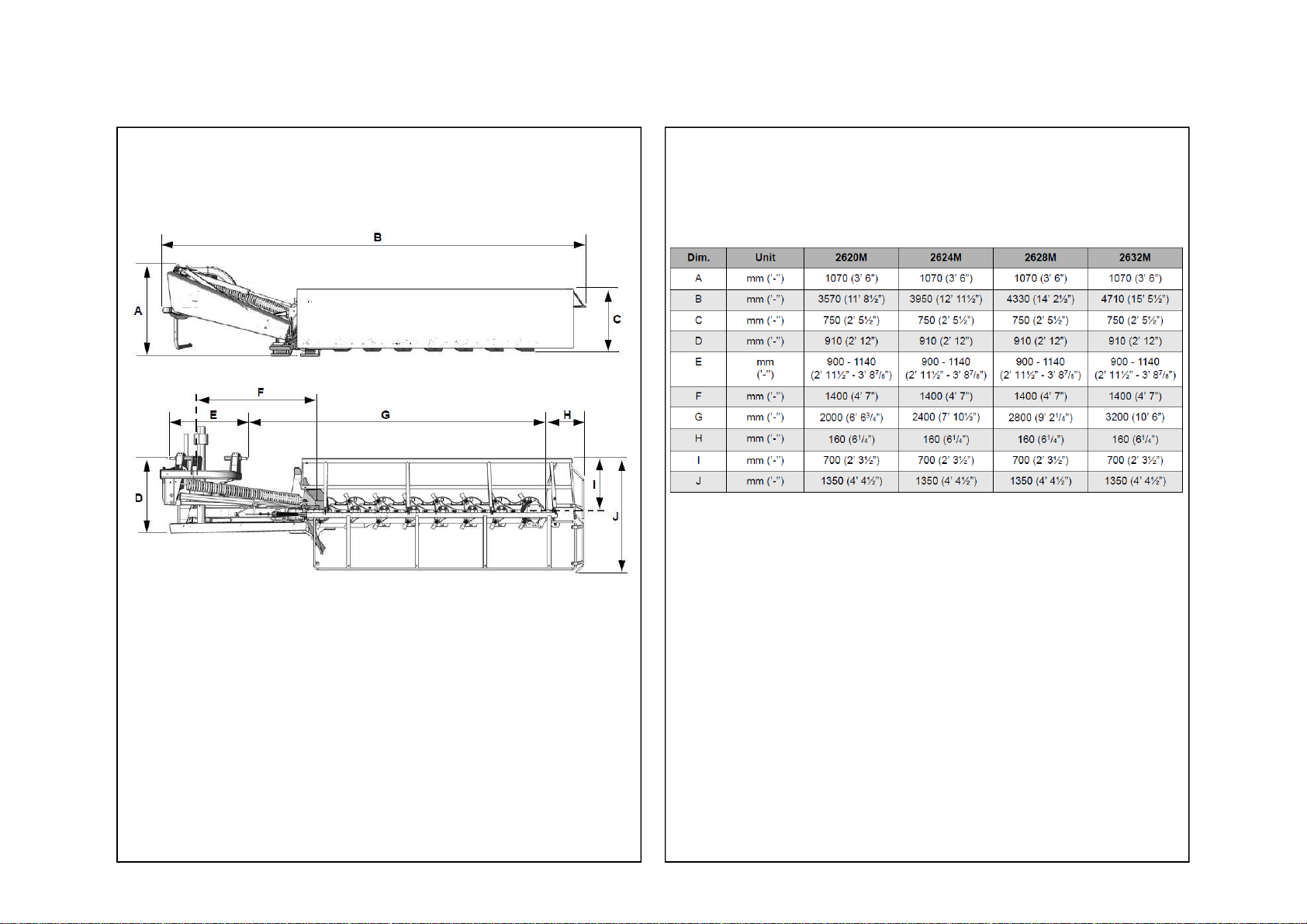

Machine dimensions Machine dimensions
General information

6
Safety
Safety labels US and Canada On the machine you will find labels relating to your safety. These labels
must not be removed. If the labels become illegible or detached, new
labels can be ordered and affixed to the relevant areas.

7
Safety
Safety labels US and Canada On the machine you will find labels relating to your safety. These labels
must not be removed. If the labels become illegible or detached, new
labels can be ordered and affixed to the relevant areas.

8
Safety

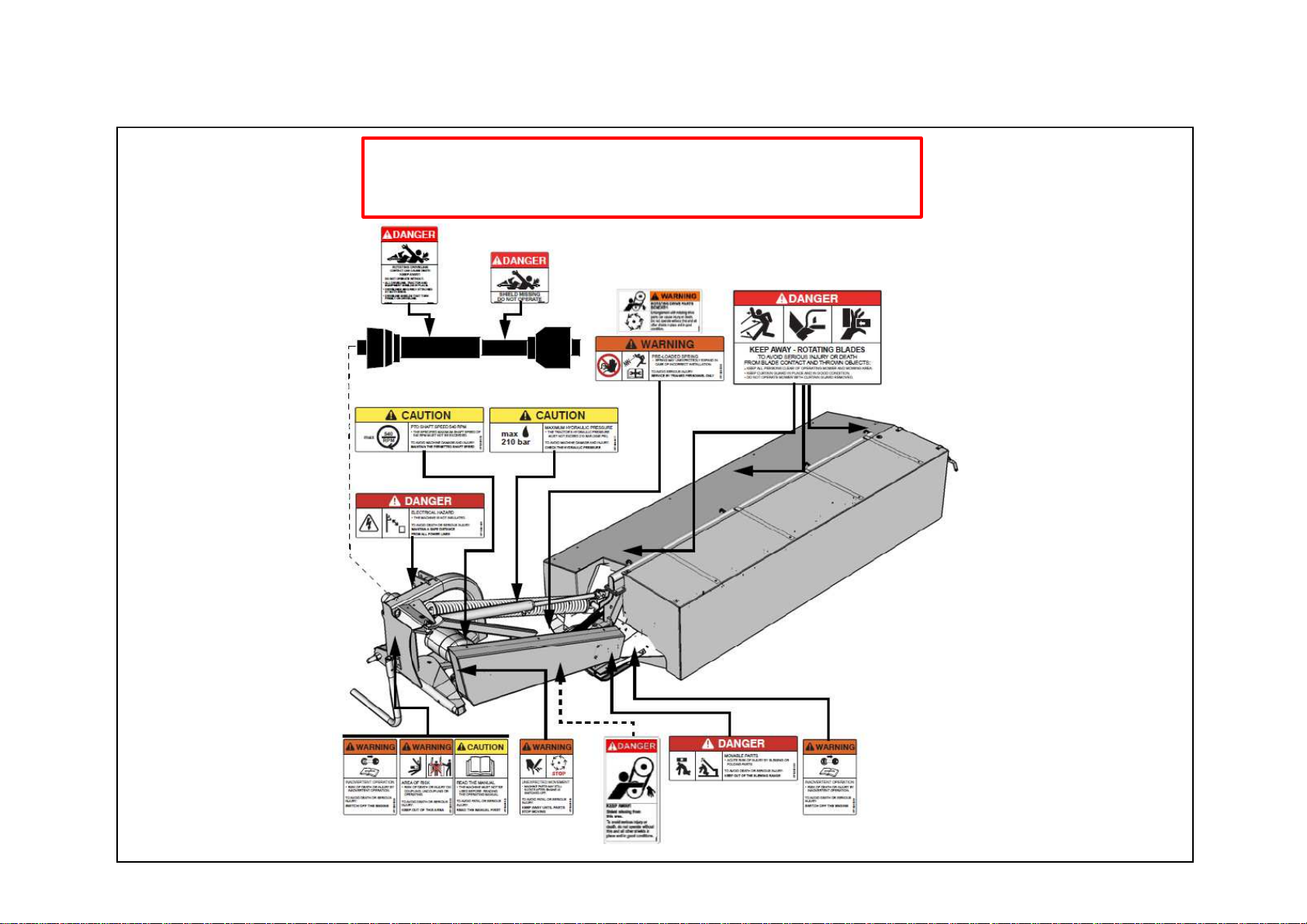

Safety labels On the machine you will find labels relating to your safety. These labels
must not be removed. If the labels become illegible or detached, new
labels can be ordered and affixed to the relevant areas.

9
Explanation safety labels
Explanation safety labels
Explanation safety labels
Explanation safety labels
Explanation safety labels
Explanation safety labels
Explanation safety labels
Explanation safety labels
Stop the tractor before
working on the machine
Be careful! Always let the tractor
come to a stop and remove the
ignition key before you repair,
rinse, lubricate or carry out any
maintenance work on the
machine.
Ensure no clothing/body parts
get caught in the PTO shaft
Guards may not be removed or
opened until the machine has
stopped rotating. The tractor
engine must be stopped, the
ignition key removed
and the handbrake applied.
Read and observe the
instruction manual
Be careful! Read and ensure you
understand the instruction
manual before the machine is
used.
Risk from loose chippings
Keep a safe distance from the
machine. Do not allow any
persons near the machine when
it is working. If the guard is
damaged, it must be replaced.
Safety

10
Explanation safety labels
Explanation safety labels
Explanation safety labels
Explanation safety labels
Explanation safety labels
Explanation safety labels
Explanation safety labels
Explanation safety labels
Risk of injury to feet
The protection must always be in
place when the machine is
working.
Ensure no clothing/body parts
get caught in the PTO shaft
No-one should approach the
PTO shaft until the machine has
stopped rotating. The tractor
engine must be stopped, the
ignition key removed
and the handbrake applied.
Risk of injury to feet
The protection must always be in
place when the machine is
working.
Danger: rotating machine
parts
Children and unauthorised
persons must never be allowed
near the machine. Only the
operator is allowed near the
machine..
Safety

11
Explanation safety labels
Explanation safety labels
Explanation safety labels
Explanation safety labels
Explanation safety labels
Explanation safety labels
Use the correct support for the
machine
Your body could become caught!
Never work under the machine
without using the correct support.
The tractor engine must be
stopped, the ignition key
removed and the handbrake
applied.
Ensure no body parts get
caught in the transmission
Guards may not be removed or
opened until the machine has
stopped
rotating. The tractor engine must
be stopped, the ignition key
removed
and the handbrake applied.
Your body could become
caught
The machine mast never be
uncoupled in the transport
position. The machine will
become unstable and may
overturn.
Reflective equipment for slow-
moving vehicles – SMV
This triangular sign must be
placed in the center at the rear of
the tractor or machine, so that it
is clearly visible at all times when
the machine is in the transport
position. This sign is compulsory
for machines that are being
transported at speeds of below
40 km/h (25 mph) on public
roads.
Safety
Markings and reflective
equipment – USA

12
Crane lifting safety Crane lifting safety
Only use approved lifting equipment which is correctly
fastened to the machine. This will increase your personal
safety. Failure to follow the safety instructions may result in
serious injuries or accidents.
Crane lifting

13
Assembly - attachment
Preparation Preparation

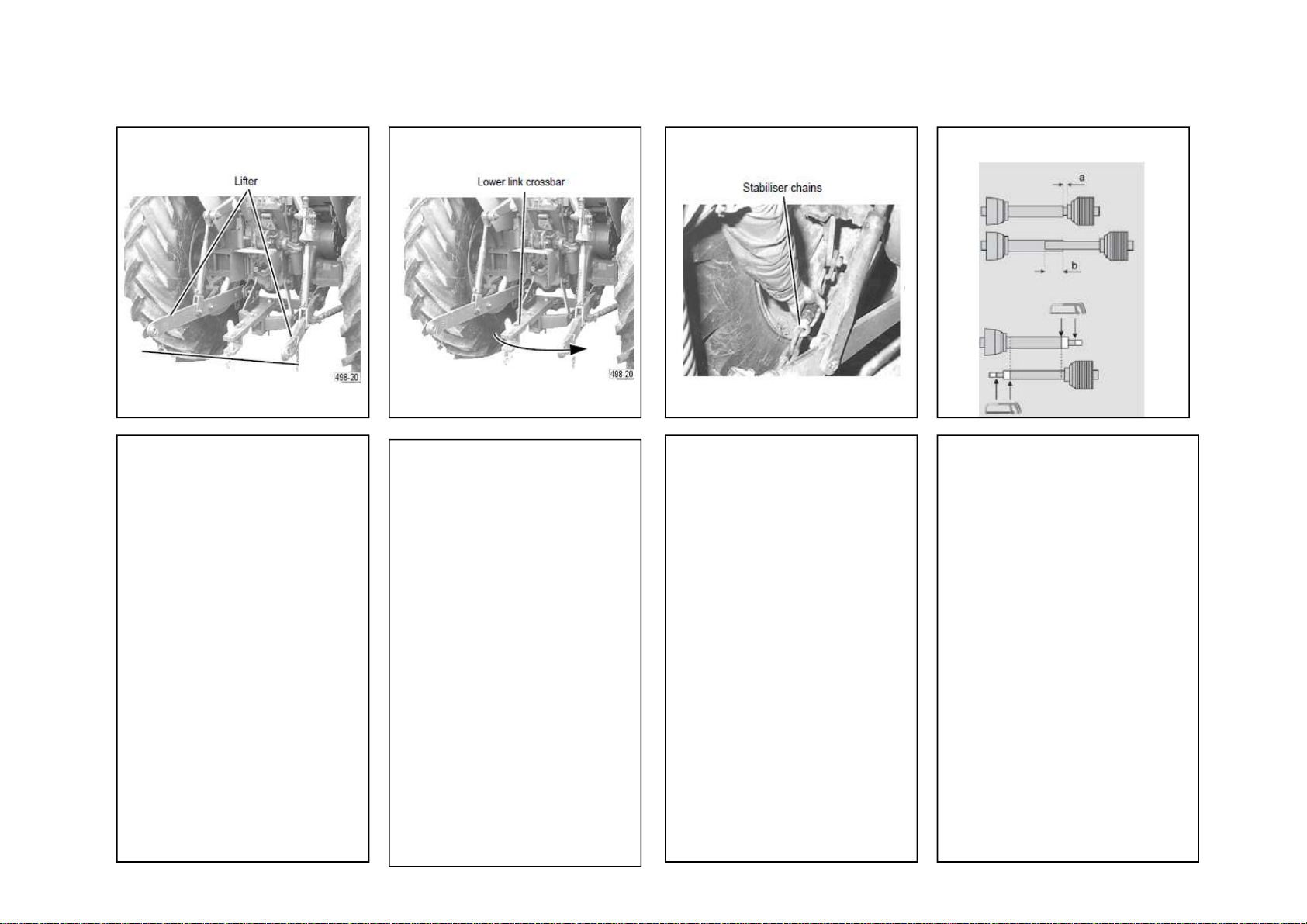

Adjusting lift arms Crossbar
• Swing the lower link crossbar
to the side or remove the
lower link crossbar.
• Bring the lift arms on the
same height
Preparation Preparation

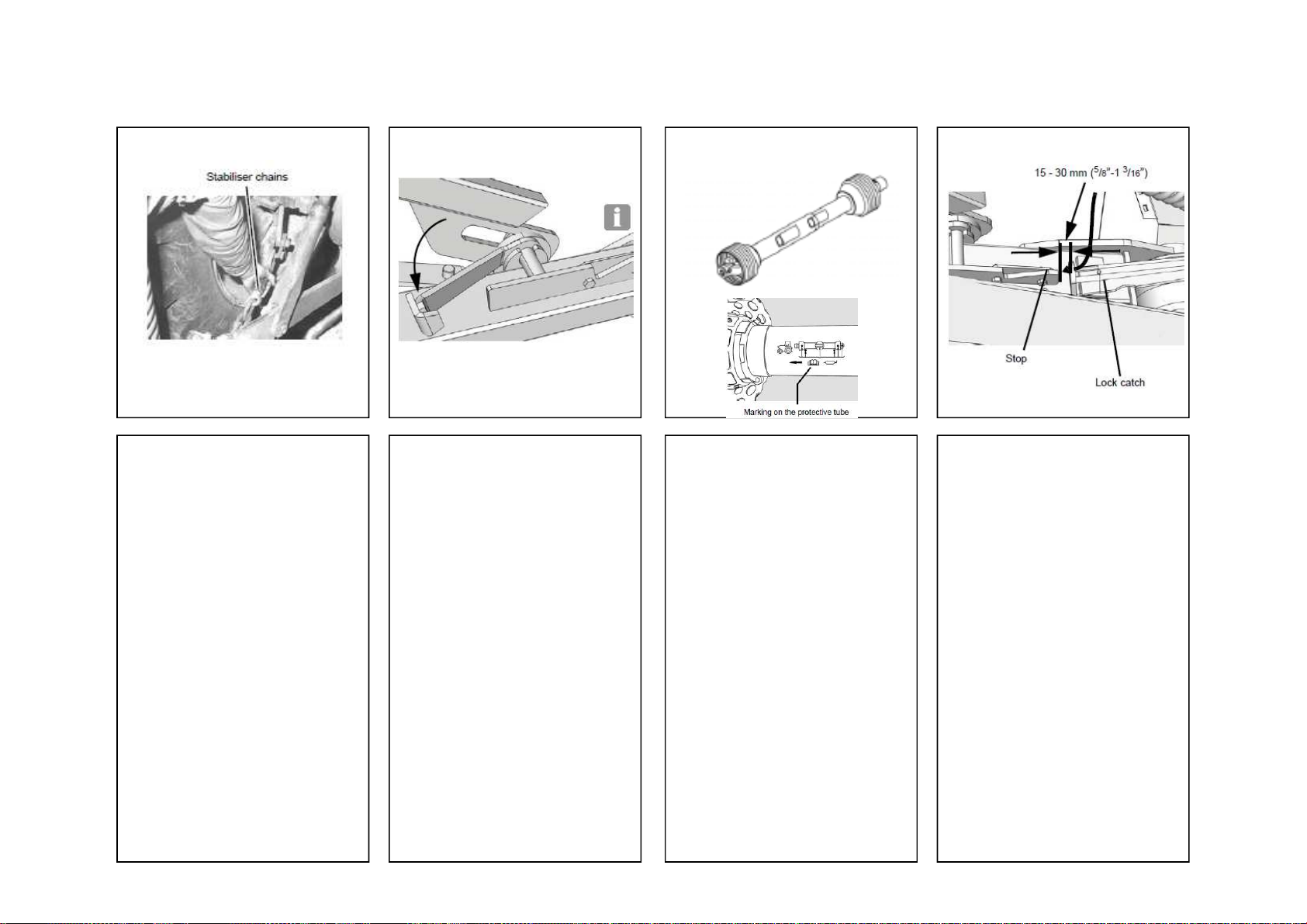

Stabiliser chains Checking the PTO shaft length
• Tighten the tractor's
stabilizer chains.
• Because of the increase in
weight, it is recommended
that the tractor's left-hand
stabilizer chain is tightened
up more than usual, so
that the machine is pulled
as tight as possible to the
tractor.
• Pull the PTO shaft apart.
• Fit one half on the tractor's PTO outlet.
• Fit the other half on the machine's PTO
input shaft.
• Position the two halves of the shaft
side by side and:
• Check that the halves of the shaft have
a minimum overlap of 200 mm (8”) [b].
• Check that the PTO shaft has a
minimum clearance of 20 mm (7/8”) [a].
• Shorten both profile tubes and the
protective tube by the same amount.
• DE burr the ends of both profile tubes.
• Clean any metal shavings or similar
from the profile tubes.
• Grease the sliding surfaces of the
profile tubes thoroughly.
• Fit and connect the two halves of the
shaft.

14
Preparation

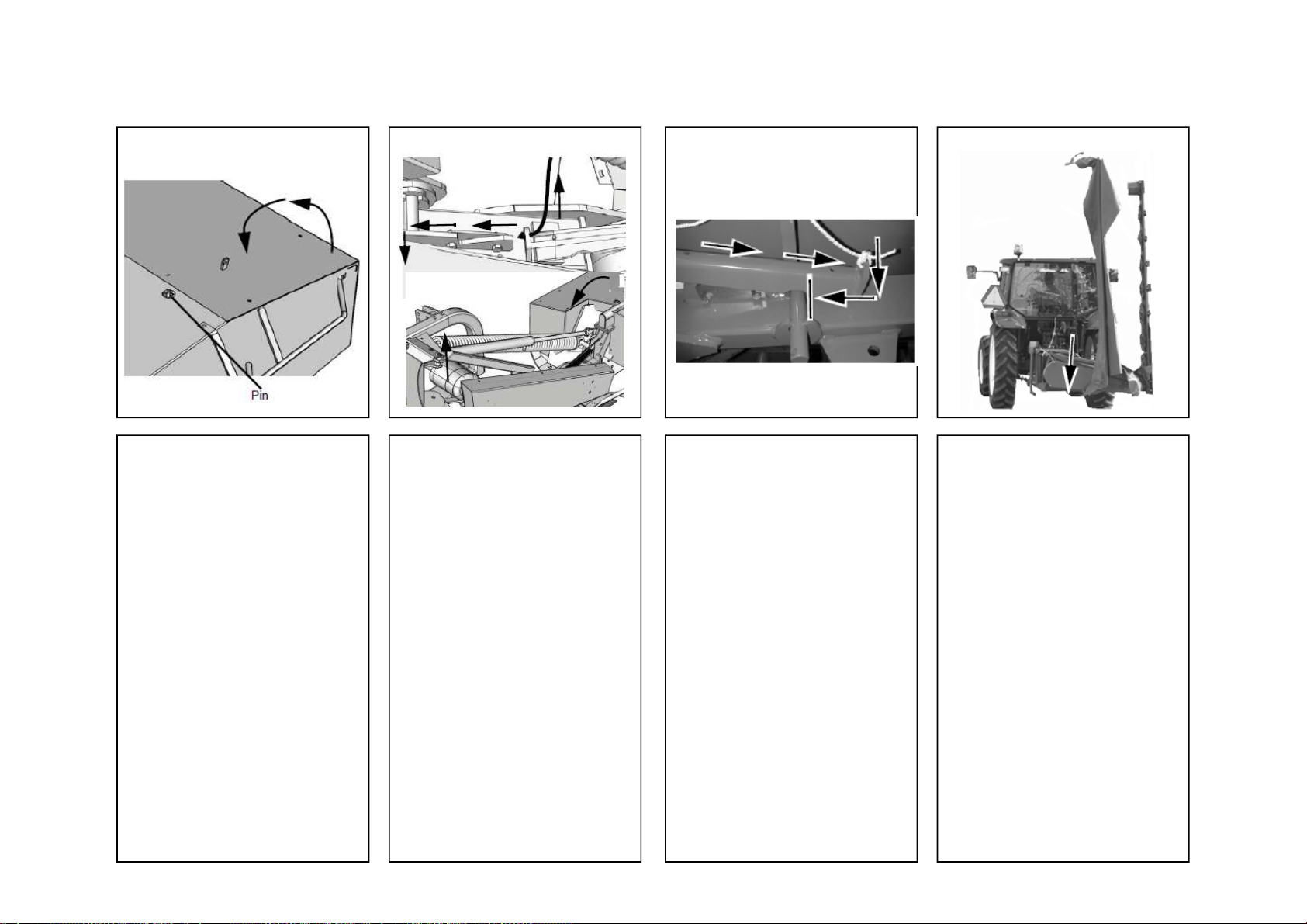

Position lifting bolts
Preparation
Lubricating the rotating
cutterbar
Preparation

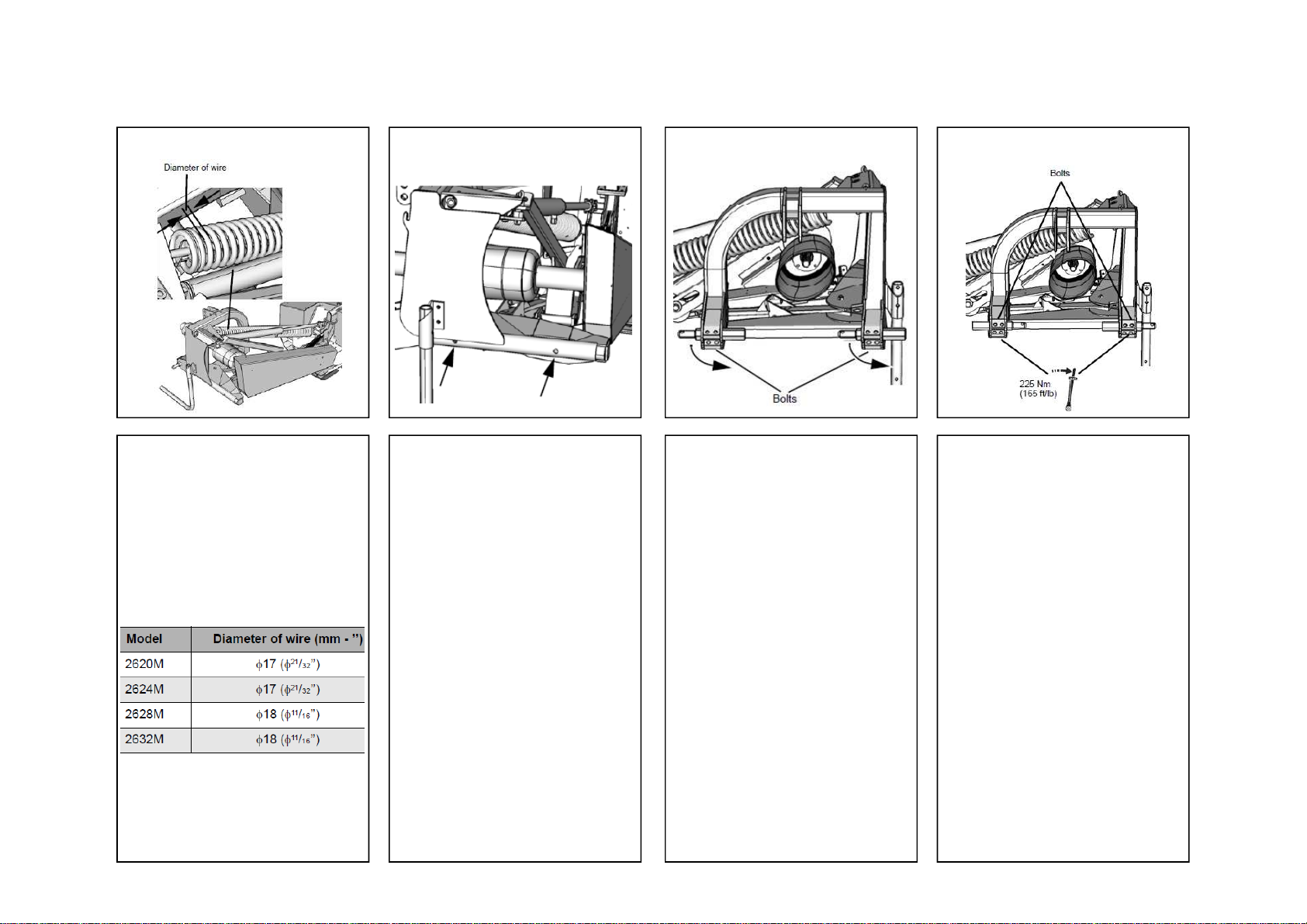

Checking the springs
The following must be done
before the machine is connected
to the tractor:
• Pull the piston in the hydraulic
cylinder out completely.
• Check that the machine is
fitted with the correct springs:
• If the above conditions are not
met, the machine will not be
able to work satisfactorily.
The machine is fitted with linkage
pins which can be changed as
shown.
The linkage pins are changed in
the following way:
• Use a suitable tool to loosen
the bolts on the linkage pins.
• Remove the linkage pins and
change them.
• Fit the linkage pins.
• Use a grease gun and pump a
suitable quantity of grease
into the holes shown.
• This lubrication should be
carried out the first time the
Machine is put into use.
Assembly - attachment
• Fit the bolts and tighten to the
torque shown.
Preparation
Position lifting bolts

15
Preparation
Preparation
Position lifting bolts position B
• The linkage pins below must
be used for attachment:
• The width of the tractor is
measured from the outside
edge of the tires as shown.
• Position B
Assembly - attachment
Preparation
Preparation
Attachment
Attachment
• Activate the tractor's lift arms
and lift the machine free of the
ground.
• Turn the support leg around
and raise it up as shown.
• Mount the machine onto the
tractor's lift arms.
• Selecting the position of the
top link:
TIP! It is recommended that the
top link is parallel to the tractor's
lift arms.
Position lifting bolts position A

16
Attachment
Setting of suspension
Attachment
PTO
Attachment
Parking catch
Attachment
Stabilizer chains
• Lift the machine well clear of
the ground.
• Tighten the tractor's stabilizer
chains.
Release the parking catch on the
machine.
• Turn the catch to the position
shown.
• The catch must be able to be
turned to the position shown
when the machine is attached
and is lifted free of the ground
with the tractor's three-point
hitch.
Assembly - attachment
• Attach the PTO shaft to the
tractor.
• Check that the PTO shaft is
secured to both the tractor
and machine.
• Check that the protective
tubes are secured with chains
so that cannot rotate with the
shaft.
• The freewheel on the PTO
shaft should turn towards the
machine.

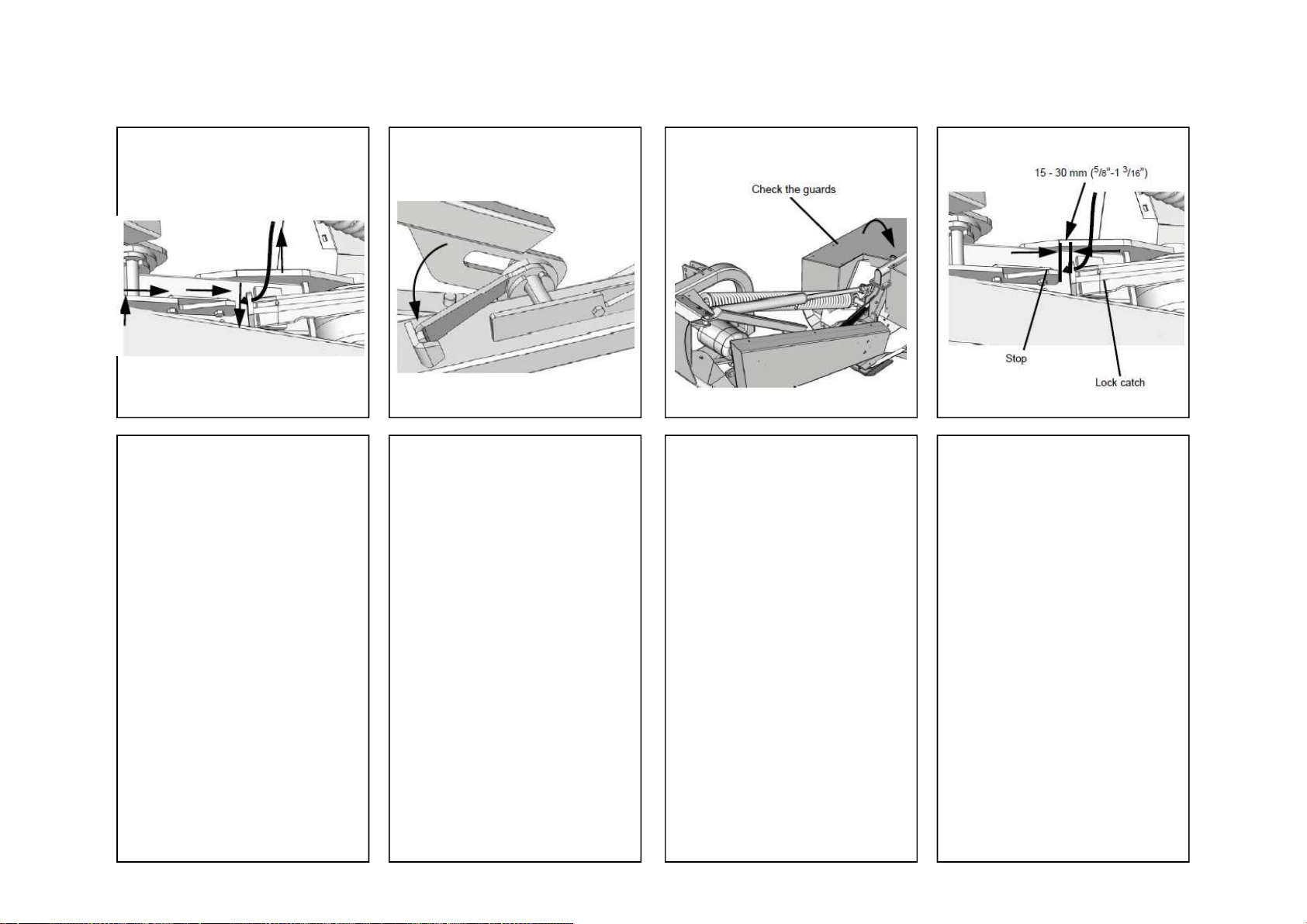

The suspension is adjusted in the
following way:
• Lifting bolts both horizontal.
• Raise/lower the lift arms until
there is approx. 15 - 30 mm
(5/8” - 1 3/16”) clearance
between the lock catch and
the stop.

17
Attachment
Spring catch for hilly ground
Attachment
Adjusting the springs
Attachment
Adjusting the springs
Attachment

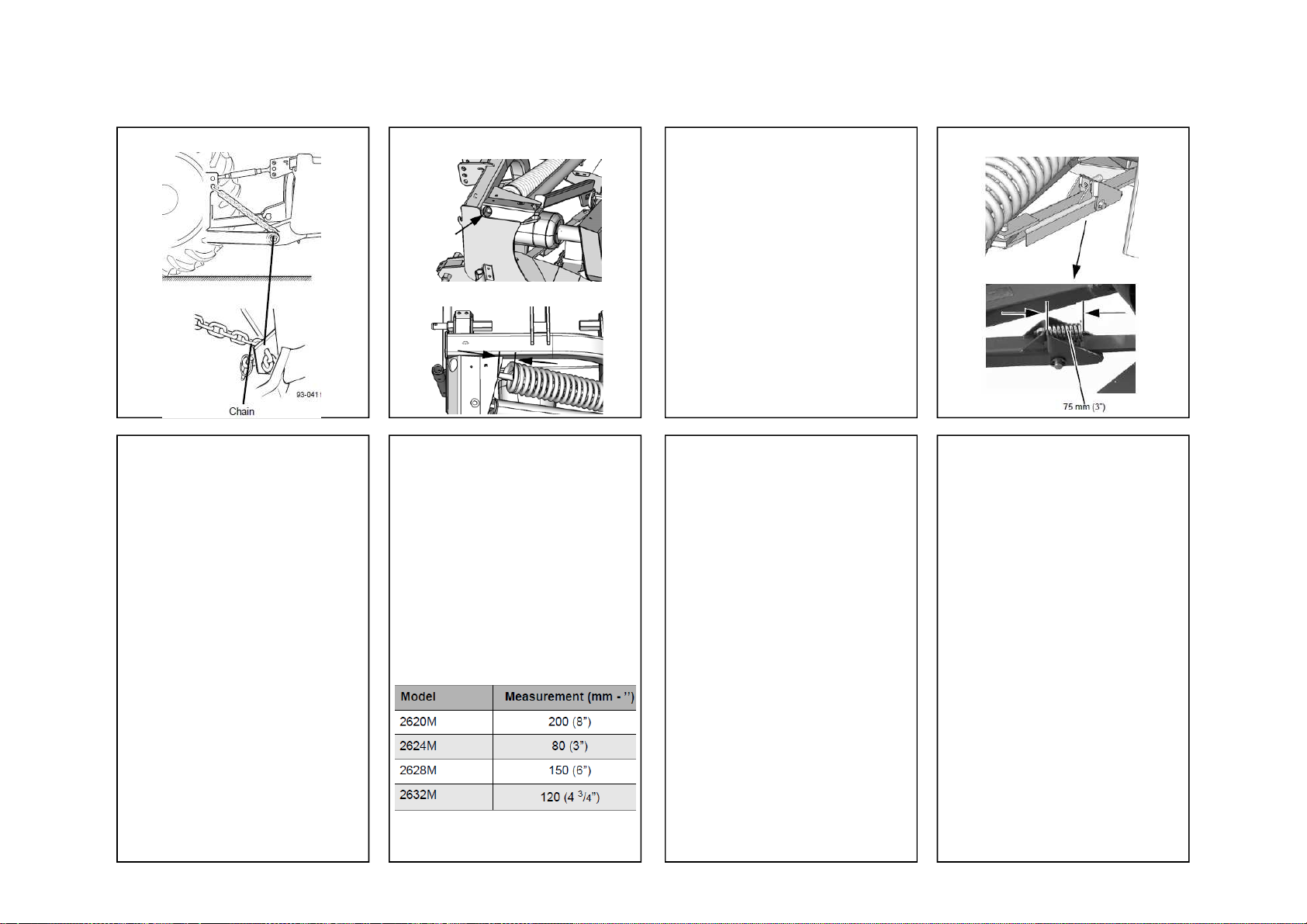

Chain for locking the lift arms
(option)
• The machine can be equipped
with a chain to prevent the
tractor's lift arms from
lowering. The chain is fitted
between the highest point on
the tractor and one of the lift
arms.
To ensure that the cutting unit is
correctly balanced, the springs
should be pre-tensioned in the
following way:
• If lower ground pressure is
required, the distance shown
must be reduced.
• If higher ground pressure is
required, the distance shown
must be increased.
Assembly - attachment
•The machine's spring must
not be detached, under any
circumstances. If an
attempt to detach it is
made, large amounts of
energy which are stored in
the spring will be suddenly
released and can cause
serious injuries or death.
•Only authorized persons
may detach this
component.
Option but standard for the US
and Canada.
• The spring catch keeps the
machine in position in relation to
the tractor. If the machine meets
an obstacle, release the catch,
and the machine will swing
behind. After the obstacle has
been passed, the suspension
spring will pull the machine back
and the catch will automatically
lock again. The spring catch is
factory fitted as shown.
• The spring catch must be
tightened to a maximum of 62
mm (2 7/16”), otherwise the catch
may lock.
• On hilly ground, it is possible that
the spring lock may be tightened
further during use. It is
recommended that the screw be
tightened by one turn and then
the setting checked.
!

18
Attachment Attachment AttachmentAttachment

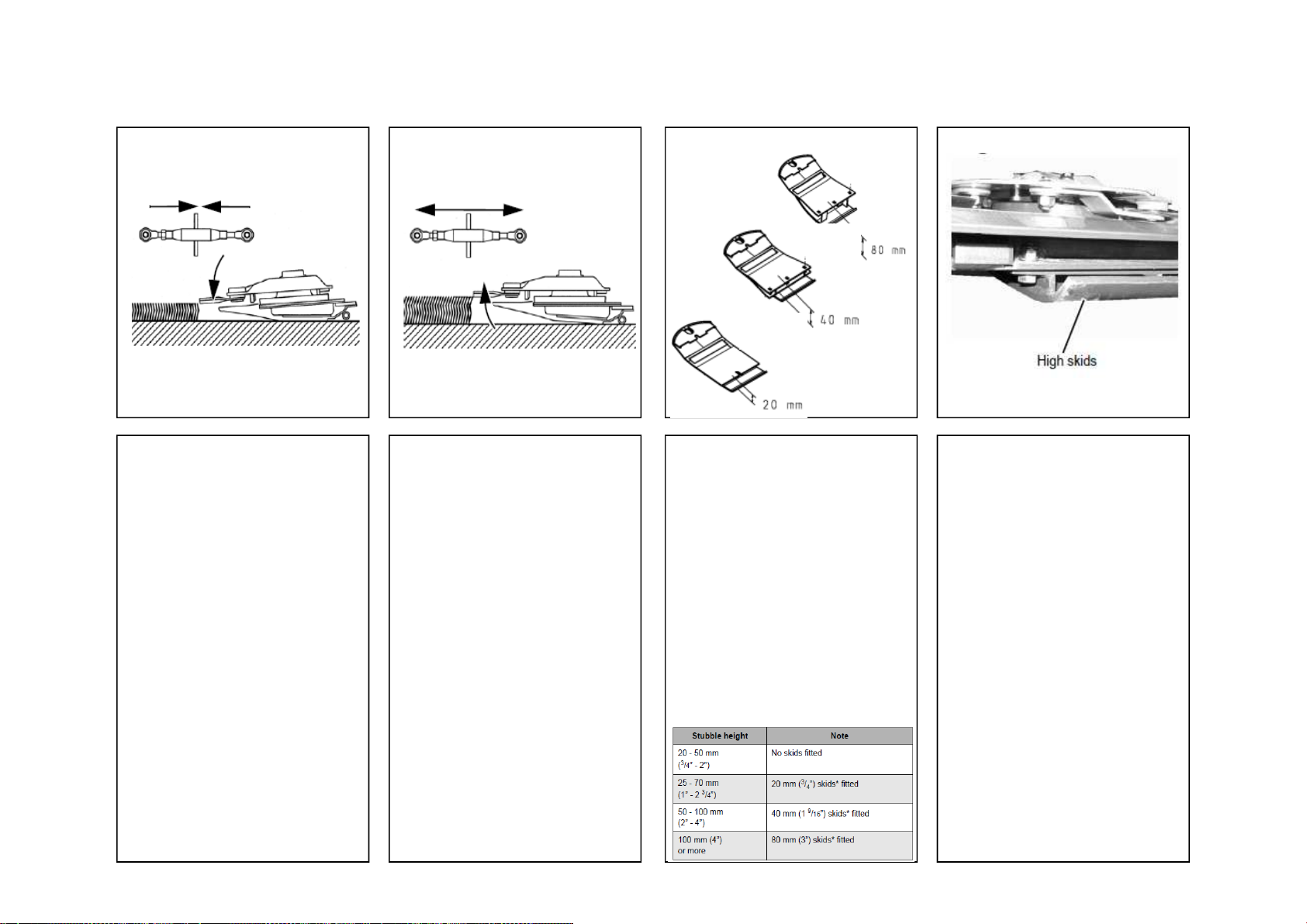

Lower stubble height High skids (option) High skids (option)Higher stubble height
• Shorten the top link for a
lower stubble height • Extend the top link for a higher stubble height • There are 2 skids on the
outer ends of the cutterbar
and they are replacing a
standard skid.
Assembly - attachment
The skids are available in the
following heights:
• 20 mm (3/4”)
• 40 mm (1 9/16”)
• 80 mm (3 1/8”)
High skids are recommended
for uneven fields with lots of
stones or molehills.
Note; 20 mm. (3/4”) is standard
for the US and Canada

19
Transport position
Transport safety
Transport position
Transport position
Transport position
Transport position
Transport position
Transport position
The machine is set to the
transport position in the following
way:
• Remove the pin.
• Open the guards around the
machine's cutterbar.
• Activate the tractor's lift arms
and raise the machine
completely free of the ground.
• Check that the lock is locked
when the cutting unit is in the
transport position.
• Release the hydraulic
pressure in the machine.
• Pull in the cord and release
the lock catch.
• Hold in the string and activate
the tractor's hydraulics and
the machine will be raised up
to the transport position.
• Release the string once the
cutting unit is raised
approximately halfway up.
• Activate and lower the
tractor's lift arms down to the
fixed working height.
NOTE: When the machine is in
the transport position, the
hydraulic system must be
depressurized.
Assembly - attachment

20
Working in the field
Working in the field
Turning at headlands
Working in the field
Working in the field
Working in the field
Working in the field
The machine is operated in the
following way:
• Activate the tractor's hydraulic
system and allow the
hydraulic cylinder to release
the machine's cutting lock.
• Pull in the cord and release
the lock catch.
• Hold in the string and activate
the tractor's hydraulics and
lower the machine down to
the transport position.
• Check that all guards on the
machine are correctly
positioned.
• Check that the lock catch is in
the position shown.
Assembly - attachment
Setting of suspension
The suspension is adjusted in the
following way:
• Lifting bolts both horizontal.
• Raise/lower the lift arms until
there is approx. 15 - 30 mm
(5/8” - 1 3/16”) clearance
between the lock catch and
the stop.
