Leister BITUMAT B2 User manual

BITUMAT B2
Leister Technologies AG
Galileo-Strasse 10
CH-6056 Kaegiswil/Switzerland
Tel. [phone]
Fax [phone]
www.leister.com
[e-mail]
USA
®

15

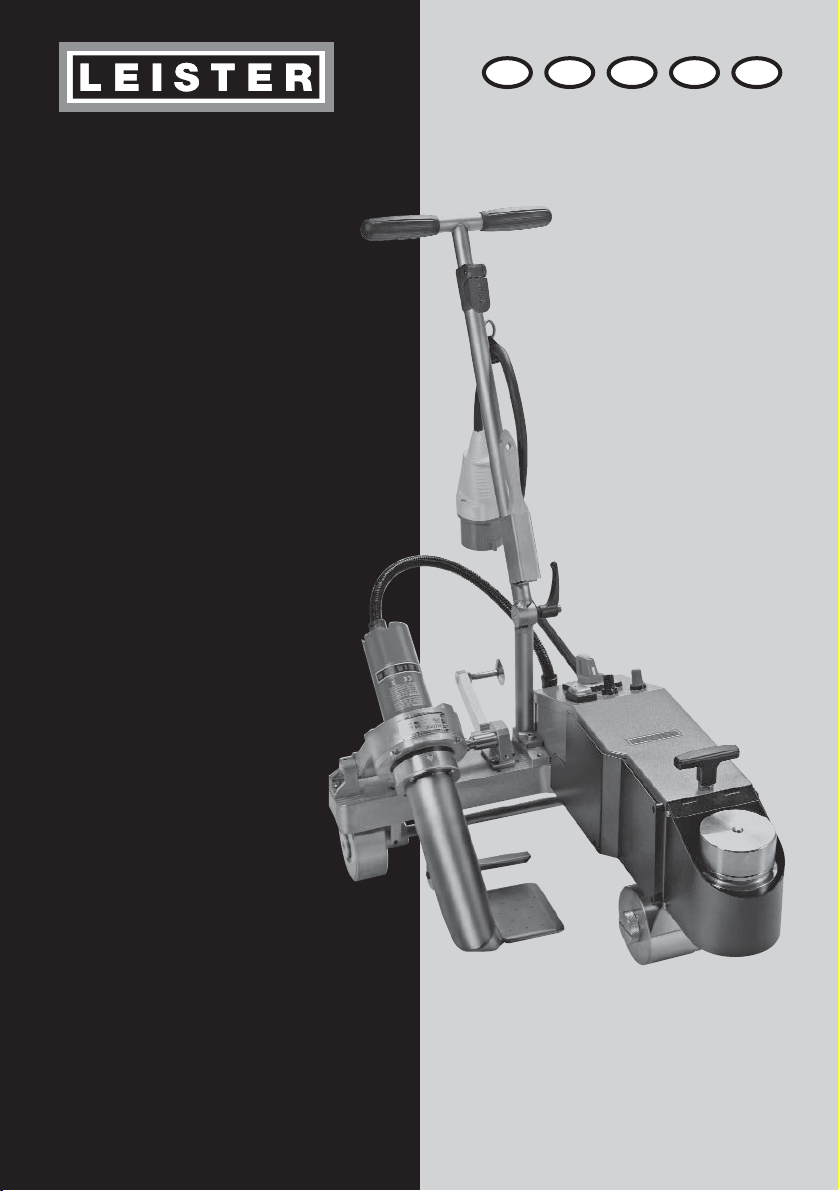

Leister BITUMAT B2
Hot air welder
Handheld hot air welder for overlap welding of modified bitumen membrane liners (SBS, APP) in the open air or in
well ventilated rooms, for various roof systems, on horizontal and shallow-pitched flat surfaces.
Application
Please read operating instructions carefully before use
and keep for future reference.
Operating Instructions (Translation of the original operating instructions)
GB USA
Danger to life when opening the device as live components and connections are
exposed. Unplug the line/mains plug from the plug socket before opening the device.
Incorrect use of the hot air tool can present a fire and explosion hazard
especially near combustable materials and explosive gases.
The tool must be operated under supervision.
Heat can ignite flammable materials which are not in view.
The device machine may only be used by qualified specialists or under their super-
vision. Children are not authorized to use this device.
For personal protection, we strongly recommend the tool be connected to an
RCCB (Residual Current Circuit Breaker) before using it on construction sites.
Rated voltage stated on the device must correspond to line/mains voltage.
N 61000-3-11; Zmax = 0.105 Ω+ j 0.066 Ω. If necessary, consultate supply
authority.
In the case of line/mains power failure extract hot air blower and set
main switch to position 0
Do not touch hot welding nozzle, they can cause burns. Allow the tool to cool
down. Do not point the hot air flow in direction of people or animals.
FI
230
400
Warning
Caution
Connect tool to a receptacle with protective earth terminal. Any interruption of
the protective earth conductor inside or outside the tool is dangerous!
Use only extension cables/cords with protective earth conductor!
Protect the device from damp and wet.
The handle and guide bar may not be used as transport aids. The replacement
drive roller must during transport always be secured with the screw-on addi-
tional weight to be in the holder.

16
Leister Technologies AG , Galileo-Strasse 10, CH-6056 Kaegiswil/Switzerland confirms that this product, in the
version as brought into circulation through us, fulfils the requirements
of the following EC directives.
Directives
: 2006/42, 2004/108, 2006/95
Harmonised standards: EN 12100-1, EN 12100-2, EN 60204-1, EN 14121-1
EN 55014-1, EN 55014-2, EN 61000-6-2,
EN 61000-3-2, EN 61000-3-3, EN 61000-3-11 (Zmax),
EN 61000-3-12, EN 50366, EN, 62233, EN 60335-2-45
Kaegiswil, 28.11.2011
Bruno von Wyl, CTO Beat Mettler, COO
Power tools, accessories and packaging should be sorted for environmental-friendly recycling. Only
for EC countries: Do not dispose of power tools into household waste! According to the European
Directive 2002/96 on waste electrical and electronic equipment and its incorporation into national law,
power tools that are no longer suitable for use must be separately collected and sent for recovery in
an environmental-friendly manner.
Disposal
Conformity
Technical data
Voltage V~ 230 or 400 (Mains voltage cannot be switched over)
Power consumption W 6700
Frequency Hz 50 / 60
Temperature °C 20 – 650 °F 68 – 1202
Speed m/min. 0.8 – 12 ft/min. 2.7 – 40
Air flow range % 85 – 100
Emission level LpA (dB) 73
4.0
Dimensions L×W×H mm 690 ×490 ×33 inch 27.0 ×19.3 ×13
Weight without power supply cord kg 39 lbs 86
Mark of conformity 2
Approval mark 3
Certification scheme CCA
Protection class I 1
Technical data and specifications are subject to change without prior notice

17
Description of device
1Power supply cord
2Housing
3Main switch
4 Drive switch
5Speed knob
6Temperature knob
7Welding nozzle
8Hot air blower
9Tool holder
10 Locking lever
11 Transport roller
12 Scale for tool adjustment
13 Drive roller
14 Fastening screw
15 Lower guide bar
16 Clamping lever, upper guide bar
17 Clamping screw, lower guide bar
18 Holder for power supply cord
19 Guide roller
20 Adjusting screw – guide roller
21 Adjusting sleeve
22 Replacement drive roller
23 Screw-on additional weight
24 Screw for welding nozzle adjustment
25 Scraper
26 Screw for scraper
27 Holder for replacement drive roller
28 Carrying handle
29 Screw for adjusting sleeve
30 Fastening screw for welding nozzle
31 Steel brush
32 Turning knob for air volume
33 Upper guide bar
19
8
1
65 4
3
2
28
11
14
32
13
25
26
21
22
27
23
15
31
16
17
18
9
10
20 29 12
24 30
7
33

18

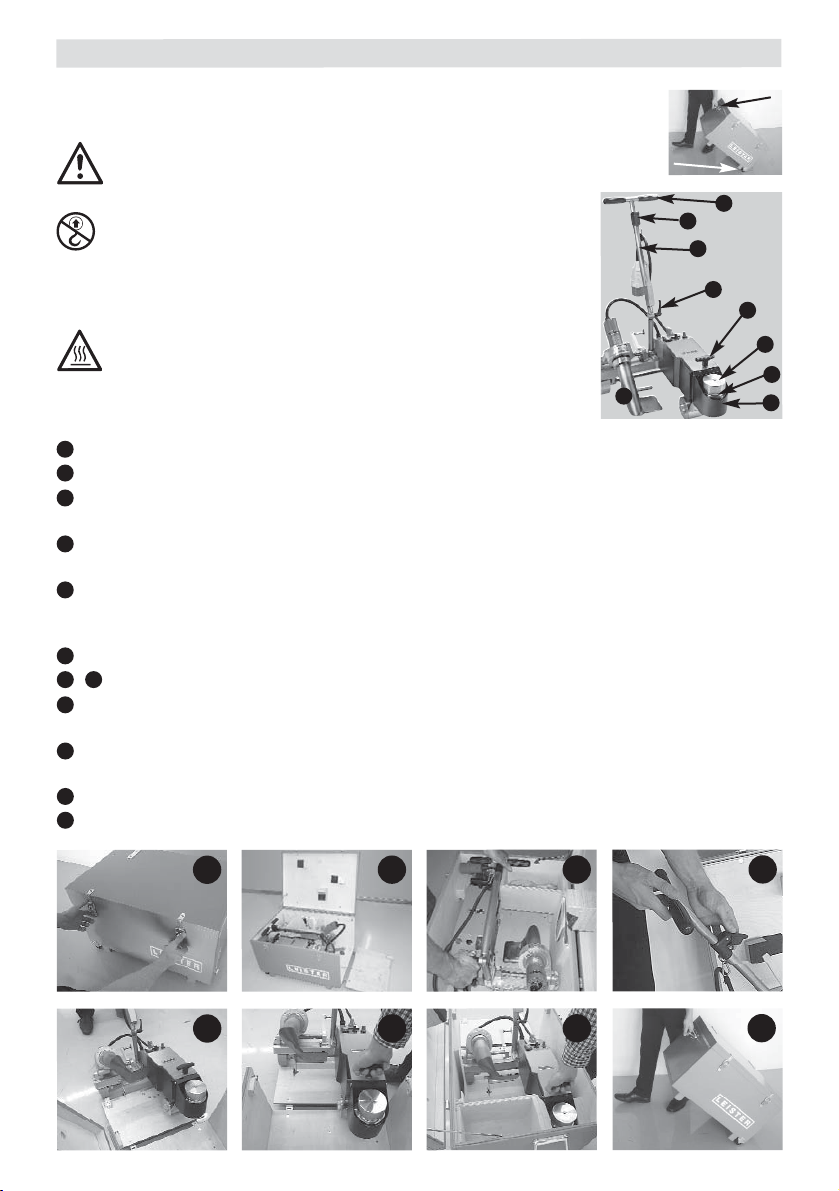

Moving BITUMAT B2 out of carrying case:
Open carrying case at top
Open carrying case at sides
Open clamping screw, lower guide bar (17) and move lower guide bar (15) into required position;
tighten clamping screw, lower guide bar (17)
Open clamping lever, upper guide bar (16)
Adjust upper guide bar (33) to required height; tighten clamping lever, upper guide bar (16)
Carefully move the hot air welder BITUMAT B2 out of the carrying case
Moving BITUMAT B2 in carrying case:
Carefully move the hot air welder BITUMAT B2 from the side in the carrying case
Place BITUMAT B2 in the storage case using the carrying handle (28).
Open clamping lever, upper guide bar (16) and move in upper guide bar (33);
tighten clamping lever, upper guide bar (216)
Open clamping screw, lower guide bar (17) and move guide bar (15) into transport position;
tighten clamping screw, lower guide bar (17)
Close the side and top carrying case
For transporting the storage case by hand use carrying handles.
1
2
3
4
5
5
4
3
Transport
Use the storage case included in the scope of delivery as transport protection for the hot
air welder BITUMAT B2. The storage case is provided with a handle and transport rollers.
The replacement drive roller (22) must during transport always
be secured with the screw-on additional weight (23) to be in the
holder (27).
Do not use the handles of the storage case, the carrying handle (28) and
guide bar top/ bottom (15/ 33) of the hot air welder for transport with the
crane.
Use the carrying handle (28) and guide bar top (33) to lift the
hot air
welder
by hand.
For transport preparation let welding nozzle (7) of the BITUMAT B2
cool down.
1234
58
1
8
67
67
33
15
16
28
23
22
27
7
17

19
Welding parameters
23
22
27
13
F
13
23
22
CAUTION: The replacement drive roller (22) must during transport always be secured with the screw-
on additional weight (23) to be in the holder (27).
6 5 4
Joining force (F) table 75 mm 100 mm
Without weight (22, 23) 160 N 160 N
With screw-on additional weight (23) and
without replacement drive roller (22) 180 N 180 N
Replacement drive roller (22) and
without screw-on additional weight (23) 205 N 210 N
Replacement drive roller (22) and
with screw-on additional weight (23) 225 N 230 N
3
Welding temperature
Turn the main switch (3) to I. Set the temperature knob (6) to the
required value. Heating-up time approx. 5 minutes.
Air volume
• To achieve optimum welding of the modified bitumen membrane liners or to
avoid bitumen spatters, the air volume can be set with the turning knob for
air volume (32).
CAUTION: If the quantity of air flow is reduced, the temperature knop (6)
may not be set higher than stage 8.
Risk of overheating the heating element.
Welding speed
Set the appropriate welding speed with the speed knob (5) depending
on the sealing sheeting and weather conditions.
Joining force
• The joining force is transmitted to the drive roller (13).
• The replacement drive roller (22) and the screw-on additional weight (23)
can be removed as required (see joining
force table).
32

20
• Before putting into operation, check power supply cord (1) and connector as well as extension cable for electrical
and mechanical damage.
• Move lower guide bar (15) into the required position using clamping screw, lower guide bar (17) and
upper guide bar (33) using clamping lever, upper guide bar (16) .
• Clip strain relief of power supply cord (1) in holder (18) .
• Check the basic setting of the welding nozzle (7).
– The welding nozzle (7) must lie flat on the lower membrane liners (see Detail A).
– The distance between the centre of the drive roller (13) and the air outlet of the welding nozzle (7)
should be 80 mm (see Detail B). Otherwise the hot air blower (8) must be set with the scale for tool
adjustment (12) by loosening the screws (24).
– The welding nozzle (7) should be set parallel with the drive roller (13
• Transport configuration
– Swivel the guide roller (19) upwards
– Extend the hot air blower (8) by pulling the locking lever (10) and swivelling it up until it locks in place.
• Set the guide roller (19) to the required overlap using the guide roller adjusting screw (20).
• The distance between Guide roller (19) and Drive roller (13) is 5 mm (Detail C).
Operating preparation
13
7
7
13 19
20
Detail A
Detail B
Detail C
17
15
16
1
812
19
20
7
13
24
18
33
10

21

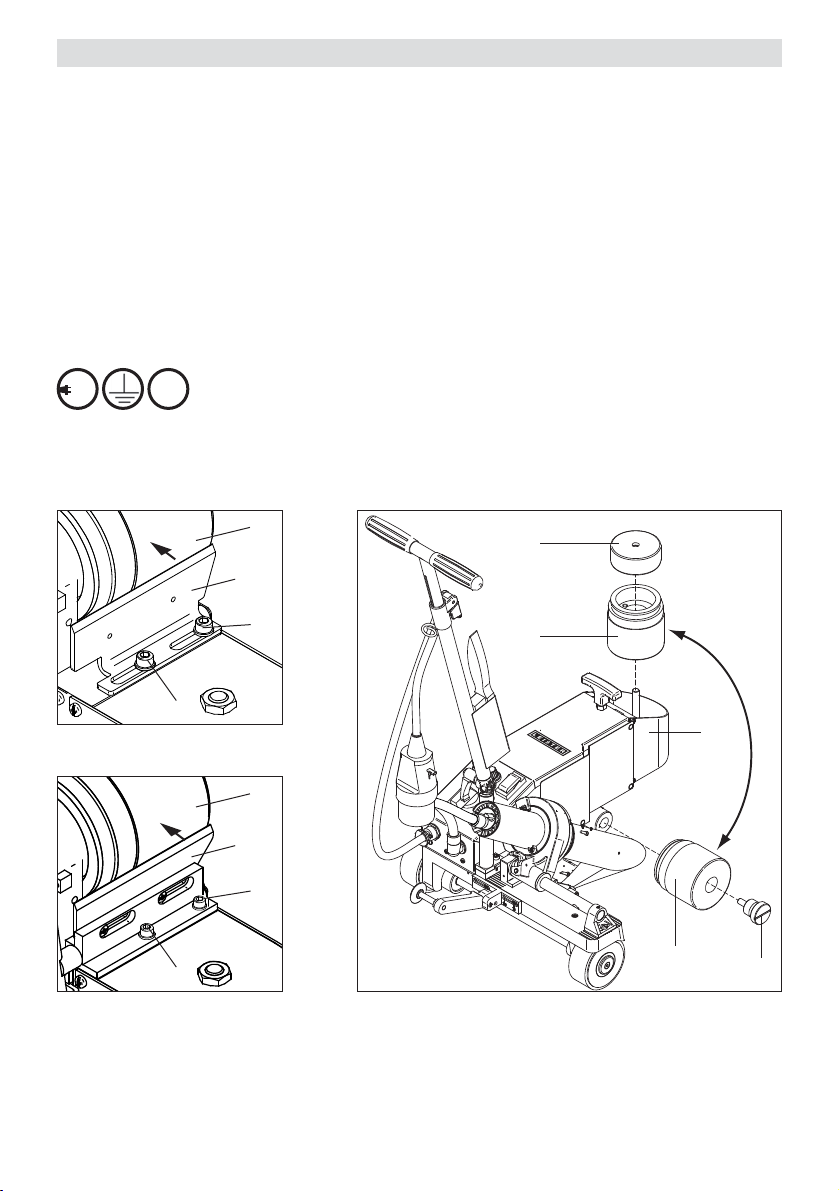

Operating preparation

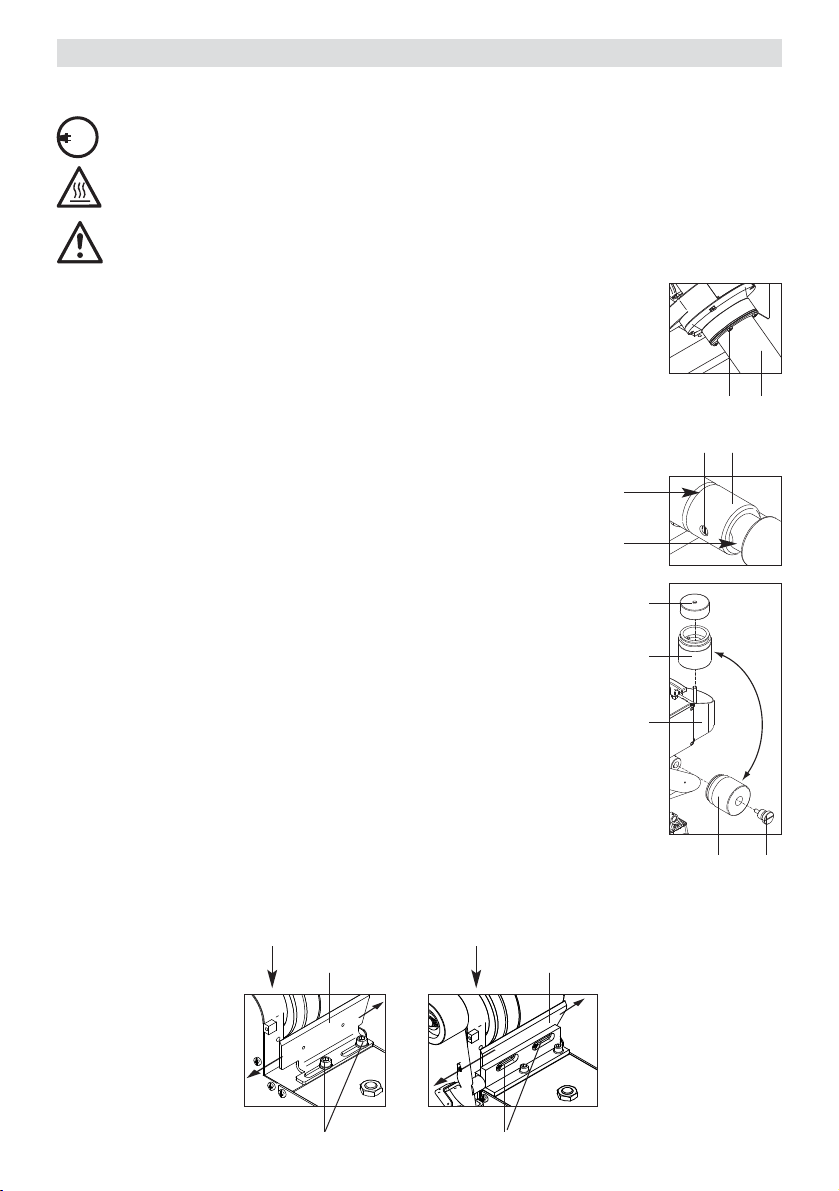

• To achieve an even weld, there must be no bitumen deposits on the drive roller (13).
• In the case of soiling, the following measures can be taken:
– Release screws for scraper (26). Reduce the distance between the scraper (25) and the drive roller (13).
Tighten the screws for scraper (26).
– Release the fastening screw (14), remove and clean the drive roller (13). Mount the drive roller (13). Tigh-
ten the fastening screw (14).
– Release the fastening screw (14) and remove the drive roller (13). Release the Screw-on additional
weight (23), remove the replacement drive roller (22) from the holder (27). Mount the replacement
drive roller (22) with the fastening screw (14). Place the soiled drive roller (13) into the holder (27)
and secure with the Screw-on additional weight (23).
• Connect tool to rated voltage.
23
22
13 14
27
FI
230
400 Rated voltage stated on the device must correspond to line/mains voltage.
With lifting device
26
25
26
13
26
25
26
13
Without lifting device

22
Power supply
If an extension cable is used, a 3 ×4 mm2mains cable must be used. The extension cable must be approved for
the application site (e.g. outdoors) and labelled accordingly.
Heating power at +/- 10% the rated voltage
Voltage (V) Heating power (W)
360 5266
370 5563
380 5868
390 6180
400 6500
410 6831
420 7168
430 7513
440 7867
Voltage (V) Heating power (W)
205 5164
210 5419
215 5680
220 5947
225 6221
230 6500
235 7686
240 7078
245 7376
250 7680
255 7990
Undervoltage has a negative effect on the welding speed and quality!
Undervoltage Overvoltage
Voltage (V)
Heating power (W)
Rated voltage
Undervoltage Overvoltage
Voltage (V)
Heating power (W)
Rated voltage

23

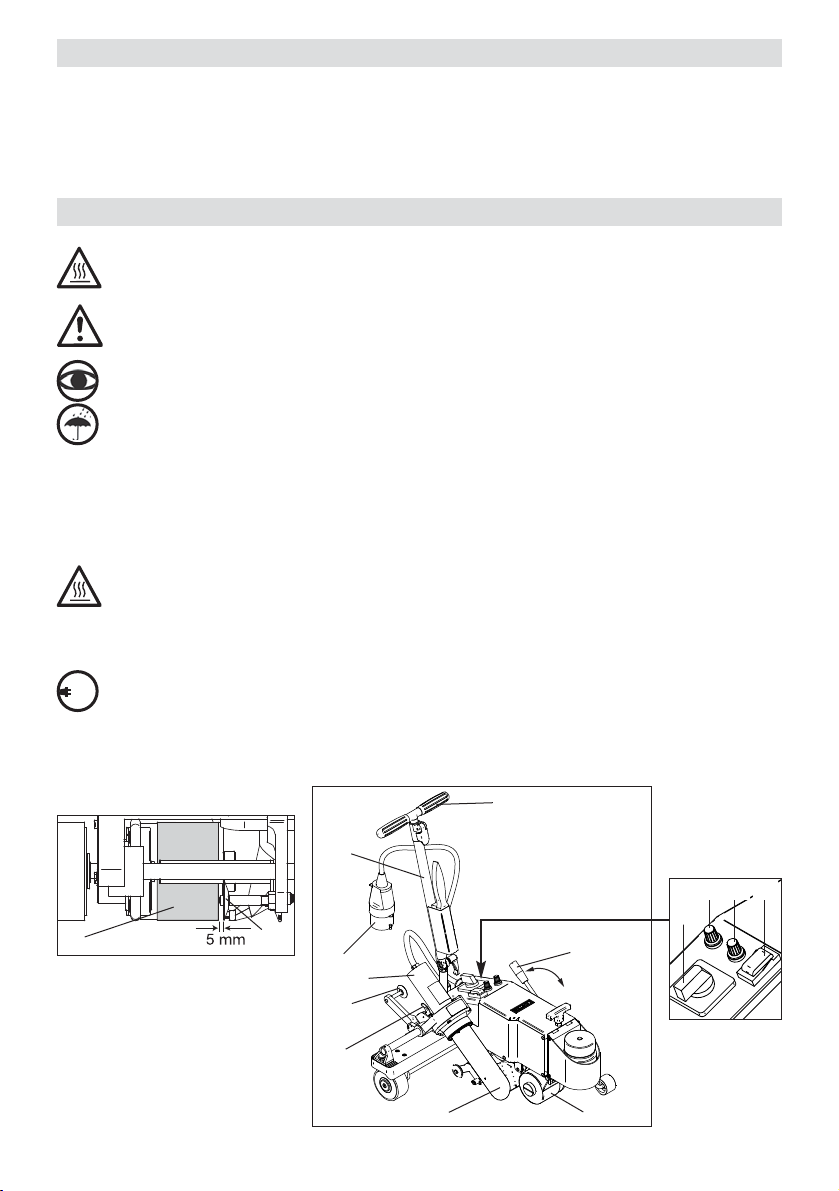

Tool positioning without lifting device
•Lift hot air welder applying pressure onto upper guide bar (33) and move to weld position
• Swivel the guide roller (19) downwards.
• The distance between Guide roller (19) and Drive roller (13) is 5 mm (Detail C).
• Set the welding parameters, see Page 19.
•
The welding temperature must be attained (heating-up time approx. 5 minutes).
• Perform a test welding according to the welding instructions of the material manufacturer and the
national standards or guidelines. Approve the test welding.
• Raise the locking lever (10), lower the hot air blower (8) and move it in between the overlapping
membrane liners to the end stop. Wait a moment until the material is plasticized.
• Start the drive with the drive switch (4). In case of mains power failure, the drive switch (4) switches
off automatically. Once mains power is restored the drive can be restarted.
• The hot air welder is guided along the overlap at the upper guide bar (33).
Do not apply any pressure to
the upper guide bar (33); this could lead to welding errors. Observe the position of the guide roller (19).
• After welding pull locking lever (10), move out hot air blower (8) as far as the end stop and swivel up
to the latching point, at the same time switch off drive switch (4).
• On completion of welding work, set the temperature knob (6) to zero; this cools the welding
nozzle (7).
• Set the main switch (3) to 0.
•
In the case of line/mains power failure extract hot air blower (8) and set main switch (3) to
position 0
• Disconnect power supply cord (1) form the line/mains.
Welding process without lifting device
15
19
13
10
7
8
6 5 4
13 19
Detail C
3
33
230
400
1

24
15
19
13
10
7
8
34
13 19
Detail C 33
1
Tool positioning with lifting device
•Lift hot air welder applying pressure onto upper guide bar (33) and move to weld position
• Swivel the guide roller (19) downwards.
• The distance between Guide roller (19) and Drive roller (13) is 5 mm (Detail C).
• Lift the welding machine with the lifting device (34).
• Set the welding parameters, see Page 19.
•
The welding temperature must be attained (heating-up time approx. 5 minutes).
• Perform a test welding according to the welding instructions of the material manufacturer and the
national standards or guidelines. Approve the test welding.
• Start the drive with the drive switch (4). In case of mains power failure, the drive switch (4) switches
off automatically. Once mains power is restored the drive can be restarted.
• Raise the locking lever (10), lower the hot air blower (8) and move it in between the overlapping sea-
ling sheets as far as it goes. Wait a moment until the material is plasticized and then lower the welding
machine using the lifting device (34).
• The hot air welder is guided along the overlap at the upper guide bar (33).
Do not apply any pressure to
the upper guide bar (33); this could lead to welding errors. Observe the position of the guide roller (19).
• After welding pull locking lever (10), move out hot air blower (8) as far as the end stop and swivel up
to the latching point, at the same time switch off drive switch (4).
• On completion of welding work, set the temperature knob (6) to zero; this cools the welding
nozzle (7).
• Set the main switch (3) to 0.
•
In the case of line/mains power failure extract hot air blower (8) and set main switch (3) to
position 0
• Disconnect power supply cord (1) form the line/mains.
Welding process with lifting device
230
400
6 5 4
3

25
Changeover
Converting the hot air welder BITUMAT B2 from 100 mm to 75 mm or vice versa.
The device may only be converted while the welding nozzle (7) is cold.
Caution when removing the welding nozzle (7); do not damage mica tube and heating element.
• Loosen fastening screws for welding nozzle (30).
• Carefully remove welding nozzle (7) and install new welding nozzle (7).
• Fasten welding nozzle (7) with the fastening screws for the welding nozzle (30).
• Adjustment of the welding nozzle (7), see page 20.
• Loosen screw for adjusting sleeve (29). Move adjusting
sleeve (21) correspondingly and lock with the screw for
the adjusting sleeve (29).
7
30
23
22
27
13 14
2129
Opening for 75 mm
welding nozzle (7)
Opening for 100 mm
welding nozzle (7)
• Loosen fastening screw (14), remove drive roller (13).
• Install new drive roller (13), tighten fastening screw (14).
• Loosen screw-on additional weight (23) and remove replacement drive
roller (22) from holder (27). Position new replacement driver roller (22) in
the holder (27) and fasten with the screw-on additional weight (23).
230
400 Disconnect power supply cord (1) form the line/mains.
Scraper (25) position for
75 mm driver roller (13)
• Without lifting device
– Loosen screw for scraper (26) slightly. Move scraper (25) to the new position.
Adjust distance from scraper (25) to drive roller (13). Tighten screw for
scraper (26).
• With lifting device
– Loosen screw for scraper (35) slightly. Move scraper (25) to the new position.
Tighten screw for scraper (35).
Scraper (25) position for
100 mm driver roller (13)
26
25
35
25
With lifting deviceWithout lifting device

26
Only Leister accessories should be used
139.048 Bitumen nozzle 75mm
138.047 Bitumen-nozzle 100mm
137.895 Pressure roller with gap 100mm
137.896 Pressure roller with gap 75mm
140.229 Pressure roller without gap100mm
140.228 Pressure roller without gap 75mm
140.476 Lifting device
140.489 Carrying case
•
Leister Technologies AG and its authorised Service Centres offer free welding courses and training.
Informationen below www.leister.com.
• Clean the drive roller (13)
• Clean the welding nozzle (7) with a steel brush (31)
• Clean the air inlet on the hot air blower (8)
• Check power supply cord (1) and plug for electrical and mechanical damage
• Regular service of the hot air welder BITUMAT B2 increases its service life!.
• Repairs should only be carried out by authorised Leister Service Centres. They guarantee a correct and relia-
ble repair service within 24 hours, using original spare parts in accordance with the circuit diagrams and
spare parts lists.
• For this tool, we generally provide a warranty of one (1) year from the date of purchase (verified by invoice or
delivery document). Damage that has occurred will be corrected by replacement or repair. Heating elements are
excluded from this warranty.
• Additional claims shall be excluded, subject to statutory regulations.
• Damage caused by normal wear, overloading or improper handling is excluded from the guarantee.
• Guarantee claims will be rejected for tools that have been altered or changed by the purchaser.
Service and repair
Training
Warranty
Maintenance
Accessories

®
Your authorised Service Centre is:
Leister Technologies AG
Galileo-Strasse 10
CH-6056 Kaegiswil/Switzerland
Tel. [phone]
Fax [phone]
www.leister.com
[e-mail]
BA BITUMAT B2 / 02.2010 / 12.2011 Artikel Nr. 140.484 (part 1)
© Copyright by Leister
