Leuze HTU330 Series User manual

Leuze electronic GmbH + Co. KG In der Braike 1 D-73277 Owen Tel. [phone]
[email protected] • www.leuze.com
Änderungen vorbehalten • PAL_HTU330_3500_6000_2SWO_en_50135825.fm
Function largely independent of surface
properties, ideal for detection of liquids, bulk
materials, transparent media, …
Small dead zone at long scanning range
Adjustment of the switching point can be
taught
NO/NC function reversible
2 independent switching outputs
(PNP or NPN)
NEW – Both outputs can easily be taught
using a button
NEW – Stable plastic design
NEW – Temperature-compensated
scanning range
250 … 3500mm
350 … 6000mm
Accessories:
(available separately)
Mounting systems
Cables with M12 connector
(KD …)
Dimensioned drawing
AActive sensor surface
BTeach-in button
CIndicator diodes
DMU330-3500… DMU330-6000…
Electrical connection
HTU330 Ultrasonic sensors with 2 switching outputs
HTU330-3500…-M12 - 01
HTU330-6000…-M12 - 01
en 2020/08/05 50135825

HTU330-3500…-M12 - 01 2020/08/05
HTU330-6000…-M12 - 01
Technical data
Ultrasonic specifications HTU330-3500.3/…-M12 HTU330-6000.3/…-M12
Scanning range 1)
1) At 20°C
250 … 3500mm 2)
2) Target: 200mm x 200mm plate
350 … 6000mm 3)
3) Target: 400mm x 400mm plate
Adjustment range 250 … 3500mm 350 … 6000mm
Ultrasonic frequency 112kHz 75kHz
Typ. opening angle ± 7° ± 9°
Resolution 5mm 6mm
Direction of beam Axial Axial
Reproducibility ± 0.5% 1) 4)
4) From end value
±0.5%
1) 4)
Switching hysteresis 1% 4) 1%
4)
Temperature drift e8% 5)
5) Over the temperature range -20°C … +70°C
e8% 5)
Timing
Switching frequency 2Hz 1Hz
Response time 250ms 500ms
Readiness delay e500ms e500ms
Electrical data
Operating voltage UB 6)
6) For UL applications: use is permitted exclusively in Class 2 circuits according to NEC
12 … 30V DC (incl. ± 5% residual ripple)
Residual ripple s5% of UB
Open-circuit current e50mA
Switching output / Function …/4P… 2 independent PNP transistor switching outputs
OUT 1 (pin 4): NO contact preset
OUT 2 (pin 5): NC contact preset
…/2N… 2 independent NPN transistor switching outputs
OUT 1 (pin 4): NO contact preset
OUT 2 (pin 5): NC contact preset
Output current Max. 100mA
Switching range adjustment 1-point teach: teach-in button 2 … 7s,
2-point teach: teach-in button 7 … 12s
Changeover
NO/NC Teach-in button > 12s
Indicators
Yellow LED OUT1: object detected
Blue LED OUT2: object detected
Flashing yellow or blue LED Teach-in
Flashing green and yellow/blue LEDs Teaching error
Green LED Object within the scanning range
Mechanical data
Housing Plastic (PBT)
Active surface Epoxy resin, glass fiber reinforced
Weight 140g / 170g
Ultrasonic transducer Piezoceramic 7)
7) The ceramic material of the ultrasonic transducer contains lead zirconium titanate (PZT)
Connection type M12 connector, 5-pin
Fitting position Any
Environmental data
Ambient temp. (operation/storage) -20° … +70°C/-20° … +70°C
Protective circuit 8)
8) 1=short-circuit and overload protection, 2=polarity reversal protection, 3=wire break and inductive protection
1, 2, 3
VDE protection class III
Degree of protection IP 67
Standards applied EN 60947-5-2
Certifications UL 508, CSA C22.2 No.14-13 6) 9)
9) These proximity switches shall be used with UL Listed Cable assemblies rated 30V, 0.5A min,
in the field installation, or equivalent (categories: CYJV/CYJV7 or PVVA/PVVA7)

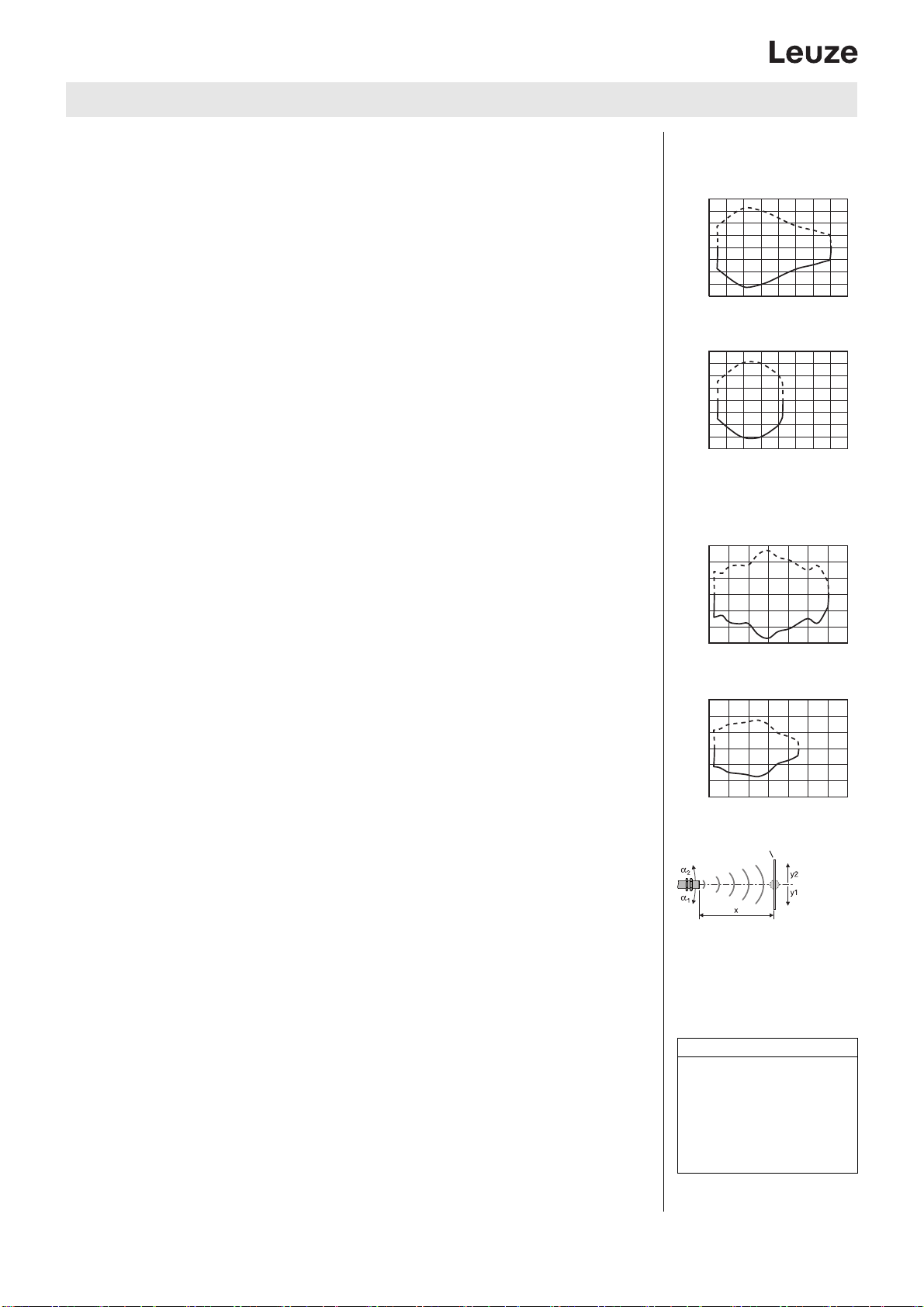

Diagrams
HTU330-3500.3/…-M12
0 1000 2000 3000 4000
y1
y2
-400
-200
0
200
400
-300
-100
100
300
Object distance x [mm]
Width y of the sound cone [mm]
Typ. response behavior
(plate 200x200mm)
0 1000 2000 3000 4000
y1
y2
-400
-200
0
200
400
-300
-100
100
300
Object distance x [mm]
Width y of the sound cone [mm]
Typ. response behavior
(rod Ø 25mm)
HTU330-6000.3/…-M12
Notes
Observe intended use!
This product is not a safety
sensor and is not intended
as personnel protection.
The product may only be put
into operation by competent
persons.
Only use the product in ac-
cordance with its intended
use.
y1
y2
-600
-400
0
200
-200
400
600
0 2000 4000 6000
Object distance x [mm]
Width y of the sound cone [mm]
Typ. response behavior
(plate 200x200mm)
y1
y2
-600
-400
0
200
-200
400
600
0 2000 4000 6000
Object distance x [mm]
Width y of the sound cone [mm]
Typ. response behavior
(rod Ø 25mm)
Object distance [mm]
Target (fixed):
plate or rod
Sound cone
= f (D,x)
HTU330

Leuze electronic GmbH + Co. KG In der Braike 1 D-73277 Owen Tel. [phone] HTU330-3500…-M12 - 01
[email protected] • www.leuze.com HTU330-6000…-M12 - 01
Part number code
Order guide
The sensors listed here are preferred types; current information at www.leuze.com.
2
HTU330 -3500 . 3 / 4PK-M12
Operating principle
HTU Ultrasonic sensor, scanning principle,
with background suppression
DMU Ultrasonic sensor, distance measurement
RKU Ultrasonic sensor, retro-reflective ultrasonic sensor
Series
330 330 series, cylindrical short M30 design
Scanning range in mm
3500 250 … 3500
6000 350 … 6000
Equipment
.3 Teach button on the sensor
Pin assignment of connector pin 4 / black cable wire (OUT1)
4PNP output, NO contact preset
PPNP output, NC contact preset
2NPN output, NO contact preset
NNPN output, NC contact preset
Pin assignment of connector pin 2 / white cable wire
(Analog OUT/OUT2)
4PNP output, NO contact preset
PPNP output, NC contact preset
2NPN output, NO contact preset
NNPN output, NC contact preset
CAnalog output 4 … 20mA
VAnalog output 0 … 10V
Pin assignment of connector pin 5 / gray cable wire (Sync / MUX)
KSynchronization/multiplex input
Connection technology
M12 M12 connector, 5-pin
Designation Part no.
Scanning range / switching output / teach-in
250 … 3500mm / 2 x PNP / teach button HTU330-3500.3/4PK-M12 50136110
250 … 3500mm / 2 x NPN / teach button HTU330-3500.3/2NK-M12 50136111
350 … 6000mm / 2 x PNP / teach button HTU330-6000.3/4PK-M12 50136116
HTU330 Ultrasonic sensors with 2 switching outputs

HTU330-3500…-M12 - 01 2020/08/05
HTU330-6000…-M12 - 01
Device functions and indicators
All settings on the sensor are taught-in via the teach button. Device status and switching states are indicated as follows by means
of 3 LEDs:
Switching behavior
Switching behavior with 2-point window-teach as a function of the switching function
1-point teach (1 switching point per output)
Switching behavior NO contact Switching behavior NC contact
2-point window-teach (2 switching points per output)
Switching behavior NO contact Switching behavior NC contact
NOTE
The switching behavior is not defined in the dead zone.
Switching function
configured as First taught object distance Second taught object distance Output switching behavior
NO (normally open)
Close Far
Far Close
NC (normally closed)
Close Far
Far Close
Dead zone
Sensor
OUT active
Yellow/blue LED ON
Green LED OFF
OUT not active
Yellow/blue LED OFF
Green LED ON
Distance
Hysteresis
Switching point
Scanning range
OUT not active
Yellow/blue LED
OFF
Green LED OFF
OUT not active
Yellow/blue LED
OFF
Green LED OFF
Dead zone
Sensor
OUT not active
Yellow/blue LED OFF
Green LED ON
OUT active
Yellow/blue LED ON
Green LED OFF
Distance
Hysteresis
Switching point
Scanning range
OUT active
Yellow/blue LED
ON
Green LED OFF
OUT active
Yellow/blue LED
ON
Green LED OFF
Dead zone
Sensor
OUT active
Yellow/blue
LED ON
Green LED
OFF
OUT not
active
Yellow/blue
LED OFF
Green LED
ON Distance
Hysteresis
Scanning range
OUT not active
Yellow/blue LED
OFF
Green LED OFF
OUT not active
Yellow/blue LED
OFF
Green LED OFF
Hysteresis
OUT not
active
Yellow/blue
LED OFF
Green LED
ON
Switching point 1 Switching
point 2
Dead zone
Sensor
OUT active
Yellow/blue
LED ON
Green LED
OFF
OUT not
active
Yellow/blue
LED OFF
Green LED
ON
Distance
Hysteresis
Scanning range
OUT active
Yellow/blue LED
ON
Green LED OFF
OUT active
Yellow/blue LED
ON
Green LED OFF
Hysteresis
Switching point 1 Switching
point 2
OUT active
Yellow/blue
LED ON
Green LED
OFF
HTU330

Leuze electronic GmbH + Co. KG In der Braike 1 D-73277 Owen Tel. [phone] HTU330-3500…-M12 - 01
[email protected] • www.leuze.com HTU330-6000…-M12 - 01
Adjusting the switching points via the teach button
The switching points of the sensor for both outputs are set to 3500mm or 6000mm (static 1-point teach) on delivery.
By means of a simple operating procedure, the switching points for each output can be individually taught to an arbitrary distance
within the scanning range with 1-point teach (static) or 2-point window-teach (static).
Moreover, the output function can be switched from NO contact (NO - normally open) to NC contact (NC - normally closed). An
LED is permanently assigned to each output for the setting.
Selecting the output that is to be taught: OUT1 or OUT2
1.Press the teach button for ≥2s to activate teach mode. The yellow LED (OUT 1) flashes at 1Hz.
While in this state, output OUT 1 can be taught.
2.To teach output OUT 2, briefly press the teach button again. The blue LED (OUT 2) now flashes at 1Hz.
While in this state, output OUT 2 can be taught.
3.Briefly press the teach button again to toggle between outputs OUT 1 and OUT 2 in this state. The flashing LED indicates which
output is ready for teaching:
yellow LED flashing = OUT 1 ready for teaching,
blue LED flashing = OUT 2 ready for teaching.
Teaching output OUT 1 or OUT 2
First activate the previously described teach mode for output OUT 1 or OUT 2.
1-point teach (static) 2-point window-teach (static) 1)
1) See table "Switching behavior with 2-point window-teach as a function of the switching function"
1.Place object at desired switching distance. 1.First, place object at desired switching distance for switching
point 1.
2.To adjust the selected output, press the teach button for
2…7s until the yellow LED (OUT 1) or blue LED (OUT 2)
flashes at 3Hz.
The current state of the selected output is frozen during the
adjustment process.
2.To adjust the selected output, press the teach button for
7…12s until the yellow (blue) and green LEDs flash alter-
nately at 3Hz.
3.Release the button.
The current object distance has been taught as the new
switching point.
3.Release the button. The sensor remains in teach mode and
the LEDs continue to flash.
4.Error-free teach: LED states and switching behavior accord-
ing to the diagram shown above.
Faulty teach (object may be too close or too far away – please
note scanning range):
green and yellow (blue) LEDs flash at 8Hz until an error-free
teach event is performed.
The selected output is inactive as long as there is a teaching
error.
4.Then, place the object at the desired switching distance for
switching point 2.
Note:The minimum distance between the switching points
is as follows:
scanning range of 3500mm: 350mm
scanning range of 6000mm: 600mm
5.Briefly press the teach button again to complete the teach
event.
The switching window for the selected output was taught in.
6.Error-free teach: LED states and switching behavior accord-
ing to the diagram shown above.
Faulty teach (object may be too close or too far away – please
note scanning range):
green and yellow (blue) LEDs flash at 8Hz until an error-free
teach event is performed.
HTU330 Ultrasonic sensors with 2 switching outputs

HTU330-3500…-M12 - 01 2020/08/05
HTU330-6000…-M12 - 01
Adjusting the switching function (NC/NO) via the teach button
The switching function of the sensor is preset as follows on delivery:
OUT 1: NO contact
OUT 2: NC contact
The output function for each output can be individually switched from NO contact (NO - normally open) to NC contact (NC - nor-
mally closed) and vice versa. If the switching function is changed, the switching output is changed to the opposite state (toggled).
First activate the previously described teach mode for output OUT 1 or OUT 2.
Changeover of the switching function
1.To change the switching function of the selected output, press the teach button for longer than 12s.
The current state of the selected output is frozen during the adjustment process.
2.The green and yellow (blue) LEDs flash alternately at 3Hz.
If the yellow (blue) LED is ON afterwards, the selected output operates as an NO contact.
If the yellow (blue) LED is OFF afterwards, the selected output operates as an NC contact.
HTU330

Leuze electronic GmbH + Co. KG In der Braike 1 D-73277 Owen Tel. [phone] HTU330-3500…-M12 - 01
[email protected] • www.leuze.com HTU330-6000…-M12 - 01
Synchronization of multiple HTU330 ultrasonic sensors
If adjacent ultrasonic sensors receive the signals of other sensors, so-called crosstalk occurs, which leads to faulty measurement
results. Through temporal synchronization of the adjacent sensors, this can be avoided. Via the Sync/MUX input, the HTU330
ultrasonic sensors can be synchronized in 2 different ways:
Synchronous operation
In this operating mode the mutual interference of adjacent sensors can be avoided; a minimum mounting distance between the
sensors is to be maintained, however:
Sensors of the same type are wired together in a network according to the following diagram. A synchronization pulse from the
control activates synchronous operation.
The devices work in synchronous operation with a simultaneous transmission pulse. The response time of the individual sensors
in the network corresponds approximately to that of a single sensor.
Synchronous operation wiring schematic
Timing diagram for synchronous operation
Working distance Minimum mounting distance
< 1,500mm 100mm
u1500mm 50mm
Sensor 2 Sensor 1Sensor n
NOTE
Please make certain that the wiring is performed accord-
ing to the connection diagram.
The Sync/MUX pin 5 on all sensors in the network must
be connected to one output of the control. Generation of
the synchronization signal for all sensors in the network
occurs via the control.
+10 - 30 VDC synchronization pulse
from the control
PLC tsync tsync
tcycle
0 V
+10 - 30
V
Scanning range Sync impulse duration tsync Cycle time tcycle
250 … 3500mm 0.5 … 5ms 35ms
350 … 6000mm 0.5 … 1ms 60ms
HTU330 Ultrasonic sensors with 2 switching outputs

HTU330-3500…-M12 - 01 2020/08/05
HTU330-6000…-M12 - 01
Multiplex operation
In this operating mode the mutual interference of adjacent sensors can be reliably avoided. For this purpose, each sensor is wired
with a separate output of the control.
The devices operate in multiplex operation with a cyclically time-delayed transmission pulse and are switched to a passive state
outside of the active phase.
Multiplex operation wiring schematic
Timing diagram for multiplex operation
Resetting to factory settings
The sensor can be reset to the factory setting (one switching point each at 3500 mm or 6000 mm).
Resetting to factory settings
1.When switching on the supply voltage (during power-on), press the teach button for >5s.
2.Release the button. The green, yellow and blue LEDs flash alternately and very quickly for a brief time.
The sensor was reset to the factory setting:
switching output OUT 1: NO contact, 1 switching point at 3500 mm or 6000 mm (static 1-point teach),
switching output OUT 2: NC contact, 1 switching point at 3500 mm or 6000 mm (static 1-point teach).
Sensor 2 Sensor 1Sensor n
NOTE
Please make certain that the wiring is performed accord-
ing to the connection diagram.
The Sync/MUX pin 5 of each sensor must be connected
with a separate output of the control.
The control generates the time-delayed multiplex sig-
nals for all sensors.
+10 - 30 VDC
MUX pulse
from the control
Time-delayed
+10 - 30 VDC MUX pulse
from the control
Time-delayed
+10 - 30 VDC MUX pulse
from the control
tresp tresp
tresp tresp
tresp tresp
Sensor 1
Sensor 2
Sensor 3
Scanning range Response time of the switching outputs tresp
250 … 3500mm 250ms
350 … 6000mm 500ms
HTU330
