Leuze ODS 96 M/V Mounting instructions

Leuzeelectronic
Optical Distance Sensors ODS 96
Technical Description
Software Description

© All rights reserved, in particular the rights of reproduction and translation. Duplication or reproduction in any form
(print, photocopies, microfilm or data) may only be carried out with the expressed written consent of Leuze elec-
tronic GmbH & Co.
We reserve the right to make changes for the technical improvement of the product.

Leuze electronic Contents
Leuze electronic ODS 96 3
1 General Information .......................................................................... 5
1.1 Explanation of Symbols ...................................................................... 5
1.2 Important Terms ..................................................................................5
1.3 Declaration of Conformity ................................................................... 6
2 Safety Notices ................................................................................... 6
2.1 Safety Standard .................................................................................. 6
2.2 Intended Use .......................................................................................6
2.3 Working Safely ....................................................................................7
2.4 Organizing Measures .......................................................................... 7
3 Description ........................................................................................ 8
3.1 General description ............................................................................. 8
3.2 Typical Areas of Application for the ODS 96 .......................................8
3.2.1 Continuous Distance Measuring .................................................... 8
3.2.2 Positioning Tasks ........................................................................... 9
3.2.3 Filling Level Control for Bulk Goods ............................................... 9
3.3 ODS 96 Models .................................................................................10
3.3.1 ODS 96 M/V with Analog Output ................................................. 10
3.3.2 ODS 96 M/D with Serial Output ...................................................11
3.3.3 ODS 96 M/S with Two Switching Outputs .................................... 13
4 Technical Data ................................................................................. 14
4.1 Optical Data ......................................................................................14
4.2 LED Indicators .................................................................................. 14
4.3 Electrical Data, Installation Data .......................................................15
4.4 Dimensioned and Connection Drawings ........................................... 16
4.5 Accessories ....................................................................................... 17
5 Installation ....................................................................................... 18
5.1 Storage, Transportation .................................................................... 18
5.2 Mounting ........................................................................................... 18
5.3 Teach-In ............................................................................................ 19
6 Software ........................................................................................... 20
6.1 Connection of the PC ........................................................................20
6.2 Installation of the Programming Software ......................................... 20
6.3 Starting the Program .........................................................................21
6.3.1 Description of the Menu Commands ............................................22
6.3.2 Programming and Adjustment Possibilities .................................. 22
7 Appendix .......................................................................................... 27
7.1 How to update the parameter files of the ODS 96 software .............. 27
Contents

4 ODS 96 Leuze electronic
Figures and Tables Leuze electronic

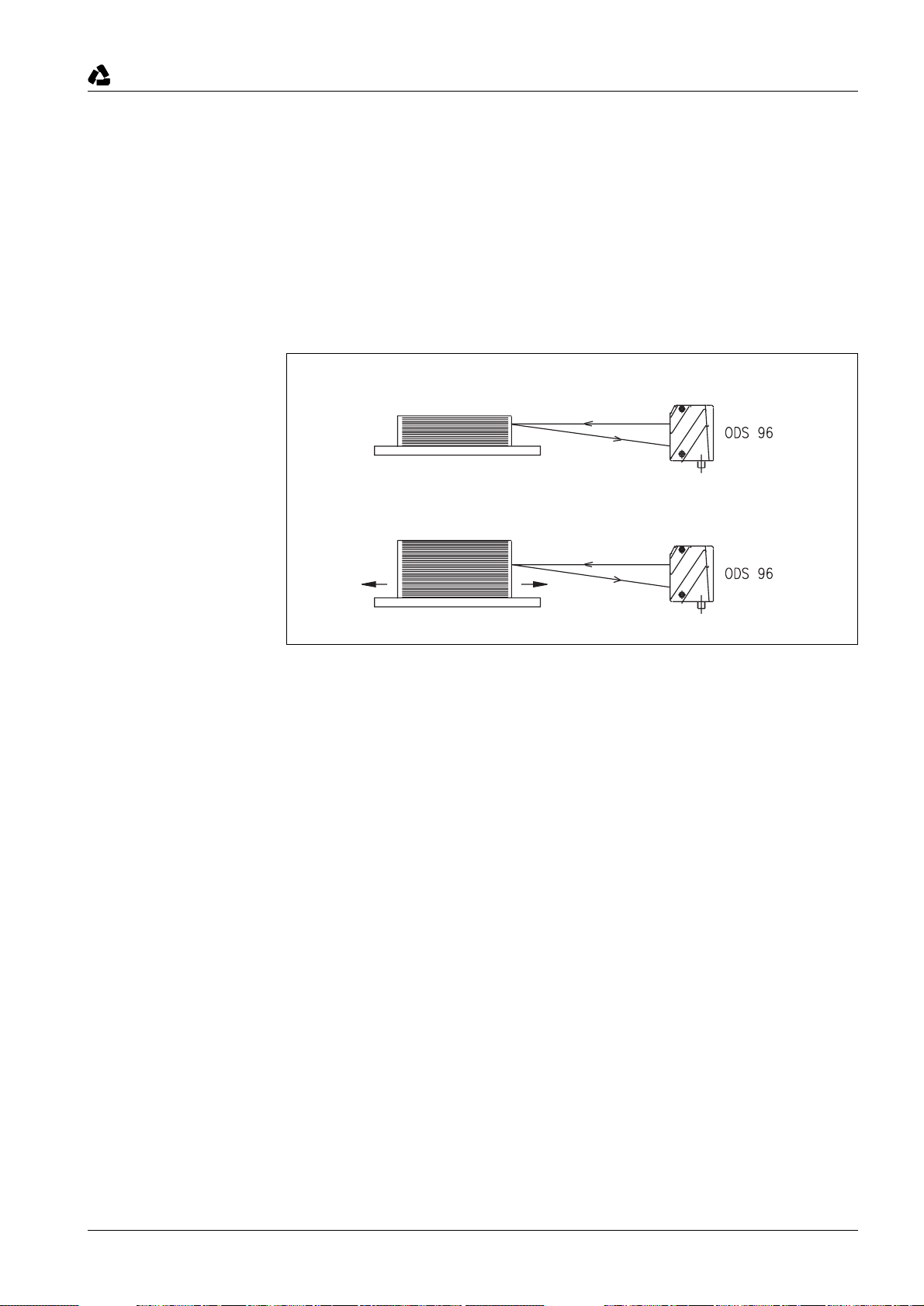

Figure 3.1: Application example "Positioning Tasks" ............................................ 9
Figure 3.2: Application example "Filling Level Control" ....................................... 10

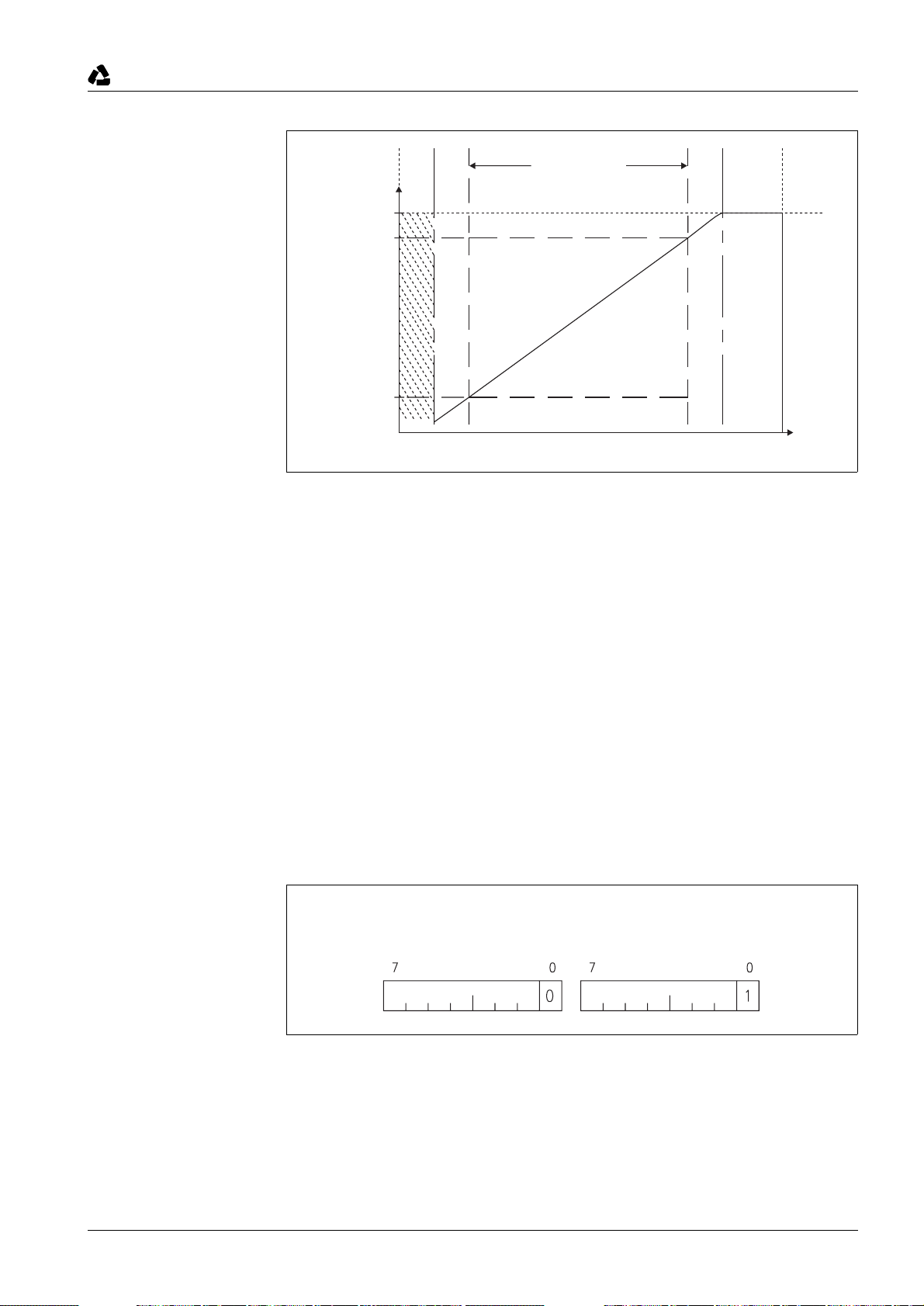

Figure 3.3: Behavior of the analog output, ODS 96 M/V (LED) .......................... 10
Figure 3.4: Behavior of the analog output, ODS 96 M/V (laser) .......................... 11
Figure 3.5: Serial output, ODS 96 M/D ............................................................... 11

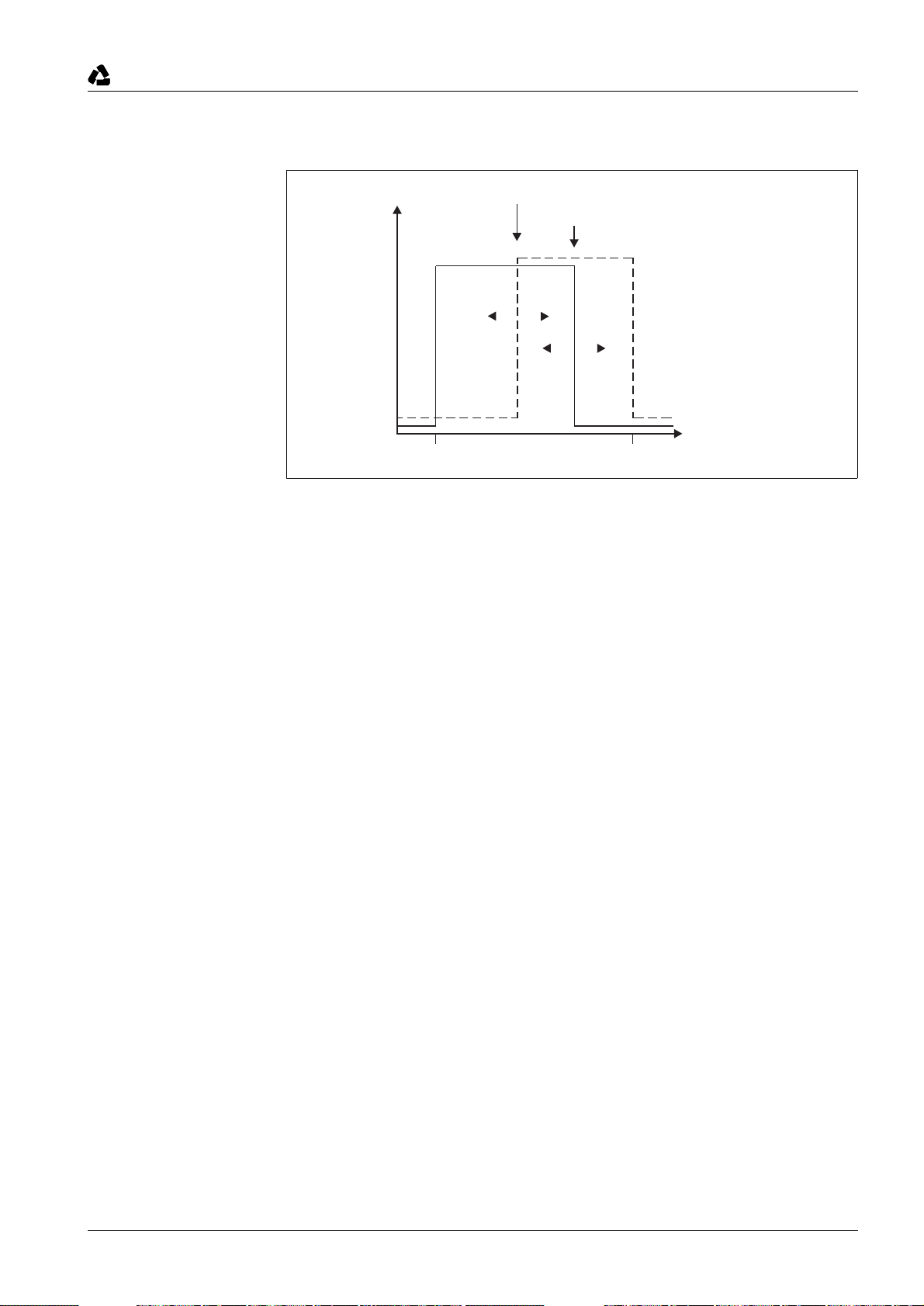

Figure 3.6: Behavior of the switching outputs, ODS 96 M/S ............................... 13

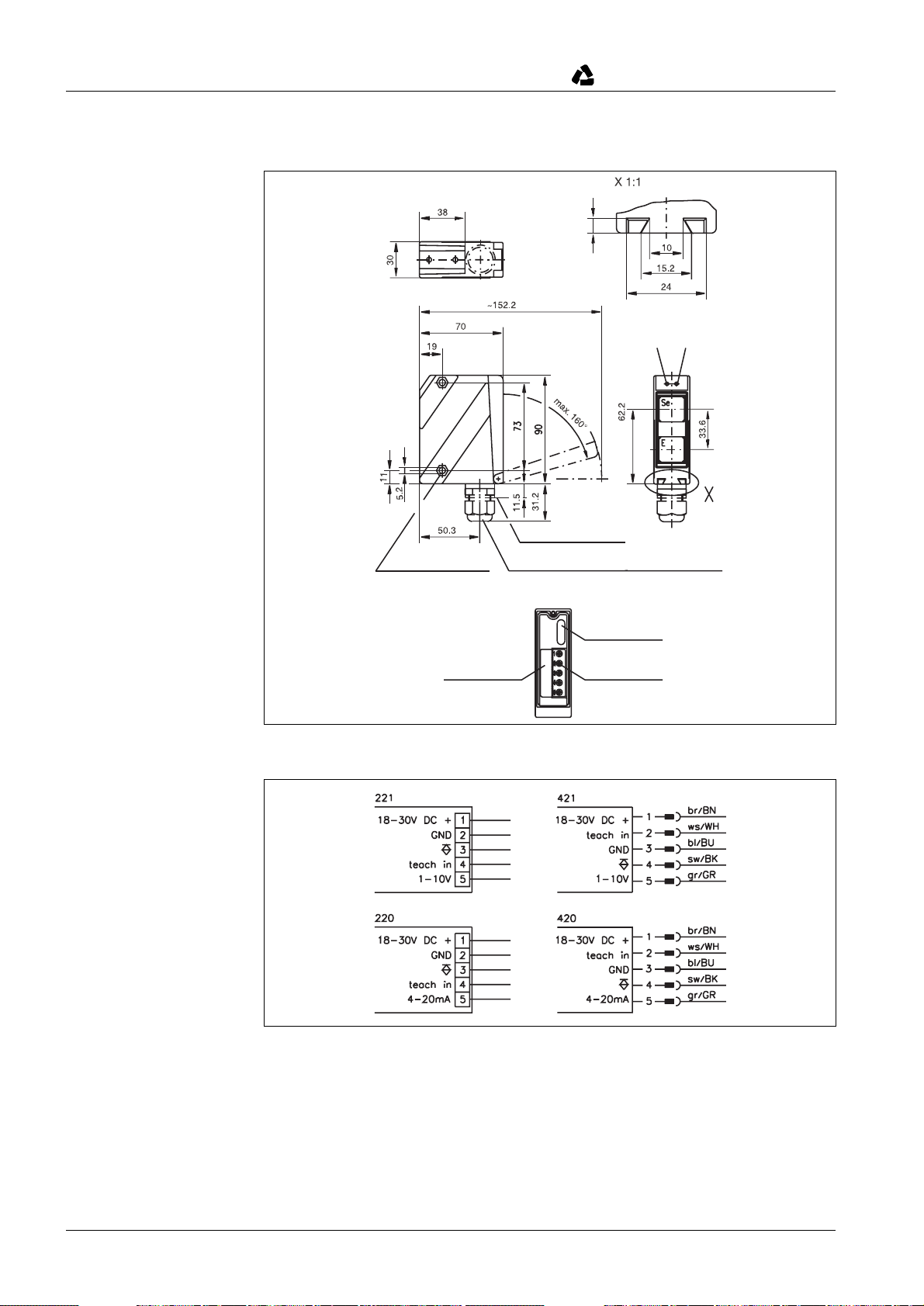

Figure 4.1: Dimensioned drawing ODS 96 devices ............................................ 16
Figure 4.2: Electrical connection, ODS 96 M/V ................................................... 16

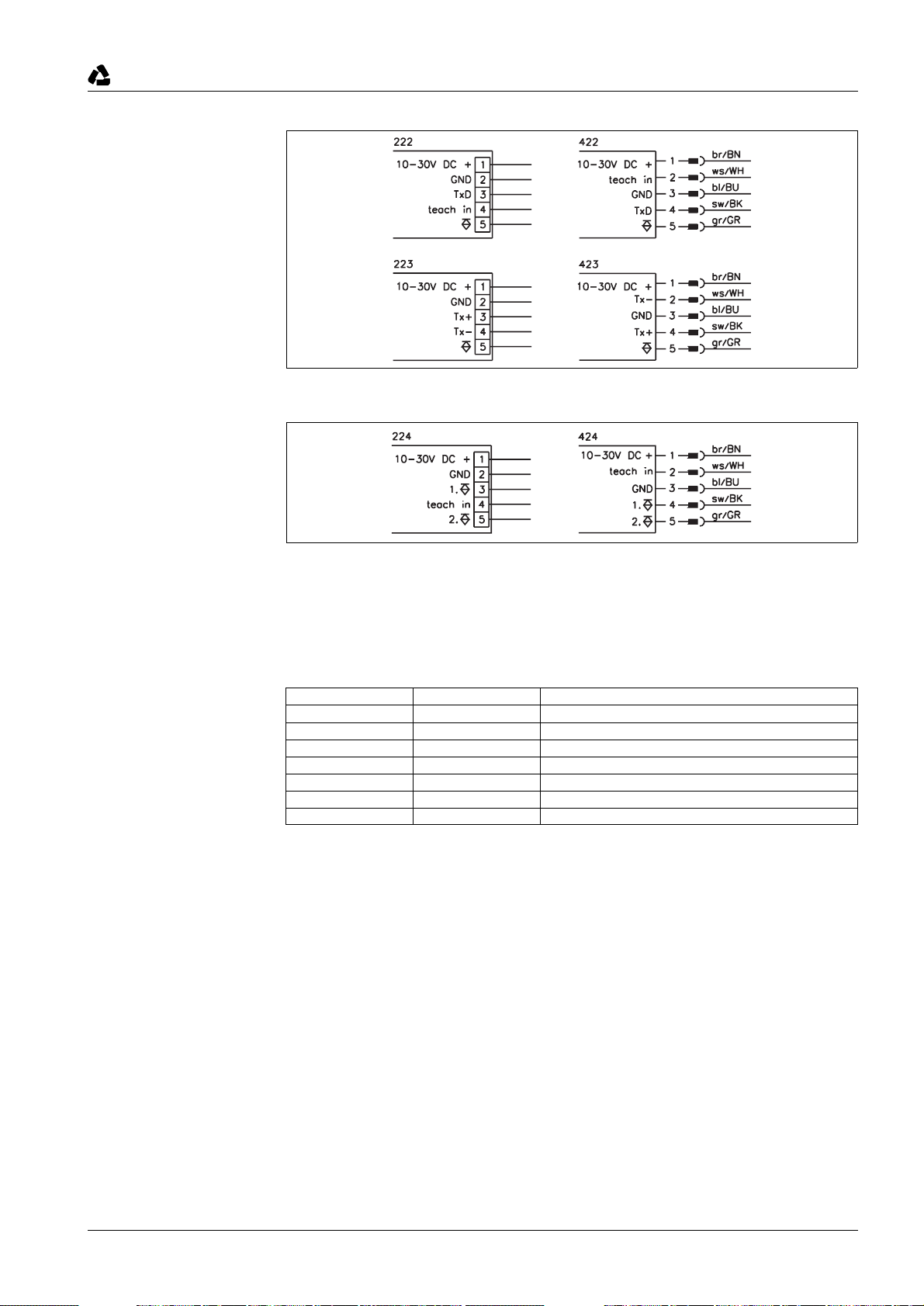

Figure 4.3: Electrical connection, ODS 96 M/D ................................................... 17
Figure 4.4: Electrical connection, ODS 96 M/S ................................................... 17

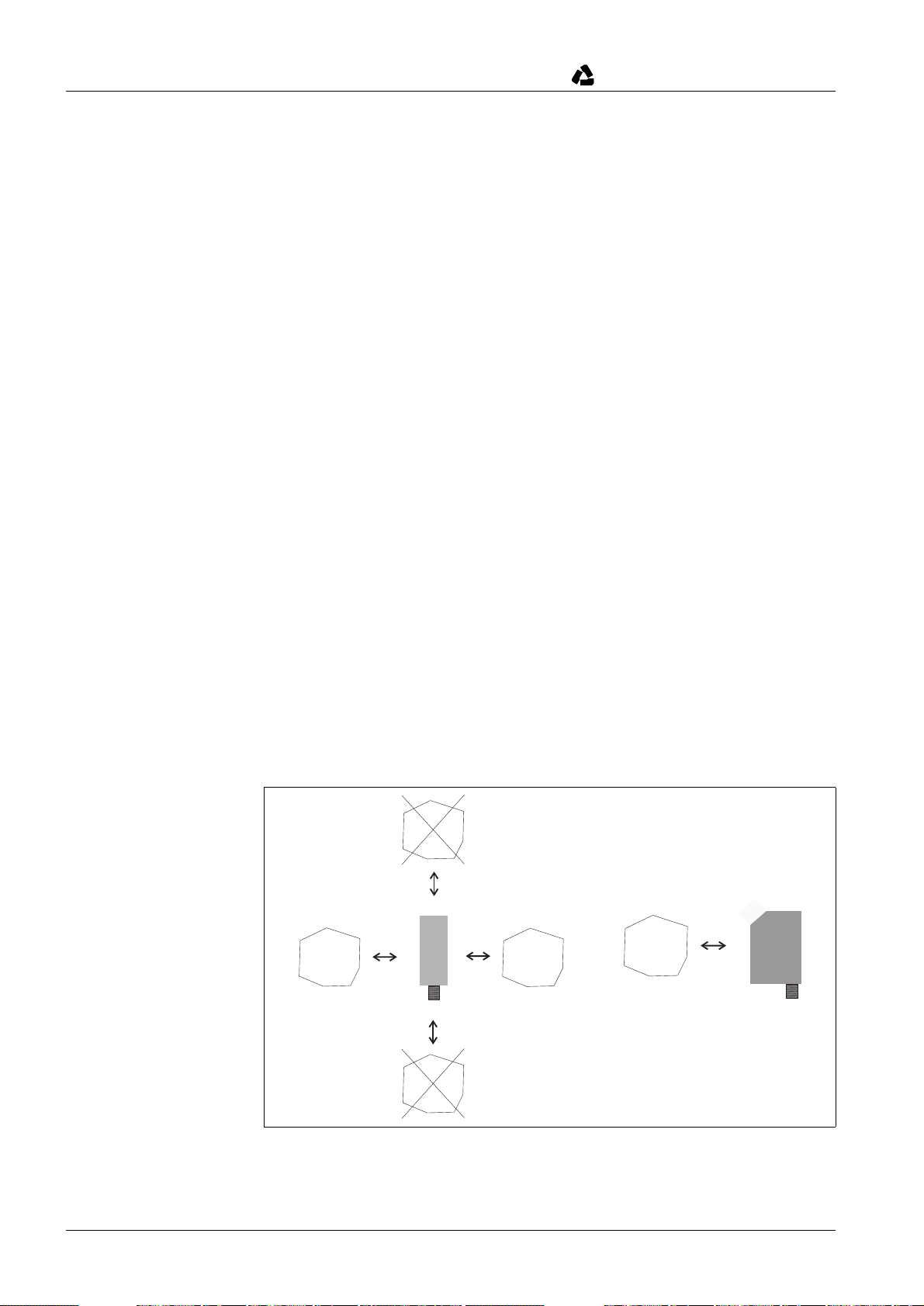

Figure 5.1: Preferred movement of the objects ................................................... 18

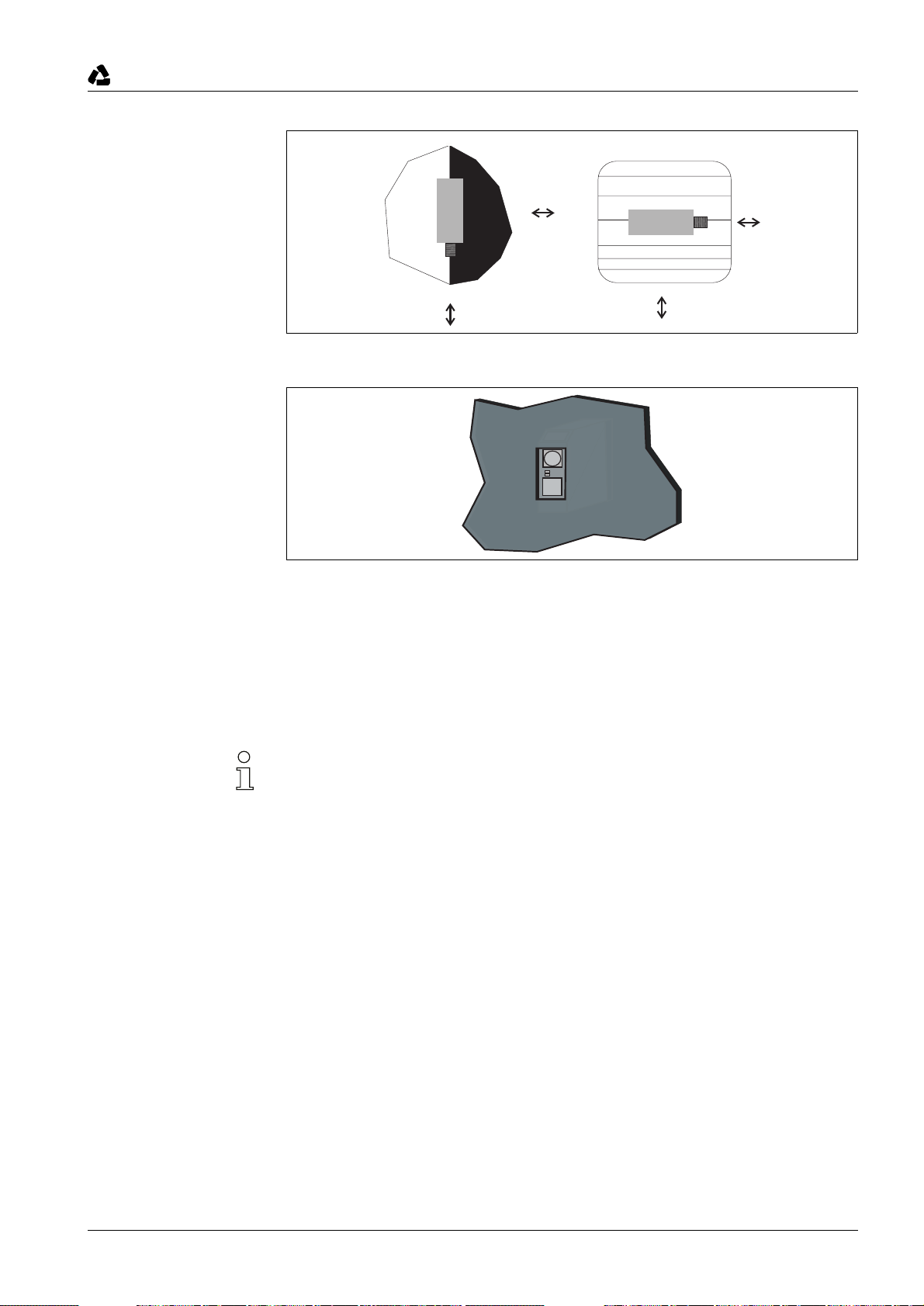

Figure 5.2: Preferred mounting, objects with structured surface ......................... 19
Figure 5.3: View through a chase ....................................................................... 19
Figure 6.1: Installation directory .......................................................................... 21
Figure 6.2: Device selection ................................................................................ 21
Figure 6.3: Start menu before measurement ...................................................... 22
Figure 6.4: Parameterization mode, ODS 96 with analog output ........................ 23
Figure 6.5: Programming window ODS 96 with two switching outputs ............... 24
Table 1: Optical data, Error limits, Timing ....................................................... 14
Table 2: LED indicators .................................................................................. 14
Table 3: Electrical, Mechanical, and Environmental data ............................... 15
Table 4: Accessories ...................................................................................... 17
Table 5: Regulation values of the sensors ...................................................... 24
Figures and Tables

Leuze electronic General Information
Leuze electronic ODS 96 5
1 General Information
1.1 Explanation of Symbols
The symbols used in this operating manual are explained below.
Attention
Thissymbol appears in frontoftextwhichmust be carefully observed. Failure
to heed this information can lead to injuries to personnel or damage to the
equipment.
Attention Laser Radiation
This symbol warns of possible danger through hazardous laser radiation.
Notice
This symbol indicates text which contains important information.
1.2 Important Terms
Triangulation
Distance measuring procedure, which determines the distance of an object
by the incidence angle of the light reflected from the object.
Absolute measurement
accuracy
Shows the possible divergence of the measurement value from the anticipat-
ed value through changes in the environmental conditions during the mea-
suring process. Higher accuracy is given at constant environmental condi-
tions.
Repeatability
Measuring distance change with repeated measurement at the same output
signal (observe the same peripheral conditions as with resolution).
Resolution
Thesmallestpossibledistancechange ofthemeasuredobject,whichcauses
a definite change in the output signal. Resolution is higher in the proximate
area than in the distant area. Small objects can be recognized better in the
proximate area.
Remission
Return and/or degree of reflection of the radiated light.
Integration time
The integration time of the ODS 96 is comparable to the exposure time in a
camera. It is automatically adjusted to the intensity of the reflected light and
thus depends on the reflectance factor of the measured object. It is inversely
proportional to the measurement frequency.
Measurement
frequency
The measurement frequency represents the number of measurements per
second. When adjusting the integration time to the reflectivity independency,
the measurement frequency changes corresponding to the reflectivity value.
Response time
The time period required by the ODS to obtain stable measurements after
change of the reflectivity behavior.
Delay before
start-up
The delay before start-up indicates the point in time when the first valid mea-
surement can be obtained after switching on.

Safety Notices Leuze electronic
6 ODS 96 Leuze electronic
Light switching/
Dark switching
Indicates the behavior of the switching output when an object is inside the
tought/parametered switching distance. At light switching, the switching out-
put is active (high), at dark switching inactive.
Insensitivity towards
extraneous light
Indicates the insensitivity of the measurement result towards extraneous
light. The ODS 96 is reliably measuring even with extraneous light intensity
of 5 kLux. Typical light intensity in a work place is only 1 kLux.
1.3 Declaration of Conformity
The optical distance sensors of the series ODS 96 have been manufactured
observing current European standards and guidelines.
Notice
The corresponding declaration of conformity can be requested from the
manufacturer.
The manufacturer of the product, Leuze electronic GmbH & Co. in D-73277
Owen/Teck, possesses a certified quality assurance system in accordance
with ISO 9001.
2 Safety Notices
2.1 Safety Standard
The optical distance sensors of the series ODS 96 have been developped,
manufactured and tested, observing current safety standards. They corre-
spond to the state of the art.
2.2 Intended Use
Attention
The protection of personnel and the device cannot be guaranteed if the de-
vice is operated in a manner not corresponding to its intended use.
Optical distance sensors of the series ODS 96 are intelligent, adjustable sen-
sors with CCD element for distance measuring.
In particular, unauthorized uses include:
•rooms with explosive atmospheres (zone 0, 1). Operation in zone 2 is
possible with a manufacturer's declaration.
•operation for medical purposes

Leuze electronic Safety Notices
Leuze electronic ODS 96 7
Fields of application
The optical distance sensors of the series ODS 96 have been designed for
the following areas of application:
•Distance measurement
•Contour determination
•Stack positioning
•Filling level measurement
•Packet conveying machines and many more
2.3 Working Safely
Attention Laser Radiation
The ODS 96 M/D, V, S ... are laser devices of the Laser Protection Class 2.
Do not look directly into the laser beam.
Observe the applicable legal and local regulations for the operation of laser
units.
Attention
Access to or making changes to the device, except where positively de-
scribed in this operating manual, is not authorized.
2.4 Organizing Measures
Documentation
All entries in this operating manual must be heeded, in particular those in sec-
tion 2 "Safety Notices".
Carefully store this operating manual where it is accessible at all times.
Safety regulations
Observe the locally applicable legal regulations and the rules of the employ-
er's liability insurance association.
Qualified personnel
Mounting,commissioningand maintenanceofthe devicemayonlybecarried
out by qualified personnel.
Electrical work must be carried out by a certified electrician.
Repair
Repairs must only be carried out by the manufacturer or an authorized rep-
resentative.

Description Leuze electronic
8 ODS 96 Leuze electronic
3 Description
3.1 General description
The ODS 96 is a distance measuring device with a large area of application.
The equipment is available as LED or laser version with analog or digital out-
puts. The distance measuring device works on the triangulation principle and
uses a CCD line for evaluating the measurement signal.
An integrated microcontroller enables parameter programming via an option-
al programming software. Except for the RS 485 interface, the switching
points of the switching outputs of all other types can be set without software
via a teach-in input.
Through adjustment of the integration time (exposure time) to the intensity of
theobjects’reflectedlight,ahighdegreeofindependence fromthe reflectivity
propertiesofthemeasuredobjectisachieved.Incaseoflow reflectivity (dark
objects) a lower measurement frequency results.
Accessories
To expand the functionality of the ODS 96, a programming software is avail-
able.
With regard to their dimensions, the ODS 96 distance sensors are identical
with the sensors of the series 96 of Leuze electronic. Particularly, the mount-
ing accessories of the series 96 can be used for the ODS 96. Details can be
found in section 4 "Technical Data".
3.2 Typical Areas of Application for the ODS 96
3.2.1 Continuous Distance Measuring
All ODS 96 types with analog or digital output can be used for continuous dis-
tance measuring. In order to use all features of the ODS 96, use of the pro-
gramming software is recommended.
Depending on position or settings of the ODS, various applications are pos-
sible:
•Measuring the thickness of planks with two opposing sensors and a dif-
ferential of the two measured values.
•Stack/Object height measuring
Even with difficult surfaces, the stack/ object height of moving objects
can be measured. Averaging is recommended here.
•Contour determination through controlled passing movement of an
object through the beam of the ODS 96.
•Volume measuring by taking measurements on two levels during the
concurrent movement of the object. Leuze electronic offers a system
solution: the VMS volume measurement system.
In case of ODS 96 types with analog outputs, it is recommended to limit the
working range of the analog output to the required distance range. The ana-
log output will then be activated within the distance range from 1 ... 10 V or
4 - 20 mA. Distances outside this range will automatically have an output
voltage of < 1 V, 4 mA or > 10 V, 20 mA.

Leuze electronic Description
Leuze electronic ODS 96 9
3.2.2 Positioning Tasks
For simple positioning tasks, all ODS 96 M/S types with two teachable
switching outputs are suitable.
The ODS 96 is mounted in a way to enable positioning in the direction of the
measuring beam. Both switching outputs are tought to the required position.
In case the distance is smaller than the tought position, switching output 1 is
active and switches the positioning motor to enlarge the distance. In case the
distance is bigger than the tought position, switching output 2 is active and
switches the positioning motor to reduce the distance.
Using this method, positioning tasks can be performed without difficulties.
Figure 3.1: Application example "Positioning Tasks"
3.2.3 Filling Level Control for Bulk Goods
For the filling level control in connection with control of material flow, all ODS
96 types with one switching output are suitable. However, the programming
software is required to adjust the hysteresis.
The ODS 96 is mounted ensuring that its measuring beam meets the surface
of the bulk good vertically. Using the software, function of Q1 is set to "light
switching" and the minimal filling level entered as lower limit. The upper limit
is set to the maximum range of the ODS (600 mm or 2000 mm, depending on
the ODS type). The distance between minimum and maximum filling level is
entered as hysteresis.
Old Stack
New Stack
Positioning

Description Leuze electronic
10 ODS 96 Leuze electronic
Material flow is switched on/off by the ODS as soon as the filling level falls
below the lower limit or reaches the maximum.
Figure 3.2: Application example "Filling Level Control"
Notice
For mounting instructions please refer to section 5.2 "Mounting".
3.3 ODS 96 Models
Types
Two different types of the ODS 96 are available:
•Infrared distance sensor
Measurement range 100 - 600 mm
•Laser distance sensor with visible red light
Measurement range 200 - 2000 mm
3.3.1 ODS 96 M/V with Analog Output
Analog output of the
LED device
Figure 3.3: Behavior of the analog output, ODS 96 M/V (LED)
I (mA) U (V)
app.21 app.10,5
20 10
4 1
1 0
0 90 100 600 app.625 app.800 - 1500
Meas. distance
(mm)
undefined
Linearity undefined
Measurement range
Linearity undefined Object present
Range
no object detected
