Introduction
This kit provides a second driven sprocket on the reel drive. With the optional 52-tooth driven sprocket, the operator can
switch from high torque to high speed for operating in light crops at increased ground speed.
This document explains how to install the kit. A list of parts included in the kit is provided in Chapter 2 Parts List, page 5.

$
%

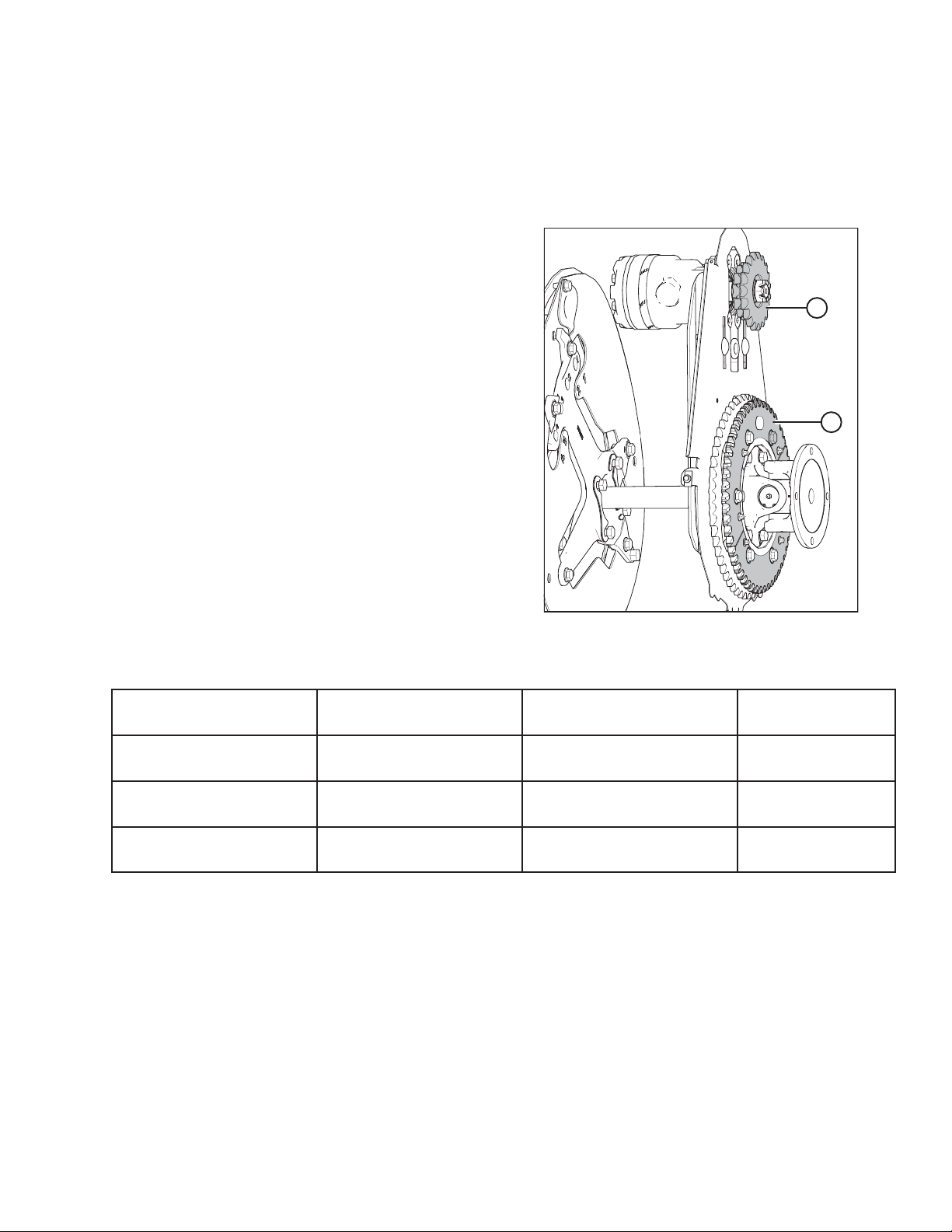

Figure 1: Reel Drive with Optional Sprockets
NOTE:
In addition to the lower sprocket (B) included, this kit requires a
dual reel-drive sprocket (A) that is suitable for the combine reel
circuit hydraulic relief pressure. Refer to .1, page i.
Table .1 Optional Sprockets
Sprocket Reel Circuit Hydraulic Relief
Pressure Application Optional Drive Sprocket
Dual reel drive sprocket (A)
MD #273451
13.79 MPa
(2000 psi) Combining down rice 10/20 tooth
Dual reel drive sprocket (A)
MD #273452
17.24 MPa
(2500 psi) Combining down rice 12/20 tooth
Dual reel drive sprocket (A)
MD #273453
20.68 MPa
(3000 psi) Combining down rice 14/20 tooth
Installation time
Installation time for this kit is approximately 1 hour.
Conventions
The following conventions are used in this document:
•Right and left are determined from the operator’s position. The front of the header is the side that faces the crop; the
back of the header is the side that connects to the combine.
•Unless otherwise noted, use the standard torque values provided in the FD2 operator’s manual and technical manual.
NOTE:
This document is currently available in English only.
215318 iRevision B

Summary of Changes
At MacDon, we’re continuously making improvements, and occasionally these improvements affect product
documentation. The following list provides an account of major changes from the previous version of this document.
Section Summary of Change Internal Use Only
Throughout Remove reference to unreleased products. Technical
Publications
Introduction, page i
Add a chart and image to clarify that an additional top sprocket is
required, and the specific model of the top sprocket depends on the
combine’s hydraulic relief pressure.
Product Support
3.1 Removing Reel Drive
Cover, page 7
Remove “if necessary”from step that removes the bottom reel drive
cover.
Technical
Publications
3.2 Loosening Reel Drive
Chain, page 9
Profiled redundant steps to shut off engine, lower header, etc. Steps
are not required for every topic in a kit instruction.
Technical
Publications
3.3 Installing Reel Driven
Optional Dual Sprocket,
page 10
•Profiled redundant steps to shut off engine, lower header, etc.
Steps are not required for every topic in a kit instruction.
•Add note about installing chain on outer top sprocket.
•Added reference to sprocket tightening steps if loosening and
adjustment is necessary.
Technical
Publications
3.4 Tightening Reel Drive
Chain, page 12
Profiled redundant steps to shut off engine, lower header, etc. Steps
are not required for every topic in a kit instruction.
Technical
Publications
3.5 Installing Reel Drive
Cover, page 13
Profiled redundant steps to shut off engine, lower header, etc. Steps
are not required for every topic in a kit instruction.
Technical
Publications
—Remove open/close endshield topics. Add refer to header operator’s
manual throughout instruction.
Technical
Publications
215318 ii Revision B

215318 iii Revision B
Introduction ................................................................................................................................................i
Summary of Changes....................................................................................................................................ii
Chapter 1: Safety ........................................................................................................................................ 1
1.1 Signal Words .........................................................................................................................................1
1.2 General Safety .......................................................................................................................................2
Chapter 2: Parts List.................................................................................................................................... 5
Chapter 3: Installation Instructions ........................................................................................................... 7
3.1 Removing Reel Drive Cover ......................................................................................................................7
3.2 Loosening Reel Drive Chain ......................................................................................................................9
3.3 Installing Reel Driven Optional Dual Sprocket ............................................................................................ 10
3.4 Tightening Reel Drive Chain.................................................................................................................... 12
3.5 Installing Reel Drive Cover...................................................................................................................... 13
TABLE OF CONTENTS

215318 1Revision B
Chapter 1: Safety
Understanding and following safety procedures consistently will help to ensure the safety of machine operators and
bystanders.
1.1 Signal Words
Three signal words, DANGER,WARNING, and CAUTION, are used to alert you to hazardous situations. Two signal words,
IMPORTANT and NOTE, identify non-safety related information.
Signal words are selected using the following guidelines:
DANGER
Indicates an imminently hazardous situation that, if not avoided, will result in death or serious injury.
WARNING
Indicates a potentially hazardous situation that, if not avoided, could result in death or serious injury. It may also be
used to alert against unsafe practices.
CAUTION
Indicates a potentially hazardous situation that, if not avoided, may result in minor or moderate injury. It may be used
to alert against unsafe practices.
IMPORTANT:
Indicates a situation that, if not avoided, could result in a malfunction or damage to the machine.
NOTE:
Provides additional information or advice.

215318 2Revision B
1.2 General Safety
Protect yourself when assembling, operating, and servicing machinery.

Figure 1.1: Safety Equipment
CAUTION
The following general farm safety precautions should be part of
your operating procedure for all types of machinery.
Wear all protective clothing and personal safety devices that
could be necessary for the job at hand. Do NOT take chances.
You may need the following:
•Hard hat
•Protective footwear with slip-resistant soles
•Protective glasses or goggles
•Heavy gloves
•Wet weather gear
•Respirator or filter mask

Figure 1.2: Safety Equipment
In addition, take the following precautions:
•Be aware that exposure to loud noises can cause hearing
impairment or loss. Wear suitable hearing protection devices
such as earmuffs or earplugs to help protect against loud
noises.

Figure 1.3: Safety Equipment
•Provide a first aid kit in case of emergencies.
•Keep a properly maintained fire extinguisher on the machine.
Be familiar with its proper use.
•Keep young children away from machinery at all times.
•Be aware that accidents often happen when the Operator is
tired or in a hurry. Take time to consider the safest way.
NEVER ignore warning signs of fatigue.
SAFETY

215318 3Revision B

Figure 1.4: Safety around Equipment
•Wear close-fitting clothing and cover long hair. NEVER wear
dangling items such as scarves or bracelets.
•Keep all shields in place. NEVER alter or remove safety
equipment. Make sure driveline guards can rotate
independently of shaft and can telescope freely.
•Use only service and repair parts made or approved by
equipment manufacturer. Substituted parts may not meet
strength, design, or safety requirements.

Figure 1.5: Safety around Equipment
•Keep hands, feet, clothing, and hair away from moving parts.
NEVER attempt to clear obstructions or objects from a
machine while the engine is running.
•Do NOT modify the machine. Unauthorized modifications
may impair machine function and/or safety. It may also
shorten the machine’s life.
•To avoid injury or death from unexpected startup of the
machine, ALWAYS stop the engine and remove the key from
the ignition before leaving the operator’s seat for any reason.

Figure 1.6: Safety around Equipment
•Keep service area clean and dry. Wet and/or oily floors are
slippery. Wet spots can be dangerous when working with
electrical equipment. Be sure all electrical outlets and tools
are properly grounded.
•Keep work area well lit.
•Keep machinery clean. Straw and chaff on a hot engine are
fire hazards. Do NOT allow oil or grease to accumulate on
service platforms, ladders, or controls. Clean machines before
storage.
•NEVER use gasoline, naphtha, or any volatile material for
cleaning purposes. These materials may be toxic and/or
flammable.
•When storing machinery, cover sharp or extending
components to prevent injury from accidental contact.
SAFETY

215318 5Revision B
Chapter 2: Parts List
The following parts are included in this kit:

$


Ref
Part
Number Description Qty
1 273689 SPROCKET –MACHINED 52 T 1
2 273594 TOOL –SPROCKET 1
A320192 BOLT –HEX FLG HD M12X1.75X30-SPCL-8.8-AA1J 6

215318 7Revision B
Chapter 3: Installation Instructions
To install this kit, complete the following steps in order.
3.1 Removing Reel Drive Cover
The reel drive cover protects the drive components from weather and debris. The two-piece cover can be removed to
access the components for service.
DANGER
To avoid injury or death from unexpected start-up of machine, always stop the engine and remove the key from the
ignition before leaving the operator’s seat for any reason.
1. Start the engine.
2. Adjust the reel fully forward.
3. Lower the header fully.
4. Shut down the engine, and remove the key from the ignition.

$

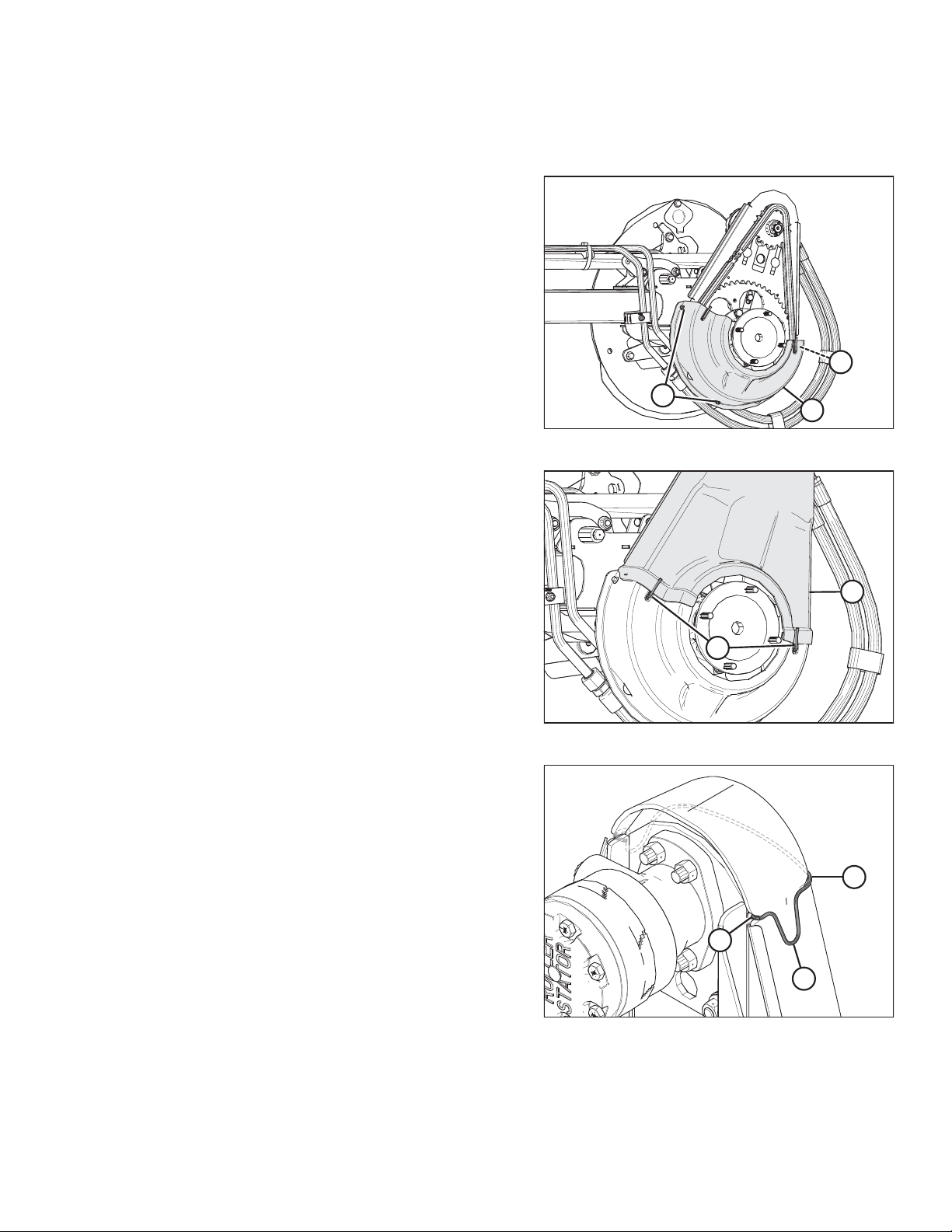

Figure 3.1: Upper Drive Cover
5. Rotate spring latch (A) up and over the back plate.

$
%
Figure 3.2: Upper Drive Cover
6. Unclip upper cover (A) from the lower cover at
locations (B), and remove the upper cover. Keep the two
clips engaged on the lower cover.

215318 8Revision B

%
$
$
Figure 3.3: Lower Drive Cover
7. Remove lower cover (B) by removing three bolts (A).
INSTALLATION INSTRUCTIONS

215318 9Revision B
3.2 Loosening Reel Drive Chain
The tension on the reel drive chain can be loosened to allow access to drive components.
1. Open the left endshield. For instructions, refer to the header operator’s manual.

$
%
%
Figure 3.4: Wrench Storage Location
2. Remove hairpin (A) securing wrench (B) to bracket on left
endsheet.
3. Remove wrench (B), and reinstall hairpin on the bracket.

%
&
$
Figure 3.5: Reel Drive
IMPORTANT:
Do NOT loosen the motor mount, it is factory-adjusted and
secured together with Belleville washers. Chain tension is
adjusted without loosening the drive mounting bolts.
4. Push tension retainer (A) clockwise with your thumb, and
hold in the unlocked position.
5. Place wrench (B) onto chain tensioner (C), and rotate
wrench upwards to loosen the chain tension.
INSTALLATION INSTRUCTIONS

215318 10 Revision B
3.3 Installing Reel Driven Optional Dual Sprocket
With the optional dual sprocket, the operator can switch from high torque to high speed for operating in light crops at
increased ground speed.

%
$

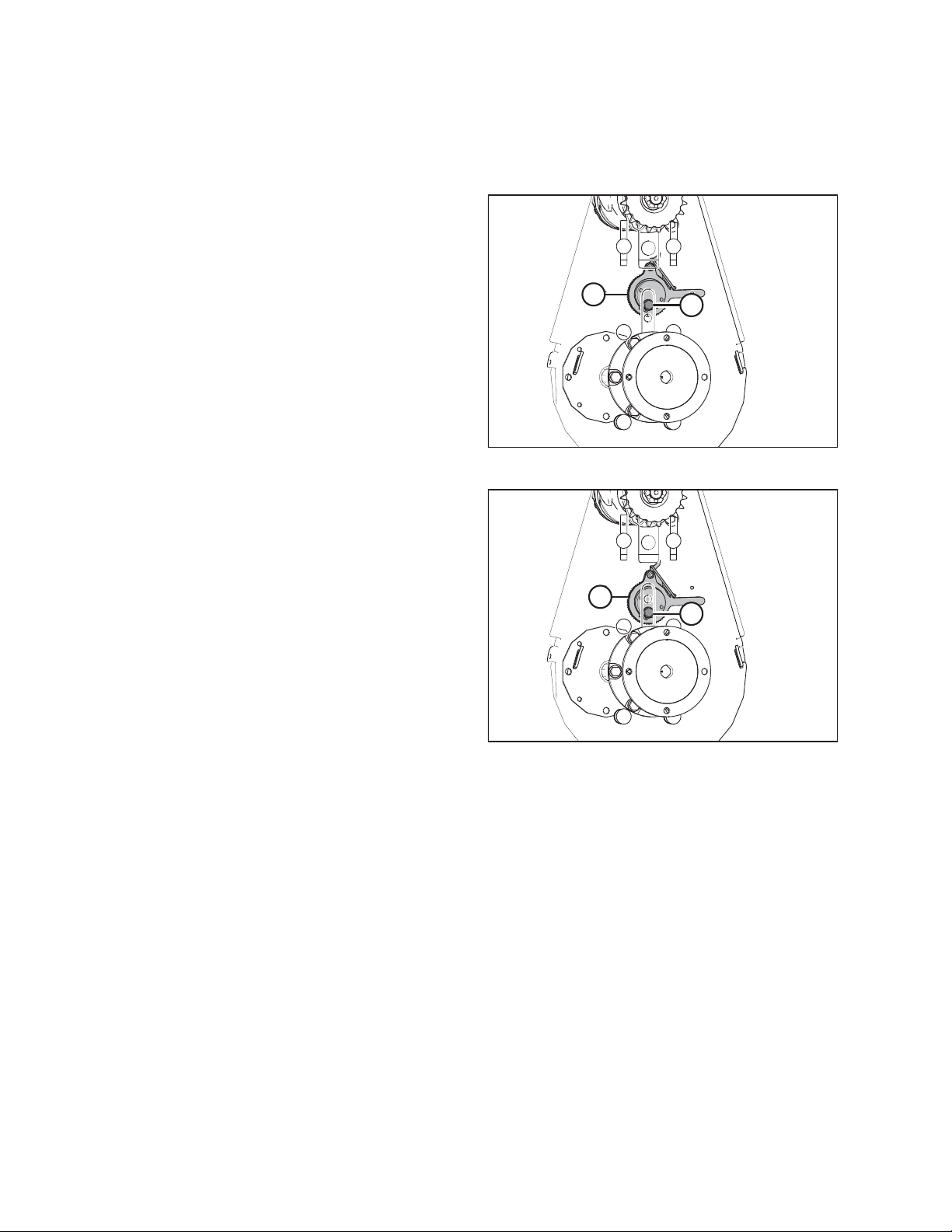

Figure 3.6: Chain Tensioner –View from Sprocket Side
1. Rotate chain tensioner (A) until both holes are visible in the
slot on the motor mount plate.
NOTE:
Some parts in the illustration have been removed or made
transparent for clarity.
2. Remove bolt (B) from the upper hole.
3. Rotate the wrench upwards to fully lower chain
tensioner (A).

$
%
Figure 3.7: Chain Tensioner –View from Sprocket Side
NOTE:
Some parts in the illustration have been removed and some
made transparent for clarity.
4. Remove chain tensioner (A) from the upper hole on the
motor mount.
5. Install chain tensioner (A) in the lower hole on the motor
mount plate and secure it with (B).
6. Retrieve sprocket (MD #273689), six bolts (MD #320192),
and sprocket tool (MD #273594) from the kit.
INSTALLATION INSTRUCTIONS

215318 11 Revision B

$
%
&
'
Figure 3.8: Driven Sprocket
7. Install both halves of sprocket (A) with the machined step
facing the other sprocket.
8. Install six bolts (B), and tighten until they are snug.
9. Rotate the reel until the splits in the sprocket are vertical.
10. Wrap chain (D) around sprocket (A) to ensure halves are
aligned.
NOTE:
Ensure chain is on the outside drive (top) sprocket
(not shown).
11. Push down on the wrench to tension the chain.
NOTE:
To prevent damage to the reel drive motor, avoid excessive
force on the wrench.
12. While maintaining tension on the chain, hold the reel from turning and tighten bolts (B).
13. Torque bolts (B) to 110 Nm (81 lbf·ft).
14. Use sprocket tool (C) to verify sprocket alignment. Check both sides of the sprocket. If required, loosen bolts to adjust
sprocket then repeat Steps 12, page 11 and 13, page 11.
INSTALLATION INSTRUCTIONS

215318 12 Revision B
3.4 Tightening Reel Drive Chain
A correctly tensioned drive chain ensures optimum power transfer while minimizing component wear.

%
$
Figure 3.9: Reel Drive
IMPORTANT:
Do NOT loosen the motor mount, it is factory-adjusted and
secured together with Belleville washers. Chain tension is
adjusted without loosening the drive mounting bolts.
1. Place wrench (A) onto chain tensioner (B).
2. Rotate wrench (A) downward until the chain is tight.

$
%
Figure 3.10: Reel Drive
IMPORTANT:
There should be approximately 38 mm (1 1/2 in.) of play on
one side (A) of the chain, while it is tight on the other
side (B). This level of tension and play in the chain is
required to skip one notch on the chain tightener.
4. Once the chain is tight, rotate the wrench upward to
properly engage the teeth from the lock/latch into the
tightener teeth. If the tightener will not skip a tooth before
tightening, do NOT force the tightener to the next notch.
IMPORTANT:
Do NOT overtighten the chain. If overtightened, the chain
will put excessive loads on the sprockets, causing motor
bearings and/or other components to fail prematurely.

$
Figure 3.11: Reel Drive
5. Rotate the reel by hand to verify that the chain is still
engaged properly on all teeth on lower sprocket (A). To
prevent damaging components, ensure the chain does not
get too tight as the reel is rotated.
6. Return the wrench to the storage position.
7. Close the left endshield. For instructions, refer to the
header operator’s manual.
INSTALLATION INSTRUCTIONS

215318 13 Revision B
3.5 Installing Reel Drive Cover
The reel drive cover protects the drive components from weather and debris.

%
$
$
Figure 3.12: Lower Drive Cover
1. Position lower drive cover (B) onto the reel drive, and
secure with three bolts (A).

$
%
Figure 3.13: Upper Drive Cover
2. Position upper cover (A) onto the reel drive, and secure in
place using two clips (B) on the lower cover.

$
%
&
Figure 3.14: Reel Drive
3. Rotate spring latch (A) down to secure the upper cover to
the reel drive. Ensure V-shaped loop (C) points down, and
the spring end remains inserted into back plate hole (B) on
both sides of the reel drive.
INSTALLATION INSTRUCTIONS
