1 Safety
1.1 Introduction
Please read the standard operating procedures and user’s manual thoroughly and carefully
before commissioning the machinery and comply with the instructions. The operating manual
should always be conveniently stored to be readily available at all times.
This operating manual is an addition to the operating manual for the testing lane Eurosystem
TRUCK. All safety instructions provided in chapter 1 of these operating instructions must be
complied with.
Apart from the safety instructions mentioned above, no additional safety instructions apply for
the operation of the speedometer tester. The speedometer tester is not equipped with any
additional safety features.
1.2 Safety Instructions
 The speedometer tester may only be operated by trained, authorized personnel.
 The speedometer tester may only be used and operated for its intended purpose: Testing
the tachometer function up to 160 km/h up to 13 t axle load.
 Sudden or strong braking actions and jerky accelerations are forbidden.
 The vehicle must be secured with tightening belts onto the roller set.
 Always drive straight onto the test stand’s rollers. Front-wheel drive vehicles must maintain a
straight driving direction.
 Running vehicle engines represent potential carbon monoxide poisoning. The
operator/owner is responsible for providing sufficient air ventilation.
 Due to the high noise level (>90 dB), appropriate ear protection should be worn.
No persons are allowed in the vicinity of the rollers while the test stand is in operation!

TPS II Eurosystem TRUCK Safety
2D1 1005BA1-GB01

TPS II Eurosystem TRUCK
D1 1005BA1-GB01 3
2 Description
2.1 Introduction
The speedometer tester is designed for vehicles with their speedometer connection at the
driven axle
2.2 Usage, Range of Application

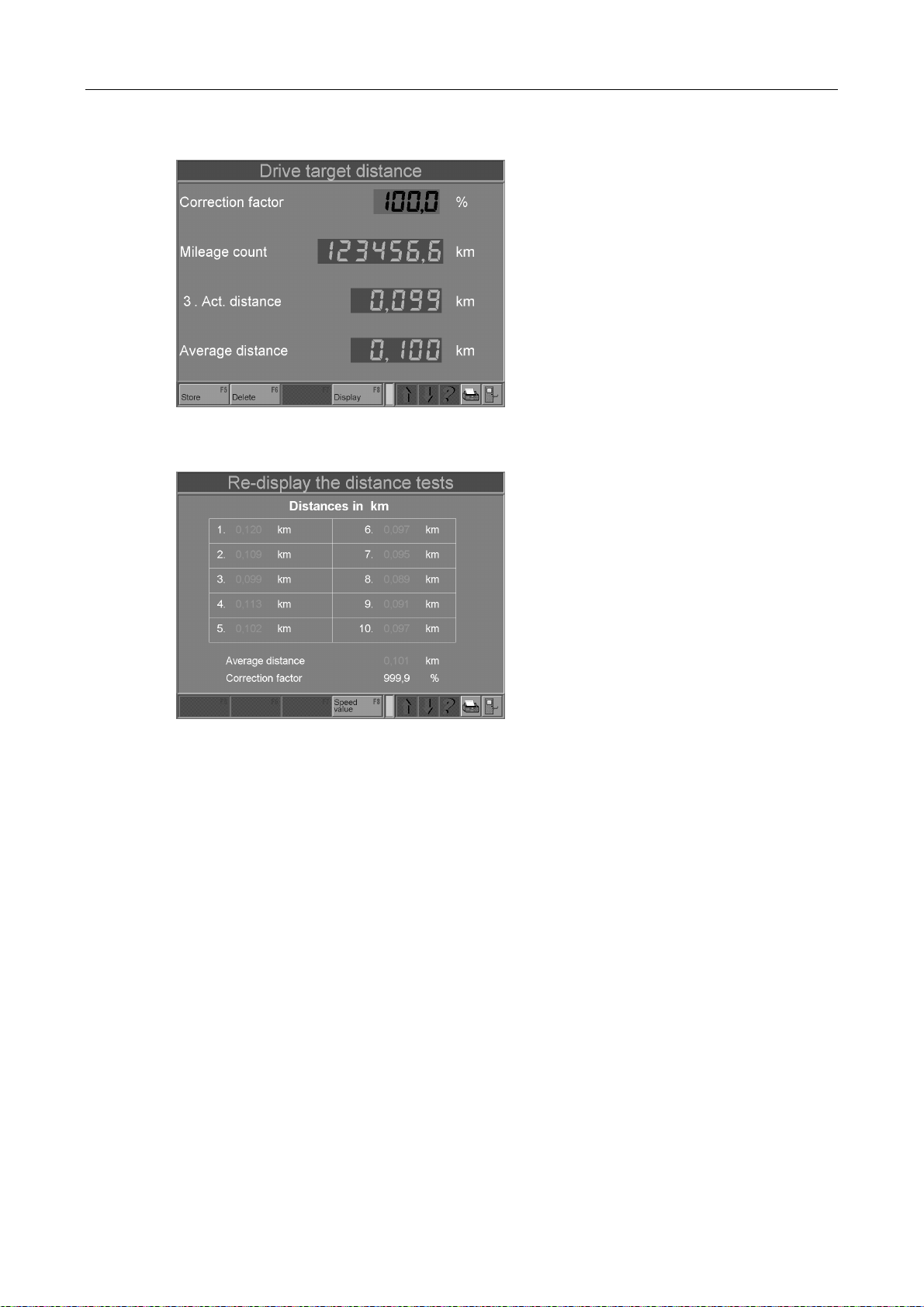

The speedometer tester is a roller tester for the inspection of the speedometer function of
passenger cars and transporters. The speedometer tester permits the measurement of speed
deviation as well as the deviation of the mileage meter.
Trucks, passenger cars and transporters up to a total axle load of 13 t can be tested. The
speedometer tester and the surrounding work area must be kept clean.
The tester is automatically on when the test vehicle is driving at more than 5 km/h on the rollers.
If the speed falls below 5 km/h, the tester switches off automatically.
The recorded measuring values are transmitted to the Eurosystem communication desk and
then displayed on the screen. The storing and the reviewing of measurements is described in
the operating manual for the testing lane Eurosystem TRUCK.
2.3 Installation
The test stand may only be installed and commissioned by the manufacturer's trained
authorized personnel or other qualified technicians of MAHA dealers or representatives. MAHA
instructions must be followed when installing or expanding the testing device.
The manufacturers CE conformity declaration becomes invalid when the installation is not done
by qualified service technicians. MAHA is not liable for damage caused by unqualified, unautho-
rized installation. Further, the manufacturers warranty also becomes invalid.

TPS II Eurosystem TRUCK Description
4D1 1005BA1-GB01
2.4 Noise Emission
The noise emission test was conducted during the speedometer test, at the highest test speed
of 160 km/h.
Test results
A-evaluated sound pressure level: 105,0 dB(A) (averaged with all measuring points, see
measuring protocol)
A-evaluated acoustic power level: 103,4 dB(A) (calculation based on DIN 45635 Part 1)
Due to the high noise in the test room, ear protection should be worn.

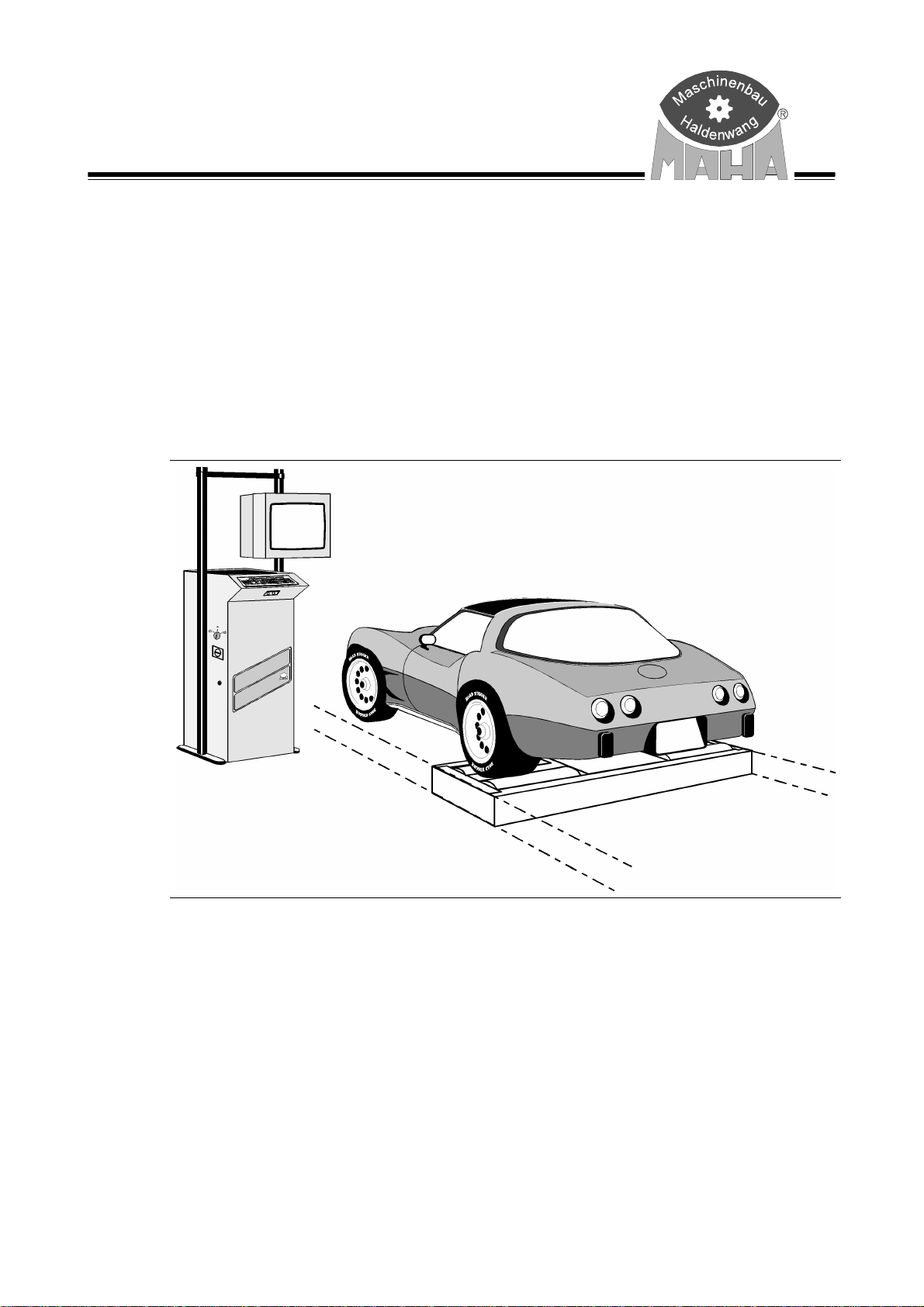

2.5 Equipment Overview
2.6 Technical Specifications TPS II
Max. axle load 13 t
Testing speed 0 to 150 km/h
Weight 950 kg
Tracking width 820 to 2620 mm
Roller diameter 318 mm
Roller length 900 mm
Roller axle separation 457 mm
Dimensions roller set (HxWxL) 400 x 842 x 3000 mm
Air pressur lifting device min. 5 bar
Exit support Pneumatic lifting device with brake

TPS II Eurosystem TRUCK
D1 1005BA1-GB01 5
3 Operations
3.1 Introduction
Please also read chapter 3, Eurosystem PC-Program, in the operating manual for the testing
lane Eurosystem TRUCK.
The storing and the reviewing of measurements is described in the operating manual for the
testing lane Eurosystem TRUCK.
3.2 Testing Procedure

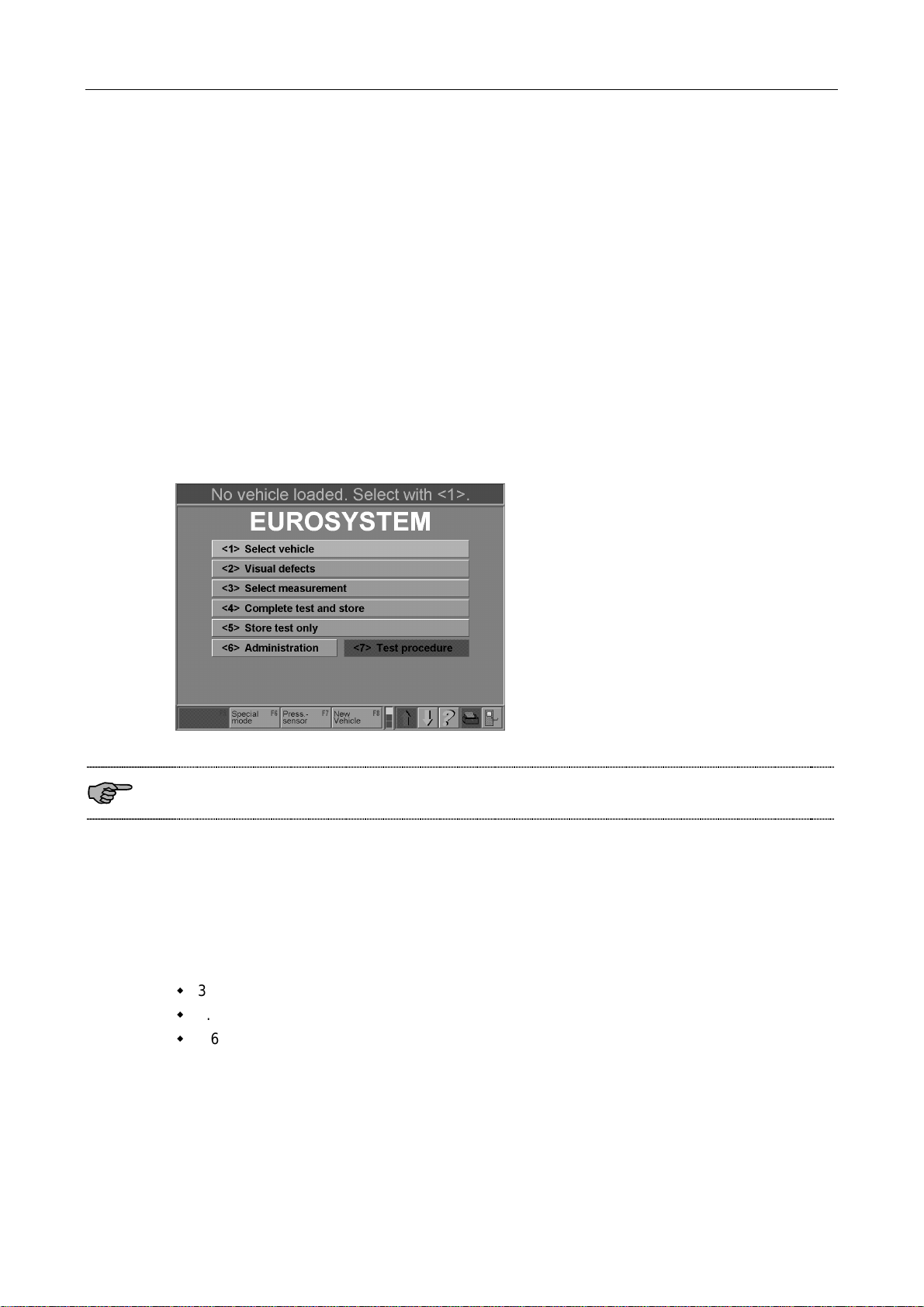

In order to start the test procedure, the monitor
must show the main menu. The instruction line
must show the following message:
No vehicle loaded. Select with <1>.
If this message does not appear press
<F8 NEW VEHICLE>.
Now the test lane is ready for a vehicle to be
driven on.
When the vehicle drives onto the individual
equipment the corresponding test screen is
blended in.
Always pay attention to the messages and instructions on the instruction line during testing
(in the description this is indicated by Instruction text ).
The recorded measurement values are automatically taken over in the temporary memory and
remain there until they are stored in connection with customer/vehicle or until they are
overwritten when a new test is conducted.
The following guides the user through the testing procedure step by step. You should be familiar
with the usage of the individual screen elements and the keyboard. If this is not the case, please
read the following sections of the operating manual for the testing lane Eurosystem TRUCK:
 3.4 Screen Design
 3.5 Using the Main Mask
 3.6 Using the Button Strip

TPS II Eurosystem TRUCK Operations
6D1 1005BA1-GB01
3.2.1 Securing the Test Vehicle
It is highly recommended to tie down the test vehicle with a restraining strap system. The tie
plates for fastening the restraining straps are available at the manufacturer. The restraining
strap system avoids skidding of the test vehicle within the roller set.
In order to secure the vehicle, the two restraining straps must be laid around the vehicle’s
towing lug and fixed on the tie plates. Front-wheel drive vehicles have to be secured at the front,
rear-engine drive vehicles at the rear. Cover the restraining straps in the area around the towing
lug with a wear-resistant hose to avoid excessive abrasion.
3.2.2 Speedometer Test
Rotating test stand rollers are potentially dangerous! Risk of injury!
The speedometer tester permits the measurement of the difference between the actual vehicle
speed and the speed displayed on the tachometer of the vehicle.
The speedometer test can be conducted by using the keyboard or the remote control. If a
remote control is not available, a second person will be needed to perform the test.
1 Drive onto the test stand
a. Drive the driven axle of the vehicle
slowly onto the roller set.
⇒The vehicle must be positioned
straight and centered on the roller set.
b. Apply the parking brake.
2 Preparations
Secure the vehicle with tightening belts.
3 Lower lifting device

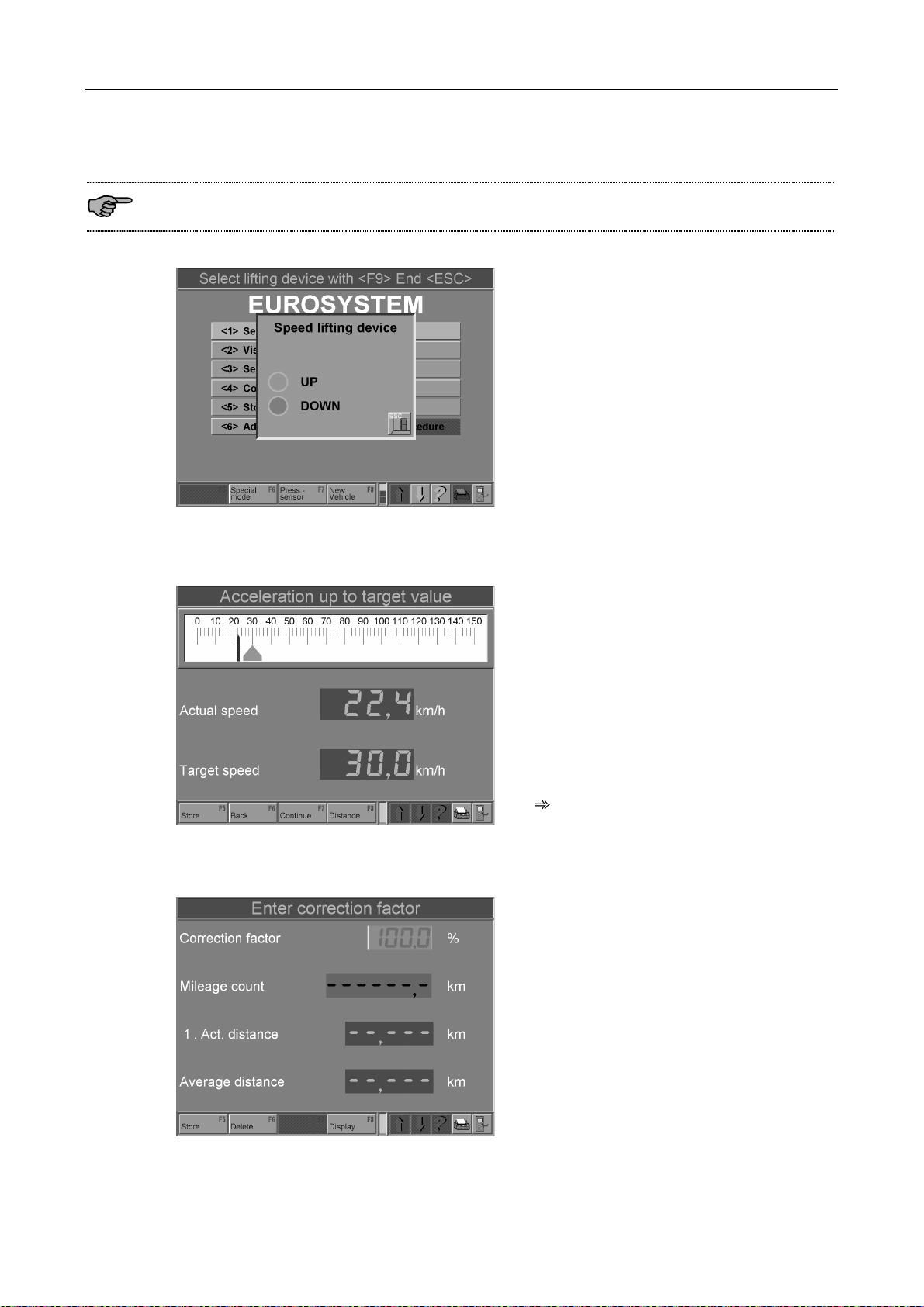

a. Press key <T>.
The following screen appears:
b. Use the <F9> key to select the lifting
device (raise/lower).
Use the <ESC> key to leave this screen.
ATTENTION : Starting from software
version V2.12 the <F4> key must be used
instead of the <T> key to lower the lifting
device. The function of the <F9> key for
switching over the lifting device
(raise/lower) is still the same.
4 Start the testing program

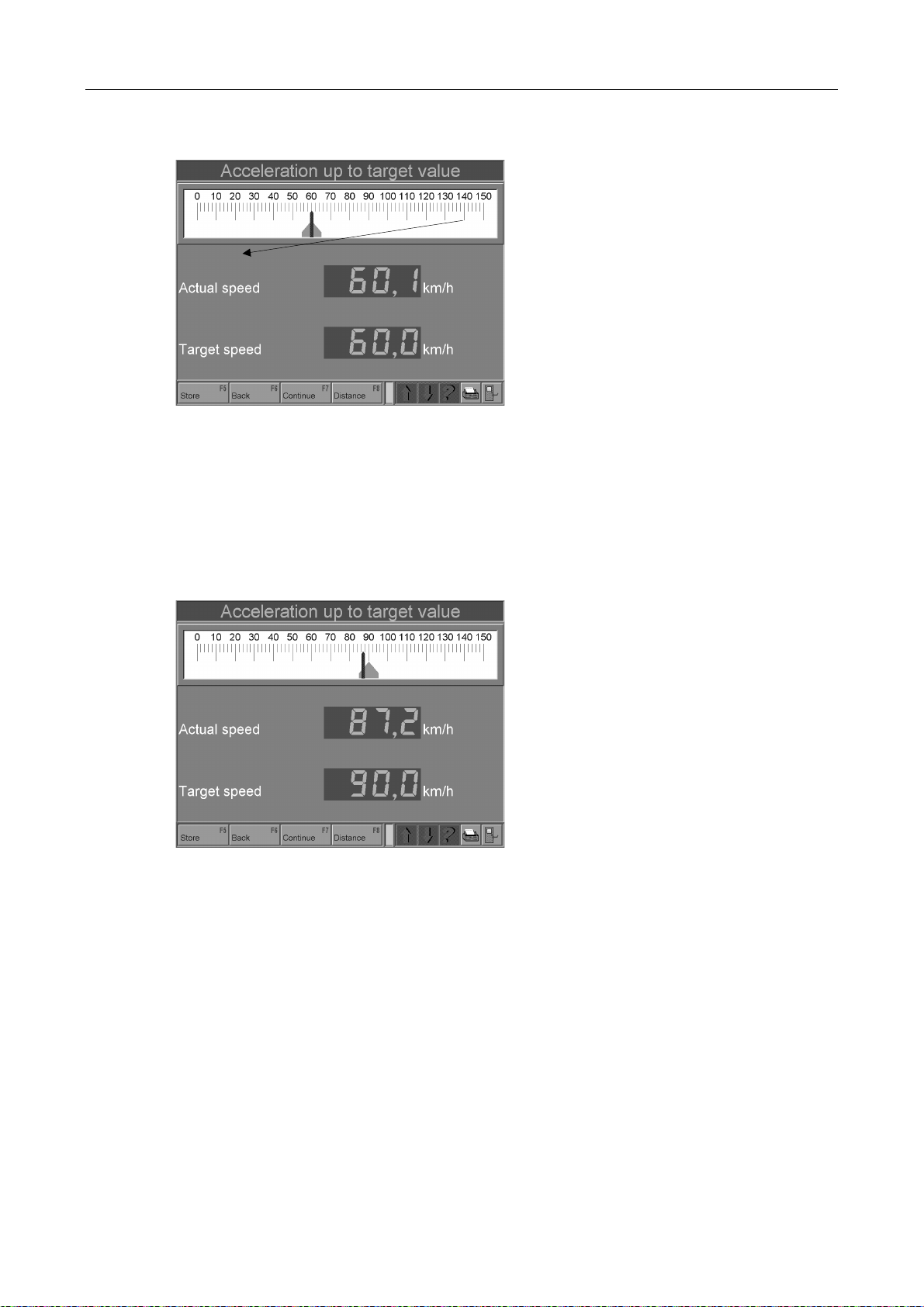

Accelerate the vehicle up to 5 km/h to start
the testing program.
⇒The screen opposite appears.
Accelerate the vehicle to the target value
