MASSEY FERGUSON 9070 User manual

9070 / 9075 / 9175 / 9185
Rotary Header
Workshop Service Manual

Find manuals at https://best-manuals.com

4283063M1 1-i
CONTENTS
MASSEY FERGUSON®
9070 / 9075 / 9175 / 9185 Rotary Header
4283063M1
CONTENTS
SAFETY .............................................................................................................................................................. 1-1
GENERAL INFORMATION ................................................................................................................................. 2-1
DRIVE ................................................................................................................................................................. 3-1
CUTTERBED AND KNIVES ............................................................................................................................... 4-1
ELECTRICAL ...................................................................................................................................................... 5-1
HYDRAULICS ..................................................................................................................................................... 6-1
HAY CONDITIONER .......................................................................................................................................... 7-1
TROUBLESHOOTING ........................................................................................................................................ 8-1
SPECIFICATIONS .............................................................................................................................................. 9-1
INDEX ............................................................................................................................................................... 10-1
Find manuals at https://best-manuals.com

1-ii 4283063M1
CONTENTS
NOTES
Find manuals at https://best-manuals.com

4283063M1 1-1
SAFETY
SAFETY
Contents
SAFETY .............................................................................................................................................................. 1-1
Safety Alert Symbol ......................................................................................................................................... 1-2
Safety Messages ............................................................................................................................................. 1-2
Informational Messages ................................................................................................................................... 1-2
Safety Signs ..................................................................................................................................................... 1-2
Operator’s Manual ........................................................................................................................................... 1-3
A Word to the Operator .................................................................................................................................... 1-3
Prepare for Operation ...................................................................................................................................... 1-4
Operation ......................................................................................................................................................... 1-5
Fire Prevention ................................................................................................................................................ 1-8
Travel on Public Roads .................................................................................................................................... 1-8
Maintenance .................................................................................................................................................... 1-9
Cylinder Stops ............................................................................................................................................... 1-11
Accumulators ................................................................................................................................................. 1-11
Safety Sign Location ...................................................................................................................................... 1-12
Headers with Spring Tensioner Roll Conditioners and Spoke Conditioners ........................................... 1-12
Headers with Hydraulic Tensioned Roll Conditioners ............................................................................. 1-15
Find manuals at https://best-manuals.com

SAFETY
1-2 4283063M1
SAFETY ALERT SYMBOL

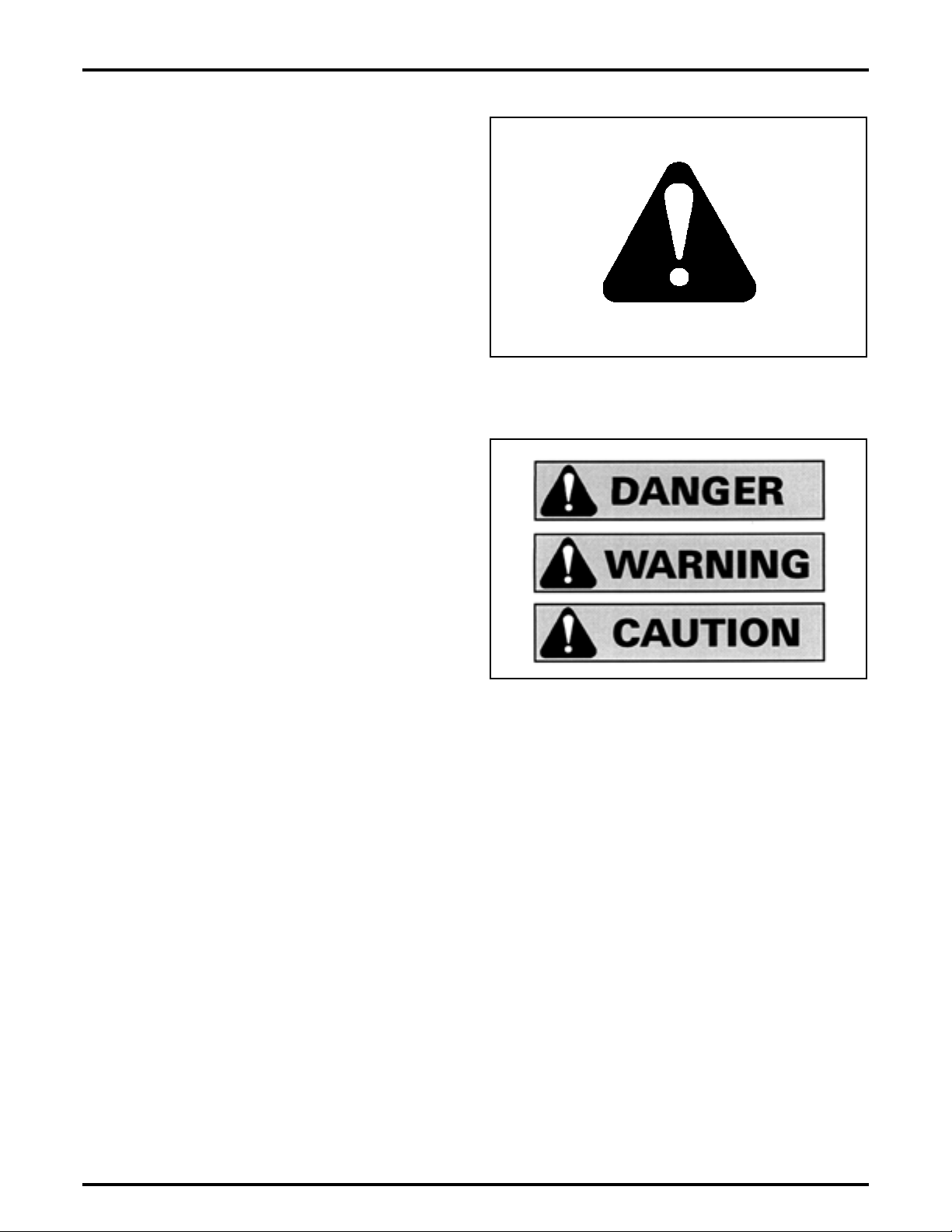

FIG. 1: The safety alert symbol means ATTENTION!
BECOME ALERT! YOUR SAFETY IS INVOLVED!
This safety alert symbol indicates important safety
messages in this Operator’s Manual. When you see this
symbol, carefully read the message that follows and be
alert to the possibility of personal injury or death.
SAFETY MESSAGES
FIG. 2: Whenever you see the words and symbols
shown below, used in this manual, you MUST take note of
their instructions as they relate to personal safety.
mDANGER: Indicates an imminently
hazardous situation that, if not avoided, will
cause death or very serious injury.
mWARNING: Indicates a potentially
hazardous situation that, if not avoided,
could result in death or serious injury.
mCAUTION: Indicates a potentially
hazardous situation that, if not avoided,
may result in minor injury.
INFORMATIONAL MESSAGES
The words IMPORTANT and NOTE are not related to
personal safety, but are used to give additional
information and tips for operating or servicing this
equipment.
IMPORTANT: Identifies special instructions or
procedures which, if not strictly observed, could
result in damage to or destruction of the
machine, process, or its surroundings.
NOTE: Identifies points of particular interest for more
efficient and convenient repair or operation.
SAFETY SIGNS
If a used machine has been purchased, be sure that all
safety signs are in the correct location and can be read.
Replace any safety signs that can not be read or are
missing. Replacement safety signs are available from
your dealer.
See Safety Sign Location in the Safety section for
illustrations of the safety signs.
FIG. 1
Saf
FIG. 2
Wc1957
Find manuals at https://best-manuals.com

4283063M1 1-3
SAFETY
OPERATOR’S MANUAL

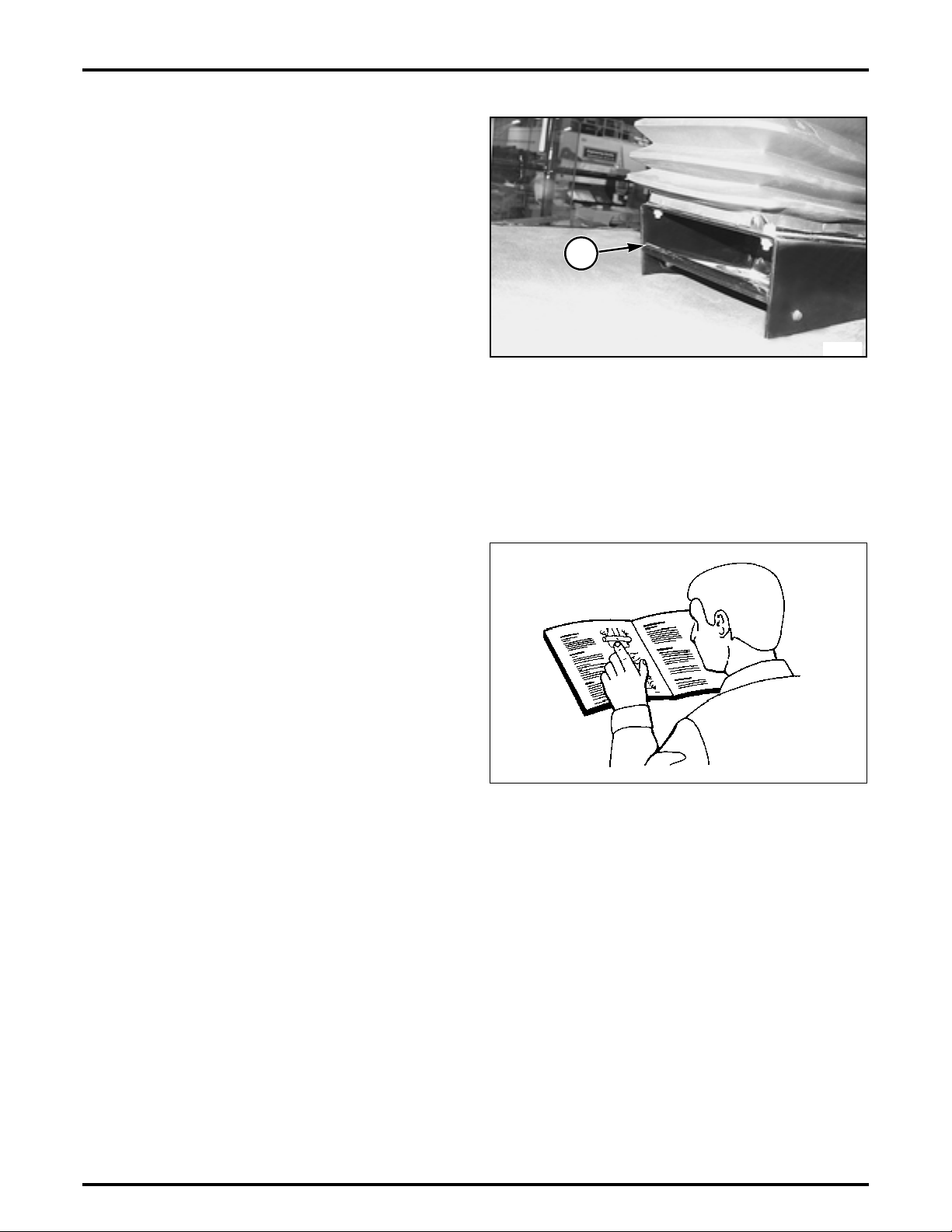

FIG. 3: The Operator’s Manual is stored in the holder (1)
located on the windrower tractor. After using the
Operator's Manual, return the manual to the storage
location.
Right-hand and left-hand, as used in this Operator's
Manual, is determined by facing the direction the machine
will travel when in use.
The photos, illustrations, and data used in this manual
were current at the time of printing, but due to possible
in-line production changes your machine can vary slightly
in detail. The manufacturer reserves the right to redesign
and change the machine as necessary without
notification.
mWARNING: In some of the illustrations or
photos used in this manual, panels or
guards may have been removed for clarity.
Never operate the machine with any panels
or guards removed. If the removal of panels
or guards is necessary to make a repair,
they MUST be replaced before operation.
A WORD TO THE OPERATOR
FIG. 4: It is YOUR responsibility to read and understand
the safety section in this manual before operating this
machine. Remember that YOU are the key to safety.
Good safety procedures not only protect you, but also the
people around you.
Study the features in this manual and make them a
working part of your safety program. Keep in mind that
this safety section is written only for this type of machine.
Practice all other normal and customary safe working
precautions, and above all REMEMBER - SAFETY IS
YOUR RESPONSIBILITY. YOU CAN PREVENT
SERIOUS INJURY OR DEATH.
This safety section is intended to point out some of the
basic safety situations that may be found during the
normal operation and maintenance of this machine, and
to suggest possible ways of dealing with these situations.
This section is NOT a replacement for safety procedures
featured in other sections of this manual.
NOTE: This manual covers general safety procedures
for this machine. This manual must always be
kept with the machine. Return the manual to the
storage location after use.
mCAUTION: See the tractor Operator’s
Manual for other important safety
information.
FIG. 3
J410003
1
FIG. 4
S-1123
Find manuals at https://best-manuals.com

1-4 4283063M1
SAFETY
PREPARE FOR OPERATION
Emphasize the importance of using correct procedures
when working around and operating the machine. DO
NOT let unqualified persons to operate your machine.
Keep others, especially children, away from your area of
work. DO NOT permit others to ride on the machine.
Read and understand all operating instructions and
precautions in this manual before operating or servicing
the machine. Make sure you know and understand the
positions and operations of all controls.
Make sure the machine is in the proper operating
condition as stated in the Operator's Manual. Make sure
the machine has the correct equipment needed by local
regulations.
Make certain that all controls are in neutral and the
parking brake is engaged before starting the machine.
Make certain that all people are well away from your area
of work before starting and operating the machine.
mWARNING: Any time the engine is running
and the parking brake is disengaged, the
machine will turn if the steering wheel is
moved even though the travel control lever
is in neutral.
All equipment has a limit. Make sure you understand the
speed, brakes, steering, stability, and load characteristics
of the machine before you start. Check all controls in an
area clear of people and obstacles before starting your
work.
Be aware of the machine size and have enough space
available to allow for operation. Never operate the
machine at high speeds in crowded places.
mWARNING: An operator should not use
alcohol or drugs which can affect their
alertness or coordination. An operator
taking prescription or ‘over the counter’
drugs needs medical advice on whether or
not they can properly operate machines.
Find manuals at https://best-manuals.com

4283063M1 1-5
SAFETY
OPERATION
FIG. 5: All shields and guards must be in the correct
operating position and in good condition.
DO NOT use attachments unless the attachments are
approved optional equipment.
FIG. 6: Do not operate the machine with drive shaft
shields open or removed. Entanglement in rotating drive
shafts can cause serious injury or death. Stay clear of
rotating components.
Do not make adjustments to the roll tension with the
header engaged.
When making adjustments to the roll pressure, turn off the
header. Lower the header to the ground and engage the
parking brake. Set the engine to low idle.
FIG. 7: Never stand near the machine during operation.
Debris can be thrown from the machine during operation
possibly resulting in injury.
mWARNING: Be careful when operating
along the side of a road or building. Rocks
or other debris can be thrown from the
machine during operation possibly
resulting in injury.
Tilt the header back in fields where stones
and foreign objects are present. This will
raise the cutting knives and minimize
debris being thrown by the rotating knives.
FIG. 5
11133566
FIG. 6
WC1941
FIG. 7
D-8278
Find manuals at https://best-manuals.com

SAFETY
1-6 4283063M1
FIG. 8: Wear all protective clothing and personal
protective equipment issued to you or called for by job
conditions.
Wear approved hearing protection whenever operating
the machine as required by country/local regulations.
DO NOT wear loose clothing, jewelry, watches, or other
items that could entangle in moving parts. Tie up long hair
that can also entangle in moving parts.
Always keep hands, feet, hair, and clothing away from
moving parts.
FIG. 9: Securely fasten the seat belt before operating the
machine. Always remain seated and have the seat belt
fastened while operating the machine. Replace the seat
belts when they become worn or broken.
Never wear a seat belt loosely or with slack in the belt
system. Never wear the seat belt in a twisted condition or
pinched between the seat structural members.
Securely fasten the seat belt when using the instructional
seat, if equipped. The instructional seat is to be used only
to train new operators or diagnose a problem. The
instructional seat is only intended for short periods of use.
Extra riders, especially children, are not permitted on the
machine.
When the instructional seat is used the machine must be
driven at a slower speed and on level ground. Avoid quick
starts, stops, and sharp turns. Avoid driving on highways
or public roads.
FIG. 8
S-1127A
FIG. 9
WC1953A
Find manuals at https://best-manuals.com

4283063M1 1-7
SAFETY

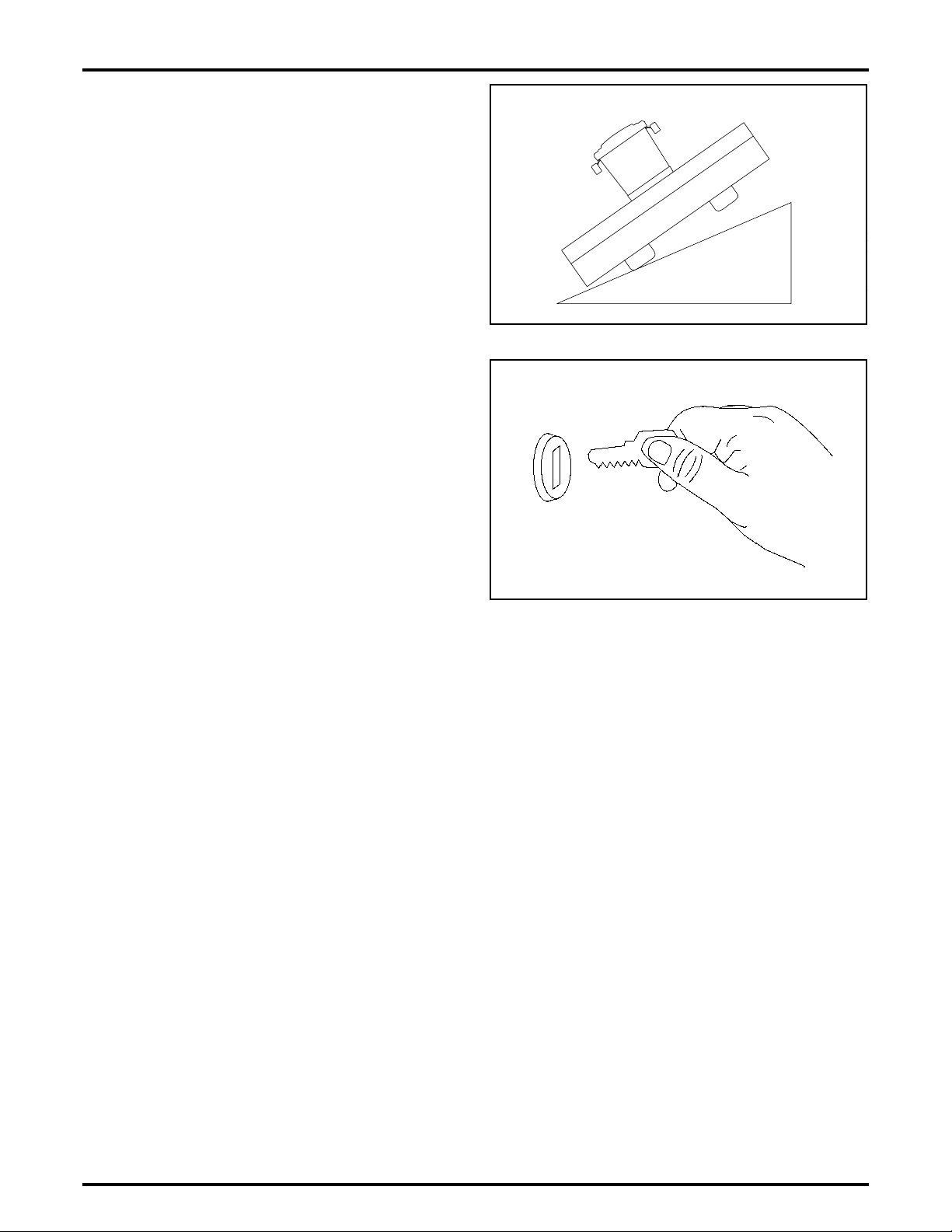

FIG. 10: Stay off slopes too steep for operation. Keep the
header as low as possible while going down hills. Never
suddenly reverse the wheels to stop or back up.
Where possible avoid operating the machine near
ditches, embankments, and holes. Reduce ground speed
when operating on rough, slippery, or muddy surfaces
and when turning or crossing slopes.
FIG. 11: When parking, put the machine on a solid level
surface and lower the header to the ground. Put all
controls in neutral, center and lock the steering wheel,
and engage the parking lock control lever. Stop the tractor
engine and take the key with you when parking the
machine.
mWARNING: Do not leave the machine
unattended with the header raised. Lower
the header fully before leaving the machine.
A sudden loss of hydraulic pressure can
cause the header to drop without warning.
FIG. 10
D-8482
FIG. 11
D-7084

SAFETY
1-8 4283063M1
FIRE PREVENTION
FIG. 12: Because of the nature of the crops this machine
will operate in, the risk of fire is present. Regular
inspection of the machine can reduce the risk of fire.
Keep the machine free of crop debris to help prevent fires.
Check the machine daily for any noises that are not
normal. Such noises could indicate a failed bearing that
can cause heat buildup.
FIG. 13: Because of the flammable nature of many
crops, a fire extinguisher must be located within easy
reach of the operator. Check the fire extinguisher regularly
as instructed by the manufacturer.
Keep an emergency first aid kit handy for treatment of
minor burns, cuts, or scratches.
TRAVEL ON PUBLIC ROADS
FIG. 14: Use the lighting and marking system supplied
with the machine when roading. Make sure all the
flashers are operating prior to driving on the road. Make
sure the reflectors are installed, in good condition, and
wiped clean. Be sure the SMV emblem is clean, visible,
and correctly mounted on the rear of the machine.
Familiarize yourself with and obey all road regulations that
apply to your machine. Consult your local law
enforcement agency for local regulations regarding
movement of farm equipment on public roads.
Adjust travel speed to maintain control at all times. Limit
speeds to 32 km/h (20 mi/hr). Be aware of other traffic on
the road. Keep well over to your own side of the road and
pull over, when possible, to let faster traffic pass.
Be aware of the overall width and length of the machine.
Be careful when transporting the machine on narrow
roads and across narrow bridges.
Always travel with the header as low as possible. DO
NOT drive with header up and the lift cylinder stops in the
locked position. See Cylinder Stops in the Safety section
for more information.
FIG. 12
WC1946
FIG. 13
S-1131
FIG. 14
S-1025

4283063M1 1-9
SAFETY
MAINTENANCE
FIG. 15: Before doing any unplugging, lubricating,
servicing, cleaning, or adjusting park the tractor on a solid
level surface. Put all controls in neutral, center and lock
the steering wheel, and engage the parking lock control
lever. Stop the tractor engine and take the key with you.
LOOK AND LISTEN! Make sure all moving parts have
stopped.
Always chock the wheels before working on or under the
machine.
FIG. 16: When working on the machine make sure the
header is lowered to the ground.
When it is necessary for the header to be in the raised
position, raise the header all the way and engage the
header lift cylinder stops. See Cylinder Stops in the Safety
section for more information.
mWARNING: Always install the header lift
cylinder stops when working near the
header. Do not rely on the hydraulic system
to keep the header raised. A sudden loss of
hydraulic pressure could cause the header
to lower unexpectedly.
FIG. 17: Never check or adjust drive belts while the
machine is running.
Never remove crop from the machine while the machine
is running.
Moving parts can pull you in faster than you can move
away!
FIG. 15
D-8518
FIG. 16
WC1954
FIG. 17
WC1943

SAFETY
1-10 4283063M1
FIG. 18: Hydraulic fluid escaping under pressure can
have sufficient force to penetrate the skin, causing serious
injury.
Fluid injected into the skin must be surgically removed
within a few hours. If not treated immediately, a serious
infection or toxic reaction can develop. See a doctor
familiar with this type of injury immediately.
FIG. 19: Hydraulic fluid escaping from a very small hole
can be almost invisible. Use a piece of cardboard or wood
to search for possible leaks, never use your hands. When
checking for suspected leaks, wear leather gloves for
hand protection and safety goggles for eye protection.
Be sure to relieve all pressure from hydraulic lines before
disconnecting them. Before applying pressure to the
system, make sure all hydraulic connections are tight and
hydraulic lines have not been damaged.
Make sure electrical connectors are free of dirt and
grease before connecting.
Check all nuts and bolts periodically for tightness. Check
for loose, broken, missing, or damaged parts. Keep
everything in good repair.
After unplugging, lubricating, servicing, cleaning, or
adjusting the machine make sure all tools and equipment
have been removed.
Make sure all shields and guards are in the correct
position before operating the machine.
FIG. 18
WC1938
FIG. 19
D-5842A

4283063M1 1-11
SAFETY
CYLINDER STOPS
FIG. 20: Both header lift cylinders have cylinder
stops (1). The cylinder stops are activated by one lever (2)
outside the cab door.
To engage the cylinder stops, raise the header
completely. Move the lever toward the cab and then pull
back toward the rear of the machine to engage the
cylinder stops. Make sure the cylinder stops are
completely engaged in both header lift cylinders.
To disengage the cylinder stops, raise the header
completely. Move the lever toward the cab and then push
forward toward the header to disengage the cylinder
stops. Make sure the cylinder stops are completely
disengaged from both header lift cylinders.
ACCUMULATORS
The accumulator is charged with dry nitrogen. Use only
dry nitrogen when charging the accumulators. DO NOT
use air or oxygen or an explosion will occur.
DO NOT drop the accumulators. Charged accumulators
contain nitrogen under pressure. If the charging valves
break away from the accumulators, the escaping nitrogen
will propel the accumulators at a high rate of speed.
mDANGER: Charging or replacing the
accumulators must be performed by an
authorized dealer only.
FIG. 20
1
K825195
2

SAFETY
1-12 4283063M1
SAFETY SIGN LOCATION
Headers with Spring Tensioner Roll
Conditioners and Spoke Conditioners
FIG. 21: 15 Foot Header
FIG. 21
3
1
2
4
4
5
D-8347
5
6
6
1
2
3

4283063M1 1-13
SAFETY
FIG. 22: 12 Foot Header
FIG. 22
3
1
2
1
2
3
D-8348

SAFETY
1-14 4283063M1
FIG. 23: Warning, Hands and Feet (1)
Also indicated in figures Fig. 21 and Fig. 22.
FIG. 24: Warning, Curtain (2)
Also indicated in figures Fig. 21 and Fig. 22.
FIG. 25: Danger, Header (3)
Also indicated in figures Fig. 21 and Fig. 22.
FIG. 26: Reflector, Red (4)
Fluorescent Strip, Red-Orange (5)
Reflector, Amber (6)
Also indicated in Fig. 21. (15 foot header only)
FIG. 23
700714361
1
FIG. 24
2
700714362
FIG. 25
3
700713551
FIG. 26
456
590483M1

4283063M1 1-15
SAFETY
Headers with Hydraulic Tensioned Roll
Conditioners
FIGS. 27–33: Safety Sign locations and illustrations.
(1) Warning, Hands and Feet
Located on front of the drive covers.
FIG. 27
1
2
83
1
2
6
7
8
4
5
3
d-9576
FIG. 28
700714361
1

SAFETY
1-16 4283063M1
(2) Warning, Curtain
Located on front of the drive covers.
(3) Danger, Header
Located on side of the drive covers.
(4) Warning, Entanglement - outside and inside of drive
shield.
(5) Danger, Accumulator - near accumulator inlet.
FIG. 29
2
700714362
FIG. 30
3
700713551
FIG. 31
4
700723701A
FIG. 32
5
3777021M
