MRC HSCD-10 User manual

HSCD-10 User Manual
LCD Digital 10"Square Hotplate Magnetic Stirrer
Please read the User Manual carefully before use, and follow all operating
and safety instructions!
Technical specifications and outline are subject to change without prior
notice.
10” Square (Hotplate) Magnetic Stirrer

Contents
Preface................................................................................ 1
Service................................................................................ 1
Warranty......................................................................................1
1. Safety Instructions .......................................................... 2
2. Proper use ....................................................................... 3
3. Inspection ....................................................................... 4
3.1 Receiving Inspection ............................................ 4
3.2 Listing of Items........................................................ 4
4. Control............................................................................ 5
4.1 Control elements................................................... 5
4.2 Display...................................................................6
5. Trial run .......................................................................... 7
6. Working with external temperature sensor................... 7
7. Residual heat warning（HOT）.................. 8
8. Remote Control (LCD Digital model) ........................... 8
9. Faults ............................................................................9
10. Maintenance and Cleaning ..........................................9
11. Associated standards and regulations ....................... 10
12. Specifications ........................................................... 11

Preface
Welcome to the “ 10” Square Hotplate Magnetic Stirrer”.
Users should read this Manual carefully, follow the
instructions and procedures, and be aware of all
the cautions when using this instrument.
Service
When help needed, you can always contact your local
distributor for technical support.
Please provide the customer care representative with the
following information：
•Serial number（on the rear panel）
•Certification
•Description of problem (i.e., hardware or software)
•Methods and procedures adopted to resolve the problems
•Your contact information
Warranty
This instrument is warranted to be free from defects in
materials and workmanship under normal use and service, for
a period of 24 months from the date of invoice. The warranty
is extended only to the original purchaser. It shall not apply to
any product or parts which have been damaged on account of
improper installation, improper connections, misuse, accident
or abnormal conditions of operation.
For claims under the warranty please contact your local
supplier. You may also send the instrument directly to
manufacturer, enclosing the invoice copy and by giving
reasons for the claim.

1. Safety Instructions
•When working wear personal safety guards to avoid the
risk from:
-Splashing and evaporation of liquids
-Release of toxic or combustible gases
•Set up the instrument on a stable, clean, non-slip, dry
and fireproof surface. Do not operate the
instrument in explosive atmosphere, with hazardous
substances or under water.
•Gradually increase the speed, reduce the speed if:
- Stirring bar breaks away due to high speed
- The instrument is not running smoothly, or container
moves on the base plate
•Temperature must always be set to at least 50℃lower
than the fire point of the media used.
•Be aware of hazards due to:
- Flammable materials or media with a low
boiling temperature
- Overfilling of media
- Unsafe container
•Process pathogenic materials only in closed vessels.
•Check the instrument and accessories prior to each use. Do
not use damaged components. Accessories must be securely
attached to the device and can not come off by themselves.
Always disconnect the plug before fitting accessories.
•When the external temperature sensor needed, the tip of the
measuring sensor must be at least 5-10mm from vessel bottom
and wall.
Warning!
•Read the operating instructions
carefully before use.
•Ensure that only trained staff works with the
instrument.
Risk of burn!
•Caution when touch the housing parts and the
hotplate which can reach temperature of 500
℃.
•Pay attention to the residual heat
after switching off.
Protective ground contact！
•Make sure that socket must be
grounded
(protective ground contact) before use.

•The instrument can only be disconnected from the main
power supply by pulling out the main or the connector plug.
•The voltage stated on the label must correspond to the
main power supply.
•Ensure that the main power supply cable does not touch
the hotplate. Do not cover the device.
•Forbid to put pressure and over heat media on the surface
of glass ceramic that can be caused surface broken.
•The instrument may only be opened byexperts.
•Keep away from high magnetic field.
2. Proper use
The instrument is designed for mixing and/or heating
liquids in schools, laboratories or factories.

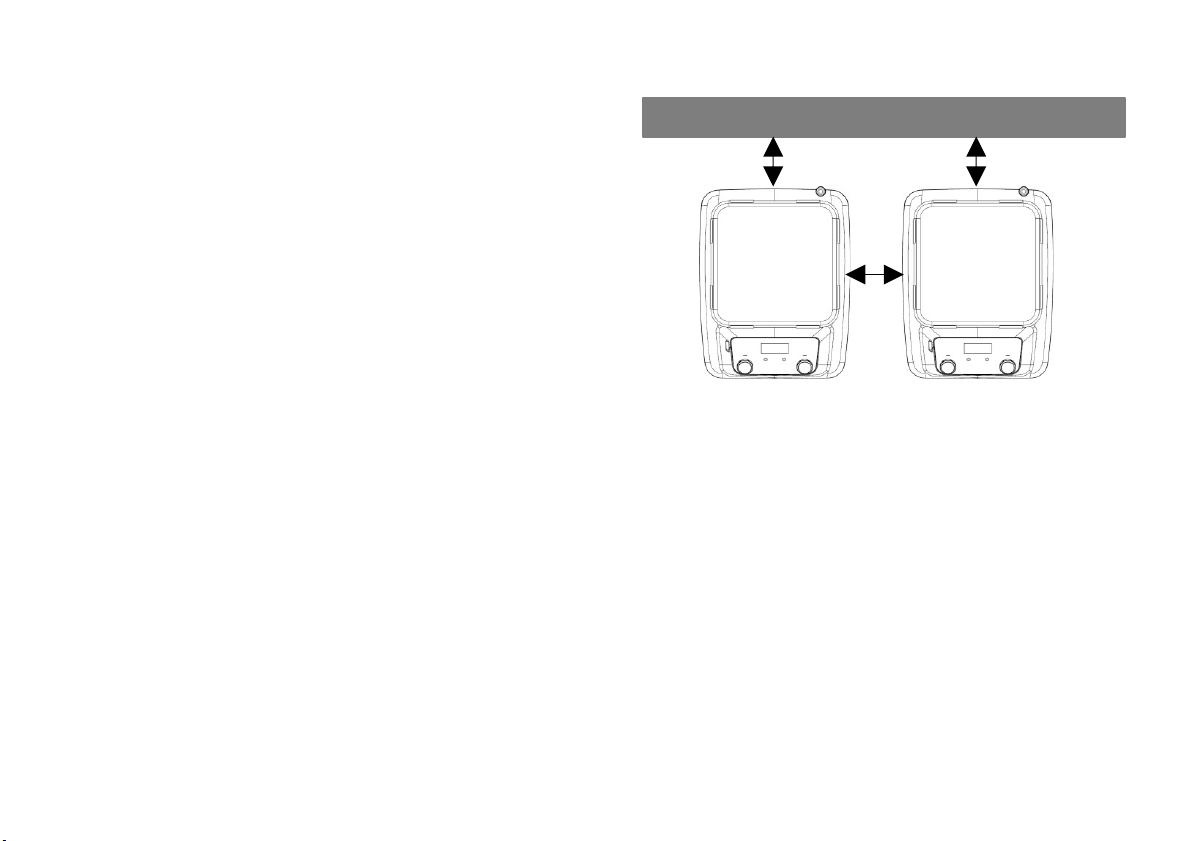

•Observe the minimum distances between the devices,
between the device and the wall and above the assembly (min.
100 mm)
Figure 1
This device is not suitable for using in residential areas or
other constraints mentioned in Chapter 1.
>100mm
>100mm

3. Inspection
3.1 Receiving Inspection
Unpack the equipment carefully and check for any damages
which may have arisen during transport. Please contact
supplier for technical support.
3.2 Listing of Items
The package includes the following items:
Items
Qty
Main unit
1
User Manual
1
Table 1
Note:
If there is any apparent damage to the system,
please do not plug it into the power line.

Figure
4. Control
4.1 Control elements
LCD Display
LED Heat
SD card
Timer
Temperature Control
Figure 2
LED Stir
Speed Control Knob
Power Switch
Table 2
Items
Descriptions
Temperature
control knob
The heating function is
switched
Speed Control
Knob
Set the rated rotary speed. The
stirring function is switched ON or
OFF by
LED Heat
When the heating function is
switched ON, the LED Heat is lit
LED Stir
When the stirrig function is switched
ON, the LED Stir is lit
Timer
Press the knob,and then press “-“ or
“+” can setting heating time value
LCD Display
If rotate the heating knob, LCD
displays the temperature setting
value(right side) and real value(left
side)
SD card The SD card can save the data of test
Power
Switch Switch ON or OFF the instrument.

Timer
℃Err
SD Probe Hot
Temp Stir

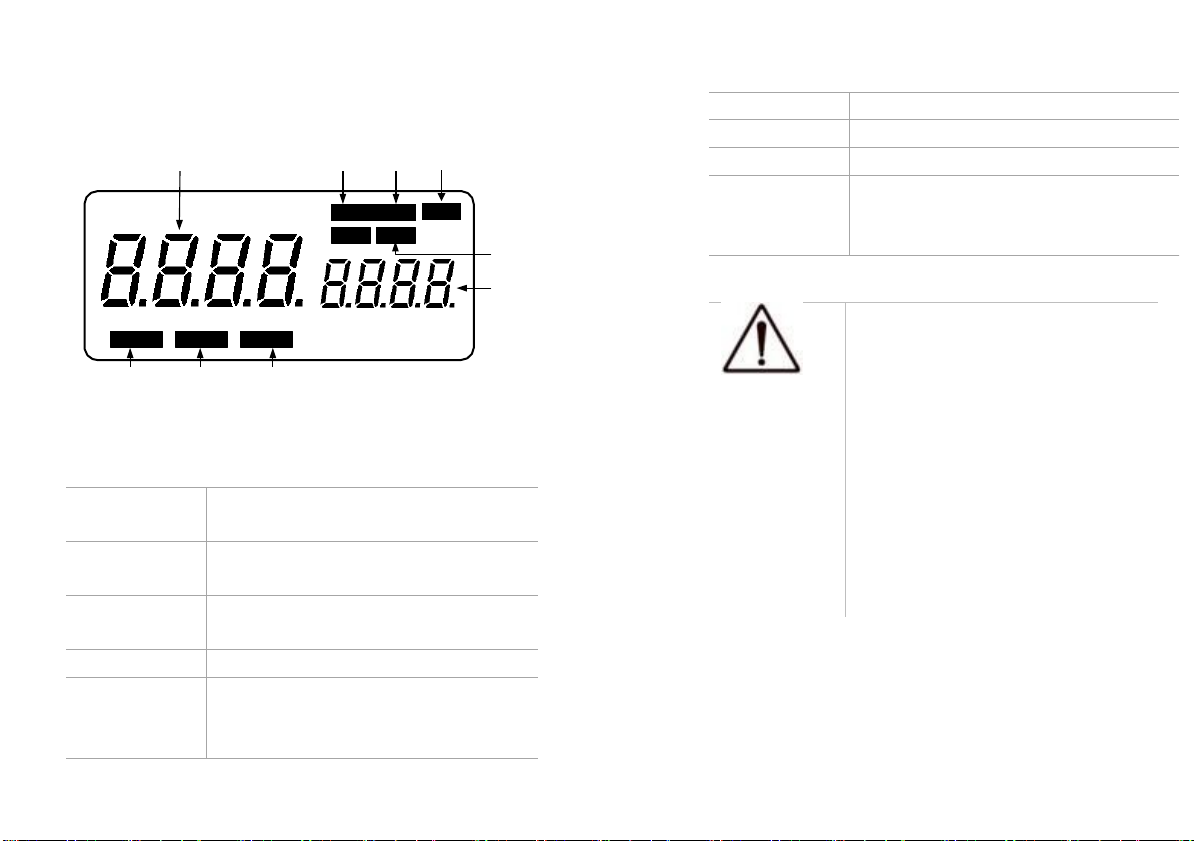

4.2 Display
Real value Temperature Stir Timer
Error
Rated value
SD Card External
probe
Hotplate
warning
Figure 5 LCD digital model
Temp and ℃
Display temperature when the
heating function is switched ON
Stir
Display stirring state when the
stirring function is switched ON
Timer
Display Timer parameter when the
timer function is switched ON
Err
Display in case of error happening
Hot
Display hot warning if the heating
plate temperature is above 50℃
after switching OFF the heating
function
Probe
Display when using external probe
SD
Display when using SD card
Rated
value/Real
value
Display values in when heating or
stirring or timer function is
switched ON.
Note:
If both heating and stirring
functions have been started at the
same time,heat display always has
higher priority. If in this case
speed is changed via the stirring
knob, it displays stirring speed
and reverts to temperature after 5
seconds.The timer can only
control the heating time and the
button will not work as the
heating function has been started.

Warning!
Forbid to transfer the vessel when the
instrument working.
5. Trial run
•Make sure the required operating voltage and powersupply
voltage match.
•Ensure the socket properly grounded.
•Plug in the power cable，ensure the power is on and begin
initializing.
•Add the medium into the vessel with anappropriate
stirring bar.
•Place vessel on the work plate.
•Set the target stirring speed and begin.
•Set the target heating time.
•Set the target temperature and start heating.
•Stop the heating and stirring functions.
If these operations above are normal, the device is ready to
operate. If these operations are not normal, the device may be
damaged during transportation, please contact your local
dealer /supplier.

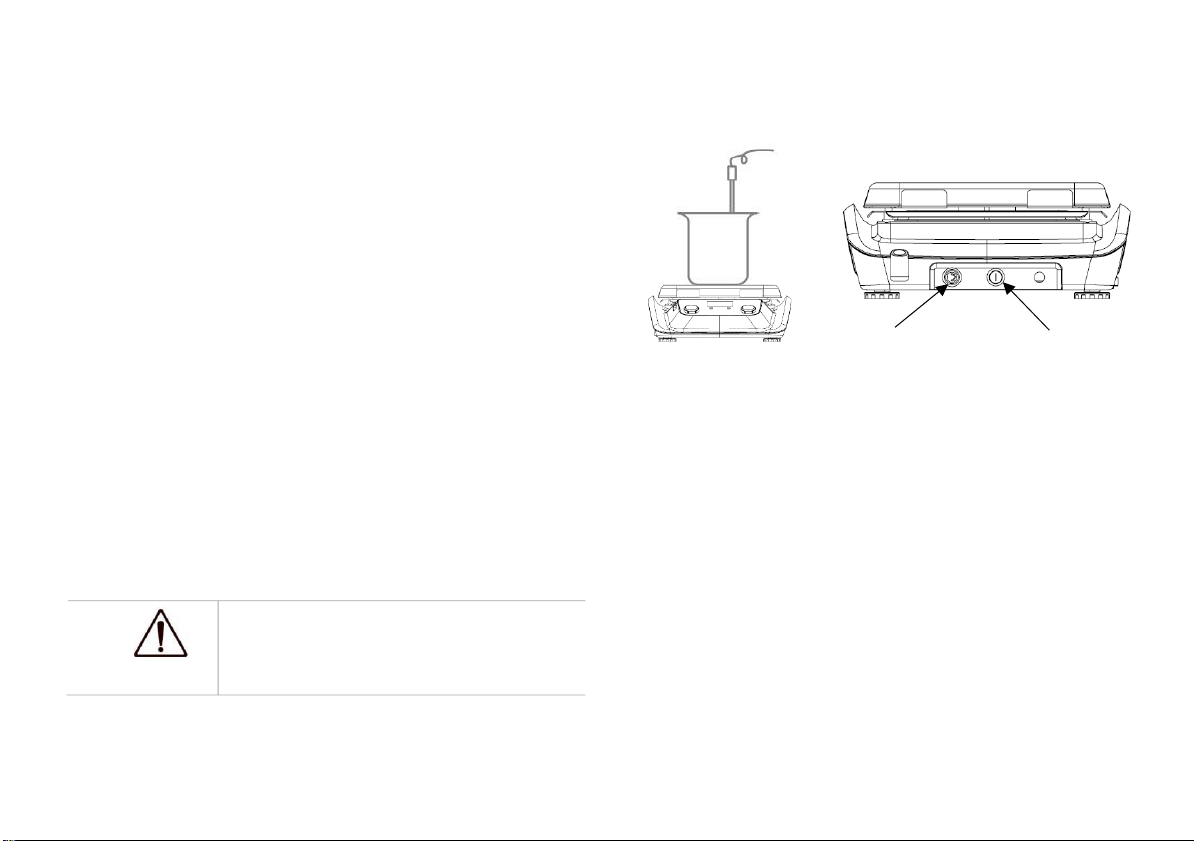

6. Working with external temperature
sensor
Connection PT1000 Fuse
Figure 7
The external temperature sensor PT1000 is manufacture’s
standard accessory. If the sensor is plugged in, “Probe” will be
shown on the LCD digital display to indicate the sensor is
operating.The setting value of external temperature sensor and
actual temperature are displayed. Safe circuit controls hotplate
temperature.Comparing with the temperature control of the
hotplate, the external temperature sensor can control the
medium’s temperature more precise. The heating function will
be stopped automatically under abnormal conditions. Please
operate follow the instructions below:
•Switch OFF the instrument.
•Ensure the external temperature sensor is inserted in the
media heated.
•Switch ON the instrument and run heating function.

If the heating function does not work, please contact
dealer/supplier for support.
7.
Residual heat warning （ HOT ）
In order to prevent the risk of burns from the hotplate, the
unit has a residual heat warning function. When the heating
function is switched off and the heating plate temperature is
still above 50°C, “Hot” will flash to warn that there is a
hazard of burns from the hotplate. When the hotplate
temperature drops to below 50℃, the unit will automatically
switch off. If users want to turn off the LCD screen
immediately, just pull out the plug directly. When the power
OFF, the residual heat warning function cannot be run.
8. Logging function
Figure 8
The data can be saved by SD card.The process is as follows:
With the power switch turned off, insert the SD card into the
slot on the left side of the panel.
After inserting it, turn on the power switch and operate the
heating as described above. Set temperature at 1 minute
intervals,
The current temperature will be logged automatically.
SD card

The logged data can be checked in Excel format by
connecting the SD card to a personal computer.
9. Faults
•Instruments can’t be power ON
-Check whether the power line is unplugged
-Check whether the fuse is broken or loose
•Fault in power ON self test
-Switch OFF the unit, then switch ON and reset the
instruments to factory default setting.
•Stir speed cannot reach set point
-Excessive medium viscosity may cause abnormalspeed
reduction of the motor
•Unit cannot be powered OFF when switched OFF.
-Check if the residual heat warning function is still ON
and hotplate temperature is above 50℃(the LCD screen
still work and “Hot” flash).
If these faults are not resolved, please contact dealer/
suppler.
10. Maintenance and Cleaning
•Proper maintenance can keep instruments working
properly and lengthen its lifetime.
•Do not spray cleanser into the instrument when cleaning.
•Unplug the power line when cleaning.
•Only use recommended cleansers:
Dyes
Isopropyl alcohol
Construction materials
Water containing tenside /
Isopropyl alcohol
Cosmetics
Water containing tenside /
Isopropyl alcohol
Foodstuffs Water containing tenside
Fuels
Water containing tenside
•Wear the proper protective gloves during cleaning of the
instrument.
•Before using other method for cleaning or
decontamination, the user must ascertain with the
manufacturer that this method will not harm the
instrument.
•Send in the case of service the instrument back in the
packaging carton. Storage packing is not sufficient for the
back dispatch. Use additionally a suitable transportation
Note:
The logging function starts automatically when you
press the temperature control knob, and stops when
you press it again.
Be sure to turn off the power switch when removing
the SD card. It may cause a malfunction.

packing.
•The enamel makes the hotplate easier to care for and
more resistant to acids and bases. Because of it, however,
the hotplate is also more susceptible to extreme
fluctuations in temperature and the force of impact.
This can result in cracks forming or the
coating flaking off.
11. Associated standards and
regulations
EN 61010-1
UL 3101-1
CAN/CSA C22.2(1010-1)
EN 61010-2-10
party responsible for compliance could void the user's
authority to operate the equipment.
NOTE: This equipment has been tested and found to comply
with the limits for a Class A digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user
will be required to correct the interference at his ownexpense.
EN 61326-1
guidelines: 89/336/EWG Instrument
guidelines: 73/023/EWG
Changes or modifications not expressly approved by the
Construction in accordance with the following safety
standards:
Construction in accordance with the following EMC
standards:
Associated EU guidelines: EMC-

12. Specifications
Work plate Dimension [W x D]
254x254mm
（
10inch
）
Work plate material
Glass ceramic
Motor type
Brushless DC motor
Stirring positions
1
Max. stirring quantity, [H2O]
30L
Max. magnetic bar[length]
80mm
Speed range
100-1500rpm resolution±1rpm
Speed,time, Temperature display
LCD
Timer function
1min-99h59min
Heating temperature range
Room Temp.-500℃, increment1℃
Temperature control accuracy
±1℃(<100℃)±1%(>100℃)
Overheating protection
540℃
Temperature display accuracy
±0.1℃
External temperature sensor
PT1000(±0.2℃)
"Hot" warning
50℃
Data connector
SD card
Protection class
IP21
Power
1400W
Heating output
1350W
Voltage Frequency
100-120/200-240V 50/60Hz

Dimension [WxDxH]
328x424x138mm
Weight
7.18kg
Permissible ambient temperature and
humidity
5-40℃
，
80%RH
PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATION
3, Hagavish st. Israel 58817 Tel: [phone], Fax: [phone] [email protected]
MRC.1.22
