1 Safety Regulations
1.1 Correct Use
The SingleLineSCOUT, in this manual also referred to as device, is a personal monitoring unit that monitors
the proper functioning of a respiratory protective device. It displays the current operating data of the
respiratory protective device and signals the danger conditions (visually and acoustically).
It is imperative that this operating manual be read and observed when using the device. In particular, the
safety instructions, as well as the information for the use and operation of the device, must be carefully read
and observed. Furthermore, the national regulations applicable in the user's country must be taken into
account for a safe use.
WARNING!
This product is supporting life and health. Inappropriate use, maintenance or servicing may affect the
function of the device and thereby seriously compromise the user's life.
Before use, the product operability must be verified. The product must not be used if the function test is
unsuccessful, it is damaged, a competent servicing/maintenance has not been made, genuine MSA spare
parts have not been used.
Failure to follow these warnings can result in serious personal injury or death.
Alternative use, or use outside this specification will be considered as non-compliance. This also applies
especially to unauthorised alterations to the product and to commissioning work that has not been carried
out by MSA or authorised persons.
1.2 Liability Information
MSA accepts no liability in cases where the device has been used inappropriately or not as intended. The
selection and use of the device are the exclusive responsibility of the individual operator.
Product liability claims, warranties and guarantees made by MSA with respect to the device are voided, if it is
not used, serviced or maintained in accordance with the instructions in this manual.
1.3 Lung Governed Demand Valve
The use of lung governed demand valves carrying short medium pressure lines (50cm +/- 5cm) is
mandatory to reduce snagging risk.
4
1 Safety Regulations GB

2 Description

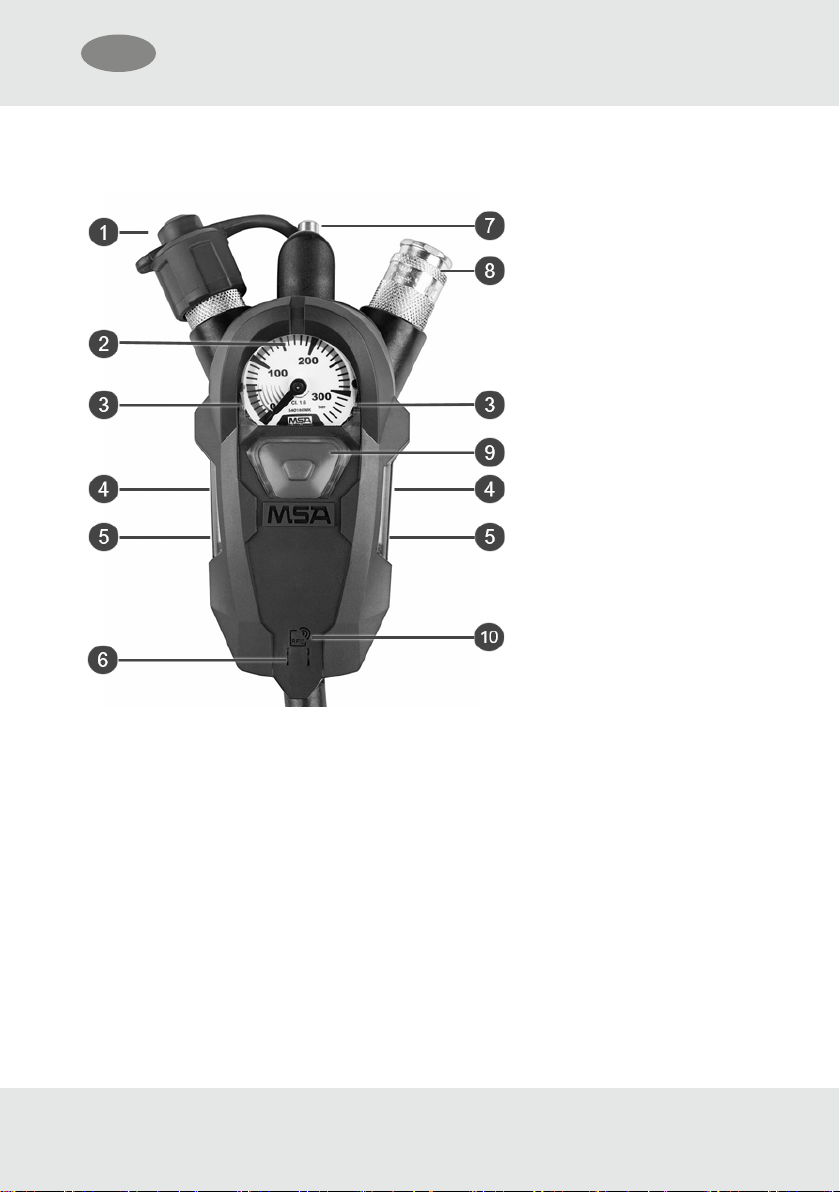

Figure 1 Overview SingleLine SCOUT
1 Second connection (optional) 6 Battery life indication
2 Pressure gauge 7 Warning device (signal whistle)
3 Pressure gauge lightning 8 Lung governed demand valve
coupling
4 Buddy lights 9 Alarm button
5Sound channel & safety key holder with
safety key (left) 10 Transponder (RFID)
The SingleLineSCOUT (see Figure 1 ) is connected at the end of the SingleLine of an applicable MSA
SCBA. It consists of the pressure gauge(2), the coupling for the lung governed demand valve(8) as well as
an acoustic warning device(7) (signal whistle). It triggers a continuous warning signal when the cylinder
pressure drops below 55±5bar. The second connection(1) connects a second lung governed demand
valve (e.g. rescue kit or RespiHood).
5
GB 2 Description

The device monitors the proper functioning of the respiratory protective device. It displays the current
operating data of the respiratory protective device and signals the danger conditions (visually and
acoustically). In addition, the device automatically triggers an alarm if the apparatus user is not moving and
provides the opportunity for manual alarm triggering.
In the event of pressure alarm, motionless alarm or a manual alarm activation via button, bright red LEDs -
buddy lights(4) - mounted on both sides of the device flash and are visible from the outside.
The device is equipped with an internal data memory for saving the operational data for more than 30
sessions with up to 20 min working time.
6
2 Description GB

3 Installation

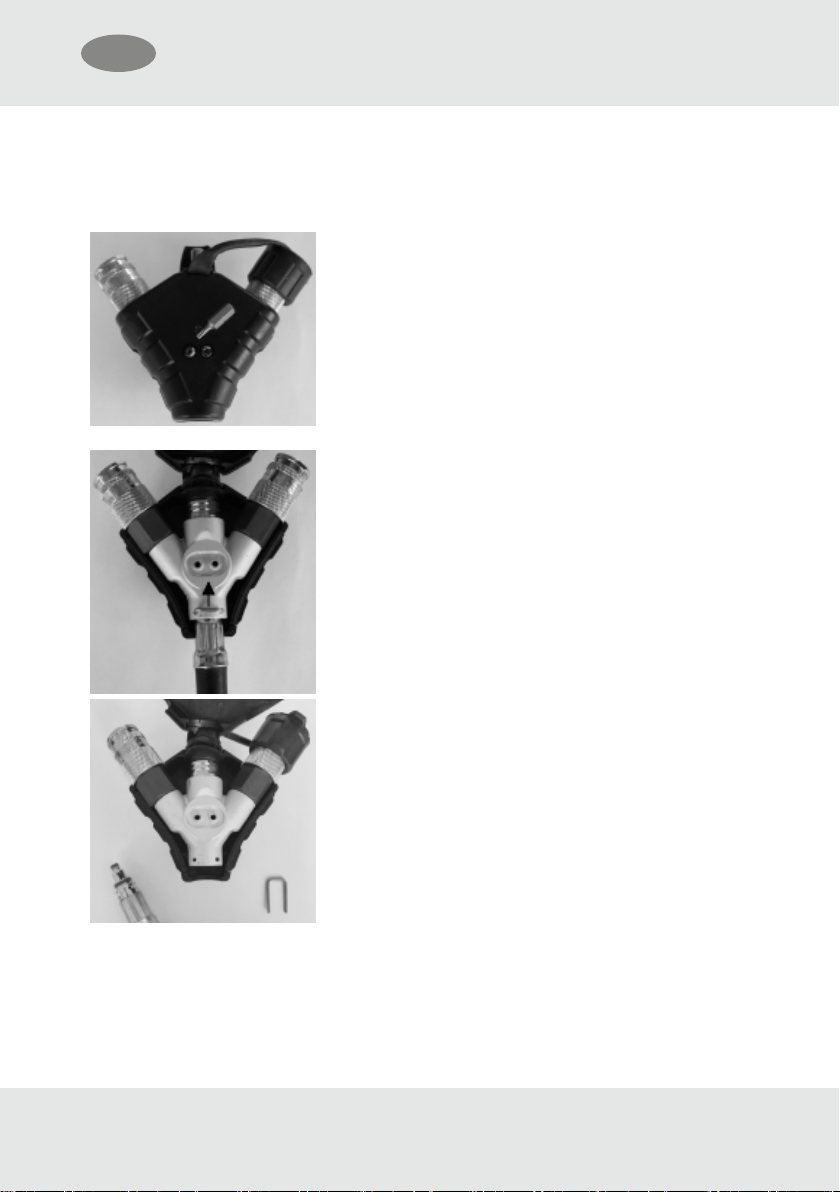

Disassembling SingleLine Gauge
For disassembling the SingleLine gauge, a Torx spanner and a small screw driver are required.
(1) Unscrew the back cover of the SingleLine gauge with
a Torx T10 spanner.
(2) Lift the back cover.
(3) Remove the U-clip with a small screw driver.
(4) Pull the SingleLine manifold out.
7
GB 3 Installation

CAUTION!
The screws are not reusable and MUST be replaced with new ones after each disassembly.
Failure to follow this caution can result in minor or moderate injury.
Assembling SingleLine SCOUT
For assembling the device, a Torx spanner and a small screw driver are required.
(1) Unscrew the battery cover of the device with a Torx T10
spanner.
(2) Remove the battery cover.
(3) Remove the U-clip with a small screw driver.
(4) Push the SingleLine into the attachment point.
(5) Secure the SingleLine with the U-clip.
(6) Insert the batteries. Follow insert direction printed in
battery compartment. Only use certified batteries (see
chapter7).
(7) Close the battery compartment with a Torx T10 spanner
(0.7 Nm).
(8) Perform a tightness check (see chapter4).
8
3 Installation GB

4 Use
4.1 Switching on
(1) Open compressed air cylinder.
(2) If pressure>15bar, SingleLineSCOUT starts up.
a) Electronic component check:
All LEDs are flashing once, an acoustic signal sounds and the gauge LEDs light up green. The
device is ready for use.
If only red LEDs light up and no acoustic signal sounds, do not use the device. There is an
electronical damage.
b) Optional: High pressure tightness test:
– Press manual alarm button within first 30 seconds after self test was confirmed.
Allow 8 to 12 seconds for stabilisation before closing the cylinder valve.
– Close cylinder valve and double click on the alarm button.
The self test starts measuring the pressure drop within 60 seconds; red and yellow LEDs flash
while the test is running.
If the pressure drop is < 10 bar within 60 seconds, the device tightness is confirmed by an
acoustic sound and green gauge LEDs flashing.
– Release air slowly using the lung governed demand valve until warning whistle sounds up.
– Close the lung governed demand valve and reopen cylinder valve to use the SCBA.
NOTE: Pressure drop must not be > 10 bar / 60 seconds. If the pressure drop is >10bar within 60
seconds, the test is stopped with an acoustic sound and red LEDs flashing. The device is not tight. Do
NOT use the device.
(3) If pressure<15bar, SingleLineSCOUT does not start up.
If only red LEDs light up and no acoustic signal sounds, the pressure level or battery capacity
might be to low.
4.2 Switching off
Switching off the SingleLineSCOUT is only possible in the pressure-free status. The device is considered to
be pressure-free if the measured pressure is less than 15 bar.
(1) Close the valve(s) of the compressed air cylinder(s) and vent the compressed air breathing apparatus
via the lung governed demand valve (see operating manual for compressed air breathing apparatus).
An acoustic signal sounds between 60 and 0 bar.
(2) Push the alarm button twice.
The pressure alarm switches off.
(3) Push the alarm button twice.
An acoustic signal sounds.
The device switches off.
4.3 Pressure Status Message
While operating, the device makes an acoustic sound at the following pressure thresholds:
• 1st pressure threshold – Single beep
9
GB 4 Use

• 2nd pressure threshold – Double beep
• 60 bar – Signal whistle – double beep repeated until confirmed with double press below 15bar
These thresholds can be changed using the MSA A2 Software in combination with 10181672 as PC
interface.
See MSA A2 Software for more details.
4.4 Battery Life Indication
The battery life of the device is indicated as follows:
• Batteries are OK – The device starts in SCOUT Mode. The green battery life indication blinks for 100ms
every 45seconds.
• Batteries are empty
– In Standby: The red battery life indication LED blinks for 100ms every 30seconds.
– During start-up: The device does not start properly. All red LEDs incl. battery life indicator
lighten up and an acoustic signal sounds.
If the battery power level cannot be measured anymore, the device will not start.
In all cases, the batteries must be exchanged.
Update date and time settings after battery exchange using MSA A2 Software.
4.5 Initiating Manual Alarm Calls during Use
(1) Push the manual alarm button until the alarm sounds and buddy lights are turned on.
4.6 Canceling Alarms
(1) Push the alarm button twice.
The alarm turns off.
4.7 Using a Safety Key
The SingleLine SCOUT can be used with a safety key (10186697).
Motion Detection
The device automatically detects if a key is placed in its holder. If a key is detected during start up, the motion
detection is deactivated and can be activated by removing the key.
All warnings and alarms related to the motion detector are deactivated.
Muted Alarms during Rapid Intervention Team (RIT) Missions
The key can be used during RIT missions to mute device alarms while they are active by pushing the key in
the holder of the device in alarm state.
Pressure warnings and pressure alarm sounds will still occur.
4.8 Illuminating the Gauge
(1) Lift up the gauge from the chest over an angle of 90°.
The gauge lightning turns on.
10
4 Use GB

Alarm Statuses
Alarm LEDs Acoustic
1st threshold Gauge green lighted and blinking 1 Beep
2nd threshold Gauge yellow lighted and blinking 2 Beep
≤ 60 bar Gauge red & buddy lights lighted
and blinking 2 Beep
Battery warning Bottom red None
Manual alarm Gauge red & buddy lights lighted
and blinking Distinct pattern
Motion pre-alarm Gauge red & buddy lights lighted
and blinking
Increasingly louder consecutive
variable tones
Motion alarm Gauge red & buddy lights lighted
and blinking Distinct pattern
The user can acknowledge an alarm after it is triggered.
Alarm Acknowledge
1st threshold Not necessary, since short acoustic signal.
2nd threshold Not necessary, since short acoustic signal.
≤ 60 bar
Confirmation only possible below 15bar pressure: Push the alarm
button twice.
Pneumatic whistle cannot be confirmed.
Alarm will continuously appear.
Battery warning Exchange batteries – outside of hazardous area only
Replacing the battery after the operation.
Manual alarm Push the alarm button twice.
Motion pre-alarm Movement of SingleLine SCOUT
Motion alarm Push the alarm button twice.
Cylinder Pressure Display
The cylinder pressure is displayed via the integrated analogue gauge and additionally detected from an
internal pressure sensor. Current pressure can be read from the gauge using the imprinted scale.
The up-to-date filling level of the compressed air cylinders is displayed in 3 stages, in accordance with the
following coding, using 3LEDs on each side of the gauge when the device is lifted from the user’s chest.
Following thresholds represent the standard setting and can be changed using MSA A2 Software in
combination with 10181672 as PC interface.
See MSA A2 Software for more details.
11
GB 4 Use

Pressure level in
compressed air cylinder
LED display Visual representation
> 100 bar 2 green LEDs
< 100 bar and > 60 bar 2 yellow LEDs
< 60 bar (warning
signal/pressure alarm)
2 red LEDs
2 buddy lights
Reading out the Device using the MultiTAG-USB (125kHz/13,56MHz/NFC)
It is possible to read out the data from the SingleLineSCOUT. Settings can be changed to a certain extent
and reloaded back to the device. This is done by loading the MSA A2 Software on the PC.
See connected software manual in application software “SingleLine SCOUT”.
12
4 Use GB

5 Cleaning and Maintenance
5.1 Cleaning
WARNING!
Do not use any organic cleaning material for the cleaning of the individual components, such as nitro
thinners, alcohol, white spirit, petrol etc.
Failure to follow this warning can result in serious personal injury or death.
SingleLine SCOUT devices produced before July 2021
The device components should be cleaned after each operation and, if badly contaminated, with a damp
cloth (tepid water) and a little detergent. The device does not need to be removed from the pneumatics for
cleaning.
SingleLine SCOUT units produced after July 2021
Please follow instructions for washing related to M1 SCBA.
5.2 Maintenance
The device is largely maintenance-free. It is recommended that the device is subject to regular visual
inspections to check whether there are any faults or damage.
If there are any faults, the device must be replaced. The device must not be repaired by the user. Repairs
must only be carried out by the manufacturer or by a repair service authorized by the manufacturer.
Exchanging the Batteries
Due to storage and delivery times, it might be necessary to exchange batteries before putting the device into
first service.
The charging status of the batteries is monitored by the device. Low battery conditions can be recognised by
the user:
• In Standby: The red battery life indication LED blinks for 100ms every 30seconds.
• During start-up: The device does not start properly. All red LEDs incl. battery life indicator lighten up and
an acoustic signal sounds.
If the battery power level cannot be measured anymore, the device will not start.
In all cases, the batteries must be exchanged.
Use approved batteries only. The usage of non-approved or old batteries is notified by the device and
announced during the automatic start-up after inserting the batteries. Only remove batteries if they have to
be exchanged and battery state has been discovered to low for operation by the device.
Update date and time settings after battery exchange using MSAA2Software.
It is recommended that the batteries be changed at least once a year or if indicated to do so by the LED or on
the display.
The device is designed to provide an operational time of 500hours or 1year stand by, the operational time
might vary depending to incident conditions and usage.
13
GB 5 Cleaning and Maintenance

WARNING!
Remove batteries if device is stored for more than one year.
Never change batteries in hazardous areas. There is a danger of explosion since the batteries can cause
sparks when being changed! Danger of injury!
Check the polarity of the batteries when replacing. Incorrect polarity connection can lead to damage to the
device or impairment of the operability of the device.
Failure to follow these warnings can result in serious personal injury or death.
NOTICE
The maximum locking torque for the battery cover is 0.7Nm. Do not overtighten, otherwise the inserts can be
pulled out!
The device shall only be operated with the following battery types:
• Energizer L91 Ultimate Lithium
• VARTA 6106 (Professional) Lithium
(1) Open the battery compartment with a Torx T10 spanner.
(2) Replace the batteries with new ones.
(3) Refit the cover of the battery compartment. Whilst doing so, check the sealing for damage and dirt. If
the battery cover is damaged, please contact the MSA service. Maximum locking torque for battery
cover: 0.7Nm. If the sealing is not damaged or soiled, the battery cover is not twisted or warped and
the screws are not overtightened, the device is water tight and ready to use.
After changing the batteries, the device will perform an electronic self test.
Connect to MSAA2Software using the service mode to make sure time and date settings are up to date.
Maintenance and T est Schedules
Type of work Before use After use Annually Recommended
every 12years
Changing the batteries1X
Cleaning X
Basic overhaul by
manufacturer X
1In any case, change the batteries if low battery alarm is indicated.
Start without Pressure
Long press of manual alarm button in standby activates the device in full alarm without pressure.
Service mode
Pressing manual alarm button for more then 10 seconds in standby activates the service mode.
Service mode can be used in combination with MSA A2 Software to change device settings and read out log
memory.
For more information, see MSA A2 Software.
14
5 Cleaning and Maintenance GB

6 Technical Data
High pressure : 200 bar resp. 300 bar
Medium pressure : 5 bar to 9 bar
Operating : -30°C to +60°C
Storage : 0°C to +40°C
Dimensions
:
Length: 180mm
Width: 110mm
Height: 65mm
Approvals
:
CE 0158
ATEX
BVS 17 ATEX E 094
Ex ia IIC T4 Ga
PPE
EN 137:2007, Typ 2
Batteries (Approved)
:
Recommended for use:
Type AA, Energizer L91 Ultimate Lithium for use between -30°C
and +60°C
Alternative use with limited operation temperature range:
Type AA/6106, VARTA (Professional) Lithium for use between
-20°C and +60°C
15
GB 6 Technical Data

7 Markings, Certificates and Approvals
Marking, Certificates and Approvals according to the Directive 2014/34/EU (ATEX) and National
Standards
Manufacturer: MSA Europe GmbH
Schlüsselstr. 12
CH - 8645 Rapperswil-Jona
Product: SingleLineSCOUT
EU-Type
Examination Certificate: BVS 17 ATEX E 094
Standards: EN IEC 60079-0: 2018,
EN 60079-11: 2012
Marking: II 1G Ex ia IIC T4 Ga
-30°C ≤Ta ≤+60°C
Battery T4: -30°C ≤Ta ≤+60°C
Energizer L91 Ultimate Lithium
Specific Conditions for Safe Use:
• Read the safety instructions before use.
• Use only one battery type in the same device.
• Do not open in hazardous area.
Quality Assurance
Notification:
0158
Year of Manufacture: see Label
Serial No.: see Label
Marking and Certificates according to IECEx
Manufacturer: MSA Europe GmbH
Schlüsselstr. 12
CH - 8645 Rapperswil-Jona
Product: SingleLineSCOUT
IECEx-Type
Examination Certificate: IECEx BVS 17.0085
Standards: IEC 60079-0: 2017,
IEC 60079-11: 2011+Cor.:2012
Marking Ex ia IIC T4 Ga
-30°C ≤Ta ≤+60°C
Battery T4: -30°C ≤Ta ≤+60°C
Energizer L91 Ultimate Lithium
16
7 Markings, Certificates and Approvals GB

Specific Conditions for Safe Use:
• Read the safety instructions before use.
• Use only one battery type in the same device.
• Do not open in hazardous area.
Quality Assurance
Notification:
0158
Year of Manufacture: see Label
Serial No.: see Label
17
GB 7 Markings, Certificates and Approvals

8 Ordering Information
Description Part number
SingleLine SCOUT with 2 medium pressure connections - without
SingleLine 10183243
SingleLine SCOUT with 1medium pressure connection - without
SingleLine 10184951
Battery AA, Energizer L91 Ultimate, 4 pcs. 10185625-SP
SingleLine SCOUT RFID Kit 10189001
SingleLine SCOUT safety key, set of 10 pcs. 10186697
ATO configured with M1 SCBA
For usage with AirMaXX and AirGo with SingleLine Pneumatics
please use 10183243 or 10184951.
18
8 Ordering Information GB

19
GB 8 Ordering Information

For local MSA contacts, please visit us at MSAsafety.com
