NAMCO TANK! TANK! TANK! User manual

To ensure safe operation of the game machine, be sure to read this Operation Manual before use.
Keep this Operation Manual in a safe place for quick access whenever needed.
R
Photo shows 2 games linked together for 4 player action. Part No. TA45-12767-00
W ARN I N G
TANK! TANK! TANK!
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | [phone] | +1.561.391.7200

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | [phone] | +1.561.391.7200

INTRODUCTION
Thank you for purchasing the“TANK! TANK! TANK!”game machine (hereafter referred to as the“machine”).
This operation manual describes:
zHow to install, operate, relocate, transport, maintain and discard the machine safely
and properly
zHow to operate the machine correctly and make full use of its features
zHow to ensure safety of players and bystanders
Inquiries regarding this machine and its repair
zFor further information about the machine and its repair, contact your distributor.
The software included in the machine is protected by copyright laws.
The software must not be copied, modified, distributed publicly, or used for purposes other
than the operation of this game machine.
Violators of copyright laws may be subject to criminal penalties.
Do not use the software storage media in any other game machine; otherwise, machine mal-
functions may result.
Some parts of the software used in this game machine are applicable to GNU General Public
License (“GPL”) and GNU Lesser General Public License (“LGPL”). The customer is allowed
to obtain, modify and redistribute the source codes of these parts of the software. However,
those source codes constitute only portions of this product, and it does not imply that the
source codes of the entire product can be obtained, modied or redistributed.
Regarding GPL and LGPL, visit the following websites.
http://www.fsf.org/licensing/licenses/gpl.html
http://www.fsf.org/licensing/licenses/lgpl.html
If you wish to obtain GPL/LGPL source codes used in this machine, please contact your dis-
tributor.
The software in the machine uses the following middleware and libraries.
Havok® © Copyright 1999-2009 Havok.com Inc.
Bink Video. Copyright © 1997-2009 RAD Game Tools, Inc.
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | [phone] | +1.561.391.7200

1
1. SAFETY PRECAUTIONS - Be sure to read these instructions to ensure safety -
Instructions to the owner
zIf you entrust another party to perform installation, operation, relocation, transpor-
tation, maintenance or discarding of the machine, instruct the concerned party to
read and observe all the instructions and precautions in this operation manual re-
garding the particular action to be taken.
1-1 Magnitudes of risk
On the labels attached to the machine and in this operation manual,
precautions regarding safety and property damage are classified as
shown below in accordance with the magnitude of the particular risk.
WARNING
: Failure to prevent the indicated risk may result in death or serious
injury.
CAUTION
: Failure to prevent the indicated risk may result in minor injury or
property damage.
Notes related to machine functions but not to safety are marked with
the following indication.
: Note related to product function or protection.
1-2 Denition of the term “technician”
This operation manual is written for arcade personnel. However, the
sections marked “To be conducted by a technician only” in the table of
contents are written for technicians. These tasks should be conducted
by technicians only.
Technician: A person engaged in machine design, manufacture, inspec-
tion or maintenance service for a manufacturer of amuse-
ment equipment, or a person who has technical knowledge
related to electricity, electronics or mechanical engineering
at a level equal to or higher than that of a technical high
school graduate and is engaged routinely in the mainte-
nance and management (including repair) of amusement
machines.
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | [phone] | +1.561.391.7200

2
1. SAFETY PRECAUTIONS - Be sure to read these instructions to ensure safety -
WARNING
1-3 Top-priority safety precautions
zShould any abnormality occur, turn off the power switch immediately to stop oper-
ating the machine. Then, unplug the power cord plug from the AC outlet. Operating
the machine without correcting abnormalities can result in a re or accident.
zSome monitor sections remain hot or charged with high voltage even after the
power switch is turned off. Do not touch the monitor unnecessarily in order to pre-
vent electric shock and burns.
zDust accumulated on the power cord plug may cause a fire. Check the power cord
plug regularly and remove dust.
zInsert the power cord plug rmly into the AC outlet. Poor contact may cause over-
heating that can lead to a re or burns.
zA damaged power cord can cause a re, electric shock or electrical leakage. Ob-
serve the following cautions.
Keep the power cord away from heating devices.
Do not twist the power cord.
Do not bend the power cord forcibly.
Do not alter the power cord.
Do not bundle the power cord.
Do not pull the power cord. (Always unplug by holding the power cord plug,
and avoid pulling the power cord.)
Do not place anything on the power cord.
Do not get the power cord caught by the machine, other equipment or wall.
Do not do anything else that might damage the power cord.
zDo not wet the power cord or power cord plug with water. Water can cause an elec-
tric shock or electrical leakage.
zDo not touch the power cord plug with a wet hand. Doing so can result in an elec-
tric shock.
zThe machine’s rated supply voltage and maximum consumption current are
120 VAC and 12.5A (main unit: 120VAC and 5.8A ; Compressor Assy: 120 VAC
and 6.7A ), respectively. To prevent re and electric shock, be sure to use inte-
rior wiring that conforms to these power supply specications.
zOperate the machine with a power supply voltage in the range of 110 to １
130 VAC. Operating the machine with a supply voltage outside the specied
range may cause a re or electric shock. To ensure that the machine operates
in optimum condition, maintain the power supply at 120 VAC.
zUse consumables and service parts (including fasteners) specied by our com-
pany. To order parts, contact your distributor.
zDo not convert the machine without permission. Do not perform any work that is
not described in this operation manual. Unauthorized conversion of the machine
may create unforeseen hazards.
zWhen transferring the ownership of the machine, be sure to provide this operation
manual together with the game machine.
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | [phone] | +1.561.391.7200

3
1. SAFETY PRECAUTIONS - Be sure to read these instructions to ensure safety -
WARNING

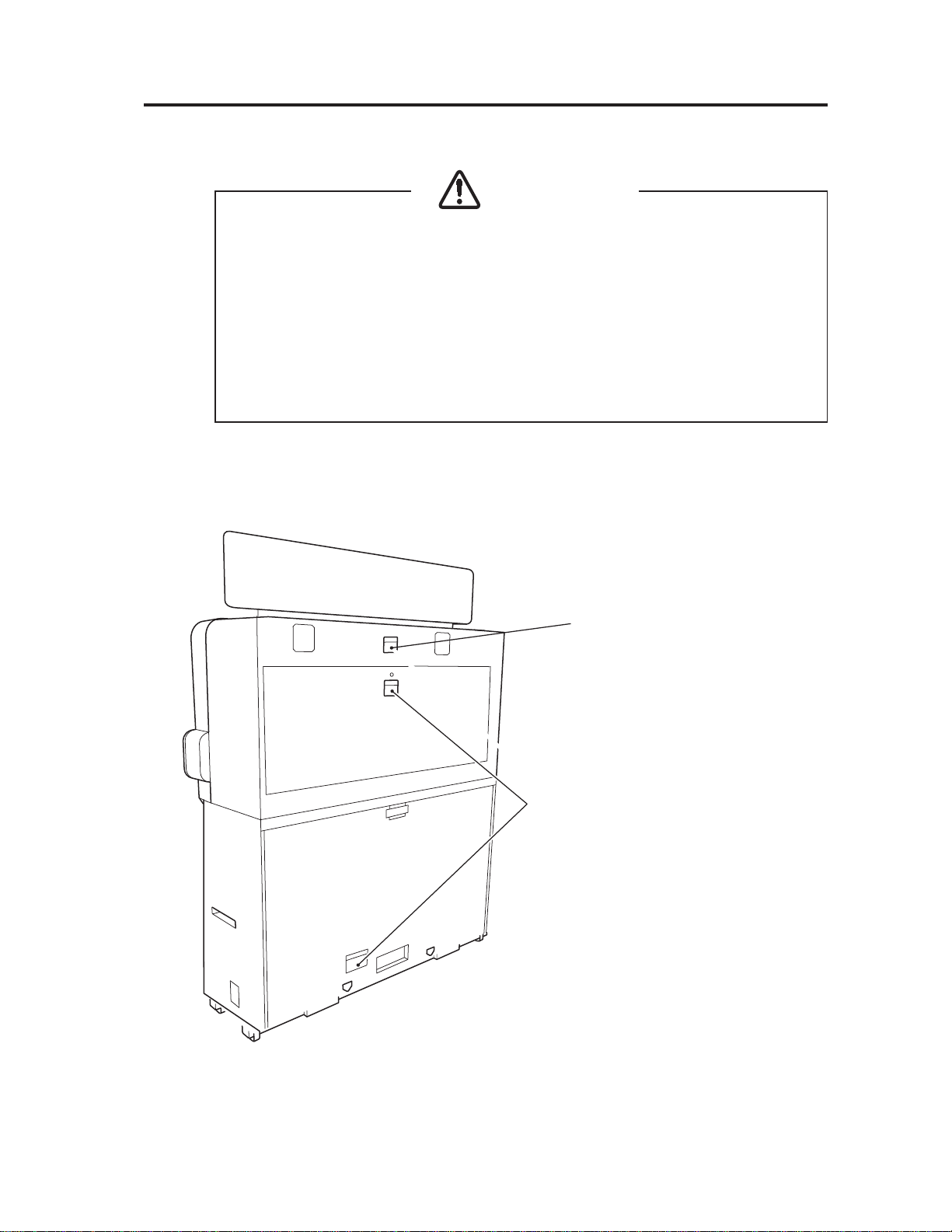

1-4 Description of warning labels attached to the machine
zThe warning labels describe important safety precautions. Be sure to observe the
following:
To ensure that the warning labels attached to the machine are easily legible,
install the machine at an appropriate location with ample illumination and
keep the labels clean at all times. Also, make sure that the labels are not hid-
den behind another game machine or other objects.
Do not remove or alter the warning labels.
If the warning labels become excessively dirty or damaged, replace them with
new labels. To order warning labels, contact your distributor.
8301510101
Monitor Base Assy (rear view)
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | [phone] | +1.561.391.7200

4
1. SAFETY PRECAUTIONS - Be sure to read these instructions to ensure safety -
Ride (L), (R) Assy
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | [phone] | +1.561.391.7200

5
1. SAFETY PRECAUTIONS - Be sure to read these instructions to ensure safety -
Compressor Assy
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | [phone] | +1.561.391.7200

6
2. SPECIFICATIONS
(1) Rated power supply 120VAC
(2) Maximum power consumption 1500 W (main unit: 700W, Compressor Assy: 800W)
(3) Maximum current consumption12.5 A (main unit: 5.8A, Compressor Assy: 6.7 A)
(4) Coin box capacity Approx. 3,000 coins
(5) Display device LCD monitor

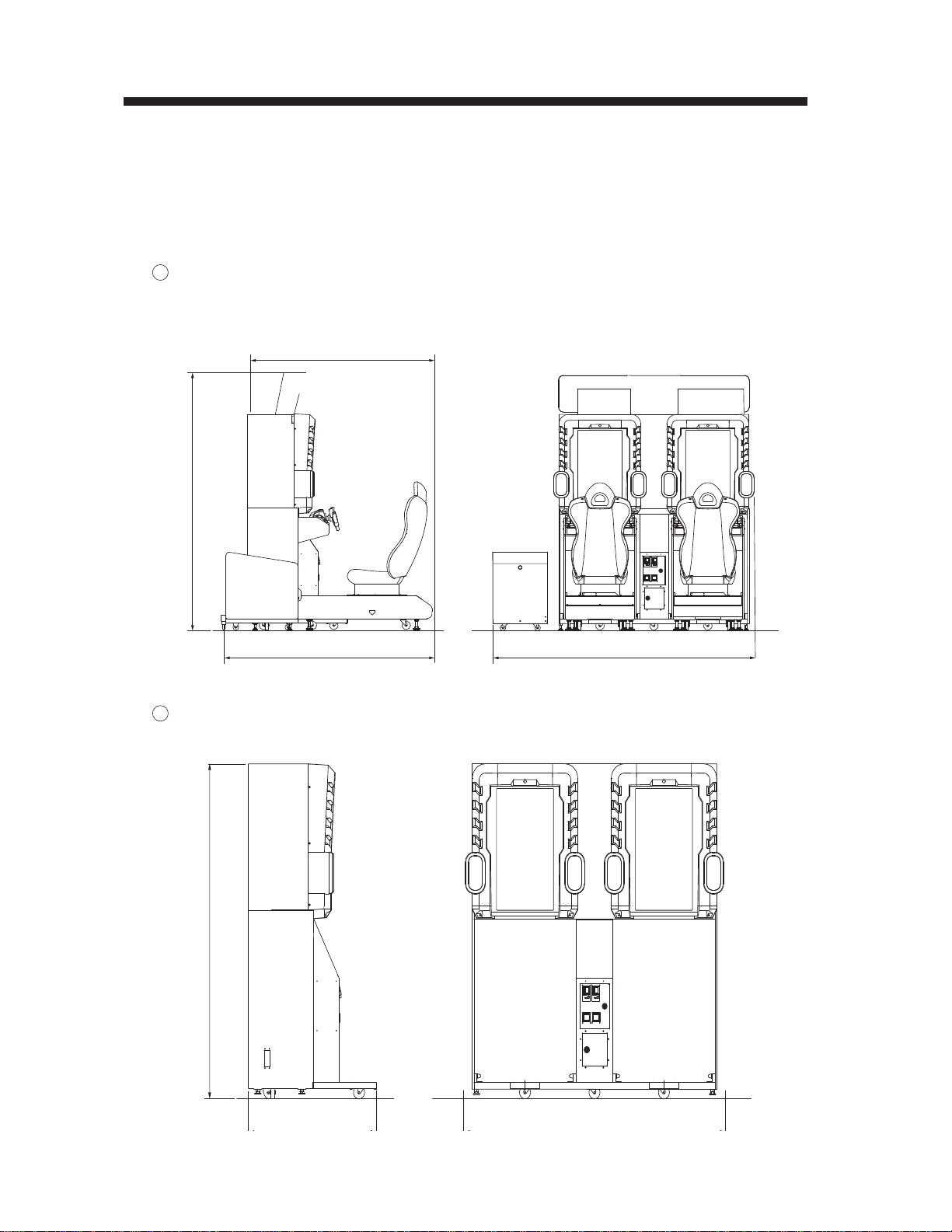

(6) Dimensions
1
As installed 97” (W) x 73” (D) x 99” (H)
2
When divided
Front Assy 72.5” (W) x 45” (D) x 75” (H)
45 72.5
75
73
71
97
99
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | [phone] | +1.561.391.7200

7
2. SPECIFICATIONS
Ride (L), (R) Assy 26” (W) x 61” (D) x 52” (H)
凨凣䯕 凤凨䯕
凧凤䯕
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | [phone] | +1.561.391.7200

8
2. SPECIFICATIONS
Signboard Assy 63.5” (W) x 1/4” (D) x 24” (H)
Compressor Assy 24.5” (W) x 19” (D) x 30” (H)
(7) Weight
1
As installed Approx. 645 kg
2
When divided
Front Assy Approx. 255 kg
Ride (L), (R) Assy Approx. 145 kg
Signboard Assy Approx. 18 kg
Compressor Assy Approx. 80 kg
63.5
24
19 24.5
30
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | [phone] | +1.561.391.7200

9
NOTES
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | [phone] | +1.561.391.7200

10
3. CHECKING THE PACKAGE CONTENTS
The product packages shipped from the factory contain the following components and parts.
zMake sure that all the items shown below are contained in the product
packages.
zIf any item is missing, contact your distributor.
Signboard Assy
Front Assy
Ride (R) Assy
Ride (L) Assy
Compressor Assy
* Colorsof stickers
Ride (L) Assy: Red
Ride (R) Assy: Blue
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | [phone] | +1.561.391.7200

11
3. CHECKING THE PACKAGE CONTENTS
No. Name Specication Qty.
1Operation Manual (this
manual) 1
2 Maintenance key 2
3 Coin box key 2
4 Torx wrench M5, T25 1
5 Communication cable 1 m １
6 Adjuster holder 4
7 Flange-socket bolt (black) M8 x 16, for adjuster holder 8
8 Joint 1
Accessory list
Operation Manual
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | [phone] | +1.561.391.7200

12
3. CHECKING THE PACKAGE CONTENTS
No. Name Specication Qty.
9 USPPOP (EXP) 1
10 Awareness raising POP (EXP) 1
11 Game play instructions POP
(EXP) 1
12 Vibration-isolation pad 4
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | [phone] | +1.561.391.7200

13
4. OVERALL CONSTRUCTION (Names of Parts)
Steering Assy
Steering Assy
Compressor Assy
Monitor (L) Assy
Seat (L) Assy
Maintenance Doors
Rack Assy
(inside the maintenance do
or)
Pedal Assy
Signboard Assy
Namcam 3 (camera)
Namcam 3 (camera)
)
Cord o Assy
o er S itch
Seat (R) Assy
Monitor (R) Assy
ent ho es
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | [phone] | +1.561.391.7200

14
WARNING
WARNING
WARNING
5. INSTALLATION
z
Install the machine according to the instructions and procedures specied in this
operation manual. Failure to follow the specied procedures may result in a re,
electric shock, injury or machine malfunctions.
z
Insert the power cord plug rmly into the AC outlet. Poor contact may cause over-
heating that can lead to a re or burns.
z
Be sure to connect the ground lead. If the ground lead is not connected, elec-
tric shock can result in case of electrical leakage. (See “5-5 Connecting the
power cord and ground lead.”)
z
Install the machine securely by using the level adjusters. Unstable machine
installation can result in an accident or injury. (See” 5-3-2 Adjusting the level
adjusters on the Front Assy” and “5-3-4 Connecting the Ride (L), (R) Assys.”)

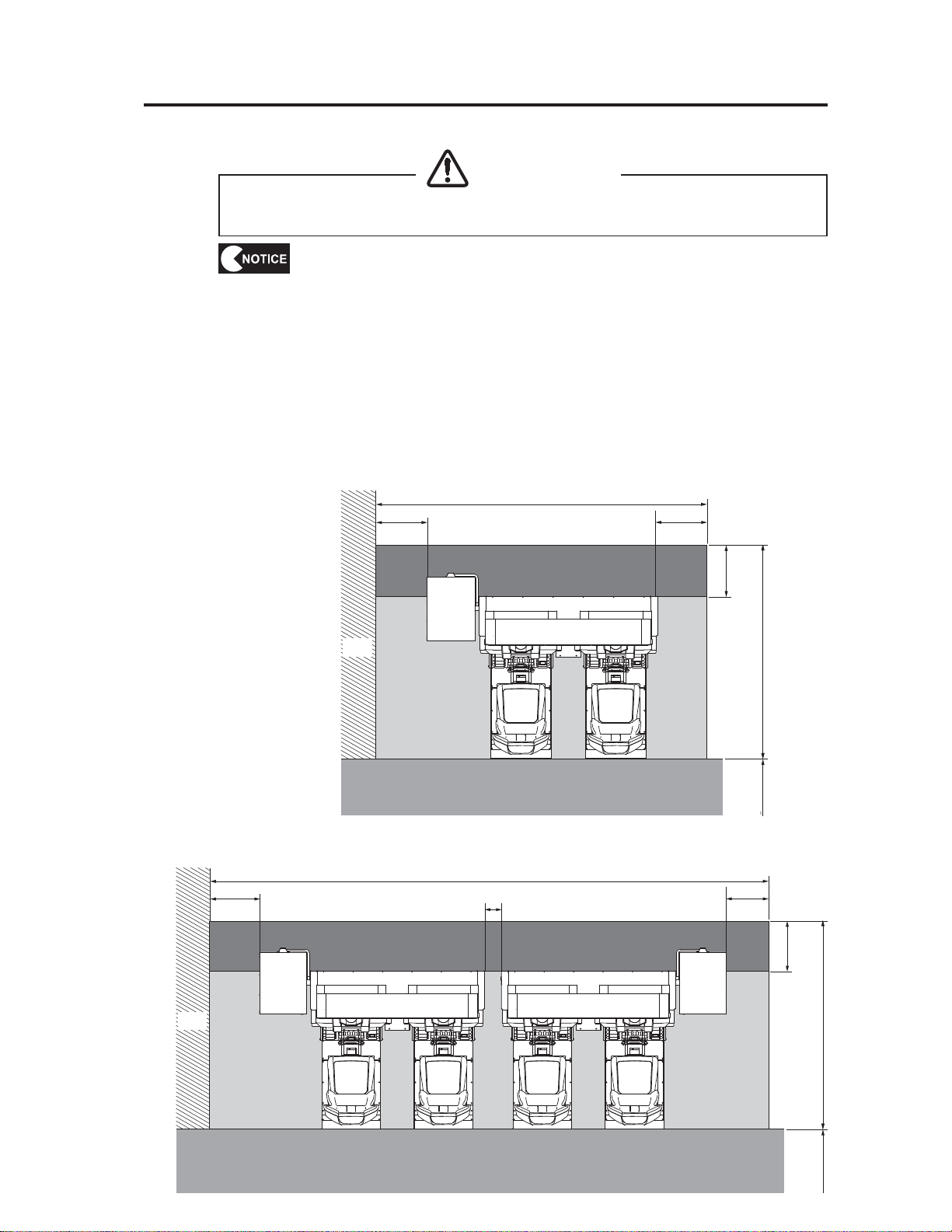

5-1 Installation conditions
z
Do not place items near the vent holes on the rear panel of the main unit and Com-
pressor Assy, or block them with a wall. If those openings are blocked, the inside
of the machine becomes extremely hot and can cause a re or malfunction.
5-1-1 Locations to avoid
z
The machine is designed for indoor use only. Never install the machine out-
doors or at any of the following locations:
Place in direct sunlight
Place exposed to rain or water leakage
Damp place
Dusty place
Close to heating devices
Hot place
Extremely cold place
Place where dew condensation may occur due to temperature dierences
Place where the machine may become an obstruction in emergencies (such
as near emergency exit) and place where re extinguisher or similar equip-
ment is installed
Unstable place or location where vibrations are produced
The machine is equipped with a camera image capture function.
To obtain high-quality images, do not install the machine in any of the fol-
lowing locations.
z
Place where bright light sources such as sunlight and spotlight shine
directly on the camera
z
Place where bright ashing light causes a strong contrast in brightness
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | [phone] | +1.561.391.7200

15
5. INSTALLATION
CAUTION
z
If two or more units are installed, provide a space of at least 4” be-
tween the units.
Maintenancezone
Wall
２０”ormore ２０”or mor
e
２０” or more
８７” or more
０” or more
１３０” or more
Play zone
Play zone
Aisle
Maintenancezone
Maintenancezone
Wall
２０” ormore
Play zone Play zone
２０”or more
４” or more
２０”or more
８７”
or more
４０”
or more
２２５” or more
Aisle
Maintenancezone
5-1-2 Play zone for installed machine
z
Provide an appropriate play zone so that players do not accidentally bump into ob-
servers or passersby.
zProvide a space of at least 20” between the rear side of the machine
and the wall or other machine so that the maintenance panel can be
removed for maintenance.
z
The distance from the oor to the ceiling must be at least 95” .
z
The diagrams below show recommended Compressor Assy installation
positions. Be sure to observe the following three points and install the
Compressor Assy according to the arcade layout.
The joint that connects the Compressor Assy and Front Assy must
not be applied with excessive force.
The joint that connects the Compressor Assy and Front Assy must
not get in the way of players or observers.
The vent holes on the rear side of the Compressor Assy must not be
blocked.
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | [phone] | +1.561.391.7200

16
5. INSTALLATION
5-2 Required dimensions of carry-in passage (such as doors
and corridors)
The carry-in passages must be sufficiently higher and wider than the dimensions indicated be-
low.
zFront Assy
72.5”(W) x 45” (D) x 75”(H)
Weight: Approx. 270 kg
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | [phone] | +1.561.391.7200

17
5. INSTALLATION
NOTES
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | [phone] | +1.561.391.7200
