Neousys Technology Nuvo-5095GC Series User manual

Nuvo-5095GC Series User’s Manual
Copyright © 2017 Neousys Technolgy Inc. All Right Reserved.
1
Neousys Technology Inc.
Nuvo-5095GC Series
Compact and Wide-Temperature GPU Computing Platform with
nVidia® GeForce® GTX 950/1050 and 6th-Gen Intel® Core™ Processor
User’s Manual
Rev. A1.1

Nuvo-5095GC Series User’s Manual
Copyright © 2017 Neousys Technolgy Inc. All Right Reserved.
2
Revision History
Date Change List Version
2017/2/14 First formal release A1
2020/8/17 Packing list updated A1.1

Nuvo-5095GC Series User’s Manual
Copyright © 2017 Neousys Technolgy Inc. All Right Reserved.
3
Declaimer.............................................................................................................................6
Declaration of Conformity.............................................................................................6
FCC.......................................................................................................................6
CE .........................................................................................................................6
Copyright and Trademarks ...........................................................................................6
Chapter 1 Introduction.........................................................................................................7
1.1 Overview.................................................................................................................7
1.2 Product Specification..............................................................................................8
1.2.1 Specification of Nuvo-5095GC......................................................................8
1.3 List of Supported CPU..........................................................................................10
1.4 List of Supported Graphics Card...........................................................................11
Chapter 2 Getting to Know your Nuvo-5095GC................................................................12
2.1 Unpacking your Nuvo-5095GC Controller ............................................................12
2.2 Front Panel I/O Functions.....................................................................................13
2.2.1 Power Button..............................................................................................13
2.2.2 Reset Button...............................................................................................14

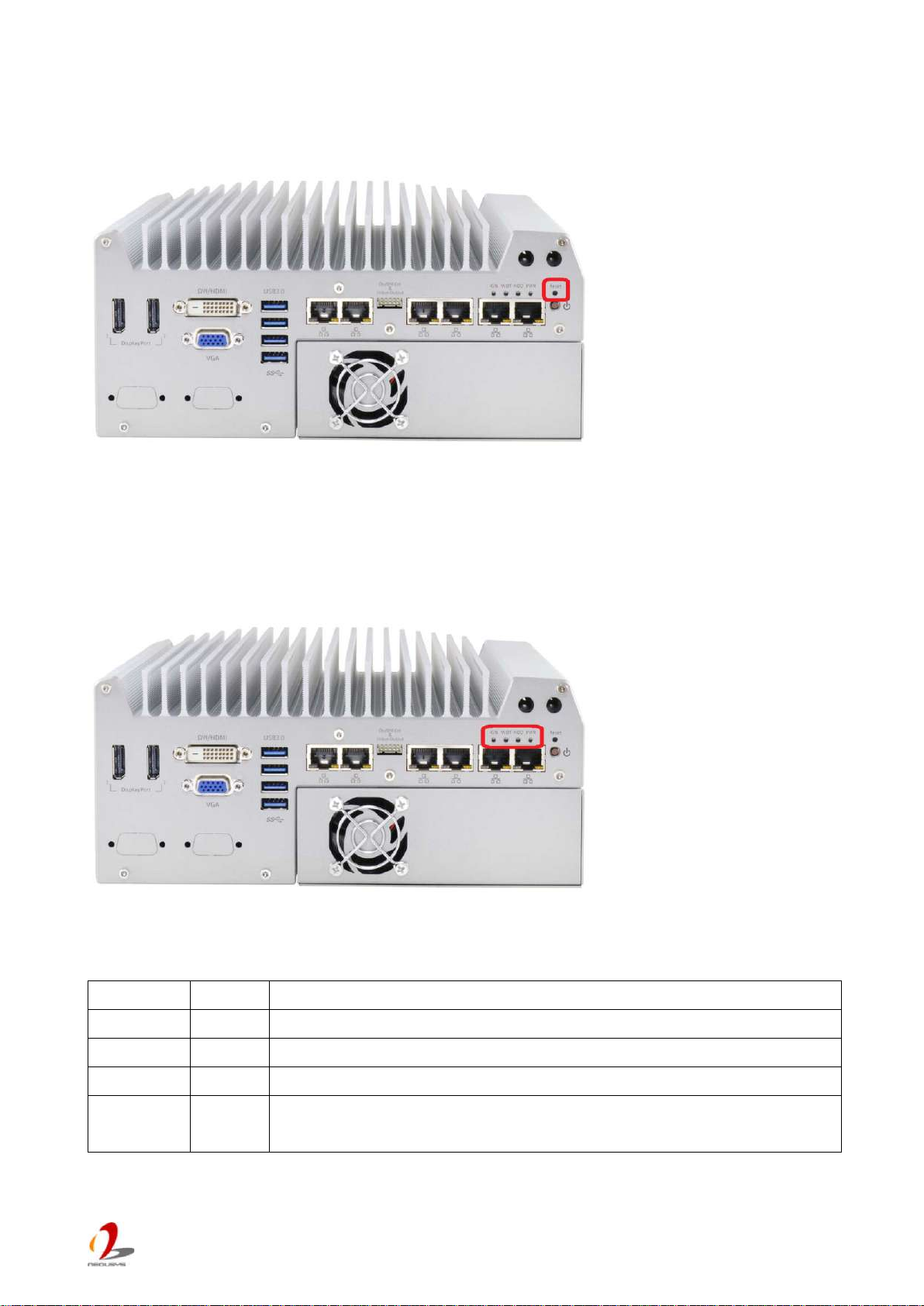

2.2.3 LED Indicators............................................................................................14

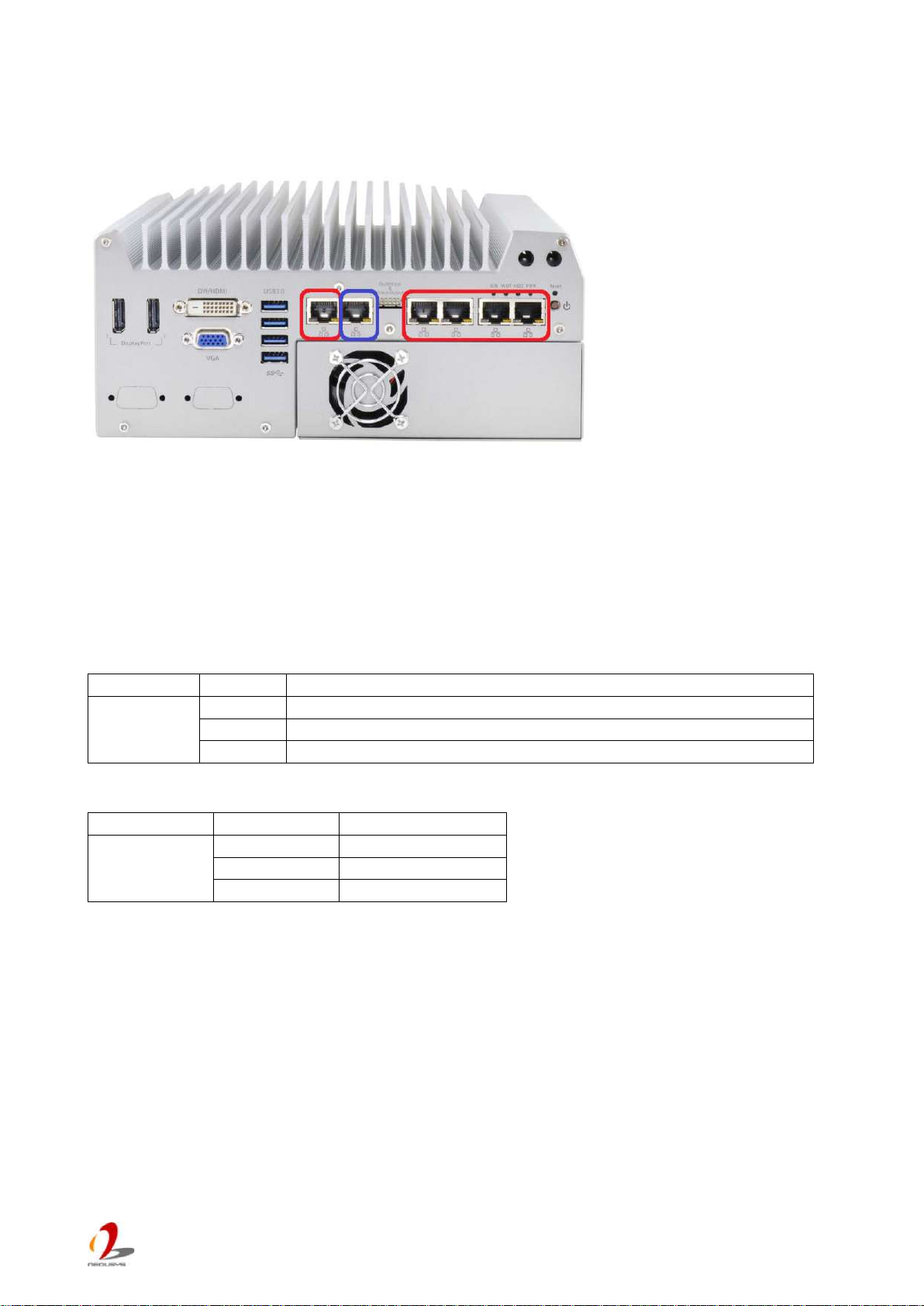

2.2.4 Gigabit Ethernet Port..................................................................................15
2.2.5 Remote On/Off Control and Status LED Output .........................................16
2.2.6 USB 3.0 Connectors...................................................................................17

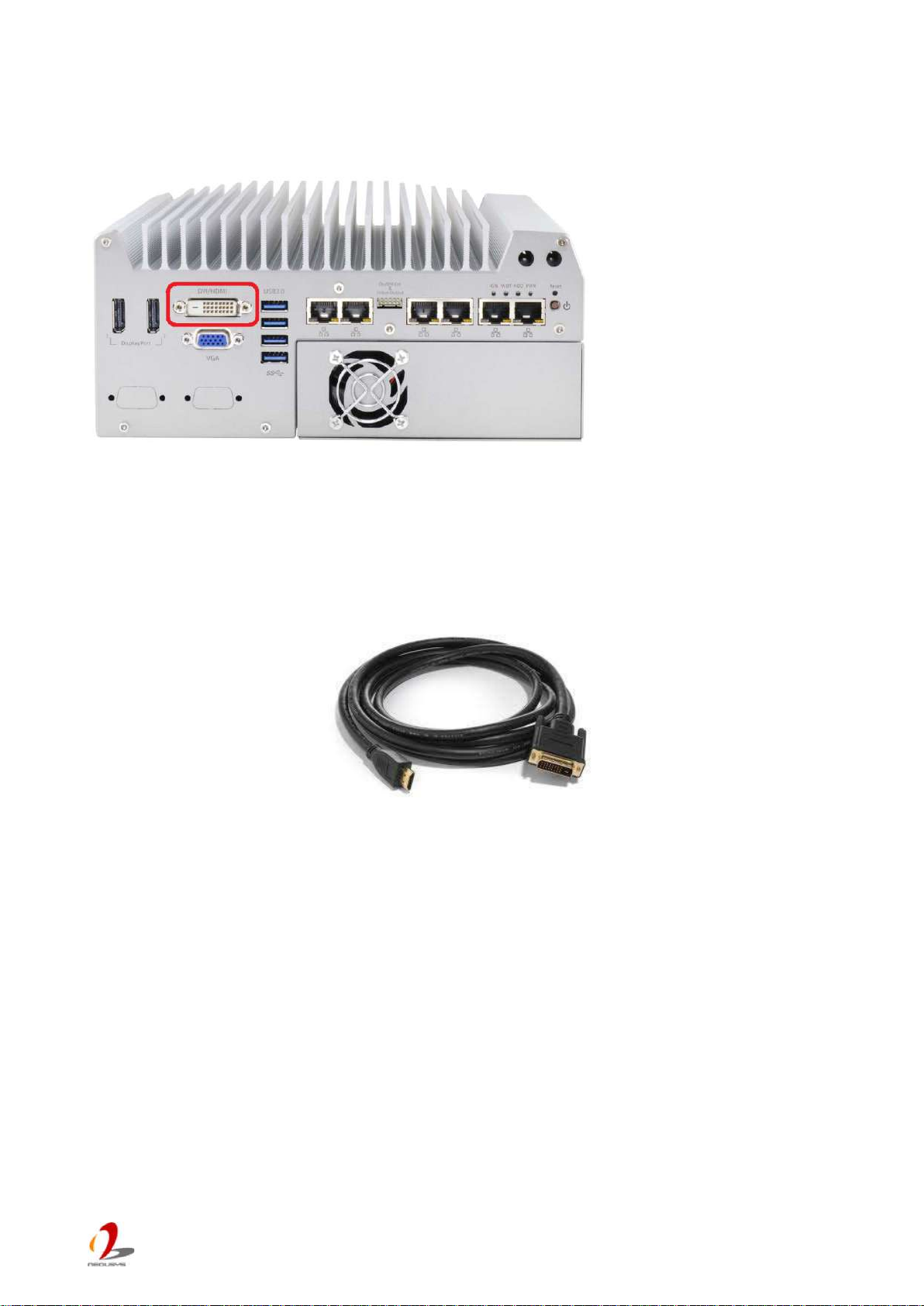

2.2.7 DVI/HDMI Connectors................................................................................18

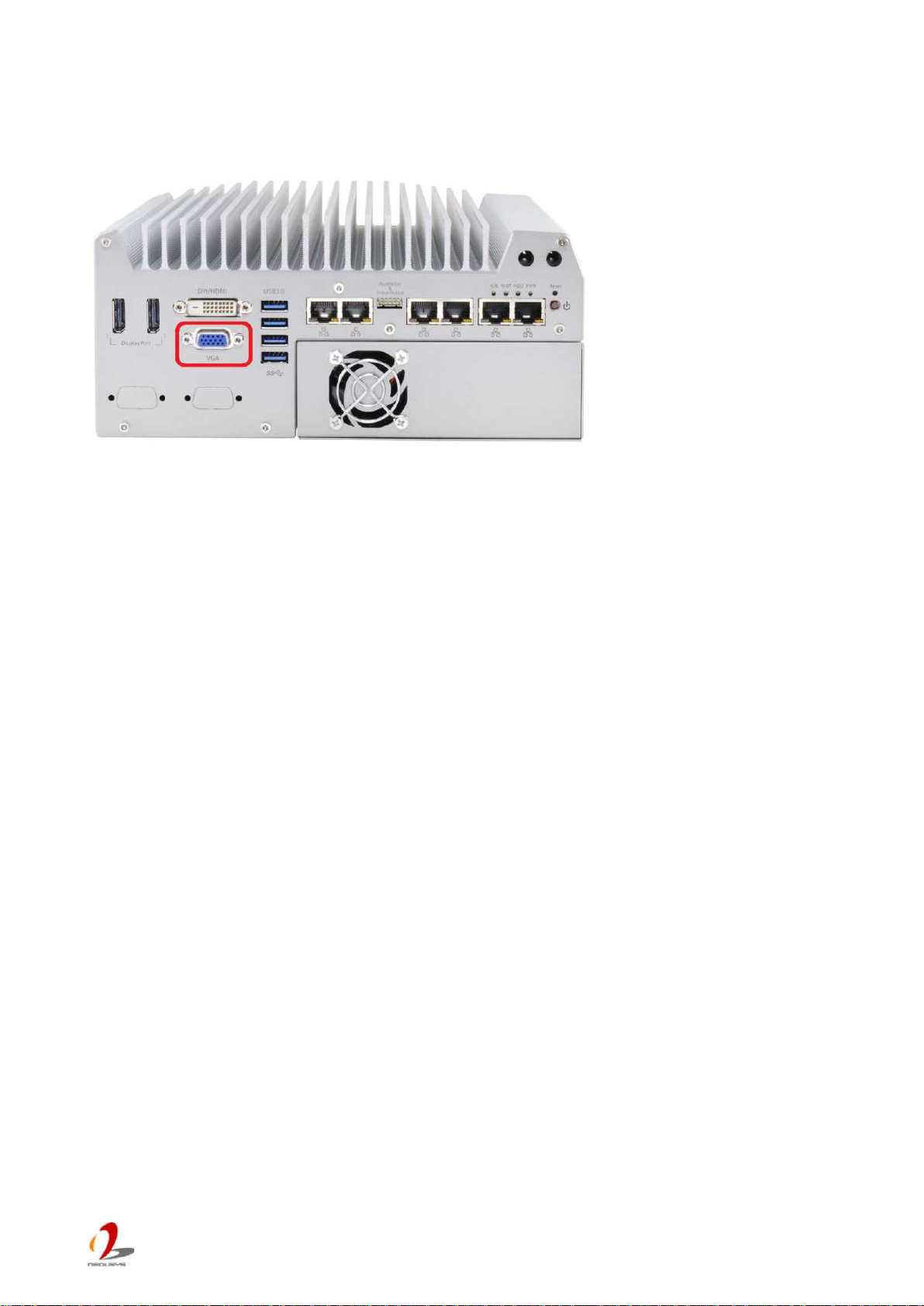

2.2.8 VGA Connector...........................................................................................19
2.2.9 DisplayPort.................................................................................................20
2.3 Back Panel I/O Functions.....................................................................................21
2.3.1 3-Pin Terminal Block for DC and IGN Input ................................................21
2.3.2 COM Ports (COM1 / COM2 / COM3)..........................................................22
2.3.3 USB2.0 Connectors....................................................................................23
2.3.4 Speaker-out and Mic-in Audio Jacks...........................................................23
2.3.5 MezIOTM I/O Connector..............................................................................24
2.3.6 SIM Socket.................................................................................................24
2.4 Internal I/O Functions ...........................................................................................25
2.4.1 DDR4 SODIMM Sockets ............................................................................25
2.4.2 mSATA / mini-PCIe #1 Dual-Mode Socket..................................................26
2.4.3 Mini-PCIe #2 Socket...................................................................................28
2.4.4 Internal SATA Port #1 .................................................................................30
2.4.5 Internal SATA Port #2 .................................................................................31
2.4.6 Internal USB Port........................................................................................32
2.5 MezIOTM Interface.................................................................................................33
2.5.1 Pin Definition of MezIOTM Interface.............................................................33

Nuvo-5095GC Series User’s Manual
Copyright © 2017 Neousys Technolgy Inc. All Right Reserved.
4
2.5.2 MezIOTM Module for Nuvo-5095GC Series.................................................35
2.6 Expansion Cassette for GPU................................................................................37
2.6.1 Inside the Cassette of Nuvo-5095GC.........................................................38
2.7 Mechanical Dimension..........................................................................................39
2.7.1 Top View of Nuvo-5095GC Series..............................................................39
2.7.2 Front View of Nuvo-5095GC Series............................................................40
2.7.3 Side View of Nuvo-5095GC Series.............................................................40
2.7.4 Bottom View of Nuvo-5095GC Series.........................................................41
Chapter 3 Getting Start......................................................................................................42
3.1 Disassemble your Nuvo-5095GC Controller.........................................................42
3.2 Install and Replace LGA1151 CPU.......................................................................44
3.2.1 Install a CPU on Nuvo-5095GC..................................................................44
3.2.2 Replace the CPU on Nuvo-5095GC...........................................................48
3.3 Install DDR4 SODIMM Module.............................................................................51
3.4 Install 2.5” SATA HDD/SSD ..................................................................................52
3.5 Install Mini-PCIe Module.......................................................................................54
3.6 Install MezIOTM Module.........................................................................................56
3.7 Install nVidia® Graphics Card in Cassette............................................................58
3.8 Mount your Nuvo-5095GC....................................................................................61
3.9 Connect DC Power to your Nuvo-5095GC...........................................................63
3.10 Power on your Nuvo-5095GC Controller............................................................64
3.10.1 Power on Nuvo-5095GC Using the Power Button....................................64
3.10.2 Power on Nuvo-5095GC Using an External Switch..................................64
3.10.3 Power on Nuvo-5095GC Using Wake-on-LAN Function ..........................65
Chapter 4 BIOS and Driver...............................................................................................68
4.1 BIOS Settings.......................................................................................................68
4.1.1 COM Port Configuration.............................................................................69
4.1.2 SATA Port Configuration.............................................................................70
4.1.3 Enable TPM Feature...................................................................................71
4.1.4 Configure CPU SKU Power........................................................................72
4.1.5 Wake-on-LAN Option..................................................................................73
4.1.6 Power On after Power Failure Option.........................................................74
4.1.7 Configure Legacy/UEFI Boot Type .............................................................75
4.1.8 Position New Boot Device ..........................................................................76
4.1.9 Watchdog Timer for Booting.......................................................................77
4.1.10 Select a Boot Device................................................................................79
4.2 Configure AMT......................................................................................................80
4.3 Configure RAID Volume........................................................................................81
4.4 Operating System Support ...................................................................................82
4.5 Driver Installation..................................................................................................83

Nuvo-5095GC Series User’s Manual
Copyright © 2017 Neousys Technolgy Inc. All Right Reserved.
5
4.5.1 Install All Drivers Using “One-Click” Driver Installation ...............................83
4.5.2 Install Drivers Manually...............................................................................84
4.5.3 Install Driver for WDT and Per-port PoE On/Off Control.............................86
AppendixA Install Windows 7 on Nuvo-5095GC ...............................................................87
A.1 Before We Start ...................................................................................................87
A.2 Create USB Flash Drive Installer Step-by-Step....................................................87
Step 1 - Create .ISO file from Windows 7 DVD....................................................87
Step 2 - Create USB flash drive installer from .ISO.............................................88
Step 3 - Create working folder on your local drive...............................................89
Step 4 - Execute batch file to patch .wim files......................................................90
Step 5 - Install Windows 7 using USB flash drive installer...................................91
Appendix B Using Watchdog Timer ...................................................................................92
Install WDT_DIO Library.............................................................................................92
WDT Function Reference...........................................................................................95

Nuvo-5095GC Series User’s Manual
Copyright © 2017 Neousys Technolgy Inc. All Right Reserved.
6
Declaimer
This manual is intended to be used as a practical and informative guide only and is subject
to change without prior notice. It does not represent commitment from Neousys Technology
Inc. Neousys shall not be liable for direct, indirect, special, incidental, or consequential
damages arising out of the use of the product or documentation, nor for any infringements
upon the rights of third parties, which may result from such use.
Declaration of Conformity
FCC
This equipment has been tested and found to comply with the limits for a ClassA digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
CE
The product(s) described in this manual complies with all applicable European Union (CE)
directives if it has a CE marking. For computer systems to remain CE compliant, only
CE-compliant parts may be used. Maintaining CE compliance also requires proper cable
and cabling techniques.
Copyright and Trademarks
This document contains proprietary information protected by copyright.All rights are
reserved. No part of this document may be reproduced by any mechanical, electronic, or
other means in any form without prior written permission of the manufacturer.
Company/product names mentioned herein are used for identification purposes only and
are trademarks and/or registered trademarks of their respective companies.

Nuvo-5095GC Series User’s Manual
Copyright © 2017 Neousys Technolgy Inc. All Right Reserved.
7
Chapter 1 Introduction
1.1 Overview
Nuvo-5095GC opens a new chapter for industrial computers.As the first embedded
controller targeting at emerging applications of CUDA computing, autopilot, artificial
intelligence and virtual reality, Nuvo-5095GC integrates all features required for a compact,
reliable and powerful GPU-computing platform.
Supporting nVidia® GeForce® GTX 950 and GTX 1050, Nuvo-5095GC possesses 768
CUDAcores to deliver tremendous computing power for arithmetic/graphics operations.
Neousys’ patented Cassette technology* and thermal dissipation design** help to
effectively dissipate the heat generated by GPU, and make this compact system capable to
operate reliably at 60°C with 100% GPU loading.
Nuvo-5095GC is based on Intel® Skylake platform, and supports 35W/65W 6th-Gen®
Core™ processors and up to 32GB DDR4 memory. It offers rich I/O functions, such as GbE,
USB 3.0 and COM ports, to connect external devices.All these extraordinary features are
integrated into a very compact, 240 x 225 x 110 mm footprint.
For fast-growing GPU computing applications, Nuvo-5095GC presents the first
industrial-grade, compact and rugged platform incorporating CPU and GPU to offer
performance far beyond traditional industrial computers.
* R.O.C. Patent No. M456527
** R.O.C. Patent No. M534371

Nuvo-5095GC Series User’s Manual
Copyright © 2017 Neousys Technolgy Inc. All Right Reserved.
8
1.2 Product Specification
1.2.1 Specification of Nuvo-5095GC
System Core
Processor
Supports the following CPU
- Intel® Core™ i7-6700 (8M Cache,3.4/4.0 GHz, 65W TDP)*
- Intel® Core™ i5-6500 (6M Cache, 3.2/3.6 GHz, 65W TDP)*
- Intel® Core™ i7-6700TE (8M Cache, 2.4/3.4 GHz, 35W TDP)
- Intel® Core™ i5-6500TE (6M Cache, 2.3/3.3 GHz, 35W TDP)
Chipset Intel® Q170 Platform Controller Hub
Graphics Integrated Intel®HD Graphics 530
Memory Up to 32 GB DDR4-2133 SDRAM by two SODIMM sockets
AMT Supports AMT 11.0
TPM Supports TPM 2.0
I/O Interface
Ethernet 6x Gigabit Ethernet ports by Intel® I219 and 5x I210
Video Port 1x stacked VGA + DVI-D connector
2x DisplayPort connectors, supporting 4K2K resolution
USB 4x USB 3.0 ports via native XHCI controller
4x USB 2.0 ports
Serial Port 2x software-programmable RS-232/422/485 ports (COM1 & COM3)
1x RS-232 port (COM2)
Audio 1x Mic-in and 1x Speaker-out
Storage Interface
SATA HDD 2x 6 Gb/s SATA3.0 ports for 2.5” HDD/SSD installation, supporting RAID 0/1
mSATA 1x full-size mSATAport (mux with mini-PCIe)
Expansion Bus
PCI/PCI Express 1x PCIe x16 slot @ Gen3, 8-lanes PCIe signals in Cassette for installing
nVidia® GeForce® GTX 950 or GTX 1050
Mini PCI-E 1x internal mini PCI Express socket with panel-accessible SIM socket
1x internal mini PCI Express socket with internal SIM socket (mux with mSATA)
Expandable I/O 1x MezIOTM expansion port for Neousys’ MezIOTM modules
Power Supply & Ignition Control
DC Input 1x 3-pin pluggable terminal block for 8~35V DC input
Remote Ctrl. & LED Output 1x 10-pin (2x5) wafer connector for remote on/off control and status LED output

Nuvo-5095GC Series User’s Manual
Copyright © 2017 Neousys Technolgy Inc. All Right Reserved.
9
Max. Power
Consumption With Core™ i7-6700 & GTX 1050: 153.2W (7.66A@20V)*
Mechanical
Dimension 240 mm (W) x 225 mm (D) x 111 mm (H)
Weight 4.8 kg (incl. CPU, GPU, memory and HDD)
Mounting Wall-mount by mounting bracket
Environmental
Operating Temperature
with i7-6700TE, i5-6500TE (35W TDP)
-25°C ~ 60°C **/***
with i7-6700, i5-6500 (65W TDP)
-25°C ~ 60°C **/*** (configured as 35W CPU mode)
-25°C ~ 50°C **/*** (configured as 65W CPU mode)
Storage Temperature -40°C ~85°C
Humidity 10%~90% , non-condensing
Vibration Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
Shock Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to
IEC60068-2-27)
EMC CE/FCC Class A, according to EN 55022 & EN 55024
EN 50155:2007
* Maximal power consumption is measured with 100% CPU loading in 65W TDP mode using Passmark®
BurnInTest™ v8.0 and 100% GPU loading using TessMark x64 GPU stress test . For detail testing criteria, please
contact Neousys Technology.
** The high operating temperature specified here is defined under the condition of 100% GPU loading applied using
TessMark x64 GPU stress test. For detail testing criteria, please contact Neousys Technology
*** For sub-zero operating temperature, a wide temperature HDD drive or Solid State Disk (SSD) is required.

Nuvo-5095GC Series User’s Manual
Copyright © 2017 Neousys Technolgy Inc. All Right Reserved.
10
1.3 List of Supported CPU
Nuvo-5095GC series supports Intel®6rd-Gen CoreTM i7/i5/i3, Pentium and Celeron
processor via the LGA1151 CPU socket. You can choose the following processors
according to your consideration of cost and performance.
- Intel® Core™ i7-6700TE Processor (8M Cache, up to 3.40 GHz, 35W TDP)*
- Intel® Core™ i7-6700T Processor (8M Cache, up to 3.60 GHz, 35W TDP)
- Intel® Core™ i7-6700 Processor (8M Cache, up to 4.00 GHz, 65W TDP)*
- Intel® Core™ i5-6402P Processor (6M Cache, up to 3.40 GHz, 65W TDP)
- Intel® Core™ i5-6500TE Processor (6M Cache, up to 3.30 GHz, 35W TDP)*
- Intel® Core™ i5-6600 Processor (6M Cache, up to 3.90 GHz, 65W TDP)
- Intel® Core™ i5-6600T Processor (6M Cache, up to 3.50 GHz, 35W TDP)
- Intel® Core™ i5-6500 Processor (6M Cache, up to 3.60 GHz, 65W TDP)*
- Intel® Core™ i5-6500T Processor (6M Cache, up to 3.10 GHz, 35W TDP)
- Intel® Core™ i5-6400T Processor (6M Cache, up to 2.80 GHz, 35W TDP)
- Intel® Core™ i5-6400 Processor (6M Cache, up to 3.30 GHz, 65W TDP)
- Intel® Core™ i3-6098P Processor (3M Cache, 3.60 GHz, 54W TDP)
- Intel® Core™ i3-6100TE Processor (4M Cache, 2.70 GHz, 35W TDP)*
- Intel® Core™ i3-6300 Processor (4M Cache, 3.80 GHz, 51W TDP)
- Intel® Core™ i3-6300T Processor (4M Cache, 3.30 GHz, 35W TDP)
- Intel® Core™ i3-6320 Processor (4M Cache, 3.90 GHz, 51W TDP)
- Intel® Core™ i3-6100 Processor (3M Cache, 3.70 GHz, 51W TDP)*
- Intel® Core™ i3-6100T Processor (3M Cache, 3.20 GHz, 35W TDP)
- Intel® Pentium® Processor G4400TE (3M Cache, 2.40 GHz, 35W TDP)*
- Intel® Pentium® Processor G4400T (3M Cache, 2.90 GHz, 35W TDP)
- Intel® Pentium® Processor G4400 (3M Cache, 3.30 GHz, 54W TDP)*
- Intel® Pentium® Processor G4500 (3M Cache, 3.50 GHz, 51W TDP)
- Intel® Pentium® Processor G4500T (3M Cache, 3.00 GHz, 35W TDP)
- Intel® Pentium® Processor G4520 (3M Cache, 3.60 GHz, 51W TDP)
- Intel® Celeron® Processor G3900TE (2M Cache, 2.30 GHz, 35W TDP)*
- Intel® Celeron® Processor G3920 (2M Cache, 2.90 GHz, 51W TDP)
- Intel® Celeron® Processor G3900 (2M Cache, 2.80 GHz, 51W TDP)*
The processors with * are listed in Intel®Embedded Roadmap and with a 7-year life cycle
support (2015~2021).

Nuvo-5095GC Series User’s Manual
Copyright © 2017 Neousys Technolgy Inc. All Right Reserved.
11
1.4 List of Supported Graphics Card
Nuvo-5095GC series supports nVidia GTX 950 and 1050 GPU cards with 75W TDP.
Additionally, the expansion Cassette and heat dissipation mechanism shall work with
selected graphics cards to obtain best thermal stability of GPU. For users who do not
purchase graphics card directly from Neousys, please refer to the following list of
recommended consumer-grade graphics cards.
GTX 950
- ASUS GeForce® GTX950-M-2GD5
GTX 1050
- GIGABYTE GeForce® GTX 1050 D5 2G
Neousys will keep updating this list as new graphics cards available in the market. Please
contact us for the latest GPU card support list.

Nuvo-5095GC Series User’s Manual
Copyright © 2017 Neousys Technolgy Inc. All Right Reserved.
12
Chapter 2 Getting to Know your Nuvo-5095GC
2.1 Unpacking your Nuvo-5095GC Controller
When you receive the package of Nuvo-5095GC series, please check immediately if the
package contains all the items listed in the following table. If any item is missing or
damaged, please contact your local dealer or Neousys Technology Inc. for further
assistance.
Item Description Qty
1 Nuvo-5095GC fanless controller
(According to the configuration you order, CPU/DDR4/HDD/GPU may be
included. Please verify these items if necessary.)
1
2 Accessory box, which contains
Neousys Drivers & Utilities DVD
Wall-mounting bracket
Foot pad
3-pin pluggable terminal block
HDD thermal pad for 2.5” HDD/SSD (if HDD is not installed)
Screw pack
PORON® form strip, 91 x 12 x 10 mm (available for barebone only)
Rubber spacer (available for barebone only)
1
2
4
1
1
1
4
4

Nuvo-5095GC Series User’s Manual
Copyright © 2017 Neousys Technolgy Inc. All Right Reserved.
13
2.2 Front Panel I/O Functions
On Nuvo-5095GC series, plenty of I/O functions are provided on front panel and back panel
so you can easily access them. Most common computer I/O functions are placed on the
front panel. In this section, we’ll illustrate each I/O function on the front panel.
2.2.1 Power Button
The power button is a tact switch forATX mode on/off operation. To turn on the
Nuvo-5095GC controller, press the power button and the PWR LED is lighted up. To turn off
the Nuvo-5095GC controller, you can either issue a shutdown command in OS, or just
simply press the power button. In case of system halts, you can press and hold the power
button for 5 seconds to compulsorily shut down the system. Please note that a 5 seconds
interval is kept by the system between two on/off operations (i.e. once turning off the
system, you shall wait for 5 seconds to initiate another power-on operation).

Nuvo-5095GC Series User’s Manual
Copyright © 2017 Neousys Technolgy Inc. All Right Reserved.
14
2.2.2 Reset Button
The reset button is used to manually reset the system in case of any abnormal condition. To
avoid unexpected operation, the reset button is hidden behind the front panel. You need to
use a pin-like object to push the reset button.
2.2.3 LED Indicators
There are four LED indicators on the front panel: PWR, HDD, WDT, and IGN. The
descriptions of these three LED are listed in the following table.
Indicator Color Description
PWR Green Power indicator, lighted-up when system is on.
HDD Red Hard drive indicator, flashing when SATAhard drive is active.
WDT Yellow Watchdog timer indicator, flashing when watchdog timer is started.
IGN Orange If ignition option (MezIO-V20) is applied, this LED is used to indicate
ignition signal status.

Nuvo-5095GC Series User’s Manual
Copyright © 2017 Neousys Technolgy Inc. All Right Reserved.
15
2.2.4 Gigabit Ethernet Port
Nuvo-5095GC series offers 6 GbE ports on its front panel. The GbE port marked in blue is
designed with Intel® I219-LM and ports marked in red are implemented with Intel®I210-IT
Gigabit Ethernet controllers.
Each port has one dedicated GbE controller and one dedicated PCI Express link to present
maximal network performance. When plugging in the Ethernet cable, you can tell the
Ethernet status and speed from the LED indicators on the RJ45 connector as following:
Active/Link LED
LED Color
Status
Description
Yellow
Off
Ethernet port is disconnected
On
Ethernet port is connected and no data transmission
Flashing
Ethernet port is connected and data is transmitting/receiving
Speed LED
LED Color
Status
Description
Green or
Orange
Off
10 Mbps
Green
100 Mbps
Orange
1000 Mbps
The port implemented using Intel® I219-LM supports Wake-on-LAN function. It is also
capable of operating with Intel®AMT (Active Management Technology) to support
advanced features such as remote SOL desktop and remote on/off control. Please refer to
section 4.2 for detail.
To utilize the GbE port in Windows, you need to install corresponding driver for Intel®
I210-IT/I219-LM GbE controller. Please refer to section 4.5 for information of driver
installation.

Nuvo-5095GC Series User’s Manual
Copyright © 2017 Neousys Technolgy Inc. All Right Reserved.
16
2.2.5 Remote On/Off Control and Status LED Output
For an application which places Nuvo-5095GC controller inside a cabinet, it’s useful to
control the on/off of the system via an external switch, as well as check how the system’s
running via some external LED indicators. Nuvo-5095GC series provides a 2x5, 2.0mm
pitch wafer connector on the front panel for this purpose.
Pin# Definition Description
1 Ctrl+ [Input] Remote on/off control, connecting to an external
switch to turn on/off the system (polarity is negligible).
2 Ctrl-
3 Power+ [Output] System power indicator, on if system is turned
on, off if system is turned off.
4 Power-
5 HDD+ [Output]
Hard drive indicator, flashing when SATAhard
drive is active.
6 HDD-
7 Standby Power+ [Output] Standby power indicator, lighting up when DC
power is applied and system is in S5 (standby) mode.
8 Standby Power-
9 WDT+ [Output] Watchdog timer indicator, flashing when
watchdog timer is started.
10 WDT-
Note
Please make sure the polarity is correct when you connect the external LED indicator to the Status
LED Output.

Nuvo-5095GC Series User’s Manual
Copyright © 2017 Neousys Technolgy Inc. All Right Reserved.
17
Pin#3 to pin#10 are used to output the system status including power, HDD, and watchdog
timer status. Pin#1 and pin#2 are used to turn on or turn off the system remotely by
connecting an external switch. Users should connect a non-latched switch to Ctrl+/Ctrl- as it
acts exactly the same as the power button on the front panel. For detail information of using
remote on/off control function, please refer to section 3.10.2.
The status LED output has a built-in series-resistor and provides 3.3V, 10mAcurrent, which
means you can use these pins to directly drive an external LED indicator.
2.2.6 USB 3.0 Connectors
Nuvo-5095GC series offers four USB 3.0 (SuperSpeed USB) ports on its front panel. They
are implemented by native xHCI (eXtensible Host Controller Interface) controller in Q170
chipset and are compatible with USB 3.0, USB 2.0, USB 1.1 and USB 1.0 devices. Legacy
USB support is also provided so you can use USB keyboard/mouse in DOS environment.
Due to the nature that XHCI driver is not included natively in Windows 7, you may
encounter the issue of USB keyboard/mouse not working when installing Windows 7.
Neousys offers a Windows-based batch file and step-by-step guide to help you. Please
refer to AppendixA for information of installing Windows 7 on Nuvo-5095GC series.

Nuvo-5095GC Series User’s Manual
Copyright © 2017 Neousys Technolgy Inc. All Right Reserved.
18
2.2.7 DVI/HDMI Connectors
Nuvo-5095GC series has multiple display outputs on its front panel for connecting different
displays according to your system configuration. DVI/HDMI transmits graphics data in
digital format and therefore can deliver better image quality at high resolution. The
DVI/HDMI connector on the front panel can either output DVI signals or HDMI signal
depending on the display device connected. It supports up to 1920 x 1200 resolution. You
can use a DVI to HDMI cable to connect a HDMI display device.
Nuvo-5095GC series supports tipple independent display outputs with any combination of
VGA, DVI/HDMI and DisplayPort. To support multiple display outputs and achieve best
DVI/HDMI output resolution in Windows, you need to install corresponding graphics driver.
Please refer to section 4.5 for information of driver installation.

Nuvo-5095GC Series User’s Manual
Copyright © 2017 Neousys Technolgy Inc. All Right Reserved.
19
2.2.8 VGA Connector
Nuvo-5095GC series has multiple display outputs on its front panel for connecting different
displays according to your system configuration. VGAconnector is the most popular way for
connecting a display. The VGAoutput on Nuvo-5095GC series supports up to 1920 x 1200
resolution. By BIOS default and hardware implementation, the VGAoutput is always
enabled even when VGAmonitor is not connected.
Nuvo-5095GC series supports tipple independent display outputs with any combination of
VGA, DVI/HDMI and DisplayPort. To support multiple display outputs and achieve best
DVI/HDMI output resolution in Windows, you need to install corresponding graphics driver.
Please refer to section 4.5 for information of driver installation.
Note
1. Please make sure your VGA cable includes SDA and SCL (DDC clock and data) signals for
correct communication with monitor to get resolution/timing information. A cable without
SDA/SCL can cause blank screen on your VGA monitor due to incorrect resolution/timing
output.
2. For customer who connect sole DVI/DP monitor and no VGA output is needed, you can
permanently disable VGA output in BIOS menu. In this case, the DVI/DP is set as
primary output and display on DVI/DP is available in both DOS and Windows/Linux
environment.

Nuvo-5095GC Series User’s Manual
Copyright © 2017 Neousys Technolgy Inc. All Right Reserved.
20
2.2.9 DisplayPort
Nuvo-5095GC series has multiple display outputs on its front panel for connecting different
displays according to your system configuration. Two DisplayPort (DP) connectors are
available for high-resolution graphics outputs. They can deliver 4096 x 2304 resolution
when single DP port is used or 2880 x 1800 resolution when both DP ports are
simultaneously used. DisplayPort on Nuvo-5095GC series are designed to support passive
DP adapter/cable. You can simply use a DP-to-HDMI cable or DP-to-DVI cable connect
different display devices.
DP-to-HDMI cable Passive DP-to-DVI cable
Nuvo-5095GC series supports tipple independent display outputs with any combination of
VGA, DVI/HDMI and DisplayPort. To support multiple display outputs and achieve best
DVI/HDMI output resolution in Windows, you need to install corresponding graphics driver.
Please refer to section 4.5 for information of driver installation.
