Neousys Technology NRU-52S+ Series User manual

Neousys Technology Inc.
NRU-52S+/ NRU-52S Series
User Manual
Revision 1.0

Table of Content
Table of Contents
Table of Contents...................................................................................................................2
Legal Information...................................................................................................................4
Contact Information...............................................................................................................5
Declaration of Conformity.....................................................................................................5
Copyright Notice....................................................................................................................6
Safety Precautions.................................................................................................................7
Battery Warning......................................................................................................................7
Service and Maintenance ......................................................................................................8
ESD Precautions....................................................................................................................8
Restricted Access Location ..................................................................................................8
About This Manual.................................................................................................................9
1Introduction
1.1 NRU-52S Specifications...........................................................................................11
1.2 NRU-52S+ Specifications.........................................................................................13
1.3 Dimension of NRU-52S Series.................................................................................15
1.3.1 Front Panel View...............................................................................................15
1.3.2 Side Panel View................................................................................................15
1.3.3 Rear Panel View...............................................................................................16
1.3.4 Bottom View......................................................................................................16
1.3.5 Fan Kit Dimensions...........................................................................................17
2System Overview
2.1 NRU-52S Packing List..............................................................................................18
2.2 NRU-52S Series Front Panel....................................................................................19
2.2.1 3-pin Terminal Block for DC and Ignition Control..............................................20
2.2.2 Force Recovery Button.....................................................................................20
2.2.3 Micro SIM Slot...................................................................................................21
2.2.4 MicroSD Slot.....................................................................................................21
2.2.5 DisplayPort........................................................................................................22
2.2.6 USB3.2 Gen1 Ports ..........................................................................................22
2.2.7 CAN bus Port....................................................................................................23
2.2.8 MicroUSB Port..................................................................................................24
2.2.9 COM Port..........................................................................................................25
2.2.10 System Status LEDs.........................................................................................26
2.2.11 Power Button ....................................................................................................26
2.3 NRU-52S Series Rear Panel.....................................................................................27
2.3.1 DIO & GPS PPS Port........................................................................................28
2.3.2 IEEE 802.3bt PoE ++ Port ................................................................................29
2.3.3 Grounding Point................................................................................................30
2.4 Internal I/O.................................................................................................................31
2.4.1 M.2 B Key 2242/ 3042/ 3052 & SIM Slots.........................................................31
2.4.2 mini-PCIe Slots for NRU-52S+..........................................................................33
2.4.3 mini-PCIe Slots for NRU-52S............................................................................35
2.4.4 DIP Switch for COM Port Configuration............................................................38
3System Installation
3.1 Disassembling the System Enclosure....................................................................40
3.2 Installing Internal Components...............................................................................41
3.2.1 M.2 B Key 2242/ 3042/ 3052 & SIM Card Installation.......................................41
3.2.2 mini-PCIe Module Installation ...........................................................................43
3.3 Fan Kit Installation ...................................................................................................45
3.4 Installing the System Enclosure .............................................................................47
3.5 Wall Mount Installation ............................................................................................48
3.6 Powering On the System.........................................................................................50

Table of Content
3
3.6.1 Powering On Using the Power Button...............................................................50
4Ignition Power Control
4.1 Principles of Ignition Power Control.......................................................................51
4.1.1 Additional Features of Ignition Power Control...................................................52
4.1.2 Wiring Ignition Signal........................................................................................53
4.1.3 Operation Modes of Ignition Power Control......................................................54
5Reflashing the NRU System
6Software Reminder

Legal Information
Legal Information
All Neousys Technology Inc. products shall be subject to the latest Standard
Warranty Policy
Neousys Technology Inc. may modify, update or upgrade the software,
firmware or any accompanying user documentation without any prior notice.
Neousys Technology Inc. will provide access to these new software, firmware
or documentation releases from download sections of our website or through
our service partners.
Before installing any software, applications or components provided by a third
party, customer should ensure that they are compatible and interoperable with
Neousys Technology Inc. product by checking in advance with Neousys
Technology Inc. Customer is solely responsible for ensuring the compatibility
and interoperability of the third party’s products. Customer is further solely
responsible for ensuring its systems, software, and data are adequately backed
up as a precaution against possible failures, alternation, or loss.
For questions in regards to hardware/ software compatibility, customers should
contact Neousys Technology Inc. sales representative or technical support.
To the extent permitted by applicable laws, Neousys Technology Inc. shall NOT
be responsible for any interoperability or compatibility issues that may arise
when (1) products, software, or options not certified and supported; (2)
configurations not certified and supported are used; (3) parts intended for one
system is installed in another system of different make or model.

Contact Information/ Declaration of Conformity
Contact Information
Headquarters
(Taipei, Taiwan)
Neousys Technology Inc.
15F, No.868-3, Zhongzheng Rd., Zhonghe Dist., New Taipei City, 23586, Taiwan
Tel: [phone] Fax: [phone] Email, Website
Americas
(Illinois, USA)
Neousys Technology America Inc.
3384 Commercial Avenue, Northbrook, IL 60062, USA
Tel: [phone] Email, Website
China
Neousys Technology China Co., Ltd.
Room 612, Building 32, Guiping Road 680, Shanghai
Tel: [phone] Email, Website
Declaration of Conformity
FCC
This equipment has been testedand found to comply withthe limits
for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at own
expense.
CE
The product(s) described in this manual complies with all
applicable European Union (CE) directives if it has a CE marking.
For computer systems to remain CE compliant, only CE-compliant
parts may be used. Maintaining CE compliance also requires
proper cable and cabling techniques.

Copyright Notice
Copyright Notice
All rights reserved. This publication may not be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated
into any language or computer language, in any form or by any
means, electronic, mechanical, magnetic, optical, chemical,
manual or otherwise, without the prior written consent of Neousys
Technology, Inc.
Disclaimer
This manual is intended to be used as an informative guide only
and is subject to change without prior notice. It does not represent
commitment from Neousys Technology Inc. Neousys Technology
Inc. shall not be liable for any direct, indirect, special, incidental, or
consequential damages arising from the use of the product or
documentation, nor for any infringement on third party rights.
Patents and
Trademarks
Neousys, the Neousys logo, Expansion Cassette, MezIOTM are
registered patents and trademarks of Neousys Technology, Inc.
Windows is a registered trademark of Microsoft Corporation.
AMD, Ryzen™are registered trademarks of Advanced Micro Devices, Inc
All other names, brands, products or services are trademarks or
registered trademarks of their respective owners.

Safety Precautions
Safety Precautions
⚫Read these instructions carefully before you install, operate, or transport the
system.
⚫Install the system or DIN rail associated with, at a sturdy location
⚫Install the power socket outlet near the system where it is easily accessible
⚫Secure each system module(s) using its retaining screws
⚫Place power cords and other connection cables away from foot traffic. Do not
place items over power cords and make sure they do not rest against data
cables
⚫Shutdown, disconnect all cables from the system and ground yourself before
touching internal modules
⚫Ensure that the correct power range is being used before powering the device
⚫Should a module fail, arrange for a replacement as soon as possible to minimize
down-time
⚫By means of a power cord connected to a socket-outlet with earthing connection
⚫This product is intended to be supplied by a Listed Power Adapter or DC power
source, rated up to 5000m altitude operation. If further assistance is required,
please contact Neousys Technology
⚫If the system is not going to be used for a long time, disconnect it from mains
(power socket) to avoid transient over-voltage
Battery Warning
⚫Batteries are at risk of exploding if incorrectly installed.
⚫Do not attempt to recharge, force open, or heat the battery.
⚫Replace the battery only with the same or equivalent type
recommended by the manufacturer.

Service and Maintenance/ ESD Precautions
Service and Maintenance
⚫ONLY qualified personnel should service the system
⚫Shutdown the system, disconnect the power cord and all other connections
before servicing the system
⚫When replacing/ installing additional components (expansion card, memory
module, etc.), insert them as gently as possible while assuring proper
connector engagement
ESD Precautions
⚫Handle add-on module, motherboard by their retention screws or the module’s
frame/ heat sink. Avoid touching the PCB circuit board or add-on module
connector pins
⚫Use a grounded wrist strap and an anti-static work pad to discharge static
electricity when installing or maintaining the system
⚫Avoid dust, debris, carpets, plastic, vinyl and
8
tyrofoam in your work area.
⚫Do not remove any module or component from its anti-static bag before
installation
Restricted Access Location
The controller is intended for installation only in certain environments
where both of the following conditions apply:
⚫Access can only be gained by QUALIFIED SERVICE PERSONNEL who have
been instructed on the reasons for restrictions applied to the location and any
precautions that shall be taken
⚫Access is through the use of a TOOL, lock and key, or other means of security,
and is controlled by the authority responsible for the location

NRU-52S Series
9
About This Manual
This manual introduces and demonstrates installation procedures of Neousys
NRU-52S series systems featuring NVIDIA Jetson AGX Orin/ Xavier platform. The
manual also demonstrates the system’s general installation procedures.
Revision History
Version
Date
Description
1.0
Jan. 2024
Initial release

NRU-52S Series
10
1 Introduction
NRU-52S is a rugged, wide temperature, fanless edge AI computer delivering 21 TOPS for
AI-based video analytics applications requiring H.264/H.265 video decoding and real-time
inference. Power by an NVIDIA® Jetson Orin™NX/ Xavier™NX system on module (SoM), it
comprises of NVIDIA® Ampere GPUs (Orin NX), CUDA cores, Tensor cores, and NVDLA
(NVIDIA® Deep Learning Accelerator).
Benefiting from the power-efficiency of NVIDIA® Jetson Orin™NX, which consumes only 25W
of power, NRU-52S+ can decode up to 18 streams of 1080p video at 30 FPS, and also offer
100 TOPS inference performance. The high AI performance per watt makes NRU-52S+ ideal
for applications with a limited power source, such as in a robot, vehicle, or rolling stock. Also,
with Neousys' industrial-grade thermal design, NRU-52S+ is ideal for edge deployments that
require fanless wide temperature operations, such as at roadside, wayside, construction site,
agriculture, or in a dusty factory.
NRU-52S+ offers four IEEE 802.3bt PoE++ ports, each port can supply up to 90W to IP
cameras or PTZ speed dome cameras for AI-based detection, tracking, and recognition
applications. NRU-52S+ also offers flexible expansions with two mPCIe sockets for NVMe
storage, WIFI, GNSS, or V2X module; one M.2 B key for 4G LTE or 5G NR module with
dedicated passive thermal design, and a total of five antenna holes for mobile broadband.It also
has one hardware configurable RS232/RS422/RS485, 1x GPS PPS input, 3-CH isolated DI,
and 4-CH isolated DO for communication with external devices.
By integrating PoE++ connectivity, 100 TOPS inference performance, a vast of NVIDIA AI
JetPack toolkits, NRU-52S+ can enable more possibilities for real-time video analytics such as
autonomous machines, security alerts, law enforcement, and V2X applications. With its -25°C
to 70°C fanless operation, wide-range DC input, ignition control, and 4G/ 5G connectivity,
NRU-52S+ is not only for indoor/ stationary installations but also ideal for harsh edge
deployments.

NRU-52S Series
11
1.1 NRU-52S Specifications
System Core
Processor
NVIDIA®Jetson Xavier™NX system-on-module (SOM), comprising NVIDIA®Volta
GPU and Carmel CPU
Memory
8GB LPDDR4x @ 1600 MHz on SOM (15W TDP mode)
8GB LPDDR4x @ 1866 MHz on SOM (20W TDP mode)
eMMC
16GB eMMC 5.1 on SOM
Panel I/O Interface
Ethernet port
4x Gigabit ports with screw-lock, share 1 Gbps total bandwidth
PoE Capability
In compliant with IEEE 802.3bt PoE++ Type 3 and Type 4 PSE, maximum 90W output
on single PoE++ port compatible with 802.3at (PoE+) and 802.3af (PoE) PD
USB
2x USB3.2 Gen1 ports (total 5 Gbps shared with M.2 B key)
Video Port
1x DisplayPort, supporting 3840x2160 at 60Hz
Serial Port
1x hardware configurable RS-232/422/485 port
CAN bus
1x isolated CAN 2.0 port
Isolated DIO
1x GPS PPS input, 3-CH isolated DI and 4-CH isolated DO
Ground Terminal
1x M4 ground terminal for chassis ESD shielding
Internal I/O Interface
Mini PCI Express
1x full-size mini PCI Express socket (PCIe + USB 2.0) for WIFI, NVMe storage
1x full-size mini PCI Express socket (USB 2.0) for GNSS, V2X, or CAN
M.2
1x 3042/3052 M.2 B key (USB3.2 Gen 1 + USB 2.0) for 4G/5G module with dual SIM
support (1x front-accessible, 1x internal)
Power Supply
DC Input
1x 3-pin pluggable terminal block for 8V to 35V DC input and ignition power control (V+/
GND/ IGN)
Mechanical
Dimension
173 mm (W) x 144 mm (D) x 60 mm (H)
Weight
1.4 kg

NRU-52S Series
12
Mounting
Wall-mount bracket (optional)
Environmental
Operating
Temperature
-25°C to 70°C with passive cooling (15W TDP mode with 50W PoE++ power supply)
-25°C to 70°C with optional fan kit (15W TDP mode with 144W PoE++ power supply)
Storage
Temperature
-40°C to 85°C
Humidity
10% to 90%, non-condensing
Vibration
Operating, MIL-STD-810G, Method 514.7, Category 4
Shock
Operating, MIL-STD-810G, Method 516.7, Procedure I
EMC
CE/FCC Class A, according to EN 55032 & EN 55035
EN 50121-3 (EN 50155:2017, Clause 13.4.8)
* For sub-zero and over 60°C operating temperature, a wide temperature Solid
State Disk (SSD) is required.

NRU-52S Series
13
1.2 NRU-52S+ Specifications
System Core
Processor
NVIDIA®Jetson Orin™NX system-on-module (SOM), comprising NVIDIA®Volta GPU
and Carmel CPU
Memory
8GB LPDDR5 @ 3200 MHz on SOM
16GB LPDDR5 @ 3200 MHz on SOM
Panel I/O Interface
Ethernet port
4x Gigabit ports with screw-lock, share 1 Gbps total bandwidth
PoE Capability
In compliant with IEEE 802.3bt PoE++ Type 3 and Type 4 PSE, maximum 90W output
on single PoE++ port compatible with 802.3at (PoE+) and 802.3af (PoE) PD
USB
2x USB3.2 Gen1 ports (total 5 Gbps shared with M.2 B key)
Video Port
1x DisplayPort, supporting 3840x2160 at 60Hz
Serial Port
1x hardware configurable RS-232/422/485 port
CAN bus
1x isolated CAN 2.0 port
Isolated DIO
1x GPS PPS input, 3-CH isolated DI and 4-CH isolated DO
Ground Terminal
1x M4 ground terminal for chassis ESD shielding
Internal I/O Interface
Mini PCI Express
1x full-size mini PCI Express socket (PCIe + USB 2.0) for WIFI, NVMe storage
1x full-size mini PCI Express socket (USB 2.0) for GNSS, V2X, or CAN
M.2
1x 3042/3052 M.2 B key (USB3.2 Gen 1 + USB 2.0) for 4G/5G module with dual SIM
support (1x front-accessible, 1x internal)
Power Supply
DC Input
1x 3-pin pluggable terminal block for 8V to 35V DC input and ignition power control (V+/
GND/ IGN)
Mechanical
Dimension
173 mm (W) x 144 mm (D) x 60 mm (H)

NRU-52S Series
14
Weight
1.4 kg
Mounting
Wall-mount bracket (optional)
Environmental
Operating
Temperature
-25°C to 70°C with passive cooling (15W TDP mode with 50W PoE++ power supply)
-25°C to 70°C with optional fan kit (15W TDP mode with 144W PoE++ power supply)
Storage
Temperature
-40°C to 85°C
Humidity
10% to 90%, non-condensing
Vibration
Operating, MIL-STD-810G, Method 514.7, Category 4
Shock
Operating, MIL-STD-810G, Method 516.7, Procedure I
EMC
CE/FCC Class A, according to EN 55032 & EN 55035
EN 50121-3 (EN 50155:2017, Clause 13.4.8)

NRU-52S Series
15
1.3 Dimension of NRU-52S Series
NOTE
All measurements are in millimeters (mm).
1.3.1 Front Panel View
1.3.2 Side Panel View

NRU-52S Series
16
1.3.3 Rear Panel View
1.3.4 Bottom View

NRU-52S Series
17
1.3.5 Fan Kit Dimensions
NOTE
Fan kit is an optional accessory.

NRU-52S Series
18
2 System Overview
Upon receiving and unpacking your NRU-52S series systems, please check
immediately if the package contains all the items listed in the following table. If
any item(s) are missing or damaged, please contact your local dealer or
Neousys Technology.
2.1 NRU-52S Packing List
Item
Description
Qty
1
NRU-52S series system
(If you ordered SSD/ HDD or add-on module, please verify these
items)
1
2
Accessory box, which contains
⚫3-pin power terminal block
⚫Standoff, M3-5, H6.5, L4 for M.2 3042/ 3052 B key module
⚫Screw pack
1
1
1

NRU-52S Series
19

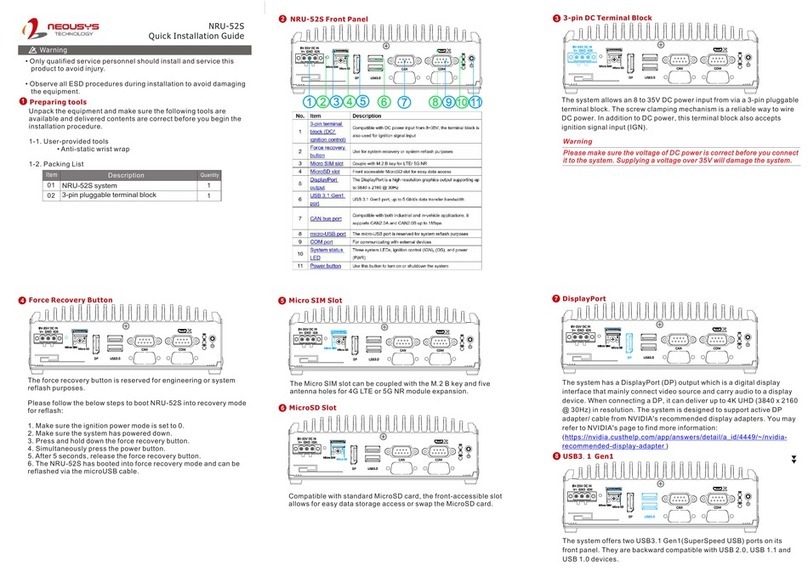

2.2 NRU-52S Series Front Panel
The front panel of the system features rich I/O ports, it has a 3-pin terminal block
for DC input, Micro SIM slot, Micro SD slot, DisplayPort, USB3.2 Gen1 (USB3.0),
CAN bus, COM, system status LEDs and a power button.
No.
Item
Description
1
3-pin terminal
block (DC/
ignition control)
Compatible with DC power input from 8~35V, the terminal block is
also used for ignition signal input
2
Force recovery
button
Use for system recovery or system reflash purposes
3
Micro SIM slot
Couple with M.2 B key for LTE/ 5G NR
4
MicroSD slot
Reserved for ODM purposes with Xavier NX
5
DisplayPort
output
The DisplayPort is a high-resolution graphics output supporting up
to 3840 x 2160 @ 60Hz
6
USB 3.2 Gen1
ports
USB 3.2 Gen1 ports, up to 5 Gbit/s data transfer bandwidth
(shared with the internal M.2 B key)
7
CAN bus port
Compatible with both industrial and in-vehicle applications, it
supports CAN2.0A and CAN2.0B up to 1Mbps
8
micro-USB port
The micro-USB port is reserved for system reflash purposes
9
COM port
For communicating with external devices
10
System status
LED
Three system LEDs, ignition control (IGN), (OS), and power
(PWR)
11
Power button
Use this button to turn on or shutdown the system

NRU-52S Series
20
2.2.1 3-pin Terminal Block for DC and Ignition Control
The system allows an 8 to 35V DC power input from via a 3-pin pluggable terminal
block. The screw clamping mechanism is a reliable way to wire DC power. In
addition to DC power, this terminal block also accepts ignition signal input (IGN).
WARNING
Please make sure the voltage of DC power is correct before you connect it to the system.
Supplying a voltage over 35V will damage the system.
2.2.2 Force Recovery Button
The force recovery button is reserved for engineering or system reflash
purposes.
