Nogueira EXPRESS-5040 User manual

Instructions Manual 3
Mr. Owner
The images presented in this manual are merely
illustrative. For easy viewing, they may show open or
disassembled safety guards. Under no circumstances
should you use the machine without its protections.
Reproduction of this manual is not permitted without
the prior written permission of this manufacturer.
Congratulations on your purchase of the Baler
EXPRESS-5040, a product of the highest quality,
specially developed to meet your needs.
This manual contains operating, maintenance and
safety instructions, which, if properly observed, will
guarantee the proper functioning and durability of
your Baler. We recommend that you read it carefully
before operating the machine.
Nogueira Máquinas Agrícolas is always at your
disposal to answer any question, offering you
e󰀨ective and permanent technical assistance.
.

4Instructions Manual
ÍNDICE
Safety adhesive labels......................................................................... 11
Safety adhesive labels......................................................................... 12
Presentation ...................................................................................... 13
Functioning........................................................................................ 13
Truck transporting .............................................................................. 14
Getting to know the baler .................................................................... 15
Getting to know the baler .................................................................... 16
Getting to know the baler .................................................................... 17
The material coming with the baler ....................................................... 17
Tractor required ................................................................................. 19
Work position..................................................................................... 20
Cardan ............................................................................................. 21
Zeroing the bale counter ..................................................................... 23
Regulating the length of the bale .......................................................... 23
Regulating the compaction of the bale................................................... 24
Height of the collector......................................................................... 26
Placing the cord rolls........................................................................... 28
Wheels.............................................................................................. 32
Rammer............................................................................................ 32
Calcador............................................................................................ 32
Baling ............................................................................................... 33
Operation .......................................................................................... 34
Disconnecting the machine .................................................................. 34
General tips....................................................................................... 35
Periodic maintenance table .................................................................. 37
Maintenance ...................................................................................... 38
Manual activation ............................................................................... 38
Sharpening and regulating the blades.................................................... 39
Safety systems .................................................................................. 40
Regulating the pressing piston.............................................................. 43
Synchronism of the feeding arms.......................................................... 44
Feeding arm/ piston synchronism ......................................................... 47
Regulating the needles with the knotters ............................................... 50
Regulating the handles of the thread..................................................... 55
Synchronizing the needles with the piston.............................................. 57
Knotter trigger regulation .................................................................... 60
Correcting the format of the bale.......................................................... 61
Adjustments of the knotmakers............................................................ 63
Adjustment of the retaining disk........................................................... 67
Adjustment of the retaining clamp ........................................................ 68
Regulating the needles brake ............................................................... 69
Regulating the brake of the knotmaker.................................................. 70
Cardan with clutch.............................................................................. 70
Revision ............................................................................................ 71
Preservation ...................................................................................... 71
Lubrication ........................................................................................ 72
Lubrication points with grease.............................................................. 74
Accessories........................................................................................ 76
Practical guide ................................................................................... 78
Technical specications........................................................................ 87
Warranty Certicate............................................................................ 88

Instructions Manual 5
The warning word CAUTION indicates a
potentially dangerous situation, which, if not
avoided, might result in death or serious injuries.
The warning word DANGER indicates a situation
of imminent risk, which, if not avoided, will
result in death or serious injuries.
DANGER warning
CAUTION warning
Read the Instructions
Manual before you turn on
the machine. Be alert and
respect all the use and safety
recommendations during
the operation. Share this
information with other users.
Every equipment must be
solely used to conceived ends,
according to specications in
this manual. The equipment
use in applications that have
not been mentioned here
is considered inadmissible
and is not authorized by the
manufacturer.
GENERAL SAFETY
Never attempt to pass wires
through the needles when
the machine is turned-on.
The sudden movement
from the needle support
might cause serious hands
/ arms injuries. Turn off the
power PTO and remove the
key from the ignition before
you pass the tying wires.
Risk of serious hands/arms
injuries.
CAUTION!
SAFETY
The machine operator must be familiar with the
operating procedures, maintenance and safety
information in this manual. Here are good safety
practices, which must be respected during the
machine use.
We recommend the careful reading of this
Manual before using the machine.
We remind you that health preservation and
physical integrity must always come rst.
In case there are any inquiries, consult us before
performing the procedure.
This manual must be available to every user in
the workplace.
In this manual and the stickers displayed on
the machine, you will nd the safety warning
symbol, accompanied by CAUTION and DANGER
warnings, followed by specic instructions. These
instructions address to keep your own safety as
well as all the others’ who work or stand near
the machine. When you nd the safety warnings
in this manual, read them carefully and follow
rigorously all the instructions that follow.
SAFETY WARNING SYMBOL

6Instructions Manual
SAFETY IN THE PREPARATION
Read carefully all the content in this
manual before you couple the machine
to the tractor.

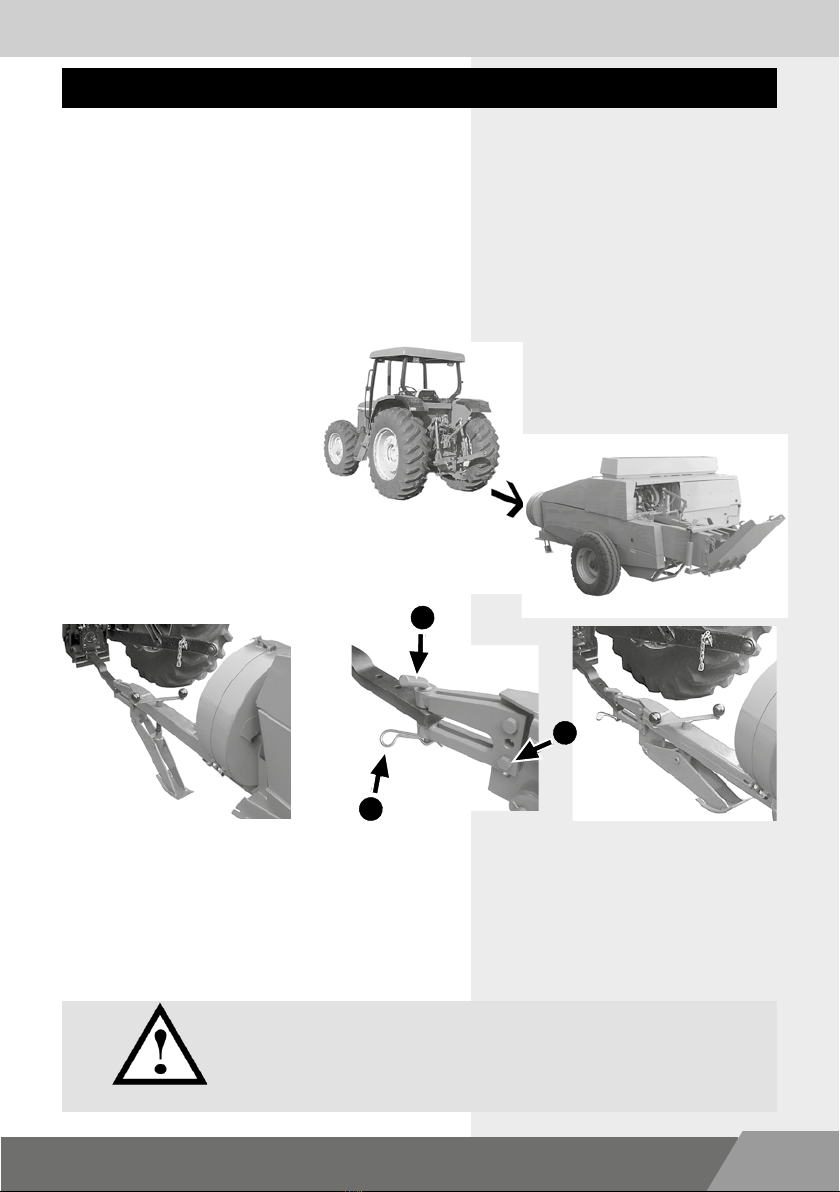

After the tractor coupling, be sure the
machine is appropriately coupled to the
tractor, and the coupling pin is properly
locked.
Before you initiate the operation, perform
a machine general check-up, observing
if there are no loose bolts, worn parts,
cracks, leaking, loose chains etc. Make
sure to always make necessary repairs,
paying attention to this manual’s
instructions.
When you uncouple the
machine from the tractor,
choose a flat surface, in
order to ease the procedure
and the follow coupling.
Make sure the machine is
stationary and, if necessary,
add shims to the wheels.
Be especially careful when
you couple and uncouple
the machine to the tractor.
Observe if the coupling pins
are securely locked. Always
make use of counter pins
to avoid that pins loosen
accidentally.
Fix the edges from the cardan
shaft protection shields in
xed points of the tractor
and the implement, through
specific chains for this
purpose, so that they remain
static, without rotating.
Never use the cardans
without their protection
shields.
Never turn on the machine if
the cardan shaft is without
its protection shield. Contact
with the rotating cardan
shaft might result in a serious
accident.
The Instructions Manual must be kept in
an accessible place to all operators and
maintenance staff.
Adaptations or use of non-original parts
compromise the functioning and shorten
the machine service life, as well as putting
the operator at risk and result in loss of
warranty.
Keep a rst-aid kit at hand (and be sure
you know how to use it in case there is
an accident).
Observe and pay attention to all the
safety recommendations in this manual.
Lack of attention during the operation
might result in a serious accident.

Instructions Manual 7
OPERATION SAFETY
In order to operate this machine, as well
as performing each maintenance task or
repair, you must follow all the indicated
instructions in this manual. You must pay
attention to all the recommendations and
safety warnings, in addition to meet all
the existing and applicable hygiene and
safety standards at work. People in charge
of using and performing maintenance
in the machine must be taught and
trained by the employer, as well as being
informed of the risks when the machine
is used in an improper manner. Besides,
they must be taught about the proper
use of the personal protective equipment.
In order to provide a better understanding,
certain images or pictures are presented
without their safety protection. However,
the machine can never be used without
it. Before you turn the machine on, check
if all the protections are in place.
Never operate the machine in case you
have ingested alcoholic beverages or
taken medicine, which might change your
state of alert and coordination. Keep alert
and focused during the operation and
always act with good sense. A moment
of recklessness or inattention might result
in a serious accident.
Before you turn on the machine, verify if
there are no tools or other objects on it.
Observe the surroundings of the machine
before you put it in operation. Keep
animals and people at a safe distance.
Special care must be taken if there are
children nearby.
It is forbidden to stand on the machine
when it is working or being used for
transportation. Whenever
it is necessary to climb on
the machine to perform any
adjustments or repair, turn
off the tractor PTO and wait
until all the components are
completely stationary.
Do not allow children or
curious people to approach
the machine when it
is in operation or during
maneuvers.
Keep your hands at a safe
distance from the feeding
drums whenever the machine
is in operation. Contact with
the springs in motion might
cause serious hand injuries.
When you maneuver the
machine coupled to the
tractor, observe if there is
enough space to perform the
movements. Observe is there
are no animals or people
standing nearby.
This equipment is dangerous
for children and people who
are not familiar with its
operations. Do not allow
them to approach the
machine when it is working.
In case you notice any
abnormality in its operation,
vibrations, unusual noises
etc., turn off the machine
immediately, check and
eliminate the source before
you turn it back on.
The machine should be
maneuvered, in order to work

8Instructions Manual
MAINTENANCE SAFETY
Maintenance activities,
inspection and repairs must
only be performed by a
specialized technician, aware
of all the risks involved. It
is necessary, therefore, to
foresee operating procedures
related to the machine,
proper to the administration
of dangerous situations that
might be presented, and
all the methods to avoid
them. The specialized
technician must always work
with absolute care, paying
maximum attention and
respecting all safety norms.
Turn off the tractor PTO,
the engine and remove the
key from ignition before
you regulate, lubricate or
perform any maintenance
services in the machine.
Never perform any repairs
or adjustments when the
machine is on.
Always put all hydraulic
controls of the tractor with
gear lever in neutral before
you turn it off or work on the
hydraulic system.
Make sure all systems
components are kept in
good state.
Replace immediately
damaged, crushed or spoiled
hoses.
safely, by just one operator, competent, of
legal age, sitting on the driving position
of the tractor.
Keep all the shields and protections in
their proper places and do not operate
the machine without them.
Check if the protections are assembled
correctly and in their proper places, if
the stickers described are perfectly legible
before you put the machine in operation.
The stickers on the machine provide a
series of important indications: Respecting
the signs is crucial to safeguard your
security.
During the machine operation, dust
emission from dry materials might occur.
It is obligatory to wear a dust mask or
masks with lter pads in order to protect
respiratory tracts.
Whenever it is necessary to get off the
tractor, activate the parking brake (if
present), turn off the engine and remove
the key from ignition.
The operator must have good visibility
of working areas, which are considered
dangerous. The machine must not be
left unattended when it is coupled to
a tractor and when the ignition key is
inserted.
Check the working environment before
you start operations. Pinpoint dangerous
places or with obstacles that might put
the operation at risk.

Instructions Manual 9
Personal safety as well as
other people’s is one of
our major concerns in the
design and development
of a machine. However,
every year there are a lot
of accidents that could
have been prevented. They
happen mainly due to lack
of attention and observation
of safety rules during the
operation. Read this manual
carefully and keep alert all
the time.
Never operate the machine
if you are under the effect
of alcoholic beverages,
medicine or drugs that might
harm your alert state or your
coordination.
Wear Personal Protective
Equipment – PPE – when
you operate the machine.
Prolonged exposure to noise
might cause harm or hearing
loss.
Dress appropriately when
you operate the machine
– tying long hair and not
wearing loose-tting clothes
is recommended. Take off
rings, necklaces and other
objects that might get
stuck in the machine parts
or moving components.
Loose-fitting clothes and
long hair might get caught
by mechanisms in operation.
PERSONAL SAFETY
Make use of appropriate protection
on hands and eyes when you check if
there are any high-pressure leaks in the
hydraulic system. Use a piece of wood
or a card instead of using your hands
to isolate and identify a hydraulic uid
leakage.
In case you have been injured by high-
pressure hydraulic uids, seek medical
help immediately. Serious infection or a
toxic reaction might occur when hydraulic
uid gets in contact with the skin surface.
Remember: moving components due
to inertia keep moving for longer even
when the machine is turned off. Before
you touch any machine parts, turn off
the power supply, check and listen if
there is no evidence of movement. Only
touch any machine components if you
are absolutely sure that it is stationary.
Always be alert!
Do not support the machine on concrete
blocks, hollow bricks or any other
supports that might crumble by the
effect of extended loads. When necessary,
always use a safe support.
Possible alterations in the machine might
compromise its safety, in addition to the
people involved. In this case, the user
is the only responsible for occasional
accidents.

10 Instructions Manual
Transportation of the machine while it
is coupled to the tractor must not be
done on public roads and highways. This
practice must be limited to properties
and rural areas. Check the Department
of Transportation on the rules and
applicable laws in your region, as well
as the existing possibility of transporting
the machine with the tractor on certain
parts of roads.
Never exceed a safe transportation speed.
Reduce your speed and be careful in
rough terrain as well as in winding roads.
Always drive the tractor in compatible
speeds, in accordance with eld or road
conditions and the tractor size.
Never allow people to stand on any parts
of the machine while it is being used for
transportation or operation.
Never drive the tractor after drinking.
Avoid sudden maneuvers, especially in
TRANSPORTATION SAFETY
Always keep your hands at a safe distance
from moving parts.
Never attempt to clean or clear any
machine parts when it is turned-on. This
procedure can only be performed when
the PTO is off, the ignition key is removed
from the tractor and the machine is
completely stationary.
Never attempt to pass wires through
the needles if the machine is turned-on.
The sudden movement from the needle
support might cause serious hands / arms
injuries. Turn off the PTO and remove the
tractor key from ignition before you pass
the tying wires.

rough terrain. In order to
tow a load when its weight
is heavier than the tractor’s,
do not exceed the maximum
speed of 16kmph.
Pay special attention when
you transit through steep
terrain when the machine is
coupled. In case you notice
any imbalance, reduce the
speed. When you are going
down a steep road, always
keep the tractor engaged.
Before you get off the tractor,
or perform any maintenance,
activate the parking brake (if
present), turn off the engine
and remove the key from
ignition.
Never operate the machine
for extended periods in
enclosed places or without
ventilation. Carbon
monoxide gases expelled
though the tractor’s exhaust
system are extremely toxic.
Be sure to have enough
counterweights so that the
tractor’s front tires have
sufcient contact with the
ground. The tractor must
always be maneuverable.
When you lift the machine,
only use the indicated
tractor lifting points and
always keep a safe distance
(remember that it is possible
for a lateral movement to
happen – intentional or not
- when the machine is lifted.

Instructions Manual 11
SAFETY ADHESIVE LABELS
Never place your hands of the
forks with the machine running.
Never place your hands of the tre-
admill with the machine running.
Read the instruction manual befo-
re turning on the machine.
Turn o the tractor and remove
the key from the ignition before
performing any maintenance,
adjustment, lubrication, cleaning
jobs etc., on the machine.
Be careful when ma-
neuvering. Keep free
the machine joint
area.
Do not get close to the machine
until it is completely motionless.
Remember rotating parts do not
stop moving immediately after
turning the machine o.

12 Instructions Manual
SAFETY ADHESIVE LABELS
Do not utilize the driveshaft
without the safety shielding. Keep
away while it is operating. Contact
with the moving driveshaft can
cause a serious accident.
Never comes close to
the collector with the
machine running.
This displays the number of turns
per minute and the direction of the
power take-o rotation.
When operating the harvester,
wear personal protective
equipment (PPE). Prolonged
exposure to noise, without noise
protection can cause hearing loss.

Instructions Manual 13
PRESENTATION
FUNCTIONING
COLLECTING:
Retractable springs collect the material from the ridge and take it to the feeding
table.
FEEDING:
The transporting fork introduces the material, from the feeding table into the
pressing chamber.
PRESSING:
Within the chamber, the material is pressed by a piston into rectangular bales.
TYING:
When the bale reaches the predetermined size, a mechanism activates the
needles, which take the other end of the cord up to the knotmaker where the
tying is performed.
NOTE:
Optionally a hoist can be used which unloads the bale into a cart connected to
the machine.
The Baler was planned to operate when being towed by a farm tractor, activated
through its power socket. It collects, presses into rectangular bales and ties
automatically, using plastic or natural cord (sisal), forage plants used in producting
hay, such as: coast-cross, alfalfa, oats, rhodes, rye-grass, clover etc., native
grasses and stalks of crops such as: wheat, soybean, rice etc.

14 Instructions Manual
TRUCK TRANSPORTING
Whenever it is necessary to transport the machine over long distances, or if there is
a need for the use of public roads, transport must be carried out on a truck or cart.
The machine must be completely inside the bodywork.
It is essential that the header is xed on the bodywork oorboard, as well as adding
wooden shims, which must be xed on the oorboard. Use a sufcient supply of
cables, moorings, ropes etc., to immobilize the load and keep it stable over the truck
or wagon. Be alert in relation to the load total height, mainly under the power grid,
viaducts and others. Check periodically load conditions (loose cables, shims and others)
during the trip. Always follow current trafc legislation.
IMPORTANT!
Keep a safe distance when you lift the machine using a winch.
Do not allow children or people to stand nearby during the lifting.
Remember that it is possible for a lateral movement to happen
– intentional or not - when the machine is lifted. Never stand
under the lifted equipment.
CAUTION!

Instructions Manual 15

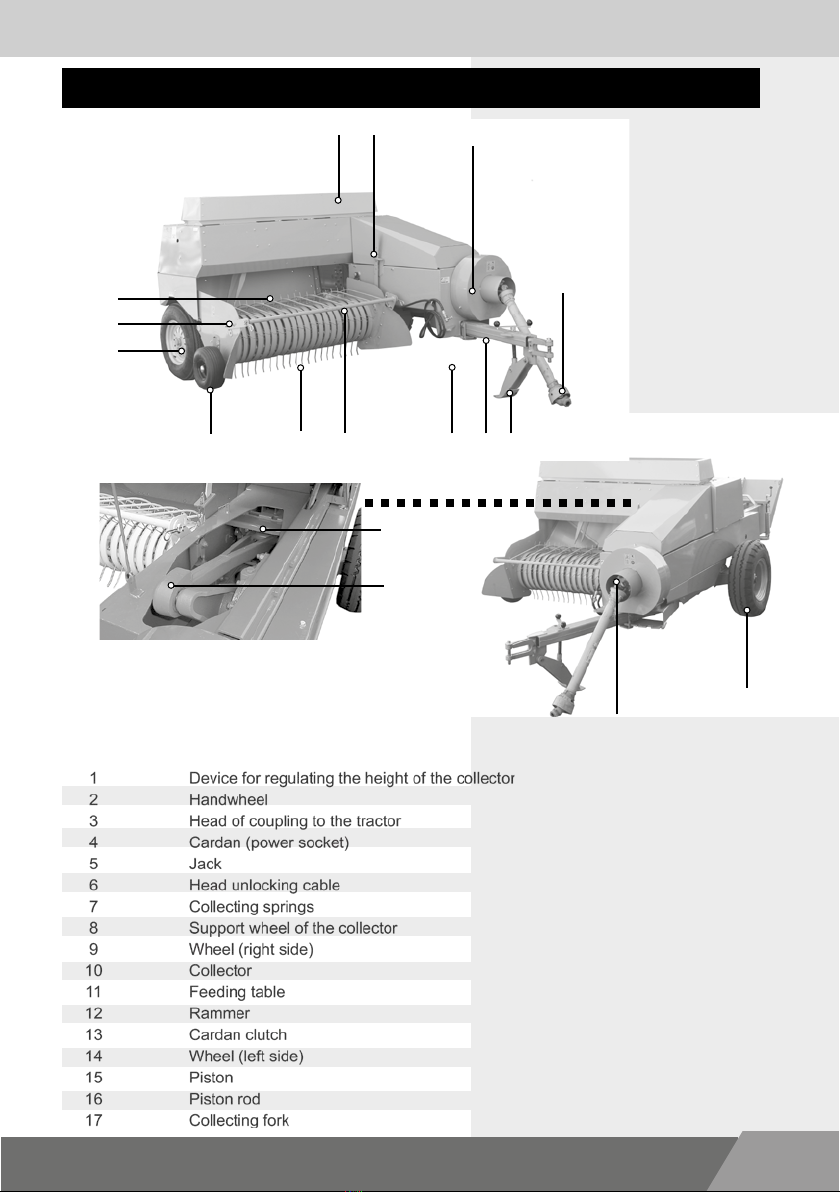

GETTING TO KNOW THE BALER
6 3
8
14
4
15
75
17 2
1
11
12
9
16
13
g. 1
g. 2
g. 3
10

16 Instructions Manual
GETTING TO KNOW THE BALER
24
21
20
19
17
21
22
18
25
23
g. 4
g. 5
g. 5a

Instructions Manual 17
The Baler leaves the factory equipped with two cord rolls. Inside the rear com-
partment there is a plastic package containing:
- Safety bolt of the needles: 4 parts
- Safety belt of the handwheel: 4 parts
- Safety bolt of the collector: 4 parts
- Operator’s manual: 01 unit
THE MATERIAL COMING WITH THE BALER
GETTING TO KNOW THE BALER
32
30
29
27
31
26
28
g. 5b g. 5c
33
g. 5d

18 Instructions Manual
SECTION A
CONNECTION

Instructions Manual 19
For a safe and ecient operation, a tractor must be used with power from 35
hp onwards in the power socket, at 540 rpm.
CONNECTION TO THE TRACTOR
With the machine and the tractor parked on level ground, position the tractor in
a way that its traction bar ts into the coupling of the baler.
TRACTOR REQUIRED
A
B
Use the jack to adjust the
height of coupling.
After the connection,
return the jack to the
rest position.
Place the coupling
pin A and the cot-
ter pin B.
This equipment was planned to operate with 540 rpm in the
power socket. It must not be used on tractors with a rotation
diering from the one indicated.
C
After the connection ensure that the pin A is well
locked. Never operate or transport the machine without
placing the cotter pin B.
g. 6
g. 7 g. 8 g. 9
ATTENTION
If required, so that the baler works as level as possible, the height of the coupling
can be increased, removing the two sets screws C and lowering the coupling to
a lower hole.
ATTENTION

20 Instructions Manual
PLACING IT IN THE WORK POSITION:
1- Stretch the cord A up to the tractor seat.
2- Place a wedge in front of the right wheel of the baler (g.14).
3- Start the tractor and manually pull the cord to release the lock.
4- Move the tractor forwards, until the head moves to the side and locks in the
work position.
3
2
Position 1: For transport.
Position 2: Indicated for places where it is necessary to maneuver the
machine constantly (small areas). In this position it is important to see
that the tractor wheels do not go over the ridges.
Position 3: It is the most advisable, mainly for baling in large areas.
1
WORK POSITION
The Baler leaves the factory with the head in the transport position. Before
starting the baling it is necessary to place it the work position, following the
instructions below.
A
WEDGE THE WHEEL
g. 10 g. 11 g. 12
g. 14
g. 13 NOTE: Upon taking the cable on the tractor
leave sucient slack for maneuvering.
CABLE
