Instructions Manual
Dear Owner
The pictures presented in this manual are purely
illustrative. In order to ease the visualization, the
images might show assembled or disassembled
safety protections. Do not use the machine without
the respective protections, under any circumstances.
The content of this manual cannot be reproduced
without previous, written authorization by the
Dealer.
Congratulations for acquiring a NOGUEIRA’S
MIXER WAGON. A product of the nest quality,
specially designed to fulll your needs.
This manual provides the instructions for the
proper operations, preventative maintenance
and safety, which, when observed properly, will
ensure the correct running and durability of your
Mixer Wagon. Before operating the machine for
the rst time, read all the safety instructions as
well as all further information in this Manual.
NOGUEIRA Agricultural Machinery will always
be at your disposal to get back to you on any
enquiries, offering efficient and permanent
technical support.

4Instructions Manual
Table of Contents
Identication........................................................5
Environment ........................................................5
Safety precautions................................................6
General security ...................................................6
Seguridad en la preparación.................................7
Seguridad operacional..........................................8
Safety in maintenance..........................................9
Personal safety ...................................................10
Safety in transportation......................................11
Safety stickers ....................................................13
Knowing the mixer wagon .................................15
Truck transportation ..........................................16
Utilization ..........................................................18
Description ........................................................18
Functioning........................................................18
Choosing the tractor ..........................................19
Work rotation ....................................................19
Tractor coupling.................................................20
Cardan shaft ......................................................21
Connecting the hoses.........................................24
Removing the hoses ...........................................24
Joystick .............................................................25
Joystick functions ...............................................26
Supply ...............................................................27
Mixing ...............................................................28
Unloading..........................................................28
Scale..................................................................31
Leveling for the weighing...................................31
Mounting the scale ............................................32
Maintenance......................................................33
Replacing load sensors .......................................34
Planetary gearbox oil..........................................38
Gearbox oil ........................................................39
Lubrication.........................................................40
Special care in hydraulic system maintenance .....41
Tires...................................................................42
Conservation......................................................43
Electric system....................................................44
Hydraulic system ................................................45
Scale electric system...........................................46
Technical characteristics......................................47
Dimensions (mm)...............................................47
Practical guide ...................................................48
Torque table for bolts.........................................50
Key gauge table .................................................51
Warranty certicate............................................54

Instructions Manual 5
We constantly strive to protect the environment,
from the development of our products to the
use of processes and materials, which are
environmentally friendly.
Protecting and respecting the environment is
the responsibility of everyone. Dispose used
uids and lubricants, old tires, packaging etc.
according to current laws. Never dispose these
products directly into the environment! Share
these pieces of advice, making other people
aware of the importance of the environment
preservation!
ENVIRONMENT
By sending messages or requesting Technical
Support, always inform your serial number and
the machine model, found on the identication
tag.
By replacing parts, always make use of genuine
items. Only genuine parts are manufactured
in accordance with the pictures, materials and
project specications, going through a rigorous
standard of quality.
IMPORTANT!
IDENTIFICATION
Your Machine is identied with a serial number,
found on the tag xed on the machine body.
Write down your machine serial number:

6Instructions Manual
The word CAUTION indicates situations where
there is potential risk or hazard, and, if not
avoided, might cause serious injuries.
The word DANGER indicates a clear risk
situation, whose consequences, if not avoided,
might cause very serious injuries or even death.
DANGER Warning!
CAUTION Warning
Read the instruction’s
manual before turning on
the machine. Stay tuned
and observe all usage and
safety recommendations
during operation. PASS
THE INFORMATION TO ALL
OTHER USERS.
GENERAL SAFETY
Never use the Mixer Wagon
to transport people or
animals. Do not stand
inside, onto the load
or hung on the sides of
the Mixer Wagon during
transportation operations,
loading, unloading or
mixture.
Whenever it is necessary
to enter the Wagon, rst
uncouple the cardan shaft
from the tractor PTO.
This way, you will avoid
the Wagon’s accidental
activation with people
inside it. Risk of serious
injuries caused by the rotor
mixer in operation.
CAUTION!
SAFETY PRECAUTIONS
The machine operator must be familiar with
operating and maintenance procedures, as well
as SAFETY information, found in this manual.
You will nd good practices regarding safety,
which must be respected when using the
machine. We recommend the careful reading
of this material before using it.
We remind you that health preservation and
physical integrity of people must always come
rst.
In case there are any enquiries, please get
in contact with us before you perform any
operations.
In this Manual and the stickers found on the
machine, you will nd the safety alert symbol,
accompanied by the warnings CAUTION and
DANGER, followed by specic instructions. These
instructions are intended to safeguard your own
safety as well as the other people’s, who work
or are found standing near the machine. When
you nd the safety warnings in this Manual, read
them carefully and follow the instructions that
follow rigorously.
SAFETY ALERT SYMBOL

Instructions Manual 7
SAFETY IN PREPARATION

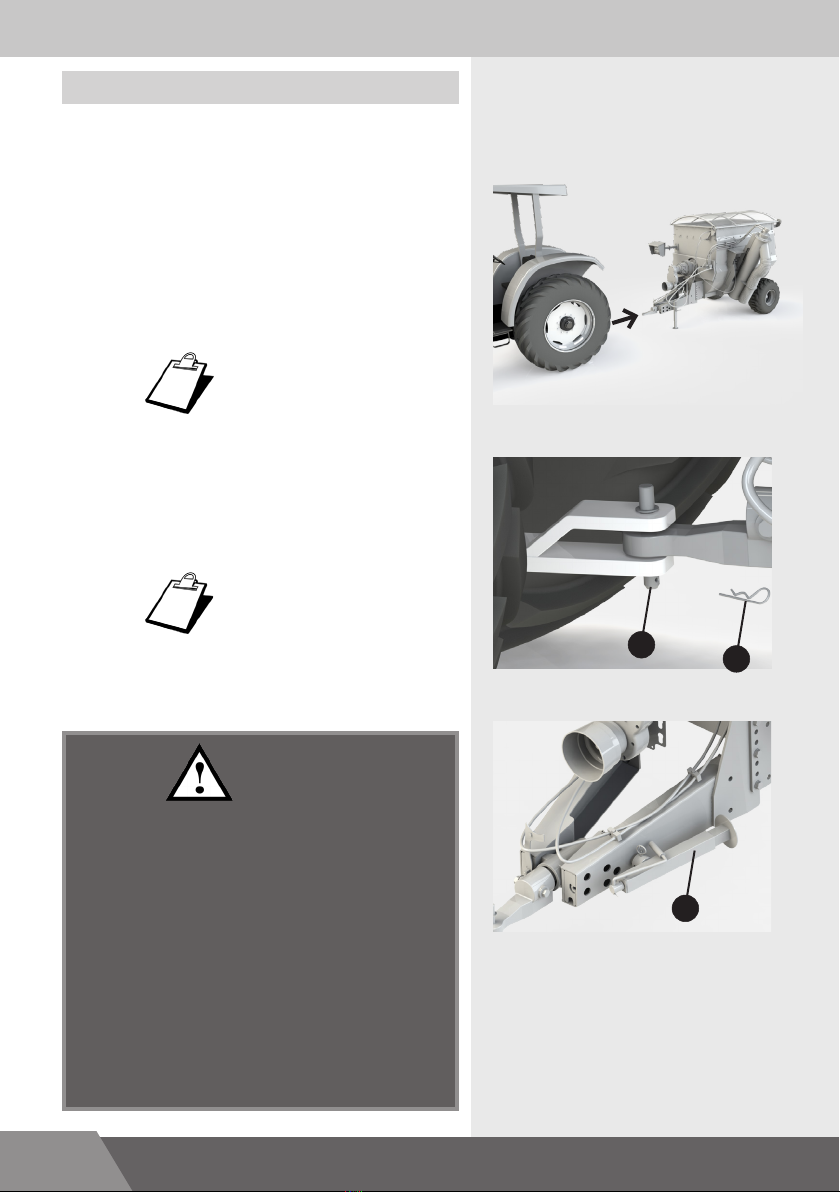

Make sure the machine is appropriately
coupled to the tractor, and the coupling
pin is properly locked.
Before you initiate the operation, perform
a machine general check-up, observing
if there are no loose bolts, worn parts,
cracks, leaking, loose chains etc. Make
sure to always make necessary repairs,
paying attention to instructions in this
manual.
When you uncouple the machine from
the tractor, choose a flat surface, in
order to ease the procedure and the
follow coupling. Make sure the machine
is stationary and, if necessary, add shims
to the wheels.
Every equipment must be solely
used to conceived ends, according
to specifications in this manual. The
equipment use in applications that have
not been mentioned here is considered
inadmissible and is not authorized by the
manufacturer.
Adaptations or use of non-original parts
compromise the functioning and shorten
the machine service life, as well as putting
the operator at risk and result in loss of
warranty.
Keep a rst-aid kit at hand (and be sure
you know how to use it in case there is
an accident).
Observe and pay attention to all safety
recommendations in this manual. Lack
of attention during the operation might
result in a serious accident.
Be especially careful when
you couple and uncouple
the machine to the tractor.
Observe if the coupling pins
are securely locked. Always
make use of counter pins
to avoid that pins loosen
accidentally.
In order to provide a better
understanding, certain
images or pictures are
presented without their
safety protections. However,
the machine can never be
used without them. Before
you turn the machine on,
check if all the protections
are in place.
Fix the edges from the
cardan shaft protection
covers in xed points of the
tractor and the implement,
through specific chains
for this purpose, so that
they remain static, without
rotating. Never use the
cardan shafts without their
protection covers.
Never leave items such as
ropes, bags, wires or any
other materials inside the
Wagon. It is only to be used
for ingredients to feed your
animals.

8Instructions Manual
OPERATIONAL SAFETY
In order to operate this machine, as
well as perform any maintenance or
repair, you should follow all instructions
recommended in this manual. You should
pay special attention to recommendations
and safety warnings, in addition to
respecting all current Hygiene and Safety
Standards at work.
Never operate the machine in case you
have ingested alcoholic beverages or
taken medicine, which might change your
state of alert and coordination. Keep alert
and focused during the operation and
always act with good sense. A moment
of recklessness or inattention might result
in a serious accident.
Before you turn on the machine, verify if
there are no tools or other objects on it.
Observe the surroundings of the machine
before you put it in operation. Keep
animals and people at a safe distance.
Special care must be taken if there are
children nearby.
It is forbidden to stand on the machine
when it is working or being used for
transportation. Whenever it is necessary
to climb on the machine to perform any
adjustments or repair, turn off the tractor
PTO and wait until all the components are
completely stationary.
Do not allow children or curious people
to approach the machine when it is in
operation or during maneuvers.
Keep all the covers and protections in
their proper places and do not operate
the machine without them.
When you maneuver the machine
coupled to the tractor, observe if there is
enough space to perform the
movements. Observe if there
are no people or animals
near the machine.
Always drive the tractor
in compatible speeds, in
accordance with field or
road conditions and the
tractor size. Avoid sudden
maneuvers, especially in
rough terrain. In order
to tow a load when its
weight is heavier than the
tractor’s, do not exceed the
maximum speed of 16kmph.
Always drive the tractor in
compatible speeds with its
size.
Never operate the machine
for extended periods in
enclosed places or without
ventilation. Carbon
monoxide gases expelled
though the tractor’s exhaust
system are extremely toxic.
Be sure to have enough
ballast so that the tractor’s
front tires have sufficient
contact with the ground.
The tractor must always be
maneuverable.
Pay special attention when
you transit through steep
terrain when the machine is
coupled. In case you notice
any imbalance, reduce the
speed. When you are going
down a steep road, always
keep the tractor engaged.
This equipment is dangerous
for children and people who

Instructions Manual 9
SAFETY IN MAINTENANCE
Maintenance, inspections and repairs
can only be performed by a specialized
technician, who is aware of all risks
involved. It is necessary, therefore, to
check all operating procedures related
to the machine, which are adequate to
be sure of the methods to use when you
have to prevent dangerous
situations. The technician
must always work with
extreme caution, paying
maximum attention to all
safety standards.
Turn off the tractor PTO,
the engine and remove the
key from the ignition before
you regulate, lubricate or
perform any maintenance
services in the machine.
Never perform any repairs
or adjustments when the
machine is on.
Always put all hydraulic
controls of the tractor with
gear lever in neutral before
you turn it off or work on
the hydraulic system.
Make sure all systems
components are kept in
good state.
Replace immediately
damaged, crushed or spoiled
hoses.
Make use of appropriate
protection on hands and
eyes when you check if there
are any high-pressure leaks
in the hydraulic system. Use
a piece of wood or a card
instead of using your hands
to isolate and identify .
are not familiar with its operations. Do
not allow them to approach the machine
when it is working.
In case you notice any abnormality in its
operation, vibrations, unusual noises etc.,
turn off the machine immediately, check
and eliminate the source before you turn
it back on.
Read carefully all the content in this
Manual before you couple the machine
to the tractor. It is very important to
learn how to use the Mixer commands
and become more familiar with them,
checking your control as well as verifying
the respective operating modes, in
accordance with instructions in this
Manual.
In order to work safely, the machine
must be operated by only one person,
who should be competent, of legal age,
and sitting on the driving position of the
tractor.
Check if the protections are properly
mounted and in their appropriate places;
if the stickers described are perfectly
legible before you put the machine in
operation.
The stickers found on the machine
provide a series of important indications:
Respecting the signals is a way to
safeguard your own safety.

10 Instructions Manual
In case you have been injured by high-
pressure hydraulic uids, seek medical
help immediately. Serious infection or a
toxic reaction might occur when hydraulic
uid gets in contact with the skin surface.
Remember: moving components due
to inertia keep moving for longer even
when the machine is turned off. Before
you touch any machine parts, turn off
the power supply, check and listen if
there is no evidence of movement. Only
touch any machine components if you are
absolutely sure that they are stationary.
Always be alert!
Do not lean the machine on concrete
blocks, hollow bricks or any other
supports that might crumble by the
effect of extended loads. Whenever it is
necessary, always use a safe support.
Personal safety as well as other people’s is
one of our major concerns in the design
and development of a machine. However,
every year there are a lot of accidents
that could have been prevented. They
happen mainly due to lack of attention
and observation of safety rules during the
operation. Read this manual carefully and
keep alert all the time.
Never operate the machine if you are
under the effect of alcoholic beverages,
medicine or drugs that might harm your
alert state or your coordination.
Wear Personal Protective Equipment –
PERSONAL SAFETY
PPE – when you operate
the machine. Prolonged
exposure to noise might
cause harm or hearing loss.
Dress appropriately when
you operate the machine
– tying long hair and not
wearing loose-tting clothes
is highly recommended.
Take off rings, necklaces and
other objects that might get
stuck in the machine parts
or moving components.
Loose-fitting clothes and
long hair might get caught
by mechanisms in operation.
Always keep your hands at
a safe distance from moving
parts.
Never attempt to clean or
clear any machine parts
when it is turned-on. This
procedure can only be
performed when the PTO
is off, the ignition key is
removed from the tractor and
the machine is completely
stationary.
Never approach your hands
or even touch the mixing
paddles when they are in
operation.
This manual must be kept
available for anyone, so that
it can be consulted at any
time.

Instructions Manual 11
Transportation of the machine while it
is coupled to the tractor should not be
done on public roads and highways. This
practice must be limited to properties
and rural areas. Check the Department
of Transportation on the rules and
applicable laws in your region, as well
as the existing possibility of transporting
the machine with the tractor on certain
parts of roads.
Keep alert regarding the height of
transportation, especially under viaducts.
Never exceed a safe transportation speed.
Reduce your speed and be careful in
rough terrain as well as in winding roads.
Always drive the tractor in compatible
speeds, in accordance with eld or road
conditions.
Never allow people to stand on any parts
of the machine while it is being used
for transportation. Never use the Mixer
Wagon to transport people or animals.
When you transport the machine, be
extra cautious with the power grid, since
there is risk of shock if there is contact
with the electrical wiring. Keep away
from high voltage power lines. Risk of
electrocution. (Death caused by electrical
energy).
Do not drink and drive the tractor.
SAFETY IN TRANSPORTATION

12 Instructions Manual
Do not use the cardan shaft
without its safety protection. Risk
of getting stuck when the cardan
shaft is in operation, and also risk
of serious injuries or even death.
It is prohibited to stand on any
parts of the machine when it is
moving. Risk of falling, serious
injuries and death.
Before you lift the canvas cover,
make sure if there are any obstacles
that might collide with it, such as
trees, electric wires, etc.
Do not transport the machine
when the cover is lifted.
Risk of shock and electrocution.

Instructions Manual 13

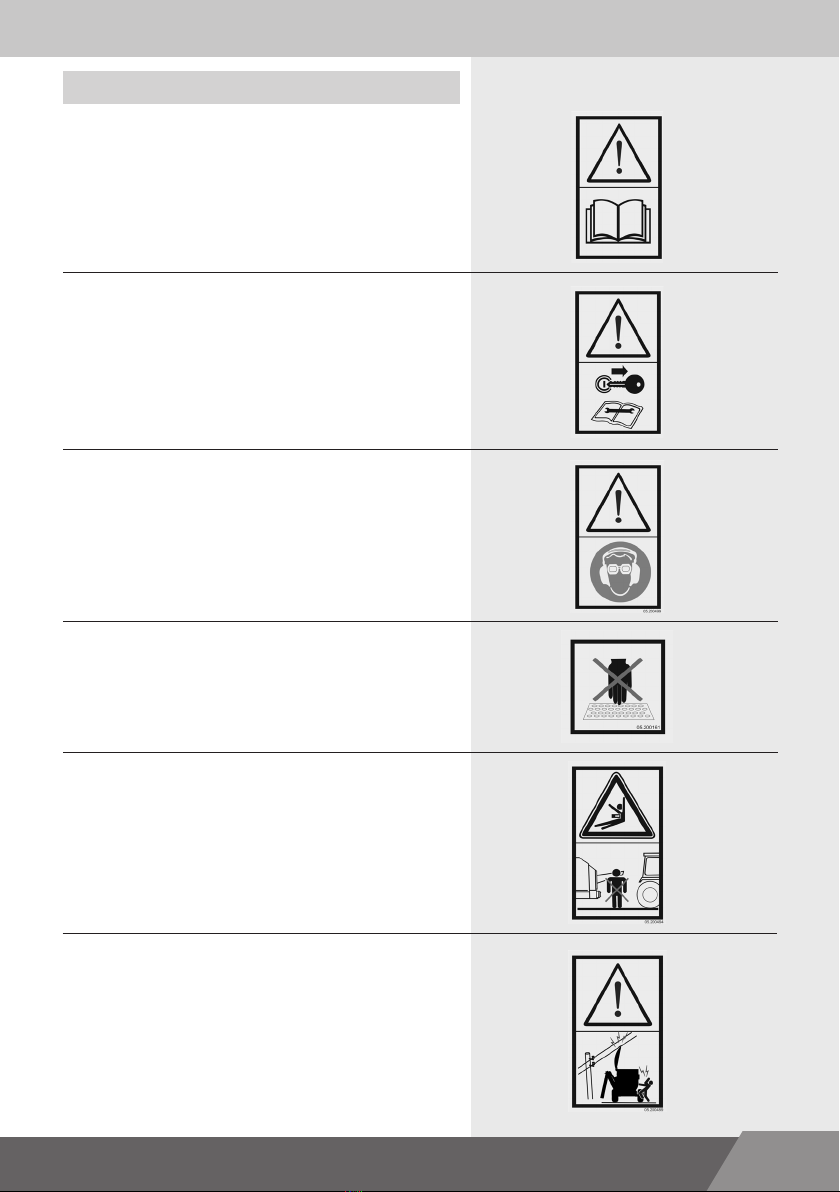

SAFETY STICKERS
Read this Instructions Manual before you turn
on the machine.
The tractor must be turned off and the
key removed from the ignition in order to
perform any kinds of maintenance, adjustment,
lubrication, cleaning etc. in the machine.
Always wear safety protectors (Personal
Protective Equipment PPE) when you operate
the machine.
Do not put your hands inside the rear loader.
Risk of an accident when there is contact with
the rotor mixer in operation.
Keep away from the articulation area, between
the machine and the tractor.
Be careful with the power grid when you lift
the Wagon’s cover. Never transport when the
cover is lifted.

14 Instructions Manual
Do not spray high-pressure water jets towards
the scale.
Maximum weight capacity of the tractor hitch.
Indicates the mounting position of the load
sensors, having the wire as a reference point.
Never climb or put your hands in the Wagon
when it is in operation.

Instructions Manual 15
1 Cover
Articulated structure, covered
with a plastic canvas.
2 Mixing Chamber
Receptacle where the mixture
is made.
3Scale
Precision equipment for
weight.
4 Planetary Gearbox
Gearboxes that transmit the
movement and torque for the
engine.
5 Gearboxes
Gearboxes to reduce the speed
6Cardan Shaft
A component that transmits
torque from the tractor
7 Hitch
A component to couple the
Wagon to the tractor.
8 Jack
A component to adjust the
height of the shaft bar.
9 Discharge door
A dosing door, activated by a
hydraulic piston.
10 Discharge Tube
A conductor tube with screw.
11 Discharge screw
Endless screw that performs
the discharge of the mixture.
12 Joystick
Remote control to activate the
dosing door and the discharge
screw.
13 Rear Compartment
Opening for loading or ad-
dition of ingredients in the
mixing.
14 Rotor Mixer
A rotating component that
performs the mixture inside the
mixing chamber.

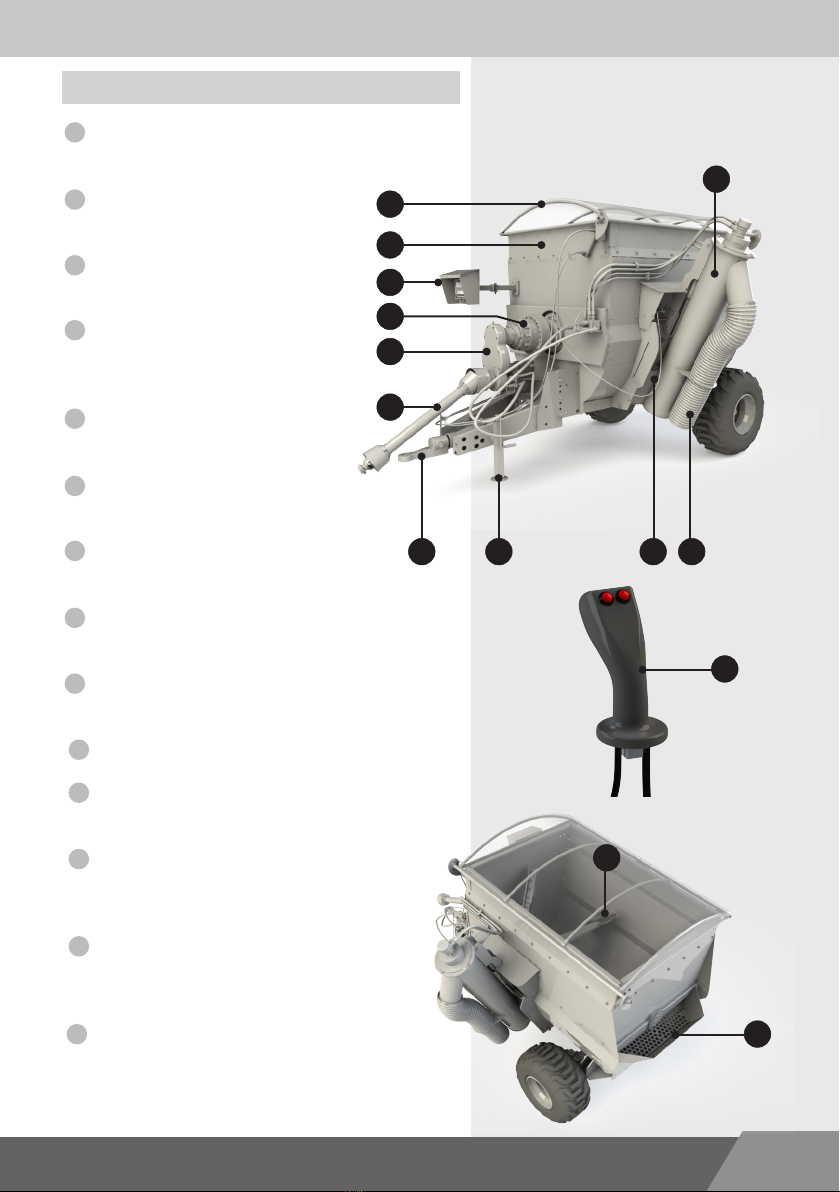

KNOWING THE MIXER WAGON
87
11
14
10
12
13
9
1
3
5
4
6
2

16 Instructions Manual

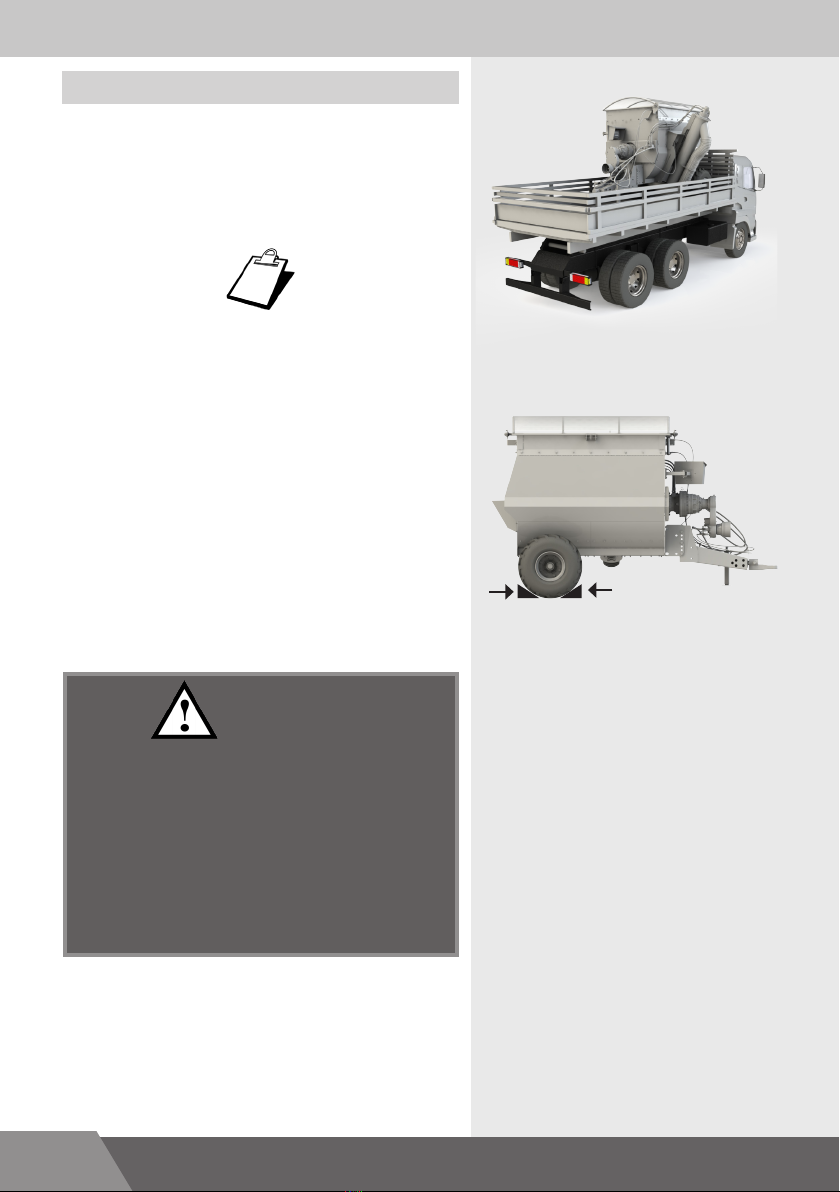

TRUCK TRANSPORTATION
Whenever it is necessary to transport the
machine over long distances, or whenever
there is the need of using it on public roads,
transportation must be done on a truck or
wagon.
Keep a safe distance when you lift
the machine using a winch. Do not
allow the presence of people near the
machine during the lifting.
Remember that it is possible for a side
movement to happen, intentional or
not, when the machine is suspended.
Never stand on a piece of equipment
when it is suspended.
CAUTION!
¡IMPORTANT!
Use wood wedges
The machine must be completely inside the
bodywork.
It is essential that the header is xed on the
bodywork oorboard, as well as adding wooden
shims, which must be xed on the oorboard.
Use a sufcient supply of cables, moorings,
ropes etc., to immobilize the load and keep it
stable over the truck or wagon.
Be alert regarding the load total height, mainly
under power grids, viaducts and others. Check
load conditions (loose cables, shims and others)
periodically during your journey. Always follow
current Trafc Laws.

Instructions Manual 17

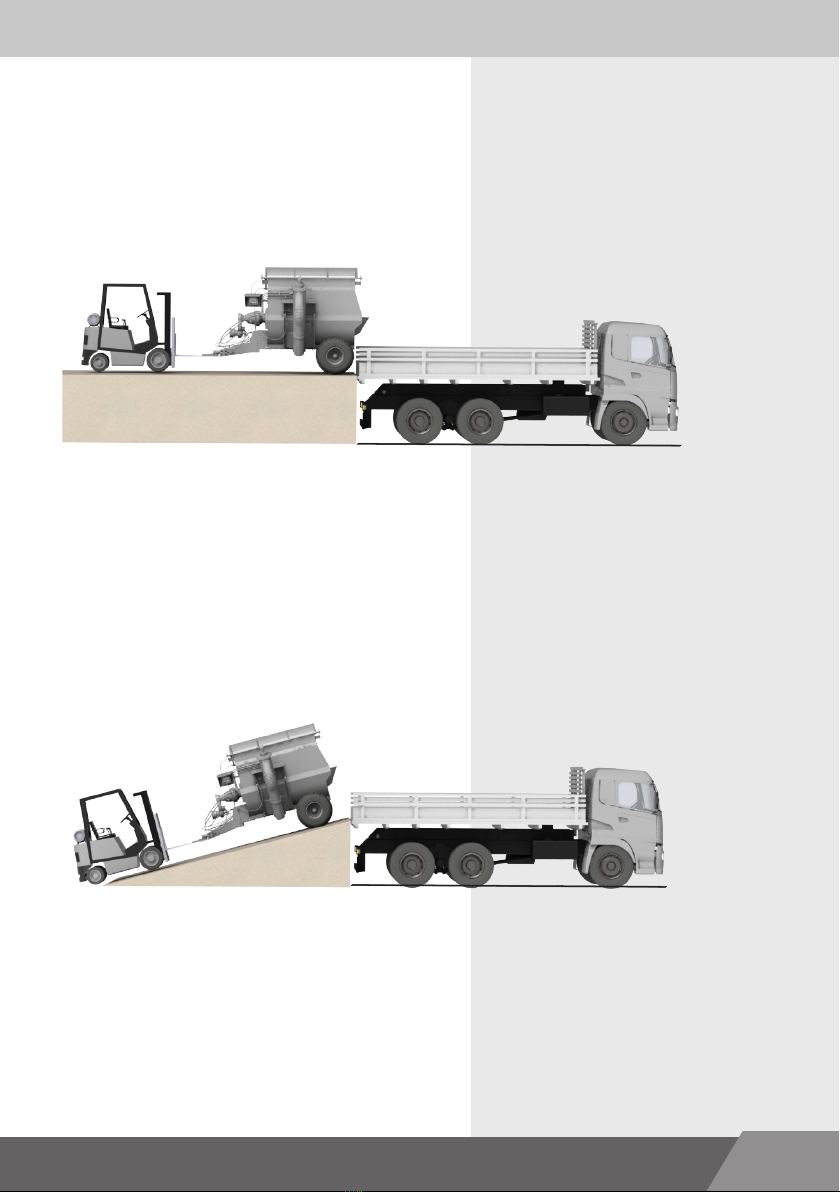

Position the Wagon, coupled to a forklift or
tractor, onto the platform. Push the Wagon
onto the truck body. Tie it onto the body and
add shims to the Wagon’s wheels.
LOADING PLATFORM
LOADING WITH A RAMP
Position the Wagon, coupled to a forklift or
tractor at the base of the ramp. Push it through
the ramp towards the truck body. Tie it onto the
body and add shims to the wheels.

18 Instructions Manual

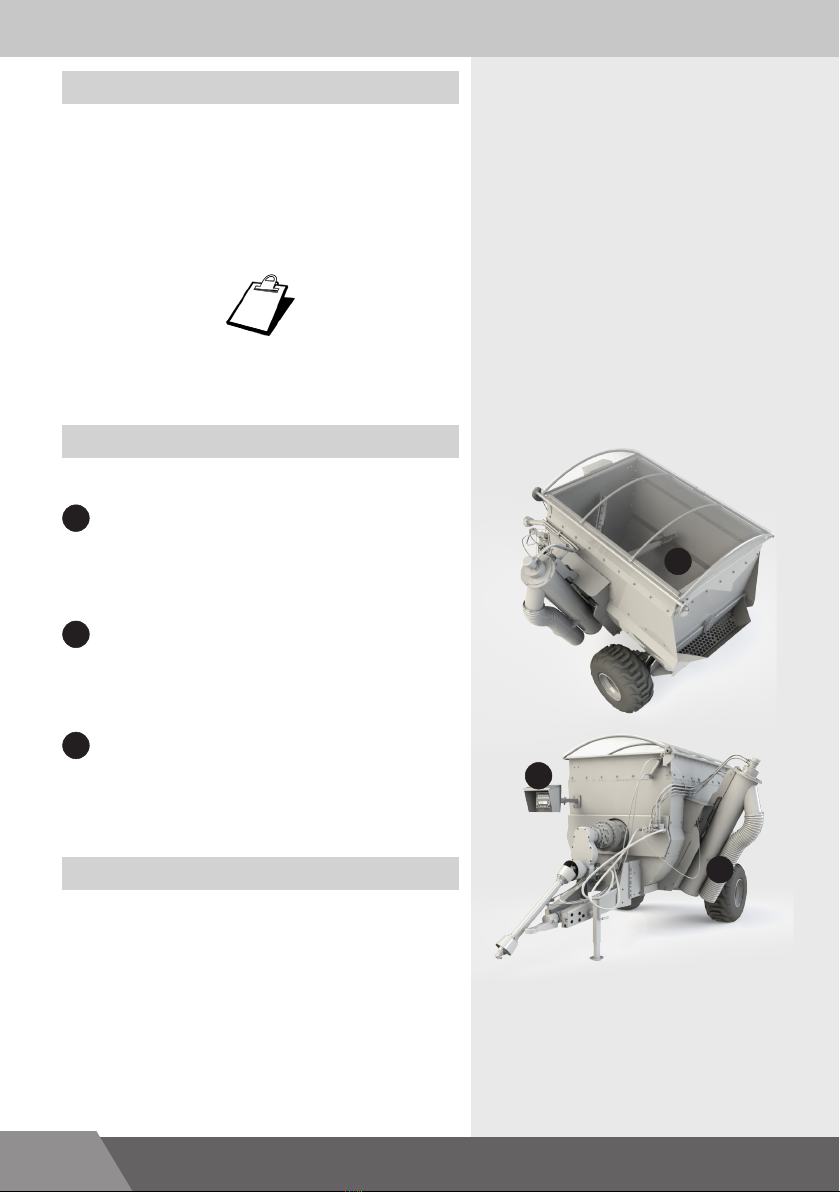

The three main Wagon systems are:
MIXTURE: The rotor paddles perform a
rotation of the materials inside the mixing
chamber, providing a uniform mixture.
WEIGHING: The scale enables to dose the
quantity of each material introduced in the
mixing chamber, in order to prepare a totally
balanced animal feed.
UNLOADING: The mixture is deposited in
an endless screw, through which it is unloaded.
The products that will be mixed are deposited
inside the mixing chamber, and the rotor,
activated by the tractor PTO, rotates constantly,
mixing all the products in a homogenous way.
To nalize the procedure, open the compartment
and the mixture is drained to an endless screw,
activated by a hydraulic engine. The screw then
transports the mixture to the tube, through
which the mixture is disposed of directly in the
trough.
.
DESCRIPTION
FUNCTIONING
The Mixer Wagon is a device developed to mix
and unload automatically salt, concentrates
and other products used in the production of
animal feed.
Its project was aimed to provide a balanced
mixture, with agility and efciency.
UTILIZATION
The unloading system by endless screw used
in this device is not recommended for silage.
IMPORTANT!
NOTE: The scale is an optional item.
1
1
2
2
3
3

Instructions Manual 19
The Wagon should be coupled to a tractor
with adequate weight, in order to guarantee
its dragging and stop in complete safety. It is
recommended the use of tractors from 50 to
60hp in the PTO.
In order to use the machine in a safe way, it is
necessary that only one operator perform the
maneuvers.
CHOOSING THE TRACTOR
During the operation, the revolution in the PTO
must not go over 540RPM, so that we avoid the
spillage of the mixture.
WORK ROTATION
The tractor speed must be compatible with
the discharge ow. In order to deposit more
mixture in the trough, you should reduce the
tractor speed and vice-versa. However, always
keep an adequate revolution in the PTO.
In order to guarantee constant unloading, it is
ideal that the tractor works with a ow of 40
liters/minute in the pump.
IMPORTANT!
Check if your tractor has any stickers that
indicate the revolution on your tachometer
that corresponds to 540 RPM in the PTO. In
case there are any enquiries, check your tractor
manual.
NOTE!

20 Instructions Manual
1. Approach the tractor to the Wagon carefully,
aligning the shaft bar with the machine
hitch.
2. Put the hitch pin (B) and lock it with the
counter-pin (C)
3. After coupling, retract the jack (D), turn it
and put it in the rest position.
TRACTOR COUPLING
Choose a at and levelled surface, since it makes
the procedure easier and safer.
The involuntary movement of the
machine during coupling might cause
an accident!
If it is impossible to perform the
coupling on a flat, leveled surface,
you should add shims to the wheels in
order to make the machine stationary.
After coupling, make sure that the
header is securely locked to the tractor’s
shaft bar. Always lock it with a counter-
pin (C). The accidental uncoupling of
the Wagon, when it is being towed,
might result in a serious accident.
During the operation, the jack (D) should be at
working position (horizontal) – Check picture
beside.
NOTE!
NOTE!
JACK IN REST POSITION
In order to adjust the shaft bar height, use a
jack (D).
CAUTION!
C
B
D
