Nortel Networks IP Phone 2002 User manual

Carrier VoIP
Nortel IP Phone 2002 User
Guide
NN10300-007
.

Document status: Standard
Document version: 06.04
Document date: 20 October 2006
Copyright © 2006, Nortel Networks
All Rights Reserved.
The information in this document is sourced in Canada, the United States of America, and the United Kingdom.
This is the Way, This is Nortel, Nortel, the Nortel logo, the globemark design, and the NORTEL NETWORKS
corporate logo, are trademarks of Nortel Networks. All other trademarks are the property of their respective owners.
All rights reserved.

3
Contents
New in this release 7
Overview 9
Functional components 9
Hardware features 10
Telephone display 10
Connecting the IP Phone 2002 components 13
Before you begin 13
Logging on 15
Displaying the menu 17
Logging off 19
Changing your audio profile 21
Adjusting the display contrast 23
Using the Feature menu 25
Navigation 25
Using the Assign menu 25
Defining the key type 25
Enabling or disabling AutoScroll 26
Enabling or disabling the Inbox 27
Labeling a feature key 27
Using the Options menu 28
Enabling or disabling Auto Hide 28
Selecting the default line key 29
Assigning the Outbox to a key 29
Resetting the feature keys to the default settings 30
Selecting a language 31
Using the Time menu 33
Navigation 33
Selecting the time zone 33
Enabling Daylight Saving Time 33
Carrier VoIP
Nortel IP Phone 2002 User Guide
NN10300-007 06.04 Standard
(I)SN09U 20 October 2006
Copyright © 2006, Nortel Networks Nortel Networks Confidential
.

4Contents
Disabling Daylight Saving Time 34
Setting the time format 34
Setting the date format 35
Resetting the time defaults 36
Using the User menu 37
Navigation 37
Viewing your username 37
Viewing your login type 37
Viewing, enabling, or disabling Auto Login 38
Changing your password 39
Resetting the Inbox or the Outbox 41
Testing the local mode 43
Performing a firmware upgrade 45
Making calls 47
Using off-hook dialing 47
Using handsfree dialing 47
Using predial 48
Answer or terminate a call 51
Answering a call 51
Ending a call 52
While on an active call 53
Putting a call on hold 53
Using the Mute feature 53
Transferring a call 54
Using the Call Park feature 54
While away from your desk 55
Forwarding calls 55
Conference calls 57
Setting up a Conference call 57
Using the Call Join feature 58
Additional features and controls 59
Using the dialpad to enter text 59
Use the Symbol key to enter special characters 59
Using the directory 60
Navigation 60
Adding or editing a directory entry 60
Deleting an entry from the directory 61
Making a call using the directory 62
Inbox/Outbox 62
Carrier VoIP
Nortel IP Phone 2002 User Guide
NN10300-007 06.04 Standard
(I)SN09U 20 October 2006
Copyright © 2006, Nortel Networks Nortel Networks Confidential
.

Contents 5
Navigation 62
Using the Inbox 63
Viewing Inbox call information 64
Storing a number from the Inbox 64
Using the Inbox to make a call 64
Using the Outbox 65
Viewing Outbox call information 66
Storing a number from the Outbox 66
Using the Outbox to make a call 66
Volume Control Bar 67
Ringer selection 67
LED Indicator 67
Message Waiting Lamp 68
Accessories 69
IP Phone Key Expansion Module 69
Carrier VoIP
Nortel IP Phone 2002 User Guide
NN10300-007 06.04 Standard
(I)SN09U 20 October 2006
Copyright © 2006, Nortel Networks Nortel Networks Confidential
.

6Contents
Carrier VoIP
Nortel IP Phone 2002 User Guide
NN10300-007 06.04 Standard
(I)SN09U 20 October 2006
Copyright © 2006, Nortel Networks Nortel Networks Confidential
.

7
New in this release
There have been no updates to the document in this release.
Carrier VoIP
Nortel IP Phone 2002 User Guide
NN10300-007 06.04 Standard
(I)SN09U 20 October 2006
Copyright © 2006, Nortel Networks Nortel Networks Confidential
.

8New in this release
Carrier VoIP
Nortel IP Phone 2002 User Guide
NN10300-007 06.04 Standard
(I)SN09U 20 October 2006
Copyright © 2006, Nortel Networks Nortel Networks Confidential
.

9
Overview
The Nortel IP Phone 2002 brings voice and data to the desktop by
connecting directly to a local area network (LAN) through an Ethernet
connection.
Functional components
The IP Phone 2002 supports the following functional components:
•a handset
•a speaker and headset connector for handsfree operation
•a standard telephone keypad,
•call service keys: Release, Hold, volume control, and Mute
•a liquid crystal display area
•navigation keys for scrolling through menu items, the Inbox, the Outbox,
and directory lists
To use the IP Phone 2002, log on to the Communication Server 2100 IP
Client Manager (CICM) by entering a user name and password. After you
log on, the handset and keypad of the IP Phone 2002 operate in the same
way as a standard Meridian Business Set (MBS) telephone. Additional
services and features can be accessed using the feature keys and the soft
keys.
"IP Phone 2002" (page 10) shows the IP Phone 2002.
Carrier VoIP
Nortel IP Phone 2002 User Guide
NN10300-007 06.04 Standard
(I)SN09U 20 October 2006
Copyright © 2006, Nortel Networks Nortel Networks Confidential
.

10 Overview

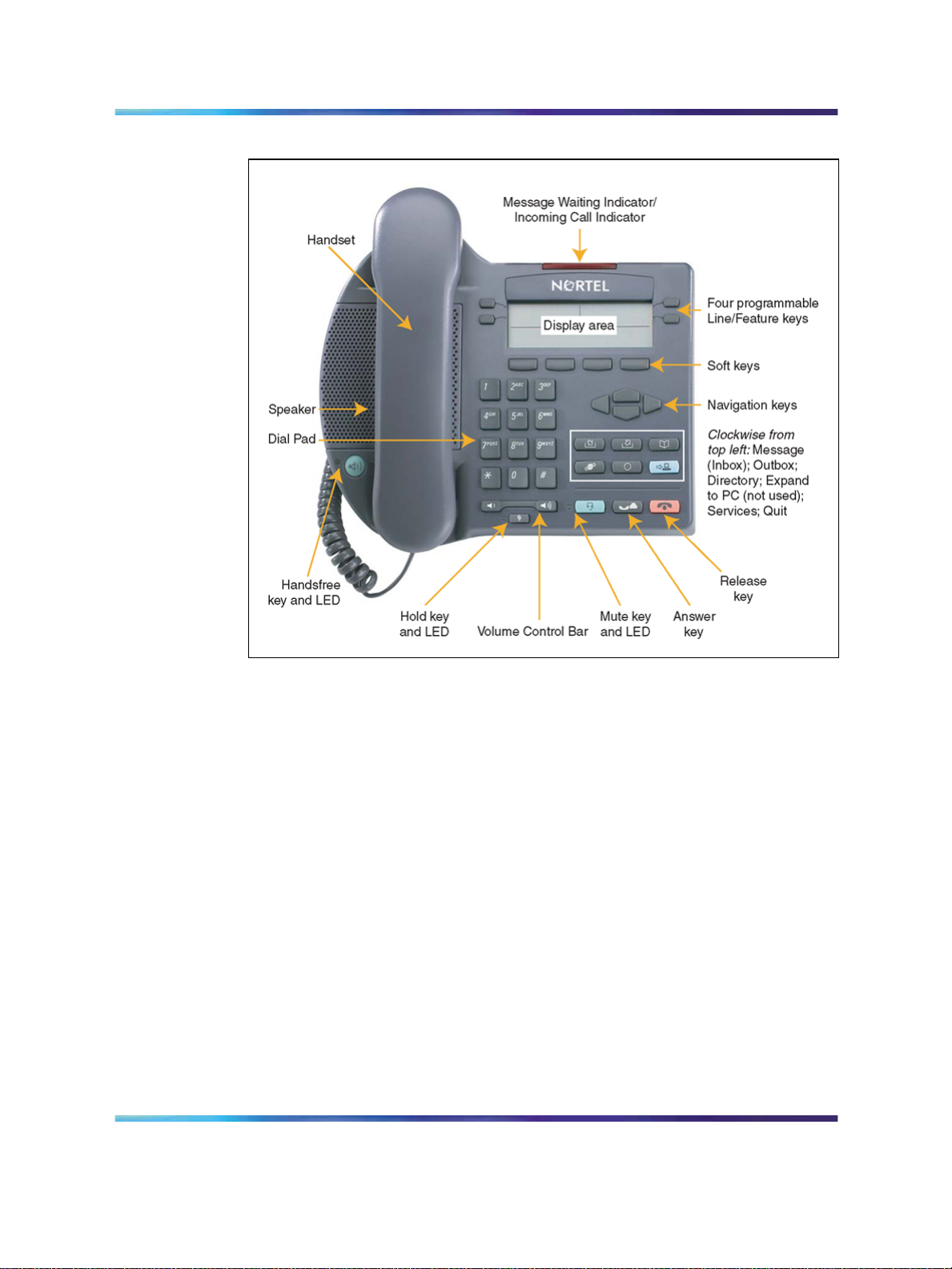

IP Phone 2002
Hardware features
Nortel IP Phone 2002 provides the following hardware features:
•fixed-angle stand
•wall mounting hardware
•built-in Ethernet switch (two RJ-45 jacks)
•four user-defined feature keys
•supports 10 features available by paging through the navigation keys
•one-line display area
•Standard Stetron LS19 speaker (no tuned cavity)
•Standard Primo EM-80 handsfree microphone
Not all features are available on all telephones. Consult your system
administrator to verify which features are available for your use.
Telephone display
The IP Phone display is divided into three areas. "IP Phone 2002 display "
(page 11) describes each area.
Carrier VoIP
Nortel IP Phone 2002 User Guide
NN10300-007 06.04 Standard
(I)SN09U 20 October 2006
Copyright © 2006, Nortel Networks Nortel Networks Confidential
.

Telephone display 11
IP Phone 2002 display
•The Login screen shows digits and characters entered through the
keypad, on information line 0 . The user name and passwords can be up
to a maximum of 15 digits.
•Four user-defined feature keys provide access to call features available
to the IP Phone. Although the IP Phone 2002 has only 4 feature keys,
the IP Phone has 10 features available. Use the navigation keys to scroll
through pages of features.
•Four soft keys allow you to select menu items and perform operations.
•To select a menu item, use the navigation keys to highlight the item
and press Ok.
•To select a numerically-indexed menu item, use the keypad to enter the
menu item number. The display immediately shows the screen for the
item, without the need to scroll. Only menu items 0 through 9 have
a shortcut key.
•Information line 1 is shared by the soft key labels and incoming call
information when at the base screen. If a menu screen is open when a
call comes in, you must exit the menu before caller information appears.
•Access the menu system by pressing the Menu soft key of by pressing
the Services key on the IP Phone. See figure "IP Phone 2002" (page
10) for the location of this key.
Carrier VoIP
Nortel IP Phone 2002 User Guide
NN10300-007 06.04 Standard
(I)SN09U 20 October 2006
Copyright © 2006, Nortel Networks Nortel Networks Confidential
.

12 Overview
Carrier VoIP
Nortel IP Phone 2002 User Guide
NN10300-007 06.04 Standard
(I)SN09U 20 October 2006
Copyright © 2006, Nortel Networks Nortel Networks Confidential
.

13
Connecting the IP Phone 2002
components
Before you begin
CAUTION
Damage to Equipment
Do not plug the IP Phone 2002 into a regular telephone jack. This
results in severe damage to the IP Phone 2002. Consult your
system administrator to ensure that you plug your telephone into
a 10/100BaseT Ethernet jack.
See "IP Phone 2002 connectors" (page 14) for the location of the
connectors.
Step Action
1Connect one end of the handset cord to the handset jack (identified
with a handset icon) on the back of the telephone. Connect the other
end to the jack on the handset.
2Choose one of the following connections:
•For an IP Phone not sharing LAN access with a PC, connect one
end of the CAT5 line cable to the LAN Ethernet port located on
the back of the phone (identified with a LAN icon). Plug the other
end of the CAT5 line cable into the IP network.
•For an IP Phone sharing LAN access with a PC, connect one end
of the CAT5 line cable to the LAN Ethernet port located on the
back of the phone (identified with a LAN icon) and the other end
to the IP network. Insert a second CAT5 line cable into the PC
Ethernet port located on the back of the phone (identified with a
PC icon) and the other end into the computer Ethernet port.
3Contact your installation technician for the correct power option. This
IP Phone can be powered by an AC adapter or over a LAN.
Carrier VoIP
Nortel IP Phone 2002 User Guide
NN10300-007 06.04 Standard
(I)SN09U 20 October 2006
Copyright © 2006, Nortel Networks Nortel Networks Confidential
.

14 Connecting the IP Phone 2002 components
4For a secure power connection, thread the excess cord around the
strain relief retaining hook and through the channel provided.
5Secure the IP Phone footstand to the base. Use the angle grip on
the top back of the phone to adjust the angle of the phone.
IP Phone 2002 connectors
—End—
Carrier VoIP
Nortel IP Phone 2002 User Guide
NN10300-007 06.04 Standard
(I)SN09U 20 October 2006
Copyright © 2006, Nortel Networks Nortel Networks Confidential
.

15
Logging on
Follow this procedure to log on to the network. If the Centrex IP Client
Manager (CICM) is set up as part of a group of CICMs, you can choose
which CICM to connect to. After you select a gateway, the terminal directs
itself at that CICM and the Username screen appears.
If a firmware upgrade for the IP Phone is available, the system prompts you
to upgrade when you log on. If the terminal is below the minimum level, the
only option available is Yes. You cannot log on until you perform the upgrade.
To perform an upgrade, see "Performing a firmware upgrade" (page 45).
Step Action
1If the Selective Gateway Login feature is configured on your system,
navigate through the list to select the gateway.
2When the gateway you want appears, press Ok, or start entering
your username.
If the Username screen appears when you start to enter your user
name, the characters you already entered appear at the beginning
of the Username field.
3If you make a mistake, press Clear to clear the field, and then enter
the user name again.
If your user name is too long for the display (longer than 15
characters), the digits scroll to the left and an ellipsis appears to
the left of the user name.
4Press Ok.
The Password screen appears.
5Enter your password. For security, the password characters are
displayed as asterisks (*).
6If you make an error, press Clear to clear the field, and then enter
the password again.
7Press Ok.
Carrier VoIP
Nortel IP Phone 2002 User Guide
NN10300-007 06.04 Standard
(I)SN09U 20 October 2006
Copyright © 2006, Nortel Networks Nortel Networks Confidential
.

16 Logging on
You are logged on and the Menu screen appears.
—End—
Carrier VoIP
Nortel IP Phone 2002 User Guide
NN10300-007 06.04 Standard
(I)SN09U 20 October 2006
Copyright © 2006, Nortel Networks Nortel Networks Confidential
.

17
Displaying the menu
Follow this procedure to access the main menu. You must be logged on
to access the main menu system.
Step Action
1On the IP Phone, perform one of these actions:
•Press the Menu soft key.
•Press the Services key.
The main menu opens.
2Perform one of these actions:
•Select Logout, see "Logging off" (page 19).
•Select Audio Profile, see "Changing your audio profile" (page
21).
•Select Display, see "Adjusting the display contrast" (page 23).
•Select Feature, see "Using the Feature menu" (page 25).
•Select Language, see "Selecting a language" (page 31).
•Select Time, see "Using the Time menu" (page 33).
•Select User, see "Using the User menu" (page 37).
•Select Call, see "Resetting the Inbox or the Outbox" (page 41).
•Select Diagnostics, see "Testing the local mode" (page 43).
•Select Upgrade, see "Performing a firmware upgrade" (page 45).
—End—
Carrier VoIP
Nortel IP Phone 2002 User Guide
NN10300-007 06.04 Standard
(I)SN09U 20 October 2006
Copyright © 2006, Nortel Networks Nortel Networks Confidential
.

18 Displaying the menu
IP Phone 2002 menu hierarchy
Carrier VoIP
Nortel IP Phone 2002 User Guide
NN10300-007 06.04 Standard
(I)SN09U 20 October 2006
Copyright © 2006, Nortel Networks Nortel Networks Confidential
.

19
Logging off
Follow this procedure to log off from the system.
Step Action
1From the main menu, select Logout.
The Logout screen appears.
2To log off, press Ok.
You are asked to confirm the action.
3Press Yes.
—End—
Carrier VoIP
Nortel IP Phone 2002 User Guide
NN10300-007 06.04 Standard
(I)SN09U 20 October 2006
Copyright © 2006, Nortel Networks Nortel Networks Confidential
.

20 Logging off
Carrier VoIP
Nortel IP Phone 2002 User Guide
NN10300-007 06.04 Standard
(I)SN09U 20 October 2006
Copyright © 2006, Nortel Networks Nortel Networks Confidential
.
