NSK Primado2 User manual

1
English
English
These Attachments are to be used exclusively with our total surgical system Primado2 and Pneumatic Surgical Drilling Machine Primado Air.
We recommend that prior to use, you carefully read this Operation Manual regarding "Precaution for Handling and Operation", "Connection
method", "Operation method", "Check before Operation" and "Periodical Maintenance Check" so that you can continue using the
Attachments in the future.
In addition, keep this Operation Manual in a place where a user can refer to it at any given time.
●In this Operation Manual Bur, Drill, Blade and Rasp are collectively called Cutting Accessory(ies).
●For reprocessing and operation of the Control Unit, Foot Control, Motor or Attachments and applicable Cutting Accessories, refer to each
Operation Manual (see Table-1).
Table-1
Operation Manual Title Operation Manual No.
Primado2 OPERATION MANUAL Control Unit and Foot Controls OM-SE0021E
Primado2 OPERATION MANUAL Motors OM-SE0023E
Primado Air OPERATION MANUAL OM-SM0002E
Primado2 REPROCESSING MANUAL OM-SZ0911MA
NSK Sterile Cutting Accessories OPERATION MANUAL OM-Z0147E
NSK Sterile Cutting Accessories OPERATION MANUAL OM-SZ0031E
CUTTING ACCESSORIES - ATTACHMENT CORRESPONDENCE TABLE OM-SZ0920MA
Contents
1. User and Intended Purpose / Indication for Each
Attachment ..................................................................... 2
1–1 User and Intended Purpose ............................................. 2
1–2 Indication for Each Attachment ....................................... 2
2. Precautions for Handling and Operation ............................ 3
3. Product Description ......................................................... 6
3–1 Reference Pages and Package Information by Order Code
.................................................................................... 6
3–2 Applicable Product ...................................................... 12

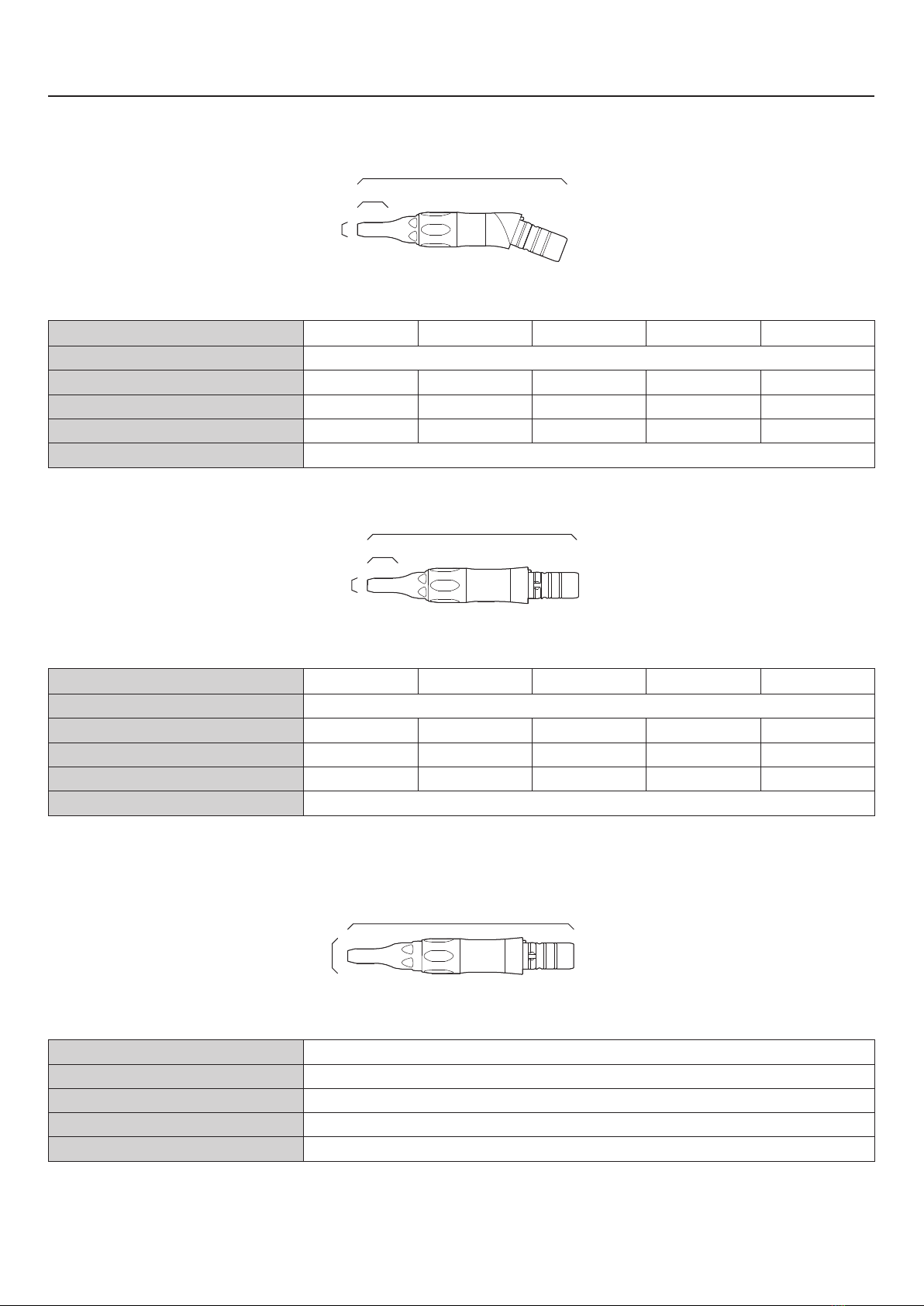

3–3 Part Names and Specifications ..................................... 13
4. Operation of SMH/HMH Series ........................................ 28
4–1 Connecting and Disconnecting the Attachment ............... 28
4–2 Assembling, Mounting and Removing the Cutting
Accessory (Optional) .................................................... 29
5. Operation of BMH Series ................................................ 39
5–1 Connecting and Disconnecting the Attachment ............... 39
5–2 Mounting and Removing the Cutting Accessories
(Optional) ................................................................... 39
6. Operation of WPD Series ................................................ 44
6–1 Mounting and Removing the Attachment ........................ 44
6–2 Mounting and Removing the Cutting Accessories
(Optional) ................................................................... 44
7. Mounting and Removing the Bur Guard ........................... 49
8. Check before Operation ................................................. 49
9. Periodical Maintenance Checks ...................................... 50
10. Reprocessing ................................................................ 50
11. Troubleshooting ............................................................. 51
11–1 SMH Series Attachment ............................................... 51
11–2 HMH Series Attachment ............................................... 53
11–3 BMH Series Attachment ............................................... 54
11–4 WPD Series Attachment ............................................... 56
12. Warranty ....................................................................... 57
13. Optional Accessories ..................................................... 58
14. Disposing of Product ...................................................... 59
15. Symbols ........................................................................ 59

2
1 User and Intended Purpose / Indication for Each
Attachment
1–1 User and Intended Purpose
User :Qualified Professionals (Surgeon with knowledge and skills required for operating this product).
Intended Purpose :These devices are designed to be used with the electric or pneumatic surgical instruments, and the
cutting accessories manufactured by Nakanishi INC. These devices are intended for: cutting, drilling,
removal, and shaping of bones and implants in the fields of Neuro, Spine, Orthopedic, ENT, Oral
Maxillofacial, and Plastic and reconstructive surgery.
Intended patient
population
:The user shall determine the patient.
1–2 Indication for Each Attachment
Attachment
Application Surgical fields
Cutting
bone
Cutting
implant
Neuro-
surgery
Spine
surgery
Orthopedic
surgery
ENT
surgery
Oral
Maxillofacial
surgery
Plastic and
reconstructive
surgery
Primado Slim Attachment ✔ ✔✔✔✔✔✔
Slim Handpiece 200 ✔ ✔✔✔✔✔✔
Slim Attachment 300 ✔ ✔✔✔✔✔✔
Primado Standard Attachment ✔ ✔✔✔✔✔✔
Standard Handpiece 200 ✔ ✔✔✔✔✔✔
Standard Attachment 300 ✔ ✔✔✔✔✔✔
High Speed Handpiece 200 ✔ ✔✔✔✔✔✔
Primado Drill Attachment ✔ ✔✔✔✔✔✔
Drill Handpiece 200 ✔ ✔✔✔✔✔✔
Primado Super Slim
Attachment ✔ ✔
Super Slim Handpiece 200 ✔ ✔
Perforator Handpiece ✔ ✔
Perforator Handpiece 200 ✔ ✔
Craniotome Handpiece ✔ ✔
Craniotome Handpiece 200 ✔ ✔
Primado Contra Angle
Attachment ✔ ✔ ✔
Contra Angle Handpiece 200 ✔ ✔ ✔
Bone Saw Attachment 200 ✔ ✔ ✔ ✔ ✔ ✔
Primado Wire Pin Driver
Attachment ✔ ✔ ✔ ✔
Metal Cutting Handpiece 200 ✔ ✔ ✔

3
English
2 Precautions for Handling and Operation
Please read these precautions carefully and use only as intended or instructed.
Safety instructions are intended to avoid potential hazards that could result in personal injury or damage to the device. Safety instructions
are classified as follows in accordance with the seriousness of the risk.
Class Degree of Risk
DANGER Hazard that could result in personal death or serious injury if the safety instructions are not correctly followed.
WARNING Hazard that could result in serious injury or damage to the device if the safety instructions are not correctly
followed.
CAUTION Hazard that could result in light or moderate injury or damage to the device if the safety instructions are not
correctly followed.
NOTICE General product specification information highlighted to avoid product malfunction and performance reduction.
DANGER
●DO NOT use this product in a room where there is a danger of explosion or in the vicinity of flammable substances. It is especially
important not to use this product on a patient to whom a flammable anesthetic agent (dinitrogen monoxide) has been administered.
●Never disassemble or modify the product. Disassembly or modification may cause personal injury or damage to the Motor (including
Motor Cord/Motor Hose) or Attachment.
WARNING
●This is a medical system; do not allow anybody to use it other than surgeons who are familiar with the procedures. Use this system in
accordance with its indications for use and proper method of use.
●The Cutting Accessory is for single use only. DO NOT reuse or reprocess it. If you reuse or reprocess it, the following risks may occur:
– Infection.
– Personal injury due to damaged Cutting Accessory.
– System defect due to damaged/deformed Cutting Accessory.
●Irrigate appropriately while cutting in order to prevent necrosis of bones and tissues.
●Perform inspection before use according to "8 Check before Operation". If abnormal vibration or noise is found, the following issues
are suspected:
– The internal consumables (ball bearings, etc.) are worn or damaged.
– The chuck is open or there is a bad connection of each part.
– System defect due to damaged/deformed Cutting Accessory.
Using the Attachment in these conditions may lead to heat generation causing thermal injury. Perform "11 Troubleshooting" in this
case. If the issue does not improve after troubleshooting, contact your Authorized NSK Dealer.
●DO NOT place the Attachment/Motor (including Motor Cord/Motor Hose) on the patient or the drape covering the patient. Doing so may
cause an accident, injury or thermal injury to the patient and/or surgical staff.
●Prevent any debris or other foreign materials from entering into the Attachment. Failure to do so may lead to heat generation, causing
thermal injury.
●DO NOT allow strong impact on the product for example, dropping the Attachment/Motor on a hard surface. Doing so may cause
personal injury, abnormal heating, fire and/or thermal injury due to product damage.
●After purchase or repair of the Attachment, be sure to clean, lubricate and sterilize the Attachment before use (refer to OM-SZ0911MA
Primado2 REPROCESSING MANUAL).
●DO NOT use bent, damaged or deformed Cutting Accessories. If they are used, the Attachment may not clamp the Cutting Accessory
securely and it may break or cause accidents.
●DO NOT put excessive pressure on the Cutting Accessory. Doing so may bend or damage the Cutting Accessory, or cause excessive
heat generation on the Cutting Accessory, Attachment and Motor, which could lead to thermal injury.
●Avoid continuous use of the product and use it intermittently to prevent excessive heat generation.
In case of heat generation, immediately stop use until the product cools down.
●Be careful not to touch the heated area. Doing so may cause thermal injury.
●When replacing the Cutting Accessory, be sure to slide the Safety Lock on the Hand Switch of the Motor to the OFF position, or
completely take your foot off the Foot Control Pedal to stop the Attachment completely. Otherwise, a patient or surgical staff may be
injured by unintentional movement of the Motor and the Cutting Accessory.

4
Precautions for Handling and Operation
WARNING
●DO NOT operate the Attachment if the markings of the Twist Collet are not aligned (chuck is open) after the Cutting Accessory is
mounted. Doing so may cause thermal injury due to heat generation and potentially damage to the Attachment.
●Be sure to adjust the exposure length of the Cutting Accessory outside the operative field and confirm that the exposure length is
adjusted as intended before use (when using Slim Attachment 300 or Standard Attachment 300).
●The applicable Attachment for cutting implants is Metal Cutting Handpiece 200. Other Attachments cannot be used.
●DO NOT use the Primado2 Control Unit and Motor in a room with electromagnetic interference or adjacent to portable/mobile RF
communication equipment. Use in such environments may affect the Control Unit and Motor. When using equipment generating
electromagnetic waves, turn off the power to the Control Unit.
CAUTION
●When operating the product, always consider the safety of the patient.
●Users shall be responsible for any judgement that relates to the application of this product to a patient.
●Users are responsible for the operational control, maintenance and continual inspection of this System.
●Be sure to read this Operation Manual and the Operation Manuals for "Primado2 Control Unit", "Primado2 Motor", or "Primado Air" in
order to become completely familiar with the function of each part before use.
●Be sure to perform "8 Check before Operation" by operating the product with the Motor, Attachments and Cutting Accessory mounted
before use. If any abnormal condition is detected, stop using the product and perform "11 Troubleshooting".
●Wear Personal Protective Equipment (PPE) when using the Cutting Accessories.
●Use the Cutting Accessories specified by NSK only. Using other manufacturer's Cutting Accessories may cause a fault or an accident.
●It is recommended that a spare product be kept on hand in case of a breakdown during surgery.
●Never operate the Twist Collet, Fitting/Removal Button, Removal Lever or Removal Ring while operating the Attachment.
●DO NOT touch the rotating part of any Attachments while operating the Attachment.
●If the rotating Cutting Accessory catches hold of operating table drapes, injury and/or damage to the Cutting Accessory and the system
may occur. DO NOT allow the rotating Cutting Accessory to come in contact with drapes.
●Make sure that the shank part of the Cutting Accessories to be attached to the Attachment is clean. An unclean shank may cause
center deviation or prevent proper clamping.
●After mounting the Cutting Accessory and locking the chuck, pull it lightly to confirm that it is securely connected to the Attachment.
●DO NOT operate the Attachment when the Cutting Accessory is not mounted.
●Before removing the Cutting Accessory from the Attachment, stop the rotation of the Attachment completely.
●Be sure to slide the Safety Lock on the Hand Switch of the Motor to the OFF position when mounting or removing the Attachment
(when using the Motor with Hand Switch).
●The Irrigation Nozzle and the Hood/Beak cannot be used at the same time on the Attachment.
●When mounting or removing the Motor and Attachment while using Primado2 Control Unit and Motor, be sure to turn off the Main
Power Switch of the Control Unit. If the Main Power Switch is ON, an unintentional movement may occur, which could result in injury to
users.
●When mounting or removing the Attachment while using Primado Air Motor, be sure to turn off (0MPa) the gas pressure control valve
of the medical gas piping equipment. Mounting or removing the Motor and Attachment when it is ON may cause an unintentional
movement, which could result in injury to users (when using PDA-SMH-HS/PDA-BMH-HS).
●While using the "Primado Air Motor: PDA-SMH/PD-BMH (without Hand Switch)", be sure to use "Foot Mode ( )". If it is used in "Hand
Mode ( )", the Motor may continue to rotate and cause an accident.
In this case, immediately switch the Control Mode to "Foot Mode ( )", or turn off (0MPa) the gas pressure control valve of the
medical gas piping equipment to stop the motor rotation.
●Use new Cutting Accessories for every surgical operation for safety.
●This device is for indoor use only.
●Perform regular function and maintenance checks for the devices and parts (see "9 Periodical Maintenance Checks").
●If the product is not used for a long period of time, check if it functions correctly and safely before use.
●If chemicals, solutions or sterilizing liquid is left on the surface of the Attachment, wipe it away immediately. If it is left, it may lead to
discoloration, deformation, rust and/or corrosion.
●DO NOT use the following fluids to wipe, immerse or clean the product: strong/super acid water, strong acid/alkaline chemicals,
chlorine-containing solutions, and solvents such as benzine or thinner.
●The temperature at the tip of the Attachment may reach up to 60°C depending on the environment.

5
Precautions for Handling and Operation
English
CAUTION
●Check the correct connection of the following before using Primado2 Control Unit.
– Connection of the Attachment and Motor.
– Connection of the Motor Cord Plug and Foot Control Cord Plug to the Control Unit.
– Connection of the Power Cord Connector to the Control Unit.
– Connection of the Power Cord Plug to the outlet.
●Check the correct connection of the following before using Primado Air.
– Connection of the Attachment and Motor.
– Connection of the Motor Cord Plug and Foot Control Hose Connector to the Foot Control.
– Connection of the Foot Control Hose (Air Connecting Plug (Schrader Type/DISS Type)) into the medical gas piping equipment (air
connecting port).

6
3 Product Description
3–1 Reference Pages and Package Information by Order Code
One of the Attachments is included in the package.
Each Operation Manual is included in the package.
3–1–1 SMH Series Attachment
_ Slim Handpiece 200*1
Order Code Part Names and
Specifications
Connecting and
Disconnecting the
Attachment
Mounting and
Removing Cutting
Accessories, etc.
Checking Troubleshooting Warranty / Optional
Accessories
Disposing of Product
P200-1A135
P13 P28 P34-35 P49 P51-52 P57-59
P200-1A155
P200-1A155-C
P200-1A175
P200-1A175-C
*1: One Wrench for Slim/Super Slim (P200-1ARA-W) is included in the package.
_ Super Slim Handpiece 200*1
Order Code Part Names and
Specifications
Connecting and
Disconnecting the
Attachment
Mounting and
Removing Cutting
Accessories, etc.
Checking Troubleshooting Warranty / Optional
Accessories
Disposing of Product
P200-RA330
P13 P28 P34-35 P49 P51-52 P57-59
P200-RA330-L
*1: One Wrench for Slim/Super Slim (P200-1ARA-W) is included in the package.
_ Standard Handpiece 200
Order Code Part Names and
Specifications
Connecting and
Disconnecting the
Attachment
Mounting and
Removing Cutting
Accessories, etc.
Checking Troubleshooting Warranty / Optional
Accessories
Disposing of Product
P200-2AMS
P14 P28 P34-35 P49 P51-52 P57-59
P200-2AES
P200-2AS
P200-2AM
P200-2AL
P200-2SMS
P200-2SES
P200-2SS
P200-2SM
P200-2SL

7
Product Description
English
_ Drill Handpiece 200
Order Code Part Names and
Specifications
Connecting and
Disconnecting the
Attachment
Mounting and
Removing Cutting
Accessories, etc.
Checking Troubleshooting Warranty / Optional
Accessories
Disposing of Product
P200-2SD P14 P28 P34-35 P49 P51-52 P57-59
_ Metal Cutting Handpiece 200
Order Code Part Names and
Specifications
Connecting and
Disconnecting the
Attachment
Mounting and
Removing Cutting
Accessories, etc.
Checking Troubleshooting Warranty / Optional
Accessories
Disposing of Product
P200-3MC P15 P28 P34-35 P49 P51-52 P57-59
_ ContraAngle Attachment 200
Order Code Part Names and
Specifications
Connecting and
Disconnecting the
Attachment
Mounting and
Removing Cutting
Accessories, etc.
Checking Troubleshooting Warranty / Optional
Accessories
Disposing of Product
P200-CA-4 P15 P28 P36 P49 P51-52 P57-59
_ Perforator Handpiece 200
Order Code Part Names and
Specifications
Connecting and
Disconnecting the
Attachment
Mounting and
Removing Cutting
Accessories, etc.
Checking Troubleshooting Warranty / Optional
Accessories
Disposing of Product
P200-PER P15 P28 P38 P49 P51-52 P57-59
_ Craniotome Handpiece 200
Order Code Part Names and
Specifications
Connecting and
Disconnecting the
Attachment
Mounting and
Removing Cutting
Accessories, etc.
Checking Troubleshooting Warranty / Optional
Accessories
Disposing of Product
P200-CRA P16 P28 P36 P49 P51-52 P57-59
_ Duraguard 200
Order Code Part Names and
Specifications
Connecting and
Disconnecting the
Attachment
Mounting and
Removing Cutting
Accessories, etc.
Checking Troubleshooting Warranty / Optional
Accessories
Disposing of Product
P200-CRD-P
P16 -P37 P49 P51-52 P57-59
P200-CRD-M
P200-CRD-L
_ Rotatable Duraguard 200
Order Code Part Names and
Specifications
Connecting and
Disconnecting the
Attachment
Mounting and
Removing Cutting
Accessories, etc.
Checking Troubleshooting Warranty / Optional
Accessories
Disposing of Product
P200-RCRD-P
P16 -P37 P49 P51-52 P57-59
P200-RCRD-M
P200-RCRD-L

8
Product Description
_ Slim Attachment 300
Order Code Part Names and
Specifications
Connecting and
Disconnecting the
Attachment
Mounting and
Removing Cutting
Accessories, etc.
Checking Troubleshooting Warranty / Optional
Accessories
Disposing of Product
P300-1AHA
P17 P28 P29-31 P49 P51-52 P57-59
P300-1AHS
P300-1T110
P300-1T110-C
P300-1T110-PB
P300-1T130
P300-1T130-C
P300-1T130-PB
P300-1T170
P300-1T240
_ Standard Attachment 300
Order Code Part Names and
Specifications
Connecting and
Disconnecting the
Attachment
Mounting and
Removing Cutting
Accessories, etc.
Checking Troubleshooting Warranty / Optional
Accessories
Disposing of Product
P300-2A10
P18 P28 P32-33 P49 P51-52 P57-59
P300-2A20
P300-2A40
P300-2A60
P300-2A80
P300-2S10
P300-2S20
P300-2S40
P300-2S60
P300-2S80

9
Product Description
English
3–1–2 HMH Series Attachment
_ High Speed Handpiece 200
Order Code Part Names and
Specifications
Connecting and
Disconnecting the
Attachment
Mounting and
Removing Cutting
Accessories, etc.
Checking Troubleshooting Warranty / Optional
Accessories
Disposing of Product
P200-3GAS
P19 P28 P34-35 P49 P53-54 P57-59
P200-3GAM
P200-3GAL
_ Primado Slim Attachment
Order Code Part Names and
Specifications
Connecting and
Disconnecting the
Attachment
Mounting and
Removing Cutting
Accessories, etc.
Checking Troubleshooting Warranty / Optional
Accessories
Disposing of Product
PD-1A135
P19 P28 P34-35 P49 P53-54 P57-59
PD-1A155
PD-1A175
_ Primado Super Slim Attachment
Order Code Part Names and
Specifications
Connecting and
Disconnecting the
Attachment
Mounting and
Removing Cutting
Accessories, etc.
Checking Troubleshooting Warranty / Optional
Accessories
Disposing of Product
PD-RA330
P19 P28 P34-35 P49 P53-54 P57-59
PD-RA330-L
_ Primado Standard Attachment
Order Code Part Names and
Specifications
Connecting and
Disconnecting the
Attachment
Mounting and
Removing Cutting
Accessories, etc.
Checking Troubleshooting Warranty / Optional
Accessories
Disposing of Product
PD-2AES
P20 P28 P34-35 P49 P53-54 P57-59
PD-2AS
PD-2AM
PD-2AL
PD-2SES
PD-2SS
PD-2SM
_ Primado Drill Attachment
Order Code Part Names and
Specifications
Connecting and
Disconnecting the
Attachment
Mounting and
Removing Cutting
Accessories, etc.
Checking Troubleshooting Warranty / Optional
Accessories
Disposing of Product
PD-2AD
P21 P28 P34-35 P49 P53-54 P57-59
PD-2ADM
PD-2SD
PD-2SDM

10
Product Description
_ Primado Contra Angle Attachment
Order Code Part Names and
Specifications
Connecting and
Disconnecting the
Attachment
Mounting and
Removing Cutting
Accessories, etc.
Checking Troubleshooting Warranty / Optional
Accessories
Disposing of Product
PD-CA-16
P21 P28 P36 P49 P53-54 P57-59
PD-CA-64
_ Perforator Handpiece
Order Code Part Names and
Specifications
Connecting and
Disconnecting the
Attachment
Mounting and
Removing Cutting
Accessories, etc.
Checking Troubleshooting Warranty / Optional
Accessories
Disposing of Product
PD-PER P22 P28 P38 P49 P53-54 P57-59
_ Craniotome Handpiece
Order Code Part Names and
Specifications
Connecting and
Disconnecting the
Attachment
Mounting and
Removing Cutting
Accessories, etc.
Checking Troubleshooting Warranty / Optional
Accessories
Disposing of Product
PD-CRA P22 P28 P37 P49 P53-54 P57-59
_ Duraguard
Order Code Part Names and
Specifications
Connecting and
Disconnecting the
Attachment
Mounting and
Removing Cutting
Accessories, etc.
Checking Troubleshooting Warranty / Optional
Accessories
Disposing of Product
PD-CRD-P
P22 -P37 P49 P53-54 P57-59
PD-CRD-M
PD-CRD-L
3–1–3 BMH Series Attachment
_ Bone Saw Attachment 200
Order Code Part Names and
Specifications
Connecting and
Disconnecting the
Attachment
Mounting and
Removing Cutting
Accessories, etc.
Checking Troubleshooting Warranty / Optional
Accessories
Disposing of Product
P200-REC
P23 P39
P40
P49 P54-55 P57-59
P200-SAG P41
P200-OSC P42-43

11
Product Description
English
3–1–4 WPD Series Attachment
_ Primado Wire Pin Driver Attachment
Order Code Part Names and
Specifications
Connecting and
Disconnecting the
Attachment
Mounting and
Removing Cutting
Accessories, etc.
Checking Troubleshooting Warranty / Optional
Accessories
Disposing of Product
PD-DA-W
P24
P44
P45
P49 P56-57 P57-59
PD-DA-P
PD-DA-J4*2
P25
P46
PD-DA-J6*3
PD-DA-A
PD-DA-K
P47
PD-RA-A
P26
PD-RA-M
PD-RA-H
PD-RA-T
P27
PD-SA-R
P48
PD-SA-S
*2: One T wrench (PD-TW-J4) is included in the package.
*3: One T wrench (PD-TW-J6) is included in the package.

12
Product Description
3–2 Applicable Product
3–2–1 Electric Surgical System
_ Control Unit
Product Name Order Code Applicable Attachment
Primado2 Control Unit for 120V P200-CU-120 All Attachments
Primado2 Control Unit for 230V P200-CU-230 All Attachments
_ Foot Control
Product Name Order Code Applicable Attachment
Primado2 Single Foot Control FC-73 All Attachments
Primado2 Multi Foot Control FC-74
_ Motor
Product Name Order Code Applicable Attachment
Primado2 Slim Motor Short P200-SMH-S
SMH Series AttachmentPrimado2 Slim Motor P200-SMH
Primado2 Slim Motor/HS P200-SMH-HS
Primado2 High Torque Motor P200-HMH HMH Series Attachment
Primado2 High Torque Motor/HS P200-HMH-HS
Primado2 Micro Bone Saw Motor P200-BMH BMH Series Attachment
Primado2 Micro Bone Saw Motor/HS P200-BMH-HS
Primado2 Wire Pin Driver P200-WPD WPD Series Attachment
3–2–2 Pneumatic Surgical Drilling Machine
_ Foot Control
Product Name Order Code Applicable Attachment
Primado Air Foot Control PDA-FC SMH Series Attachment
BMH Series Attachment
_ Motor
Product Name Order Code Applicable Attachment
Primado Air Slim Motor PDA-SMH SMH Series Attachment
Primado Air Slim Motor/HS PDA-SMH-HS
Primado Air Bone Saw Motor PDA-BMH BMH Series Attachment
Primado Air Bone Saw Motor/HS PDA-BMH-HS

13
Product Description
English
3–3 Part Names and Specifications
3–3–1 SMH Series Attachment
Applicable Motor: P200-SMH-S, P200-SMH, P200-SMH-HS, PDA-SMH, PDA-SMH-HS
Slim Handpiece 200
Order Code P200-1A135 P200-1A155 P200-1A155-C P200-1A175 P200-1A175-C
Maximum Rotation Speed min-1 80,000
Dimension of Attachment (L1) mm 169.7 189.7 189.3 209.7 209.0
Dimension of Bur Guard (ØD x L2) mm Ø4.8 x 88.6 Ø4.8 x 108.6 Ø4.8 x 108.1 Ø4.8 x 128.6 Ø4.8 x 127.8
Applicable Irrigation Nozzle -P200-IN-1A155 P200-IN-1A175
Applicable Cutting Accessories Refer to OM-SZ0920MA CUTTING ACCESSORIES - ATTACHMENT CORRESPONDENCE TABLE.
Super Slim Handpiece 200
Order Code P200-RA330 P200-RA330-L
Maximum Rotation Speed min-1 20,000
Dimension of Attachment (L1) mm 374.3 374.3
Dimension of Bur Guard (ØD x L2) mm Ø2.1 x 275.8 Ø3.3 x 275.8
Applicable Irrigation Nozzle -
Applicable Cutting Accessories Refer to OM-SZ0920MA CUTTING ACCESSORIES - ATTACHMENT CORRESPONDENCE TABLE.
(L2)
(L1)
(ØD)
(L2)
(L1)
(ØD)

14
Product Description
Standard Handpiece 200
_ Angled Type
Order Code P200-2AMS P200-2AES P200-2AS P200-2AM P200-2AL
Maximum Rotation Speed min-1 80,000
Dimension of Attachment (L1) mm 79.7 99.6 119.6 139.6 159.6
Dimension of Bur Guard (ØD x L2) mm Ø5.5 x 9.7 Ø5.5 x 25.0 Ø5.5 x 45.0 Ø5.5 x 65.0 Ø5.5 x 85.0
Applicable Irrigation Nozzle PD-IN-D PD-IN-2ES PD-IN-2S PD-IN-2M PD-IN-2L
Applicable Cutting Accessories Refer to OM-SZ0920MA CUTTING ACCESSORIES - ATTACHMENT CORRESPONDENCE TABLE.
_ Straight Type
Order Code P200-2SMS P200-2SES P200-2SS P200-2SM P200-2SL
Maximum Rotation Speed min-1 80,000
Dimension of Attachment (L1) mm 81.1 101.1 121.1 141.1 161.1
Dimension of Bur Guard (ØD x L2) mm Ø5.5 x 9.7 Ø5.5 x 25.0 Ø5.5 x 45.0 Ø5.5 x 65.0 Ø5.5 x 85.0
Applicable Irrigation Nozzle PD-IN-D PD-IN-2ES PD-IN-2S PD-IN-2M PD-IN-2L
Applicable Cutting Accessories Refer to OM-SZ0920MA CUTTING ACCESSORIES - ATTACHMENT CORRESPONDENCE TABLE.
Drill Handpiece 200
Order Code P200-2SD
Maximum Rotation Speed min-1 80,000
Dimension of Attachment (ØD x L) mm Ø13.2 x 86.0
Applicable Irrigation Nozzle PD-IN-D
Applicable Cutting Accessories Refer to OM-SZ0920MA CUTTING ACCESSORIES - ATTACHMENT CORRESPONDENCE TABLE.
(L2)
(L1)
(ØD)
(L2)
(L1)
(ØD)
(L)
(ØD)

15
Product Description
English
Metal Cutting Handpiece 200
Order Code P200-3MC
Maximum Rotation Speed min-1 80,000
Dimension of Attachment (ØD x L) mm Ø14.0 x 81.4mm
Applicable Cutting Accessories Refer to OM-SZ0920MA CUTTING ACCESSORIES - ATTACHMENT CORRESPONDENCE TABLE.
ContraAngle Attachment 200
Order Code P200-CA-4
Maximum Rotation Speed min-1 20,000
Gear Ratio 4:1
Dimension of Attachment (ØD x L) mm Ø14.8 x 109.0
Applicable Cutting Accessories Commercially available Ø2.35mm contra burs
Perforator Handpiece 200
Order Code P200-PER
Maximum Rotation Speed min-1 1,250
Dimension of Attachment (ØD x L) mm Ø28.2 x L125.0
Chuck Commercially available Perforator with Hudson end
(L)
(ØD)
(L)
(ØD)
(L)
(ØD)

16
Product Description
Craniotome Handpiece 200
Order Code P200-CRA
Maximum Rotation Speed min-1 80,000
Dimension of Attachment (ØD x L) mm Ø14.0 x L81.4
Applicable Duraguard P200-CRD-P
P200-RCRD-P
P200-CRD-M
P200-RCRD-M
P200-CRD-L
P200-RCRD-L
Applicable Cutting Accessories Refer to OM-SZ0920MA CUTTING ACCESSORIES - ATTACHMENT CORRESPONDENCE TABLE.
Duraguard 200
Order Code P200-CRD-P P200-CRD-M P200-CRD-L
Applicable Attachment P200-CRA
Dimension (ØD x L1) mm Ø15.4 x L54.3 Ø15.4 x L58.7 Ø15.4 x L68.5
Length of Guard (L2) mm 11.35 15.35 25.35
Applicable Cutting Accessories Refer to OM-SZ0920MA CUTTING ACCESSORIES - ATTACHMENT CORRESPONDENCE TABLE.
Rotatable Duraguard 200
Order Code P200-RCRD-P P200-RCRD-M P200-RCRD-L
Applicable Attachment P200-CRA
Dimension (ØD x L1) mm Ø17.5 x L69.7 Ø17.5 x L73.7 Ø17.5 x L83.7
Length of Guard (L2) mm 11.35 15.35 25.35
Applicable Cutting Accessories Refer to OM-SZ0920MA CUTTING ACCESSORIES - ATTACHMENT CORRESPONDENCE TABLE.
(L)
(ØD)
(L1)
(ØD)
(L2)
(L1)
(ØD)
(L2)

17
Product Description
English
Slim Attachment 300
_ Angled Type
Order Code P300-1AHA
Maximum Rotation Speed min-1 80,000
Exposure range of
Cutting Accessories (Variable)
0 - 10
Dimension (ØD x L) mm Ø14.5 x 67.0
Applicable Tube P300-1T110
P300-1T110-C
P300-1T110-PB
P300-1T130
P300-1T130-C
P300-1T130-PB
P300-1T170 P300-1T240
Applicable Cutting Accessories Refer to OM-SZ0920MA CUTTING ACCESSORIES - ATTACHMENT CORRESPONDENCE TABLE.
_ Straight Type
Order Code P300-1AHS
Maximum Rotation Speed min-1 80,000
Exposure range of
Cutting Accessories (Variable)
0 - 10
Dimension (ØD x L) mm Ø14.5 x 66.0
Applicable Tube P300-1T110
P300-1T110-C
P300-1T110-PB
P300-1T130
P300-1T130-C
P300-1T130-PB
P300-1T170 P300-1T240
Applicable Cutting Accessories Refer to OM-SZ0920MA CUTTING ACCESSORIES - ATTACHMENT CORRESPONDENCE TABLE.
_ Slim Tube
Order Code P300-1T110
P300-1T110-C
P300-1T110-PB
P300-1T130
P300-1T130-C
P300-1T130-PB
P300-1T170 P300-1T240
Applicable Slim Attachment Hub P300-1AHS/P300-1AHA
Dimension of Bur Guard (ØD x L) Ø4.8 x 110.0 Ø4.8 x 130.0 Ø4.8 x 170.0 Ø4.8 x 240.0
Applicable Hood / Beak P300-1T-H
P300-1T-B
Applicable Irrigation Nozzle P200-IN-1A155 P200-IN-1A175 -
(L)
(ØD)
(L)
(ØD)
(L)
(ØD)

18
Product Description
Standard Attachment 300
_ Angled Type
Order Code P300-2A10 P300-2A20 P300-2A40 P300-2A60 P300-2A80
Maximum Rotation Speed min-1 80,000
Exposure range of
Cutting Accessories (Variable)
0 - 12.5
Dimension of Attachment (L1) mm 88.0 103.0 123.0 143.0 163.0
Dimension of Bur Guard (ØD x L2) mm Ø5.5 x 10.0 Ø5.5 x 20.0 Ø5.5 x 40.0 Ø5.5 x 60.0 Ø5.5 x 80.0
Applicable Beak -P300-2-B
Applicable Irrigation Nozzle PD-IN-D PD-IN-2ES PD-IN-2S PD-IN-2M
Applicable Cutting Accessories Refer to OM-SZ0920MA CUTTING ACCESSORIES - ATTACHMENT CORRESPONDENCE TABLE.
_ Straight Type
Order Code P300-2S10 P300-2S20 P300-2S40 P300-2S60 P300-2S80
Maximum Rotation Speed min-1 80,000
Exposure range of
Cutting Accessories (Variable)
0 - 12.5
Dimension of Attachment (L1) mm 89.0 104.0 124.0 144.0 164.0
Dimension of Bur Guard (ØD x L2) mm Ø5.5 x 10.0 Ø5.5 x 20.0 Ø5.5 x 40.0 Ø5.5 x 60.0 Ø5.5 x 80.0
Applicable Beak -P300-2-B
Applicable Irrigation Nozzle PD-IN-D PD-IN-2ES PD-IN-2S PD-IN-2M
Applicable Cutting Accessories Refer to OM-SZ0920MA CUTTING ACCESSORIES - ATTACHMENT CORRESPONDENCE TABLE.
(L1)
(ØD)
(L2)
(L1)
(ØD)
(L2)

19
Product Description
English
3–3–2 HMH Series Attachment
Applicable Motor: P200-HMH, P200-HMH-HS
High Speed Handpiece 200
Order Code P200-3GAS P200-3GAM P200-3GAL
Maximum Rotation Speed min-1 100,000
Dimension of Attachment (L1) mm 122.7 142.7 122.4
Dimension of Bur Guard (ØD x L2) mm Ø7.5 x 32.6 Ø7.5 x 52.6 Ø7.5 x 92.6
Applicable Irrigation Nozzle PD-IN-3S PD-IN-3M PD-IN-3L
Applicable Cutting Accessories Refer to OM-SZ0920MA CUTTING ACCESSORIES - ATTACHMENT CORRESPONDENCE TABLE.
Primado Slim Attachment
Order Code PD-1A135 PD-1A155 PD-1A175
Maximum Rotation Speed min-1 60,000
Dimension of Attachment (L1) mm 171.4 191.4 221.4
Dimension of Bur Guard (ØD x L2) mm Ø4.8 x 88.6 Ø4.8 x 108.6 Ø4.8 x 128.6
Applicable Irrigation Nozzle -P200-IN-1A155 P200-IN-1A175
Applicable Cutting Accessories Refer to OM-SZ0920MA CUTTING ACCESSORIES - ATTACHMENT CORRESPONDENCE TABLE.
Primado Super Slim Attachment
Order Code PD-RA330 PD-RA330-L
Maximum Rotation Speed min-1 24,000
Dimension of Attachment (L1) mm 370.7 374.4
Dimension of Bur Guard (ØD x L2) mm Ø2.1 x 270.8 Ø3.3 x 274.5
Applicable Cutting Accessories Refer to OM-SZ0920MA CUTTING ACCESSORIES - ATTACHMENT CORRESPONDENCE TABLE.
(L1)
(ØD)
(L2)
(L1)
(ØD)
(L2)
(L1)
(ØD)
(L2)
