NSK Primado2 User manual

Primado2
OM-SE0028E 002

1
Class Degree of Risk
DANGER
Hazard that could result in personal death or serious injury if the safety instructions are not
correctly followed.
WARNING Hazard that could result in serious injury or damage to the device if the safety instructions
are not correctly followed.
CAUTION
Hazard that could result in light or moderate injury or damage to the device if the safety
instructions are not correctly followed.
NOTICE General product specification information highlighted to avoid product malfunction and
performance reduction.
This product is a surgical system used for bone operations (removal, cutting, perforation and formation), or cutting implants.
Prior to using this system, read the Operation Manual thoroughly in order to understand the instructions and directions for use, how to handle
the equipment and maintenance matters, so that you can use this system properly for many years to come. Keep this Operation Manual within
easy reach.
In this operation manual, Bur, Drill, Blade and Disk are collectively called Cutting Accessory(ies).
ƔRead these precautions carefully and use only as intended or instructed.
ƔSafety instructions are intended to avoid potential hazards that could result in personal injury or damage to the device. Safety instructions
are classified as follows in accordance with the seriousness of the risk.
Precautions for handling and operation
CONTENTS
Cautions for handling and operation ………………………………………………………………………… 1
1. Component Names ……………………………………………………………………………………… 3
2. Part Names ……………………………………………………………………………………………… 4
3. How to Connect Each Component ………………………………………………………………………… 11
4. Check before Operation …………………………………………………………………………………… 15
5. Operation ………………………………………………………………………………………………… 15
6. Option Set Up …………………………………………………………………………………………… 19
7. Fuse Replacement ………………………………………………………………………………………… 24
8. Cleaning / Sterilization (Motor only) ……………………………………………………………………… 24
9. Error Codes ……………………………………………………………………………………………… 25
10. Troubleshooting ………………………………………………………………………………………… 29
11. Specifications …………………………………………………………………………………………… 31
12. Disposing Product ……………………………………………………………………………………… 32
13. Warranty ………………………………………………………………………………………………… 32
14. Symbols ………………………………………………………………………………………………… 32
15. EMC Information ………………………………………………………………………………………… 33

2
Intended Use
The Primado 2 is an AC-electrically powered total surgical system that is intended for cutting, drilling, sawing, and otherwise manipulating
soft tissue, hard tissue, bone, bone cement, prosthesis, implant, and other bone related tissue in a variety of surgical procedures, including
but not limited to Cranial(Craniofacial/Maxillofacial), ENT, Endoscopic/Arthroscopic, Neuro, Orthopedic, Spinal, and General surgical
procedures.
DANGER
ƔDo not use this system in a room where there is danger of explosion or in the vicinity of flammable substances. It is especially important
not to use this system on a patient to whom a flammable anesthetic agent (dinitrogen monoxide) has been administered.
ƔShould a short circuit occur inside this product, an electric shock or fire may result if the product is not connected to properly grounded
electric supply.
ƔNever disassemble or modify the product. Personal injury, electric shock or fire may result.
WARNING
ƔWhen operating the product always consider the safety of the patient.
ƔThis is a medical system; do not allow anybody to use it other than surgeons who are familiar with the procedures. Use this system in
accordance with its intended use and proper method of use.
ƔThis product may be affected when used in rooms with electromagnetic interference and portable or mobile RF communication
equipments. Do not use this product around any equipment that generates electromagnetic waves such as an ultrasonic generator and
electrical scalpel. In case equipment generating electromagnetic waves are used around this product, turn off the Control Unit.
ƔDo not directly spray detergent/liquid on the LCD Touch Panel of the Control Unit when cleaning the Control Unit. Breakdown of the
Control Unit may be caused due to the short circuit.
ƔExcept for the Foot Control, this system is not designed to be water-proof. Handle the Control Unit and Motor with care so that they will
not be exposed to water or sterile water (saline solution). An electric shock may result due to a short circuit.
CAUTION
ƔU.S. Federal law restricts this device to sale by or on the order of a licensed physician.
ƔThe applicable Attachment/Handpiece for cutting implants is Metal Cutting Handpiece 200.
ƔBe sure to read this manual prior to use to become completely familiar with the function of each part.
ƔConnect the product to an electrical outlet for medical use or a properly grounded outlet.
ƔThe
Motor and the Attachment/Handpiece (separately sold) are not sterilized before delivery. So, be sure to sterilize them prior to use.
ƔOperate and inspect the Attachment/Handpiece prior to use. Even if only a slightly abnormal condition is detected, immediately stop using
it and contact your dealer.
ƔEven if only a slightly abnormal condition such as vibration, noise, or heat generation is detected during operation or prior to use, stop
using it and contact your dealer.
ƔDo not subject this unit to strong impacts, such as dropping it on the floor. Personal injury, abnormal heating and fire may result caused
by the internal damage.
ƔDo not bend or kink the Irrigation Tube while the Irrigation Pump is operating. Damage or disconnection of the Irrigation Tube may result.
ƔTurn off the power when mounting or removing the Motor and Attachment/Handpiece. Mounting or removing with the power on may
cause personal injury due to an unexpected rotation.
ƔWhen the Control Unit and Foot Control are stained with blood, turn off the power and wipe the stains off using a lint-free cloth moistened
with neutral detergent for medical use. Then, remove the detergent using a lint-free cloth moistened with distilled, deionized or
demineralized water.
ƔDo not lubricate the Motor. It may result in an abnormal heating and failure.
ƔDo not disconnect the Motor Cord from the Motor. It may cause failure.
ƔDo not clean the product with solvents such as thinner or benzene solution. Discoloration or deformation may result.
ƔDispose of the Irrigation Tube after use as medical waste.
ƔThis product needs special precautions regarding EMC and needs to be installed and put into service according to the EMC information.
ƔThe use of accessories, Attachments/Handpieces and cords other than those specified, with the exception of accessories, Attachments/
Handpieces and cords sold by the manufacturer of this product as replacement parts for internal components, may result in increased
EMISSIONS or decreased IMMUNITY of this product.
ƔThis product should not be used adjacent to or stacked with other equipment and that if adjacent or stacked use is necessary, observe
this product and other equipments in order to verify a normal operation prior to use.
ƔRegarding the operation time of the Motor, follow specification table in step “11. Specifications”. Continuous use of the Motor for a
prolonged period might cause overheating, which can cause an accident.
ƔThe temperature of the Motor and Control Unit mounting parts may reach up to 60°C depending on the environment.
Before use, read carefully the Operation Manual of the Motor and the Attachments/Handpieces.

3
1)
2)
3)
4)
5)
6) 8) 10) 12)
7) 9) 11)
No. Model Name of Component
1
P200-CU-120
Primado2 Control Unit (120V)
2 Power Cord
3 Irrigation Pole
4 FC-74 Primado2 Multi Foot Control
5 FC-73 Primado2 Single Foot Control
6 P200-HMH Primado2 High Torque Motor
7 P200-HMH-HS Primado2 High Torque Motor (Motor with Hand Control)
8 P200-SMH Primado2 Slim Motor
9 P200-SMH-HS Primado2 Slim Motor (Motor with Hand Control)
10 P200-BMH Primado2 Micro Bone Saw Motor
11 P200-BMH-HS Primado2 Micro Bone Saw Motor (Motor with Hand Control)
12 P200-WPD Primado2 Wire Pin Driver
These components are sold
separately, according to the
client’s specific needs.
NOTICE
ƔAfter use, turn OFF the Power Switch. If the unit is not being used for a prolonged period, disconnect the Power Plug from the outlet. If the
unit is left plugged in and unattended for too long, the dust or deteriorated insulation might cause electric shock or fire.
ƔThe user shall be responsible for maintenance and operation.
ƔOnly use irrigation tubes recommended by NSK.
1Component Names

4
2)
3)
5)
4)
1)
2)
3)
5)
4)
1)
8)
9)
6)
7)
8)
9)
6)
7)
11)
13)
12)
10)
14)14)
1)
2)
4)
3)
5)
1)
2)
4)
3)
5)
1)
2)
5)
1)
2)
5)

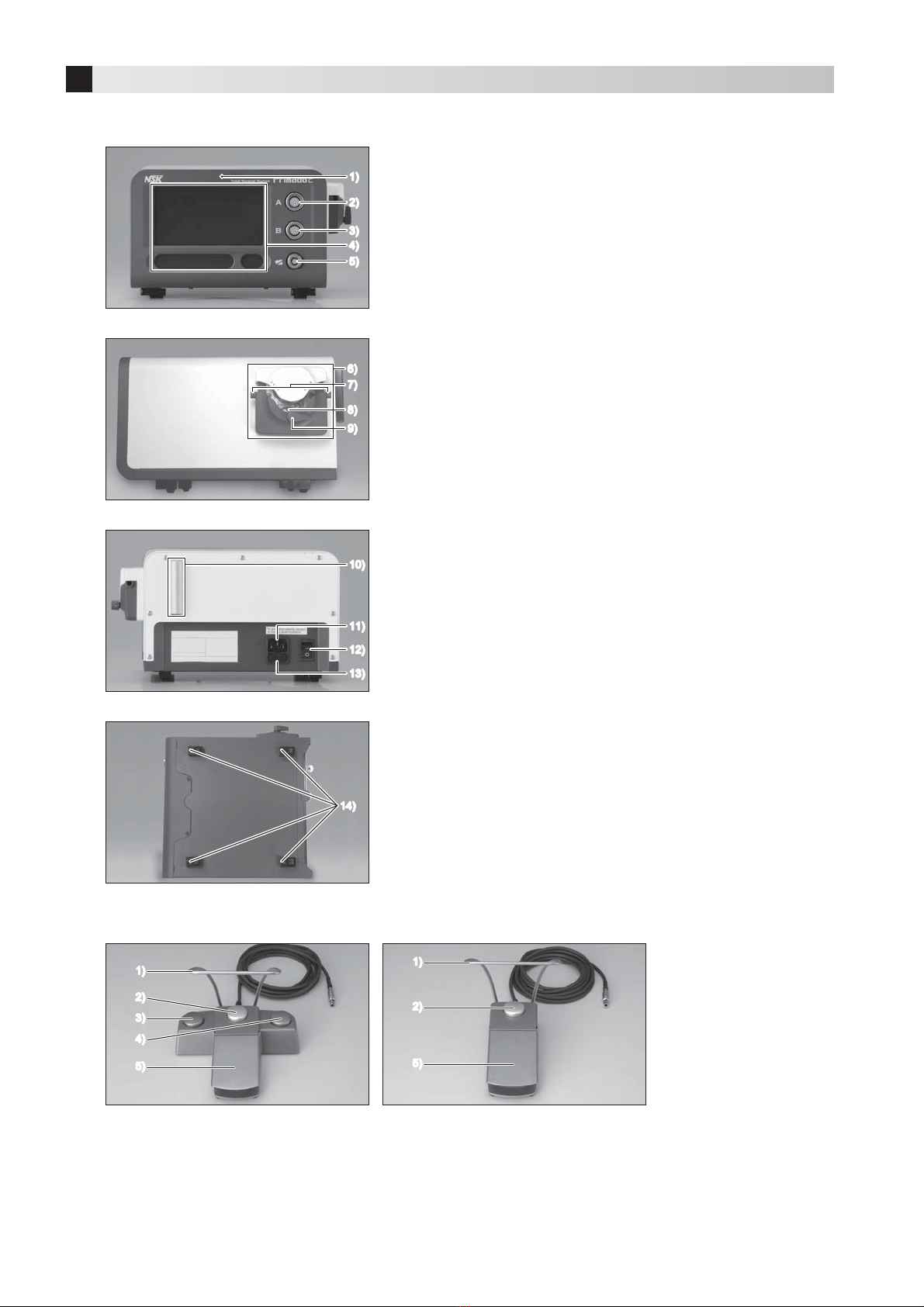

2-1 Control Unit
Front Side of the Control Unit
1) Front Panel
2) Motor Connector A
3) Motor Connector B
4) LCD Touch Panel
5) Foot Control Connector
Right-hand Side of the Control Unit
6) Irrigation Pump
7) Guide Parts
8) Roller
9) Knob
Back Side of the Control Unit
10) Irrigation Pole Stand
11) Inlet Box
12) Power Switch
13) Fuse Box
Bottom Side of the Control Unit
14) Rubber Pads
2-2 Foot Control
Multi Foot Control
1) Foot Control Guard
2) Foot Control Button (Sliver)
3) Foot Control Button (Blue)
4) Foot Control Button (Green)
5) Pedal
Single Foot Control
2Part Names

5
2)
1) 3)
OFF ON
2)
1) 3)
OFF ON
4)4)
2)
3)
1) 4) 5)5)

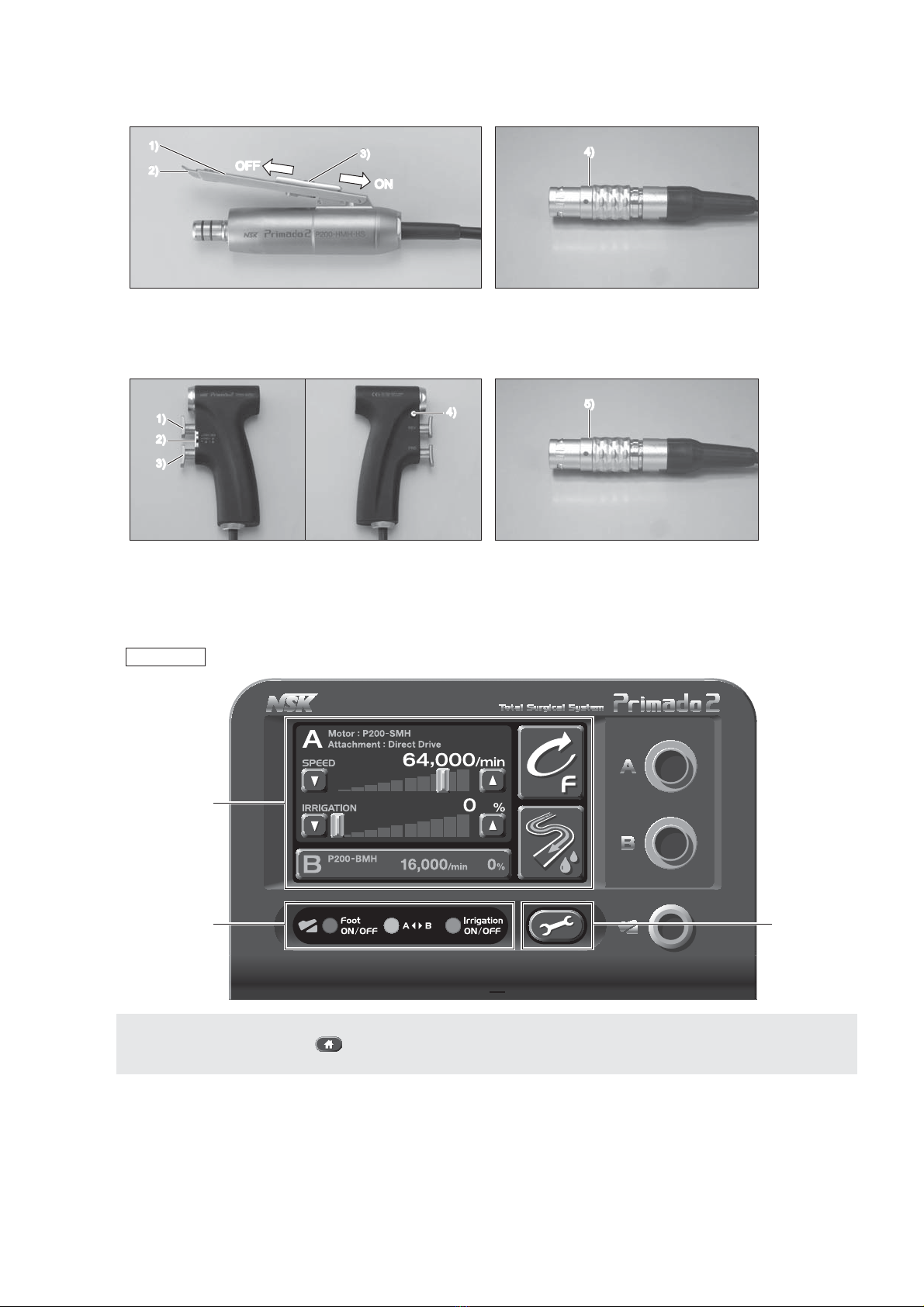

2-3 Motor
P200-HMH, P200-SMH, P200-BMH
P200-HMH-HS, P200-SMH-HS, P200-BMH-HS (Motor with Hand Contol)
1) Hand Switch* 2) Adjustable Lever*
3) Safety Lock* 4) Motor Cord Plug *Motor with Hand Control only.
P200-WPD
1) Trigger (Upper) (A) 2) Safety Lock 3) Trigger (Lower) (B)
4) Mounting/Removal Button 5) Motor Cord Plug
2-4 LCD Touch Panel: Operation Key
HOME screen
Main Panel
Sub Panel Mini Panel
ƔWhenever the icon is touched, the HOME screen appears, regardless of the current screen.
NOTICE

6
Icon DescriptionsName
HOME Screen
Main PanelSub Panel
Mini
Panel
Selects the Motor which is connected to Motor
Connector A.
If the Motor is not connected, “Disconnection” is
displayed.
Selects the Motor which is connected to Motor
Connector B.
If the Motor is not connected, “Disconnection” is
displayed.

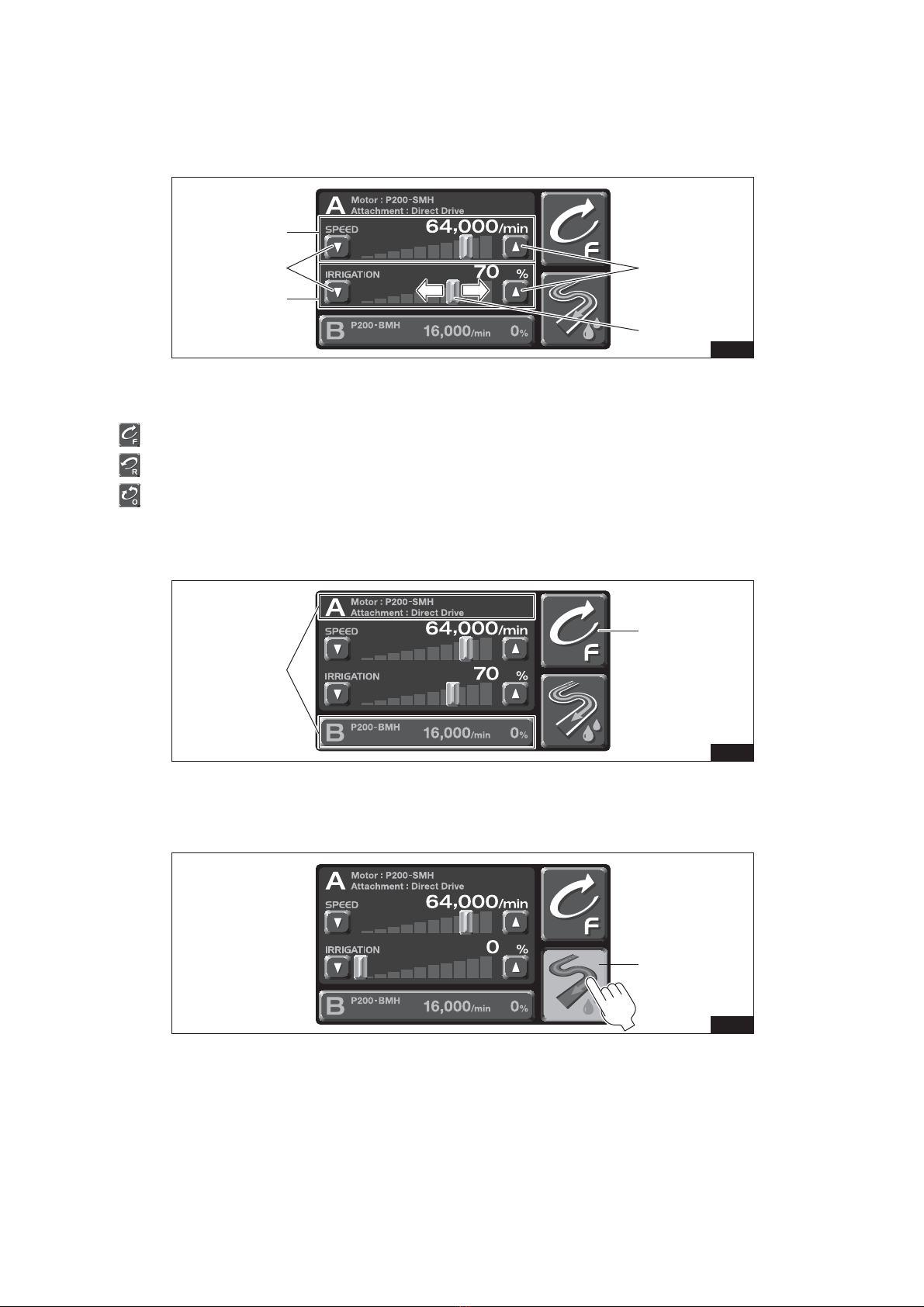

Rotational speed can be adjusted by the Track
Bar and UP/DOWN Button.
The irrigation volume can be adjusted by the
Track Bar and UP/DOWN Button.
Irrigation is OFF by default. Irrigation is turned
ON by touching the button.
The rotational speed or irrigation volume can be
adjusted by moving the Track Bar to the left or
right.
Increases the rotational speed or irrigation
volume.
Decreases the rotational speed or irrigation
volume.
Changes the Rotation Mode of the Motor
connected to Motor A or B between Forward,
Reverse and Oscillate (P200-WPD only).
Shows that the Motor is rotating.
Whether the Irrigation Mode at ON or OFF, as
long as the Priming Button is kept pushed, the
irrigation volume is at 100% capacity.
Displays the function set up by the individual
buttons of the Foot Control Panel. If the Foot
Control is not connected, only is displayed.
Default setting : OFF. The Foot Control is turned
ON by pressing the button (see Figure above).
Displays the “Option Set Up” screen.
Motor Select Button A
Motor Select Button B
Speed Adjustment Area
Irrrigation Volume
Adjustment Area
Irrigation ON/OFF Button
Track Bar
UP Button
DOWN Button
Rotation Mode Select Button
“Rotating” display
Priming Button
Foot Control Panel
Foot Control ON/OFF Button
Option Set Up Button
2-5 Buttons & Icons

7
Icon DescriptionsName
Option Set Up ScreenControl Unit Set Up ScreenLanguage Set Up ScreenLanguage Set Up Confirmation Screen
Main PanelMain PanelMain PanelMain Panel Mini
Panel Sub
Panel

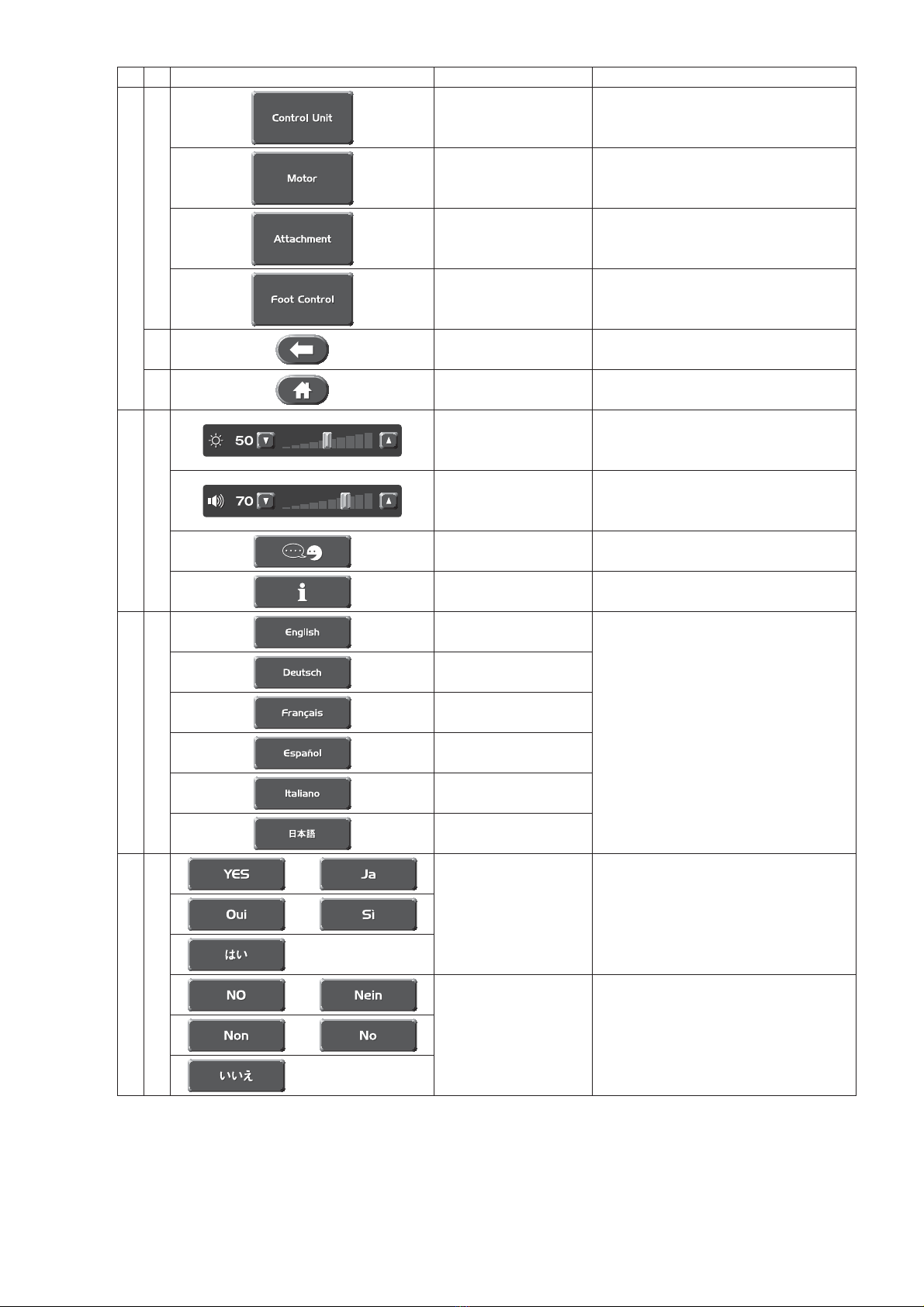

Displays the “Control Unit Set Up” screen.
Displays the “Motor Set Up” screen.
Displays the “Attachment Set Up” screen.
Displays “Foot Control Set Up” screen.
Displays previous screen.
Displays the HOME screen regardless of the
current screen.
By using the Track Bar and the UP/DOWN Button,
the brightness of the back light can be adjusted.
By using the Track Bar and the UP/DOWN Button,
the volume can be adjusted.
Displays the “Language Set Up” screen.
Shows the version of the hardware and software
of the Control Unit.
The language in which message alerts are to be
displayed.
The language selected in the Language Set Up
screen is set as the main language.
Cancels the language selected in the Language
Set Up screen.
Control Unit Set Up Button
Motor Set Up Button
Attachment Set Up Button
Foot Control Set Up Button
Back Button
HOME Button
Background Brightness
Adjustment Area
Volume Adjustment Area
Language Set Up Button
Information Button
Language Select Button
(English)
Language Select Button
(German)
Language Select Button
(French)
Language Select Button
(Spanish)
Language Select Button
(Italian)
Language Select Button
(Japanese)
“Yes” Button
English/German
French/Spanish/Italian
Japanese
“No” Button
English/Italian/Spanish
German/French
Japanese

8
Icon DescriptionsName
Motor Set Up ScreenAttachment Set Up Screen
Main PanelMain Panel

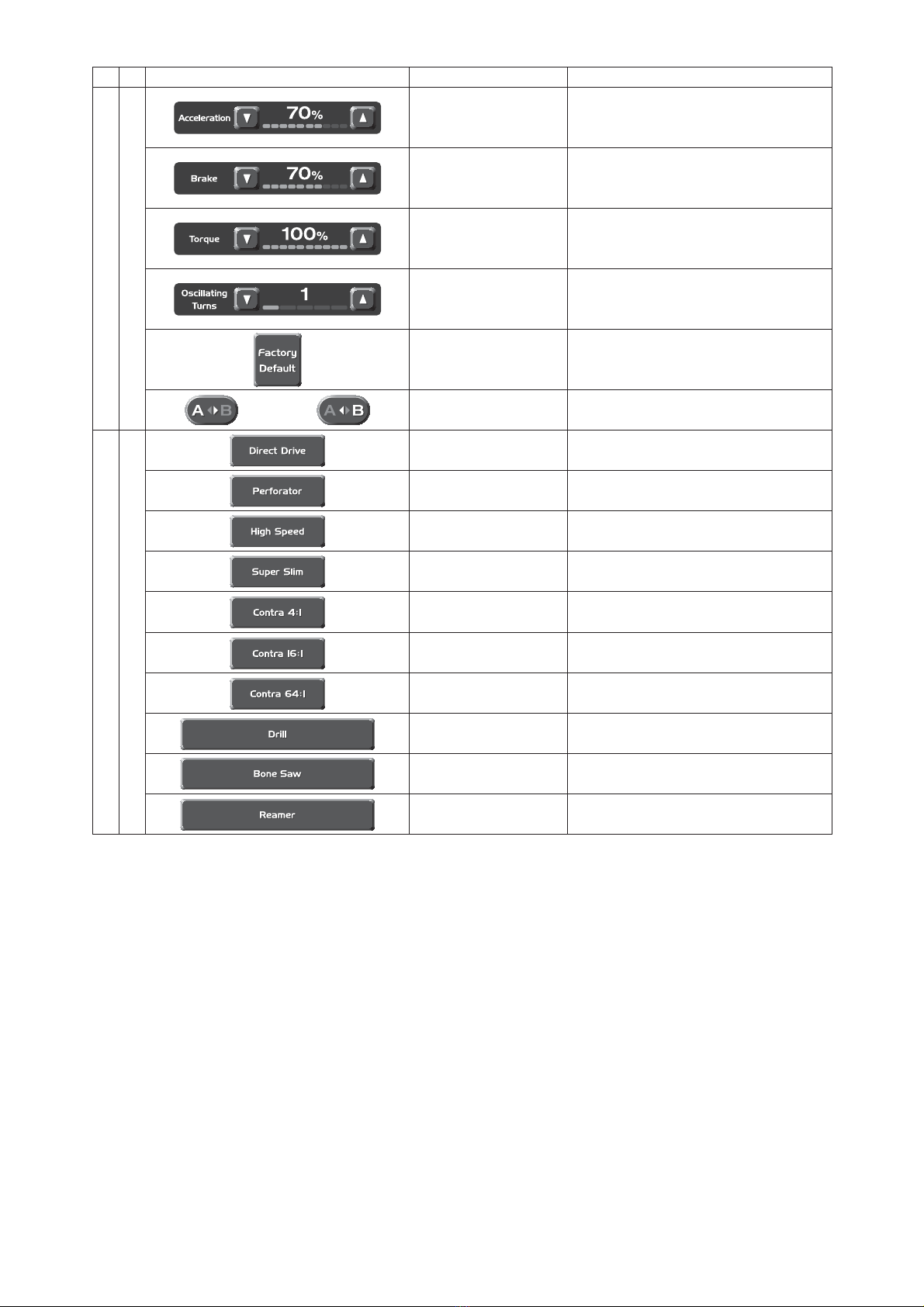

The acceleration time for the Motor to reach its
maximum rotational speed can be adjusted by
the UP/DOWN Button (10%~100%).
The braking time for the Motor to stop can be
adjusted by the UP/DOWN Button (10%~100%).
The torque of the Motor can be adjusted by the
UP/DOWN Button (30%~100%).
The Oscillating Turns can be adjusted by the
UP/DOWN Button (1~5) (P200-WPD only).
Returns the settings back to the original factory
setting made before delivery.
Changes the connection of the Motor between
Motor Connector A and B.
Indicates the rotational speed suited for the
Constant Speed Attachment/Handpiece.
Indicates the rotational speed suited for the
Perforator Handpiece.
Indicates the rotational speed suited for the High
Speed Handpiece.
Indicates the rotational speed suited for the
Super Slim Handpiece.
Indicates the rotational speed suited for the 4:1
Speed-Reduction Contra Angle Handpiece.
Indicates the rotational speed suited for the 16:1
Speed-Reduction Contra Angle Handpiece.
Indicates the rotational speed suited for the 64:1
Speed-Reduction Contra Angle Handpiece.
Indicates the rotational speed suited for the
Constant Speed Attachment.
Indicates the rotational speed suited for the Bone
Saw Attachment.
Indicates the rotational speed suited for the
Reamer Attachment.
Acceleration Area
Brake Area
Torque Area
Oscillating Turns Area
Factory Default Button
Motor Select Button
Attachment Select Button
(Direct Drive)
Attachment Select Button
(Perforator)
Attachment Select Button
(High Speed)
Attachment Select Button
(Super Slim)
Attachment Select Button
(Contra 4:1)
Attachment Select Button
(Contra 16:1)
Attachment Select Button
(Contra 64:1)
Attachment Select Button
(Drill)
Attachment Select Button
(Bone Saw)
Attachment Select Button
(Reamer)

9

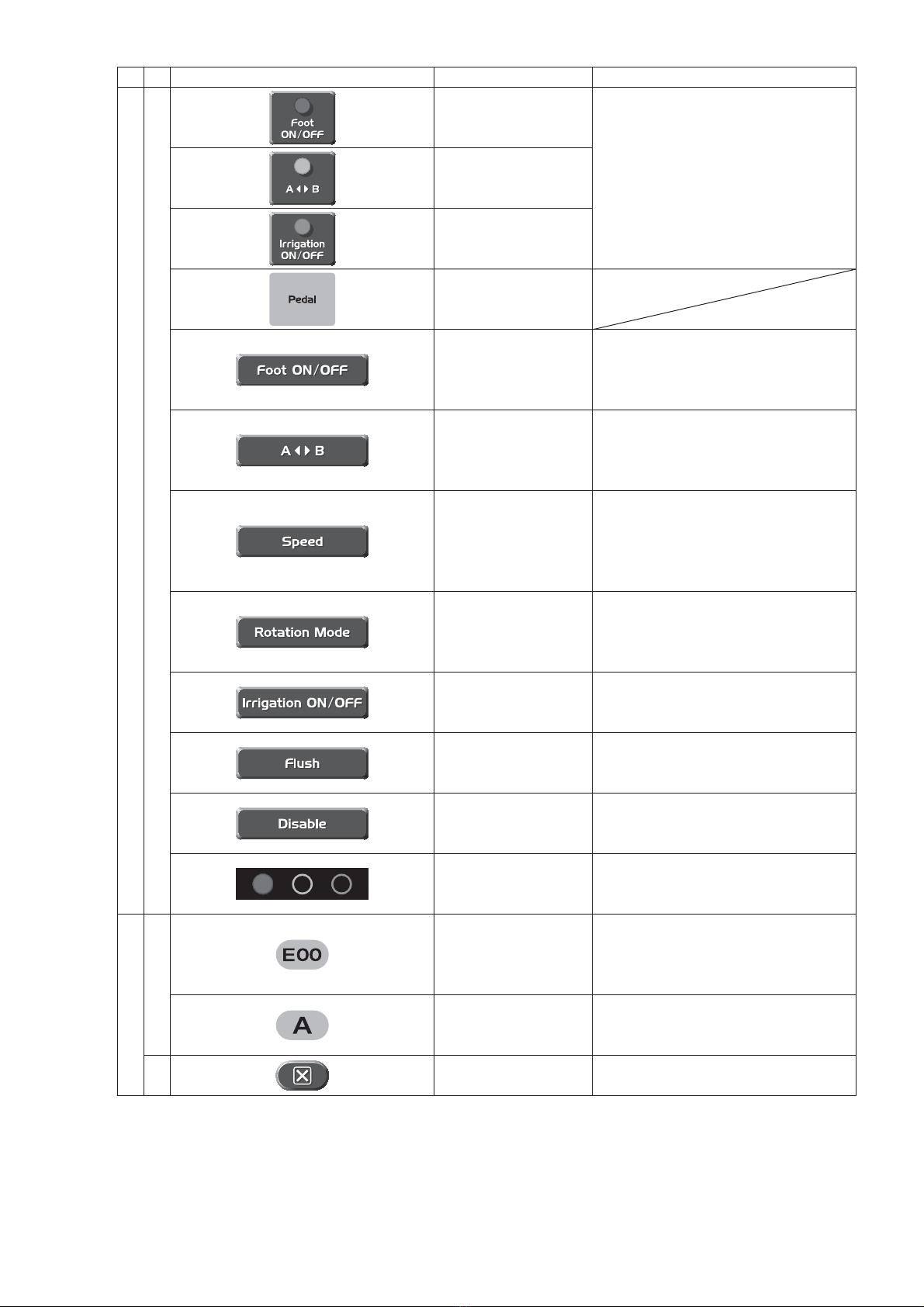

Icon DescriptionsName
Foot Control Set Up ScreenError Code Display Screen
Main PanelSub Panel
Mini
Panel
Displays the “Foot Control Set Up” screen.
Turns ON/OFF the operation of the Foot Control
by the Foot Control. When turned OFF, the
operation of the Foot Control becomes
unavailable.
Sets up the Motor connected to Motor Connector
A or B so that it can be switched over to another
Connector by the Foot Control.
Sets up the rotational speed of the Motor
connected to Motor Connector A or B so that it
can be switched over to another speed (30%Ѝ
Default, ValueЍ100%) by the Foot Control.
Sets up the Rotation Mode of the Motor
connected to Motor Connector A or B so that it
can be switched over to another by the Foot
Control.
Sets up the Irrigation so that it can be turned
ON/OFF by the Foot Control.
Makes 100% irrigation available as long as this
button is pressed.
Sets the status as no function.
Highlights the Function Button currently used.
When an error has occurred simultaneously, a
blinking light announces the error. Touch the
Error Code Button to display the error code for
that error.
When an error has occurred in the Motor, this
indicates which Connector is connected to the
Motor.
Closes the Error display.
Foot Control Button
(Blue) (Only for the Multi
Foot Control)
Foot Control Button
(Silver)
Foot Control Button
(Green) (Only for the Multi
Foot Control)
Foot Control Pedal
ON/OFF Select
Motor Select
Speed Select
Rotation Mode Select
Irrigation ON/OFF Select
Flush
Disable
“Foot Control Button”
Display
(Only for the Multiple Model)
Error Code Button
Motor
Close Button

10
HOME Screen Main Panel
Sub Panel
Speed Adjustment
Priming
Motor Switch
Background Brightness
Adjustment
Volume Adjustment
Language Set Up
Information
Acceleration
Adjustment
Brake Adjustment
Torque Adjustment
Oscillating Turns
Adjustment
P200-HMH
P200-SMH
P200-BMH Bone Saw
P200-WPD Drill
Bone Saw
Reamer
French
German
English
Spanish
Italian
Japanese
Direct Drive
Perforator
High Speed
Direct Drive
Perforator
Super Slim
Contra 4:1 Contra 16:1
Contra 64:1
Super Slim
Control Unit
Set Up
Motor Set Up
Attachment Set Up
Foot Control Set Up
Option Set UpMini Panel
Foot Control
Function Selection
(Multi)
Foot Control
Function Selection
(Single)
Foot Control
Button (Silver)
Foot Control
Button (Silver)
Foot Control
Button (Blue)
Foot Control
Button (Green)
Irrigation ON/OFF
Switch
Disable
Flush
Rotational Speed
Switch
Foot Control
Operation
ON/OFF Switch
Rotation Mode
Switch
Rotation Mode
Switch
Irrigation Volume
Adjustment
Motor Switch
2-6 Flow Chart of the LCD Touch Panel

11
Fig. 1
Fig. 2
Fig. 3
3-1 Connection of the Power Cord
1) Connect the Power Cord into the end into the Inlet Box located at the back of the Control
Unit.
2) Plug the Power Cord to the medical-use outlet.
3-2 Connection of the Foot Control
By matching the mark on the Foot Control Plug and the mark on the Foot Control
Connector at the front of the Control Unit, plug the Foot Control into the Connector all the way
until you hear a clicking sound.
To disconnect the Foot Control, hold the Foot Control Plug and pull it out with a straight
movement.
ƔDo not remove the Power Cord or Motor Cord by holding the cord portion or failure might occur. Hold the plug.
ƔConnect or disconnect the Power Cord or Motor Cord only after turning OFF the Power Switch. Otherwise, personal
injury may result caused by an unexpected rotation.
CAUTION
ƔBe sure to connect the Power Cord into the medical-use outlet.
ƔBe sure to confirm that the grounding is established. Should a short circuit occur inside this product, an electric shock
or fire may result.
ƔDo not connect/disconnect the Power Cord with wet hands: an electric shock might occur.
ƔIf the Power Cord cannot be plugged into the outlet easily, do not insist. A foreign substance might be obstructing the
outlet or a deformation of the connection portion may be present. Contact your dealer immediately.
ƔIf you have any suspicion that the connection portion might be deformed, the connector might be cracked or otherwise
damaged, or the wire in the Power Cord might be broken, do not plug the Power Cord into the wall outlet. Contact your
dealer immediately.
CAUTION
ƔWhen connecting/disconnecting the Foot Control, do not turn the Foot Control Plug. Otherwise, the inside pins might
become damaged, leading to failure.
CAUTION
3How to Connect Each Component
Power Cord
Power Supply plug type to be used
in North America area.
Plug Type NEMA 5-15P
(Hospital Grade Type)
Mark
Mark
Foot Control Plug

12
Fig. 4
Fig. 5
Fig. 6

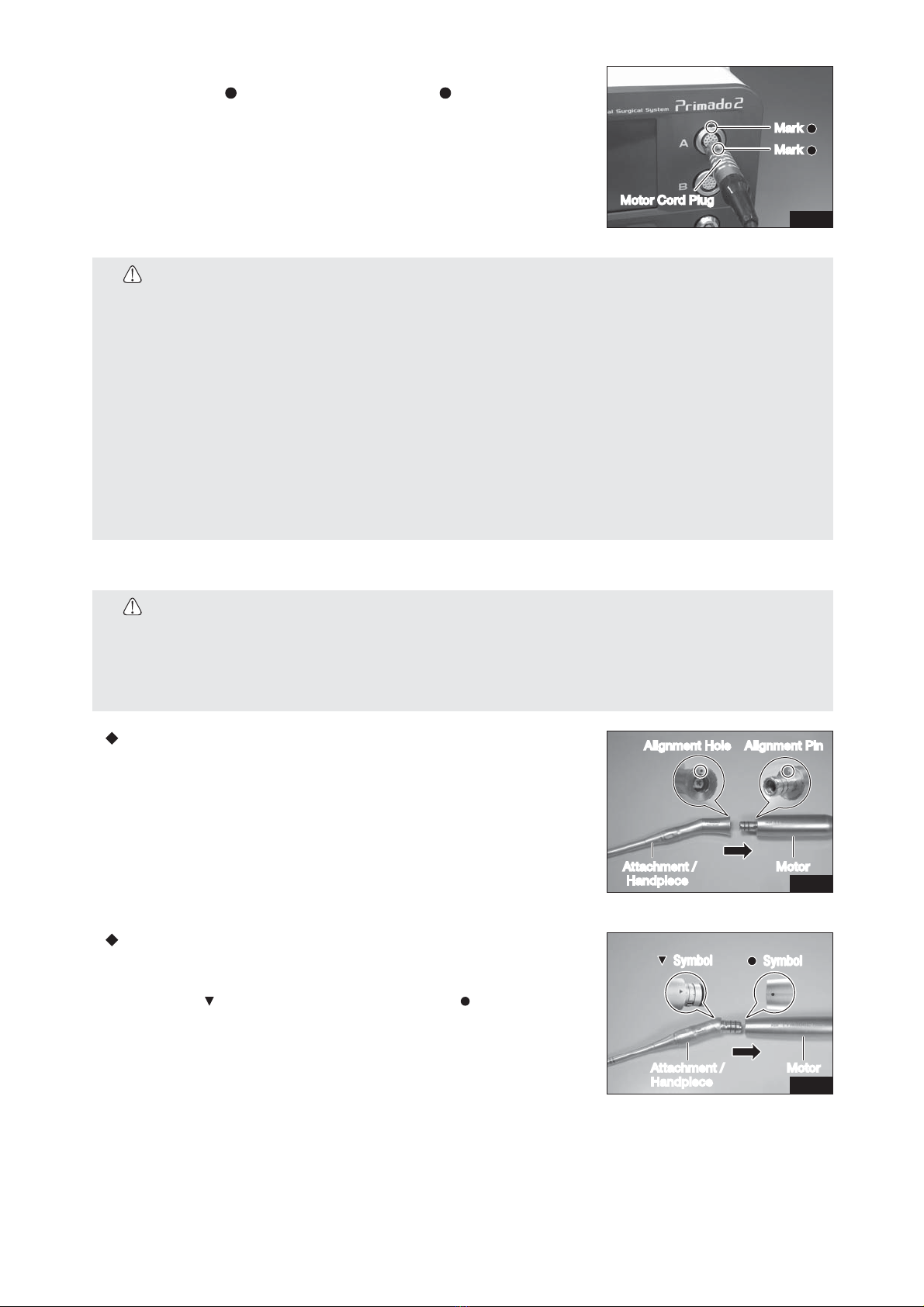

3-3 Connection of the Motor
By matching the mark on the Motor Cord Plug and the mark on the Motor Connector (A
or B) at the front of the Control Unit, plug the Motor into the Connector all the way.
There are two Motor Connectors. By connecting two Motors to the two connectors, you can
select the one you want to use by the Motor Select Button (however, both Motors cannot be
operated simultaneously). The selected Motor can be confirmed in the Main Panel.
To disconnect the Motor, hold the Motor Cord Plug and pull it out with a straight movement.
P200-HMH and P200-HMH-HS Attachments/Handpieces
<Mounting>
1) Push the Attachment/Handpiece into the Motor straight.
2) Turn the Attachment/Handpiece rightward or leftward so that the Alignment Pin of
the Motor matches the hole of the Attachment/Handpiece with a clicking sound to
connect firmly.
<Removing>
Pull out the Attachment/Handpiece from the Motor straight.
P200-SMH and P200-SMH-HS Attachments/Handpieces
<Mounting>
1) Push the Attachment/Handpiece into the Motor straight.
2) Align the ‘ ’ Symbol of the Attachment/Handpiece and ‘ ’ Symbol of the Motor,
then push the Attachment/Handpiece in until it clicks to connect firmly.
<Removing>
Pull out the Attachment/Handpiece from the Motor straight.
3-4 Mounting of the Attachment/Handpiece
Motor Cord Plug
ƔWhenever you use two Motor Connectors alternately, be sure to confirm which Motor is under operation.
ƔDo not connect anything else other than the Motor exclusively used for this system. Otherwise, the Motor Connector
might become deformed or failure could occur.
ƔIf the Motor Cord cannot be connected to the Control Unit easily, do not insist. Deformation or cracks might occur. A
foreign substance might be obstructing the connection or the connection portion might be deformed. Contact your
dealer.
ƔWhenever connecting/disconnecting the Motor with Hand Control and Wire Pin Driver, be sure to switch OFF the Safety
Lock.
ƔWhen connecting/disconnecting the Motor, do not turn the Motor Cord Plug. Otherwise, the inside pins might become
damaged, leading to failure.
ƔPrevent the Motor Cord Plug from falling onto the floor or receiving a strong impact; otherwise, deformation might occur
and it might become impossible to establish a proper connection.
ƔDo not connect/disconnect the Motor Cord with wet hands; otherwise, electric shock might occur.
CAUTION
Attachment /
Handpiece
Motor
Alignment Hole Alignment Pin
Attachment /
Handpiece
Motor
Symbol
Symbol
ƔWhenever mounting/removing the Attachment/Handpiece, be sure to switch OFF the Safety Lock of the Wire Pin Driver/
Motor with Hand Control.
ƔPrior to mounting/removing the Attachment/Handpiece, remove the Bur or Blade. Otherwise, injury might occur.
ƔAfter mounting the Attachment/Handpiece, confirm that the Attachment/Handpiece and Motor are connected properly.
CAUTION
Mark
Mark

13
Fig. 7
Fig. 8
Fig. 9
Fig. 10 Fig. 11
Fig. 12
P200-BMH and P200-BMH-HS Attachments/Handpieces
<Mounting>
1) Push the Attachment/Handpiece into the Motor straight.
2) Turn the Attachment/Handpiece rightward or leftward so that the Alignment Pin of
the Motor matches the hole of the Attachment/Handpiece with a clicking sound to
connect firmly.
3) Tighten the Removal Ring of the Attachment/Handpiece manually to fix it firmly.
<Removing>
Loosen the Removal Ring and pull out the Attachment/Handpiece from the Motor
straight.
P200-WPD Attachment/Handpiece
<Mounting>
Insert the Attachment/Handpiece straight into the Wire Pin
Driver until it clicks.
*
Wire Collet or Pin Collet should be mounted with the Attachment/
Handpiece Lever facing down (Motor Cord side).
<Removing>
Pull the Attachment/Handpiece straight out while pressing the
Mounting/Removal Button of the Wire Pin Driver.
3-5 Mounting of the Irrigation Pole
Match the position of the convex part on the Irrigation Pole with the position of the groove in
the Irrigation Pole Stand located at the back of the Control Unit, and insert the Irrigation Pole
into the hole.
3-6 Mounting of the Irrigation Tube
1) By rotating the Knob towards OPEN, open the Pump Cover.
2) Insert the Irrigation Tube (part with no blue line) into the Irrigation Pump in such a manner that the needle side of the Irrigation Tube is
positioned on the right-hand side of the Pump, and securely place the stopper of the Irrigation Tube into the Guide Parts located at both
ends.
3) Rotate the Knob towards CLOSE to close the Pump Cover.
CLOSE
OPEN
Attachment / Handpiece
Motor
Alignment Hole Alignment Pin
Wire Pin
Driver
Attachment /
Handpiece Mounting/Removal Button
Convex part on
the Irrigation
Pole
Groove in the
Irrigation Pole
Stand
Guide Parts
Roller
Attachment /
Handpiece Side
Irrigation Tube
Needle Side
Irrigation Tube (with
no blue line)
Stopper
Knob
Knob

14
ƔAfter having confirmed that the Irrigation Tube
is properly set on the roller, CLOSE the Knob
of the Irrigation Pump. If the Knob is turned to
CLOSE with the Irrigation Tube displaced from
the proper position, the Irrigation Tube might
become damaged (Fig. 13).
ƔDo not mount the Irrigation Tube in the opposite
direction. The saline solution bottle might burst
if the Control Unit keeps operating with the
Irrigation Tube mounted opposite.
ƔPrior to inserting the Irrigation Tube into the Irrigation Pump, confirm that there is no foreign substance in the roller
portion. When closing the Pump Cover, do not force the Knob excessively and be careful not to get your fingers caught.
ƔUse only Irrigation Tube (Order Code:PD-IT-S) recommended by NSK. Non-NSK-genuine irrigation tubes could cause
failure.
CAUTION
Fig. 14 Fig. 15 Fig. 16
Fig. 13
3-7 Mounting the Saline Solution
1) Close the Tube Clamp located between the Irrigation Tube Needle and the Irrigation Pump (Fig. 14).
2) Hang a saline solution on the Irrigation Pole, remove the cover of the Irrigation Tube Needle and insert the Needle into the bottle outlet
(Fig. 15).
3) Mount an Irrigation Nozzle for the Attachment/Handpiece onto the other end of the Irrigation Tube (Fig. 16).
4) Open the Tube Clamp before operating the Control Unit.
Irrigation Pole
Saline
Solution
Irrigation Nozzle Irrigation Tube
ƔIf the Tube Clamp is opened while the Pump Cover is open, the saline solution might flow out from the end of the
Irrigation Tube. Therefore, prior to opening the Tube Clamp, confirm that the Knob of the Irrigation Pump is in the CLOSE
position.
ƔIf using an Irrigation Tube which is bent or kinked or if operating the Irrigation Pump in a state where the saline solution
cannot flow out of the bottle properly, the Irrigation Tube might become damaged or the Irrigation Tube Needle might
become disconnected from the bottle.
CAUTION

15
Follow the check list below, before use. If any abnormalities are found, stop using the product immediately and contact your dealer.
4-1 Control Unit
1) Check for any abnormalities or damage on the outer surface.
2) Check that the Power Cord can be securely connected to the Control Unit and the medical-use outlet.
3) Turn the power ON and check for any abnormalities on the LCD display.
4) Touch the LCD display to check each setup can be customized.
5) Check that the Irrigation Pole can be securely inserted into the Pole Stand of the Control Unit.
6) Adjust the Irrigation Volume. Open the Pump Cover and check that the Roller operates normally.
7) Check that the Irrigation Tube can be securely mounted to the Irrigation Pump.
4-2 Foot Control
1) Check for any abnormalities or damage on the outer surface and for any damage or deformation on the Pins in the Foot Control Plug.
2) Connect the Foot Control to the Control Unit to check its secure connection.
3) Depress the Pedal and Buttons of the Foot Control to check that they operate normally.
4-3 Motor
1) Check for any abnormalities or damage on the outer surface and for any damage or deformation on the Pins in the Motor Cord Plug.
2) Check that the Motor can be securely connected to the Control Unit.
3) Depress the Pedal of the Foot Control to check for any abnormal vibration, noise or heating in the Motor. Check in the Main Panel of the
Control Unit that the rotational speed can reach the maximum speed you have set.
4) Check that Forward, Reverse, and Oscillate (P200-WPD only) Modes operate normally.
5) Mount the Attachment/Handpiece to the Motor to check its secure connection.
* If any abnormalities are found, stop using the product immediately and contact your dealer.
* Operate the product if none of the above abnormalities are present.
* When checking Attachments/Handpieces before treatment, refer to the Operation Manual of each Attachment/Handpiece.
5-1 How to turn on the power
Turn ON the Power Switch. The HOME screen is displayed after the startup screen appears and the Control Unit finishes an automatic self-
check of the system.
ƔThe LCD Display of this product is a touch panel. Refrain from doing the following, which might result in failure or
malfunction of the touch panel.
- Operating the touch panel using a sharp object, such as a ballpoint pen.
- Operating the touch panel with wet hands.
ƔDo not push the touch panel with force, otherwise failure might occur.
ƔRefer to the Operation Manuals of the Motor and Attachment/Handpiece to be mounted.
CAUTION
ƔDo not turn OFF the Power Switch when the startup screen appears, because the Control Unit is conducting an
automatic self-check of the system.
ƔIf the Power Switch is turned ON while the Hand Switch/Trigger or Foot Control is depressed, the Motor does not start
for safety reasons, and a message alert is displayed in the Main Panel. In order to deactivate the message, release the
Hand Switch/Trigger or Foot Control.
CAUTION
4Check before Operation
5Operation

16
Fig. 19
Fig. 17
Fig. 18
5-2 Operation of the Main Panel
5-2-1 How to set the rotational speed and irrigation volume
Push the UP/DOWN Button or move the Track Bar to set the speed or volume.
(The Track Bar moves to the position which you have touched, within the adjustment area. Since it is rather difficult to accomplish a fine
setting, use the UP/DOWN button for fine tuning.)
5-2-2 How to set the rotation mode
Touch the Rotation Mode Select Button to change the rotation mode sequentially.
Forward (clockwise)
Reverse (counterclockwise)
Oscillate (Clockwise and counterclockwise rotations are alternately repeated) Available only when P200-WPD is mounted.
5-2-3 Switching between Motor A and B
Touch Motor Select Button A or B to switch to the desired Motor.
5-2-4 Priming Button
While holding the Motor, keep the Priming Button pushed, and confirm that the saline solution is being fed from the Irrigation Nozzle of
the Attachment/Handpiece.
Priming Button
UP Button
DOWN Button
Speed Adjustment
Area
Irrigation Volume
Adjustment Area
Track Bar
Rotation Mode
Select Button
Motor Select
Button

17
Fig. 20
㸿
㹀
Fig. 21
5-3 How to operate the Motor
This can be done in three ways: by the Motor with Hand Control, the Primado2 Wire Pin Driver or the Foot Control.
When using the Motor with Hand Control
(P200-HMH-HS, P200-SMH-HS, P200-BMH-HS)

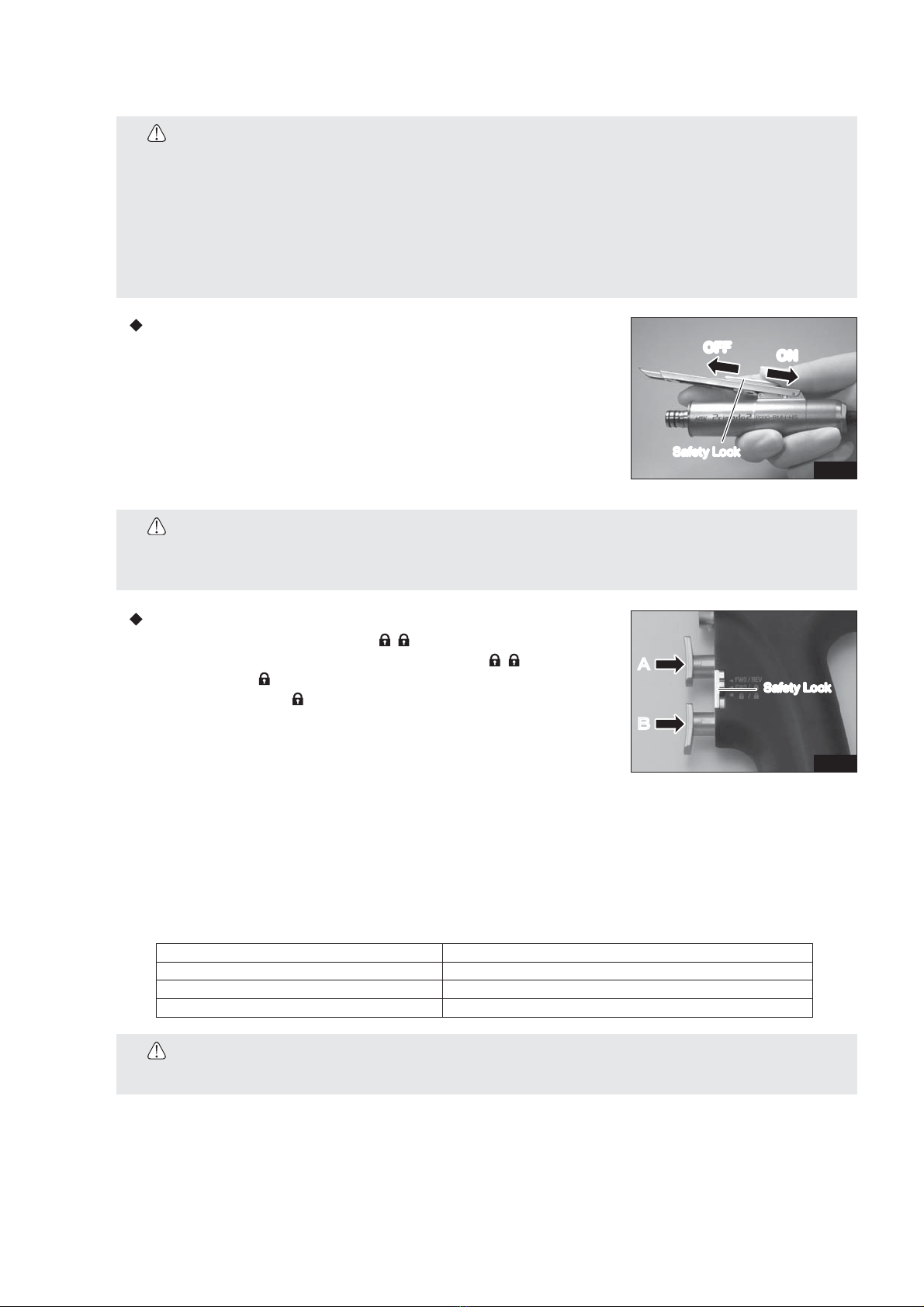

1) Confirm that the Safety Lock of the Hand Control is OFF.
2) Slide the Adjustable Lever to the desired length.
3) Hold the Hand Switch and slide the Safety Lock to ON (Fig. 20).
4) Depress the Hand Switch to start the Motor. When the Hand Switch is depressed or
released, there is a short alarm sound.
When the Reverse Mode has been selected, the Bur rotates in reverse. During the
reverse rotation in this Mode, the alarm continues to sound.
When using the Primado2 Wire Pin Driver (P200-WPD)
1) Confirm that the Safety Lock is working. ( / )
2) Release the Safety Lock of the Wire Pin Driver from LOCK ( / ) and switch it to
Reverse OFF (FWD/ ) or Both ON (FWD/REV).
- In the Reverse OFF (FWD/ ) Mode, when depressing the lower Trigger (B) of the Wire
Pin Driver, the Attachment/Handpiece rotates forward. When depressing the Trigger
or releasing it, a short alarm sounds. In this Mode, the upper Trigger (A) is locked, and
therefore the Trigger cannot be depressed (i.e. it cannot be put into operation).
- In the Both ON (FWD/REV) Mode, when depressing the lower Trigger (B), the Attachment/
Handpiece rotates forward. When depressing the Trigger or releasing it, a short alarm sounds. When depressing the upper Trigger (A),
the Attachment/Handpiece rotates in reverse. During the reverse rotation, the alarm continues to sound.
- In the Both ON (FWD/REV) Mode, when depressing both the upper(A) and lower(B) Triggers simultaneously, the forward and reverse
rotations of the Attachment/Handpiece are repeated alternately (i.e., the rotation direction oscillates). The rotation direction changes
at every 360 degrees of rotation. If one of the Triggers has been depressed earlier, it will take priority in the function and rotation
direction. When the other Trigger is depressed with the first Trigger already functioning, the forward and reverse rotations will start to
alternate: namely, Oscillate Mode will start.
Trigger Rotation Direction
Upper (A) Reverse Rotation
Lower (B) Forward Rotation
Upper and Lower depressed simultaneously (A B) Oscillation (Forward and reverse rotations are repeated alternately)
ƔThe Motor with Hand Control and the Primado2 Wire Pin Driver can also be operated by the Foot Control. Connect it with
the Foot Control and depress the Pedal. The Motor will work in the normal mode of the Foot Control, regardless of the
Hand Control.
ƔIf operating the Motor only with the Motor with Hand Control and the Primado2 Wire Pin Driver, it is recommended to
disconnect the Foot Control from the Control Unit. Alternatively, set the Foot Control to OFF by the Foot Control ON/OFF
Button (to disable the Foot Control).
ƔThe Hand Switch of the Motor with Hand Control and the Pedal of the Foot Control are variable. The rotational speed
increases/decreases within the preset rotation range, depending on the extent/duration of depressing.
CAUTION
OFF
Safety Lock
ON
ƔWhen operating the Safety Lock, be sure to hold the lever with your finger. If operating it without holding the lever, the
lever might inadvertently be depressed when the Safety Lock is being turned ON/OFF, thereby triggering a rotation of
the Motor. This might cause an accident.
CAUTION
Safety Lock
ƔThe Wire Pin Driver operates in the rotation direction set not by the Control Unit but by the Wire Pin Driver.
CAUTION

18
Fig. 22
Fig. 23
Fig. 25Fig. 24
Fig. 27Fig. 26
When Using the Foot Control (FC-73, FC-74)
1) When depressing the Pedal of the Foot Control, the Motor starts to operate. When
depressing the Pedal or releasing it, a short alarm sounds.
2) In the Reverse Mode, the Bur starts rotating in reverse. During this reverse rotation, the
alarm continues to sound.
3) Push the Foot Control Button (Multi Foot Control: blue, silver and green buttons ; Single
Foot Control: silver button) to set the Control Unit to the pre-determined function. For
any further information, refer to Step “6-4 Setting the Foot Control”.
How to confirm the Sub Panel
<Multiple Model> <Single Model>
The function setting done by each Button is displayed. For more information on these functions, refer to Step “6-4 Setting the Foot
Control”.
<Foot Control not connected> <Foot Control OFF>
This shows that the Motor is switched OFF by the ON/OFF switching
function operated from the Foot Control. Operation by the Foot
Control is not available in this case. In order to operate it by the Foot
Control, touch the Sub Panel or turn the Foot Control ON by the
Foot Control Button.
Pedal
Pedal
Foot Control Button
(Green)
Foot Control Button
(Silver)
Foot Control Button (Blue)
ƔBefore using the Foot Control Button, be sure to confirm what function is assigned to that Button in the Sub Panel.
CAUTION
Foot Control Button
(Blue)
Foot Control Button
(Green)
Foot Control Button
(Silver)

19
Fig. 29
Fig. 28
Fig. 30
It is possible to change the setting of the Control Unit and Motor by setting up the options.
The components which can be set up are as follows:
Ř&RQWURO8QLW
Ř0RWRU
Ř$WWDFKPHQW
Ř)RRW&RQWURO

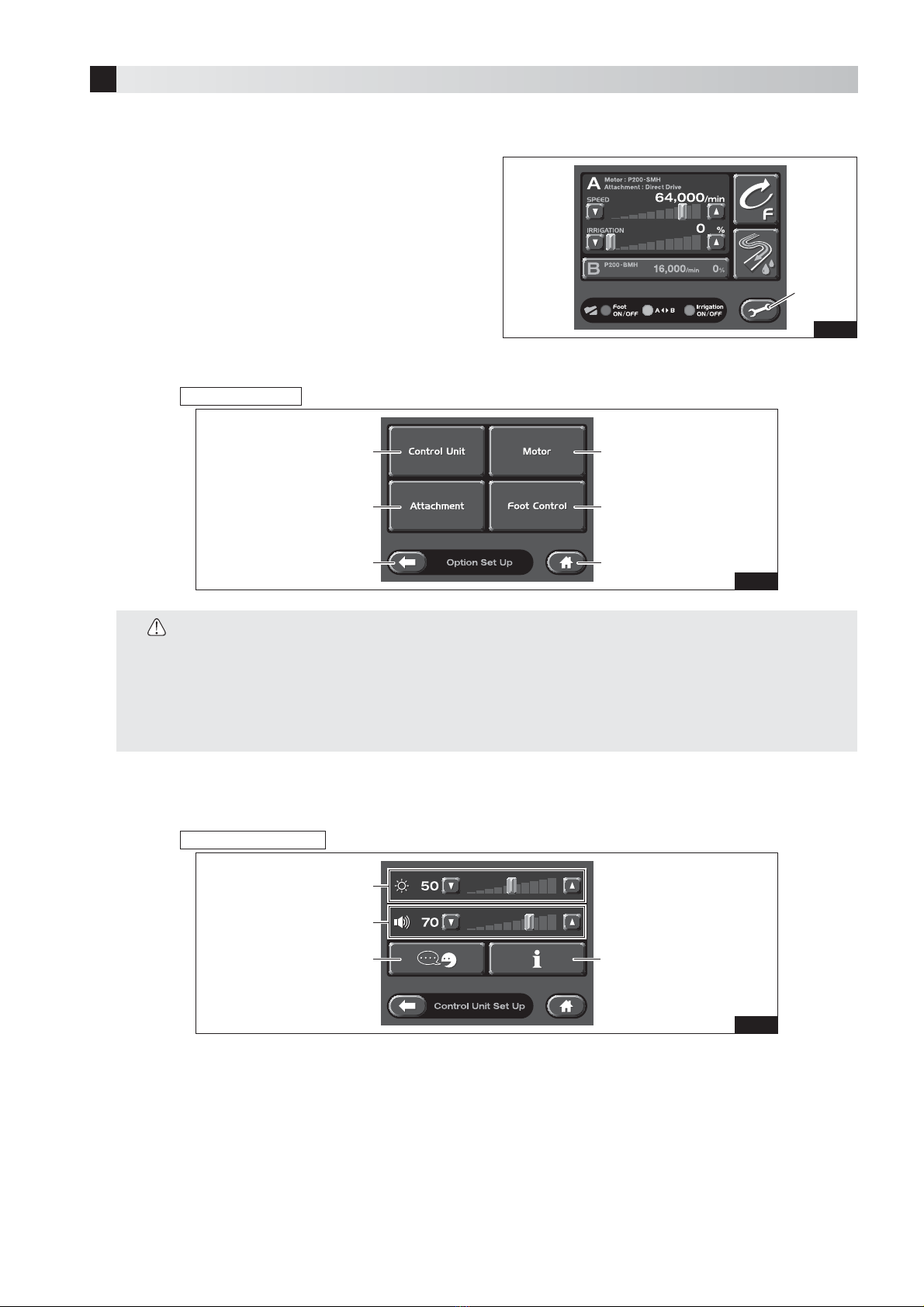

1) Touch the Option Set Up Button in the Mini Panel in the HOME
screen to display the Option Set Up screen.
2) Touch the Set Up Button for each component to display the Set Up
screen.
3) Touch the HOME Button or BACK Button to return to the HOME
screen.
Option Set Up Screen
6-1 Setting the Control Unit
Touch the Control Unit Set Up Button in the Option Set Up screen to display the Control Unit Set Up screen.
Control Unit Set Up Screen
Control Unit Set Up Button Motor Set Up Button
Option
Set Up
Button
Attachment Set Up Button Foot Control Set Up Button
BACK Button HOME Button
ƔThe individual settings made for the Control Unit, Motor and Foot Control in the Option Set Up screen are stored in the
internal memory. Therefore, even after turning OFF the power, the settings will remain.
Exception: the Attachment settings are reset whenever the power is turned OFF or the Motor is disconnected from the
Control Unit. Therefore, prior to use, be sure to confirm the settings of the Attachment.
ƔIf the Motor or the Foot Control is not connected and the Option Set Up is attempted, a message alert will be displayed
announcing that connection is not made.
CAUTION
Language Set Up Button Information Button
Volume Adjustment Area
Background Brightness
Adjustment Area
6Option Set Up
