PR Lighting XPAR 354 User manual

1/1
XPAR 354
PR-6209A
The user manual contains important information about the safe installation and use of a projector. Please read
and followthese instructions carefullyandkeepthemanual inasafeplaceforfuture reference.
PR LIGHTING LTD.
http://www.pr-lighting.com

2/2
INDEX
1.SAFETYANDWARNINGS
2. INSTUCTIONS
●CLEANINGAND MAINTENANCE
●TROUBLESHOOTING
3.APPEARANCE
4.INSTALLATION
●RIGGING
●PLACEAUNITONAFLAT SURFACE
●INSTALLATIONOFACCESSORIES
●TRANSPORTATION
●POWERCONNECTIONS
●DMXCONTROLCONNECTION
●DMXTERMINATOR
5.SETUPANDCONFIGURATION
●FRONTPANELOPERATION
●DMXSTARTADDRESS
●STAND-ALONEMODE
●MASTER/SLAVEMODE
6.OPERATIONMENU
7.DMXPROTOCOL
8.TECHNICALDATA
9.CIRCUITDIAGRAMANDPCB CONNECTIONS
●CIRCUITDIAGRAM
●PCB CONNECTIONS
10.COMPONENTORDERCODES
3
4
4
4
5
6
6
6
6
7
7
8
8
9
9
9
9
9
10
11
13
15
15
16
17
ACCESSORIES
The followingitems are supplied withtheprojectorand please check:
Name
Quantity
Unit
Remark
clamp
1
Pc
Powercord
1
Pc
XLRloopcable
2
pcs
Safetycord
1
Pc
User manual
1
Pc
TransparentCover+ seal+ screws×6
1
Set
Optional
Bar doorassembly+ frost board(optional)
1
set
Optional
Tophat
1
Set
Optional
Please note that as part of our ongoing commitment tocontinuous product development, specifications are subject tochange without notice.
Whilst every care is taken in the preparation of the manual we reserve the right to change specifications in the course of product
improvement.Thepublisherscannotbeheldresponsiblefortheaccuracy oftheinformationherein,oranyconsequencearisingfromthem.
Every unit is tested completely and packed properly by the manufacturer. Please make sure the packing and / or the unit are in good
condition beforeinstallationanduse. Shouldthere beany damagecausedbytransportation, consultyourdealerand donot usetheunit. Any
damagecausedbyimproperusewillnotbeassumedby themanufacturerand/ordealer.
Any future technical change in the user manual won’t be with any further notice.
Note: Forthe products made by GuangzhouPRlightingLtd,thewarrantyfor thewhole product is oneyearstarting fromthe delivery date
butthelightsourceis notwithinthewarranty.

3/3
1. SAFETYANDWARNINGS
.
NOTE
Before a projector’s installation, power-on,operationandmaintenance,pleasecarefullyread
thesafetyinformationhereinafter!
Thefollowing safetysigns areusedintheusermanual.
Warning
User
Manual
Electrical
shock
Goggles
Protective
Gloves
Flames
High
Temperature
● When unpacking , check if there is transportation damage before using the projector. Should there be
anydamagecausedbytransportation,consultyourdealeranddonotuseit.
●The manufacture is not responsible for loss caused by the user not following the manual or changing the
projectoras he/shelikes
●Please be noted that the damage caused by changing the projector at willis not warranted.
●Do not hesitatetocontactthe dealerorthemanufacturer ifanyquestions or advice.
●The unitcanbeusedindoorsandoutdoorswithIP67.
●The projector should be kept away from high temperature, fire, electrical surge, vibration and strong light while
being operated
●The projector is only intended for installation, operation and maintenance by qualified personnel. And the
operationmuststrictlyfollowtheproceduresinthemanual
●No repairable parts in the projectoranddo notopencoversfor maintenancebyyourself.
●Don’t look straightly into the light sources especially for epileptics, otherwise eyes will be burned.
●Do not connect thisdevice to anytypeofdimmer pack
●After lamp switched on, the minimumdistancebetween theprojector and illuminated surfaceis1.5m
●lens and other optical parts shall be replaced immediately if they have deformed or been damaged, otherwise
thelightoutputwillbecompromised.
●Before operation, please confirm that all covers(housing) are on and screws tightened. It’s forbidden to use a
projectorwhilecovers(housing)are off
●Keep the lamp clean and do not touch it with bare hands.
●While operatingit,wearprotective items.
●Any electrical connection must be carried out by a qualified person .
●Before installation, please confirm the voltage supplied matches what is required for the projector
●Each projector must be properlyearthed and installed asper related electricalstandards.
●Do not use power cord with its insulator damaged and connect the power cord with other cables.
●If the projector is not used or under cleaning,, please hold the plug and unplug it. Do not unplug it forcefullyor
bypullingthepower cable.
●All power cords must conform to related safety and regulations
●Do not switch on and off the projector constantly in very short intervals, otherwise the light source’s and other
electricalparts’ life willbe shortened .
●There are safety cord holes at the bottom of the base of a projector. In view of safety, please run the safety cord
suppliedthroughthesafetycord holesforsafetysupport.
●Before any installation, maintenance and cleaning work, please ensure the projectorisdisconnected frompower
mains.

4/4
●Whileinstablestatus,thetemperatureofthehousing(heatsink)willbe55℃;
●Whilethe lamp is strickenfor the first time, there will be smoke and strange smell. It’s normal and doesnot
meantheprojectorhas some defects.
●While operated, do not touch the metallic housing. It is very hot during operation.
●Do not mount the projector directly on inflammable surface.
●Do not project the beam straightlyoncombustibleitems and theminimumdistancebetween theprojector
and illuminateditems is10m.
●A projector should be installed with good ventilation and the minimum distance between the projector
and wallsis50cm.At the sametime, pleaseensurethefansandairinletsandoutletsareworkable.
2. INSTRUCTIONS
●CLEANINGANDMAINTENANCE
For the units with optical lens, because of the accumulation of the smoke, oil and dust on lens, the light output will be
compromised. For the reliable use of the unit, it is very necessary to keep it clean. The unit is IP67 rating waterproof device.
Unless approval by some professional technician for necessary internal component replacement, it’s forbidden to dismantle the
unit.
Cleaning frequencyis to be decided byoperations and its environment. Use soft clothand normaldetergent for glass for cleaning
work. It’s advised external optical system be cleaned every 20days. Keep lens clean and do not touch optical parts with bare
hands.
●Beforeanymaintenanceand cleaning,please ensuretheprojectisoffthepower
●Onlyqualified personisallowed to do maintenance
●Duringmaintenanceand before maintenance,the projectormustbeoffpower.
●To avoid internal damage, sun light or other light mustn’t penetrate into the projector via front lens whether
itrunsor not
●Do not use alcohol or other organic solvent to clean the housing to avoid damage.
●TROUBLESHOOTING
PROBLEM
ACTION
The projector doesn’t switch on
Checkthe powercord connection
Power Switch fails or is not connected well, call a professional
technicianforrepairingandchecking
Control board is not connected normally, call a professional technician
forrepairingandchecking ,
The projectcanbeturned on,but the LED lamps
can’t be on
LED lamp board is not connected well, call a professionaltechnician for
repairingand checking
The LEDlamps canbeon,butnotcontrolled
byDMX
CheckifDMXStartAddressisproperlyset
CheckifXLRcablefailsornot
Thebrightnessdecreasesobviously
Ambient temperature is too hot which makes the projector too hot,
pleasetakeappropriateventilationmeasures

5/5
3. APPEARANCE
No.
Name
Remarks
1
Frostboard（Optional）
Frostboard must be used with barn door assembly
2
Barndoorassembly（Optional）
3
Allenscrews
4
Support
5
Arm
6
XLRcable
Smallsize
7
Powercable
Bigsize
8
Transparent（Optional）
Forharshplaceslikeunderwaterorbeingdusty
5
4
3
2
1
6
7
8
barndoor
body
arm

6/6
4. INSTALLATION
●RIGGING
Take 1 clamp and 1 safety cord out from the package and tighten the clamp with the arm, and then mount the whole unit on the truss,
tighten the clamp’s retainers to keep the unit stable. (See the WARNING on the underside of the base as shown above) To pass the
SAFETYCORDthroughtheARM forsafety!Always ensurethatthe unit is firmly anchored toavoid vibrationand slippingwhilst
functioning. Always ensure that thestructure that youare going to mount the unit to is secure and strong enough to support the weight
oftheunit Loosen thebigknob andadjust the head’s angle for the effect desired and the tighten it. The installation is completed.
(ifthe unitis wit wirelesscontrol,while beinghung,theantennashould facedown)
●PLACEAUNITONAFLATSURFACE
Before placing a unit on a flat surface, loosen the small knob with the support and make the angle between the arm and the support
60degrees.Tightenthesmall knob.Loosenhebig knobandadjusttheanglebetweenthearmandunitasdesiredandthentightenit.
●INSTALLATIONOFACCESSORIES
If barn door selected, its installationis illustratedin the diagrambelow:
Loosenthe screw in the shape of a butterfly in the front part of the unit, turn the clipping componentin the shape of 7 by
a little amount, then place the barn door. Turn the clipping component backward and tighten the butterflyscrews. Hook
the safetycord on the barn to the safety cord hole in the middle of the unit to finish the installation ofthe barn door. Turn
thebarndoor,andopen orclosethe barndoorblades toreachtheeffectdesired.
Iftophat is selected,itsinstallationis illustrated inthefigurebelow:
1 2 43
safety cord
clamp
arm
Warning: For safety, please
ensure the safety cord runs
through the arm and is
tightened

7/7
Loosenthescrews(1)intheshape ofbutterflyinthe frontofthe projector(4),,slightlyturnthe clippingcomponent(2) in the shapeof
7,andinstallthe tophat(3).Turntheclippingcomponentopposite,tightenthescrews(1) inthe shapeofbutterfly,runoneendofthe
safetycord though safetycord holeofthe light and theotherthroughthe holeofthe top hat.Atlast,thetop hat isinstalled.
Iffrostboardisselected,it should be used withbarndoorassembly.Anditsinstallationisillustratedbelow:
●TRANSPORTATION
Before transportation, tighten both knobs after the arm and supportare overlapped.
WARNING:
●TheprojectorMUSTbeliftedorcarriedbytheHANDLES insteadofclamps.
●.For safety the safety cord should afford 10 times the Projector’s weight.
●POWERCONNECTION
Connectthepowercordasfollows:
L(live)=brown
E(earth)=yellow/green
N(neutral)=blue
Before power connection, please ensure the power supplied must match what the nameplate says. It is recommended that each
projectorbe connected withpowerseparatelyso that theymaybeindividuallyswitched on andoff.
Note: If projectors are connected in series, please connect POWERIN port of the 1st projector with the Power Mains, then
connectitsPOWEROUTwithPOWERINof the 2nd projector,and soontillall fixturesareconnected.Ifthe voltage supplied
is 200V-240V, the maximum projectors connected is 8pcs, if it is 100V-120V, the maximum is 4pcs. The diameter of the cores
ofthewiresforthePowerin/outcablesmustbeequalorbigger than2.5mm2.
●Theearthwire(yellow/green) mustbe connectedto theground.Andelectricalconnection must bein
accordancewiththestandardsconcerned.
●If any questionsabouttheelectricalinstallation, donot continue butconsult aqualifiedelectrician.
●DMX CONTROLCONNECTION:
螺母×4
柔光板
遮光板组件
barndoorassembly
frostboard
screwX4

8/8
Connection between controller and projector and between one projector and another must be made with a twin-screened cable, with
each wire having at least a 0.5mm in diameter. Connection to and from the projector is via cannon 5 pin (which are included with the
projector)or5pinXLRplugs and sockets.TheXLR'sareconnectedasshowninthefigureabove.
Note: care should be taken to ensure that none of the pins touch the metallic body of the plug or each other. XLR plugs and sockets
mustn’t be connected in any way other than mentioned in the above figure. The unit accepts digital control signals in protocol
DMX512(1990).
Connect the controller’s DMX output to the first fixture’s DMX input, and connect the first fixture’s DMX output to the second
fixture’s DMX input and connect the rest fixtures in the same way. Eventually connect the last fixture’s DMX output to a DMX
terminatorasshownin the figurebelow.
●DMXTERMINATOR
In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents
electricalnoise fromdisturbingandcorruptingtheDMXcontrolsignals.
The DMX terminator is simply an XLR connector with a 120(ohm) resistor connected across pins 2 and 3, which is thenplugged
into the outputsocketonthe lastprojector inthechain.The connectionsareillustratedbelow.
5. SETUPANDCONFIGURATION
接电源
接控制器
接回路插
POWER IN POWER OUTPOWER OUT POWER IN
DMX OUT
DMX OUT DMX IN
DMX IN
21
3
120
DMX TERMINATOR
CONNECTION
Connect a 120 (OHM) resistor
across pins 2 and 3 in an XLR plug
and insert into the DMX out socket
on the last unit in the chain. PIN 3
PIN 2
DMXterminator
DMXController
Power

9/9
●FRONTPANELOPERATION
To browse through or modify the projector’s functions, press key ENTER for more than 3 seconds to unlock the control panel and
enter the menus. To set or browse through the projector’s functions, press key UP or DOWN. Press the key ENTER to enter the
submenusandthecurrentparameters willbe displayed whileflashing.Press key UP or DOWN tochangevalues(plusorminus)
Press key ENTER to save yourchangesand enter into the upper level menuwhileflashingsstop;
Press key FUNC, itwillreturnto theupper menu(parametersnotsaved)orbrowsethrough1st levelmenus;
Press key FUNC for1 secondornone key is pushed for 1minute, themenu willbeescaped and currentoperationmodedisplayed.
●DMX STARTADDRESS
EachProjector mustbegivena DMXstartaddressso that the correctprojectorrespondstothe correctcontrol signals. This DMXstart
address is the channel number from which the projector starts to “listen” to the digital control information being sent out from the
controller. The Unit has 2 DMX modes. There are standard and extended modes. For example standard mode has 6 channels, so set
the No. 1 projector’s address 001, No. 2 projector’s address 007, No. 3 projector’s address 013, No. 4 projector’s address019, and so
on.
Launchtheprojector.Press button ENTER more than2secondsto unlockpanel.
Pressbutton ENTER to displayDMXaddress;
Pressbutton UP and DOWN, youcansettheaddress;
Pressbutton ENTER to confirm; after poweredonnext time,thedefault willbe lastvalue saved
Pressbutton FUNC,it willreturnto the upper menu
IfDMXsignalis available, LED indicationison.Otherwiseitisoff.
.
●STAND-ALONEMODE
Operate the projector without connecting with a controller, enable the master mode through the operation panel, the
projector will run in Stand-Alone mode automatically.
DMX address can be set at any number within 512.
●MASTER/SLAVEMODE
Many projectors can run synchronously in the Master/Slave mode by linking them with each other. First,
connect the first fixture’s DMX output to the second fixture’s DMX input using XLR-XLR control cable and then connect the second
fixture’s DMX output to the third fixture’s DMX input, and so on until all projector are connected in this way. Eventually connect the
last fixture’s DMX output to a DMX terminator. Set 1st projector as the master and others are Slaves.
StartAddressesofallSlavesare001;Operationmodeof the Master can be set any mode for a Master’ and Slaves’ operation mode can
be set accordingly
AfterPoweredon,the groupwillrunin Master/SlaveMode
6. OPERATIONMENU
1stlevel menu
2nd levelmenu
3rdlevel menu
4thlevel menu
DMXAddress
Standardmode:001-507
Extendedmode:001-502

10/10
Standard6
Default:Standard6
Extended11
MasterSlave
Slave
Default：Slave
Master
ColorOffset
Red
128 -255
Green
128 -255
Blue
128 -255
LanguageSetup
English
Default：English
Chinese
Lcd LightSetup
On
The LCDbacklightwill
be turned off3minutes
afternonekeyispushed.
Off
DisplayInvert
Yes
No
FactorySetting
Yes
PRMTransmit
Yes
cleanProgra
Yes
Information
LEDTemperature
XX
FixtureuseTime
XXXX
SoftwareVersion
X.X.X
TestMode
Red
Green
Blue
White
RGB
RWB
RGBW
OperationMode
DMX Mode
Yes
UserMemory
Yes
Preset Memory
（PR01~PR16）
UserPrograEdit
（ET01~ET16）
Dimmer
000 -255
Strobe
000 -255
Red
000 -255
Green
000 -255
Blue
000 -255
White
000 -255
KeepTime
000 –200 (0-20S)

11/11
Note:
1. In one DMX chain, only one unit can be made as the master. Before master works, unplug its XLR cable connected with the
console.
2. The parameters transmitted from the master include after several units are synchronized: DMX channel mode, DMX signal
mode ,control setting, language status, backlight status of the LCD display, display invert, current timing, timer value, ambient
brightness value,user memory. Duringparametertransmission, setthe unit transmittingdataasmasterandothersasslave
7. DMXPROTOCOL
Standard
mode
Extended
mode
Function
DMXValue
Description
1
1
Dimmer
000-255
Lineardimmerin16bit
2
2
Strobe
000-007
No
008-255
Strobe fromslowtofast
3
ColourTemperature
000
No
001-255
LinearCTadjustment
4
Macro
000-016
No
017-024
White（CT10000K）
025-032
White（CT7200K）
033-040
White（CT5600K）
041-048
White（CT3200K）
049-056
Cyan
057-064
Yellow
065-072
Magenta
073-080
Red
081-088
Green
089-096
Blue
097-104
Lightblue
105-112
Amber
113-120
Orange
121-128
Pink
129-255
Rainboweffectfromslowto fast
3
5
Red
000-255
Linearadjustment fromdarktobright
4
6
Green
000-255
Linearadjustmentfromdarktobright
5
7
Blue
000-255
Linearadjustmentfromdarktobright
6
8
White
000-255
Linearadjustmentfromdarktobright
9
PresetMemory
000
No
001-015
PresetMemory1
016-031
PresetMemory2
032-047
PresetMemory3
048-063
PresetMemory4
064-079
PresetMemory5
080-095
PresetMemory6
096-111
PresetMemory7
112-127
PresetMemory8
128-143
PresetMemory9
144-159
PresetMemory10
160-175
PresetMemory11
176-191
PresetMemory12
192-207
PresetMemory13
208-223
PresetMemory14
224-239
PresetMemory15

12/12
Note:DMXchannelpriority:Presetmemory>user memory>Macros>CT>RGBWdimming
While higher priority channels are in use, lower priority channels don’t work.
8.TECHNICALDATA
ELECTRICSPECIFICATIONS
Inputvoltage:100V~240VAC，50/60Hz
Inputpower:180W@220V
Inputcurrent::AC 0.8A@220V
Powerfactor:PF＞91％
240-255
PresetMemory16
10
UserMemory
000
No
001-015
UserMemory1
016-031
UserMemory2
032-047
UserMemory3
048-063
UserMemory4
064-079
UserMemory5
080-095
UserMemory6
096-111
UserMemory7
112-127
UserMemory8
128-143
UserMemory9
144-159
UserMemory10
160-175
UserMemory11
176-191
UserMemory12
192-207
UserMemory13
208-223
UserMemory14
224-239
UserMemory15
240-255
UserMemory16
11
PresetMemorySpeed
000-015
Speed1，fastest
016-031
Speed2
032-047
Speed3
048-063
Speed4
064-079
Speed5
080-095
Speed6
096-111
Speed7
112-127
Speed8
128-143
Speed9
144-159
Speed10
160-175
Speed11
176-191
Speed12
192-207
Speed13
208-223
Speed14
224-239
Speed15
240-255
Speed16，slowest

13/13
LIGHTSOURCESPECIFICATIONS
Qty 54pcsX3WRGBWlightsource
PowerConsumption 162W
ManufacturersRatedLamp Life 50000hours
COLORS
R/G/B/W, options(R/G/B/A(Amber),R/G/B/L(Lime))
DIMMER
Linear Dimmer from0-100%
STROBE
Electronic Strobe0.5-33FP.S
BEAMANGLE
Beam Angle(1/2peak) θ1/2 9°(options:7°,10°,20°,40°)
CONTROL
InternationalstandardDMX512signalcontrolprotocol
Standardmode6channels,extendedmode11channels
Master/SlavesynchronizedMode
3operationmodes(DMXmode,user memory, presetmemory)
Testmode
OTHER FUNCTIONS
LCDscreenand itsbrightnessadjustable
DMXchannelmodeand settingdisplay
LCDdisplayandmenusinvertible
Backlight of LCD displayautomatically turnsoffafter somedelay
Control modeandother informationcanbetransmitted via synchronization
HOUSING
Hightensile castAluminumalloy,IP67
NETWEIGHT
10Kg
OPERATIONTEMPERATURE
Maximumambient temperature:40℃

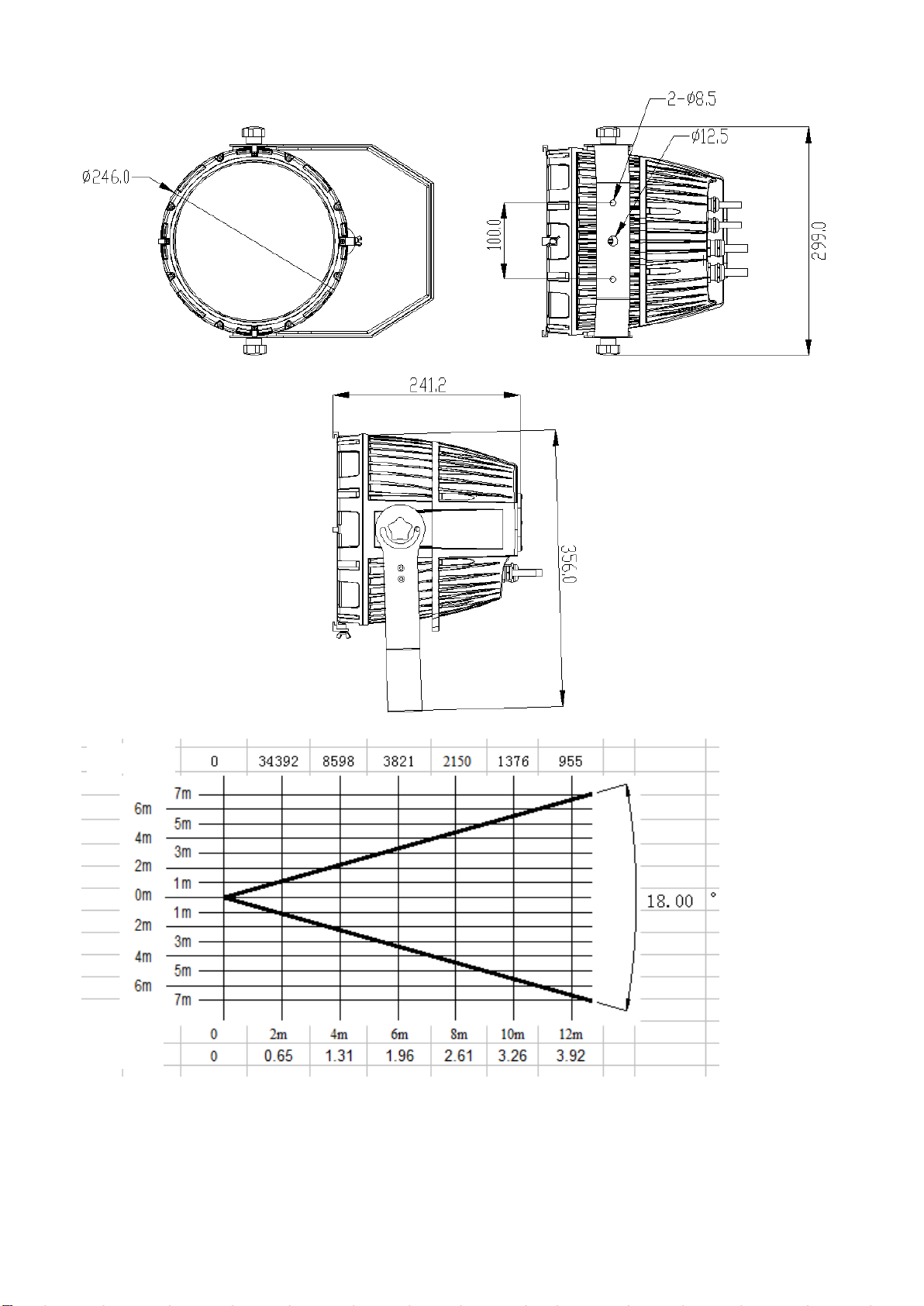

SIZES:

14/14
LIGHTOUTPUT:
luminous flux
distance
diameter

15/15
9. CIRCUITDIAGRAMANDPCBCONNECTIONS

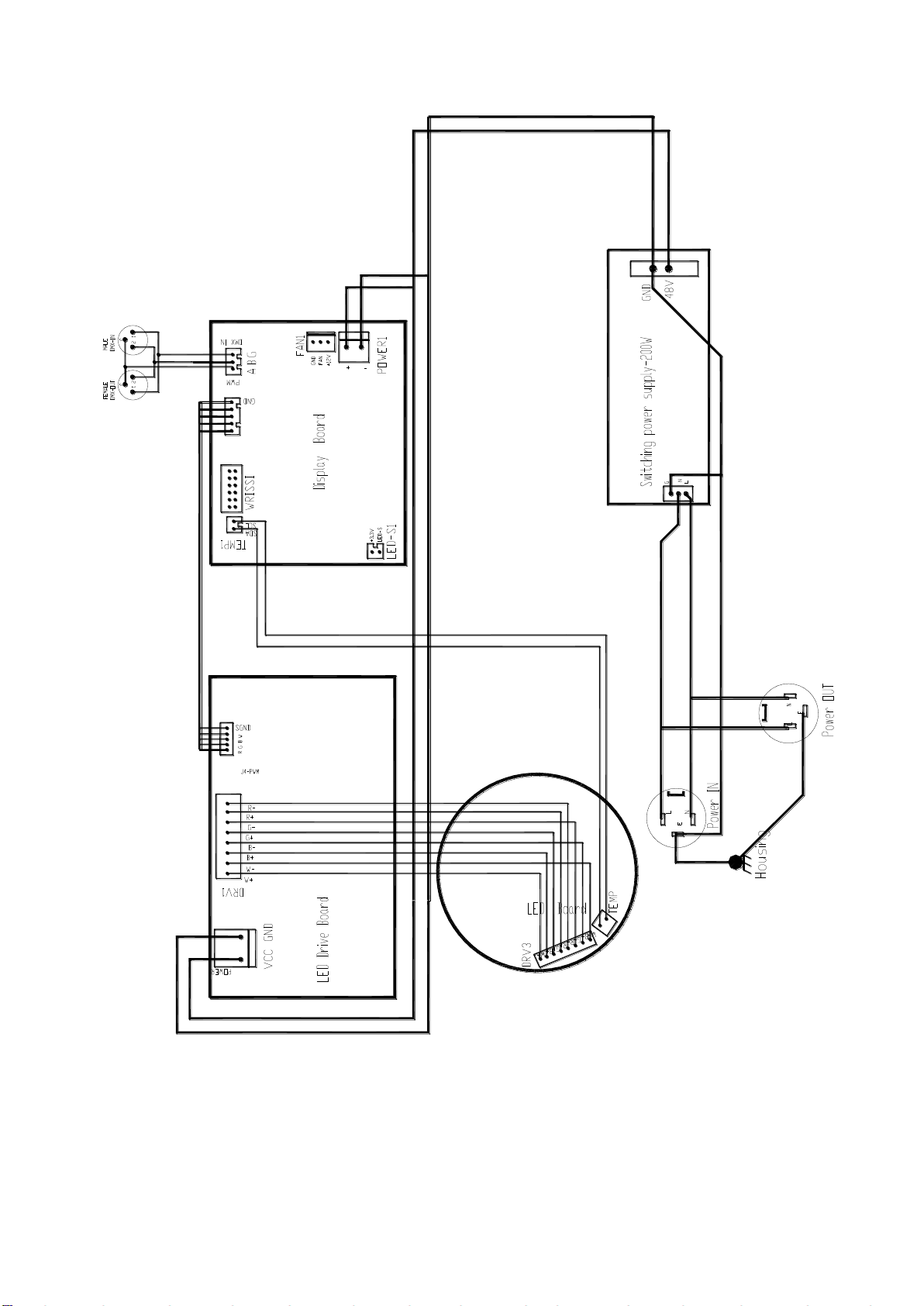

●CIRCUITDIAGRAM

16/16
7654
12
3
●PCB CONNECTIONS
MasterBoard （230060120）
LEDdriverboard （6230000031）：
98 10
No
Name
1
Optical sensor
2
Power
3
Fan
4
Signal input
5
PWMsignal
6
Wireless control
7
Thermal sensor
No
Name
8
Power
9
LED driver
10
PWMsignal input

17/17
Lampboard （6230000043）
10.COMPONENTORDERCODES
No.
Name
CodeNo.
Qty
Remarks
1
SWITCHINGPOWERSUPPLY
6190000005
1
2
LEDLIGHTSOURCES
6230000043
1
3
LEDDRIVERBOARD
6230000031
1
4
MASTERBOARD
230060120
1
5
FRONTGLASS
080090115
1
6
TRANSPARENTCOVER
290190109
1
Optional
7
SEALOFTRANSPARENT
COVER
290019142
1
Optional

18/18
PR LIGHTING LTD.
1582 XingyeAvenue,Nancun Panyu
Guangzhou,511442China
TEL:[phone]
PR lighting will try its best to offer accurate and overall information about a product’s technical data. Any changes won’t be notified if necessary. Patented Products.
CounterfeitingWillbeProsecuted! P/N: 6320000057
Version: 20181010
