Protekt DR100 User manual

PROTEKT GRZEGORZ ŁASZKIEWICZ
ul. Starorudzka 9
93-403 Łódź Edition 1/18/06/2021
Page 1of 3
Universal steel climbing spikes
Reference number DR100
TABLE OF CONTENTS:
1. General...............................................................1
2. Working Load Limit ...........................................1
3. Height adjustment .............................................1
4. Gaff replacement...............................................2
5. Upper binding adjustment................................2
6. Lower binding adjustment................................3
7. Warranty.............................................................3
1. General
Climbing spikes are designed for use in arborist works as an
auxiliary equipment for ascending during works at a height.
Climbing spikes are not Personal Protective Equipment.
Climbing spikes are not mountaineering equipment.
Climbing spikes are intended for use only as auxiliary
equipment for ascending during works at a height in arborist
works.
Works with use of climbing spikes are dangerous and bear a
risk of a fall if additional personal protective equipment is not
used.
The device should be used only as intended.
The right climbing spike is different from the left one. Each of
them is marked with letters R or L on the inner side of the
stirrup.
It is obligatory to check the set of climbing spikes for
completenes Figure 1.
When in use, all straps and velcro strips should be well
tightened and properly secured. Improper use may cause an
accident and serious injuries.

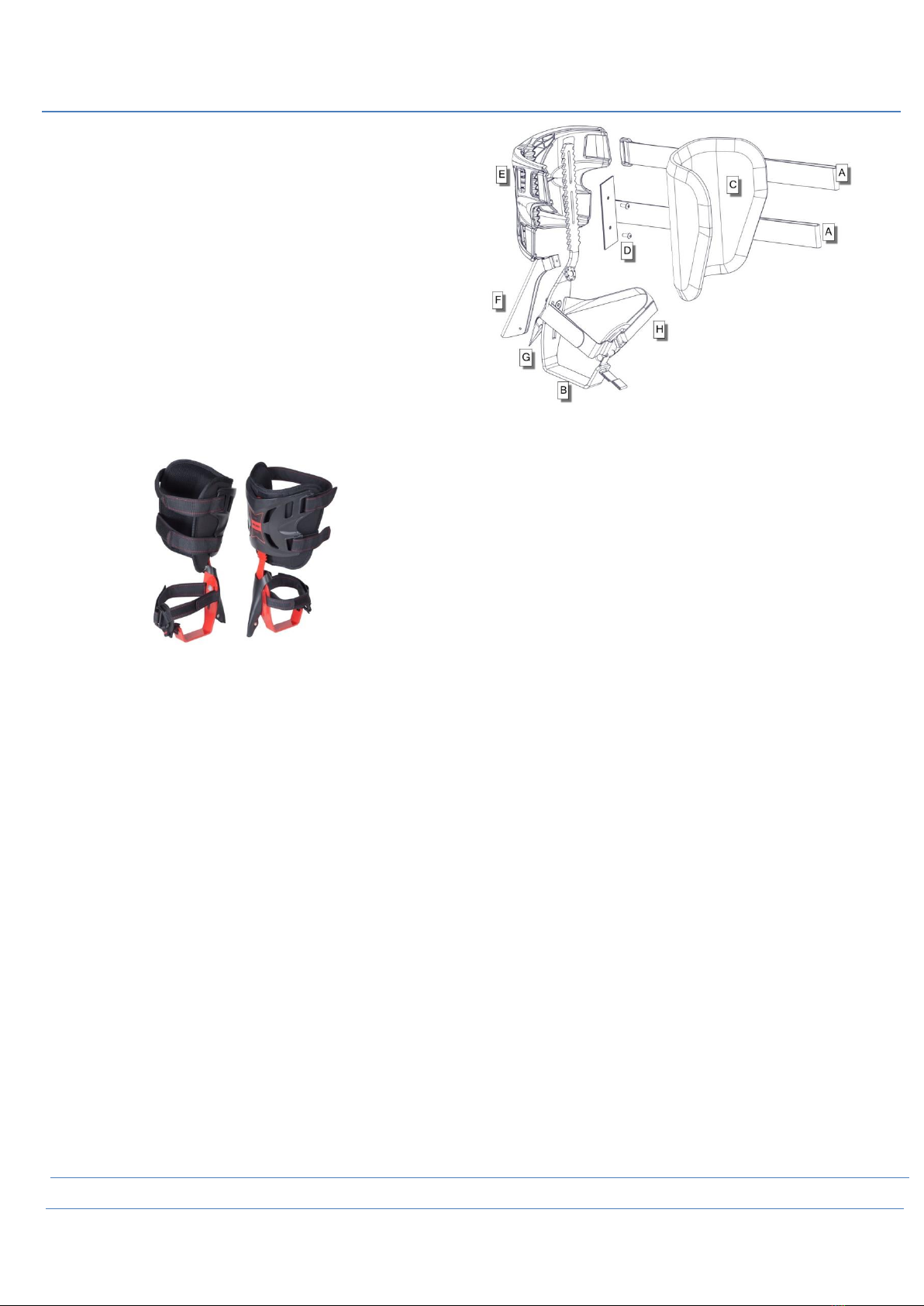

Figure 1. Elements of complete set
A - Adjustable velcro strips of upper binding
B - Main stirrup
C - Padding
D - Height adjustment gear
E - Composite framing
F - Gaff protective guard
G - Hardened steel gaff
H - Adjustable velcro strips of lower binding
2. Working Load Limit
The product is designed to be used for ascending and
descending of workers, and works in suspension with a
weight, including auxiliary equipment, of not less than 130 kg.
3. Height adjustment
Before use make sure to adjust the height of padding to your
leg.
The adjustment is done by detachment and removal of the
padding and loosening of the adjustment gear. By moving up
and down, set the framing in an optimum position for your leg
as indicated below:
Detach padding from adjustment gear velcro strip;
Loosen adjustment gear;
Put leg in working boots through and fasten lower binding
Move the composite framing along the stirrup so the top
edge of the upper binding is positioned 5cm below your
knee. Push the stirrup through the framingand remove the
climbing spike from the leg. Tighten the adjustment gear
as screws M5. Torque screws to 4kN.
To check the climbing spike for correct fit, tighten it
properly and fasten all straps. Bend your knee at 90°. With
optimum height settings, movements of knee and foot
should not be restricted.

PROTEKT GRZEGORZ ŁASZKIEWICZ
ul. Starorudzka 9
93-403 Łódź Edition 1/18/06/2021
Page 2of 3
Figure 2. Padding height adjustment
4. Gaff replacement
Climbing spikes are delivered with two gaffs, long and short.
A gaff is mounted with screw M8 torqued to about 14Nm.
Before any work, please check if the gaff is well tightened.
Figure 3. Gaff replacement
NOTE: Maximum time of usage of the device depends on
intensity and environment of use. If the device is used in heavy
conditions, being exposed to frequent contact with water, at
extreme temperatures, it may be necessary to withdraw the
device from use prematurely.
5. Upper binding adjustment
Put straps through hole in the composite framing,
and fasten to a maximum, so they are tightened on
the leg (Figure 4).
Figure 4. Stages of upper binding fastening

PROTEKT GRZEGORZ ŁASZKIEWICZ
ul. Starorudzka 9
93-403 Łódź Edition 1/18/06/2021
Page 3of 3
6. Lower binding adjustment
7. Warranty
The manufacturer grants a warranty for 12 months from the
date of purchase of the device. If a defect is found in any part,
the warranty and guarantee period for this part is extended by
the time of repairs and effective removal of the defect found.
The warranty covers:
Defects in material,
Defects in workmanship,
Anti-corrosion coating defects.
Periodic inspection shall be carried out by a service point
authorized by the Manufacturer or a person trained in
inspections of such equipment.
A trained person is a person who, based on own specialized
education and adequate experience, has sufficient knowledge
in installed protective and rescue equipment, and is
familiarized with applicable OHS regulations, guidelines and
generally acknowledged technical rules to such extent that is
able to assess safety of use and correct application of
protection devices.
Before each use of the system visually check the device for its
integrity and technical condition.
If any defect or lack of integrity is found, do not use the device.
If any doubts arise as regards the use of the equipment,
please contact the manufacturer and never try to repair the
equipment on your own!
Figure 5. Stages of lower binding fastening
