Protekt P-60 User manual

SAFETY HARNESS
( ( 0082
EN 361
EN 358
side ottoching buckles
for work positioning system
Ref.: AB 160 01
021-66965139: ﻦﻔﻠﺗ
ﺵﺯﻮﻣﺁ ،ﻥﻮﻴﺳﺍﺮﺒﻴﻟﺎﻛ ، ﻖﻴﻗﺩ ﺭﺍﺰﺑﺍ ، ﻰﻧﺎﺸﻧ ﺶﺗﺁ ، ﻰﻨﻤﻳﺍ
ﺵﺎﺑ ﻦﻤﻳﺍ
[phone]
Https://imanbash.ir
[e-mail]

Instruction Manual
front view
back view
back attaching
buckle for attaching
fall arrest system
connecting
and regulating
buckle
of the thigh strap
identity label
work
positioning
belt
connecting
and regulating
buckle
of the work
positioning belt
shoulder strap
thigh strap
regulating
buckle
of the
shoulder strap
side buckles
for attaching
work
positioning
system
connecting
and regulating
plastic clip
of the chest
strap
front attaching
loops for attaching
fall arrest system
P-60/60E
Safety Harness
Safety harness is basic of fall arrest equipment and complies with
EN 361 and EN 358.
DESCRIPTION
Full body harness P-60 is made of pieces of polyamide webbing
which are sewn and connected by metal buckles.
This configuration guarantee full safety and comfort work.
BASIC EQUIPMENT
back attaching buckle - for attaching fall arrest system;
front attaching loops - for attaching fall arrest system;
connecting and adjusting buckles - for comfort wearing and
using of harness;
work positioning belt.
SIZES
The harness P-60 is manufactured in two sizes:
- universal: M-XL
- extra large: XXL
!
!
!
!
EN 358:2000
EN 361:2002
SAFETY HARNESS
Ref. AB 160 01
Size:
Date
of manufacture: 03/2003
Serial
number: 0000001
M-XL
XXL
EN 361:2002
P-60
CONTENT OF HARNESS IDENTITY LABEL
number of the manufacturing series
CE marking and number of a notified body
controlling manufacturing of the equipment (art. 11)
type of the device
reference number
month/year of the device manufacture
marking of the manufacturer
or distributor
trade mark of the device
size
EN 358:2000
caution: read the manual
!there are many hazards that may affect the performance of the equipment and corresponding safety precautions that have to be observed during equipment utilization, especially:
- trailing or looping of lanyards or lifelines over sharp edges,
- any defects like cutting, abrasion, corrosion,
- climatic exposure,
- pendulum falls,
- extremes of temperature,
- chemical reagents,
- electrical conductivity.
!personal protective equipment must be transported in the package (e.g.: bag made of moisture-proof textile or foil bag or cases made of steel or plastic) to protect it against damage or moisture.
!the equipment can be cleaned without causing adverse effect on the materials in the manufacture of the equipment. For textile products use mild detergents for delicate fabrics, wash by hand or in a
machine and rinse in water. Plastic parts can be cleaned only with water. When the equipment becomes wet, either from being in use or when due cleaning, it shall be allowed to dry naturally, and shall
be kept away from direct heat. In metallic products some mechanic parts (spring, pin, hinge, etc.) can be regularly slightly lubricated to ensure better operation.
Other maintenance and cleaning procedures should be adhered to detailed instructions stated in the manual of the equipment.
!personal protective equipment should be stored loosely packed, in a well-ventilated place, protected from direct light, ultraviolet degradation, damp environment, sharp edges, extreme temperatures and
corrosive or aggressive substances.
IDENTITY CARD
PERIODIC EXAMINATION AND REPAIR HISTORY
1
2
DATE
REASON FOR
ENTRY PERIODIC EXAMINATION
OR REPAIR
3
4
SERIAL NUMBER
USER NAME
DATE OF MANUF.
DATE OF PUTTING INTO OPERATION
DATE OF PURCHASE
IT IS THE RESPONSIBILITY OF THE USER ORGANISATION TO PROVIDE THE IDENTITY CARD AND TO FILL IN THE DETAILS REQUIRED.
THE IDENTITY CARD SHOULD BE FILLED IN BEFORE THE FIRST USE BY A COMPETENT PERSON, RESPONSIBLE INTHE USER ORGANIZATION FOR PROTECTIVE EQUIPMENT.
ANY INFORMATION ABOUT THE EQUIPMENT LIKE PERIODIC INSPECTIONS, REPAIRS, REASONS OF EQUIPMENT'S WITHDRAWN FROM USE SHALL BE NOTED INTO THE IDENTITY CARD BY A COMPETENT PERSON.
THE IDENTITY CARD SHOULD BE STORAGED DURING A WHOLE PERIOD OF EQUIPMENT UTILIZATION.
DO NOT USE THE EQUIPMENT WITHOUT THE IDENTITY CARD.
ALL RECORDS IN THE IDENTITY CARD CAN BE FILLED IN ONLY BY A COMPETENT PERSON.
MODEL AND TYPE OF EQUIPMENT
REF. NUMBER
DEFECTS NOTED,
REPAIRS CARRIED OUT
AND OTHER REVELANT INFORMATIONS
NAME AND SIGNATURE
OF COMPETENT PERSON
PERIODIC
EXAMINATION
NEXT DUE DATE
number / year of the European standards
the equipment conform
EC type examination carried out by CETE APAVE SUDEUROPE, BP 193, 13322 Marseille, France - 0082
Ref. AB 160 01 - P-60
Ref. AB 160 02 - P-60E
ADMISSIBLE TIME OF USE
Safety harness can be used for 5 years counting from a date of
putting the harness into operation. After this period the harness
manufacturer's
.
The manufacturer's inspection can be carried out by:
- manufacturer
- or person recommended by manufacturer
- or company recommended by manufacturer.
During this inspection will be established admissible time of harness
use till next manufacturer's inspection.
The harness
must
be withdrawn from use to carry out detailed
inspection
must be withdrawn from use immediately and destroyed
when it has been used to arrest a fall.
PROTEKT, 93-403 LODZ, ul. Starorudzka 9, POLAND, TEL: [phone], FAX: [phone], www.protekt.com.pl(48 42)
021-66965139: ﻦﻔﻠﺗ
ﺵﺯﻮﻣﺁ ،ﻥﻮﻴﺳﺍﺮﺒﻴﻟﺎﻛ ، ﻖﻴﻗﺩ ﺭﺍﺰﺑﺍ ، ﻰﻧﺎﺸﻧ ﺶﺗﺁ ، ﻰﻨﻤﻳﺍ
ﺵﺎﺑ ﻦﻤﻳﺍ
[phone]
Https://imanbash.ir
[e-mail]

1 2 3
5
1
9
2
6
10
7
11
8
12
3 4

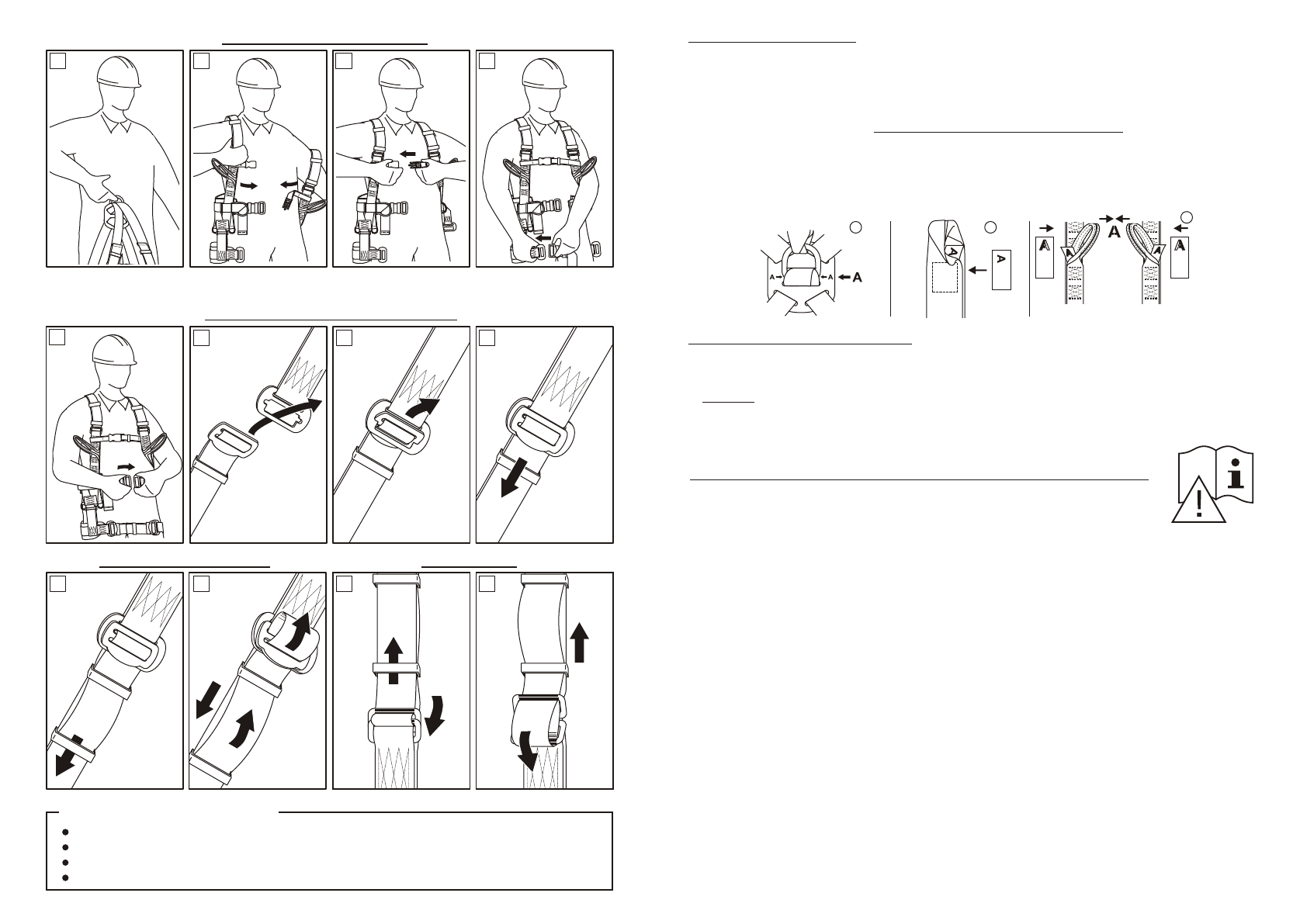

Harness is put on correctly if:
