Protekt P-30N User manual

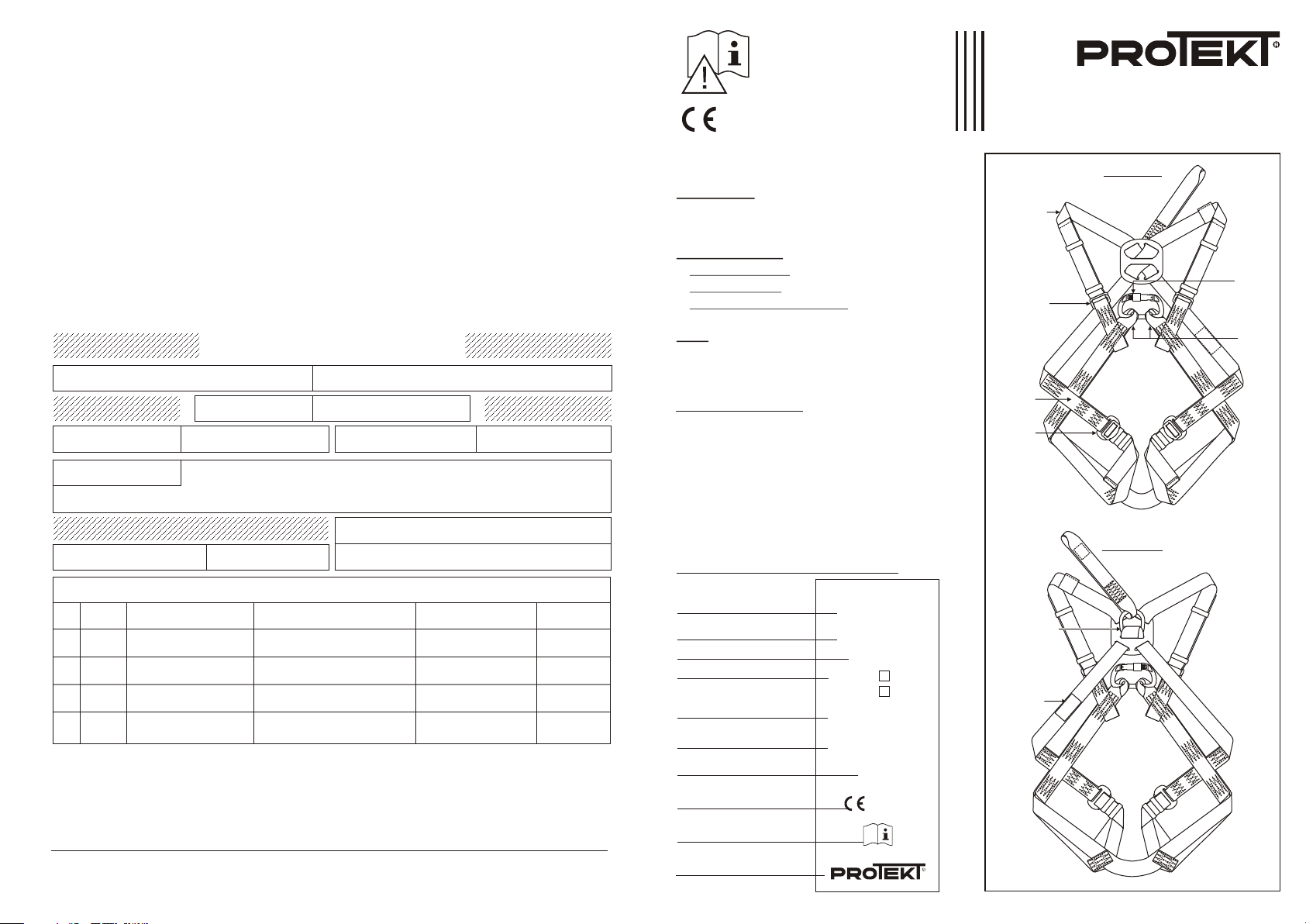

front view
back view
back attaching
buckle for attaching
fall arrest system
connecting
and adjusting
buckle
of the thigh strap
identity label
shoulder strap
thigh strap
adjusting
buckle
of the shoulder
strap
connecting
snap hook
front attaching loops
for attaching
fall arrest
systems
EN 361:2002
Ref.: AB 131 01
Safety harness is basic of fall arrest equipment and complies
with EN 361.
DESCRIPTION
Full body harness is made of pieces of kevlar-nomex
webbing which are sewn and connected by metal buckles.
This configuration guarantee full safety and comfort work.
BASIC EQUIPMENT
back attaching buckle - for attaching fall arrest system;
front attaching loops - for attaching fall arrest system;
connecting and adjusting buckles - for comfort wearing
and using of harness;
SIZES
The harness is manufactured in two sizes:
- universal: M-XL
- extra large: XXL
!
!
!
SAFETY HARNESS
Ref. AB 131 01
Size:
Date
of manufacture: 03/2003
Serial
number: 0000001
M-XL
XXL
EN 361:2002
P-30N
CONTENT OF HARNESS IDENTITY LABEL
number of the manufacturing series
CE marking and number of a notified body
controlling manufacturing of the equipment (art. 11)
type of the device
reference number
month/year of the device manufacture
marking of the manufacturer
or distributor
trade mark of the device
size
caution: read the manual
!there are many hazards that may affect the performance of the equipment and corresponding safety precautions that have to be observed during equipment utilization, especially:
- trailing or looping of lanyards or lifelines over sharp edges,
- any defects like cutting, abrasion, corrosion,
- climatic exposure,
- pendulum falls,
- extremes of temperature,
- chemical reagents,
- electrical conductivity.
!personal protective equipment must be transported in the package (e.g.: bag made of moisture-proof textile or foil bag or cases made of steel or plastic) to protect it against damage or moisture.
!the equipment can be cleaned without causing adverse effect on the materials in the manufacture of the equipment. For textile products use mild detergents for delicate fabrics, wash by hand or in a
machine and rinse in water. Plastic parts can be cleaned only with water. When the equipment becomes wet, either from being in use or when due cleaning, it shall be allowed to dry naturally, and shall
be kept away from direct heat. In metallic products some mechanic parts (spring, pin, hinge, etc.) can be regularly slightly lubricated to ensure better operation.
Other maintenance and cleaning procedures should be adhered to detailed instructions stated in the manual of the equipment.
!personal protective equipment should be stored loosely packed, in a well-ventilated place, protected from direct light, ultraviolet degradation, damp environment, sharp edges, extreme temperatures and
corrosive or aggressive substances.
number / year of the European standard
the equipment conform
Instruction Manual
READ CAREFULLY BEFORE USE
THE EQUIPMENT
SAFETY
HARNESS
P-30N
IDENTITY CARD
PERIODIC EXAMINATION AND REPAIR HISTORY
1
2
DATE
REASON FOR
ENTRY PERIODIC EXAMINATION
OR REPAIR
3
4
SERIAL NUMBER
USER NAME
DATE OF MANUF.
DATE OF PUTTING INTO OPERATION
DATE OF PURCHASE
IT IS THE RESPONSIBILITY OF THE USER ORGANISATION TO PROVIDE THE IDENTITY CARD AND TO FILL IN THE DETAILS REQUIRED.
THE IDENTITY CARD SHOULD BE FILLED IN BEFORE THE FIRST USE BY A COMPETENT PERSON, RESPONSIBLE INTHE USER ORGANIZATION FOR PROTECTIVE EQUIPMENT.
ANY INFORMATION ABOUT THE EQUIPMENT LIKE PERIODIC INSPECTIONS, REPAIRS, REASONS OF EQUIPMENT'S WITHDRAWN FROM USE SHALL BE NOTED INTO THE IDENTITY CARD BY A COMPETENT PERSON.
THE IDENTITY CARD SHOULD BE STORAGED DURING A WHOLE PERIOD OF EQUIPMENT UTILIZATION.
DO NOT USE THE EQUIPMENT WITHOUT THE IDENTITY CARD.
ALL RECORDS IN THE IDENTITY CARD CAN BE FILLED IN ONLY BY A COMPETENT PERSON.
MODEL AND TYPE OF EQUIPMENT
REF. NUMBER
DEFECTS NOTED,
REPAIRS CARRIED OUT
AND OTHER REVELANT INFORMATIONS
NAME AND SIGNATURE
OF COMPETENT PERSON
PERIODIC
EXAMINATION
NEXT DUE DATE
PROTEKT, 93-403 LODZ, ul. Starorudzka 9, POLAND, TEL: [phone], FAX: [phone], www.protekt.com.pl(48 42)
ADMISSIBLE TIME OF USE
Safety harness can be used for 5 years counting from a date of
putting the harness into operation. After this period the harness
manufacturer's
.
The manufacturer's inspection can be carried out by:
- manufacturer
- or person recommended by manufacturer
- or company recommended by manufacturer.
During this inspection will be established admissible time of harness
use till next manufacturer's inspection.
The harness
must
be withdrawn from use to carry out detailed
inspection
must be withdrawn from use immediately and destroyed
when it has been used to arrest a fall.
Notified body controlling
manufacturing of the device
National Research Institute
ul. Czerniakowska 16, 00-701 Warsaw, Poland
No. 1437
EC type examination carried out by
Central Institute for Labor Protection
National Research Institute
ul. Czerniakowska 16, 00-701 Warsaw, Poland
No. 1437
0082
0082

31 2
5
4
HOW TO PUT ON THE HARNESS
Take the harness by the back attaching
buckle.
Put on the shoulder straps one after one,
take care do not twist them.
Connect front loops with connecting snap hook.
It is forbidden to use the harness
without connecting the loops with the snap hook
Pull one and then other thigh straps
through crottch, take care do not twist
them.
Connecting of the steel buckles of the thigh strapsConnecting of the steel buckles of the thigh straps
Regulation of the thigh strapsRegulation of the thigh straps Regulation of the shoulder strapsRegulation of the shoulder straps
9
6
10
7
11
8
12
Harness is put on correctly if:
all straps are correctly adjusted (neither too loose nor too tight).
back attaching buckle is correctlypositioned at the level of the shoulder blades.
front chest strap is correctlypositioned at the middle of the chest.
the ends of all the straps must be kept by plastic loops.
Shortening Lengthening Shortening Lengthening
!the fall arrest system must be connected only to the attaching elements of the harness marked by capital letter A.
The fall arrest system must be connected only to:
- straight to the back attaching buckle.
or
- to the lengthening element of attaching buckle
or
- to both front attaching loops of the harness. It should be made through connecting snap hook. It is strictly forbidden to attach a fall arrest system to
a single loop.
The back attaching buckle is marked by a capital letter A - marked on the crossing plate with arrows indicating back attaching buckle (1).
Lengthening element is marked by a capital letter A placed on the label inside element loop(2) .
Front attaching loops are marked by a capital letter A (one half of letter is black and another half is marked by outline) placed on the label inside
each loop (3).
See drawings below.
ATTACHING FALL ARREST SYSTEM
!personal protective equipment shall only be used by a person trained and competent in its safe use.
!personal protective equipment must not be used by a person with medical condition that could affect the safety of the equipment user in normal and emergency use.
!a rescue plan shall be in place to deal with any emergencies that could arise during the work.
!it is forbidden to make any alterations or additions to the equipment without the manufacturer's prior written consent.
!any repair shall only be carried out by equipment manufacturer or his certified representative.
!personal protective equipment shall not be used outside its limitations, or for any purpose other than that for which it is intended.
!personal protective equipment should be a personal issue item.
!before use ensure about the compatibility of items of equipment assembled into a fall arrest system. Periodically check connecting and adjusting of the equipment components to avoid accidental loosening
or disconnecting of the components.
!it is forbidden to use combinations of items of equipment in which the safe function of any one item is affected by or interferes with the safe function of another.
!before each use of personal protective equipment it is obligatory to carry out a pre-use check of the equipment, to ensure that it is in a serviceable condition and operates correctly before it is used.
!during pre-use check it is necessary to inspect all elements of the equipment in respect of any damages, excessive wear, corrosion, abrasion, cutting or incorrect acting, especially take into consideration:
- in full body harnesses and belts - buckles, adjusting elements, attaching points, webbings, seams, loops;
- in energy absorbers - attaching loops, webbing, seams, casing, connectors;
- in textile lanyards or lifelines or guidelines - rope, loops, thimbles, connectors, adjusting element, splices;
- in steel lanyards or lifelines or guidelines - cable, wires, clips, ferrules, loops, thimbles, connectors, adjusting elements;
- in retractable fall arresters - cable or webbing, retractor and brake proper acting, casing, energy absorber, connector;
- in guided type fall arresters - body of the fall arrester, sliding function, locking gear acting, rivets and screws, connector, energy absorber;
- in connectors - main body, rivets, gate, locking gear acting.
!after every12 months of utilization, personal protective equipment must be withdrawn from use to carry out periodical detailed inspection. The periodic inspection must be carried out by
a competent person for periodic inspection. The periodic inspection can be carried out also by the manufacturer or his authorized representative.
In case of some types of the complex equipment e.g. some types of retractable fall arresters the annual inspection can be carried out only by the manufacturer or his authorized representative.
!regular periodic inspections are the essential for equipment maintenance and the safety of the users which depends upon the continued efficiency and durability of the equipment.
!during periodic inspection it is necessary to check the legibility of the equipment marking.
!it is essential for the safety of the user that if the product is re-sold outside the original country of destination the reseller shall provide instructions for use, for maintenance, for periodic examination and for
repair in language of the country in which the product is to be used.
!personal protective equipment must be withdrawn from use immediately when any doubt arise about its condition for safe use and not used again until confirmed in writing by equipment manufacturer or his
representative after carried out the detailed inspection.
!personal protective equipment must be withdrawn from use immediately and destroyed when it have been used to arrest a fall.
,
!a full body harness is the only acceptable body holding device that can be used in a fall arrest system.
!the anchor device or anchor point for the fall arrest system should always be positioned, and the work carried out in such a way, as to minimise both the potential for falls and potential fall distance. The
anchor device/point should be placed above the position of the user . The shape and construction of the anchor device/point shall not allowed to self-acting disconnection of the equipment. Minimal static
strength of the anchor device/point is 15 kN. It is recommended to use certified and marked structural anchor point complied with EN795.
!it is obligatory to verify the free space required beneath the user at the workplace before each occasion of use the fall arrest system, so that, in the case of a fall, there will be no collision with the ground or
other obstacle in the fall path. The required value of the free space should be taken from instruction manual of used equipment.
THE ESSENTIAL PRINCIPLES FOR USERS OF PERSONAL PROTECTIVE EQUIPMENT AGAINST FALLS FROM A HEIGHT
1 2 3
NECESSARILY
PROTECT
THE SNAP HOOK'S GATE
WITH THE LOCKING NUT
NECESSARILY
PROTECT
THE SNAP HOOK'S GATE
WITH THE LOCKING NUT
