Qlight MTG60 Series User manual
PB 1

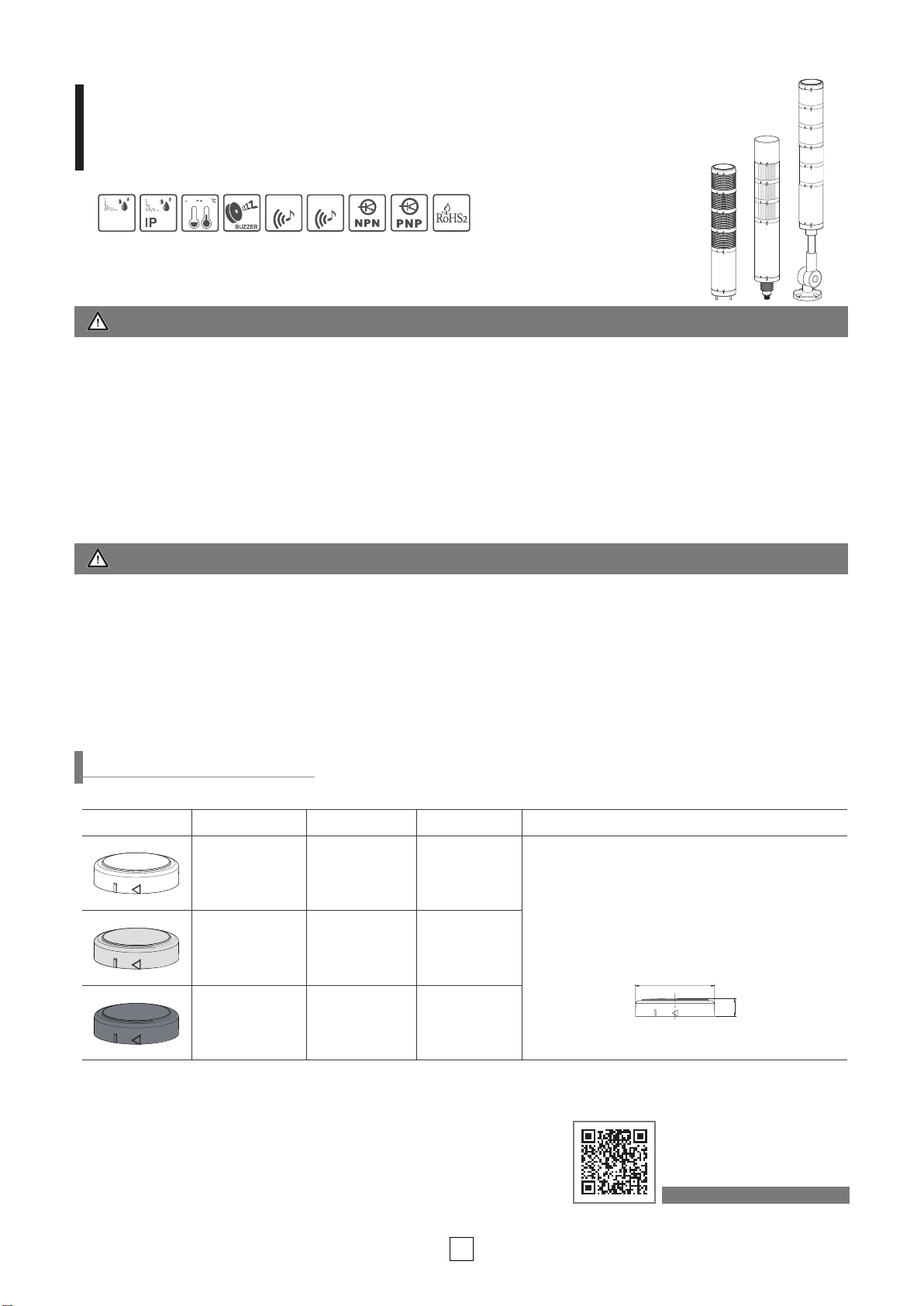

MTG60/ MTC60/ MTR60 Series
Shape Parts Name Model No Color &RPPRQ6SHFL¿FDWLRQV
MTG60 cover MG60-CV Ivory
•
Material: ABS
•
Protection ratings with assemble: IP65
•
Product size: Ø60 X 14
MTG60 cover MG60-CV-SV Silver
MTG60 cover MG60-CV-BK Black
Ø60
13.5
50
Ø60
50
Ø60
Modular LED signal tower light with built-in terminal
• Cover (Units : mm)
Ordering Specications
Thank you for purchasing Qlight’s products. Please read this user manual carefully
prior to installation and operation to ensure safe and correct use.
Precautions for Safety
Failure to follow the instructions below may cause a loss of life or serious physical injury.
1. Please remove any objects that can interrupt ventilation around the product.
3OHDVHWXUQRWKHSRZHURIWKHSURGXFWLPPHGLDWHO\LILWIDLOVWRRSHUDWHSURSHUO\
&DUHIXOO\ZLUHWKHSURGXFWDFFRUGLQJWRHDFKSURGXFW¶VVSHFL¿FDWLRQ
4. Please be careful in preventing chemicals such as thinner, benzene, etc. in contact with the surface of the product.
5. Do not apply excessive force/impact to the product.
)DLOXUHWRIROORZDQ\RIWKHLQVWUXFWLRQVDERYHPD\FDXVHPDOIXQFWLRQRUGDPDJHWRWKHSURGXFW¿UHDQGHOHFWULFVKRFN
Precautions for Correct Use
Failure to follow the proper instructions may cause damage to property, the product, or malfunction of the product
that would void the warranty.
’XULQJZLULQJRUPDLQWHQDQFHSOHDVHFRPSOHWHO\WXUQRWKHSRZHURIWKHSURGXFW)DLOXUHWRIROORZWKLVPD\OHDGWRDQHOHFWULFVKRFN
2. Do not install the product in locations that subjects it to excessive dust or water other than the conditions designated by the IP protection
UDWLQJVLQGLFDWHGIRUHDFKSURGXFW)DLOXUHWRIROORZWKHVHLQVWUXFWLRQVPD\FDXVHD¿UHWRWKHSURGXFWHOHFWULFVKRFNSK\VLFDOLQMXU\
malfunction or damage to the product.)
3. Do not alter or repair this product. If maintenance or repair service is required, please contact your local Qlight contact point. (Failure to
IROORZWKHVHLQVWUXFWLRQVPD\OHDGWR¿UHHOHFWULFVKRFNRUSURGXFWGDPDJH
3OHDVHDSSO\WKHFRUUHFWYROWDJHWRWKHSURGXFW)DLOXUHWRIROORZWKHVHLQVWUXFWLRQVPD\OHDGWR¿UHHOHFWULFVKRFNRUSURGXFWGDPDJH
5. When the product is applied to a condition that may impact lives or property, please make sure to have a double safety device. (Failure to
IROORZWKLVPD\FDXVHGDPDJHWRSURSHUW\¿UHHOHFWULFVKRFNDQGORVVRIOLIH
Please scan the QR code for more
detailed product information.
www.qlight.com
65
85dB
100dB
5030
NON
WATERPROOF
2 3
Ø60
13.5
50
Ø60
50
Ø60
Ø60
13.5
50
Ø60
50
Ø60
Shape Parts Name Model No Color 6SHFL¿FDWLRQ Volume(dB) &RPPRQ6SHFL¿FDWLRQV
Voltage Current
MTG60-High-
volume buzzer
module MG60-HBZ-24 Ivory DC24V 0.080A Max.100dB
•
Material:ABS
• Protection ratings with
assemble
: Non-Waterproof
• Product size: Ø60 X 50
MTG60-High-
volume buzzer
module MG60-HBZ-24-SV Silver DC24V 0.080A Max.100dB
MTG60-High-
volume buzzer
module MG60-HBZ-24-BK Black DC24V 0.080A Max.100dB
MTG60-
Waterproof buzzer
module MG60-WBZ-24 Ivory DC24V 0.080A Max.85dB
• Material:ABS
• Protection ratings with
assemble: IP65
• Product size: Ø60 X 50
MTG60-
Waterproof buzzer
module MG60-WBZ-24-SV Silver DC24V 0.080A Max.85dB
MTG60-
Waterproof buzzer
module MG60-WBZ-24-BK Black DC24V 0.080A Max.85dB
• Buzzer module (Units : mm)
Ordering Specications
2 3

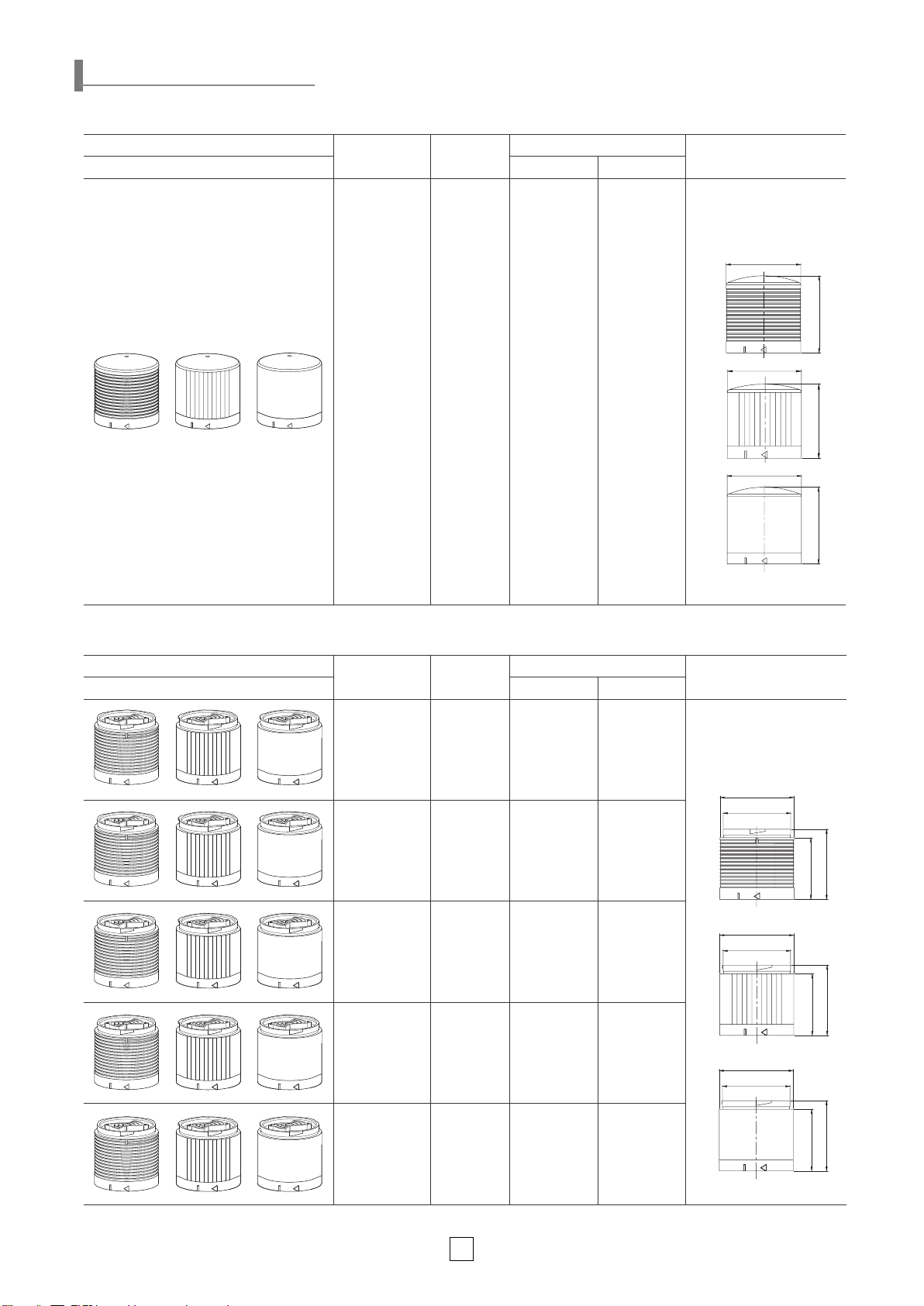

Shape Model No Color 6SHFL¿FDWLRQ &RPPRQ6SHFL¿FDWLRQV
MG MC MR Voltage Current
MGA60-R-24
MCA60-R-24
MRA60-R-24 Red DC24V 0.050A
•
Material: PC
•
Protection ratings with
assemble: IP65
•
Product size: Ø60 X 62
Shape Model No Color 6SHFL¿FDWLRQ &RPPRQ6SHFL¿FDWLRQV
MG MC MR Voltage Current
MG60-R-24
MC60-R-24
MR60-R-24 Red DC24V 0.050A
• Material: PC
• Protection ratings with
assemble: IP65
• Product size: Ø60 X 57
MG60-A-24
MC60-A-24
MR60-A-24 Amber DC24V 0.050A
MG60-G-24
MC60-G-24
MR60-G-24 Green DC24V 0.050A
MG60-B-24
MC60-B-24
MR60-B-24 Blue DC24V 0.050A
MG60-W-24
MC60-W-24
MR60-W-24 White DC24V 0.050A
• LED Steady/Flashing Module (Units : mm)
62
6262
Ø60
Ø60
Ø60
50
57
Ø60
Ø54.7
Ø60
Ø54.7
Ø60
Ø54.7
50
57
50
57
62
6262
Ø60
Ø60
Ø60
50
57
Ø60
Ø54.7
Ø60
Ø54.7
Ø60
Ø54.7
50
57
50
57
• Cover integrated Lens option is available (Units : mm)
Ordering Specications
4 5

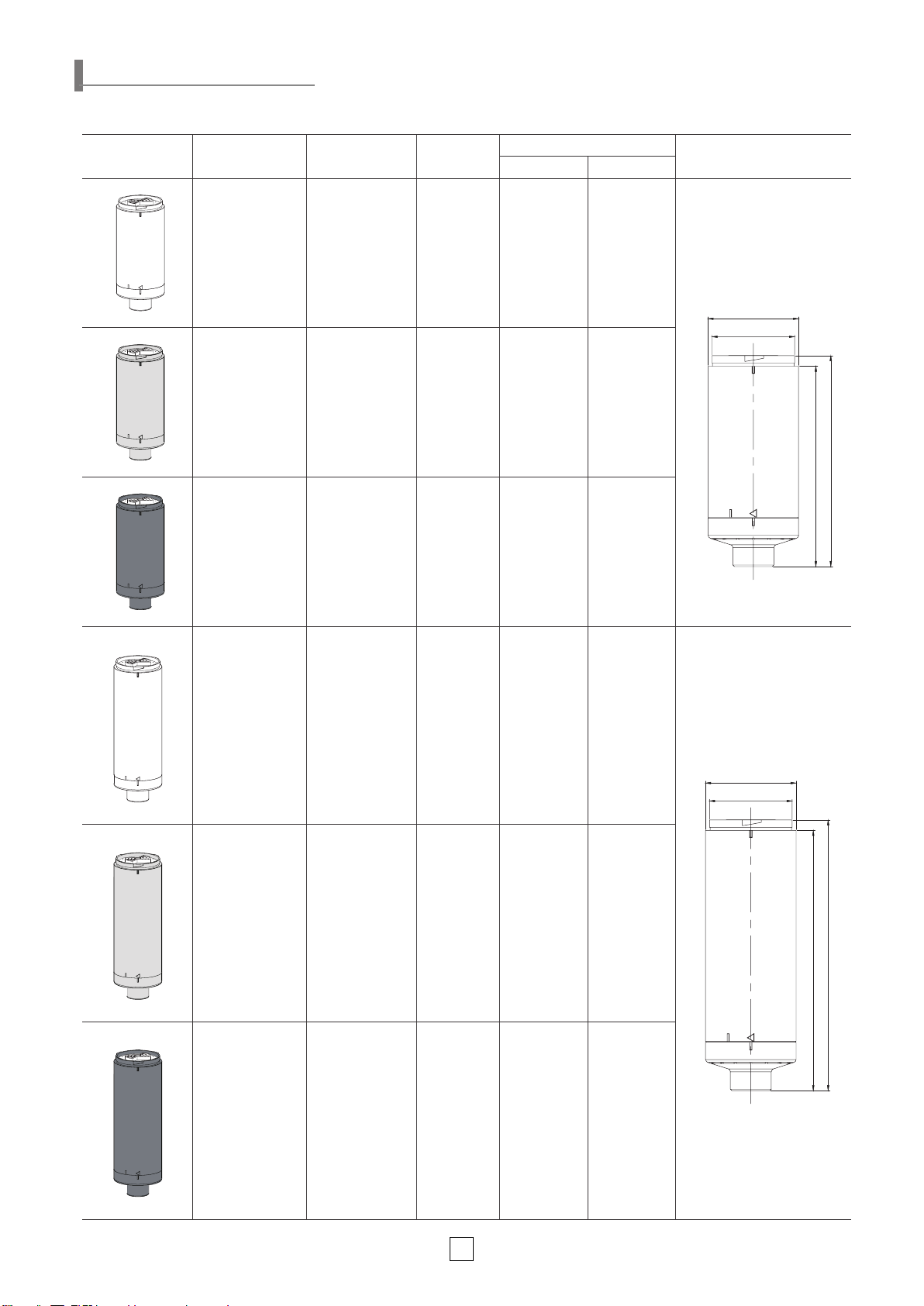

Shape Parts Name Model No Color 6SHFL¿FDWLRQ &RPPRQ6SHFL¿FDWLRQV
Voltage Current
MTG60-POLE type
base module-DC MG60-BS-DC Ivory DC24V -
• Material:ABS
• Protection ratings with
assemble: IP65
• Product size: Ø60 X 140
MTG60-POLE type
base module-DC MG60-BS-DC-SV Silver DC24V -
MTG60-POLE type
base module-DC MG60-BS-DC-BK Black DC24V -
MTG60-POLE type
base module-AC MG60-BS-AC Ivory AC110-220V 0.035A
• Material:ABS
• Protection ratings with
assemble: IP65
• Product size: Ø60 X 180
MTG60-POLE type
base module-AC MG60-BS-AC-SV Silver AC110-220V 0.035A
MTG60-POLE type
base module-AC MG60-BS-AC-BK Black AC110-220V 0.035A
• Base module(Pole mount type) (Units : mm)
Ordering Specications
172.6
179.6
132.6
139.6
Ø60
Ø54.7
Ø60
Ø54.7
172.6
179.6
132.6
139.6
Ø60
Ø54.7
Ø60
Ø54.7
4 5
Shape Parts Name Model No Color 6SHFL¿FDWLRQ &RPPRQ6SHFL¿FDWLRQV
Voltage Current
MTG60-Self stand
base module-DC MG60-MBS-DC Ivory DC24V -
• Material:ABS
• Protection ratings with
assemble: IP65
• Product size: Ø60 X 120
MTG60-Self stand
base module-DC MG60-MBS-DC-SV Silver DC24V -
MTG60-Self stand
base module-DC MG60-MBS-DC-BK Black DC24V -
MTG60-Self stand
base module-AC MG60-MBS-AC Ivory AC110-220V 0.035A
• Material:ABS
• Protection ratings with
assemble: IP65
• Product size: Ø60 X 160
MTG60-Self stand
base module-AC MG60-MBS-AC-SV Silver AC110-220V 0.035A
MTG60-Self stand
base module-AC MG60-MBS-AC-BK Black AC110-220V 0.035A
• Base module(Self stand type) (Units : mm)
Ordering Specications
Ø60
Ø54.7
Ø60
Ø54.7
113
120
153
160
Ø60
Ø54.7
Ø60
Ø54.7
113
120
153
160
6 7
Shape Parts Name Model No Color 6SHFL¿FDWLRQ &RPPRQ6SHFL¿FDWLRQV
Voltage Current
MTG60M12
CONNECTOR
type base module-
DC
MG60-BS-DC-M12 Ivory DC24V -
• Material:ABS
• Protection ratings with
assemble: IP65
• Product size: Ø60 X 119
MTG60M12
CONNECTOR
type base module-
DC
MG60-BS-DC-M12-SV Silver DC24V -
MTG60M12
CONNECTOR
type base module-
DC
MG60-BS-DC-M12-BK Black DC24V -
MTG60M12
CONNECTOR
type base module-
AC
MG60-BS-AC-M12 Ivory AC110-220V 0.035A
• Material:ABS
• Protection ratings with
assemble: IP65
• Product size: Ø60 X 159
MTG60M12
CONNECTOR
type base module-
AC
MG60-BS-AC-M12-SV Silver AC110-220V 0.035A
MTG60M12
CONNECTOR
type base module-
AC
MG60-BS-AC-M12-BK Black AC110-220V 0.035A
• Base module(M12 CONNECTOR type ) (Units : mm)
Ordering Specications
Ø60
Ø54.7
Ø60
Ø54.7
M30
40 158.5
151.5
M30
40 118.5
111.5
Ø60
Ø54.7
Ø60
Ø54.7
M30
40 158.5
151.5
M30
40 118.5
111.5
6 7
MG60-HBZ/MG60-WBZ MGA60-R/MCA60-R/MRA60-RMG60-CV
MG60-R/A/G/B/W
MG60-MBS-DC
MG60-MBS-AC
TWS45 TWA45
MC60-R/A/G/B/W
MG60-BS-DC-M12
MG60-BS-AC-M12
Standard LB18 LW18 QZ18 SZ18 QL18 SL18
MR60-R/A/G/B/W
PE18
MG60-BS-DC
MG60-BS-AC

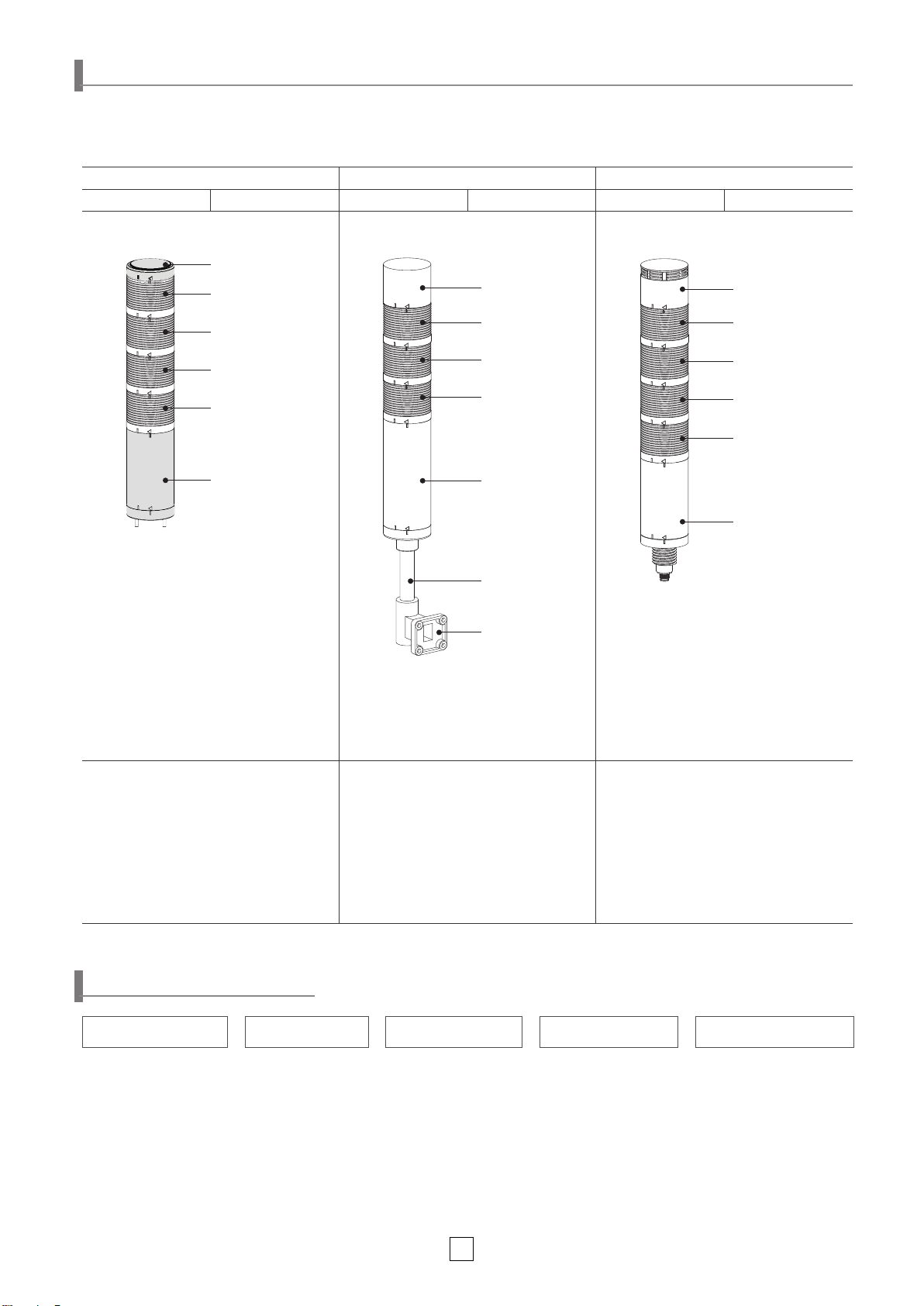

• Model No/ Shape
How to congure module

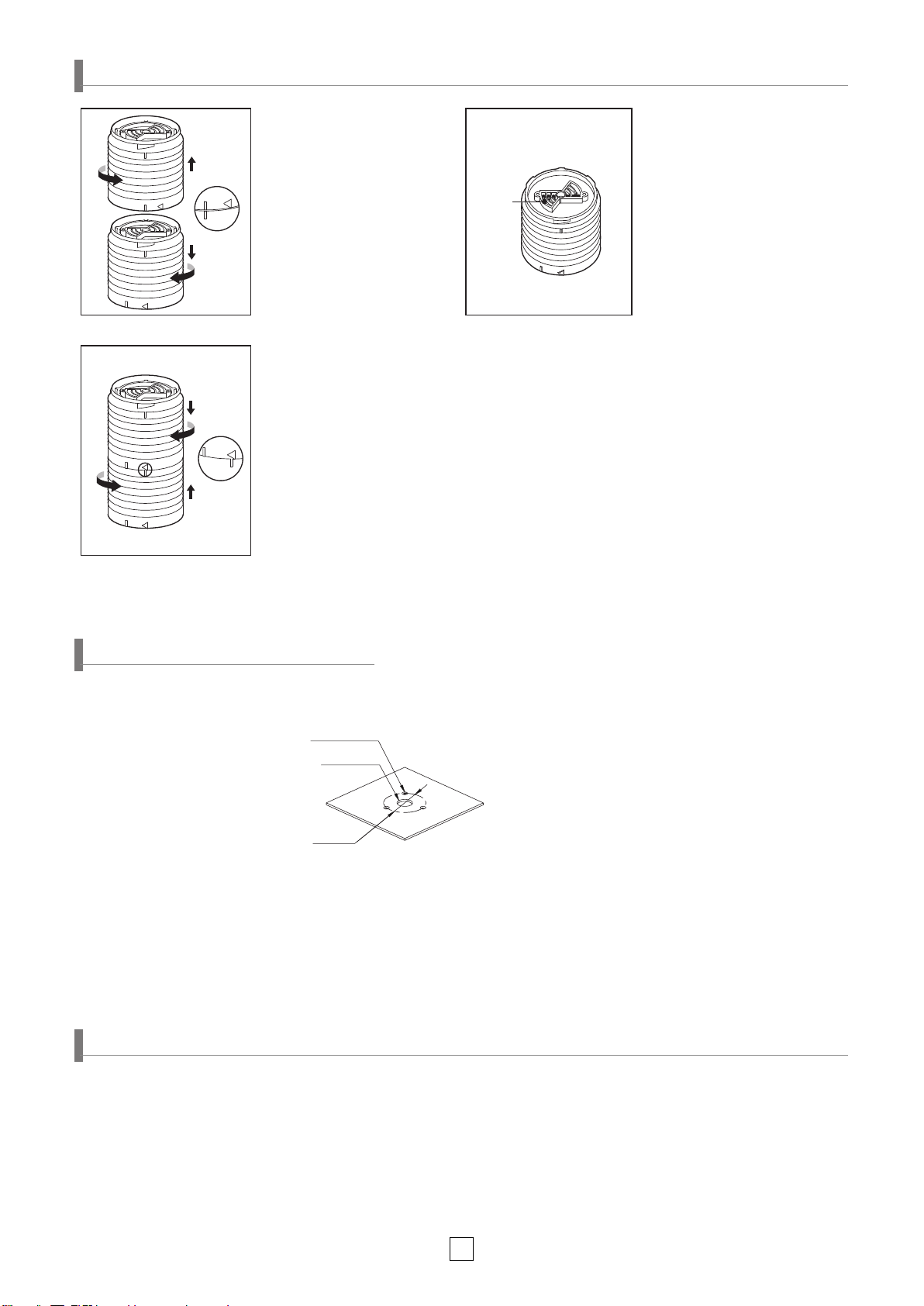

• Assembly step
Assembly Step 1
•Choose from cover, buzzer module, and
cover lens integrated module
•
3OHDVHUHIHUWRGHWDLOHGPRGXOHVSHFL¿FDWLRQ
LQRUGHUWR¿QGRXWPRGHOQXPEHU
Assembly Step 2
•
Select among MTG, MTC, MTRLED module
•
When the buzzer module is selected in the
¿UVWVWDJHRIPRGXOHDVVHPbly, only 4 levels
of R/A/G/B colors can be used for the LED
module (W color cannot be used)
•
If the operating voltage isAC type, the LED
module uses DC24V type.
•When selecting MTR LED module, please
choose black base module
•
3OHDVHUHIHUWRGHWDLOHGPRGXOHVSHFL¿FDWLRQ
LQRUGHUWR¿QGRXWPRGHOQXPEHU
Assembly Step 3
•
Please select among direct mount, pole
mount, and M12-CONNECTOR type
base module
•
3OHDVHUHIHUWRGHWDLOHGPRGXOHVSHFL¿FDWLRQ
LQRUGHUWR¿QGRXWPRGHOQXPEHU
Assembly Step 4
•In case of using POLE type based module
at theAssembly Step 3, you should select
a pole. The pole can be provided with
diverse length.
•
3OHDVHUHIHUWRGHWDLOHGPRGXOHVSHFL¿FDWLRQ
LQRUGHUWR¿QGRXWPRGHOQXPEHU
Assembly Step 5
•
Please select appropriate mounting bracket
in accordance with your needs
•
3OHDVHUHIHUWRGHWDLOHGPRGXOHVSHFL¿FDWLRQ
LQRUGHUWR¿QGRXWPRGHOQXPEHU
Direct mount
8 9

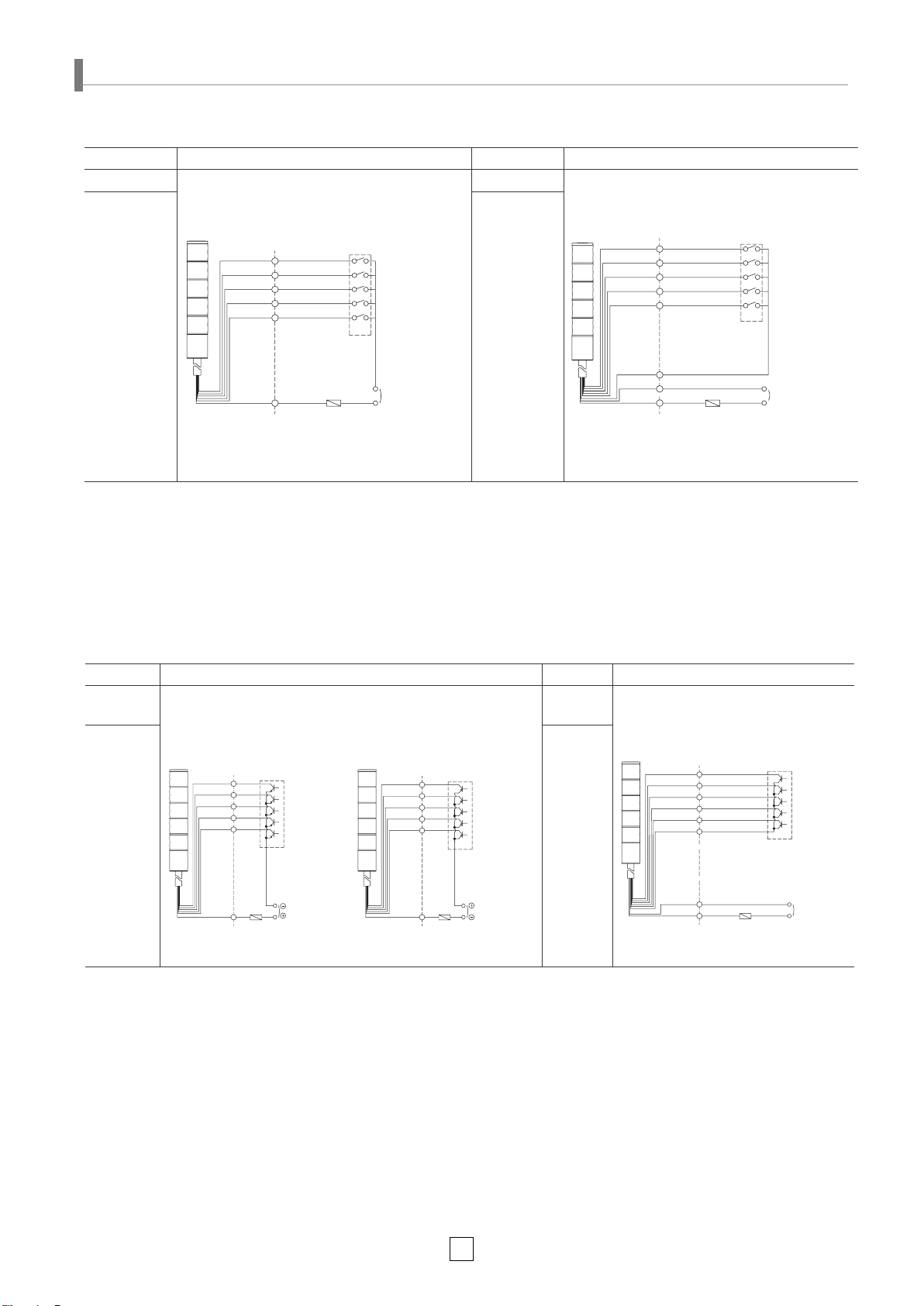

Wiring Instructions
• ’&VWHDG\W\SHFDEOHVSHFL¿FDWLRQ([WHUQDOSRZHUVLJQDOOLQH8/$:*VTPP
$&VWHDG\$&’&VWHDG\DVKLQJW\SHFDEOHVSHFL¿FDWLRQ([WHUQDOSRZHUOLQH8/$:*VT&PP
External signal line - UL1007 AWG22(0.3sq) 400mm
• ’&VWHDG\W\SHFDEOHVSHFL¿FDWLRQ([WHUQDOSRZHUVLJQDOOLQH8/$:*VTPP
$&VWHDG\$&’&VWHDG\DVKLQJW\SHFDEOHVSHFL¿FDWLRQ([WHUQDOSRZHUOLQH8/$:*VT&PP
External signal line - UL1007 AWG22(0.3sq) 400mm
Wiring diagrams Wiring diagrams
DC Steady/Flashing AC Steady/Flashing
MTG60
MTC60
MTR60
MTG60
MTC60
MTR60
1
2
3
4
5
1
2
3
4
5
White
Red
Amber
Green
Blue
Black
White
Black Power
Common
Fuse
1
2
3
4
5
1
2
3
4
5
White
Red
Amber
Green
Blue
Black Power
Fuse
Layer 1/Buzzer
Layer 2
Layer 3
Layer 4
Layer 5
Layer 1/Buzzer
Layer 2
Layer 3
Layer 4
Layer 5
Wiring diagrams Wiring diagrams
DC Steady/
Flashing AC Steady/
Flashing
MTG60
MTC60
MTR60
MTG60
MTC60
MTR60
External Transistor-NPN External Transistor-PNP External Transistor-PNP
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
White
Red
Amber
Green
Blue
Black
White
Red
Amber
Green
Blue
Black
Power
Power Power
Fuse
Fuse Fuse
Layer 1/Buzzer
Layer 2
Layer 3
Layer 4
Layer 5
Layer 1/Buzzer
Layer 2
Layer 3
Layer 4
Layer 5
Layer 1/Buzzer
Layer 2
Layer 3
Layer 4
Layer 5
White
Red
Amber
Green
Blue
Black
White
Black
Common
•
External power line -
UL1015 AWG18(0.75sq) x 2C 400mm
•
External signal line -
UL1007 AWG22(0.3sq) 400mm
• LED light source tower lamp can be connected using external contacts and transistors
v
Wiring Instructions
• In case of wiring with external contacts, refer to the wiring diagrams below according to your product’s type and voltage setting.
■
Wiring using external contact
■
Wiring using transistor
•
When using a transistor, please choose between the NPN or PNP type transistor which best matches the voltage and product type,
then connect them correctly according to the wiring diagrams below.
External contactExternal contact
8 9

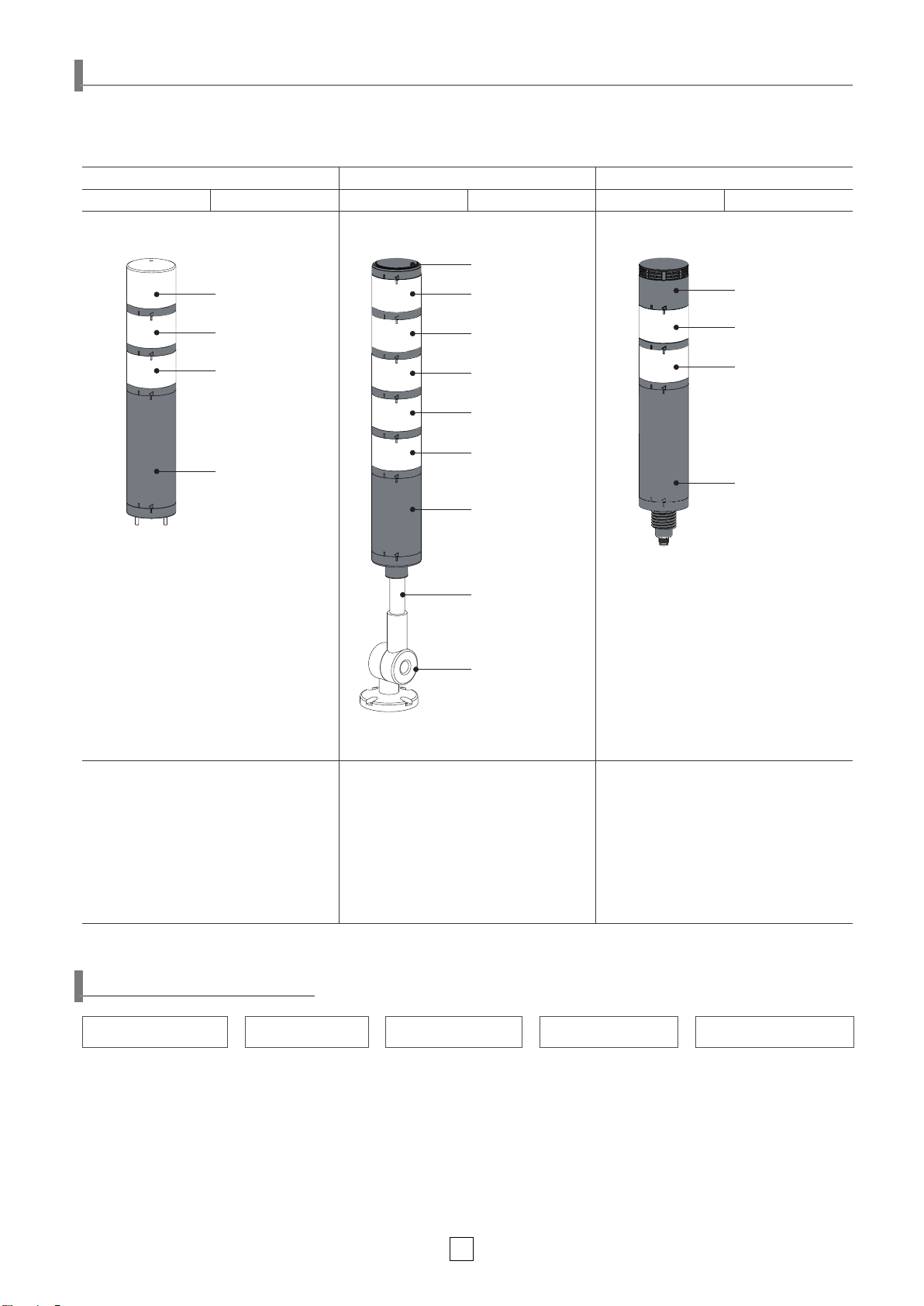

MTG60ML-24-4-RAGB-SV MTG60L-WBZ-110/220-3-RAG-LW18 MTG60L-HBZ-24-4-RAGB-M12
Shape Modules Shape Modules Shape Modules
cover module-Silver
+
LED module
+
MBS module-Silver(Self stand type module)
Buzzer module
+
LED module
+
BS module(Pole type module)
+
POLE
+
Bracket
Buzzer module
+
LED module
+
BS module(M12 CONNECTOR type module)
MG60-WBZ-24
-MC60-R/A/G/B-24 -MG60-BS-AC -PE18-250 -LW18
[Upper module] [LED module] [Base module] [Pole] [Bracket]
| | | | |
•
Cover module
•
Buzzer module
•
Cover integrated Lens
option is available
R-Red
A-Amber
G-Green
B-Blue
W-White
•
Pole mount type
•
Self stand type
•
M12 CONNECTOR type
•
(Blank)None-Self stand
type,
M12 CONNECTOR type
•
POLE type
•
(Blank)None-Self stand type,
M12 CONNECTOR type
•
POLE type, Self stand
type(Option)
MG60-CV-SV
MG60-WBZ-24
MG60-R-24
MG60-R-24
MG60-HBZ-24
MG60-A-24
MG60-A-24
MG60-R-24
MG60-G-24
MG60-G-24
MG60-G-24
MG60-A-24
MG60-B-24
MG60-B-24
MG60-BS-DC-M12
MG60-MBS-DC-SV MG60-BS-AC
PE18-250
LW18-bracket
Ordering Specications
• You can assemble the product through module combination by referring to the diagram below.
• When a buzzer module (high volume buzzer module/waterproof buzzer module) is combined, only
4 LED modules can be assembled (W color module cannot be assembled).
Example of MTG60 module conguration
10
MTC60ML-HBZ-24-4-RAGB MTCA60L-24-4-RAGB-SZ18 MTC60L-WBZ-110/220-3-RAG-M12-SV
Shape Modules Shape Modules Shape Modules
Buzzer module
+
LED module
+
MBS module(Self stand type module)
Cover integrated Lens option LED module
+
LED module
+
BS module(Pole type module)
+
POLE
+
Bracket
Buzzer module-Silver
+
LED module
+
BS module-Silver
(M12 CONNECTOR type module)
MCA60-R-24
-MC60-A/G/B-24 -MG60-BS-DC -PE18-250 -SZ18
[Upper module] [LED module] [Base module] [Pole] [Bracket]
| | | | |
•
Cover module
•
Buzzer module
•
Cover integrated Lens
option is available
R-Red
A-Amber
G-Green
B-Blue
W-White
•
Pole mount type
•
Self stand type
•
M12 CONNECTOR type
•
(Blank)None-Self stand
type,
M12 CONNECTOR type
•
POLE type
•
(Blank)None-Self stand type,
M12 CONNECTOR type
•
POLE type, Self stand
type(Option)
MG60-HBZ-24
MC60-R-24
MCA60-R-24
MC60-R-24
MG60-WBZ-24-SV
MC60-A-24
MC60-A-24
MC60-A-24
MC60-G-24
MC60-G-24
MC60-G-24
MC60-B-24
MC60-B-24
MG60-BS-DC
MG60-BS-AC-M12-SV
MG60-MBS-DC
PE18-250
Sl18-bracket
Ordering Specications
Example of MTC60 module conguration
• You can assemble the product through module combination by referring to the diagram below.
• When a buzzer module (high volume buzzer module/waterproof buzzer module) is combined, only
4 LED modules can be assembled (W color module cannot be assembled).
11
MTRA60ML-110/220-3-RAG-BK MTR60L-24-5-RAGBW-QL18-BK MTR60L-HBZ-110/220-2-RA-M12-BK
Shape Modules Shape Modules Shape Modules
Cover integrated Lens option LED module
+
LED module
+
MBS module-Black
(Self stand type module)
cover module-Black
+
LED module
+
BS module-Black(Pole type module)
+
POLE
+
Bracket
Buzzer module-Black
+
LED module
+
BS module-Black
(M12 CONNECTOR type module)
MG60-CV-BK
-MR60-R/A/G/B/W-24 -MG60-BS-DC-BK -PE18-250 -QL18
[Upper module] [LED module] [Base module] [Pole] [Bracket]
| | | | |
•
Cover module
•
Buzzer module
•
Cover integrated Lens
option is available
R-Red
A-Amber
G-Green
B-Blue
W-White
•
Pole mount type
•
Self stand type
•
M12 CONNECTOR type
•
(Blank)None-Self stand
type,
M12 CONNECTOR type
•
POLE type
•
(Blank)None-Self stand type,
M12 CONNECTOR type
•
POLE type, Self stand
type(Option)
MR60-R-24
MR60-A-24
MR60-B-24
MR60-G-24
MR60-W-24
MG60-BS-DC-BK
MG60-CV-BK
PE18-250
QL18-bracket
MRA60-R-24
MR60-A-24
MR60-G-24
MG60-MBS-AC-BK
MR60-R-24
MG60-HBZ-24-BK
MR60-A-24
MG60-BS-AC-M12-BK
Ordering Specications
Example of MTR60 module conguration
• You can assemble the product through module combination by referring to the diagram below.
• When a buzzer module (high volume buzzer module/waterproof buzzer module) is combined, only
4 LED modules can be assembled (W color module cannot be assembled).
12
Installation Environment and Protection Rating
• This product is designed for indoor use with protection rating of Non-Waterproof(High-volume buzzer type)/ IP65(Waterproof
buzzer type).
• If the product is installed in locations that subject it to excessive dust or water other than the designated IP protection rating
indicated(IP65), it may cause malfunction or damage to the product.
• For further information, please visit our website(www.qlight.com).
3-Ø5 HOLES
Ø8 HOLES
PCD 30
v
MTG60 Self stand base module DC/ Self stand base module AC
How to Change Lens Kit
•
Disassembling lens kits
①
Twist the upper lens kit in a
counter-wise direction so the
“I” mark from both kits align.
②
Disassemble by removing the
upper lens kit from the lower
one.
•
Assembling lens kits
①
Put the two lens kits together
by aligning the upper lens’ “I”
mark and the lower lens’ “I”
mark together.
②
Lock the two kits by twisting the
upper lens kit in a counter
-
wise
direction so the upper lens’ “
◁
”
mark aligns with the lower lens’
“I” mark.
Lens modules are connected through
cone-shaped contact point. In case
the contact point is damaged, it may
cause a contact failure.
※Cautions
Contact
Point
Mounting Hole Specications
①Machine holes on the mounting surface referring to the diagram below.
②5HPRYHWKHDQJHQXWVIURPEROWVDQGSODFHWKHSURGXFWWKURXJKWKHPRXQWLQJVXUIDFHKROHV
③)DVWHQWKHDQJHQXWVRQWKHRSSRVLWHVLGHRIWKHPRXQWLQJVXUIDFHXQWLOWKHSURGXFWLVWLJKWHQHGVHFXUHO\
13
Dimensions
MTG60
MTC60
MTR60
TWS45 TWA45
• Please refer to the dimensions below for installation of mounting brackets.
■ MTG60 Self stand base module DC/ module AC
Ø12 CABLE ENTRY
4-Ø4.5 HOLES
360°/6-Ø5 HOLES
360°/3-Ø5 HOLES
Ø12
4-Ø4.5 HOLES
60
35
40
66
20
PCD40~50
10
36
60
35
20
04
66
36
PCD30~40
50
84
50
360°/3-Ø5 HOLES
PCD40~50
86
20
10
44
Ø12 CABLE ENTRY
84
50
25
50
86
44
PCD40~50
4-Ø4.5 HOLES
4-Ø4.5 HOLES
360°/6-Ø5 HOLES
Ø12
Mounting Accessories (Sold Separately)
14
Dimensions
MTG60
MTC60
MTR60
18mm SCREW & NUT LB18
LW18 SZ18
QZ18 SL18
QL18
Ø18
Ø18
32
34 24
Ø70
51
M18x1.5
THREAD
75
52
69
Ø18
Ø18
66
52
38
34
46
50
58
Ø28
1/2" PF
4-Ø5 HOLES
12x22
CABLE ENTRY
Ø70
50
Ø18
4-Ø5 HOLES
PCD 56
4-Ø5.5 HOLES
2-Ø8.5 HOLES
PCD 54~56
Ø18
Ø18
Ø70
51.5 67
4-Ø5.5 HOLES
Ø18 CABLE ENTRY
PCD 54~56
Ø90
4-Ø6 HOLES
Ø11 CABLE ENTRY
66
45.5
PCD 73
Ø18
Ø18
32
34 24
Ø70
51
M18x1.5
THREAD
75
52
69
Ø18
Ø18
66
52
38
34
46
50
58
Ø28
1/2" PF
4-Ø5 HOLES
12x22
CABLE ENTRY
Ø70
50
Ø18
4-Ø5 HOLES
PCD 56
4-Ø5.5 HOLES
2-Ø8.5 HOLES
PCD 54~56
Ø18
Ø18
Ø70
51.5 67
4-Ø5.5 HOLES
Ø18 CABLE ENTRY
PCD 54~56
Ø90
4-Ø6 HOLES
Ø11 CABLE ENTRY
66
45.5
PCD 73
■ MTG60-Pole mount type module DC/ module AC
Mounting Accessories (Sold Separately)

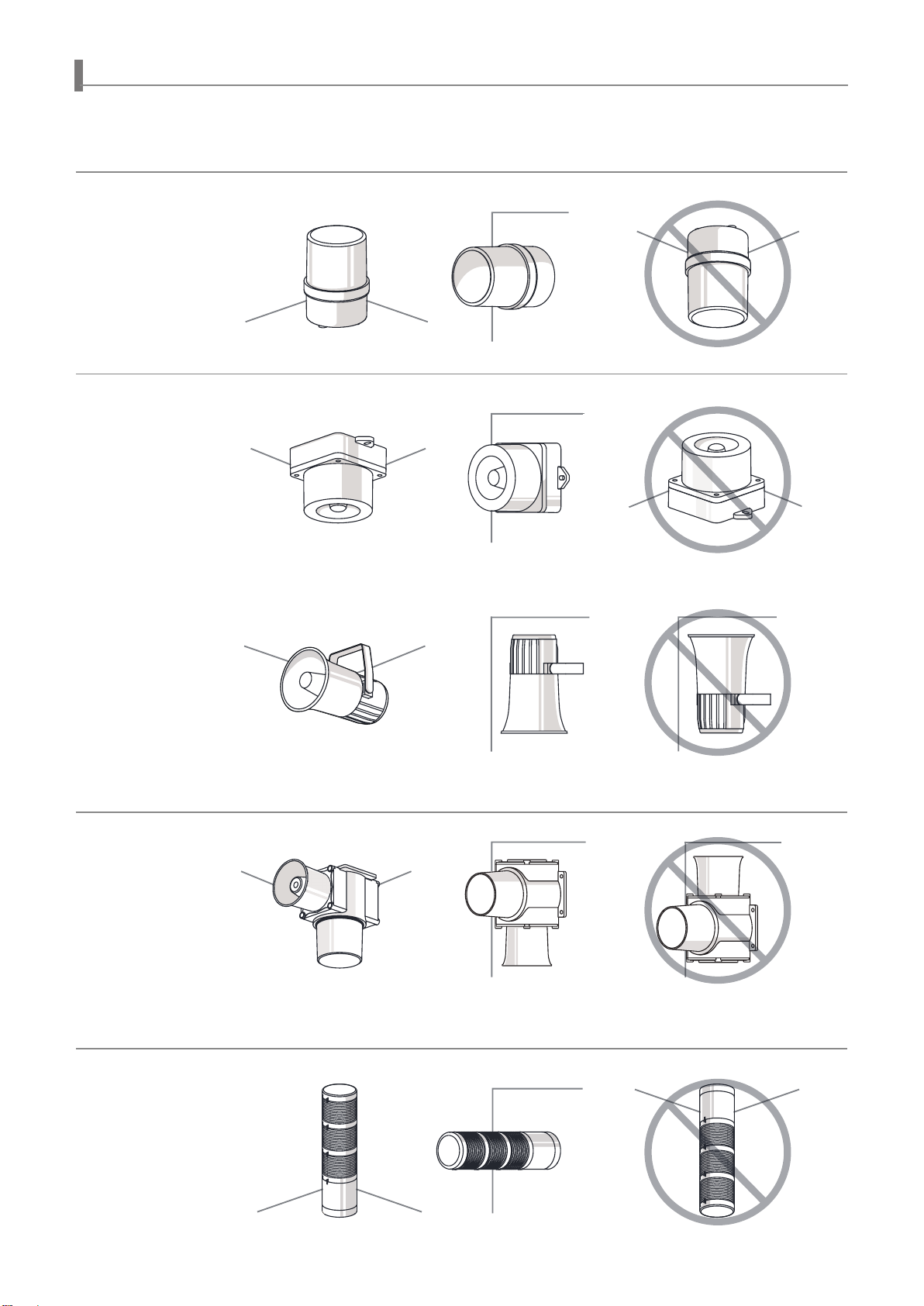

Product installation direction
■ Install the product in accordance with the manual. Otherwise rainwater or moisture may penetrate into the product.
ㆍELECTRONIC SOUNDER/SIGNAL HORN
Sounder part shall not be facing the sky.
Sounder part shall not be facing the sky.
ㆍBEACON/SIGNALING LIGHT
Power cord inlet part shall not be facing the sky.
Power cord inlet part shall not be facing the sky.
ㆍSIGNAL TOWER LIGHTS
ㆍHEAVY-DUTY & EXPLOSION PROOF SIGNALINGS
※For products with a protection rating of less than IPX4, please install it vertically.
※For products with a protection rating of less than IPX4, please install it vertically.
EN - MTG60 - 2302A
+HDG2FH_6XLWH67;97RZHU*DVDQGLJLWDOUR*HXPFKHRQJX6HRXO.RUHD
Tel. +82-2-2679-6152(Toll free. +82-80-328-2222) Fax. +82-2-2679-6154
Factory | 185-25, Mukbang-ro, Sangdong-myeon, Gimhae-si, Gyeongsangnamdo, Korea Tel. +82-55-328-1111(Toll free. +82-80-328-1111)
Qlight OverSEAs Sales Dept |
704 Nakdong-daero, Sasang-gu, Busan, Korea(Eomgung-Dong) Tel : +82-51-620-4100
4OLJKW3XEOLF5HODWLRQV0DUNHWLQJ7HDP2FH_1DNGRQJGDHUR6DVDQJJX%XVDQ.RUHD(RPJXQJ’RQJ7HO
1RUWK)LUVW6WUHHW6XLWH6DQ-RVH&$86$7HO)D[
&KLQD)DFWRU\6KDQJKDL6DOHV2FH_1DQGD5RDG%DRVKDQ$UHD6KDQJKDL&KLQD7HO
-
21
-
6651
-
7100 Fax. +86
-
21
-
6315
-
3929
&KLQD)DFWRU\6LWH4LGRQJ_+DL\DQ5RDG4LGRQJ+LJKWHFK,QGXVWULDO’HYHORSPHQW=RQH4LGRQJ-LDQJVX3URYLQFH&KLQD
Tel +86
-
513
-
8384
-
9999 Fax +86
-
513
-
8384
-
9910
Product Operation Inquiry / Customer Support +82-51-620-4100
You can expect prompt service if you have exact information such as model name, symptom, telephone number and address.
※$//352’8&7352’8&763(&,),&$7,216$1’’$7$$5(68%-(&772&+$1*(:,7+287127,&(72,03529(
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
+HDGRIILFH6XLWH67;97RZHU*DVDQGLJLWDOUR*HXPFKHRQJX6HRXO.RUHD (Postal Code : 08507)
Factory : 185-25, Mukbang-Ro, Sangdong-Myeon, Gimhae-Si, Gyeongsangnam-Do, Korea (Postal Code : 50805)
For your safety
6SHFL¿FDWLRQDQGGLPHQVLRQVOLVWHGLQWKLVFDWDORJXHVXEMHFWWRFKDQJHZLWKRXWQRWLFHIRUSURGXFWTXDOLW\LPSURYHPHQW
7KHQHZHVWSURGXFWLQIRUPDWLRQLVDYDLODEOHRQRXUZHEVLWHZZZTOLJKWFRP
3OHDVHUHDGWKHLQVWUXFWLRQPDQXDODWWDFKHGWRWKHSURGXFWFDUHIXOO\EHIRUHLQVWDOODWLRQDQGXVH
www.qlight.com
This manual suits for next models
47
Table of contents
Other Qlight Lighting Equipment manuals
Qlight
Qlight SAOL1 User manual
Qlight
Qlight S150US User manual
Qlight
Qlight SESA User manual
Qlight
Qlight SNE-TI User manual
Qlight
Qlight SHDL User manual
Qlight
Qlight SH1S User manual
Qlight
Qlight S80AL User manual
Qlight
Qlight S60R User manual
Qlight
Qlight S60LR User manual
Qlight
Qlight QT56MCL User manual
Qlight
Qlight SSEL User manual
Qlight
Qlight ST45ML-NEC User manual
Qlight
Qlight Q125L User manual
Qlight
Qlight ST45ML-Ex User manual
Qlight
Qlight STA25SLM Series User manual
Qlight
Qlight QWHL150 User manual
Qlight
Qlight SWTCL User manual
Qlight
Qlight S100E User manual
Qlight
Qlight EMCL50U Series User manual
Qlight
Qlight CPK-CAN User manual
