Qlight QT50L-USB-BZ User manual

PB 1
QT50(M)L/ QT70(M)L-USB
5030
54
90dB85dB
Ordering Specications
QT50L-USB-BZ
-3-RAG -QZ18
[Model number] [Layer] [Color] [Mount bracket]
| | | |
• QT50L-USB-BZ
• QT50L-USB-WS
• QT50L-USB-WM
• QT50L-USB-WA
• QT50ML-USB-BZ
• QT50ML-USB-WS
• QT50ML-USB-WM
• QT50ML-USB-WA
• Layer 1-1
• Layer 2-2
• Layer 3-3
• Layer 4-4
• Layer 5-5
R-Red
A-Amber
G-Green
B-Blue
W-White
• (Blank)
- Standard type
• Mounting type
- LB18 - LW18
- QZ18 - SZ18
- QL18 - SL18
- QLA18
QT70L-USB-BZ
-3-RAG -QZ24
[Model number] [Layer] [Color] [Mount bracket]
| | | |
• QT70L-USB-BZ
• QT70L-USB-WS
• QT70L-USB-WM
• QT70L-USB-WA
• QT70ML-USB-BZ
• QT70ML-USB-WS
• QT70ML-USB-WM
• QT70ML-USB-WA
• Layer 1-1
• Layer 2-2
• Layer 3-3
• Layer 4-4
• Layer 5-5
R-Red
A-Amber
G-Green
B-Blue
W-White
• (Blank)
- Standard type
• Mounting type
- LB24 - LW24
- QZ24 - SZ24
- QL24 - SL24
- QLA24
USB LED Tower Lights
• QT50(M)L-USB • QT70(M)L-USB
Thank you for purchasing Qlight’s products. Please read this user manual carefully
prior to installation and operation to ensure safe and correct use.
Precautions for Safety
Failure to follow the instructions below may cause a loss of life or serious physical injury.
1. Please remove any objects that can interrupt ventilation around the product.
2. Please turn off the power of the product immediately if it fails to operate properly.
3. Carefully wire the product according to each product’s specication.
4. Please be careful in preventing chemicals such as thinner, benzene, etc. in contact with the surface of the product.
5. Do not apply excessive force/impact to the product.
6. Failure to follow any of the instructions above may cause malfunction or damage to the product, re, and electric shock.
Precautions for Correct Use
Failure to follow the proper instructions may cause damage to property, the product, or malfunction of the product
that would void the warranty.
1. During wiring or maintenance, please completely turn off the power of the product. (Failure to follow this may lead to an electric shock.)
2. Do not install the product in locations that subjects it to excessive dust or water other than the conditions designated by the IP protection
ratings indicated for each product. (Failure to follow these instructions may cause a re to the product, electric shock, physical injury,
malfunction or damage to the product.)
3. Do not alter or repair this product. If maintenance or repair service is required, please contact your local Qlight contact point. (Failure to
follow these instructions may lead to re, electric shock, or product damage.)
4. Please apply the correct voltage to the product. (Failure to follow these instructions may lead to re, electric shock, or product damage.)
5. When the product is applied to a condition that may impact lives or property, please make sure to have a double safety device. (Failure to
follow this may cause damage to property, re, electric shock and loss of life.)
Please scan the QR code for more
detailed product information.
www.qlight.com

2 3
LAYER
1
2
3
4
5
L
148
204
260
316
372
LAYER
1
2
3
4
5
L
287
343
399
455
511
Ø70
L
1556
12
27 50
USB CONNECTOR
USB POWER CONNECTOR
PCD 40
360˚/3-M4 BOLT
Ø13 CABLE ENTRY
USB CONNECTOR
USB POWER CONNECTOR
M24Ⱌ1.5
THREAD
Ø70
Ø24
502719120 1556
L
LAYER
1
2
3
4
5
L
208
249
290
331
372
LAYER
1
2
3
4
5
L
422
463
504
545
586
PCD 30
360˚/3-M4 BOLT
Ø13 CABLE ENTRY
Ø50
41
L
12527
12
15
USB CONNECTOR
USB POWER CONNECTOR
USB CONNECTOR
USB POWER CONNECTOR
Ø50
Ø18
L
200 14 27 15
M18Ⱌ1.5
THREAD
41
125
QT70L-USB
QT50L-USB
QT70ML-USB
QT50ML-USB

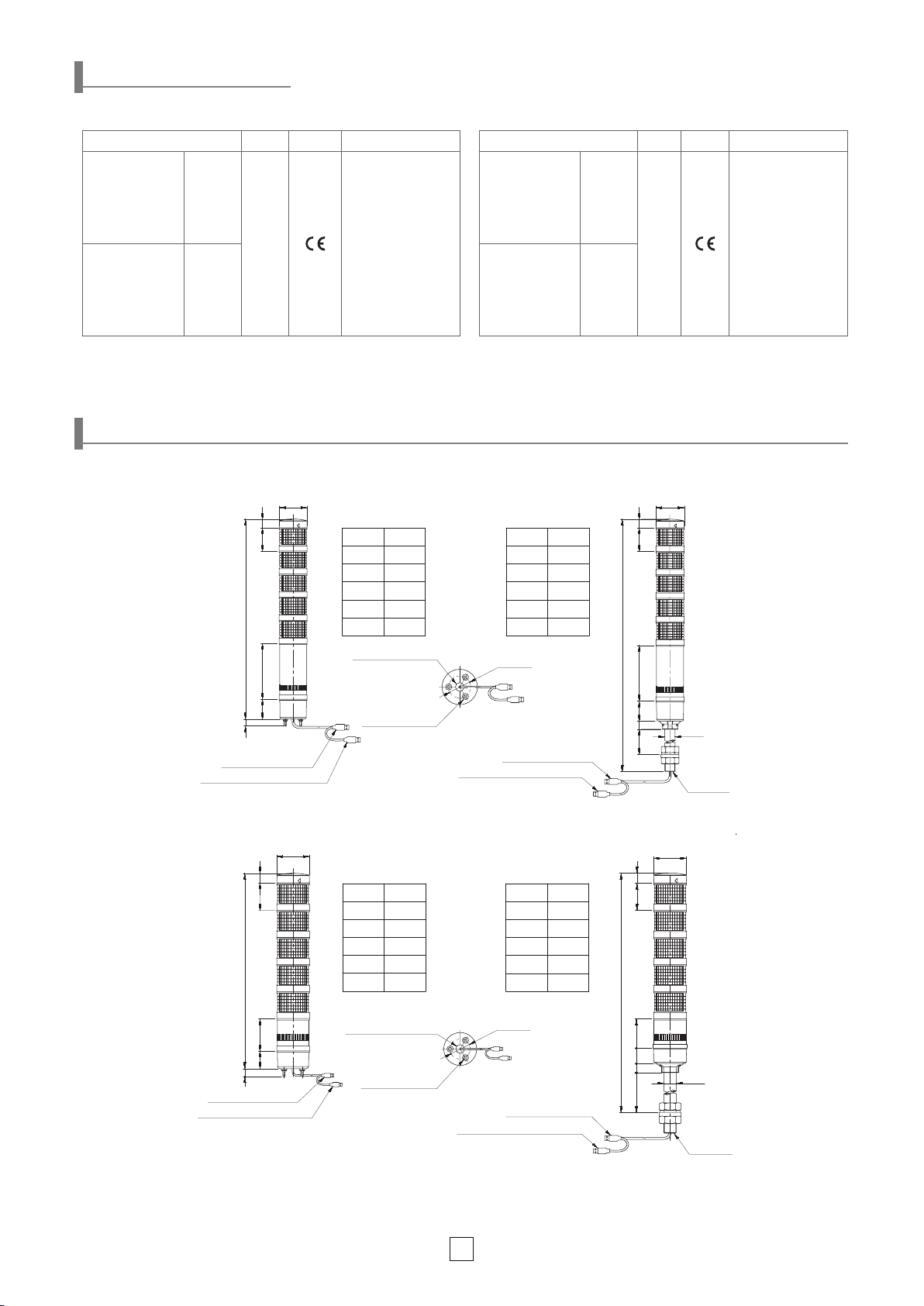

Dimensions
(Units : mm)
Product Specications
Model number Layer Certicate Color
QT50L-USB-BZ
QT50L-USB-WS
QT50L-USB-WM
QT50L-USB-WA
5 Buzzer
sounds
5 Warning
sounds
5 Melodies
5 Alarms
• Layer 1
• Layer 2
• Layer 3
• Layer 4
• Layer 5
Layer1 :R-Red
Layer2: R-Red G-Green
Layer3: R-Red A-Amber
G-Green
Layer4 : R-Red A-Amber
G-Green B-Blue
Layer5: R-Red A-Amber
G-Green B-Blue
W-White
QT50ML-USB-BZ
QT50ML-USB-WS
QT50ML-USB-WM
QT50ML-USB-WA
5 Buzzer
sounds
5 Warning
sounds
5 Melodies
5 Alarms
Model number Layer Certicate Color
QT70L-USB-BZ
QT70L-USB-WS
QT70L-USB-WM
QT70L-USB-WA
5 Buzzer
sounds
5 Warning
sounds
5 Melodies
5 Alarms
• Layer 1
• Layer 2
• Layer 3
• Layer 4
• Layer 5
Layer1 :R-Red
Layer2: R-Red G-Green
Layer3: R-Red A-Amber
G-Green
Layer4 : R-Red A-Amber
G-Green B-Blue
Layer5: R-Red A-Amber
G-Green B-Blue
W-White
QT70ML-USB-BZ
QT70ML-USB-WS
QT70ML-USB-WM
QT70ML-USB-WA
5 Buzzer
sounds
5 Warning
sounds
5 Melodies
5 Alarms
• Protection rating : IP54
• Ambient operating temperature : -30°C to + 50°C
• QT50(M)L-USB • QT70(M)L-USB

2 3
• Connect both USB power connector and USB signal control connector that are connected to each other to USB ports of a PC.
USB Cable Wiring Instructions
USB CONNECTOR
USB POWER CONNECTOR

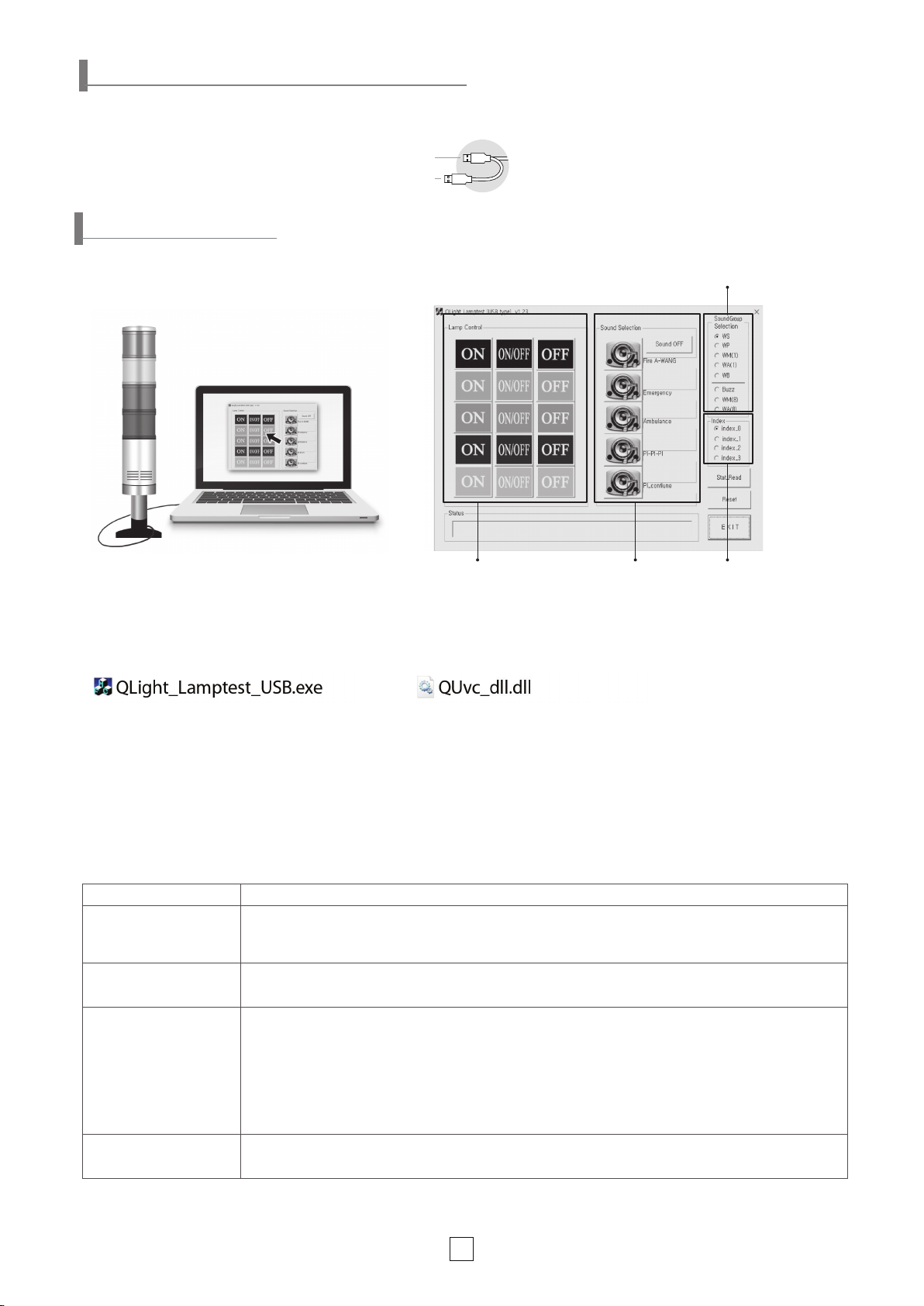

1. Please connect USB Tower Lamp and PC as above gure <How to connect with PC>
2. Please download test program(USB.zip) from Qlight website or blog.qlight.com
3. The downloaded sample program will be saved as “USB Test Program.zip”.
When you unzip the le, there will be a le with the names below.
Test program Required library for test program
※
When developing the program, please download and refer to the le “manual and library”(sample programs and manuals
for developers).
4. When you run the “QLight lamptest_usb.exe”le, a test programs will show up as above.
Products sound options are classied as WS / WA / WM / BZ. The product will only play the sound option selected when
the order was placed.
Test Instructions
<For Connecting Method with pc> <Test program>
①Lamp Control ②Sound Selection ④Index
③Sound Group Selection
■ How to use program
Article Detailed specication
① Lamp control
- ON: Lamp turns on when the button is clicked
- ON/OFF: Lamp ashes when the button is clicked
- OFF: Lamp turns off when the button is clicked
② Sound selection
- 1ch-5ch: Has 5 sounds per model, turns on the chosen sound
- Click “Sound off” button to turn off the sound
③ Sound group selection
- WS : 5 warning sounds(mono)
- WP : 5 special warning sounds(mono)
- WM(1) : 5 Melodies(mono)
- WA(1) : 5 alarms(mono)
- WB : Software Buzzer 5 sounds(speaker type)
- Buzzer : 5 Buzzer sounds
- WM(8) : 5 Melodies(8 chord)
- WA(8) : 5 alarms(8 chord)
④ Index - You can connect up to a maximum of 4 USB Tower lights per PC
- Must be controlled by selecting Index0 - Index3 for controlling the USB tower light. The default is set to Index0

4 5
Light function selection
switch(①)
▶LF :
ashing
■ Light function selection

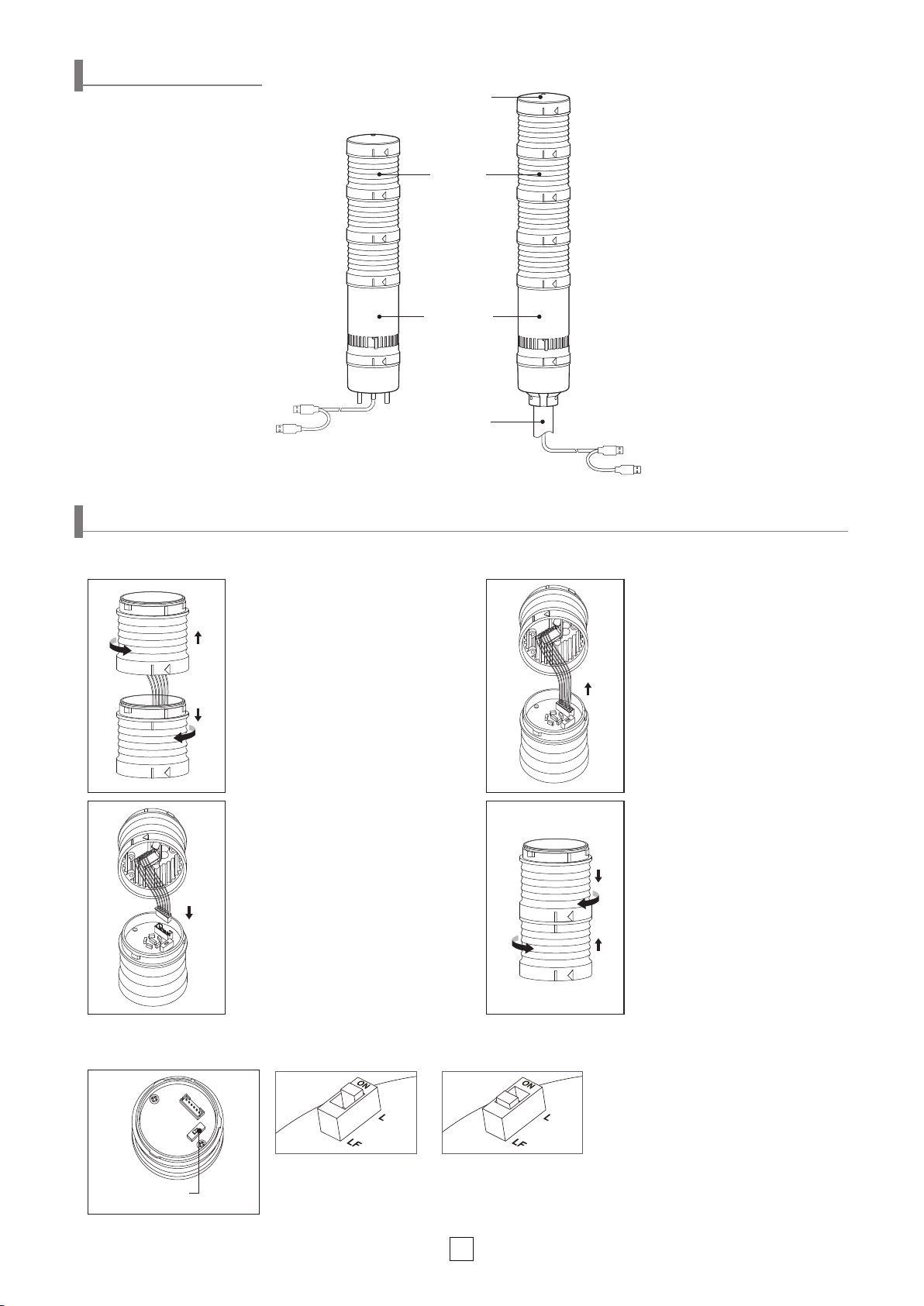

■How to replace the module
• Please refer to the instruction below
to use light function selection switch(①)
located inside the product.
• Default function is set at steady LED.
Select the desired function for your
application during installation.
▶L : steady
• Disassembling the module
① Twist the upper module kit in a
counterclockwise direction so
the “ I ” mark from both kits align.
②Disassemble by removing the
upper module kit from the lower
one.
• How to assemble the connector
① Assemble the connector of the
upper lens and the connector of
the lower lens in the direction of
the arrow.
• How to disassemble the connector
① Disassemble the connector of the
upper lens and the connector of the
lower lens in the direction of the
arrow.
• Assembling the module
① Put the two module together
by aligning the upper module’ “
I ”
mark and the lower module’ “
I ”
mark together.
② Lock the two kits by twisting
the upper module kit in a clock
wise direction so the upper
module’ “◁” mark aligns with the
lower module’ “
I ” mark.
How to replace the module / Light Function Selection
Parts Denition
Cover
(PC)
Lens(
PC
)
Housing (
PC
)
Pole(Al)
USB CONNECTOR
USB CONNECTOR
USB POWER CONNECTOR
USB POWER CONNECTOR

4 5
QT50(M)L-USB QT70(M)L-USB
PCD 30 PCD 40
3-Ø5 HOLES
Ø13 CABLE ENTRY Ø13 CABLE ENTRY
3-Ø5 HOLES
Mounting Hole Specications
① Machine holes on the mounting surface referring to the diagram below.
② Remove the ange nuts from bolts and place the product through the mounting surface holes.
③ Fasten the ange nuts on the opposite side of the mounting surface until the product is tightened securely.
Dimensions
QT50ML-USB
TWS45 TWA45
QT70ML-USB
TWS80 TWA80

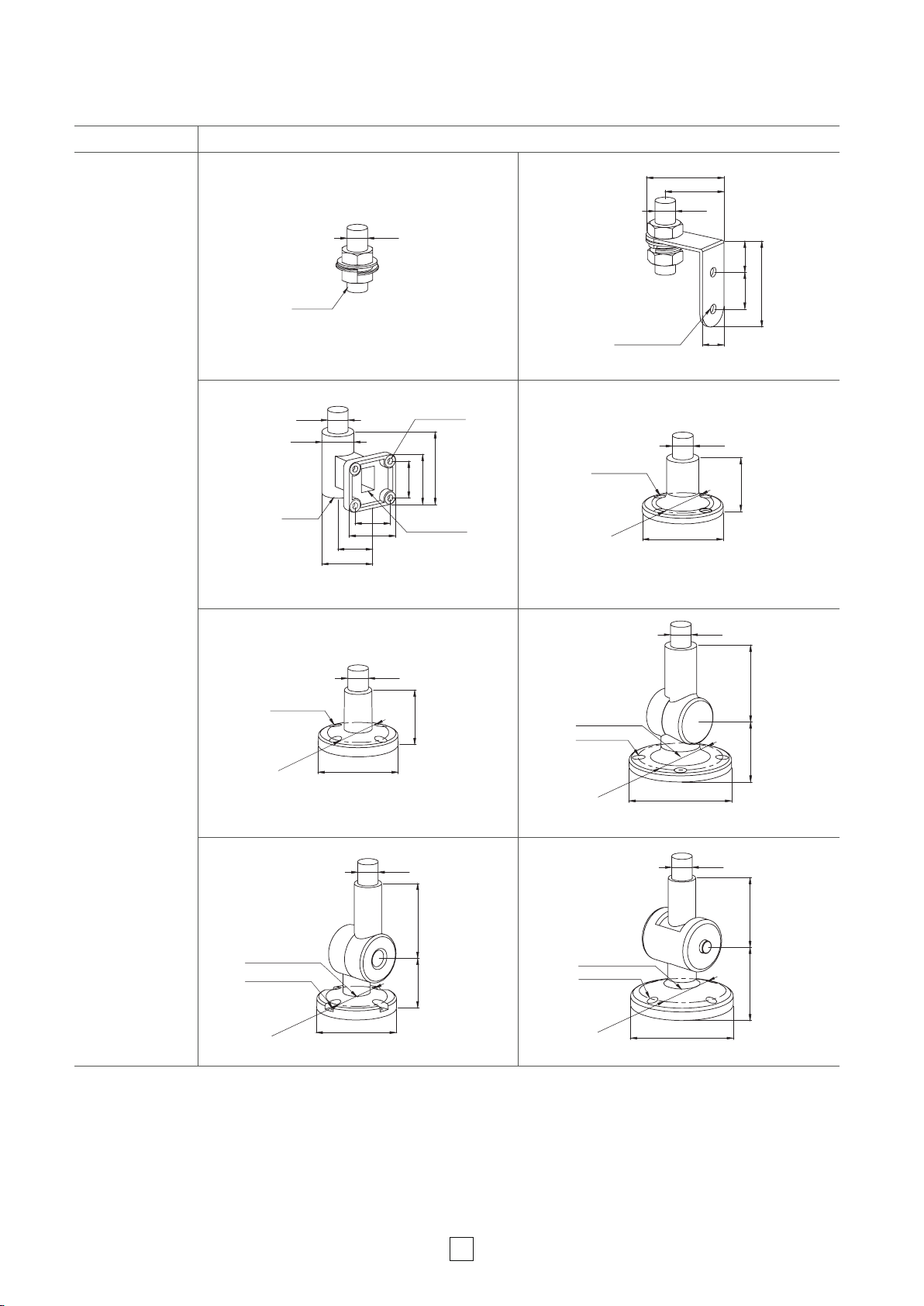

Mounting Accessories (Sold Separately)
• Please refer to the dimensions below for installati on of mounting brackets
■ QT50ML-USB/ QT70ML-USB -Direct Mounting Type Model
Installation Environment and Protection Rating
• This product is designed for use with protection rating of IP54.
• If the product is installed in locations that subject it to excessive dust or water other than the designated IP protection rating
indicated(IP54), it may cause malfunction or damage to the product.
• For further information, please visit our website (www.qlight.com).

6 7
Dimensions
QT50L-USB
18mm SCREW & NUT LB18
LW18 SZ18
QZ18 SL18
QL18 QLA18
■ QT50L-USB
- Pole Mounting Type Model
Ø18
Ø18
32
34 24
Ø70
51
M18x1.5
THREAD
75
52
69
Ø18
Ø18
66
52
38
34
46
50
58
Ø28
1/2" PF
4-Ø5 HOLES
12x22
CABLE ENTRY
Ø70
50
Ø18
4-Ø5 HOLES
PCD 56
60 57
4-Ø5.5 HOLES
Ø19 CABLE ENTRY
Ø18
Ø90
PCD 73
4-Ø5.5 HOLES
2-Ø8.5 HOLES
PCD 54~56
Ø90
Ø18
4-Ø6 HOLES
45.5 66
Ø11 CABLE ENTRY
PCD 73
Ø18
Ø70
51.5 67
4-Ø5.5 HOLES
Ø18 CABLE ENTRY
PCD 54~56

6 7
Dimensions
QT70L-USB
24mm SCREW & NUT LB24
LW24 SZ24
QZ24 SL24
QL24 QLA24
■ QT70L
-USB - Pole Mounting Type Model
46
70
81
32
34
46
M24x1.5
THREAD
2-Ø8.5 HOLES
69.5
52
38
34
46
50
70
1/2" PF
4-Ø5 HOLES
12x22 CABLE ENTRY
33
Ø24
Ø70
55
4-Ø5.5 HOLES
PCD 54~56
Ø24
4-Ø5 HOLES
Ø90
55.5
PCD 73
Ø24
Ø35
Ø24
Ø24
60 57
Ø90
Ø19 CABLE ENTRY
PCD 73
Ø24
4-Ø5.5 HOLES
Ø90
4-Ø6 HOLES
45.5 66
Ø11 CABLE ENTRY
PCD 73
Ø24
Ø90
51.567
4-Ø5.5 HOLES
Ø18 CABLE ENTRY
PCD 71~73
Ø24
