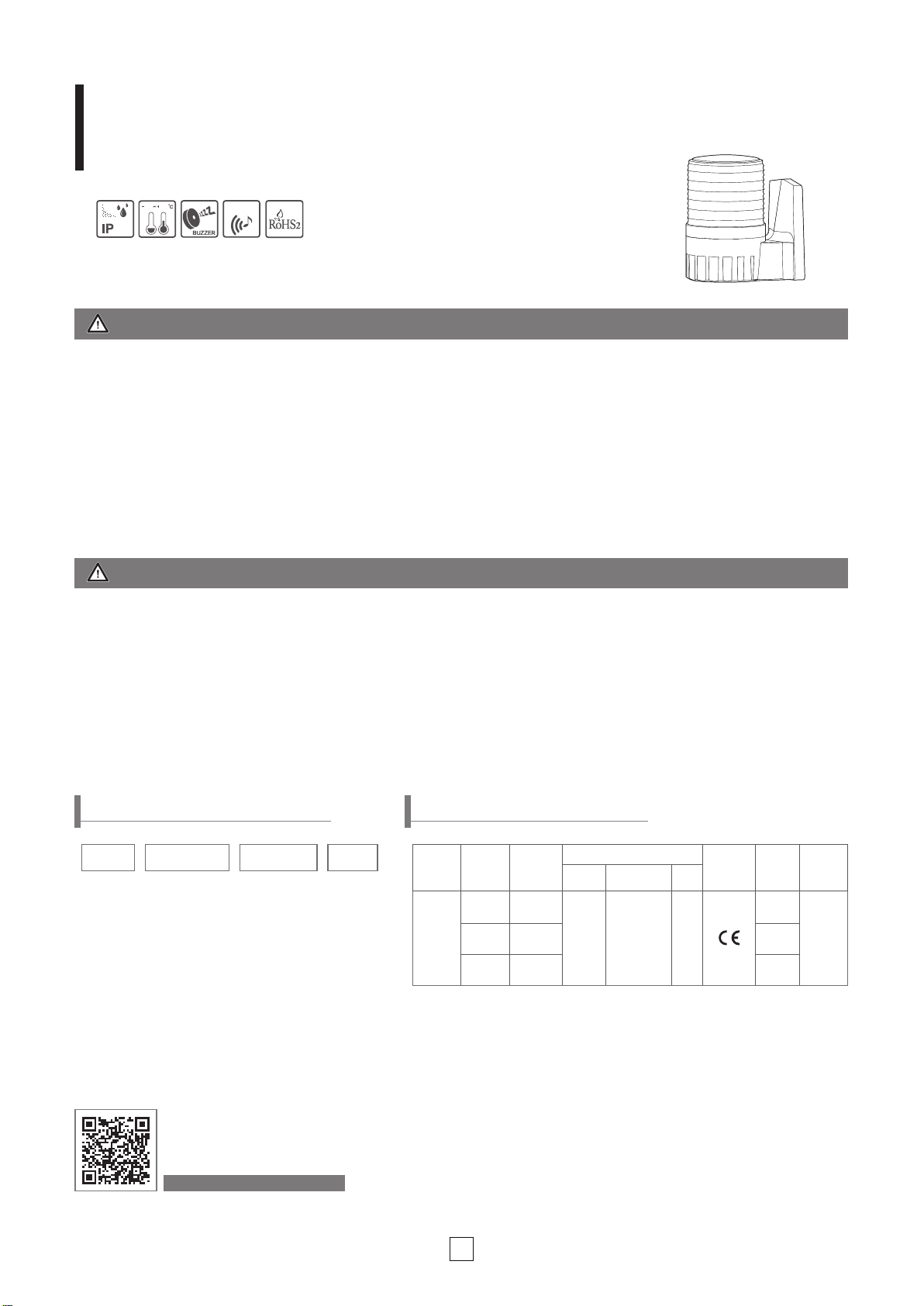

Qlight S80AS User manual

1
S80AS
Xenon Strobe Light
• Protection rating : IP44
• Ambient operating temperature : -30°C to +50°C
S80AS - BZ - 220 - R
[Model
number] [Buzzer] [Voltage] [Color]
| | | |
• S80AS • (Blank)
- No buzzer type
• BZ
- Built-in buzzer
type
• 12/24
- DC12V-24V
• 110 -AC110V
• 220 -AC220V
R-Red
A-Amber
G-Green
B-Blue
Ordering Specications
Thank you for purchasing Qlight’s products. Please read this user manual carefully
prior to installation and operation to ensure safe and correct use.
Precautions for Safety
Failure to follow the instructions below may cause a loss of life or serious physical injury.
1. Please remove any objects that can interrupt ventilation around the product.
2. Please turn o󰘯 the power of the product immediately if it fails to operate properly.
3. Carefully wire the product according to each product’s speci󰘰cation.
4. Please be careful in preventing chemicals such as thinner, benzene, etc. in contact with the surface of the product.
5. Do not apply excessive force/impact to the product.
6. Failure to follow any of the instructions above may cause malfunction or damage to the product, 󰘰re, and electric shock.
Precautions for Correct Use
Failure to follow the proper instructions may cause damage to property, the product, or malfunction of the
product that would void the warranty.
1. During wiring or maintenance, please completely turn o󰘯 the power of the product. (Failure to follow this may lead to an electric shock.)
2. Do not install the product in locations that subjects it to excessive dust or water other than the conditions designated by the IP protection
ratings indicated for each product. (Failure to follow these instructions may cause a 󰘰re to the product, electric shock, physical injury,
malfunction or damage to the product.)
3. Do not alter or repair this product. If maintenance or repair service is required, please contact your local Qlight contact point. (Failure to
follow these instructions may lead to 󰘰re, electric shock, or product damage.)
4. Please apply the correct voltage to the product. (Failure to follow these instructions may lead to 󰘰re, electric shock, or product damage.)
5. When the product is applied to a condition that may impact lives or property, please make sure to have a double safety device. (Failure to
follow this may cause damage to property, 󰘰re, electric shock and loss of life.)
Product Specications
Model
number
Voltage Current
Bulb specications
Certicate Weight Color
Volts/
Watts
Conguration Part#
S80AS
DC12V
-24V
Max.
0.435A
220V
-350V
BGA2120
-BBC
I type
47
0.27kg
R-Red
A-Amber
G-Green
B-Blue
AC110V 0.075A 0.24kg
AC220V 0.060A 0.24kg
90 dB
5030
44
※CE compliant : DC12V-24V
Please scan the QR code for more
detailed product information.
www.qlight.com

2
S80AS
S80AS
84
127
43
72
113
105
50
60
88
4-Ø4 HOLES
Ø8 CABLE ENTRYØ83
•
Power Wiring : In case of terminal type, power lines are
connected to the terminals.
• This product can be wired regardless of polarity.
• For built-in buzzer type, there is a shared supply line for the
buzzer
and lighting element.
Lens(AS)
Housing(ABS)
Xenon bulb
S80AS
Wiring Instructions
Dimensions
(Units : mm)
Parts Denition/ Installation/ Mounting Hole Specications
Xenon Bulb Replacement Instructions
■ Parts Denition/ Installation
• Machine holes on the mounting surface referring to the
diagram below.
■ Mounting Hole Specications
• Please wait at least 30 minutes after turning off the power before replacing the
xenon bulb.
• Please pull out the entire xenon bulb structure①to disassemble.
• For xenon bulb assembly, please ensure the connector portion of the xenon
bulb structure matches the pin location ②.
Disassemble
bulb Assemble
bulb
Power
Fuse
50
60
4-Ø4.5 HOLES
Min. Ø5 CABLE ENTRY
①
②
DC/AC

3
Installation Environment and Protection Rating
• This product is designed for use with protection rating of IP44.
• If the product is installed in locations that subject it to excessive dust or water other than the designated IP protection rating
indicated(IP44), it may cause malfunction or damage to the product.
•
In case of outdoor applications, install the product in the upright position. Do not install the product horizontal or upsidedown
positions where water can potentially penetrate into the product and impact it’s operation.
• For further information, please visit our website (www.qlight.com).
Installation
• Please mount xing board①to the mounting surface using bolts. Then, connect the power line of terminal box.
• Hook the rear of the mounting bracket of the product to the upper xing board②, then push the body against the xing board.
• After tightly attaching the product body to the mounting bracket, tighten the bolt at the bottom of the mounting bracket③.
ⴙ
ⴘ
ⴚ

Qlight Co., Ltd. www.qlight.com | [email protected]
Head Ofce | Suite #1510, STX-V Tower, 128 Gasan digital 1-ro, Geumcheon-gu, Seoul, Korea Tel. [phone] Fax : [phone]
Factory | 185-25, Mukbang-ro, Sangdong-myeon, Gimhae-si, Gyeongsangnamdo, Korea Tel. [phone]
Qlight Overseas Sales Dept | 704 Nakdong-daero, Sasang-gu, Busan, Korea(Eomgung-Dong) Tel : [phone]
Qlight Public Relations & Marketing Team Ofce | 704 Nakdong-daero, Sasang-gu, Busan, Korea(Eomgung-Dong) Tel : [phone]
Qlight USA, Inc. www.qlight.com www.qlightusa.com | [email protected]
3003 North First Street, Suite #341, San Jose, CA 95134 USA Tel. [phone] Fax. [phone]
SHANGHAI Qlight Electronic Co., Ltd. www.qlight.com www.qlightcn.com | [email protected]
China Factory/ Shanghai Sales Ofce | #19, Nanda Road, Baoshan Area, Shanghai, China Tel. [phone] Fax. [phone]
Product Operation Inquiry / Customer Support [phone]
You can expect prompt service if you have exact information such as model name, symptom, telephone number and address.
※ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Head office : Suite #1510, STX-V Tower, 128 Gasan digital 1-ro, Geumcheon-gu, Seoul, Korea (Postal Code : 08507)
Factory : 185-25, Mukbang-Ro, Sangdong-Myeon, Gimhae-Si, Gyeongsangnam-Do, Korea (Postal Code : 50805)
For your safety
Specication and dimensions listed in this catalogue subject to change without notice for product quality improvement.
The newest product information is available on our website.(www.qlight.com)
Please read the instruction manual attached to the product carefully before installation and use.
www.qlight.com
EN - S80AS -1911A
