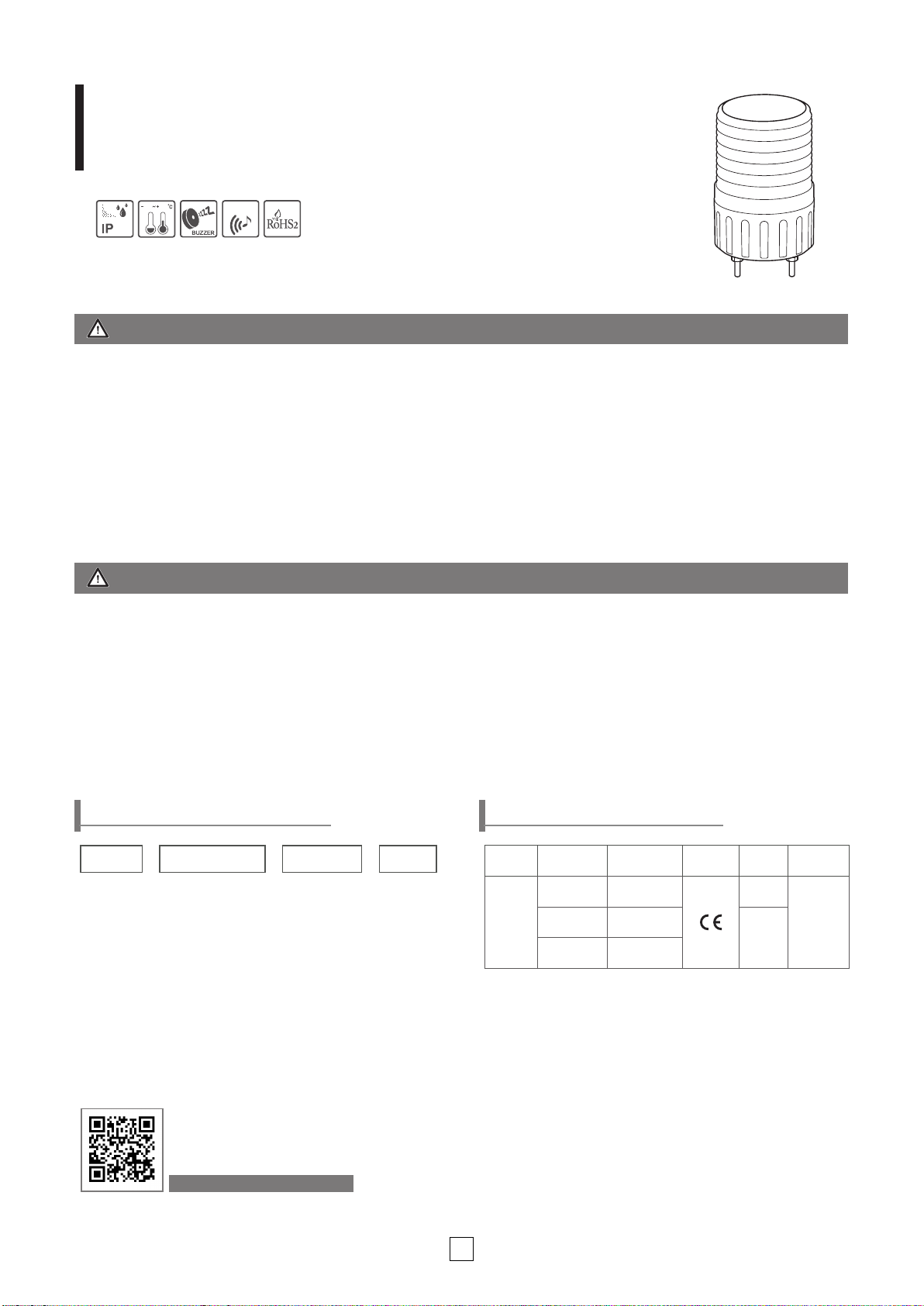

Qlight S80L User manual

90 dB
5030
44
1
S80L
S80L - BZ - 220 - R
[Model
number] [Buzzer] [Voltage] [Color]
| | | |
• S80L • (Blank)
- No buzzer type
• BZ
- Built-in buzzer type
• 12 - DC12V
• 24 - DC24V
• 110 -AC110V
• 220 -AC220V
R-Red
A-Amber
G-Green
B-Blue
LED Steady/ Flashing Signal Light
Thank you for purchasing Qlight’s products. Please read this user manual carefully
prior to installation and operation to ensure safe and correct use.
Precautions for Safety
Failure to follow the instructions below may cause a loss of life or serious physical injury.
1. Please remove any objects that can interrupt ventilation around the product.
2. Please turn o󰘯 the power of the product immediately if it fails to operate properly.
3. Carefully wire the product according to each product’s speci󰘰cation.
4. Please be careful in preventing chemicals such as thinner, benzene, etc. in contact with the surface of the product.
5. Do not apply excessive force/impact to the product.
6. Failure to follow any of the instructions above may cause malfunction or damage to the product, 󰘰re, and electric shock.
Precautions for Correct Use
Failure to follow the proper instructions may cause damage to property, the product, or malfunction of the
product that would void the warranty.
1. During wiring or maintenance, please completely turn o󰘯 the power of the product. (Failure to follow this may lead to an electric shock.)
2. Do not install the product in locations that subjects it to excessive dust or water other than the conditions designated by the IP protection
ratings indicated for each product. (Failure to follow these instructions may cause a 󰘰re to the product, electric shock, physical injury,
malfunction or damage to the product.)
3. Do not alter or repair this product. If maintenance or repair service is required, please contact your local Qlight contact point. (Failure to
follow these instructions may lead to 󰘰re, electric shock, or product damage.)
4. Please apply the correct voltage to the product. (Failure to follow these instructions may lead to 󰘰re, electric shock, or product damage.)
5. When the product is applied to a condition that may impact lives or property, please make sure to have a double safety device. (Failure to
follow this may cause damage to property, 󰘰re, electric shock and loss of life.)
Ordering Specications Product Specications
Please scan the QR code for more
detailed product information.
www.qlight.com
Model
number
Voltage Current Certicate Weight Color
S80L
DC12V-24V Max. 0.125A 0.20kg R-Red
A-Amber
G-Green
B-Blue
AC110V 0.035A
0.32kg
AC220V 0.020A
※CE Compliant : DC24V
• Protection rating : IP44
• Ambient operating temperature : -30°C to +50°C

2
PCD 50
3-Ø5 HOLES
Ø10 HOLES
• DC/AC type cable specication :
External power line - UL1015 AWG18(0.75sq) x 2C 400mm
• DC type product can be wired regardless of polarity.
• For built-in buzzer type, there is a shared supply line for the buzzer
and lighting element.
Ø83
Ø10 HOLES PCD 50
S80L
13315
42 84
360°/3-M4 BOLT
DC
AC
Red
Black
White
Black
Power
Power
Fuse
Fuse
Parts Denition/ Installation/ Light Function Selection/ Mounting Hole Specications
■ Parts Denition/ Installation ■ Light Function Selection
■ Mounting Hole Specications
Wiring InstructionsDimensions
(Units : mm)
• Please refer to the chart below to use light function selection
switch(
①
) located inside the product.
• Default function is set at steady LED. Select the desired function
for your application during installation.
▶ L : Steady ▶ LF : Flashing
• Machine holes on the mounting surface referring to the
diagram below.
• First, remove the ange nuts from bolts and place the
product through the mounting surface holes.
• Fasten the ange nuts on the opposite side of the
mounting surface until the product is tightened securely.
Reector
(Heat resistant ABS)
Lens(AS)
LED unit
Housing(ABS)
Flange nut
Rubber spacer
Flat washer
①

3
Dimensions
S80L
TWS80 TWA80
13
50
84
50
20
44
86
12
Ø12
25
66
50
84
50
36
PCD40~50
PCD40~50
PCD40
Ø12 CABLE ENTRY
360°/ 3-
Ø5 HOLES
4-Ø5 HOLES
360°/ 3-
Ø5 HOLES
4-Ø5 HOLES
Mounting Accessories (Sold Separately)
• Please refer to the dimensions below for installation of mounting brackets
Installation Environment and Protection Rating
• This product is designed for use with protection rating of IP44.
• If the product is installed in locations that subject it to excessive dust or water other than the designated IP protection rating
indicated(IP44), it may cause malfunction or damage to the product.
• In case of outdoor applications, install the product in the upright position. Do not install the product horizontal or upside-
down positions where water can potentially penetrate into the product and impact it’s operation.
• For further information, please visit our website (www.qlight.com).

Qlight Co., Ltd. www.qlight.com | [email protected]
Head Ofce | A-412, 579, Gyeongin-ro, Guro-gu, Seoul, Korea Tel. [phone] Fax : [phone]
Factory | 185-25, Mukbang-Ro, Sangdong-Myeon, Gimhae-si, Gyeongsangnamdo, Korea Tel. [phone]
Qlight Overseas Sales Dept | 185-25, Mukbang-Ro, Sangdong-Myeon, Gimhae-Si, Gyeongsangnam-Do, Korea Tel : [phone]
Qlight Public Relations & Marketing Team Ofce | Nakdong-daero, Sasang-gu, Busan, Korea(Eomgung-Dong) Tel : [phone]
Qlight USA, Inc. www.qlight.com www.qlightusa.com | [email protected]
3003 North First Street, Suite #341, San Jose, CA 95134 USA Tel. [phone] Fax. [phone]
SHANGHAI Qlight Electronic Co., Ltd. www.qlight.com www.qlightcn.com | [email protected]
China Factory/ Shanghai Sales Ofce | #19, Nanda Road, Baoshan Area, Shanghai, China Tel. [phone] Fax. [phone]
Product Operation Inquiry / Customer Support [phone]
You can expect prompt service if you have exact information such as model name, symptom, telephone number and address.
※ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Head office : A-412, 579 Kyungin-Ro, Guro-Gu, Seoul, Korea (Postal Code : 08212)
Factory : 185-25, Mukbang-Ro, Sangdong-Myeon, Gimhae-Si, Gyeongsangnam-Do, Korea (Postal Code : 50805)
For your safety
Specication and dimensions listen in this catalogue subject to change wuthout notice for product quality improvemont.
The newest prouct information is available on our web site.(www.qlight.com)
Please read the instruction Manual attached to the product carefully before installation and use.
EN - S80L -1907A
